Appenzell Peak - Grill plate Klarstein - Free user manual and instructions

Product Type	Grill and Raclette Plate
Brand	Klarstein
Model	Appenzell Peak
Article Number	10032694
Power Supply	230 V ~ 50-60 Hz
Power	1000 W
Suitable for	Raclette and Grilling
Temperature Control	Yes, via rotary knob
Pan Height	Adjustable to control melting temperature
Grill Plate	Top plate for grilling meat and vegetables
Pan Included	Yes, one raclette pan
Material	Steel with non-stick coating (estimated)
Control Type	Rotary knob with continuous adjustment
Cleaning	Damp sponge, do not immerse in water
Safety	Do not touch hot surfaces, unplug after use
Recommended Use	Household use only
Accessories Included	Raclette pan, grill plate, Allen key

Frequently Asked Questions - Appenzell Peak Klarstein

How to turn on the appliance?

Turn the adjustment knob to turn on the appliance. The grill plate and pan will then heat up. Make sure the top plate and pan are properly installed before starting.

How to adjust the temperature?

Use the rotary knob to adjust the temperature. You can also adjust the pan's height to change the distance from the heating element, which affects the cheese melting speed.

Can multiple pans be used?

The appliance comes with one pan. However, you can use it to melt cheese while grilling food on the top plate. If you want multiple pans, check compatibility with the manufacturer.

How to clean the appliance?

Always unplug the appliance and let it cool down completely. Clean it with a damp sponge and mild detergent. Never immerse the appliance in water and do not use abrasive products or metal sponges.

What to do if the appliance does not heat up?

Check that the appliance is plugged into a working outlet and that the adjustment knob is in the on position. If the problem persists, contact customer service. Do not attempt to repair it yourself.

Can I use the appliance with an extension cord?

Yes, but only an extension cord in good condition and suitable for the appliance's power (1000 W). Make sure the cord does not touch hot surfaces.

Is the appliance suitable for commercial use?

No, the appliance is designed for household use only. Commercial use may damage the appliance and void the warranty.

How to avoid burns?

Never touch hot surfaces during operation. Use oven mitts or kitchen gloves. Keep the appliance out of reach of children and do not leave it unattended.

What to do if there is an odor during first use?

Before first use, run the appliance empty for 10 minutes to eliminate manufacturing odors. Ventilate the room well. It is normal for a slight odor to occur.

How to recycle the appliance at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point for electrical and electronic waste in accordance with local regulations. This protects the environment.

USER MANUAL Appenzell Peak Klarstein

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SICHERHEITSHINWEISE

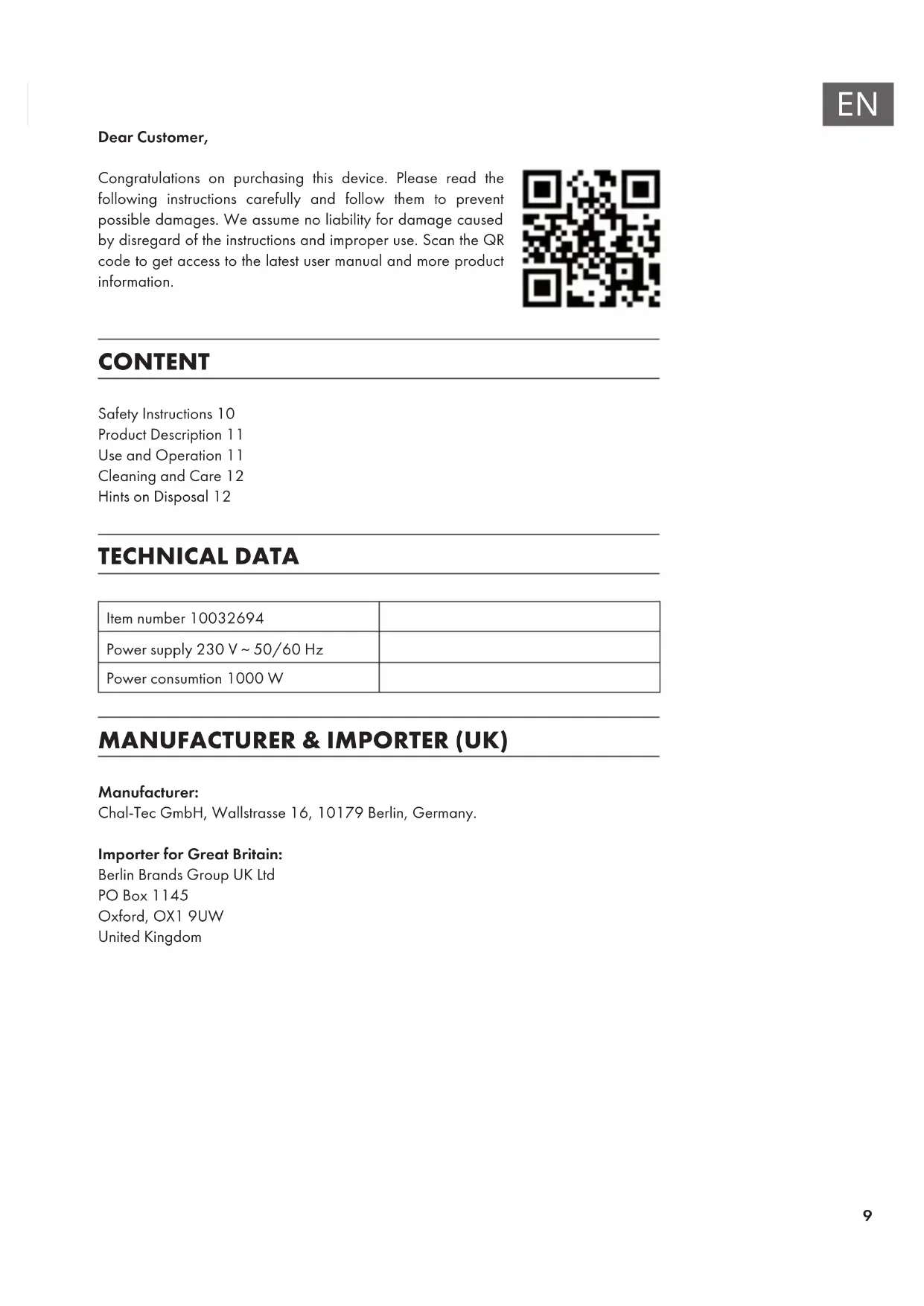

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Product Description 11

Use and Operation 11

Cleaning and Care 12

Hints on Disposal 12

TECHNICAL DATA

Item number 10032694
Power supply 230 V ~ 50/60 Hz
Power consumption 1000 W

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETY INSTRUCTIONS

• Children are not aware of the dangers of electrical appliances. Never leave the appliance unattended during use. Therefore always keep the appliance outside the reach of children.
• The appliance is only suitable for household use. Never use the appliance outdoors.
• Certain parts of the appliance may become hot during use. Refrain from touching these areas so as not to burn yourself.
• Make sure that the appliance and the power cable never come into contact with hot devices such as hotplate or naked fl ames.
• Do not allow the power cable to hang down over the edge of the sink, worktop or table.
• Make sure your hands are dry when you touch the appliance, the power cable or the plug.
• Never submerge the appliance in water or another liquid.
• The appliance needs to dissipate its heat in order to prevent fire. Therefore it is vital to make sure that the appliance has sufficient clearance on all sides and cannot come into contact with flammable materials. The appliance may not be covered up.
• Do not use the appliance near explosives or flammable materials.
• Do not use a metal scouring pad to clean the appliance. Fragments of metal could come loose and touch the appliance's electrical parts causing it to short circuit.
• Always switch the appliance off if: it malfunctions while you are using it, before you start maintenance, if you fit or remove accessories and if you unplug the appliance.
• Only use an extension cord that is in good condition.
• Never switch the appliance off by pulling the cable.
• Always engage a recognised, trained service engineer if the appliance or the cable is damaged, malfunctions
  have occurred and/or the appliance requires repairs.
• Carrying out your own or having inexpert repairs carried out can cause considerable danger for the user.
• We accept no liability for damage caused by incorrect usage or the ignoring of the regulations in this manual.
• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
  Children should be supervised to ensure that they do not play with the appliance.
  Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

CAUTION

Risk of burns! The temperature of accessible surfaces may be high when the appliance is operating. Do not touch them.

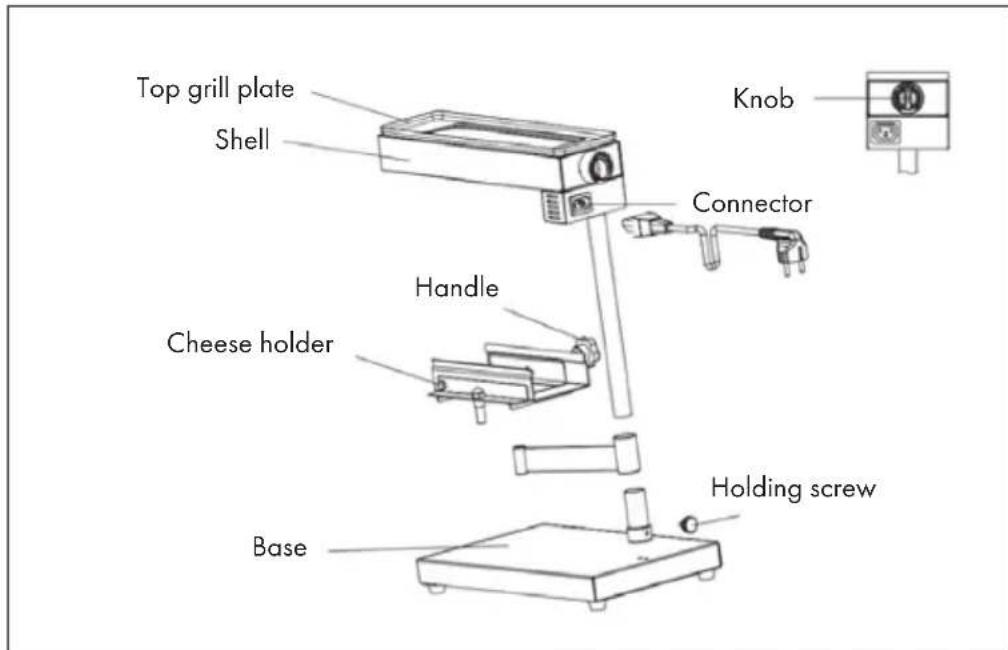

PRODUCT DESCRIPTION

USE AND OPERATION

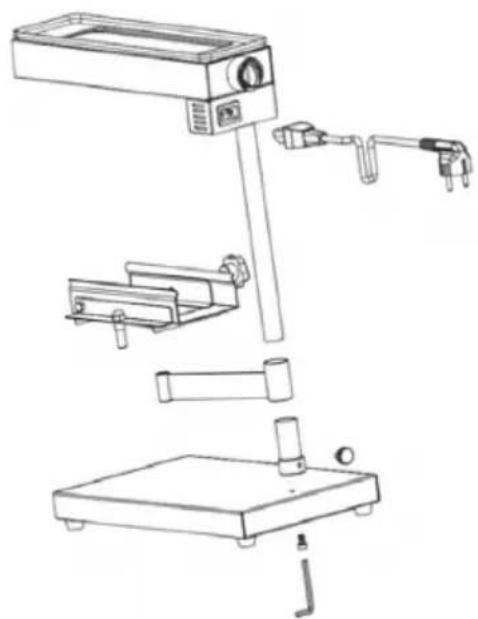

Before first Use

Install parts according

to instruction, please use

exclusive hex wrench install

the base as as shown in the

figure.

Before using for the first

time, operate the appliance

for 10 minutes without any

food. This in order to remove

the "new" scent. A small

amount of smoke may also

be noticeable. Ventilate the

room during this period.

Operation

1 Do not power on fiftly.
2 Put top grill plate on the shell stably.
3 Move out cheese holder, fix the cheese on the cheese holder, then move the cheese holder under the electric heater, now you can power on the appliances.
4 You can move up and down the cheese rack to adjust melting temperature., Can also be controlled by the thermostat temperature
5 After fixed the cheese and adjusted the height, you can turn on the switch to operate.
6 Grilled time is depend on user.
7 The user can put the food on top grill plate for grilling meanwhile.
8 Please cut down the cheese after reach the requirement.

CLEANING AND CARE

• Before cleaning the appliance, always make sure that the plug has been removed from the supply socket. Allow the appliance to cool down before cleaning.
• Cheese holder and grill plate can be disassembled. You can clean the exterior with a damp cloth and dry afterwards. Never immerse the appliance in water. Do not use abrasive cleaners, these can cause damage to the material.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
