Szechuan Hot Pot - Grill plate Klarstein - Free user manual and instructions

Brand	Klarstein
Model	Szechuan Hot Pot
Product type	Hot pot with grill plate
Article number	10033779, 10035431
Voltage	220-240 V ~ 50/60 Hz
Total power	1950 W (1350 W hot pot + 600 W grill)
Hot pot power	1350 W
Grill plate power	600 W
Hot pot capacity	5 L
Weight	5.5 kg
Hot pot material	Stainless steel
Grill plate material	Non-stick coating
Functions	Hot pot cooking (soup, fondue) and grilling
Temperature control	Independent for hot pot and grill (rotary knobs)
Indicator lights	Operation indicators for each zone
Included accessories	Hot pot, glass lid, grill plate, power cable
Safety	Do not immerse base; hot surfaces; do not cover during use
Cleaning	Wash the hot pot with water and dish soap; do not use a metal sponge; wipe the base with a damp cloth
Usage	Fill the hot pot with liquid, oil the grill plate, adjust the temperature
Environmental information	Recycle according to WEEE regulations

Frequently Asked Questions - Szechuan Hot Pot Klarstein

How to clean the grill plate after use?

Let the plate cool completely. Clean it with a soft cloth and dish soap. Never use a metal sponge to avoid damaging the non-stick coating.

Can I use the hot pot without the glass lid?

Yes, you can use the hot pot with or without the lid. However, make sure the soup does not overflow and does not seep into the grill plate.

What is the capacity of the hot pot?

The hot pot has a capacity of 5 liters, ideal for soups, fondues and stews with family or friends.

How to adjust the temperature of the hot pot and grill?

Use the rotary knobs located on the control panel. Turn them clockwise to increase heat. Each zone has its own knob and indicator light.

What to do if the device does not heat up?

Check that the device is plugged into a working outlet and that the temperature knobs are in the on position. If the problem persists, contact after-sales service.

Can I make fondue in this device?

Yes, the hot pot is perfect for fondues. Fill it with broth or oil, according to your recipe, and set the desired temperature.

How to prevent food from sticking to the grill?

Lightly oil the grill plate before use and stir the food frequently during cooking to prevent sticking.

Is the device suitable for outdoor use?

No, this device is designed for household indoor use only. Do not use it outdoors or near flammable materials.

What to do if soup overflows onto the heating plate?

Immediately turn off the device and unplug it. Let it cool completely before cleaning. Make sure the heating plate is dry before next use.

How to store the device after use?

Let the device cool completely, clean all parts, dry them thoroughly and store them in a dry place away from dust.

USER MANUAL Szechuan Hot Pot Klarstein

Hot Pot with Grill Plate

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 10

Product Overview 11

Glass Lid Mounting 12

Operation 13

Disposal Considerations 14

Manufacturer & Importer (UK) 14

TECHNICAL DATA

Item number 10033779, 10035431
Power supply 220-240 V ~ 50/60 Hz
Power hot pot 1350 W
Hot pot capacity 5 L
Grill plate power 600 W
Weight 5.5 kg

SAFETY INSTRUCTIONS

• Children are not aware of the dangers of electrical appliances. Never leave the appliance unattended during use. Therefore always keep the appliance outside the reach of children.
• The appliance is only suitable for household use. Never use the appliance outdoors.
• Certain parts of the appliance may become hot during use. Refrain from touching these areas so as not to burn yourself.
• Make sure that the appliance and the power cable never come into contact with hot devices such as hotplate or naked fl ames.
• Do not allow the power cable to hang down over the edge of the sink, worktop or table.
• Make sure your hands are dry when you touch the appliance, the power cable or the plug.
• Never submerge the appliance in water or another liquid.
• The appliance needs to dissipate its heat in order to prevent fire. Therefore it is vital to make sure that the appliance has sufficient clearance on all sides and cannot come into contact with flammable materials. The appliance may not be covered up.
• Do not use the appliance near explosives or flammable materials.
• Do not use a metal scouring pad to clean the appliance. Fragments of metal could come loose and touch the appliance's electrical parts causing it to short circuit.
• Always switch the appliance off if: it malfunctions while you are using it, before you start maintenance, if you fit or remove accessories and if you unplug the appliance.
• Only use an extension cord that is in good condition.
• Never switch the appliance off by pulling the cable.
• Always engage a recognised, trained service engineer if the appliance or the cable is damaged, malfunctions
  have occurred and/or the appliance requires repairs.
• Carrying out your own or having inexpert repairs carried out can cause considerable danger for the user.
• We accept no liability for damage caused by incorrect usage or the ignoring of the regulations in this manual.
• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
  Children should be supervised to ensure that they do not play with the appliance.
  Children should be supervised to ensure that they do not play with the appliance.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

CAUTION

Risk of burns! The temperature of accessible surfaces may be high when the appliance is operating. Do not touch them.

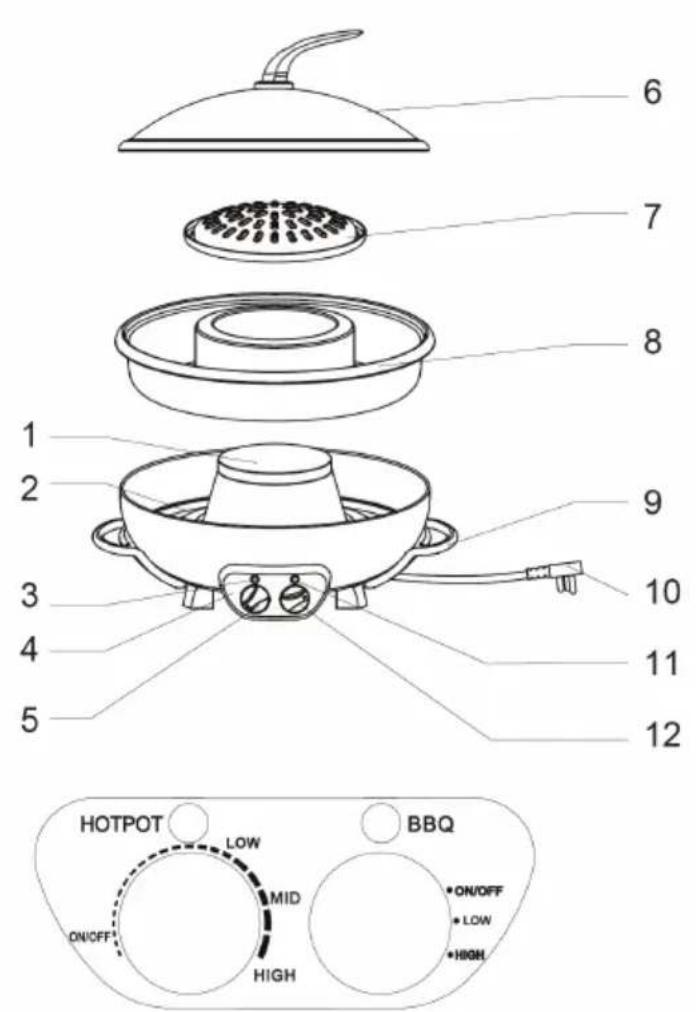

PRODUCT OVERVIEW

1	Grill heating plate	7	Grill attachment
2	Hot pot heating plate	8	Hot pot
3	Hot pot power indicator	9	Heat insulated handle
4	Control panel	10	Power cord
5	Temperature controller of the hot pot	11	Grill plate power indicator
6	Glass lid	12	Temperature controller of the grill plate

Note: The appliance can be used as a grill, for soups and fondue.

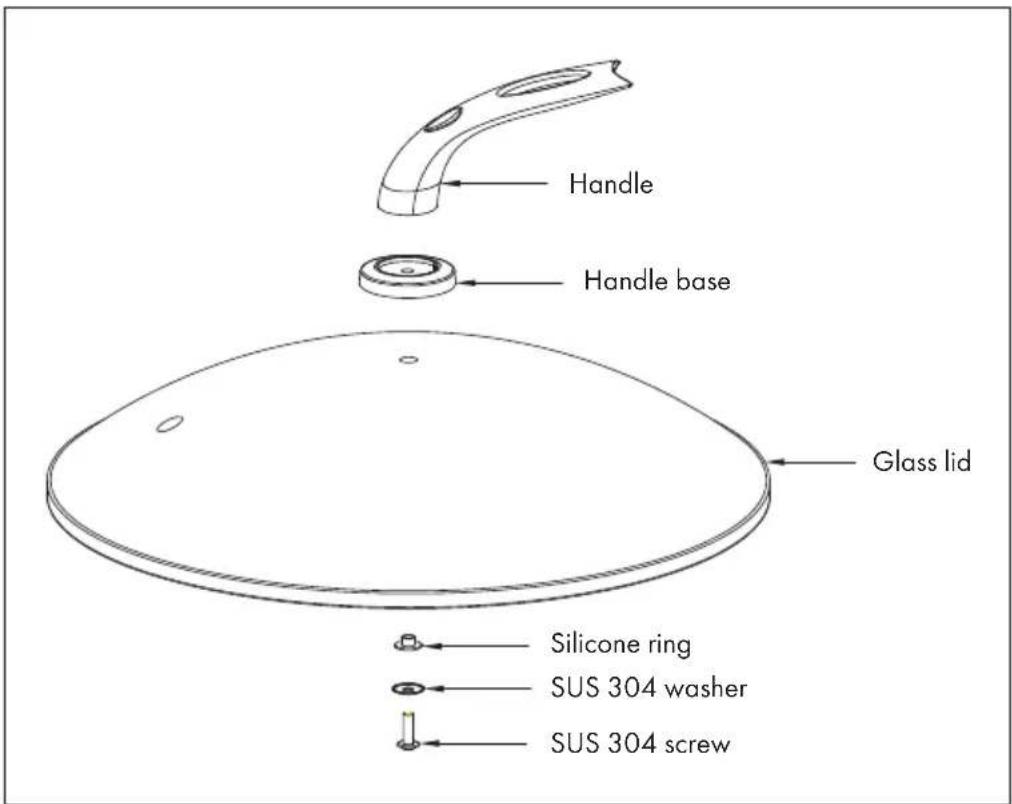

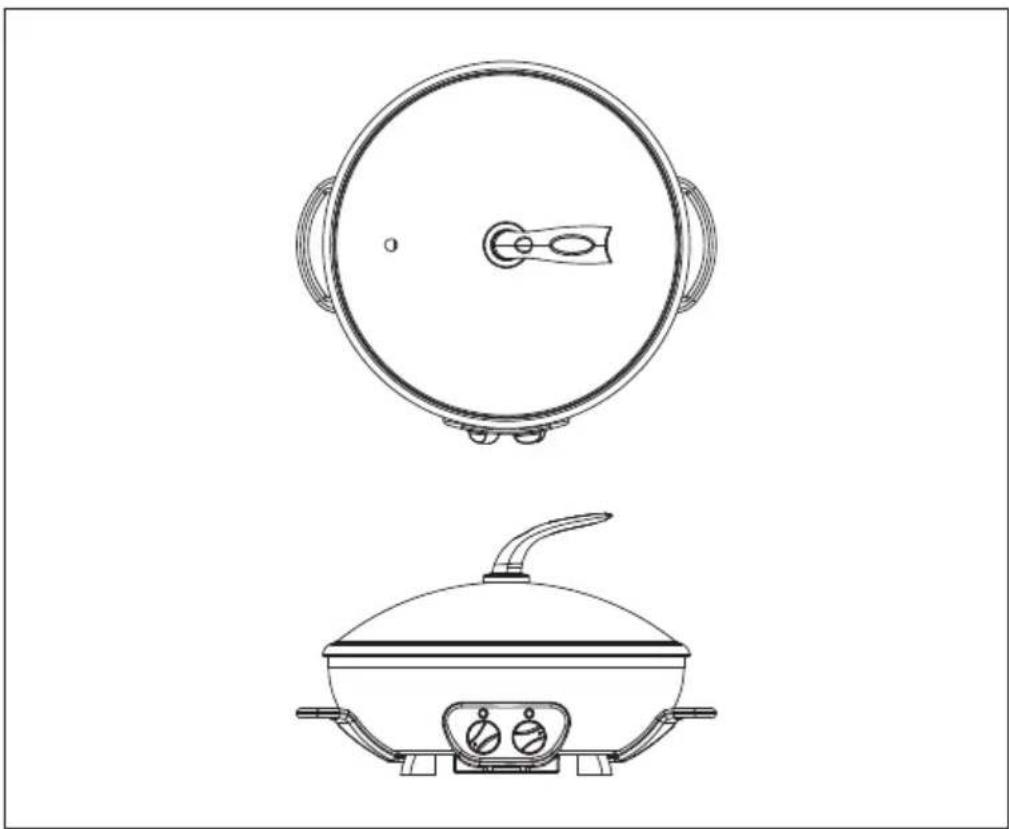

GLASSLIDMOUNTING

OPERATION

1. Before each use, check that there is no dust on the surface of the heating plate. Remove it if necessary.
2. Place the hot pot on the hotplate of the hot pot and turn it slightly to adjust the bottom of the hot pot to the surface of the hotplate. Add some water or soup to the hot pot. Then place the grill attachment on the hot plate of the grill and place it in the correct position. Put on the glass lid.
3. Insert the plug into the socket. Turn the hot pot temperature control and the grill temperature control clockwise to heat the heating plates. Both operating indicators will illuminate to indicate that the hotplates are in operation.
4. Remove the glass lid after water boils. Place some oil on the BBQ plate before operation.

Note: You can use the Hot Pot with or without the glass lid during operation. Make sure that the boiling soup does not overflow or get onto the grill plate. Stir the food frequently to prevent it from sticking to the bottom of the hot pot and add some oil to the grill plate if necessary.

1. After use, turn both temperature controls to the OFF position.
2. Remove the plug from the socket and allow the Hot Pot to cool completely before removing it from the heating plate. Wash the Hot Pot with a little water and dishwashing liquid and dry it thoroughly before storing.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom
