USER MANUAL DO1098S DOMO

1. Retirez le tuyau exible.

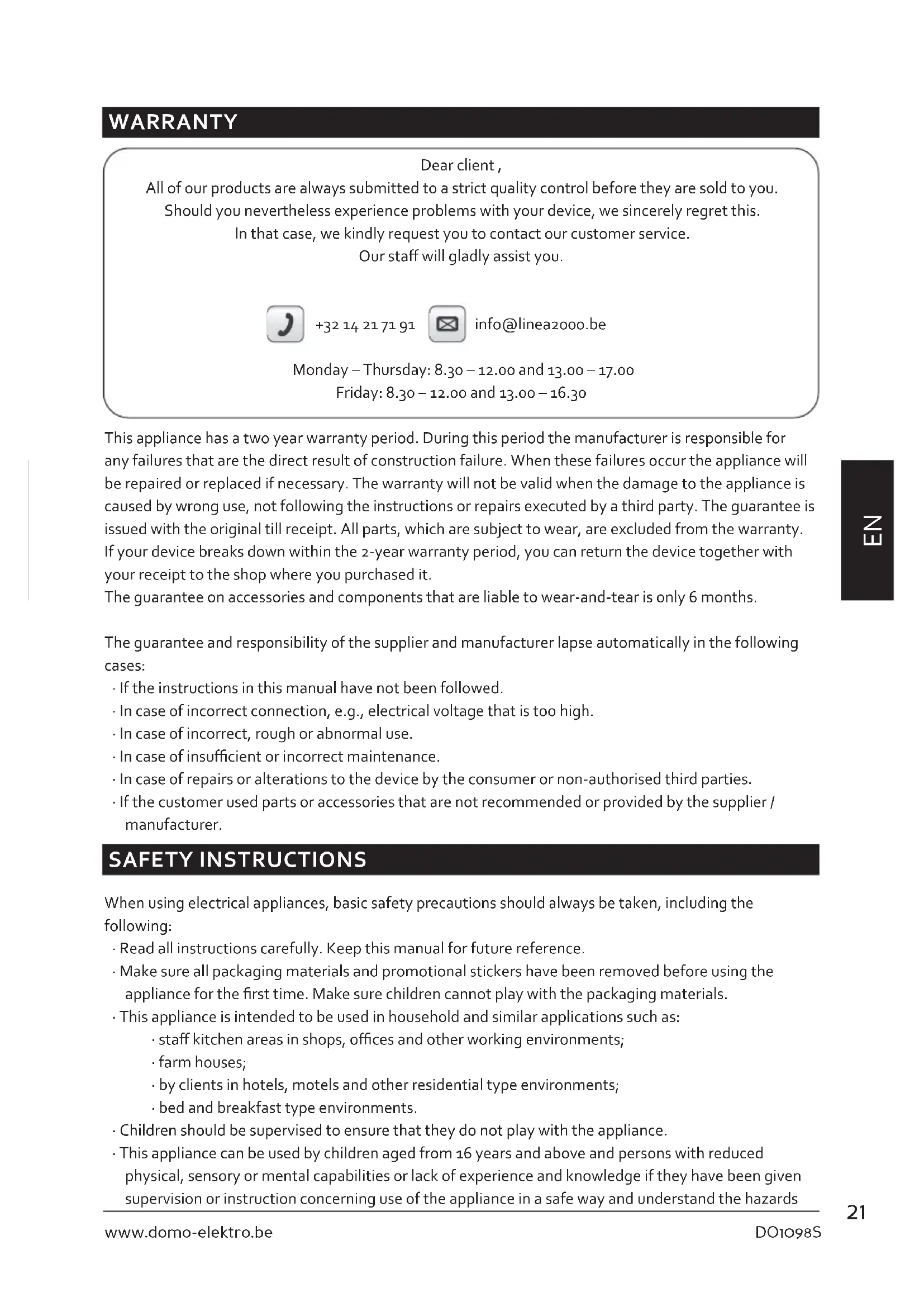

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards22 DO1098S

involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

• Always connect the appliance to an earthed socket.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualied service center for check-up and repair.

• Close supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘o’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Do not leave a working appliance unattended.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Never immerse the appliance, the cord or the plug in water or any other liquid.

• Make sure that children do not touch the cord or appliance.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• To prevent the risk of electrocution, do not use the vacuum cleaner outdoors or on wet surfaces.

• Only use the vacuum cleaner as described in this instruction booklet.

• Do not pull the cord. Do not use the cord as a handle. Do not jam the cord between a door or do not pull it around corners or sharp edges. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.

• Do not touch the plug or the vacuum cleaner when you have wet hands.

• Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.

• Keep hair, loose clothing, ngers and other body parts away from openings of the vacuum cleaner and from moving parts.

• Be extra careful when cleaning stairs.

• Never use the vacuum cleaner to pick up any combustible or inammable liquids like gasoline, or do not use the appliance in places where such substances might be present.

• Remove large and sharp objects from the oor before vacuuming it to prevent possible damage.

• Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.

• Unplug the appliance before connecting the hose.

• Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.

2. Button to pull out or retract brushes

4. Additional suction power control

6. Connection for hose

12. Crevice nozzle with dusting brush

13. Button for automatic cord rewinding

15. EPA 10 lter behind grid

BEFORE THE FIRST USE

Always unplug the vacuum cleaner before (dis)assembling any parts. HOSE

• Assembly: Insert the connector at the end of the hose into the connection opening of the vacuum cleaner so that the hose is xed into place.

• Disassembly: Unplug the vacuum cleaner. Push in the sides of the connector at the end of the hose and pull the hose out of the vacuum cleaner. TUBE

1. Put the handle of the hose into the tube.

2. Attach the oor nozzle to the tube by rmly sliding the tube into the nozzle.

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between

2. Dust brush: for furniture, shelves,...

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord

indicates the maximum length of the cord, that should not be exceeded.

2. To turn the vacuum cleaner on and o, press the foot pedal with the symbol.

3. When you want to clean hard oors, make sure that the brushes in the oor

nozzle are down (A).

4. When you want to clean carpet, make sure that the brushes in the oor nozzle

5. Slide the valve on the hose into the closed or open position to increase or

reduce the suction power.

6. When you have nished vacuuming, unplug the vacuum cleaner and

automatically rewind the cord by pressing the foot pedal with the symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

CLEANING AND MAINTENANCE

CHANGING THE DUST BAG

The vacuum cleaner cannot be used without the dust bag. When the dust bag is full or damaged you need to replace it immediately. The dust bag full indicator turns red when you need to replace it.

1. Remove the exible hose.

2. Open the top of the dust bag reservoir via the cover.

3. Pull the dust bag holder towards you to remove the dust bag and place a new one in the correct

position. Make sure that the dust bag is xed into place under the dust bag holder.

THE FILTERS The appliance has 2 lters. In a normal cleaning session, it is sucient to tap out the lters. It is recommended that you thoroughly clean the lters under tepid running water 3 to 4 times per year. Make sure that it is completely dry before putting it back in the appliance. You can also replace them if necessary. Avoid direct sunlight or intense overheating. Never put the lters in the washing appliance to prevent deformation. Do not use abrasive or cleaning products and wash from the bottom of the lter. EPA lter Remove the EPA lter through the provided valve. Clean it thoroughly under tepid running water. Allow it to air-dry properly. It is recommended that this lter be replaced once a year. Place all the parts back in the vacuum cleaner before using the appliance again.

Motor lter The motor lter is located in the dust bag compartment. Remove the exible hose. Open the lid of the dust bag reservoir. Take out the lter. Clean it thoroughly under tepid running water. Allow it to air-dry properly. Replace it in the vacuum. PLEASE NOTE:

• Make sure that all components are correctly assembled before using the vacuum cleaner again.

• Always use the vacuum cleaner with the lters intact. If you do not do this, you may lose suction force or damage the motor.

• Unplug the plug before cleaning the lters.

• Do not put the lter into the dishwasher.

• Do not use a hairdryer to dry the lters.26 DO1098S

ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.27 DO1098S www.domo-elektro.be
