USER MANUAL DO1135SV DOMO

I PRODUCTSPECIFIEKE WAARSCHUWINGEN

I AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

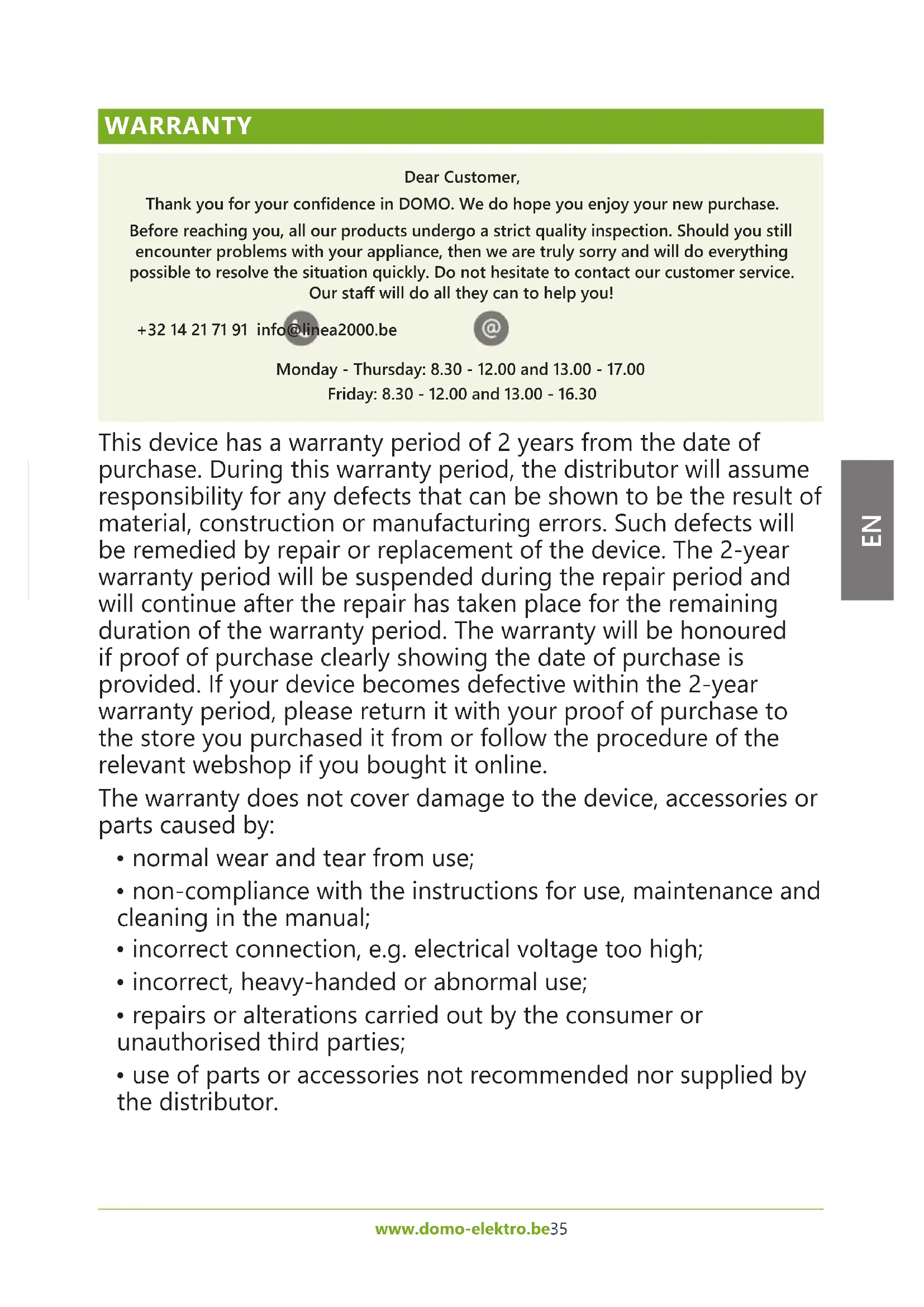

WARRANTY Dear Customer, Thank you for your condence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our sta will do all they can to help you! +32 14 21 71 91 info@linea2000.be Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00 Friday: 8.30 - 12.00 and 13.00 - 16.30 This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online. The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;

• non-compliance with the instructions for use, maintenance and cleaning in the manual;

• incorrect connection, e.g. electrical voltage too high;

• incorrect, heavy-handed or abnormal use;

• repairs or alterations carried out by the consumer or unauthorised third parties;

• use of parts or accessories not recommended nor supplied by the distributor.36 www.domo-elektro.be

SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• All repairs should be carried out by the manufacturer or its aftersales service.www.domo-elektro.be 37

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and o by the utility.

• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, rst turn all the buttons to the 'o' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don’t cover the appliance.

• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

• For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself. I INSTALLATION

• Do not place near ammable materials, gases or explosives.

• Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.38 www.domo-elektro.be

• Do not use this appliance for other than intended use.

• Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries. Only use the utensils delivered with the appliance.

I CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Failure to maintain this appliance in a clean condition could adversely aect the life of the appliance and possibly result in a hazardous situation. I PRODUCT

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or ammable objects.

• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Avoid vacuuming large objects and items that could become entangled in the brush (long hair, plastic bags, string, etc.). Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

• Make sure that the air intake or the oor suction opening do not become blocked.

• Make sure that the machine does not come into contact with liquids.

• First charge a new battery up completely.

• Only charge the battery using the supplied adapter.

• Pull the plug from the outlet when the vacuum cleaner is fully charged.

• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.www.domo-elektro.be 39

• Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it o immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.

• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

• Remove large and sharp objects from the oor to prevent damage to the plastic components, the brushes and the motor.

• Keep hair, loose clothing, ngers and other body parts away from openings and moving parts.

• Never use the appliance without lters. This will damage the motor and render it unusable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may dier slightly from the actual device.40 www.domo-elektro.be

6. Motor compartment

16. Wall xing (screws and plugs

• Remove all packaging materials and any promotional stickers.

• Prior to rst use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.

• Assemble all the parts:

1. Slide the wand assembly into the motor part until it clicks into place. Make sure the power

pins slide into the intended holes properly.

2. Slide the oor attachment on to the tube assembly until it clicks into place. Make sure the

power pins slide into the intended holes properly.

WALL MOUNT Please follow below instructions to x the wall mount:

1. Drill 2 holes in the wall corresponding to the attachment points of

the wall mount, whereby the bottom hole is at least 120 cm from the ground.

2. Insert the supplied plugs into the wall.

3. Fix the wall mount using the supplied screws.

4. To store the device, simply hang it on the wall mount. You can also

store accessories on the wall mount, both at the top and bottom. CHARGING

• If the last light on the battery ashes, then the battery is almost empty. Turn o the vacuum cleaner and put it on charge.

• Connect the adapter via the provided connection, and then plug the adapter into the wall socket.

• The battery level indicator lights will ash. The battery is fully charged when all three lights are on.

• The machine cannot be started during charging.

• Prior to rst use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.

• It is recommended that the battery be fully charged for the rst three charges. NOTES:

• It is recommended that the vacuum cleaner be charged after each use regardless of the duration of the use.

• Do not charge the battery for extended periods. This can damage the battery. Disconnect the adapter once the battery is fully charged.

• The battery and adapter may become hot during charging. Take the necessary precautions to avoid coming into contact with it during this time.

• The temperature while charging should be between 15 °C and 25 °C. Higher or lower temperatures reduce battery life.42 www.domo-elektro.be

1. Choose the correct accessory for the cleaning task you want to carry out:

1. Floor attachment with rotating oor brush: suitable for oors and carpets. When you switch

on the machine, the rotating oor brush at the bottom of the oor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.

2. Long crevice tool: for corners, cracks, skirting board edges and hard-to-reach places.

3. 2-in-1 fabric brush: use on upholstered surfaces, keyboards, lamps, curtains, blinds,

ventilation openings, etc. The brush oers extra friction to make it easier to loosen hair and dust stuck on fabric. Use the short crevice tool for regular cleaning of small surfaces. To switch between brush and crevice tool, press the button to unlock the brush and slide it up or down.

2. Press the on/o button. The vacuum cleaner starts working. Press again to stop.

3. Press the mode button to switch between the 3 suction power levels.

low, medium, high NOTE: The various accessories can be clicked onto the wand assembly (stick vacuum cleaner) or directly onto the motor part, without the handle (hand vacuum cleaner).

CLEANING AND MAINTENANCE

CLEANING THE APPLIANCE

Clean the appliance with a slightly moist soft cloth. Dry the machine o well. Never submerge the appliance in water!

CLEANING THE DUST RESERVOIR

Empty the dust container after each cleaning session. Clean the dust container and lters at least once a month to maintain optimal performance. We advise replacing the lters regularly to ensure an optimal operation of the machine.

1. Disconnect the wand assembly from the motor part.

2. Hold the dust container over a rubbish bin and press the release button to open the cover.

Empty the dust container.

3. Remove the coarse lter (a) from the dust container by turning it clockwise. You can use the

crevice cleaner as a tool.

4. Turn the HEPA lter (b) clockwise and remove the HEPA lter from the outer coarse lter (a).

5. Close the dirt receptacle and unscrew it from the motor section.

7. Allow all the parts to dry completely before reassembling them.

8. Make sure all the parts t together nicely when assembling, before using the machine again.

1. Remove the oor nozzle from the upright vacuum cleaner. Press the release button at the back

of the oor nozzle and remove it from the machine.

2. Slide the switch backwards to unlock the oor brush.

3. Gently remove any hair and dirt from around the brush; do this by hand or carefully with a

knife. Rinse the brush under cold running water.

4. Allow the brush to dry completely before reassembling it.

5. To ret the brush, place the right side of the brush against the gear (a) and push the left side (b)

until it clicks into place.

6. Push the nozzle back onto the stick. The machine is now again ready for use.

I Do not immerse unit, cord, or plug in water or other liquid. I Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS The machine does not start up. • The battery is empty. Charge the machine. Loss of suction power. • The lters are dirty/the dust reservoir is full.

• The oor nozzle is clogged/the oor brush is blocked.

• Clean the machine as described in this manual.44 www.domo-elektro.be

PROBLEMS SOLUTIONS The rotating oor brush is not rotating. • The oor brush is blocked. Turn o the vacuum cleaner and remove the object blocking the oor brush.

• The oor brush is assembled incorrectly. Follow the instructions to correctly assemble the oor brush as described in this manual. The three suction power level indicator lights will ash on and o simultaneously.

• The rotating oor brush is blocked. Turn o the vacuum cleaner and remove the object blocking the oor brush. The last light on the battery is ashing. • The battery is almost empty. Turn o the vacuum cleaner and put it on charge. GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically. NON-REMOVABLE BATTERY The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment. This appliance conforms to all European requirements in the areas of safety, health, and environmental protection. The EU declaration concerning this appliance can be requested at any time from info@linea2000.bewww.domo-elektro.be 45
