USER MANUAL DO1097SV DOMO

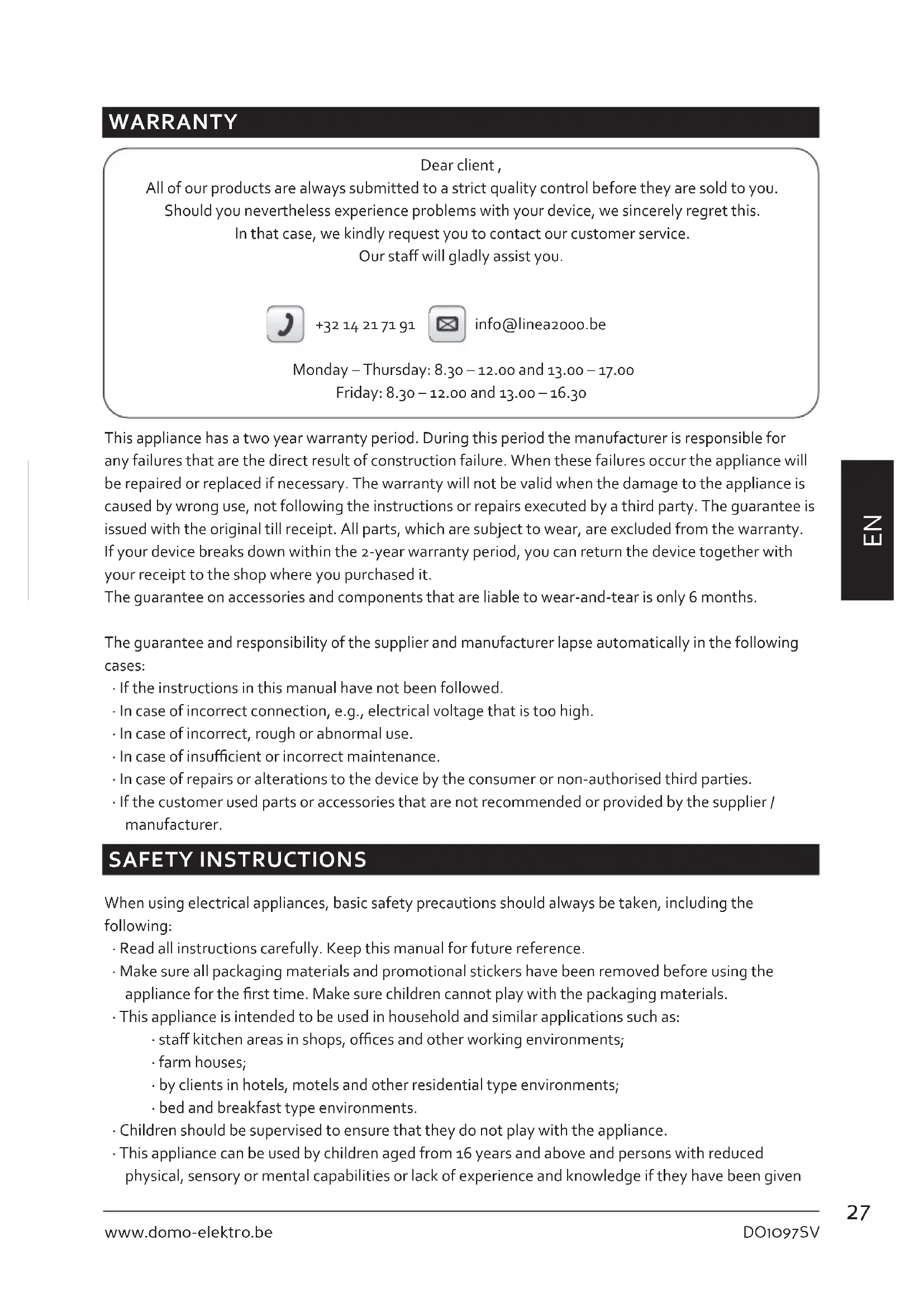

WARRANTY Dear client , All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. +32 14 21 71 91 info@linea2000.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30 This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear-and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer. SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.

• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the rst time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• sta kitchen areas in shops, oces and other working environments;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given28 DO1097SV

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.

• Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.

• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.

• Do not let the cord hang on a hot surface or on the edge of a table or counter top.

• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualied service center for check-up and repair.

• Close supervision is necessary when the appliance is used near or by children.

• The use of accessories that are not recommended or sold by the manufacturer can cause re, electrical shock or injuries.

• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘o’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Do not leave a working appliance unattended.

• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

• Do not use the appliance outdoors.

• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.

• Never immerse the appliance, the cord or the plug in water or any other liquid.

• Make sure that children do not touch the cord or appliance.

• Keep the cord away from sharp edges and hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or ammable objects.

• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.

• Make sure that the air intake or the oor suction opening do not become blocked.

• Make sure that the machine does not come into contact with liquids.

• First charge a new battery up completely.

• Pull the plug from the outlet when the vacuum cleaner is fully charged.

• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.

• Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it o immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.29 DO1097SV www.domo-elektro.be

• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.

• Remove large and sharp objects from the oor to prevent damage to the plastic components, the brushes and the motor.

• Keep hair, loose clothing, ngers and other body parts away from openings and moving parts.

• Never use the appliance without a lters. This will damage the motor and render it unusable.

10. Floor nozzle with rotating

12. Wall xing (screws and

13. Crevice vacuum cleaner

To set up the machine properly, please follow the steps below:

1. Place the motor compartment on the shaft via the opening provided.

2. Make sure the oor nozzle is clicked into the stick vacuum cleaner.

3. Click the dust reservoir into the stick vacuum cleaner. You will nd further information on the correct

installation of the dirt receptacle under ‘Cleaning and maintenance’.

• Connect the adaptor to the upright vacuum cleaner via the connection provided on the appliance handle in order to charge the vacuum cleaner.

• The battery charge indicator indicates when the appliance has been fully charged. The lights will blink and will illuminate in turn when the battery is charging. When all the lights are on, the battery is fully charged.

• The machine cannot be started during charging.

• Prior to rst use, charge the machine for 8 hours in order to be able to utilize the full capacity of the battery. WALL MOUNT Please follow below instructions to x the wall mount:

1. Drill 2 holes in the wall corresponding to the attachment points of the

2. Insert the supplied plugs into the wall.

3. Fix the wall mount using the supplied screws.

4. To store the device, simply hang it on the wall mount.

• Press the on/o button to turn the appliance on. The battery indicator light is blue and indicates the battery level. If the battery is almost empty, the indicator light will ash on and

• Pressing the ECO button will decrease the suction power and extend the autonomy. This way, you will be able to vacuum longer at a lower suction power. Press the ECO button again to let the appliance vacuum at full power.

• The autonomy depends on the type of surface. It will work for less time on carpets than on a hard surface.

• While vacuuming, warm air will come out of the motor compartment. This is normal.

• When you switch on the machine, the rotating oor brush at the bottom of the oor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.

• The machine is equipped with a safety which will ensure that the machine shuts itself o if, for example, objects which are too large are sucked up, or if ngers become tangled in the oor brush. This is for personal safety and to protect the motor. To reverse the oor brush, press the on/o button once more.31 DO1097SVwww.domo-elektro.be

• For the best results, clean the dust reservoir and the lters after each use. This is better for the suction power and the life span of the machine. Make sure that the dust in the dust reservoir does not exceed the maximum level.ACCESSORIESYou can use the following accessories on the hand-held vacuum cleaner (by removing the shaft) or secure them on the shaft:1. Dust brush: for furniture, bookshelves, curtains and hard to clean surfaces. 2. Crevice vacuum cleaner: for crevices, corners, stairs, keyboards,...

CLEANING AND MAINTENANCE

CLEANING THE MACHINEClean the machine with a slightly moist soft cloth. Dry the machine o well. Never submerge the machine in water! CLEANING THE DUST RESERVOIR1. Never exceed the maximum indicator on the dust container. Empty the dust container by pressing the release button. The dust container falls open and you can then remove the coarse dirt.2. Remove the wand. Then take the handle in your right hand. Grasp the dirt receptacle with your left hand and turn it clockwise. The dirt receptacle will come loose from the motor section. You can now clean all the parts separately. We recommend you do this with compressed air. If you do not have compressed air, you can wash out the lters. Make sure they are completely dry before using them again. - Black round lter: this is located at the exit of the motor and lters the air even more after it comes out of the appliance. - HEPA lter: this round dust lter captures the small dust particles. - Plastic coarse debris lter: this ensures that the large dust particles remain in the dirt receptacle. - Dirt receptacle: this is where all large dirt particles are collected.3. Pull the lters out of the dirt receptacle. Remove the HEPA lter from the coarse debris lter by pulling it up. Blow the lters clean with compressed air. You can also clean the lters under running water. Make sure they are completely dry before using the appliance again. 4. Replace the HEPA lter in the coarse debris lter.5. Put the lters back in the dirt receptacle. Make sure that the notch in the lter lines up with the protrusion in the receptacle.

6. Put the dirt receptacle back on the motor section by turning it counter-clockwise.

Make sure that the dash on the motor unit lines up with the lock symbol.32 DO1097SV

We advise replacing the lters regularly to ensure an optimal operation of the machine. Dirty lters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the lters to extend the life span of your machine.

CLEANING THE FLOOR BRUSH

1. Remove the oor nozzle from the upright vacuum cleaner. Press the release button at the back of

the oor nozzle and remove it from the machine.

2. Slide the cover on the right side of the oor brush to the right.

3. Remove the rotating oor brush from the oor nozzle.

4. Remove hairs and other dirt that have wrapped around the oor brush. If you do not clean the oor

brush regularly, it will become damaged and your machine will become unusable.

5. The rotating oor brush may be rinsed o under running water. Make sure that it is completely dry

6. Place the oor brush back into the oor nozzle when it is clean.

7. Slide the cover closed again to secure the oor brush.

8. Push the nozzle back onto the stick. The machine is now again ready for use.

Stuck hairs can damage the machine or your oor. Always remove the hairs stuck on the brushes.

PROBLEM AND SOLUTION

Problem Solution The battery charge indicator will ash on and o.

• The battery is empty. Charge the machine. The machine does not start up. · The battery is empty. Charge the machine. The machine does not vacuum. · The lters are dirty/the dust reservoir is full.

• The oor nozzle is clogged/the oor brush is blocked.

• Clean the machine as described in this manual. The running time of the machine is shorter and shorter.

• The lters are dirty/the dust reservoir is full.

• The machine is not suciently charged. Charge the machine fully and try again.

• The battery is broken or old. Contact the after sales service.

• Stuck hairs. Remove the hairs stuck on the brushes.33 DO1097SV www.domo-elektro.be

Model number DO1097SV - Supply voltage 100-240 V Power frequency 50/60 Hz Output voltage 27 V Output current 0,5 A Output power 13,5 W Average active eciency 87,49 % Eciency at low load 81,40 % Non-loaded energy consumption 0,042 W ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city oce, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically. NON-REMOVABLE BATTERY The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.34 DO1097SV
