USER MANUAL Fly Away 30 waterproof Eurom

Instruction manual (EN) (page 7)

Exterior view of a black EUROM electric vehicle cage (no text or symbols visible on the body)

Fly Away 30 IPX4

Art.nr. 211870

Fly Away 40 IPX4

Art.nr. 211887

Dank

Simple line drawing of a house with lightning bolt and directional arrow (no text or symbols)

Black-and-white photo of a hand lifting a wire cage with a tray, no visible text or symbols

Close-up of a metal cage with a white object inside, no visible text or symbols on the main subject.

Reiniging

Close-up of a hand inserting a plastic tray into a rack-mounted device (no visible text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Thank you very much for choosing for a EUROM product. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your insect-killer in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Fly Away IPX4!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been compiled with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically.

Symbol statement

Simple line drawing of a house with lightning bolt and directional arrow, no text or symbols present

Beware! High Voltage!

For indoor use only!

Technical Specifications

	Fly Away 30 IPX4	Fly Away 40 IPX4
Connected power	220-240V~50Hz	220-240V~50Hz
Lamps	2 x 15 W UV	2 x 20 W UV
Power consumption	39 W	43 W
Water resistant	IPX4	IPX4
Max. space	150 m^2	200 m^2
Screen voltage	3500 V	3500 V
Dimensions	12 x 52 x 29 cm	12 x 67 x 29 cm
Weight	3,2 kg	4 kg

Safety warnings

1. This appliance is intended for indoor use.

2. The fact that the device is splash-proof (IPX4) means that it is also suitable for damp rooms, e.g. stables.

3. Connect the appliance only to suitable earthed socket that provides 220-240V\~50Hz.

4. Do not use the appliance in areas that contain explosive or flammable gases, vapours and liquids or similar materials e.g., not in garages. In addition, do not use the appliance in places that have a risk of substance explosion. The insect killer could emit a spark that can ignite such materials!

5. Do not use the appliance in 'wet' rooms, such as swimming pools, laundry rooms, bathrooms, etc. Never submerge the appliance in water or in any other liquid!

6. Do not place the appliance in an open window (due to rain), not on a wet surface and prevent that any type of moisture is spilled on it.

7. Do not make any changes to the appliance; that can be dangerous and it will invalidate the manufacturer's warranty.

8. Make sure you never touch the high-voltage grid while it operates: not with your fingers, a pen, a piece of paper or any other object. This can cause an electric shock and perhaps fire! Never stick any objects into the appliance through the safety grid.

9. Ensure careful supervision when the appliance is used in the presence of children, incapacitated persons or pets. The appliance is not suitable for use by people (including children) with physical, sensory or mental disabilities. It is also not suitable for use by people who lack knowledge and experience, regardless of whether there is supervision or instructions given (prior to use) by a person responsible for their safety.

10. You must supervise that children do not play with the appliance. The grid is under high voltage!

11. Place the appliance out of children's reach. Danger! High voltage!

12. Remove the plug from the socket before cleaning the appliance. Use a suitable brush (not a metal brush) to clean the high-voltage grid and throw away the dead insects in the collection tray at least once a week.

13. If the appliance, cord or plug shows damage, switch off the appliance immediately and remove the plug from the socket. Turn

to your supplier or a certified electrician for repairing/replacing the part. Never carry out repairs yourself!

1. Remove the plug from the socket and switch off the insect-killer immediately, if you hear strange noises, smell something or see smoke.
2. If the electric cable or the plug is damaged, it must be replaced by a qualified person. Never carry out repairs yourself!
3. If the lamp, starter, fuse or any other part is defective or damaged, it must be replaced by a qualified person. Never carry out repairs yourself.

Operating principle

The insect-killer is designed to attract flying insects, such as flies, moths, mosquitoes, etc. using ultraviolet light. As they fly towards with light, they fly into an electrified metal screen that electrocutes them.

The device

The insect-killer is highly efficient and safe. The electrified screen is made from stainless steel. This material has been chosen so that there is only minimal crackling on electrocution and the insects neither combust nor is the material damaged. The special UV lamps are totally harmless to humans and pets. An external safety screen protects users from coming into unintentional contact with the electrified screen. The insect-killer uses no chemicals or sprays, does not emit smoke or odours, produces no waste and is environmentally friendly. The insect-killer is designed to be used indoors, in the home, in work areas, retail outlets, etc. The fact that the device is splash-proof (IPX4) means that it is also suitable for damp rooms, e.g. stables.

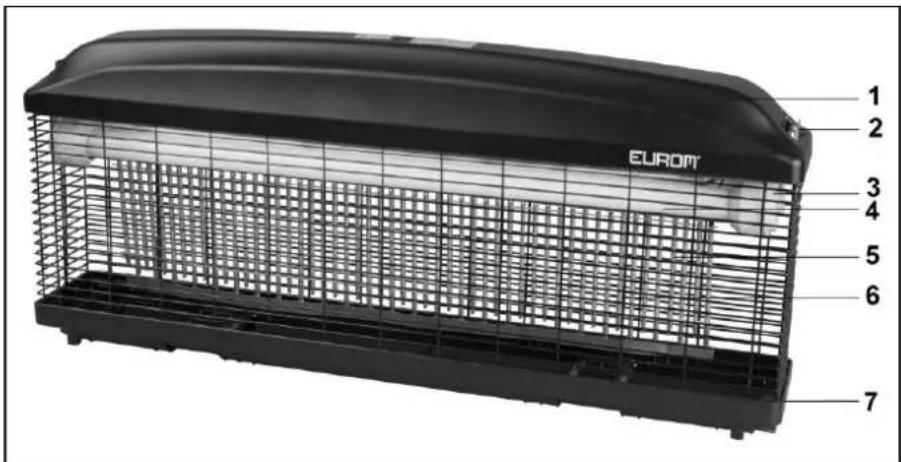

Description

1. Top cover
2. Suspension eye
3. Light fitting
4. UV tube
5. High Voltage grill
6. Safety grill
7. Collection tray

EUROM 1 2 3 4 5 6 7

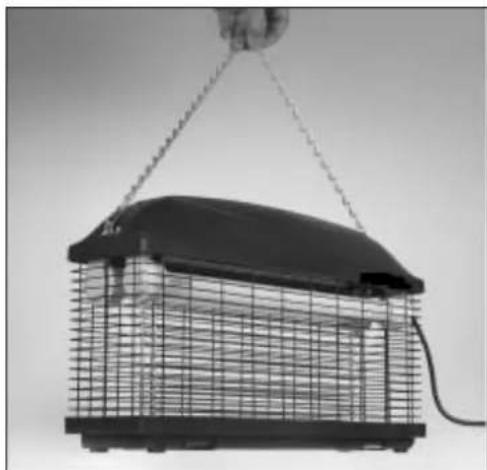

Installation

When placing and installing the insect-killer, it is important to take the location of the device in the room/space into account.

1. Hang the insect-killer centrally in the area; that way, the ultraviolet light can be dispersed better and attract insects from the entire area.

2. Hang the insect-killer or a wall or in a corner if the room/area is not very large.

3. The best height for the insect-killer is 1.5 to 2 metres off the ground, which is the most common flying height for insects.

4. The insect-killer can be suspended from the chain or placed on a surface such as a table or cabinet. Make sure it is on a good stable base.

5. Install your insect-killer in a relatively dark

Black-and-white photo of a cage-like object suspended by a crane hook, with no visible text or symbols.

place, near an electricity socket: not in direct sunlight (windows, doors), because bright sunlight weakens the insect-killer's radiation power. Artificial light does not weaken the radiation, but makes it work less well.

1. Do not place the insect killer in the draft. Insects avoid drafts / air flows. Placing the insect killer in the draft flow will therefore not be effective.

Use and maintenance

Using for the first time

Make sure that the power socket you intend using is earthed and the correct voltage (220-240V\~50Hz). Start the insect-killer working by plugging the device in. The insect-killer is operating.

The insect-killer can be kept switched on (24 hours a day) all year round.

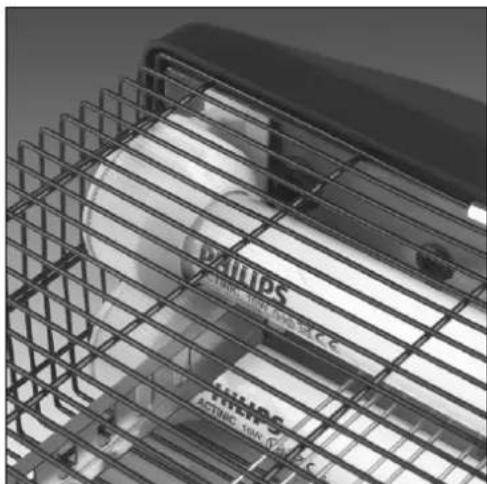

Replacing lamps

To replace a worn out UV tube you must remove the plug from the socket and remove the collection tray by pulling it out of the side of the device. Unscrew the 2x2 screws next to the suspension eyes. Remove the suspension eyes and top cover. Now unscrew the 2x2 screws on the front and back of the grill and lift the entire electrical block with the lights out of grill. Unscrew the ring around the right and left of the light fitting. Slide the rubber rings and the plastic rings away. You can now turn the strip light 90°, remove it from the fitting and replace it. Install the lights, rings, grill and tray in their original positions before using the device again.

PHILIPS AIR CABBAGE & CO. PHILIPS AIR CABBAGE & CO.

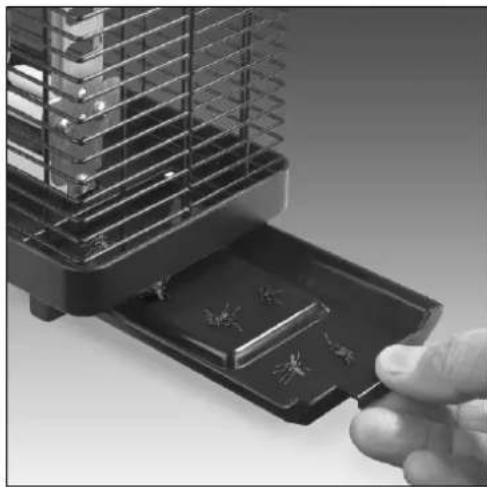

Cleaning

Regularly empty the collection tray by pulling it out of the side of the device. Too much dust will adversely affect the effectiveness of the light and too much dirt will affect the way insects are destroyed. So clean the

device regularly. To do that, pull the plug out of the power socket and remove the collect tray. When you now place the device on a work surface, you can remove dust and dirt, for example with a vacuum cleaner, duster or soft brush. Do not use any moisture or corrosive cleaning agents in the insect-killer. You can dust off the outer side of the device using a soft cloth.

Close-up of a hand inserting a plastic tray into a black plastic device with a handle (no visible text or symbols)

Possible defects/problems

The lamps do not light up

• The lamp is not making contact. Repair it.
• The lamp has blown. Replace it.
- The starter is defective. Let it be replaced.
- The induction coil is defective. Let it be replaced.
- The plug is not inserted properly into the power socket. Insert it properly.

There is no power to the electrified screen

• There is a break in the power cable to the screen. Have it repaired.
• There is a short-circuit in the transformer. Let it be repaired/replaced.

Before making any repairs, always ensure the plug has been removed from the power socket!

Removal

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE - Declaration

See page 34.

Danke!

Simple line drawing of a house with lightning bolt and directional arrow, no text or symbols present

Black-and-white photo of a wire cage containing a black tray with a lid, suspended by chains (no text or symbols visible)

Close-up of a metal cage with a white object inside, no visible text or symbols on the main subject.

Reinigung

Close-up of a hand pressing down on a black plastic tray with decorative patterns (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Simple line drawing of a house with lightning bolt and bidirectional arrow, no text or symbols present

Attention ! Haute tension !

Black-and-white photo of a wire cage lifting a tray with a cloth, suspended by a crane hook (no text or symbols visible)

Close-up of a metal cage with a white object inside, no visible text or symbols on the main subject.

Close-up of a hand inserting a plastic tray into a black appliance with a grid-patterned top (no visible text or symbols)

Pannes éventuelles

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Simple line drawing of a house with lightning bolt and directional arrow, no text or symbols present

Black-and-white photo of a birdcage with a tray and wire cage, suspended by a crane hook (no text or symbols visible)

Close-up of a car interior with a metal cage and visible brand logos (no readable text or symbols beyond branding)

Rengøring

Close-up of a hand inserting a plastic tray into a black appliance with a grid-patterned top (no visible text or symbols)

Mulige fejl/problemer

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a house with lightning bolt and directional arrows (no text or symbols)

Varo! Suurjännite!

Black-and-white photo of a wire cage containing an open tray, suspended by chains (no text or symbols visible)

Close-up of a metal cage with a transparent plastic cover and 'PHILIPS' branding (no readable text beyond branding)

Close-up of a hand inserting a plastic tray into a black appliance with a grid-patterned lid (no visible text or symbols)

Mahdolliset viat/ongelmat

Lamput eivät syty

Symbol of a trash bin crossed with no visible text or labels

declares the following device in sole responsibility:

Product: Insekt-killer

Brand name: EUROM

Model: Fly Away 30 IPX4 & Fly Away 30 IPX4

Item number: 211870 & 211887

Complies with the following harmonization rules:

Low Voltage Directive:

LVD 2014/35/EU

Electromagnetic compatibility Directive:

EMC 2014/30/EU

Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863

Applied harmonized standards:

EN 60335-2-59:2003/A2:2009

EN 60335-1:2012/A11:2014

EN 62233:2008

AfPS GS 2014 :01 PAK

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2001+A2:2008

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Genemuiden, 02-12-2020

W.J. Bakker, alg. Dir.

akker.

Eurom

Kokosstraat 20

8281 JC Genemuiden

The Netherlands

[e-mail]

www.eurom.nl
