USER MANUAL Mon Soleil 350 wifi Eurom

• Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

• To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

CAUTION Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

CAUTION In order to avoid overheating, do not cover the heater.

• Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Heater must not be located immediately below a socket-outlet.

• If the supply cord is damaged, it must be replaced by manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Heater is to be installed so that switches and other controls cannot be touched by a person in the bath or shower.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• Do not use this heater if it has been dropped.

• Do not use if there are visible signs of damage to the heater. When using the Mon Soleil heater in combination with the Freestanding support (article number 361278):

• Use this heater on a horizontal and stable surface.28 The device is equipped with an overheating protection, which switches it off automatically in case of internal overheating. Switch the device off, unplug the power plug, remove the source of overheating, let it cool down and use as normal. Do not use the device if the source of overheating cannot be traced or if the problem persists, but always contact your supplier. This device is safe to use in the bathroom when it is mounted:

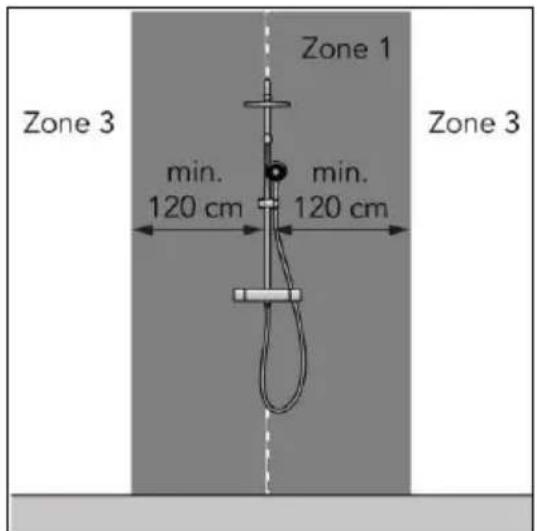

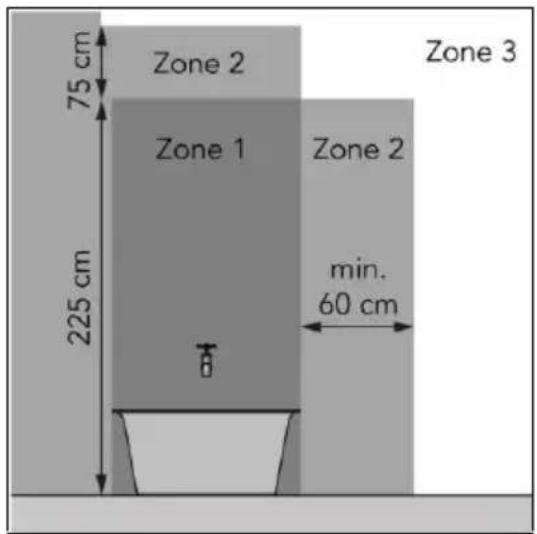

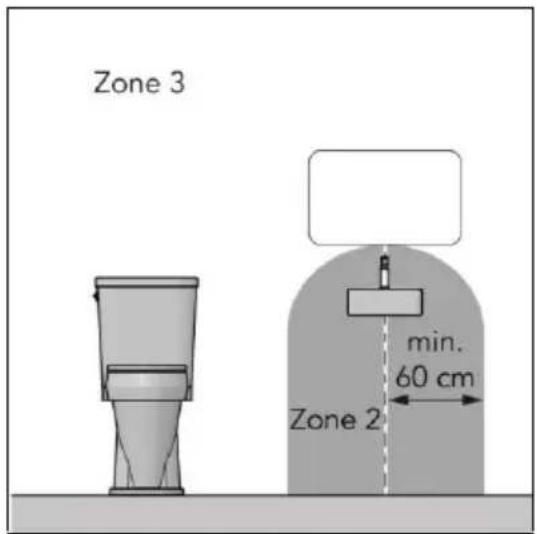

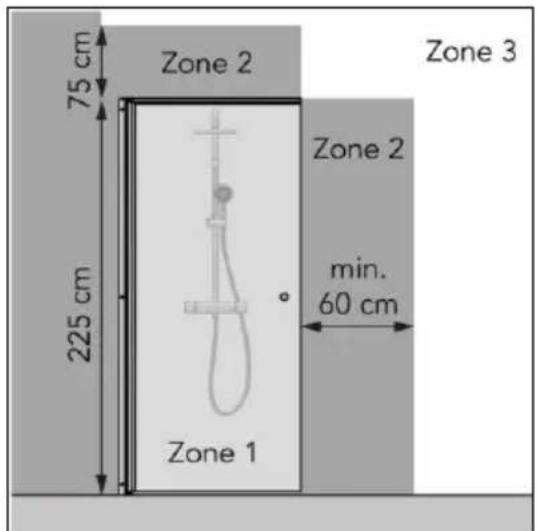

• In zone 3 of a toilet room or a bathroom with a bath, a shower with a screen or a shower without a screen (Figure 1);

• in a fixed position;

• out of reach for operation by a person in a bath or shower.

Figure 129 General safety instructions

• Prevent splashing water on or in the device.

• Do not immerse any part of the device in water or other liquids.

• Never insert fingers or other objects into the openings of the device.

• Do not expose the device to strong vibrations or mechanical stress.

WARNING The device becomes very hot during use. Do not touch the device during use or within five minutes after use.

CAUTION Do not cover the device during usage or after use while the device is still hot. To reduce the risk of fire, keep textiles, curtains, tent canvasses and other flammable material at a minimum distance of 1 meter from the device. Safety during operation

WARNING Do not use the device:

• outdoors or in a small space (< 7 m

• lying, leaning or standing;

• if any parts are dirty or wet;

• near large objects, like behind a door, under a shelf or near a cupboard;

• near or in a dusty or dirty environment, like a construction site;

• near flammable materials, liquids or fumes, like in a shed, stable or green house;

• near other heat sources or open fire;

• with an appliance that automatically switches the device on, such as a timer, dimmer or any other device. If the device, the electric cable or plug shows damage or is malfunctioning, immediately take the appliance out of use and disconnect the power supply.

Warranty EUROM offers a 60-month warranty on this device from the date of purchase. The warranty does not cover wear and tear from normal use. The warranty expires if a defect is the result of unintentional or careless use of the device. The manufacturer, importer and supplier are not liable for incorrect connections.30 Introduction Thank you for choosing this EUROM device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.

CAUTION It is important to read and understand this instruction manual before assembling, installing and using the device. This manual describes the correct and safe use of this device. Keep this manual for future reference. The manual is an essential part of the device and must be given to the new owner upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless, we reserve the right to improve and adjust this manual at any time. The images used may differ. The following symbols and terms are used in this manual to alert the reader on safety issues and important information:

WARNING Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the operator or bystanders, light and/or moderate damage to the product or to the environment.

CAUTION Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.

Hereby, Euromac b.v. declares this product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.eurom.nl/declaration-of-conformity.

• Wi-Fi and Bluetooth Frequency Band: 2.400 ~ 2.4835GHz

• Maximum radio-frequency power transmitted in this frequency band(s): - Wi-Fi: 17,5 dBm - Blue Tooth: 6,5 dBm Description The Mon Soleil Wi-Fi is an easy-to-use electric heater for indoor use, see (Figure 4). The device can be mounted on a wall or ceiling. The Mon Soleil Wi-Fi can be used with the Eurom Smart App and can be programmed on a day and a week timer.

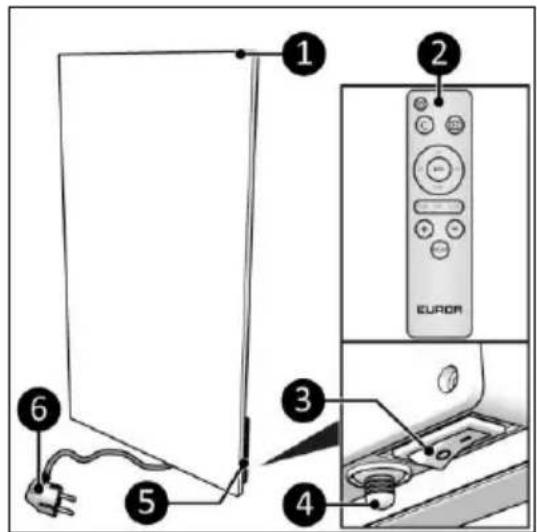

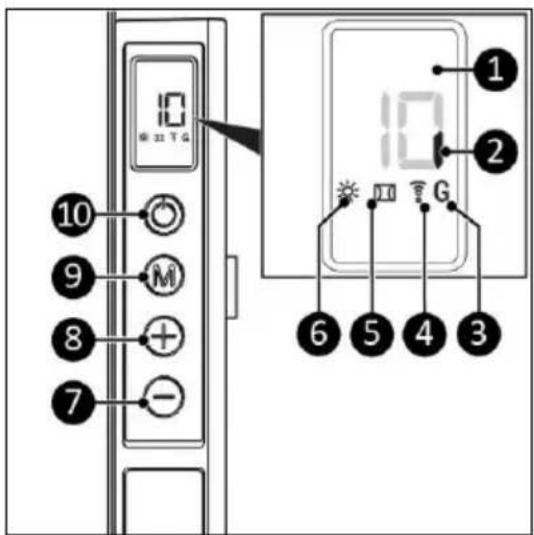

4. Internal temperature sensor

5. Control panel and LED display

5. Open window indication

6. Heating indication

Figure 6 *Batteries not included Transport and storage

• Clean the device before storing it.

• Transport the device upright.

• Store the device upright in its original packaging in a cool, dry and dust-free area. Assembly

WARNING Plastic bags can be dangerous. To avoid danger of suffocation, keep this bag away from babies and children.

The device is packed in one box. Remove all packaging materials and verify that the device is not damaged. Do not use the device if it is damaged, but always contact your supplier. Keep the packaging for safe storage and transport.33 Mounting

WARNING The wall or ceiling used for mounting must be made from non-flammable material and should be able to withstand a minimum temperature of 125 °C.

CAUTION Make sure to use suitable fastening materials, depending on the surface. The provided anchor bolts are suitable for a brick wall. Never block the space between the device and the wall or ceiling.

This device can be mounted in 3 ways:

• vertically to a wall;

• horizontally to a wall;

• to a ceiling. In all 3 cases, the control panel should be visible and operable. Wall mounting

1. Place the device on a non-flammable and

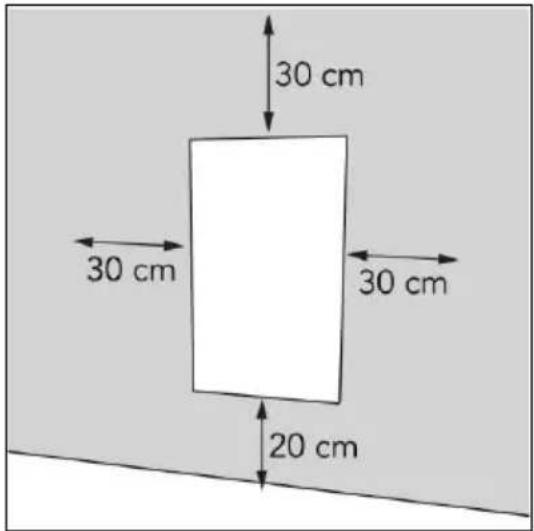

2. Place the device with a minimum distance

• 30 cm from the side walls;

• 30 cm from the ceiling;

• 20 cm from the floor.

4. Maintain 50 cm clearance on the front side.

3. Do not mount the device immediately over,

near or below a power outlet.

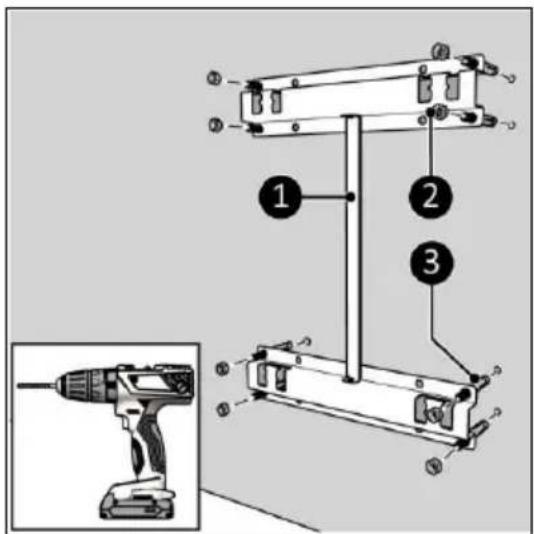

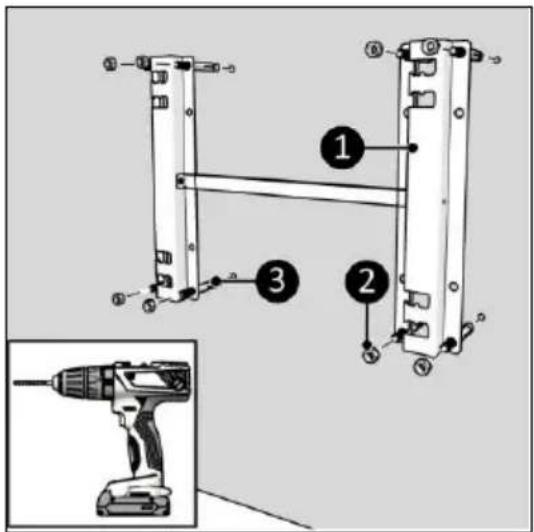

1. Place the bracket against the wall, with the

bracket openings at the top, and mark the eight holes (Figure 8).

2. Drill eight 10 mm holes at the marked spots.

3. Place the anchor bolts (Figure 8, pos. 3).

4. Tighten the wall bracket (Figure 8, pos. 1) to

the wall with the eight nuts (Figure 8, pos. 2).

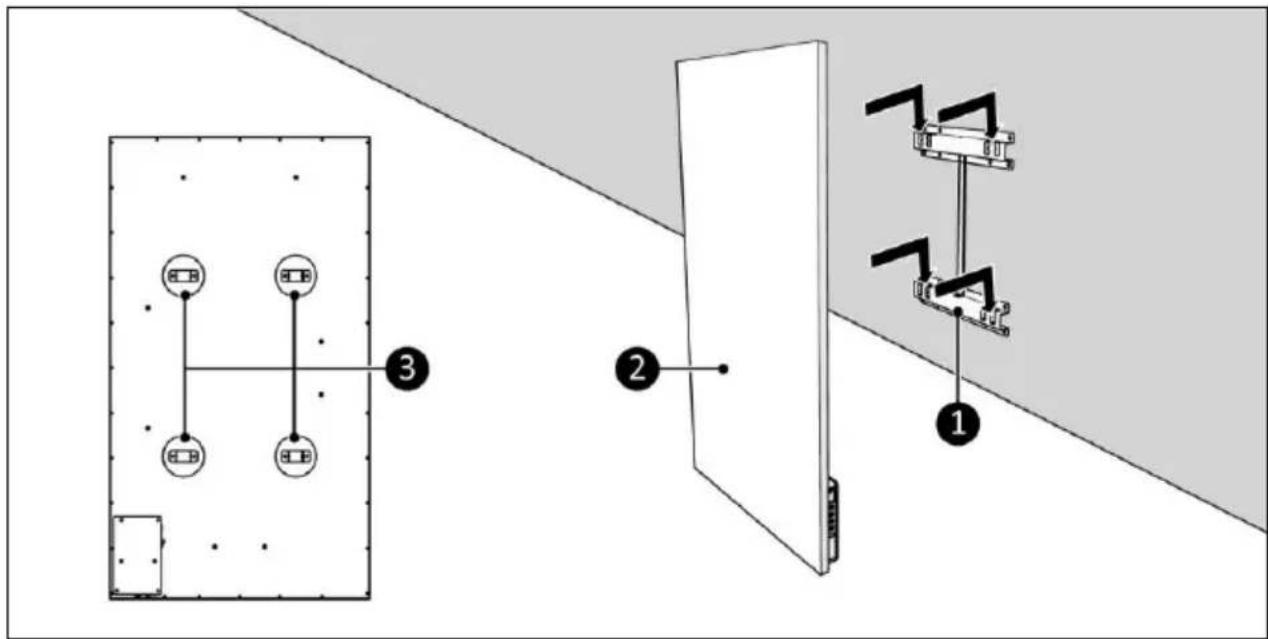

6. Slide the device (Figure 9, pos. 2) into the openings of the wall bracket (Figure 9, pos. 1).

7. Make sure the control panel is located at the bottom of the device.

8. To remove the device, lift and slide it in the opposite direction.

Horizontal placement

1. Place the bracket against the wall, with the

bracket openings at the left, and mark the eight holes (Figure 10).

2. Drill eight 10 mm holes at the marked spots.

3. Place the anchor bolts (Figure 10, pos.3).

4. Tighten the wall bracket (Figure 10, pos. 1) to

the wall with the eight nuts (Figure 10, pos. 2).

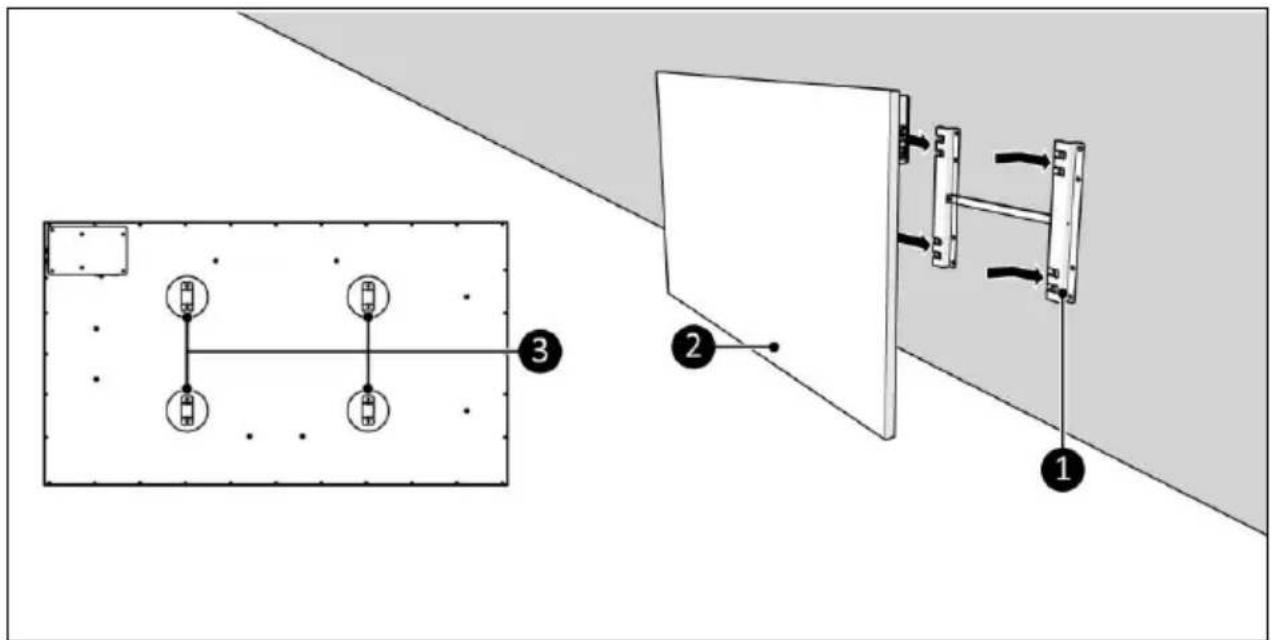

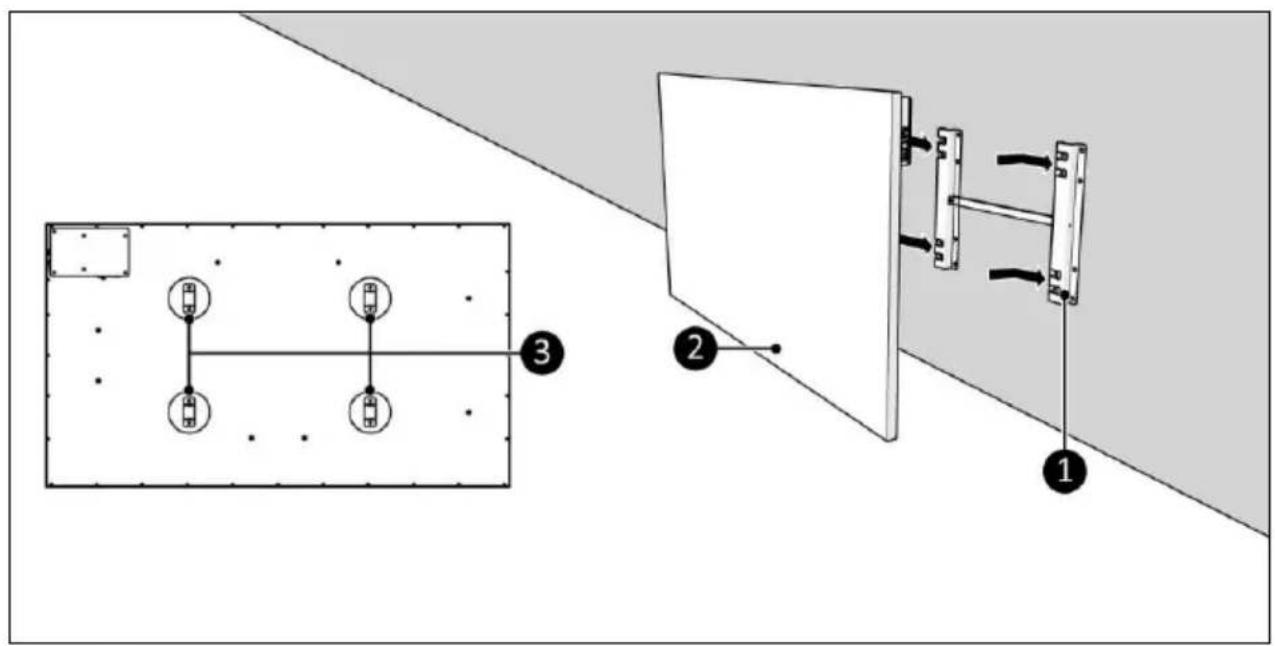

6. Slide the device (Figure 11, pos. 2) into the openings of the wall bracket

(Figure 11, pos. 1).

7. Make sure the control panel is located at the topside of the device.

8. To remove the device, lift and slide it in the opposite direction.

CAUTION When mounting the device to the ceiling, it is strongly recommended to use the Wi-Fi thermostat for optimal temperature control.

CAUTION When mounting the device to the ceiling, it is absolutely necessary to calibrate the device panel. See chapter “Temperature calibration” for explanation on the calibration function.

1. Place the device on a non-flammable and

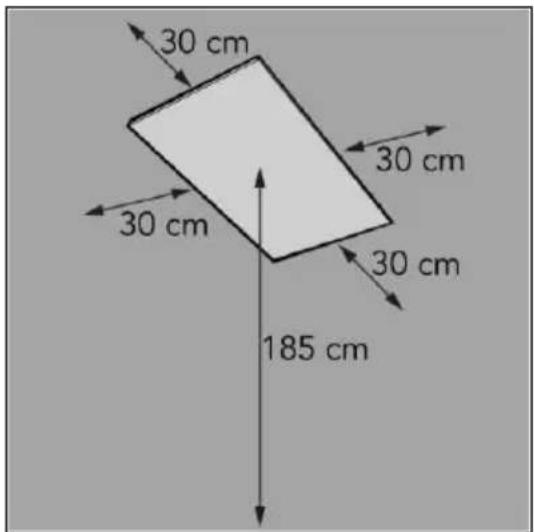

2. Place the device with a minimum distance

• 30 cm from the side walls;

• 185 cm from the floor.

3. Do not mount the device immediately over,

near or below a power outlet.

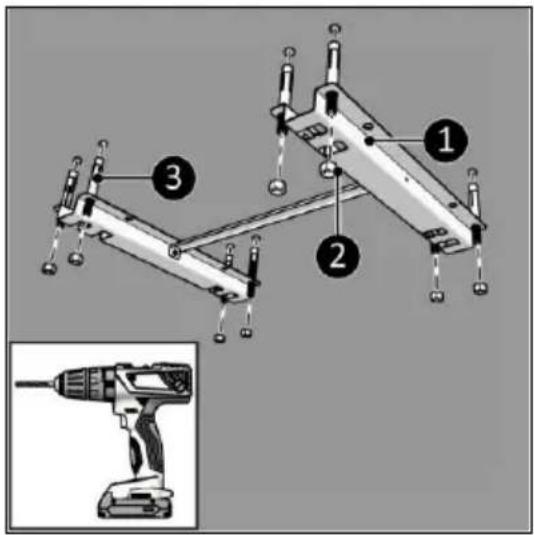

4. Place the bracket against the ceiling and mark

the eight holes (Figure 13).

5. Drill eight 10 mm holes at the marked spots.

6. Place the anchor bolts (Figure 13, pos. 3).

7. Tighten the bracket (Figure 13, pos. 1) to the

ceiling with the eight nuts (Figure 13, pos. 2).

9. Slide the device (Figure 14, pos. 2) into the openings of the ceiling bracket

(Figure 14, pos. 1).

10. Make sure the heater is properly secured in the ceiling bracket.

11. To remove the device, lift and slide it in the opposite direction.

CAUTION Use the external temperature sensor for an accurate temperature measurement.37

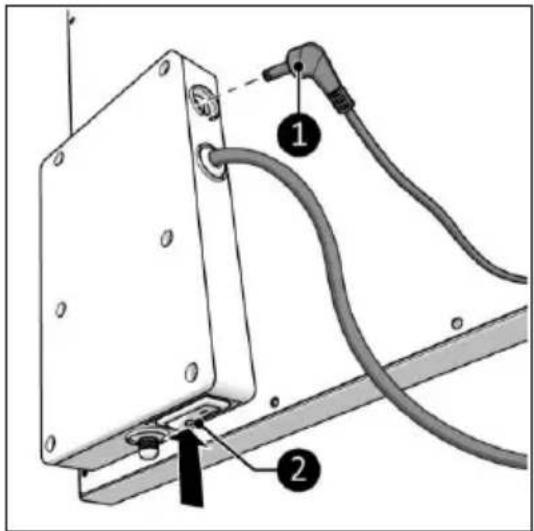

1. Make sure the ON/OFF switch is in the OFF

position (Figure 15, pos. 2)

2. Connect the temperature sensor connector

(Figure 15, pos. 1) to the sensor plug.

3. Place the temperature sensor approximately

2 meters away from the device.

WARNING Do not put the power plug into the wall socket before having mounted the device correctly. Do not use an extension cable; this can cause overheating and fire. If using an extension cable is unavoidable, make sure it is undamaged and earthed. Use an extension cable with a minimum power of 1000 Watt. Always unwind the extension cable completely to prevent overheating.

CAUTION Make sure that the main voltage is the same as indicated on the identification label of the device. All electrical connections must stay dry under all circumstances.

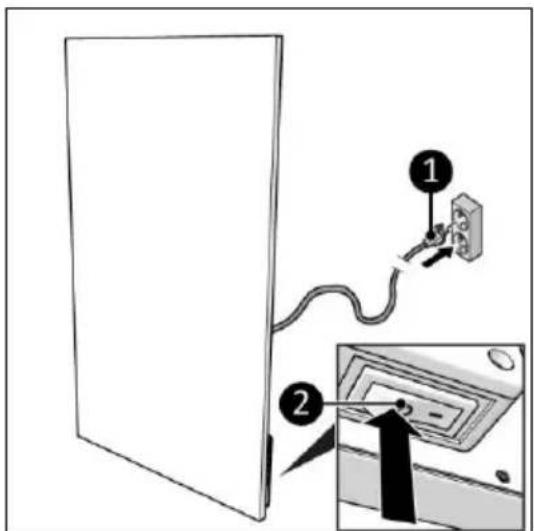

1. Make sure the device is correctly mounted.

2. Make sure the ON/OFF switch is in the OFF

position (Figure 16, pos. 2).

3. Place the power plug (Figure 16, pos. 1) into

an earthed wall socket that is easily accessible. Use an earthed wall socket with a minimum power of 1000 Watt.

4. Make sure the power cable does not come

into contact with the device.

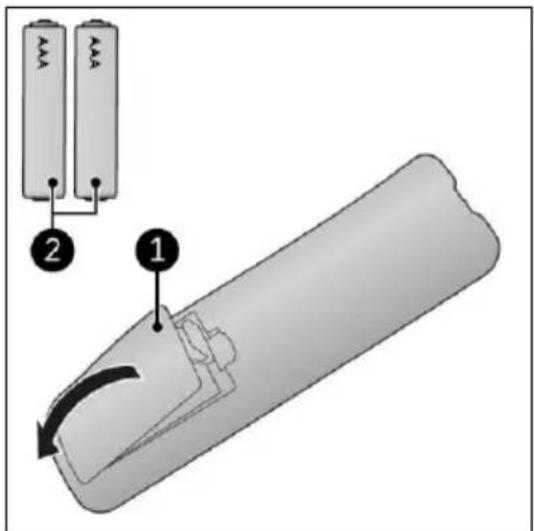

(Figure 17, pos. 2) as indicated in the battery compartment. Make sure to insert the batteries correctly.

WARNING Before every use, make sure that:

• you operate the device with dry hands;

• the device is clean and dry;

• the device is not damaged;

• the device is not covered or blocked;

• the device is securely mounted to the wall or ceiling.

CAUTION When the device is turned on or off, it may emit a sound. This is caused by material expanding and shrinking during heating and cooling down.

CAUTION The day and time settings will be reset to default if the device is switched off by, using the ON/OFF switch, or by unplugging it. The week timer set via the remote control is automatically set to OFF.39

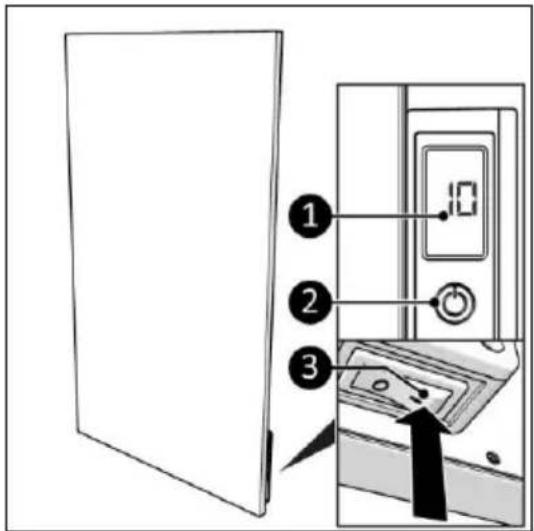

1. Set the ON/OFF switch to the ON position

panel (Figure 18, pos. 2) or on the remote control.

3. The display (Figure 18, pos. 1) will first show

the set temperature for 3 seconds followed by the ambient temperature.

Figure 18 Device control Set the temperature

1. Press the Plus or Minus button to set the desired temperature, from 0 °C to 45 °C.

2. The device starts heating when the set temperature is higher than the ambient

temperature and stops heating when the ambient temperature reaches the set temperature. The heating indicator will appear and disappear accordingly.

3. The display shows the ambient temperature.

Set the day and time

1. Make sure the heating indicator is not visible. The device should not be heating.

2. Press the Mode button, HH appears on the display.

3. Press the Plus or Minus button to select the current day, from 1 (Monday) to 7 (Sunday).

4. Press the Mode button, H1 appears on the display.

5. Press the Plus or Minus button to select the current hour, from 1 to 23.

6. Press the Mode button, H2 appears on the display.

7. Press the Plus or Minus button to select the current minute, from 1 to 59.

8. Press the Mode button, the ambient temperature appears on the display, the day and

time are set. Checking the day and time

1. Make sure the heating indicator is visible, the device should be heating.

2. Press the Mode button briefly and repeatedly to check:

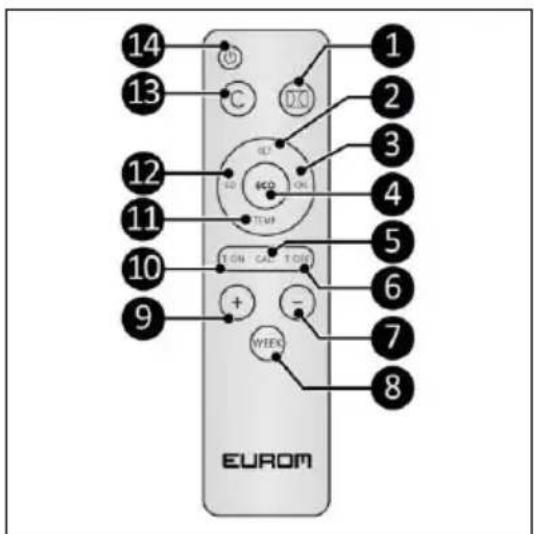

• the minutes - H2. Remote control Direct the remote control towards the display to operate the device using the remote control. Set the temperature

1. Press the Plus or Minus button to set the desired temperature, from 0 °C to 45 °C.40

2. The device starts heating when the set temperature is higher than the ambient

temperature and stops heating when the ambient temperature reaches the set temperature. The heating indicator will appear and disappear accordingly.

3. The display shows the ambient temperature.

Set the day and time

1. Make sure the heating indicator is not visible. The device should be ON but not heating.

2. Press and hold the SET button until HH appears on the display.

3. Press the Plus or Minus button to select the current day, from 1 (Monday) to 7 (Sunday).

4. Press the SET button, H1 appears on the display.

5. Press the Plus or Minus button to select the current hour, from 1 to 23.

6. Press the SET button, H2 appears on the display.

7. Press the Plus or Minus button to select the current minute, from 1 to 59.

8. Press the SET button, the ambient temperature appears on the display, the day and time

are set. Check the day and time

1. Make sure the heating indicator is visible, the device should be heating.

2. Press the SET button briefly and repeatedly to check:

• the minutes – H2. Open window mode

1. Press the Open window detection button to activate. The Open window indicator

appears on the display.

2. When the ambient temperature decreases 8°C or more within 15 minutes, the device

will go in standby mode and the Open window indicator starts flashing on the display.

3. Press the Open window detection button to deactivate.

ECO mode The remote control has an ECO button for an energy-efficient mode, meaning the device maintains the room temperature at 16°C.

1. Press the ECO button to activate; EC appears on the screen.

2. Press the ECO button to deactivate.

If the heater is working in ECO mode and a timer setting becomes active, the device will start to work according to the timer setting. When the timer setting ends and the device goes off, the device will not return to the ECO mode. Set the week timer The week timer can be set via the remote control, but is easier to set using the Eurom Smart App (when no button is pressed in the week timer setting for 10 seconds, it will reset, meaning you have to start all over again). Make sure to not create any contradicting timer settings.

1. Press and hold the WEEK button until UU appears and flashes on the display.

2. Press the SET button; ON/OFF starts flashing on the display.41

4. Press the OK button; UU appears on the display.

• 01 – all timer settings are executed once only. This can only be planned for the current week (U1 to U7). On Sunday (U7) right after 23:59, all 01 timer settings are deleted;

• 99 – all timer settings are executed limitlessly.

7. Press the OK button; UU appears on the display.

8. Press the SET button; U1 appears on the display.

9. Press the Plus or Minus button to select the current day, from U1 (Monday) to U7

10. Press the OK button; the selected day appears on the display.

11. Press the EDIT button; 01 appears on the display.

12. Press the Plus or Minus button to select a number for this timer, from 1 to 4. Four means

the maximum timer settings per day. If a new timer is set with the same number, the old timer will be overwritten.

13. Press the OK button; the selected number appears on the display.

14. Press the Temperature button; HP appears on the display.

15. Press the Plus or Minus button to select the desired temperature, from 0 °C to 37 °C.

16. Press the OK button; the selected temperature appears on the display.

17. Press the TIME ON button; HE appears on the display.

18. Press the Plus or Minus button to select the desired start time, from 00:00 to 23:00 in

19. Press the OK button; the selected start time appears on the display.

20. Press the TIME OFF button; HF appears on the display.

21. Press the Plus or Minus button to select the desired stop time, from 00:00 to 23:00 in

22. Press the OK button; the selected stop time appears on the display.

23. Repeat as desired.

Remove all week timer settings

1. Press and hold the WEEK button until UU appears and flashes on the display.

2. Press the Cancel button to erase all timer settings.

Remove all week timer settings for a specific day

1. Press and hold the WEEK button until UU appears and flashes on the display.

2. Press the SET button; ON/OFF appears on the display.

3. Press the SET button; 01/99 appears on the display.

4. Press the SET button; U1 appears on the display.

5. Press the Plus or Minus button to select the desired day, from 1 (Monday) to 7 (Sunday).

6. Press the Cancel button to erase all timer settings for the selected day.42

Remove a specific timer setting

1. Press and hold the WEEK button until UU appears and flashes on the display.

2. Press the SET button; ON/OFF appears on the display.

3. Press the SET button; 01/99 appears on the display.

4. Press the SET button; U1 appears on the display.

5. Press the Plus or Minus button to select the desired day, from 1 (Monday) to 7 (Sunday).

6. Press the Edit button.

7. Press the Plus or Minus button to select the desired timer setting, from 1 to 4.

8. Press the Cancel button to erase the selected timer setting.

Check the timer settings

1. Make sure the heating indicator is visible. The device should be heating.

2. Press the WEEK button briefly and repeatedly to check:

• U1-U7, day of the week;

• timer setting number of the day concerned (1, 2, 3 or 4);

• start time in hours;

• this is repeated for the next timer setting. All 28 timer settings are shown, including the timer settings that have not been configured. The temperature for the timer settings that are not configured is 20 °C. Eurom Smart App

CAUTION Timer settings made with the remote control are not visible in the Eurom Smart App and timer settings made with the app are not visible on the device. As soon as the Eurom Smart App is used, the remote control can no longer be used to make new timer settings. The Eurom Smart App automatically updates the time.

The device can be operated using an app on a smartphone or tablet. The Eurom Smart App can be used:

• to switch the device on or off (without anticipation);

• set the temperature;

• activate the ECO mode. The app can also be used to set on and off timer settings daily, on the weekly timer.43

1. Open the Eurom Smart App manual with the

• When the device is connected with Wi-Fi, the Wi-Fi symbol appears on the screen.

• If the Wi-Fi symbol is blinking there is no connection.

1. Create a schedule with days and times in the Eurom Smart App. Timer settings set in the

• will be stored on the device;

• will not be visible on the device;

• will remain available if Wi-Fi disconnects;

• will remain available if the device is switched off or unplugged;

• can only be removed via the app.

2. Check the data in the app regularly.

1. Verify that the heating indicator is not visible. The device should be ON but not heating.

2. Press and hold the Mode button. The Wi-Fi symbol will start blinking slowly and the Wi-Fi

connection is in AP mode. Reset Wi-Fi connection

1. Verify that the heating indicator is not visible. The device should be ON but not heating.

2. Press and hold the Mode button. Existing connections will be deleted, the Wi-Fi symbol

will start blinking and a new connection will be made. Switching on and off Wi-Fi connection

1. Verify that the heating indicator is not visible. The device should be ON but not heating.

2. Press and hold the ON/OFF button for three seconds to toggle between:

• Wi-Fi on - Wi-Fi indicator flashes;

• Wi-Fi off - no Wi-Fi indicator visible. Wi-Fi thermostat ready (optional) This device can be connected with the optional Wi-Fi thermostat. The temperature is measured at the Wi-Fi thermostat instead of the device. This ensures an optimized comfort44 level. The device will keep heating until the set temperature of the Wi-Fi thermostat is reached. It is possible to connect multiple devices to a single Wi-Fi thermostat. All the connected devices will switch on- and off simultaneously. To use the Wi-Fi thermostat:

1. Connect the Wi-Fi thermostat to a power outlet.

2. Download the Eurom Smart App on a (mobile) device.

3. Open the Eurom Smart App.

4. Add the Wi-Fi thermostat and other devices to the Eurom Smart App.

5. Go to the device(s) and press the Pairing button to pair the device(s) to the

Wi-Fi thermostat. The device is connected to the Wi-Fi thermostat. The G-sign illuminates in the Eurom Smart App and on the device. Now you can enjoy the optimized comfort level of permanent electric heating. Temperature calibration (Optional)

CAUTION When the device is mounted on the ceiling, the internal temperature sensor (Figure 3, pos. 4) is not able to measure the temperature in the room correctly due to the fact that heat rises. Therefore, it is absolutely necessary to calibrate the device panel when it is mounted on the ceiling.

Calibrating the device

1. Set the desired temperature to 45 °C (max. temperature).

2. Let the device heat without interruptions for 120 minutes.

3. Place a digital room thermometer (not included) at a central place where the desired

temperature should be achieved; recommended is 150 cm from the floor.

4. After 120 minutes, calculate the difference between the external thermometer and the

temperature shown on the display of the heater (press any button to make it reappear). For example: if the display shows 36 °C and the thermometer 20 °C, then the calibration number is 16.

5. Press the Calibration button on the remote control; a number appears on the display.

6. Press the Plus or Minus button to select the calibration number, from 00 to 25. In our

7. Press the OK button; the calibration number is now set. The temperature measurement

on the heater is now corrected with the set calibration value.

8. Set the ON/OFF switch to the OFF position (Figure 11, pos. 2) to activate the calibration

process. When the calibration value is changed, the device has to be turned off and then on to active the new calibration value. Calibration mode

• Every time the device is turned on and starts heating, the calibration process will start. The device display will show CL and the Eurom Smart App will show Calibration in progress. The calibration process uses the calibration number to gradually adjust the45 measured temperature to the calibrated room temperature. This can take up to 90 minutes. The Eurom Smart App shows the progress of the calibration process. When the calibration is ready the display and the Eurom Smart App will show the calibrated room temperature. When the calibration value is correctly measured the calibrated room temperature will be approximately the same as the real room temperature.

• When the heater stops heating, the calibration process will start in opposite direction (cooling calibration). The device display will show CL and the Eurom Smart App will show Calibration in progress. The cooling calibration process can take up to 150 minutes.

• Do not switch off the heater during the calibration process. Interrupting the calibration process will cause a temporary difference between the calibrated room temperature and the actual room temperature. In this case the heater will not heat up to the set temperature. If by accident the calibration process is cancelled, the difference will resolve itself over time. For ceiling-mounted use it is recommended to use the Eurom Wi-Fi thermostat (365764 & 365771 (Swiss plug) or 365788 (USB-C version)) for optimal temperature control. The Wi-Fi thermostat measures the room temperature and communicates the information via Wi-Fi to the device. After operation

CAUTION Do not use the power cable to unplug or carry the device. Do not wind the power cable too tightly or in sharp corners. Do not wrap the power cable around the device.

1. Make sure the ON/OFF switch is in the OFF position (Figure 16, pos. 2).

2. Disconnect the power plug from the power outlet (Figure 16).

3. Let the device cool down before touching it.

4. Wind the power cable.

5. Remove the batteries from the remote control (Figure 17).

WARNING Do not perform any repairs or modifications to this device.

Maintenance and repairs must be carried out by a EUROM authorized professional.46 Cleaning

WARNING The device becomes very hot. Make sure the device is turned off, unplugged and completely cooled down.

• flammable, aggressive or chemical cleaning products. Prevent water from entering the device. Do not immerse any part of the device in water or other liquids.

It is recommended to clean the device after each use and prior to storage.

1. Wipe the device with a damp, clean, soft, lint-free cloth or a soft brush.

2. Let the device dry completely prior to use and storage.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Attachments The CE declaration can be found at the end of this manual.47

manual heat charge control, with integrated thermostat

Minimum heat output (indicative) Pmin

manual heat charge control with room and/or outdoor temperature feedback

electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption fan assisted heat output

Type of heat output/room temperature control (select one) At minimum heat output elmin

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer Yes

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option Yes

with adaptive start control

with working time limitation

with black bulb sensor

manual heat charge control, with integrated thermostat

Minimum heat output (indicative) Pmin

manual heat charge control with room and/or outdoor temperature feedback

electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption fan assisted heat output

Type of heat output/room temperature control (select one) At minimum heat output elmin

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer Yes

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option Yes

with adaptive start control

with working time limitation

with black bulb sensor

manual heat charge control, with integrated thermostat

Minimum heat output (indicative) Pmin

manual heat charge control with room and/or outdoor temperature feedback

electronic heat charge control with room and/or outdoor temperature feedback

Auxiliary electricity consumption fan assisted heat output

Type of heat output/room temperature control (select one) At minimum heat output elmin

single stage heat output and no room temperature control

Two or more manual stages, no room temperature control

with mechanic thermostat room temperature control

with electronic room temperature control

electronic room temperature control plus day timer

electronic room temperature control plus week timer Yes

Other control options (multiple selections possible)

room temperature control, with presence detection

room temperature control, with open window detection

with distance control option Yes

with adaptive start control

with working time limitation

with black bulb sensor

Identification Figure 2 Figure 378
