USER MANUAL HB110607 Emerio

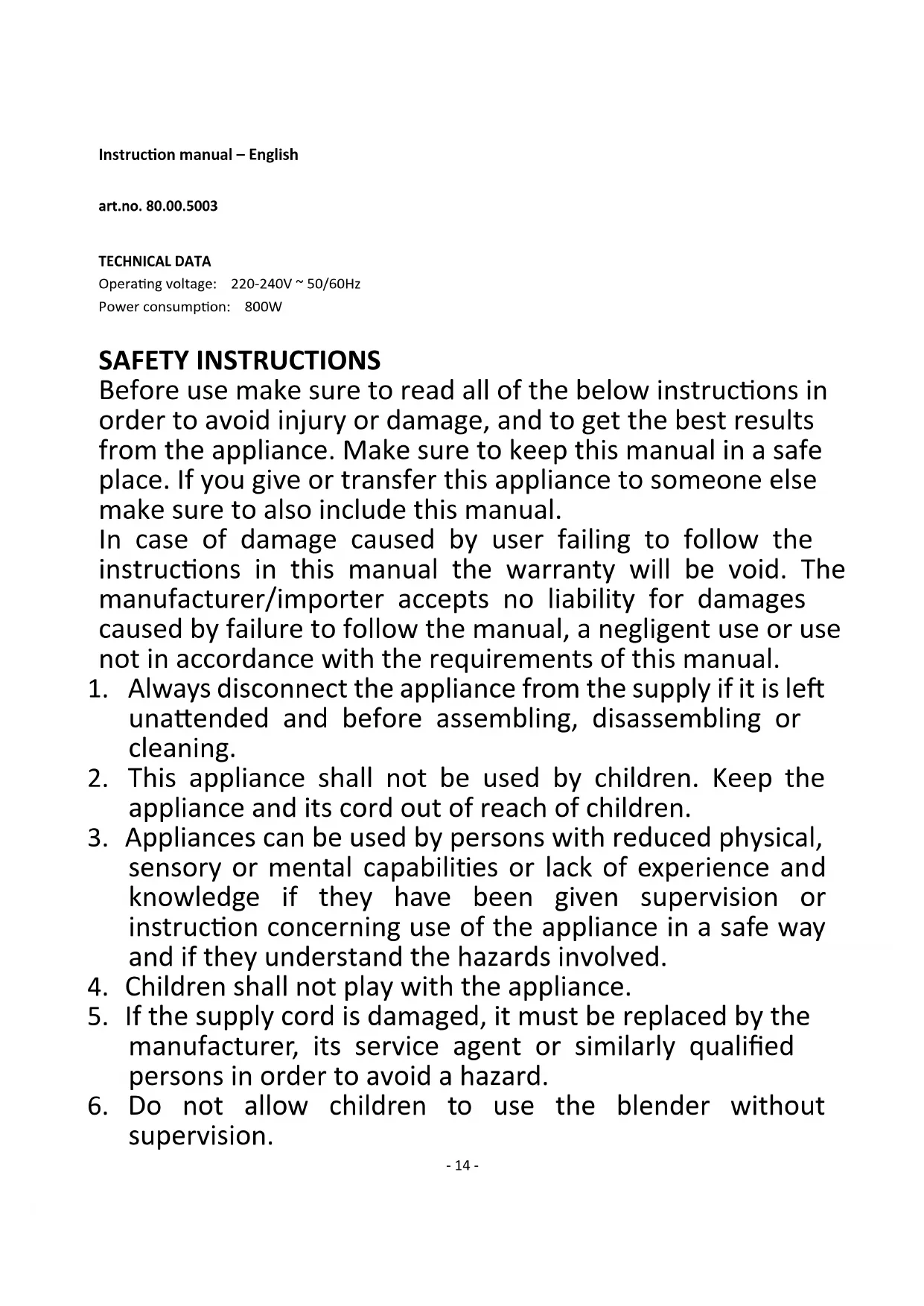

novembre 2019 Hema B.V. Boîte postale 37110 1030 AC Amsterdam Pays-Bas Ces conditions de garantie sont valables sans préjudice des droits légaux du client ou des actions intentées par lui.- 14 - Instruction manual – English art.no. 80.00.5003 TECHNICAL DATA Operating voltage: 220-240V ~ 50/60Hz Power consumption: 800W SAFETY INSTRUCTIONS Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual. In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Always disconnect the appliance from the supply if it is left

unattended and before assembling, disassembling or cleaning.

2. This appliance shall not be used by children. Keep the

appliance and its cord out of reach of children.

3. Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

4. Children shall not play with the appliance.

5. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Do not allow children to use the blender without

7. Switch off the appliance and disconnect from supply

before changing accessories or approaching parts that move in use.

8. Care shall be taken when handling the sharp cutting

blades, emptying the bowl and during cleaning.

9. There is a potential risk of injuries from misuse.

10. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

11. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

12. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug. Do

not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove

the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

18. Never leave the appliance unattended during use.

19. This appliance is not designed for commercial use.

20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not

22. Regarding the instructions for cleaning the surfaces which

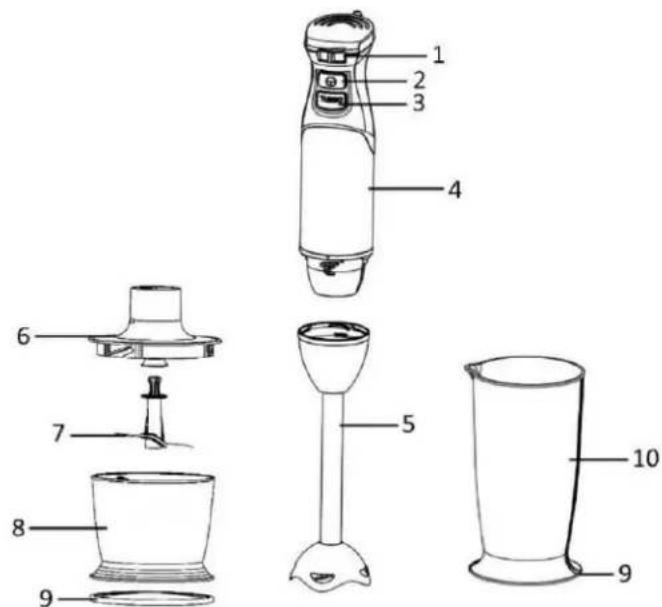

come in contact with food, speed settings and operating times, please refer to the below paragraph of the manual.- 16 - PARTS DESCRIPTION

5. Stainless steel shaft

1. Carefully unpack the appliance and remove all packaging materials.

2. Clean the accessories of your appliance in warm soapy water, rinse and dry thoroughly before use.

Use of blender: It is suitable for blending vegetables and fruits.

1. Turn the motor unit clockwise to lock it with the stainless steel shaft. Make sure the arrow icon is pointing to

the locked icon on the joint side.

2. Plug in the hand-held blender to a suitable power outlet.

3. Lower the hand-held blender into food. You can operate the unit in any bowl or food container.

NOTE: The maximum capacity of the measuring cup is 700ml. It is ideal for taking measurements and also suitable for preparing small quantities of processed food.

4. Use the adjustable speed control to select your desired speed setting, and then press and hold the on/off button

to run the appliance. You can also press and hold the turbo button to inject additional speed into the blending process.

5. To stop working, just release the on/off button. After use, unplug the appliance.

IMPORTANT! Do not continuously operate the appliance too long. The motor may overheat. Do not allow the appliance to operate more than 30 seconds at one time. 60 seconds rest time must be maintained between two consecutive cycles. Use of chopper: It is suitable for chopping meat and making garlic paste.

1. Place the copper bowl on a clean and level surface.

2. Assemble the stainless steel blade into the chopper bowl. Make sure it fits properly on the base shaft. CAUTION!

The blade is very sharp. Handle with care to avoid any cuts. Always handle the plastic shaft.

3. Place food into the bowl and cover with lid. Turn the lid clockwise to have it locked into place.

NOTE: Remove the bones of meat, cut meat into small pieces and then place the meat into the bowl. The maximum quantity of meat cannot exceed 200g in every blending. Pay attention to the MAX level on the bowl.

4. Insert the motor unit onto the chopper lid; turn the motor unit clockwise to have it locked with the lid. Make

sure the arrow is pointing to the locked icon.

5. Plug in the appliance. Use the adjustable speed control to select your desired speed setting, and then press and

hold the on/off button to run the appliance. You can also press and hold the turbo button to inject additional speed into the blending process.

6. To stop working, just release the on/off button. After use, unplug the appliance.- 17 -

IMPORTANT! Do not continuously operate the appliance too long. The motor may overheat. Do not allow the appliance to operate more than 30 seconds at one time. 60 seconds rest time must be maintained between two consecutive cycles. CAUTION! - To reduce the risk of injury, never place cutting blade on base without first putting bowl properly in place. - Be sure the chopper lid is securely locked in place before operating the appliance.

CLEANING THE APPLIANCE

1. Unplug the appliance and then disassemble it.

2. Wash the stainless steel shaft under the running water. Do not use abrasive cleaner or detergent. Do not

immerse the stainless steel shaft in water as the lubrication on the bearings may be washed away over time. After cleaning, place the shaft upright so that any water which may have got in can drain out. The stainless steel shaft is the only part that can be cleaned in a dishwasher.

3. Wash the measuring cup, chopper bowl and blade in warm soapy water. Do not put them in a dishwasher for

4. Wipe the motor unit with a damp cloth. Never immerse it in water for cleaning as electric shock may occur.

5. Dry parts thoroughly after cleaning. Caution: Blades are very sharp. Handle with care.

Quick cleaning: Between processing tasks, hold the hand-held blender in the cup half filled with water and turn on for a few seconds. Recycling This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances. Quality Safety and quality is very important to HEMA. We have our own laboratory, which assesses all equipment in terms of electrical safety and ease of use, before it is included in our range. HEMA also monitors the product quality in collaboration with the manufacturer. Security This HEMA item may be fitted with a plastic anti-theft strip. You will find the strip on the bottom of the product. This strip does not influence the quality or the operation of the product and can be removed without a problem. Faults and repairs If this device needs to be repaired, you can hand it in at a HEMA branch after packing the product securely. Do not try to repair this product yourself. For repairs that fall within the warranty period, you will need to show a proof of purchase and the warranty document. Regularly check the power cord for damage. If there is any damage to the cord set, please return the item to a HEMA branch for repair. Do not try to replace it yourself. For safety reasons we recommend that you do not carry out any repairs to an electrical device yourself.- 18 - Warranty The warranty period is 2 years from the date of purchase. Warranty conditions HEMA quality guarantee HEMA guarantees that the product you have purchased meets the standards our customers are entitled to expect in terms of quality and product properties. These warranty conditions do not affect your statutory or consumer rights and apply in all countries where there are HEMA branches. Warranty claims If you wish to make a warranty claim, please return the product with proof of purchase to one of our stores. The store will determine whether to replace the product (with an identical or equivalent product), accept the product for repair within a reasonable period of time or refund the price of the product. Invalidation of warranty The warranty on this article is invalidated if the fault or defect is caused by: a) normal wear and tear b) external damage (for example, damage caused by exposure to sand or moisture or due to falling of the product, etc.) c) improper or inappropriate use d) overdue or incorrect maintenance, including repairs that were not authorised by HEMA The above list does not exclude other possible reasons for defects not being covered by the warranty. Added confidence when choosing a HEMA product You may swap or return the product within 30 days after purchase (provided it is undamaged and you have proof of purchase). 1 November 2019 HEMA BV PO Box 37110 1030 AC Amsterdam, Netherlands The Netherlands These warranty conditions apply without prejudice to the customer’s statutory rights or any other claims by the customer.- 19 - Bedienungsanleitung – German Art. -Nr. 80.00.5003 TECHNISCHE DATEN: Nennspannung: 220-240V ~ 50/60Hz Leistungsaufnahme: 800W SICHERHEITSHINWEISE Lesen Sie vor dem Gebrauch unbedingt die nachfolgenden Anleitungen, um Verletzungen oder Beschädigungen zu vermeiden und das beste Ergebnis mit dem Gerät zu erzielen. Bewahren Sie diese Bedienungsanleitung an einem sicheren Ort auf. Wenn Sie dieses Gerät an eine andere Person weitergeben, stellen Sie sicher, dass Sie auch diese Bedienungsanleitung aushändigen. Im Falle von Beschädigungen, die durch die Missachtung der Anleitungen in dieser Bedienungsanleitung verursacht wurden, wird die Garantie ungültig. Der Hersteller/Importeur haftet nicht für Schäden, die durch Missachtung der Bedienungsanleitung, fahrlässigen Gebrauch oder Benutzung, die nicht in Ü bereinstimmung mit den Anforderungen dieser Bedienungsanleitung erfolgt, verursacht wurden.
