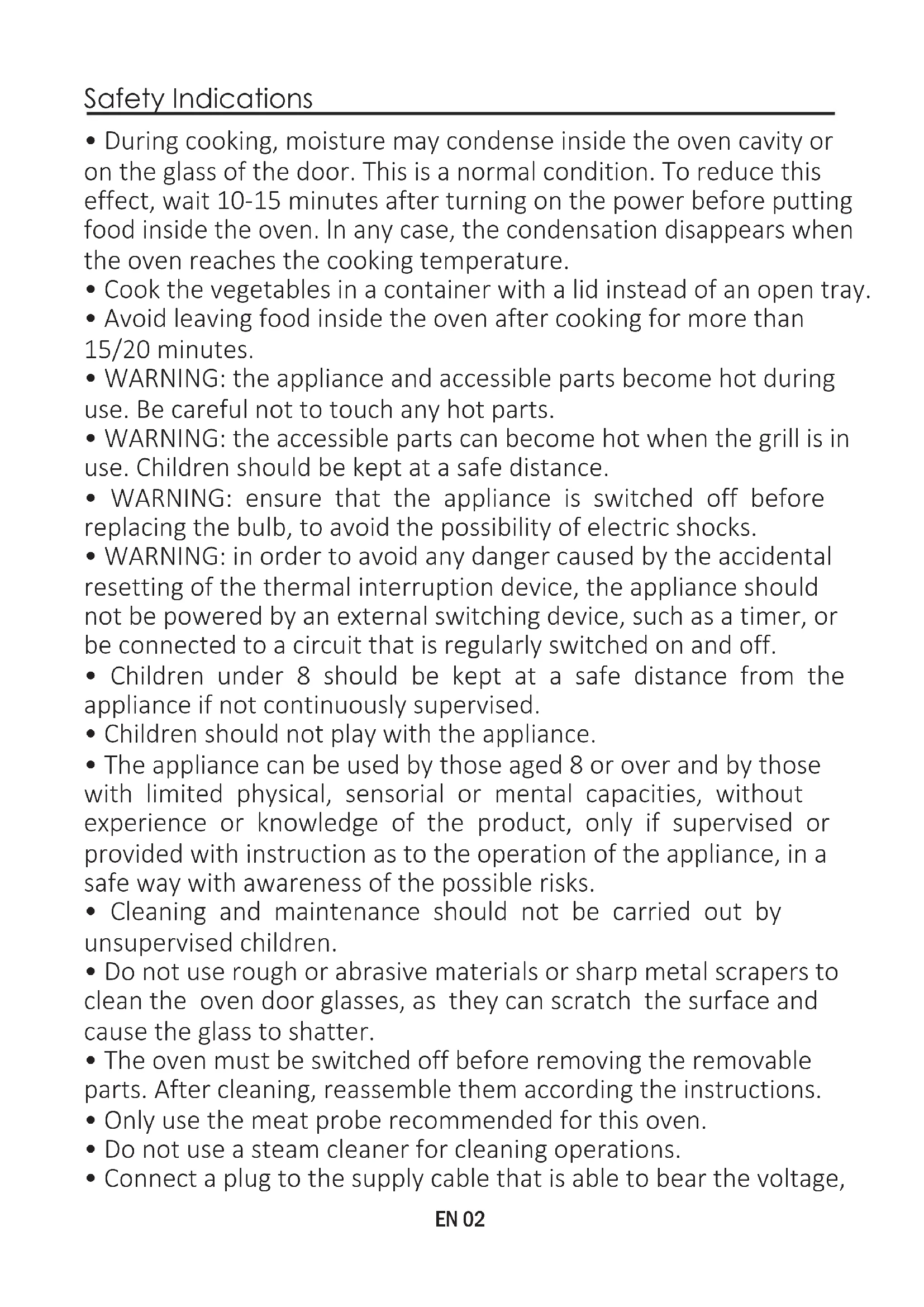

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. ln any case, the condensation disappears when the oven reaches the cooking temperature.

• Cook the vegetables in a container with a lid instead of an open tray.

• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.

• WARNING: the appliance and accessible parts become hot during use. Be careful not to touch any hot parts.

• WARNING: the accessible parts can become hot when the grill is in use. Children should be kept at a safe distance.

• WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks.

• WARNING: in order to avoid any danger caused by the accidental resetting of the thermal interruption device, the appliance should not be powered by an external switching device, such as a timer, or be connected to a circuit that is regularly switched on and off.

• Children under 8 should be kept at a safe distance from the appliance if not continuously supervised.

• Children should not play with the appliance.

• The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks.

• Cleaning and maintenance should not be carried out by unsupervised children.

• Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to shatter.

• The oven must be switched off before removing the removable parts. After cleaning, reassemble them according the instructions.

• Only use the meat probe recommended for this oven.

• Do not use a steam cleaner for cleaning operations.

• Connect a plug to the supply cable that is able to bear the voltage, EN 02current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. ln case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

• The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

• lf the power cable is damaged, it should be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department. The type of power cable must be H05V2V2-F. This operation should be carried out by a suitably qualified professional. The earth conductor (yellow-green) must be approximately 10 mm longer than the other conductors. For any repairs, refer only to the Customer Care Department and request the use of original spare parts.

• Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.

• Any excess of spilled material should be removed before cleaning.

• A long power supply failure during an occurring cooking phase may cause a malfunction of the monitor. ln this case contact customer service.

• The appliance must not be installed behind a decorative door in order to avoid overheating.

• When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity. The shelf must be inserted completely into the cavity. EN 03• WARNING: Do not line the oven walls with aluminium foil or single- use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

• WARNING: Never remove the oven door seal.

• CAUTION: Do not refill the cavity bottom with water during cooking or when the oven is hot.

• No additional operation/setting is required in order to operate the appliance at the rated frequencies.

• .WARNING: before initiating the automatic cleaning cycle: - Clean the oven door; - Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents; - Remove all accessories and the sliding rack kit (where present); -Do not place tea towels.

• ln ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

• During the pyrolytic cleaning process, surfaces can heat up more than usual, children must therefore be kept at a safe distance. EN 04Summary EN 05 General Instructions

1.1 Safety indications

1.2 Electrical safety

1.6 Conformity declaration

4.1 General notes on cleaning

• Instruction for removal and cleaning of the side racks

• Removal of the oven window

• Removal and cleaning of the glass door

• Changing the bulb Oven Cleaning and Maintenance

We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can give it to customer service staff if any repairs are required. Having removed the oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibility in cases where the instructions contained in this document are not observed. NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you have purchased.

1.1 Safety Indications

Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage resulting from improper, incorrect or unreasonable usage. The use of any electrical appliance implies the observance of some fundamental rules: - do not pull on the power cable to disconnect the plug from the socket; - do not touch the appliance with wet or damp hands or feet; - in general the use of adaptors, multiple sockets and extension cables is not recommended; - in case of malfunction and/or poor operation, switch off the appliance and do not tamper with it.

1.2 Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensure correct supply to the oven. CONNECTION The oven is supplied with a power cable that should only be connected to an electrical supply with 220- 240 Vac power between the phases or between the phase and neutral. Before the oven is connected to the electrical supply, it is important to check: - power voltage indicated on the gauge; - the setting of the disconnector. The grounding wire connected to the oven's earth terminal must be connected to the earth terminal of the power supply. WARNING Before connecting the oven to the power supply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connection that has defective continuity. EN 061.3 Recommendations After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean. Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistant to very high temperatures.

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury. The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on last page according to the type of fitting. NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalent qualifications.

1.5 Waste management and environmental protection

This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules: - the WEEE should not be treated as domestic waste; - the WEEE should be taken to dedicated collection areas managed by the town council or a registered company. In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cooking process to start at the reduced tariff time slot.

1.6 Declaration of compliance

By placing the mark on the appliance, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product. EN 072. Product Description

(lateral wire grid if included)

2.2 Accessories (According to model)

Holds baking trays and plates. Collects the residues that drip during the cooking of foods on the grills. EN 08 Lateral wire grids

4 Baking tray for desserts It should be positioned on the tray and can be used to cook pastries, biscuits etc.; never place the baking tray directly on the lower shelf of the oven.

1. Timer/automatic mode2. Fan function3. Defrost mode4. Temperature or clock display5. LCD display adjustment controls6. Function selector knob7. Programme selector knobWARNING!The first operation to carry out after installation, or after a power cut, is to set the time of day (a power cut has occured if the display is flashing 12:00).200°-> The temperature LED “°” flashes until the displayed temperature is reached.HOT -> When a programme finishes, if the oven is still hot, the display shows "HOT", alternating with the time, even if the knobs are positioned to OFF. EN 09

PRELIMINARY CLEANINGClean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on for about 1 hour, this will remove any lingering smells of newness.

• Enables you to turn off the sound of the minute minder.

• Rotate the function selector to the position OFF.

• To turn off the sound of the minute minder

• Enables you to set the time which appears on the display

• Rotate the function selector to the position OFF.

• Turn the right function selector to a cooking function

• Rotate the left function selector to the position "End of cooking"

• Set the end time of cooking by using buttons " + " and " - "

• Lighting Auto appears

• It allows to preset the end of cooking time you want.

• When the cooking time is set, turn the function selector to OFF to go back to actual time.

• To view the cooking time selected, turn the left function selector to End of cooking Time

• When the cooking time has elapsed, the oven switch off automatically.

• To stop the cooking functions early, turn the function control to OFF

• Turn the left function selector to the position Minute Minder.

• Set the time of cooking by using buttons “+”and “-”

• Allow to use the oven as alarm even if the oven is switch off

• The oven cannot be used. SILENCE MODE COOKING DURATION END OF COOKING MINUTE MINDER CHILD SAFETY LOCK

• Rotate the left function selector to the position " Silence mode “

• To set the time NB : Set the time when you first install your oven or just after a black out (the clock is showing a pulsating 12.00)

• Set the time of cooking by using buttons " + " and

• Lighting Auto appears

• When the cooking time has elapsed, the oven switch off automatically and the alarm rings for few seconds To stop the cooking functions early, turn the function control to OFF or set the time on 00.00; by rotating the function selector to Cooking Time Duration and by using the buttons " + " and " - “

• It allows to preset the cooking time required for the recipe chosen.

• When the cooking time is set, turn the function selector to OFF to go back to actual time.

• To view the cooking time selected, turn the left function selector to Cooking Time duration.

• This function is normally used with the COOKING DURATION function

• For example, the desired food needs to cook for 45 minutes and I want it to be ready for 12.30; in this case: at the end of the set time, the oven automatically switches off and an alarm sounds. Select the desired cooking function. Set the cooking duration to 45 minutes (“-” “+”). Set the end of cooking to 12:30 (“-” “+”). Cooking will automatically begin at 11:45 (12:30 minus 45 minutes), at the end of the set cooking time, the oven will automatically switch off.

WARNING: by setting only the

end of cooking time, and not the cooking duration, the oven will immediately switch on and switch off at the end of the set cooking time.

• Set the time on 00.00 by turning the left function selector to the position Minute Minder, and using the button " - “

• Turn the left function selector to the position Child lock.

• Press the button " + " during 5 seconds

• Child lock is available when " STOP " appears on display

• Turn back the left function selector to Child lock and press button " + " during 5 seconds.

• Indication STOP disappears.

• Rotate the left function selector to the position “Set the time”.

• Use the buttons " + " or " - " to set the time

• For cooking the desired recipes.

• Emits an audible signal at the end of a set time.

• During operation, the display shows the remaining time.

• This function is useful when there are children in the house. SET

MEAT PROBE (depends on the oven model) If the meat probe is identified, the display shows "PROBE". When a cooking programme is selected, the display shows the default temperature but is never higher than 200°C: the selectable temperature is also limited to 200°C. When the temperature is confirmed, by pressing "Select", the display shows “Ϙ 40°”: it is now possible to select the meat probe target temperature, between 30°C and 90°C at 1°C intervals. When the meat probe temperature is confirmed, press the "Select" key and the display shows “Ϙ” followed by the actual temperature taken by the meat probe (1 degree intervals). As soon as the meat probe reaches the set temperature, the cooking programme terminates. If a cooking programme is set with the meat probe, by pressing the “-” and “+” keys you can see and modify the temperature of the meat probe: at the first touch of one of the two keys, the display shows the meat probe target temperature, while at the next touch you can change the selected temperature of the probe. If the user changes the cooking programme, the meat probe temperature setting is reset. Repeat the setting sequence to select a new target temperature. The meat probe cannot be used with pre-set cooking or with the separating plate (if present) inside the oven: in this case the display shows“Ϙ NO” and will not execute any command until the meat probe is removed. Defrost, grill, any program with turnspit, pyrolysis and any programmed cooking are not allowed with the meat probe (they are not shown on the menu). EN 11Function Dial Function (Depends on the oven model) LAMP: Turns on the oven light. PYROLYSIS GRILL: use the grill with the door closed. The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red-hot. Success is guaranteed for grills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath. The oven has two grill positions: Grill: 1800 W Barbecue: 3000 W MASTER BAKE: This function allows to cook in a healthier way, by reducing the amount of fat or oil required. The combination of heating elements with a pulsating cycle of air ensures a perfect baking result. MULTI-LEVEL: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions. This cooking method gives even heat distribution and the smells are not mixed.Allow about ten minutes extra when cooking foods at the same time. CONVENTIONAL: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditional roasting and baking. For seizing red meats, roast beef, leg of lamb, game, bread, foil wrapped food (papillotes), flaky pastry. Place the food and its dish on a shelf in mid position. DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes without the protein content of the food being changed or altered. *Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class.

BOTTOM HEATING + FAN: The bottom heating element is used with the fan circulating the air inside the oven. This method is ideal for juicy fruit flans, tarts, quiches and pâté.It prevents food from drying and encourages rising in cakes, bread dough and other bottom-cooked food.Place the shelf in the bottom position.

KEEP WARM:This is recommended to reheat precooked foodstuff, positioning the shelf on the second level from top, or to defrost bread pizza or pastry by positioning the shelf on the lower level. The temperature is preset in 60°C constant, no regulation is possible.

4. Oven cleaning and maintenance

4.1 General notes on cleaning

The lifecycle of the appliance can be extended through regular cleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents (ammonia). GLASS PARTS It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soaked sponge, well wrung out, and then rinse with water.

If dirty, the seal can be cleaned with a slightly damp sponge. ACCESSORIES Clean accessories with a wet, soapy sponge before rinsing and drying them: avoid using abrasive detergents. DRIP PAN After using the grill, remove the pan from the oven. Pour the hot fat into a container and wash the pan in hot water, using a sponge and washing-up liquid. If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasher or use a commercial oven detergent. Never put a dirty pan back into the oven.

The oven is equipped with a pyrolyser cleaning system, which destroys food residues at high temperature. The operation is carried out automatically by means of the programmer. The resulting fumes are rendered “clean” by passing over a Pyrolyser wich starts as soon as cooking begins. As very high temperatures are required by the Pyrolyser, the oven door is fitted with a safety lock. The pyrolyser can be stopped at any time. The door cannot be opened until the safety lock is displayed. NOTE : If a hob has been fitted above the oven, never use the gas burners or the electric hot-plates while the Pyrolyser is working, this will prevent the hob from overheating. TWO PYROLYTIC CYCLE are pre-set: ECO PYROCLEAN : Cleans a moderately stained oven. Operates for a period of 90 minutes. SUPER PYROCLEAN : Cleans a heavily stained oven. Operates for a period of 120 minutes. Never use commercially available cleaning products on a Pyrolytic oven! Tip : Carrying out Pyrolytic cleaning immediately after cooking allows you to take advantage of residual heat, thus saving energy. Before executing a pyrolytic cycle:

• Remove all the accessories from the oven because they are not able to tolerate the high temperatures used during the pyrolytic cleaning cycle ; in particular removing grids, side racks and the telescopic guides (refer to the chapter REMOVING GRIDS AND SIDE RACKS) . In ovens with meat probe it is necessary, before making the cleaning cycle , close the hole with the nut provided.

• Remove any large spillages or stains as it would take too long to destroy them. Also excessively large amounts of grease could ignite when subject to the very high temperatures of the Pyrolytic cycle.

• Close the oven door.

• Excess spillage must be removed before cleaning.

• Clean the oven door.

• Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents.

• Remove all accessories and the sliding rack kit (where present).Using the Pyrolitic cycle: If a pyrolysis cycle is chosen the display shows “ECO”, that lasts 90 minutes, blinking; by the “+” and “-“ it is possible to change in “SUPER” that lasts 120 minutes. If a pyrolysis is already started it is no more possible to change from “ ECO” to “SUPER” and vice versa. It is not possible to modify a pyrolysis duration but ending time can be modified. During pyrolysis the buzzer does not sound. Pyrolysis is not available if separator or side grids or the meat probe are detected, and it is not programmable via WiFi.

1. Open the front window.

2. Open the clamps of the hinge housing on the right and left side of the front window by pushing them

3. Replace the window by carrying out the procedure in reverse.

INSTRUCTION FOR REMOVAL AND CLEANING OF THE SIDE RACKS

1. Unscrew the bolt in an anti-clockwise direction.

2. Remove the side racks by pulling them towards you

3. Clean the side racks in a dishwasher or with a wet sponge and then dry them immediately.

4. Having cleaned the side racks, put them back in and reinsert the bolts, ensuring they are fully

REMOVAL AND CLEANING OF THE GLASS DOOR

1. Open the oven door.

2.3.4. Lock the hinges, remove the screws and remove the upper metal cover by pulling it upwards.

5.6. Remove the glass, carefully extracting it from the oven door (NB: in pyrolytic ovens, also remove the second and third glass (if present)).

7. At the end of cleaning or substitution, reassemble the parts in reverse order.

On all glass, the indication "Pyro" must be legible and positioned on the left side of the door, close to the left-hand lateral hinge. In this way, the printed label of the first glass will be inside the door.

EN 15CHANGING THE BULB

1. Disconnect the oven from the mains supply.

2. Undo the glass cover, unscrew the bulb and replace it with a new bulb of the same type.

3. Once the defective bulb is replaced, replace the glass cover.

PROBLEM POSSIBLE CAUSE SOLUTION

If the mounting of the plinth does not allow air circulation, to obtain the maximum performance of the oven it is necessary to create an opening of

500x10mm or the same surface in 5.000 mm
