ST120889 - Croque monsieur clip Emerio - Free user manual and instructions

Product type	Sandwich press
Brand	Emerio
Model	ST120889
Power	750 W
Voltage	220-240 V ~ 50/60 Hz
Plate material	Non-stick (Teflon)
Indicator lights	Red light (power), green light (ready)
Main functions	Toast sandwiches, fast cooking
Handle	With locking latch
Safety	Locking, insulated handle, automatic thermostat shut-off
Cleaning	Damp cloth, do not immerse, do not use metal utensils
Warranty	2 years
Recommended accessories	Plastic or wooden spatula
Usage	Household, indoor
Recycling	Do not dispose with household waste, follow WEEE directive

Frequently Asked Questions - ST120889 Emerio

How to use the appliance for the first time?

Remove all packaging materials, clean the plates with a damp cloth and dry them. Unwind the cord completely. Plug in the appliance: both lights come on. A slight smoke and smell may occur, this is normal. Wait for the green light to turn off before starting.

What to do if the appliance does not heat up?

Check that the power plug is properly connected and that the voltage is correct (220-240 V). If the red light does not come on, contact customer service.

Can I use metal utensils on the plates?

No, never use sharp or metal utensils (knives, metal spatulas) as they would damage the non-stick coating. Use a plastic or wooden spatula.

How to clean the plates?

Unplug the appliance and let it cool completely. Clean the plates with a soft damp cloth. For crumbs, use a very soft brush. Never immerse the appliance in water.

How long does it take to grill a sandwich?

About 4 to 6 minutes, depending on thickness and filling. The green light turns off when the temperature is reached.

Can I close the appliance if the sandwich is too full?

No, never force it closed. If the slices are too full, remove some filling. Forcing could damage the appliance.

What does the green light mean?

The green light turns on when the appliance is powered on and turns off when the cooking temperature is reached. It turns on and off during cooking to maintain the temperature.

The appliance emits smoke during first use, is this normal?

Yes, a slight smoke and smell may occur during the first heating. This is normal for most heating appliances and is not dangerous.

Can I use the appliance for something other than sandwiches?

This appliance is designed only for grilling sandwiches. Do not use it for other purposes to avoid any risk.

How to store the power cord?

Unplug the appliance and let it cool. Do not wrap the cord around the appliance, do not bend it. Store it without twisting.

USER MANUAL ST120889 Emerio

Black and white photo of a Enero robotic vacuum cleaner (no visible text or symbols on body)

Sandwich toaster (EN)

Sandwichtoaster (DE)

Grille-Sandwichs (FR)

Smörgåsgrill (SE)

Sandwich toaster (NL)

Toster do kanapek (PL)

Instruction manual – English ...... - 2 -

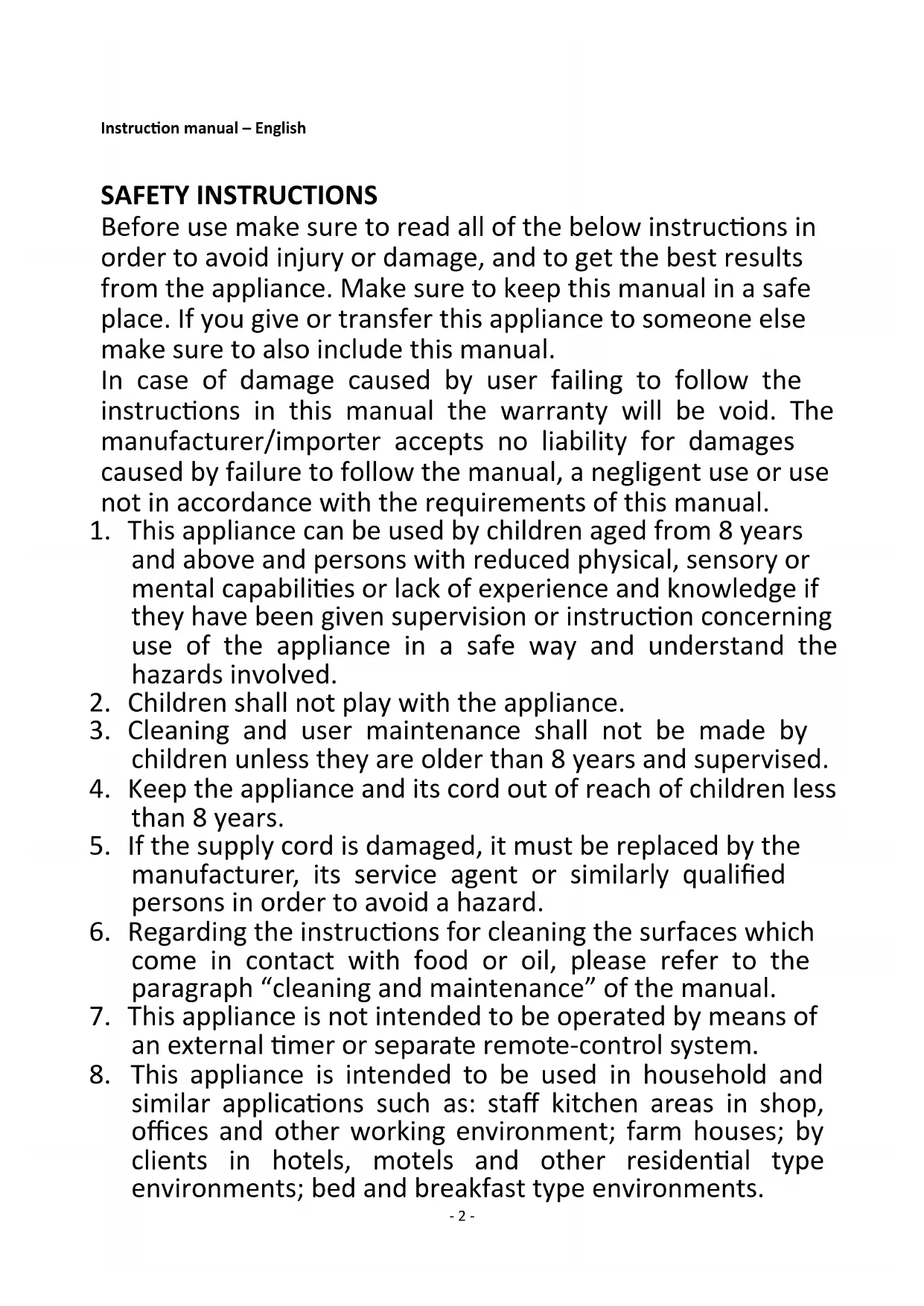

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph “cleaning and maintenance” of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shop, offices and other working environment; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Always plug the appliance into an earthed plug socket.
13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
16. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
19. Never leave the appliance unattended during use.
20. This appliance is not designed for commercial use.
21. Do not use the appliance for other than intended use.
22. Do not wind the cord around the appliance and do not bend it.
23. Place the appliance on a stable, level surface from which it cannot fall off.
24. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.
25. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

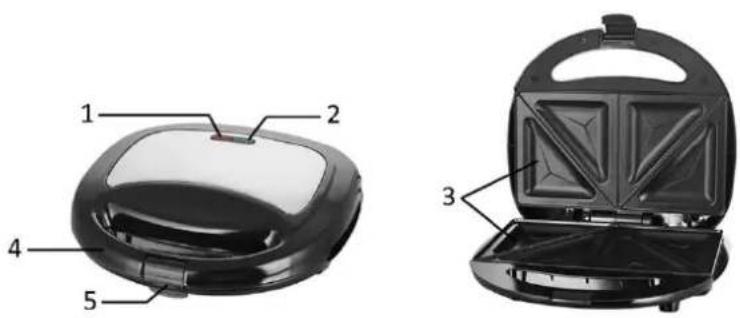

PARTS DESCRIPTION

1. Red power light
2. Green control light
3. Non-stick cooking plates
4. Handle
5. Catch

BEFORE INITIAL USE

1. Remove all packaging.
2. Clean the toasting surfaces with a soft damp cloth and then dry them.
3. Unwind the mains cable completely.

NOTE: When your appliance is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety or your appliance.

OPERATING INSTRUCTIONS

1. Connect the appliance to an appropriate socket. Both of the indicator lights will illuminate and the toasting surface begins to heat.
2. As soon as the appliance has heated up, the green control light goes off.
3. The appliance must be heated up before you toast a sandwich. In the meantime prepare your sandwich.
4. Open the appliance at the handle by unlocking the catch.
5. Put the slices of bread on the lower toasting surface. Ensure that the buttered sides are facing outwards.
6. Now put the filling on the bread slices (e.g. cheese, ham, pineapple, etc.) and cover this with the second slice of bread. Once again, ensure that the buttered sides are facing outwards.
7. Close the appliance making sure the catch is engaged.
8. Caution: If the slices of bread have too much filling on them, it will not be possible to close the appliance. Take some of the filling off. Never use force to close the appliance.
9. During toasting the temperature regulating thermostat switches off and on again. The green control light also switches off and on again.
10. After completion of the toasting process (approx. 4-6 minutes) open the appliance and remove the sandwiches with the help of a flat wooden or plastic spatula. Never use sharp or metal objects (e.g. knives, metal spatulas, etc.) as this will damage the non-stick coating.
11. If you wish to toast more sandwiches, close the appliance again and wait until the toasting surfaces have reheated sufficiently, repeat the toasting process as described above.
12. After use, disconnect the mains plug immediately. With the appliance open, allow it to cool down.

TIPS FOR TASTY SANDWICHES

1. Allow the appliance to heat up completely before you begin toasting.
2. Lay the buttered side facing outwards.
3. With fruit fillings the toasted bread will be crispier if you sprinkle a little sugar on the buttered side.
4. The following ingredients are particularly recommended: cheese, ham, pineapple, tomatoes, cooked meat, onions, herbs and spices.

CLEANING AND MAINTENANCE

1. First, disconnect the mains plug!
2. Only clean when the appliance has completely cooled down.
3. Clean the housing surface and the toasting surfaces of the sandwich toaster with a soft, damp cloth.
4. It is easiest to remove toast or food crumbs with a very soft brush.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.
6. Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock!

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 750W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

SICHERHEITSHINWEISE

Black griddle oven with open lid and side panel, labeled with number 3 (no text or symbols on the appliance itself)

Interior view of a black griddle oven with open pan and side panels (no text or symbols visible)

AVANT LA PREMIERE UTILISATION

Interior view of a black griddle oven with open lid and side panel (no text or symbols visible)

INNAN FÖ RSTA ANVÄNDNING

Interior view of a black griddle with open lid and side panels, labeled with number 3 (no text or symbols on the griddle itself)

VOOR EERSTE GEBRUIK

Diagram of a grating with labeled parts including one open and three closed, showing internal compartments and casing structure.

PRZED PIERWSZYM UŻYCIEM

Warning sign depicting steam rising inside a yellow triangle, indicating hazardous material

Interior view of a black griddle oven with labeled parts (no text or symbols visible)
