TO123550 - Toaster Emerio - Free user manual and instructions

Product type	Toaster
Brand	Emerio
Model	TO123550
Power supply	220-240 V ~ 50/60 Hz
Power	1000 W
Number of slots	2
Browning adjustment	9 levels (1: light, 9: dark)
Reheat function	Yes (25-35 seconds)
Defrost function	Yes
Emergency stop	Yes (Cancel button)
Pastry rack	Yes, removable
Crumbs tray	Removable
Automatic shut-off	Yes, at the end of the cycle
Material	Plastic and stainless steel
Cleaning	Damp cloth, washable crumbs tray
Warranty	2 years

Frequently Asked Questions - TO123550 Emerio

How to clean the toaster?

Unplug the appliance and let it cool down. Remove the crumbs tray and empty it. Clean the outer surfaces with a slightly damp cloth and dry. Never immerse the appliance in water. For the interior, shake it over a sink.

Why doesn't the lever stay down?

Make sure the appliance is plugged in and turned on. The lever only engages when the power is active. Also check that the crumbs tray is correctly inserted.

Can I toast frozen bread?

Yes, use the Defrost function. Select an appropriate browning level: for thin slices (1-3), for pastries (4-6), for thick slices (7-9).

How to adjust browning?

Turn the browning control knob to choose a level from 1 (light) to 9 (dark). For first use, set to 4. Do not change the setting during toasting; first cancel with the Cancel button.

The toaster emits a strange smell, is this normal?

Yes, during the first use, a characteristic smell may be emitted. This is normal. Ventilate the room and run the appliance empty twice before using it.

Can I use the pastry rack with slots?

No, place pastries only on the rack. Do not put bread in the slots while the rack is in use, as this could cause a fire.

What to do if bread is stuck?

Unplug the appliance and let it cool down. Never use a knife or metal object to remove the bread. Gently shake the appliance to dislodge it or use wooden tongs.

What is the power of the appliance?

The power is 1000 W. Make sure the wall outlet supports this load.

Is there a warranty?

Yes, a 2-year warranty from the date of purchase, valid upon presentation of the receipt. The warranty does not cover damage due to misuse or unauthorized repairs.

Can I toast foods other than bread?

Yes, you can toast waffles, bagels, frozen pastries, etc. Use the Defrost function for frozen foods. Avoid very liquid foods (butter) or those that might melt.

USER MANUAL TO123550 Emerio

Instruction manual - English. 2-

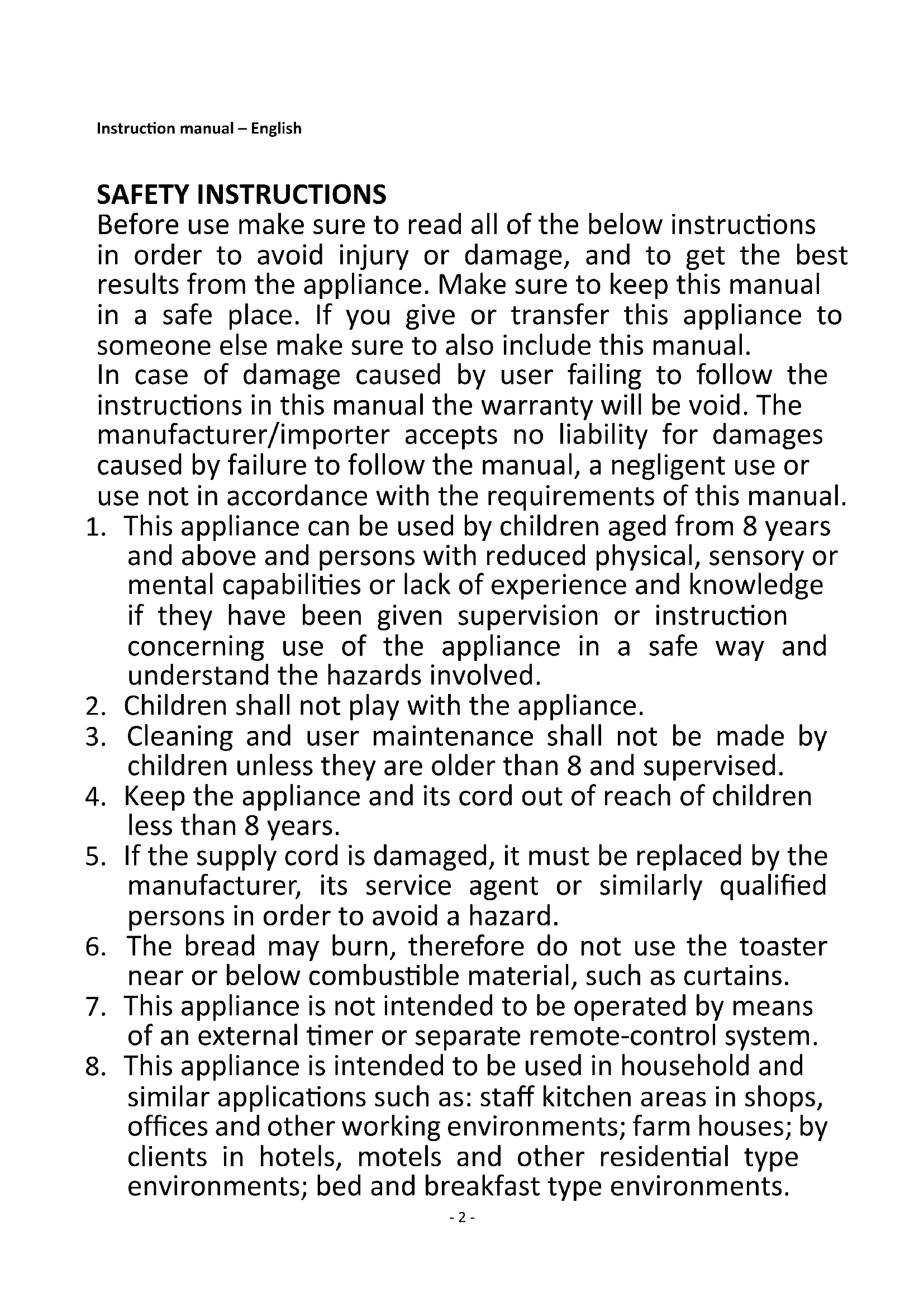

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual. In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

9. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "cleaning and maintenance" of the manual.

10. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
11. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
12. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
14. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
15. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
16. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
17. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
18. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
19. Never leave the appliance unattended during use.
20. This appliance is not designed for commercial use.
21. Do not use the appliance for other than intended use.
22. Do not wind the cord around the appliance and do not bend it.

23. Place the appliance at least 5cm off the wall or flammable objects (such as curtains, candles or towels).

24. Warning!! Should any pieces of toast or other items happen to get stuck in the toaster, never try to remove them with a knife or any other object, since contact with live parts can cause an electric shock. Let the appliance cool down and take the plug out of the socket before removing the bread.

25. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

2. Don't attempt to take out food when toaster is in operation.

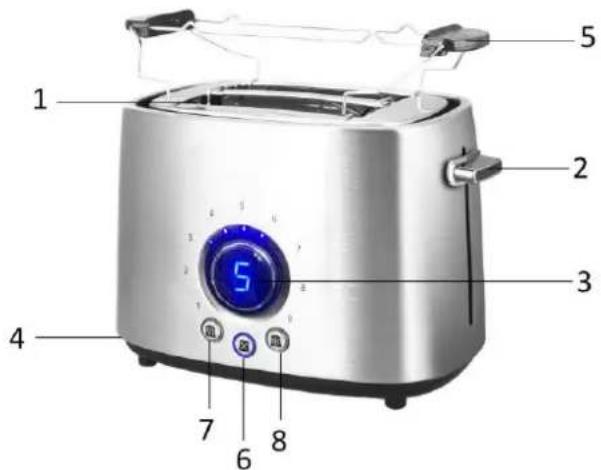

FUNCTIONAL CHARACTERISTICS

1. Extra-wide toast aperture
2. Toasting lever
3. Browning control switch and digital display
4. Crumb collector
5. Bun warmer
6. Cancel button
7. Reheat button
8. Defrost button

INSTRUCTIONS FOR USE

Before initial use:

• Before using the toaster for the first time, clean your toaster (see Chapter "CLEANING AND MAINTENANCE"). Operate the toaster at least twice without bread and on the highest setting. Ventilate the room during this period.
  This appliance may emit a characteristic smell when you switch it on for the first time. This is normal, and no harm.
  Make sure the crumb collector is completely positioned in place before using.

Use:

1. Insert the power plug and cable into the socket and the appliance is in standby mode.
2. Insert up to two slices of bread in the browning slot.

Only the regular slice can be placed into the browning slot. The irregular bread can only be toasted on the bun warmer and only one piece every time.

1. Use the browning control switch to select the desired degree of browning between 1 and 9 (1 = lightest; 9 = darkest degree of browning). No. 4 is recommended for first use. The degree of browning chosen depends on the type of bread and individual taste.
2. Press the toasting lever down until it engages. The toasting process starts automatically. The degree of set browning will be on the digital display. The indicator light of button"X" will illuminate.
3. Please remember that the toasting lever will not engage if the power plug is not inserted in the socket and the toaster is not switched on.
4. The toaster switches itself off automatically and the toasted bread is ejected when the desired degree of browning has been reached. The button "X" an always be used to cancel the browning process.

Note:

1) Take care when removing bread as the bread and the top of the toaster will still be hot.
2) Do not place any rolls etc. directly on the toast aperture but place them on the bun warmer.
3) Make sure if toasting on the bun warmer, do not insert bread into the toast aperture. A fire may occur.
4) The degree of browning for one slice is darker than that for two slices of bread at the same level.
5) 1 minute interval between each toasting can get the same degree of browning for different batch of toasted bread.
6) Do not change the browning selection during the toasting process. First press the cancel button; then turn the browning control switch to adjust the browning degree.

Reheat function "

Insert toasts into the appliance. Press down the toasting lever and then press the reheat button. The button will illuminate.

Note: The heating time is about 25-35 seconds. And the browning control switch is not effective under this function.

Defrost function

Press the defrost button to prolong the toasting time of frozen bread. The button will illuminate.

Setting 1-3: for refrigerated breads and thinner frozen items such as frozen pancakes.

Setting 4-6: for pastries, frozen waffles, thin French toast and refrigerated bagels.

Setting 7-9: for thicker frozen items such as bagels, hand cut bread and thick French toast.

Caution:

1) If toaster starts to smoke, press cancel button "×" to stop toasting immediately.
2) Avoid toasting the food with extremely runny ingredients such as butter.
3) Oversize food, metal foil packages or utensils must not be inserted in the toaster as they may cause fire or electric shock.

CLEANING AND MAINTENANCE

1. Before cleaning, make sure that you have removed the power plug from the socket. Let the toaster cool down first.
2. Push the crumb collector once, it will pop-up; pull out to clean it up, reset it before using the appliance again.
3. Clean the outside of the toaster with a slightly damp cloth and wipe dry with a soft cloth. Never dip the toaster in water to clean it!
4. To clean the inside, turn it upside down and shake it over the sink until any crumbs adhering to the inside fall out. Clean the crumb collector regularly to avoid crumbs accumulating inside.

TECHNICAL DATA

Operating voltage: 220-240V 50/60Hz

Power: 1000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Manufactured by: Emerio Deutschland GmbH

Höffer Weg 14, 51519 Odenthal Germany
