WM110984 - Waffle Maker Emerio - Free user manual and instructions

Product Type	Waffle Maker
Brand	Emerio
Model	WM110984
Supply Voltage	220-240 V ~ 50/60 Hz
Rated Power	1000 W
Plate Coating	Non-stick
Power Indicator	Red Light
Heating Indicators	Two Green Lights
Thermostat	Adjustable (min to max)
Flipping Function	Yes (swivel handle)
Keep Warm Function	Yes (Keep Warm)
Drip Tray	Removable, dishwasher safe
Cooking Time	4 to 6 minutes
Number of Waffles Per Batch	1
Cleaning the Plates	Damp cloth, do not immerse
Safety	Do not touch hot surfaces
Warranty	2 years
Customer Service	[e-mail]
Recommended Use	Household use only

Frequently Asked Questions - WM110984 Emerio

How to preheat the waffle maker?

Set the thermostat control knob to the 'Max' position to preheat. The green indicators light up during heating and turn off after 3 to 5 minutes when the temperature is reached.

How long does it take to cook a waffle?

The cooking time is approximately 4 to 6 minutes depending on the selected heat level and desired browning.

What to do if waffles stick to the plates?

Make sure to use a plastic spatula to remove them. Never use metal utensils that could scratch the non-stick coating. You can also add a little butter before pouring the batter.

Can I use homemade waffle batter?

Yes, the manual provides a recipe for about 12 waffles with flour, eggs, butter, milk, lukewarm water, yeast, and a pinch of salt.

How to clean the waffle maker?

Unplug the appliance and let it cool completely. Clean the surfaces with a soft, damp cloth. The drip tray is dishwasher safe. Never immerse the appliance.

What to do if the waffle maker does not heat up?

Check that the appliance is properly plugged in and that the thermostat is set to a position other than 'Off'. If the red light does not turn on, the power cord may be damaged; contact customer service.

Can I use metal utensils on the plates?

No, never use a knife, fork, or other metal object as they could scratch the non-stick coating. Prefer a plastic or wooden spatula.

How to store the waffle maker?

Make sure the appliance is unplugged and completely cool. Store it in a dry place. Do not wrap the power cord around the appliance and do not bend it.

Can the waffle maker be used by children?

This appliance can be used by children aged 8 years and older under supervision. Children must not play with the appliance. Cleaning must not be carried out by children under 8 years of age.

What is the power of the waffle maker?

The rated power is 1000 W under a voltage of 220-240 V ~ 50/60 Hz.

USER MANUAL WM110984 Emerio

Exterior view of a modern black waffle grater with control panel (no text or symbols visible)

Belgian Waffle maker (EN)

Instruction manual – English ...... - 2 -

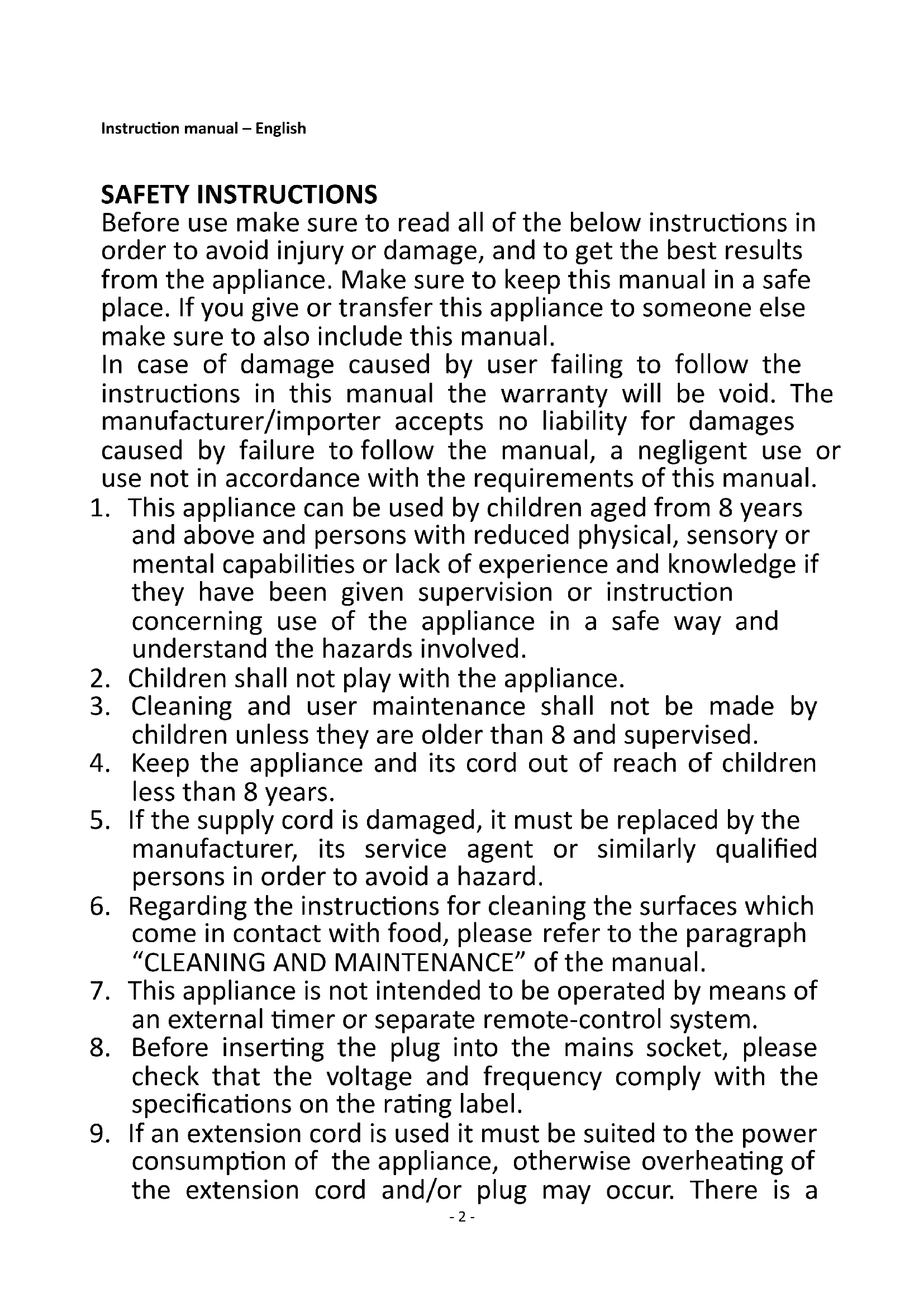

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.

7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

9. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a

potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

1. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

2. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

3. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

4. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

5. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

6. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

7. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

8. Never leave the appliance unattended during use.

9. This appliance is not designed for commercial use.

10. Do not use the appliance for other than intended use.

11. Do not wind the cord around the appliance and do not bend it.

12. Place the appliance on a stable, level surface from which it cannot fall off.

13. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

14. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

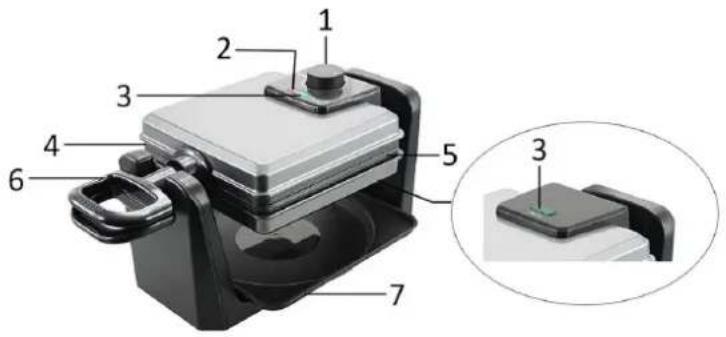

PARTS DESCRIPTION

1. Thermostat control knob
2. Power light
3. Heat lights (at both sides)
4. Upper heating surface
5. Lower heating surface
6. Handle
7. Drip tray

BEFORE FIRST USE

1. Remove all packaging material.
2. Clean the heating surfaces with a soft damp cloth then dry them.
3. Uncoil the mains cable completely.
4. When first use, the device may give off a slight odor. This is normal and will not last for long.

OPERATING INSTRUCTIONS

1. Put the appliance on a level and heat-resistant surface. Place the drip tray into its place under the plates.
2. Plug the device to an appropriate socket. The red light illuminates to indicate power is connected.
3. Switch the thermostat control knob to "Max" for preheating, and the green lights turn on. After about 3-5 minutes, the appliance has heated up and the green lights will turn off. Now you can begin waffle making.

4. Open the appliance by the handle. Note that the appliance can only be opened when the thermostat control knob faces upwards.

5. Add some butter onto the grill plates if you like.

6. Pour the prepared batter onto the lower heating surface and distribute it evenly.

7. Hold the upper heating surface at the handle and fully close the waffle machine.

8. Hold both handles and rotate in the direction as indicated by the arrow on the handle. Don't use force when rotating as this can damage the handle.

9. You can switch the thermostat control knob to select a desired heating level. The green lights turn on when the appliance is heating and turn off when the selected heating level is reached.

10. Bake the waffle for approximate 4-6 minutes depending upon the heating level you chose and the degree of browning required.

11. Rotate the plates back to the position with the thermostat control knob facing upwards, and check the status of the waffle. If darker waffle required, close up the plates and continue baking until the desired color is achieved.

12. Remove the waffle with a plastic spatula when the waffle is ready. Do not use any metal objects (e.g. knife, fork etc.) as they will scratch the coating of the heating surface.

13. If you wish to bake more waffles, pour in more batter immediately.

14. When you have finished baking, remove the mains plug from the outlet.

Note!

• The appliance can only be opened by handle when the thermostat control knob faces upwards.
• The two green lights turn on and off synchronously when indicating the status.
- You can put the cooled waffle back into the appliance and select the "KEEP WARM" setting to warm the waffle for eating.
- Do not open the appliance less than one and a half minutes after you put into the batter. Opening the lid too soon will cause the under-baked waffle to split.

Ingredients

The waffle batter: (minimum 12 waffles)

• 450g self-raising flour
• 3 eggs
• 150 g melted butter
• 375 g of milk
  • 375 g lukewarm water
• 20 g of fresh yeast
• a pinch of salt

Preparation

• Weigh all the ingredients carefully.
• Take two large mixing bowls and separate the eggs, the egg yolks go into the bowl for the batter, the egg whites we stiffen later. (Note: You can also use a food processor with whisk for preparing the batter.)
• Whisk the egg yolks here with a whisk.
• Then add the right amount of milk and fresh yeast to it. Beat with the whisk until the yeast has dissolved.
• Pour the lukewarm water into the batter.
• Sift the flour, then into the mixing bowl, and stir with the whisk until the batter is free of lumps.
• Put the measured quantity of butter in a saucepan. Let it melt on low heat.
• Pour the melted butter to the batter and stir in the meantime with the whisk.
• Beat the egg whites to a stiff foam. Use a clean whisk and make sure that the bowl is degreased with a few drops of lemon juice and a pinch of salt. (Again, you can use a food processor with whisk.)
• Fold in the whipped egg whites into the batter. Do it gently to keep as much air as possible in the batter.
• Finally, sprinkle a pinch of salt in the batter and fold gently one last time.
• Set aside the waffle batter in a warm draft-free spot and leave it for 20 minutes.

CLEANING AND MAINTENANCE

1. First of all remove the mains plug!
2. Do not commence cleaning until the device has cooled down completely.
3. Remove and clear up the drip tray. The drip tray can be washed in warm soapy water or by a dish-washer.
4. Clean the outside surface and the heating surfaces with a brush or with a soft, damp cloth. Do not run the water directly onto the baking surfaces.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush, knife) for cleaning.
6. Caution: Do not immerse the device in water or other liquids. There is a danger to life from electric shock!

TECHNICAL DATA

Supply voltage: 220-240V \~ 50/60Hz

Power: 1000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction

manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the

product was purchased. They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]
