PO115985 - Pizza oven Emerio - Free user manual and instructions

Brand	Emerio
Model	PO115985
Product type	Pizza oven
Power supply	230 V ~ 50 Hz
Power	900 W
Dimensions (approx.)	30 cm diameter, 20 cm height
Weight (approx.)	3 kg
Lid material	Terracotta
Capacity	1 pizza at a time (max. diameter 25 cm)
Included accessories	Baking tray, 4 spatulas, dough cutter, control knob
Power indicator	Red indicator light
Cooking time	Approximately 8 minutes per pizza
Recommended preheating	15 minutes before use
Usage types	Domestic only (not for commercial use)
Maintenance and cleaning	Terracotta lid: hot water and brush (not dishwasher). Baking tray and spatulas: hot water and brush or dishwasher. Base: damp cloth (do not immerse).
Safety	Hot surfaces (do not touch). Lid fragile (thermal shock). Do not use with an external timer.
Warranty	2 years (excluding misuse, wear parts)
Customer service	Emerio B.V. ([e-mail])
Recycling	Do not dispose of with household waste (WEEE directive)

Frequently Asked Questions - PO115985 Emerio

How to install the knob on the terracotta lid?

Place the washer and knob on the lid, insert the washer using the bolt, then turn the knob clockwise to secure it. Do not overtighten to avoid breaking the lid.

Why is there an odor or smoke during first use?

This is normal. There may be slight smoke emission and a particular odor during first use. These phenomena disappear on their own. Ventilate the room if necessary.

How to clean the pizza oven?

Let the appliance cool for at least 30 minutes. Clean the terracotta lid with hot water and a brush (not dishwasher). The baking tray and spatulas are dishwasher safe. The base must be cleaned with a damp cloth, never immerse it.

What is the cooking time for a pizza?

Under normal conditions, the pizza is ready in 8 minutes. Time may vary depending on dough thickness, toppings, and ambient conditions.

Can I use the oven without preheating?

It is recommended to preheat the oven for 15 minutes before inserting the pizza for optimal cooking.

What is the recommended pizza dough recipe?

Mix 500 g flour, 1 pinch of salt, 4 tablespoons olive oil, 20 g fresh yeast (or 1 packet dry yeast), and 250 ml lukewarm water. Knead, let rise for 45 minutes, then roll out to 3 mm thickness and cut bases.

Can I use the pizza oven outdoors?

No, this appliance is designed for indoor household use. Do not use it outdoors.

What to do if the power cord is damaged?

The cord must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid any hazard. Do not use the appliance if the cord is damaged.

How to prevent the dough from sticking to the spatula?

Sprinkle a little flour on the back of the dough before placing it on the spatula. This will prevent the dough from sticking.

What is the warranty of the appliance?

The appliance comes with a 2-year warranty from the date of purchase. The warranty does not cover damage due to improper use, repairs by unauthorized third parties, or normal wear and tear. Keep your receipt.

USER MANUAL PO115985 Emerio

Exterior view of a modern electric stove with a pink dome-shaped oven, featuring a pie and a pasta dish on a wooden table (no signage)

EN Pizzarette®/ DE Pizzarette®/ FR Pizzarette®/ SE Pizzarette®

NL Pizzarette®/ PL Pizzarette®/ RU Pizzarette®

Content – Inhalt – Teneur – Innehåll – Inhoud – Treść – Содержание

Instruction manual – English ...... - 2 -

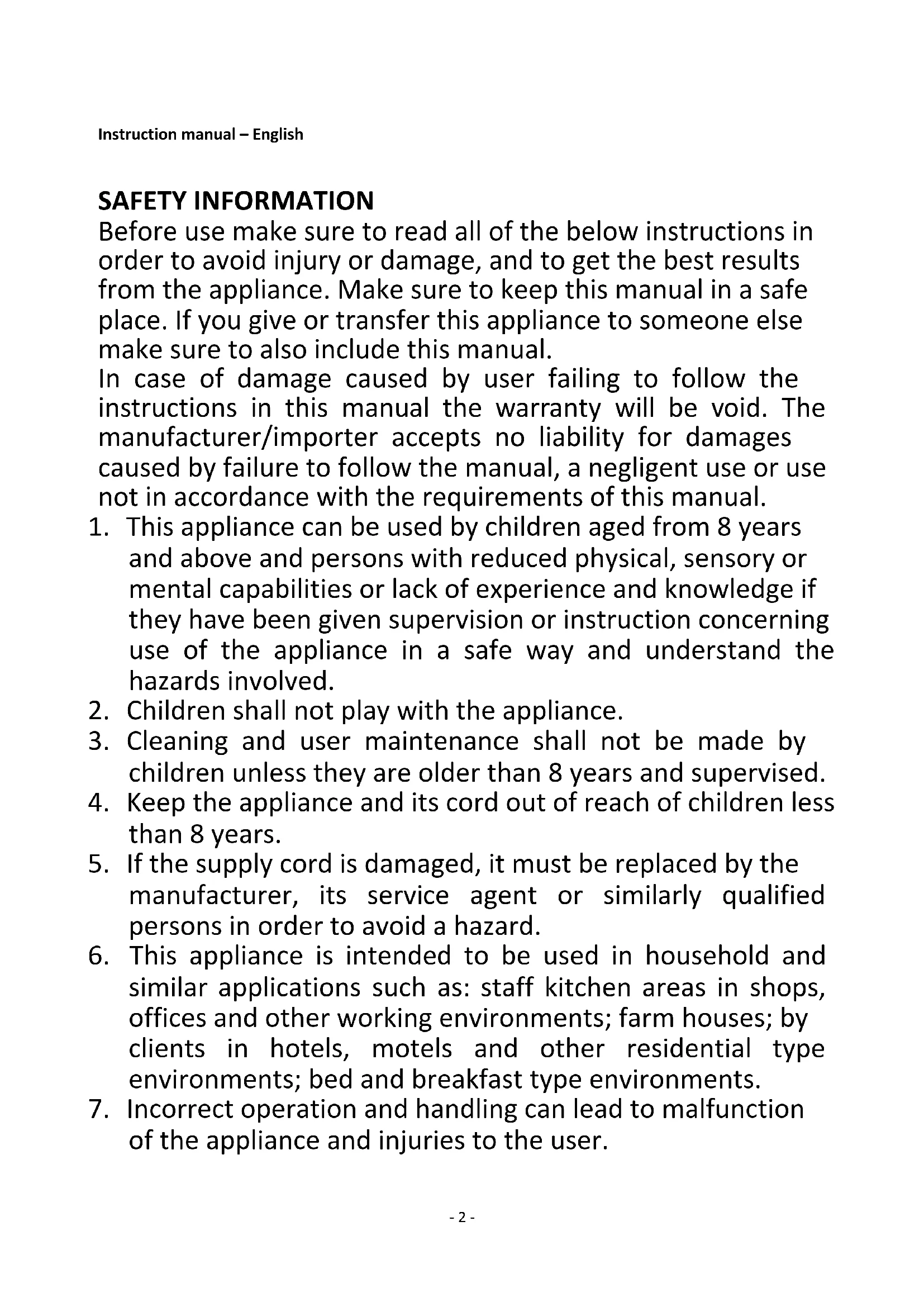

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

4. Keep the appliance and its cord out of reach of children less than 8 years.

5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

7. Incorrect operation and handling can lead to malfunction of the appliance and injuries to the user.

8. This appliance is neither suitable for commercial use nor for use in the open air.

9. Before inserting the plug into the mains socket, please check that the current and power supply comply with the specifications on the type plate.
10. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
11. Parts of the appliance become hot during use. Therefore, the appliance must only be held by the handle. Avoid touching the metal parts as they become very hot.
12. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
13. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
14. Place the appliance on a stable, level surface and not close to hot objects or open flames (e.g. hotplates).
15. Never leave the appliance unattended during use.
16. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
17. This appliance is not designed for commercial use.

1. Caution, hot surface

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

1. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "cleaning and maintenance" of the manual.

PARTS DESCRIPTION

Labeled diagram of a food appliance with numbered parts including a dome-shaped cooker, water heater, and cooking utensils.

1. Dome
2. Baking sheet
3. Knob
4. Power cord and plug
5. Spatula (4 pieces)
6. Dough cutter
7. Control light
8. Heating element
9. Manual

BEFORE FIRST USE

1. There are no tools required to assemble the knob. Just put the washer and the knob on the terracotta dome. Have the washer inserted by the bolt on the top of the dome, and then rotate the knob clockwise to fix it on the dome. Do not over tighten. The terracotta dome might break.
2. Clean the baking sheet before using the appliance for the first time (see 'Cleaning and maintenance'). The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal, and will stop soon.

OPERATING INSTRUCTIONS

1. Place the appliance on a flat, stable, heat-resistant and splash-proof surface where it cannot fall.
2. Do clean the heating element before plugging in.
3. Plug in the power cord into a grounded outlet wall socket to turn on the appliance.
4. The control light on the Pizzarette® will switch on and the appliance will heat up immediately.

NOTE: Turn on the pizza oven 15 minutes before use.

How to bake pizzas:

Place the dough, the sauce and all the ingredients in small bowls on the table around the Pizzarette®. You can bake the pizza on the spatula or directly on the baking sheet.

Put some flour on the backside of the dough to avoid sticking and place it on the spatula. Coat with tomato sauce, leaving an edge of about half a cm free. Don't spray additional olive oil on your pizza. Insert the pizza into one of the dome openings by using the spatula and bake the pizza directly on the baking sheet. Coating your pizza with too much ingredients will result in a longer cooking time and ingredients burning on the baking sheet, be gentle with the amount of toppings!

The baking time depends on the type of dough, the pizza toppings, the number of pizzas to be baked at the same time and the ambient conditions where the pizza oven is located (temperature, draft-free place, etc.).

Under normal conditions the pizza is ready in 8 minutes. It is best to slide the hot pizzas onto a flat plate. Careful! The spatula is hot. Place the empty, hot spatula on a heat-resistant surface.

Turn off the Pizzarette® after use by pulling the plug from the socket and allow the Pizzarette® to cool down at least 30 minutes before cleaning and storing.

RECIPE

Pizza preparation:

Pizza dough (for 4 people)

500 gr. white flour

1 tsp salt

4 tsp olive oil

20 gr. fresh yeast or 1 sachet of dried yeast

250 ml lukewarm water

Combine the flour, salt and oil in a bowl. If using fresh yeast, dissolve it in the water and mix until smooth, then combine with the flour. If using dried yeast, mix it directly with the flour and then add the oil and water. When all the ingredients are mixed, knead the dough well by hand and continually pull and stretch it. You could also use a mixer with dough hooks or a food processor. Form the dough into a ball and leave covered for 45 minutes in a warm place until it has risen to double the size. Sprinkle the dough with a bit of flour; roll it out to 3 mm thickness. Turn the dough around a few times and sprinkle with flour in order to prevent sticking; form pizzas with the cutting ring. Put the rounds on a plate with grease-proof paper and lots of white flour between them to avoid sticking. While the dough is rising you can prepare the remaining ingredients.

Tomato sauce:

1 can peeled tomatoes

1 small can tomato paste

Salt, pepper, oregano

2 tbsp olive oil

2 pressed cloves of garlic

Finely chop the peeled tomatoes and mix them with the other ingredients.

Possible toppings:

mozzarella, grated parmesan cheese, grated Gouda cheese, basil, arugula, olives, mushrooms, anchovies, capers, pineapple, artichoke hearts, bell peppers, onions, tomatoes, ham, salami, smoked salmon, shrimp, canned tuna.

CLEANING AND MAINTENANCE

1. Allow the hot appliance to cool down at least 30 minutes before cleaning and storing.
2. When hot, the terracotta dome must never come into contact with water or be placed on a cold surface (danger of cracks). Allow the hot appliance to cool down before cleaning and storing.
3. Normally, the terracotta dome does not have to be cleaned. If cleaning is necessary, use clear, warm water and a brush.
4. Caution: The terracotta dome is sensitive to breakage and is not suitable for a dishwasher.
5. Rinse the baking sheet and pizza spatulas with warm water and a brush. The baking sheet can also be cleaned in a dishwasher. Don't put any other parts in the dishwasher.
6. Never submerge the base in water. The surface can be cleaned by using a moist cloth.

7. Always use the original box to store the appliance and its accessories to avoid damage.

8. If the appliance is not to be used for a period of time, the baking sheet should be lightly oiled or greased to prevent rust.

TECHNICAL DATA

Operating voltage: 230V \~ 50Hz

Power: 900W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

Kundeninformation:

T: [phone]

E: [e-mail]

Klantenservice:

T: [phone]

E: [e-mail]
