USER MANUAL BL124795 Emerio

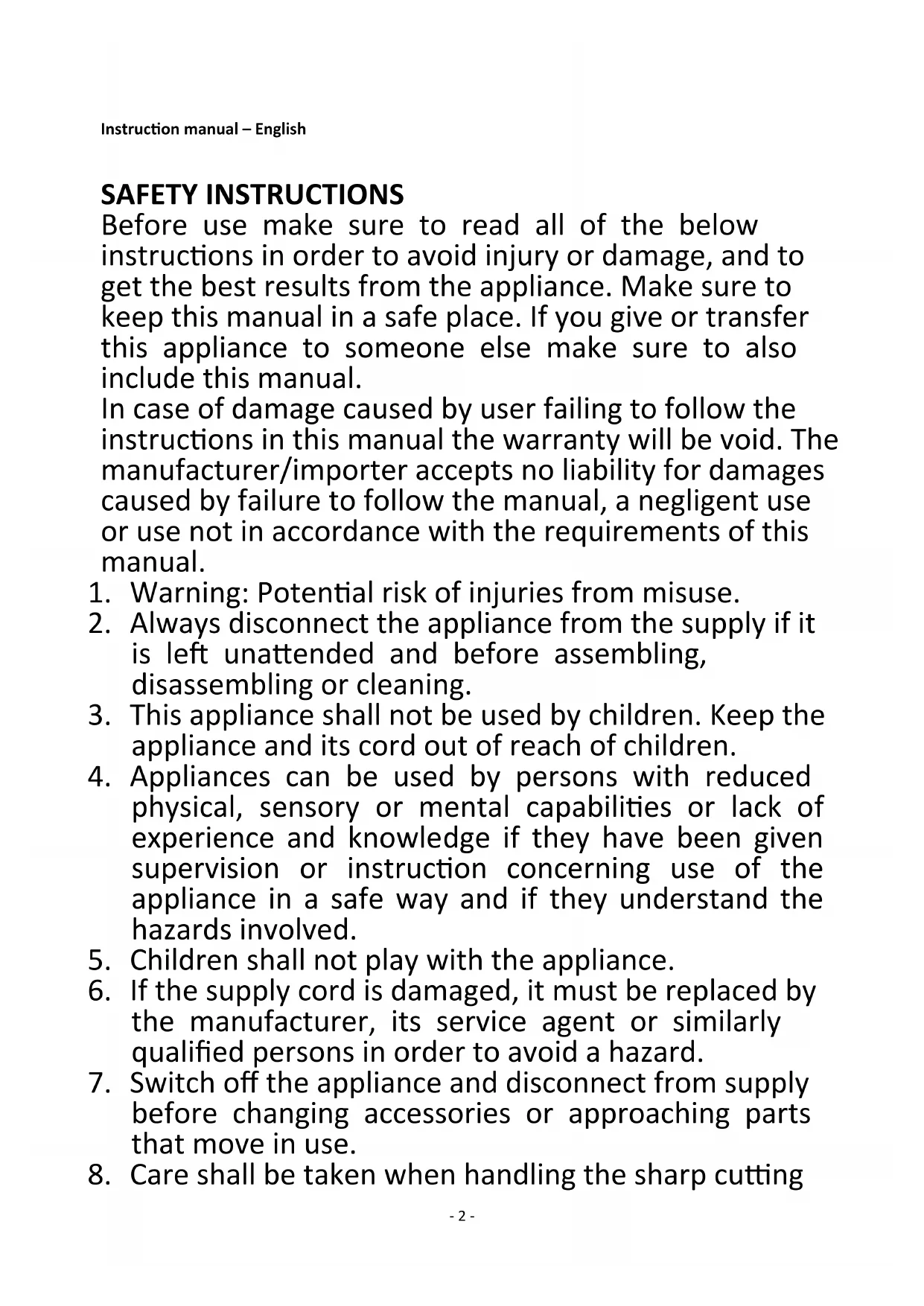

1. Warning: Potential risk of injuries from misuse.

2. Always disconnect the appliance from the supply if it

is left unattended and before assembling, disassembling or cleaning.

3. This appliance shall not be used by children. Keep the

appliance and its cord out of reach of children.

4. Appliances can be used by persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

5. Children shall not play with the appliance.

6. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. Switch off the appliance and disconnect from supply

before changing accessories or approaching parts that move in use.

8. Care shall be taken when handling the sharp cutting- 3 -

blades, emptying the bowl and during cleaning.

9. Be careful if hot liquid is poured into the appliance as

it can be ejected out of the appliance due to a sudden steaming.

10. Before inserting the plug into the mains socket,

please check that the voltage and frequency comply with the specifications on the rating label.

11. If an extension cord is used it must be suited to the

power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

12. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

13. Ensure that the mains cable is not hung over sharp

edges and keep it away from hot objects and open flames.

14. Do not immerse the appliance or the mains plug in

water or other liquids. There is danger to life due to electric shock!

15. To remove the plug from the plug socket, pull the plug.

Do not pull the power cord.

16. Do not touch the appliance if it falls into water.

Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

17. Do not plug or unplug the appliance from the

electrical outlet with a wet hand.

18. Never attempt to open the housing of the appliance,

or to repair the appliance yourself. This could cause electric shock.

19. Never leave the appliance unattended during use.

20. This appliance is not designed for commercial use.

21. Do not use the appliance for other than intended use.

22. Do not wind the cord around the appliance and do not- 4 -

23. The use of accessory attachment not recommended

by the appliance manufacturer may cause injuries.

24. Do not allow children to use the blender without

25. Regarding the instructions for cleaning the surfaces

which come in contact with food, speed settings and operating times, please refer to the below paragraph of the manual.- 5 - BL-124795 EN

Caution: Make sure the motor base is unplugged from the power source and the control knob is set at the position 0.

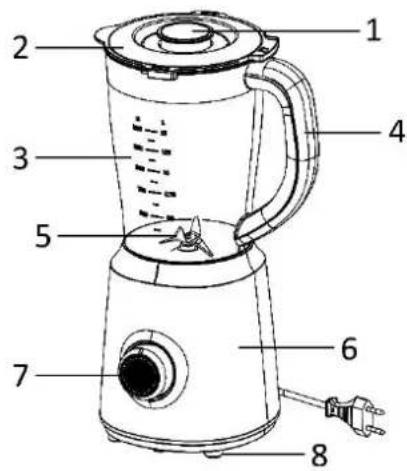

1. Place the jug onto the motor base. Rotate the jug clockwise to have it locked on the motor base. The jug

must be placed as shown on the above picture. The blender will not work if the jug isn’t locked into the motor base properly.

2. Put the liquid and diced food into the jug (no more than 1.5 L). Never fill the jug with ingredients that

3. Put the lid onto the jug. Turn the lid clockwise and make sure it is firmly locked onto the jug, otherwise the

blender will not work.

4. Insert the measuring cap into the middle of the lid.

5. Put the plug into the power outlet. Switch on the appliance by rotating the control knob to choose the speed

1, 2 or pulse function. Ice can only be crushed using the pulse function, and to crush ice, add up to max 6 ice cubes each time.

6. After use, rotate the control knob to the position 0 and remove the plug from the outlet.

Note: For quick or delicate blending tasks, turn the control knob to the position P and hold it for a few seconds. Operate several times until the consistence you want is obtained. For each use, the consecutive operation time should not exceed 3 minutes. At least 10 minutes of rest time are required between two continuous cycles. Let the appliance cool to room temperature before performing the next operation cycle. Never blend large pieces of solid food, frozen food and bones in the appliance as it may cause damage. Recipe (for reference) Banana shake: 2 bananas Approx. 2 tbsp. sugar (depending on the ripeness of the bananas and personal taste) ½ l milk 1 dash of lemon juice- 6 - Peel the bananas and liquidize them at level 2. Gradually add the milk, then the sugar and the lemon juice. Keep mixing everything until you have a smooth and uniform liquid. Serve the shake chilled. Vanilla shake ¼ l milk 250 g vanilla ice cream 125 g ice cubes 1½ tsp. sugar Crush the ice cubes using the level P. Place the remaining ingredients into the mixer. Mix everything at level 2 until the liquid has a smooth consistency. Cappuccino shake 65 ml cold expresso (or a very strong coffee) 65 ml milk 15 g sugar 65 g vanilla ice cream 100 g ice cubes Crush the ice cubes using the level P. Add the expresso, milk and sugar. Mix everything together at level 2 until the sugar has dissolved. Finally, add the vanilla ice cream and then briefly mix everything together at level 1. Tropical mix 125 ml pineapple juice 60 ml papaya juice 50 ml orange juice ½ small tin of peaches with juice 125 g ice cubes Crush the ice cubes using the level P. Place all ingredients into the mixer and blend them together at level 2.

CLEANING AND MAINTENANCE

Caution: Handle the blade assembly with care as the blades are sharp! Only the jug, lid and measuring cap can be cleaned in a dishwasher and the temperature setting of the dishwasher should never exceed 70°C. Never use any water or liquid more than 70°C to clean any detachable parts.

1. Fill the jug half-full with water (< 70°C ) and a little cleaning agent. Turn the control knob to position P for a

2. Remove the mains plug from the power outlet.

3. Take off the jug from the motor base. Rinse the jug and dry it thoroughly.

4. The jug base with the blade assembly can be rotated off from the jug for cleaning.- 7 -

5. Do not immerse the motor base in water or any other liquid. Use a humid cloth to clean the motor base and

dry it thoroughly. Do not use abrasive cleaning materials.

6. Disassemble the other parts after each use and wash them in soapy water (< 70°C ). Then rinse with clean

water (< 70°C ) and dry thoroughly. CAUTION Never use boiling liquids. Never run the blender empty or with solids only. To reduce the risk of injury, never operate the appliance without the lid and measuring cap in place. Do not remove the jug from the motor base while the appliance is in operation. Do not use the appliance if blade assembly is bent or damaged. TECHNICAL DATA Operating voltage: 220-240V ~ 50-60Hz Power consumption: 500W
