USER MANUAL Babyguard Foppapedretti

INSTRUCTIONS CAREFULLY AND

KEEP FOR FUTURE REFERENCE

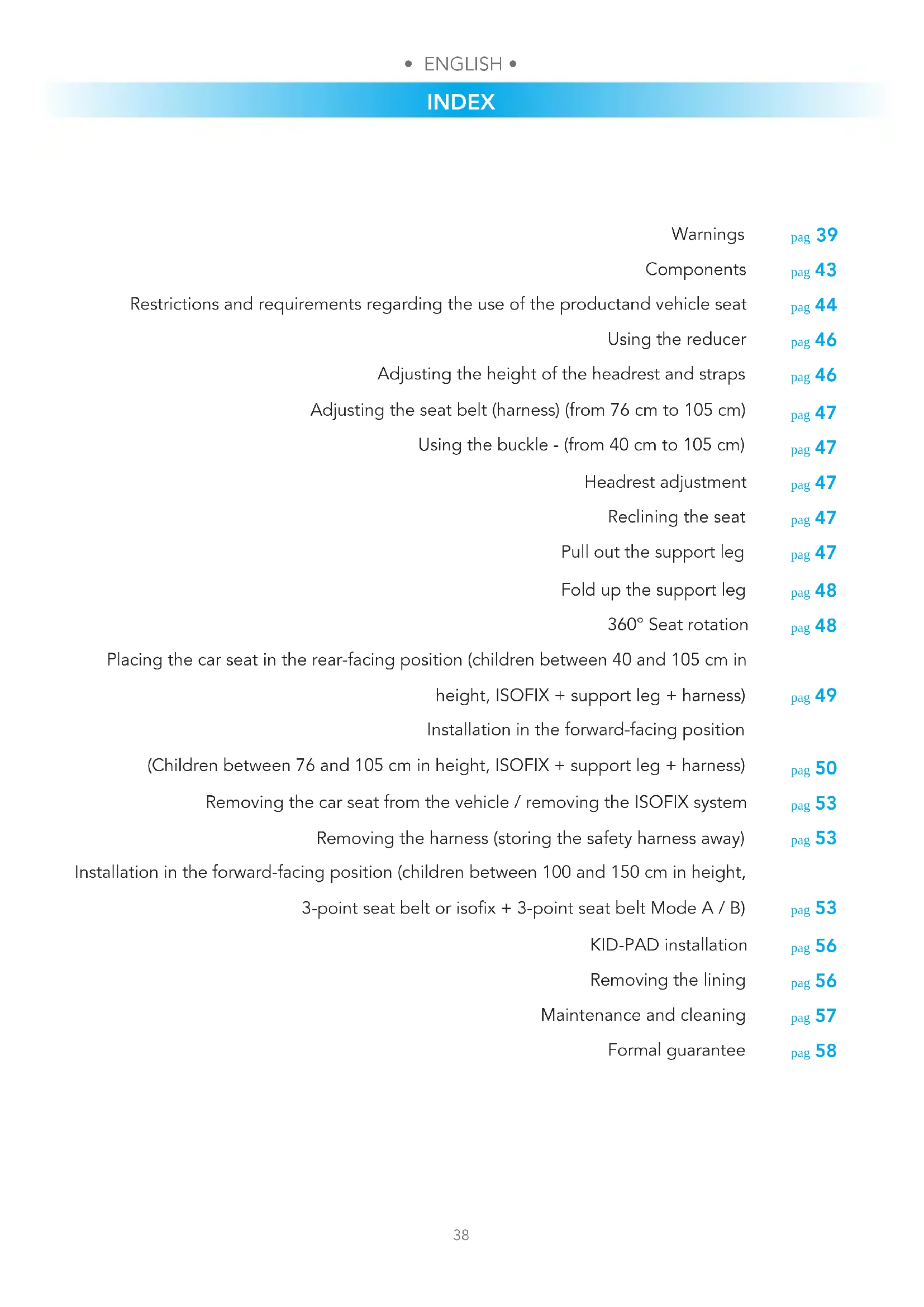

INDEX WARNINGS pag 39 pag 43 pag 44 pag 46 pag 46 pag 47 pag 47 pag 47 pag 47 pag 47 pag 48 pag 48 pag 49 pag 50 pag 53 pag 53 pag 53 pag 56 pag 56 pag 57 pag 58 Warnings Components Restrictions and requirements regarding the use of the productand vehicle seat Using the reducer Adjusting the height of the headrest and straps Adjusting the seat belt (harness) (from 76 cm to 105 cm) Using the buckle - (from 40 cm to 105 cm) Headrest adjustment Reclining the seat Pull out the support leg Fold up the support leg 360° Seat rotation Placing the car seat in the rear-facing position (children between 40 and 105 cm in height, ISOFIX + support leg + harness) Installation in the forward-facing position (Children between 76 and 105 cm in height, ISOFIX + support leg + harness) Removing the car seat from the vehicle / removing the ISOFIX system Removing the harness (storing the safety harness away) Installation in the forward-facing position (children between 100 and 150 cm in height, 3-point seat belt or isox + 3-point seat belt Mode A / B) KID-PAD installation Removing the lining Maintenance and cleaning Formal guarantee• ENGLISH •

• Before use, it is recommended that you carefully read the instructions, which you will need to follow strictly in order to have the highest levels of product safety.

• Store these instructions carefully for future reference. These instructions can be stored in the special compartment on the car seat during the period of use.

• Failure to follow the car seat installation instructions carefully could pose a risk to your baby.

• Do not use a car seat on the front seat where active airbags are fitted, as this can be dangerous. This risk does not apply to the side airbags.

• WARNING! Deactivate the passenger airbag when the child is in the front seat in the rear facing direction.

• This car seat is approved according to the ECE R129/03 regulation for the transport of children between 40 cm and 150 cm in height, and can be installed:

• In the rear-facing position (children between 40 and 105 cm in height), with the ISOFIX anchoring system + support leg.

• In the forward-facing position (children between 76 and 105 cm in height), with the ISOFIX anchoring system + support leg.

• In the forward-facing position (children between 100 and 150 cm in height), with the ISOFIX anchoring system + the vehicle 3-point seat belt or with the vehicle 3-point seat belt only.

• IMPORTANT: Do not use forward facing before the child’s age exceeds 15 months.

• The car seat can be installed facing forward once the child is at least 76 cm tall.

• NOTICE: This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

• NOTICE: This is a i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No. 129. for use primarily in “i-Size seating positions” as indicated by vehicle manufacturers in the vehicle user’s manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

• WARNING: NEVER leave your child unattended – your child’s safety is your responsibility.

• WARNING: Adult assembly required.

• WARNING: The child car seat must be fitted in accordance with the manufacturer’s instructions. Incorrect installation could be dangerous.

• WARNING: Always ensure that new or occasional users [e.g. grandparents] have read the instructions or been taught the correct installation by someone who has read and understood the instructions.

• WARNING: Always keep this instruction manual with the child car seat, or in the vehicle in which you are carrying the child car seat. Some models of child car seat have a pocket to store the instructions.

• WARNING: If in doubt regarding the installation and correct use of the car seat, contact the manufacturer of the child restraint device. BEFORE STARTING

• WARNING: Do not fit the child car seat in a rearward facing position

• WARNING: Before installing the child car seat ensure that the passenger seat you are using is locked in the upright position.

• WARNING: Do not use the child car seat in the home - it has only been designed to be used in the car.

• WARNING: Do not leave loose/unsecured objects on the back seat of your car or the parcel shelf. They may be dangerous to your child if you are forced to brake suddenly.

WHEN USING THE CHILD CAR SEAT

• WARNING: WARNING: Make sure that the child car seat is placed somewhere so that rigid items and plastic parts do not become trapped in doors or movable seat units when the seat is in everyday use.

• WARNING: Always use the vehicle’s door child safety lock system, if one is available, to make it impossible for the child to open the car doors from inside.

• WARNING: Allow the child a break during long car journeys and make sure they don’t get out of the car seat unaided and without supervision.

• WARNING: NEVER leave your child unattended – your child’s safety is your responsibility.

• WARNING: Ensure that the child car seat is secured to the car seat at all times evenwhen not in use.

• WARNING: The child car seat must be fitted securely to the passenger seat. Ensure that it is not loose or wobbly after you have fitted it.

• WARNING: The child seat shall not be used without the cover.

• WARNING: The seat cover should not be replaced with any other than the one recommended by the manufacturer, because the cover constitutes an integral part of the restraint performance.

• WARNING: Allow the child a break during long car journeys and make sure they don’t get out of the car seat unaided and without supervision.

• WARNING: In the event of an emergency it is important to be able to release the

WARNINGS child quickly (as defined by British Standards). This means that seat buckle cannot be fully tamper proof and you should actively discourage your child from playing with or using the buckle.

• You should actively discourage your child from playing with or using the buckle. SEAT BELT

• WARNING: NEVER use any load bearing contact points other than those described in these instructions.

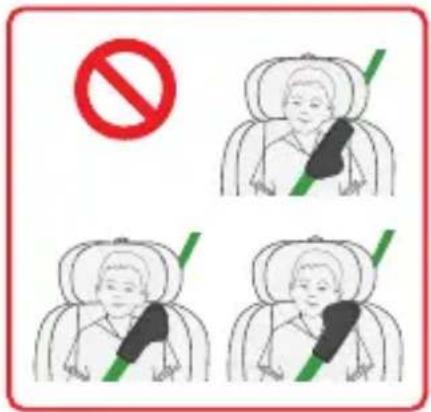

• WARNING: Ensure that the lap section of the seatbelt or harness is worn low down, so that pelvis is firmly engaged. The harness must be tight enough, the space between the pectoral belt and the child’s chest must not be more than two fingers thick. The abdominal belt of the harness should be in the lowest possible position to adequately restrain the child’s pelvis.

• WARNING: Make sure that ALL the passengers in your vehicle have their seatbelts fastened, as unrestrained people can be very dangerous to the child in an accident..

• WARNING: NEVER use a seatbelt routing scheme that differs from these instructions.

• WARNING: The lap and diagonal seatbelt must be used at all times when your child is in the child car seat.

• WARNING: Do not leave your child in the child car seat while parked in direct sunlight or on a hot day.

• WARNING: Do not subject the child car seat to prolonged direct sunlight as this may be dangerous for your child (the metal and plastic fittings could become hot) and may cause the fabric to fade. You can reduce this problem by covering the child car seat with a sheet when not in use. SECOND HAND OR DAMAGED CHILD CAR SEATS AND SEATBELTS

• WARNING: Never buy a second hand child car seat. It may have unseen damage.

• WARNING: The manufacturer only guarantees this product when the original owner uses it.

• WARNING: You MUST replace the child car seat and your vehicles seatbelts if they become badly worn or amaged.

• WARNING: You MUST replace the child car seat if it is involved in an accident it may have unseen damage and may not protect your child as well as it should. At the very least send the child car seat to your retailer for inspection, together with the accident report.

• The FOPPAPEDRETTI company declines all responsibility for improper use of the product and for any use that does not comply with these instructions. IMPORTANT WARNING from 40 to 105 cm (i-Size universal ISOFIX)

• This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual. “Iturn i-Size” can be used in all i-Size seating positions and in any ISOFIX seating positions. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

• From 40 cm to 105 cm it must be installed on seats equipped with the Isofix System and support leg. From 100 cm to 150 cm (i-Size booster seat)

• This is a i-Size booster seat Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use primarily in “i-Size seating positions” as indicated by vehicle manufacturers in the vehicle user’s manual. “Iturn i-Size “ can be use in all i-Size seating positions and, it can be used also in any UNIVERSAL seating position provided that it does not conflict with the interior of the car. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

• WARNING! DO NOT use the support leg from 100 to 150 cm.

• If the vehicle is not fitted with Isofix anchorage, the “Iturn i-Size” can be installed (in the 100-150 cm configuration) front-facing with a 3-point adult safety belt, approved according to UN/ECE Regulation No. 16 or equivalent.

• WARNING! When using the 3-point adult safety belt, make sure that the lap portion is positioned correctly on the pelvic area. WARNINGS• ENGLISH •

a. Headrest reducer b. Seat reducer

4. 5-point seat belt

5. Shoulder strap adjustment button

6. Shoulder strap adjustment belt

12. Lever to recline the seat

18. Support leg adjustment button

19. Indicator for the correct adjustment of

WARNING! Follow the restrictions at all times:

• This child car seat can be installed so that it faces opposite of the car driving direction. The car seat can be installed in the rear facing position when the height of the child is between 40 cm and 105 cm. The car seat can be installed

• facing forward once the child is at least 76 cm tall.

• IMPORTANT! Do not use forward facing before the child’s age exceeds 15 months.

• WARNING! Deactivate the passenger airbag when the child is in the front seat in the rear facing direction.

• The car seat can be used on all i-Size approved vehicle seats (check the vehicle’s instruction manual) and on seats of vehicles included in the “Vehicle compatibility list” given with the car seat.

• The vehicle seat must be forward facing. Never use this car seat on vehicle seats facing the sides or opposite to the direction of the driver’s seat. The car seat can be tted only if the vehicles considered as suitable are equipped with 3-point seat belts approved pursuant to Regulation UN/ ECE n.16 or other equivalent standards CAR SEAT Iturn i-Size 40 - 105 cm i-Size i-Size i-Size booster seat ISOFIX + support leg Rear-facingForward-facingForward-facing Iturn i-Size

ISOFIX + support leg Iturn i-Size 100 - 150 cm ISOFIX + 3-point Seat Belt i-Size booster seat Forward-facingIturn i-Size 100 - 150 cm 3-point Seat Belt

Forward-facing YES YES

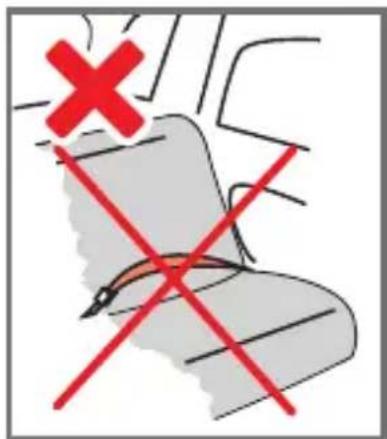

With a 2-point seat belt The use of two-point seat belts significantly increases the risk of injury to the child in the event of an accident.

With a 3-point seat belt The seat belt must be approved according to the ECE R16 regulation or other equivalent standards

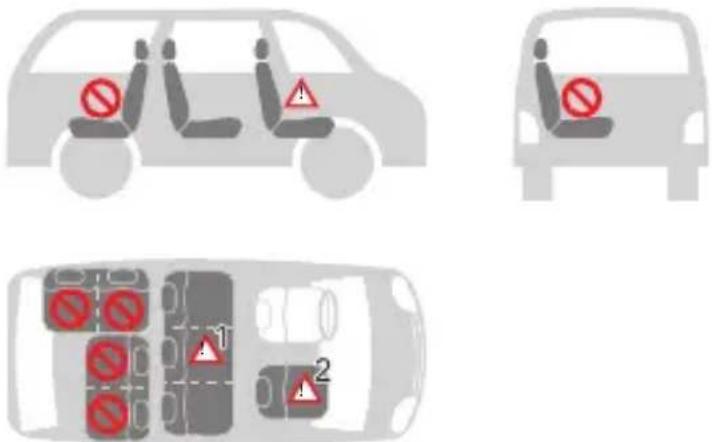

With the ISOFIX and support leg

On the front passenger seat DO NOT USE ON PASSENGER SEATS EQUIPPED WITH ACTIVE FRONT AIRBAGS! The car seat can be attached to the front passenger seat using the ISOFIX systems, or alternatively without these, by following the same warnings as for these systems (slide the passenger seat backwards and consult the instructions in the vehicle user manual).

On the two rear side passenger seat

On the rear centre passenger seat The car seat can be used on the central rear passenger seat if it is equipped with a three-point seat belt. (You must comply with local regulations in force in your country of residence).

The seat reducer is designed for use with children, to ensure greater comfort and stability and provide a more reclined position, preventing their head from falling forwards. The reducer must be used until the child reaches 87 cm (g 1). ADJUSTING THE HEIGHT OF THE HEADREST AND STRAPS Adjusting the headrest correctly ensures maximum protection for your child when inside the car seat. From 40 to 105 cm: When using the 5-point harness, the headrest must be adjusted so that there is a 1-nger (1 cm) space between the shoulder straps and the top of the shoulders. IMPORTANT: Loosen the shoulder straps before adjusting the headrest. Adjusting the straps to a position lower or higher than the child’s shoulders can compromise your child’s safety. From 100 to 150 cm: When using the 3-point vehicle seat belt, the headrest must be adjusted so that there is a two-nger space between the headrest and the child’s shoulders. Make sure that the diagonal belt, when passing through the “diagonal belt guide loop” on the side of the headrest, is positioned at the shoulders and not at the child’s neck. NO – Too low NO – Too high YES – Correct Top tether Top tether Installation: ISOFIX system + Top Tether Secure the child with: 5-point harnessInstallation: ISOFIX system + Top Tether Secure the child with: 5-point harnessInstallation: ISOFIX system + 3-point seat belt Secure the child with: 3-point seat beltInstallation: 3-point seat belt Secure the child with: 3-point seat beltGROUP 0+ (0-13 KG) (in rear-facing position) For children weighing between 0 and 13 kg (from birth to approximately 15 months).CAN BE USED IN THE REAR-FACING POSITION FOR CHILDREN FROM BIRTH UP TO 18 KG.GROUP 1 (in the forward-facing position) For children weighing between 9 and 18 kg (from approximately 9 months to 4 years).GROUP 2 and 3 (in the forward-facing position) For children weighing between 15 and 36 kg (from approximately 3 to 12 years of age). D16

ADJUSTING THE SEAT BELT (HARNESS) (From 76 cm to 105 cm) To loosen the harnes: Press the adjustment button and at the same time grip the straps (chest belts) at the bottom, under the pads of the chest protectors, and pull them forwards to loosen them (g. 2A). IMPORTANT: Do not pull on the shoulder pads. Tightening the harness: Pull the harness adjustment strap so as to tighten it properly against the body of the child (g. 2B). The harness is correctly tightened when the gap between the harness and the child is no greater than the thickness of your nger (1 cm). ☞ NOTE: check that the buckle is secured by tugging the shoulder and waist straps. ATTENTION: Do not twist or overlap the harness straps. USING THE BUCKLE - (From 40 cm to 105 cm) To attach the buckle: Hold together the central buckle tabs (g. 3A, 3B) and insert them in the special slot inside the harness buckle. A “click” will indicate that it has attached correctly (g. 3C). To release the buckle: Press the red button to remove the tabs from the central buckle (g. 3D, 3E). HEADREST ADJUSTMENT The headrest can be adjusted to different heights (n.12). Pull the ring of the adjustment strap and raise or lower the headrest to the correct position (g.4). In group 40-105cm, the adjustment of the headrest also changes the height of the shoulder straps.

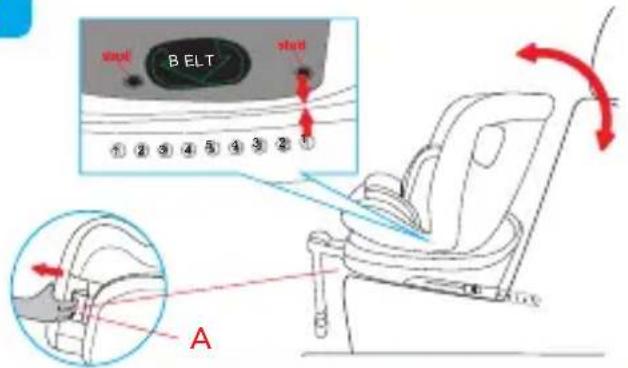

The seat of the car seat can be reclined in 5 different positions (pos. 1, 2, 3, 4, 5). To adjust the tilt: Press the adjustment handle located under the front of the car seat and, holding it down, pull or push the seat forwards or backwards. Release the handle when the seat is in the desired position and make sure that it is locked correctly; you will hear a “click” when the seat has attached (g. 5). (Fi. 5A) In the rear-facing position (children between 40 and 105 cm in height): the seat of the car seat can be reclined in 5 different positions; (Fig. 5B) In the forward-facing position (children between 76 and 105 cm in height): the seat of the car seat can be reclined in 5 different positions; (Fig. 5C) In the forward-facing position (children between 100 and 150 cm in height): the seat of the car seat can be reclined only in 1 position.

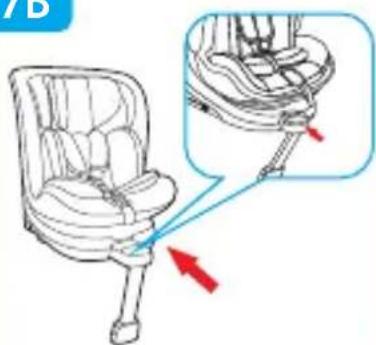

PULL OUT THE SUPPORT LEG

Pull out the support leg from its housing in the lower part of the car seat. When the support leg is folded by (fig. 6A, 6B, 6C) it can be pulled outwards until it locks into

position. The visible red indicator shows that it has been opened correctly. CAUTION You can only rotate the car seat when the support leg is extended outwards.

FOLD UP THE SUPPORT LEG

Rotate the support leg by 45°, push the support leg towards the base, as far as it will go (fig. 7A, 7B) and fold the support leg inwards into its housing (fig. 7C). 360° SEAT ROTATION CAUTION You can only rotate the car seat when the support leg is extended outwards. The 360-degree rotation of the seat makes it easy to change the direction to forwardfacing or rear-facing and facilitates the process of putting the child in the car seat and removing them. Press the rotation button (fig. 8) and rotate the seat towards the door, to place your child in the car seat easily. To secure the child, see section “Harness adjustment”. Rotate the seat into the forward-facing or rear-facing position, and a click will indicate that it has locked in place correctly. PLACING THE CAR SEAT IN THE REAR-FACING POSITION (Children between 40 and 105 cm in height, ISOFIX + support leg + harness) WARNING! The child car seat must be installed in the rear facing position until the child is older than 15 months. The rear-facing position remains the safest, even after exceeding this limit, and it is therefore advisable to use the car seat facing backwards for as long as possible.

DO NOT install the car seat on the passenger seat with an active airbag: this can cause SERIOUS, OR EVEN FATAL, INJURY. If your car does not have standard ISOFIX connector guides, insert those supplied with the car seat with the recess facing upwards in the two ISOFIX anchoring points in the car (fig. 9). ☞ SUGGESTION: The ISOFIX anchoring points are located between the seat and the backrest of the passenger seat. Press the rotation button and place the car seat in the rear-facing position. Make sure that it is locked (fig. 10A, 10B). CAUTION: Before every journey, make sure that the rotating part of child seat is fully engaged by trying to turn the seat around in both directions. Fold down the “support leg” until it locks into position, see paragraph “Pull out the support leg”. USE IN THE VEHICLE USE IN THE VEHICLE• ENGLISH •

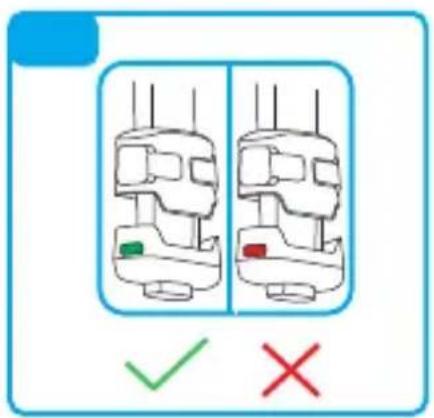

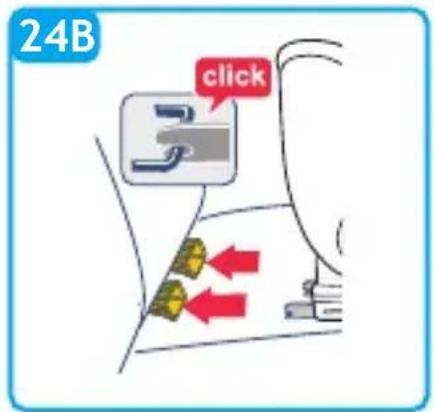

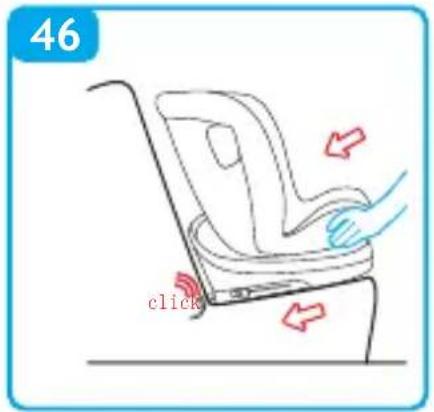

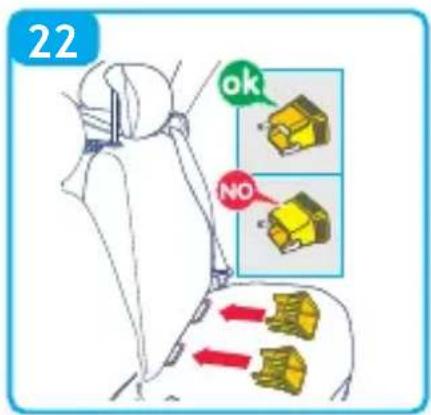

Press both sides of the adjustment/release button on the ISOFIX connectors simultaneously and extend the ISOFIX connectors. (fig. 11A) Repeat this process on both connectors of the car seat. Insert the two ISOFIX connectors into the appropriate guides, and push to attach the two connectors to the ISOFIX hooks in the vehicle. You will hear a “click” once they have attached. Check that the ISOFIX attachment indicators are green on both sides (fig. 11B, 11C). Push the car seat against the passengerseat, making sure that both ISOFIX connectors are extended in the same position. Shake the car seat to be sure it is correctly fixed in place and check again that the ISOFIX safety buttons are green (fig. 12). ☞ NOTE: prima dell’utilizzo verificare che i connettori ISOFIX siano correttamente agganciati da ambo i lati, tirando il seggiolino auto non devono sganciarsi.

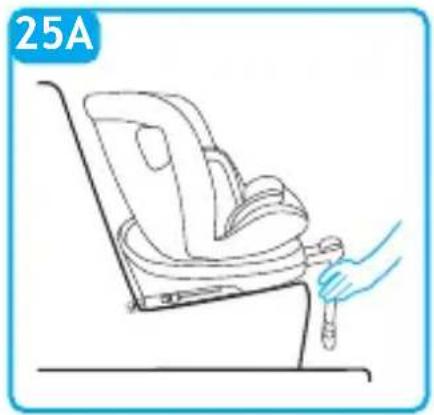

ADJUSTING THE SUPPORT LEG

Fold down the “support leg” until it locks into position. Press the support leg adjustment button and lower the leg down, so that it correctly touches the vehicle floor, then release the button. The leg height adjuster must change from red to green: this will indicate that the leg is placed correctly. Check that the support leg is positioned and adjusted correctly (fig. 13A, 13B, 13C).

WARNING: Do not place the front support leg on a storage compartment located on

the floor of the vehicle. The support leg must rest on a stable and secure surface on the floor of the vehicle.

WARNING: Make sure that the support leg does not lift the car seat up from the vehicle

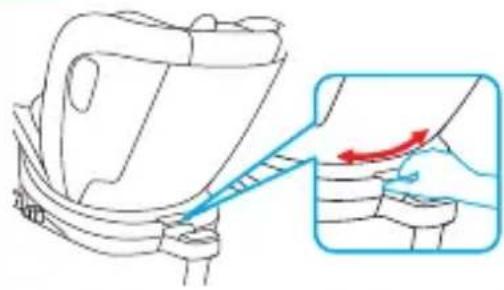

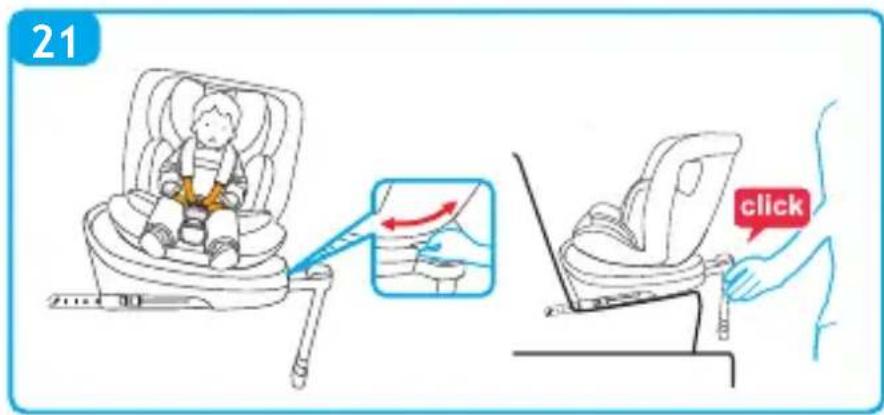

seat. Press the rotation button and rotate the seat towards the door, to place your child in the car seat easily (fig. 14). Press the adjustment button and at the same time grip the straps (chest belts) at the bottom, under the pads of the chest protectors, and pull them forwards to loosen them (fig. 15). IMPORTANT: Do not pull on the shoulder pads. See paragraph “Adjusting the seat belt (harness)”. Press the red button on the central buckle to release the shoulder straps (fig. 16). Place the shoulder straps on the sides of the car seat. Place the child into the car seat (fig. 17). Place the straps over the child’s shoulders, join together the two belt tabs and hook them to the buckle (fig. 18). IMPORTANT! Correct adjustment of the headrest ensures maximum protection for your child when they are inside the car seat. When using the 5-point harness, the headrest

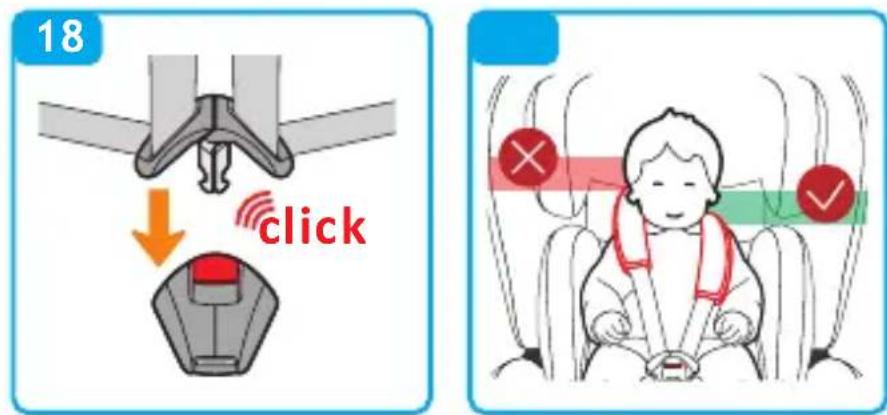

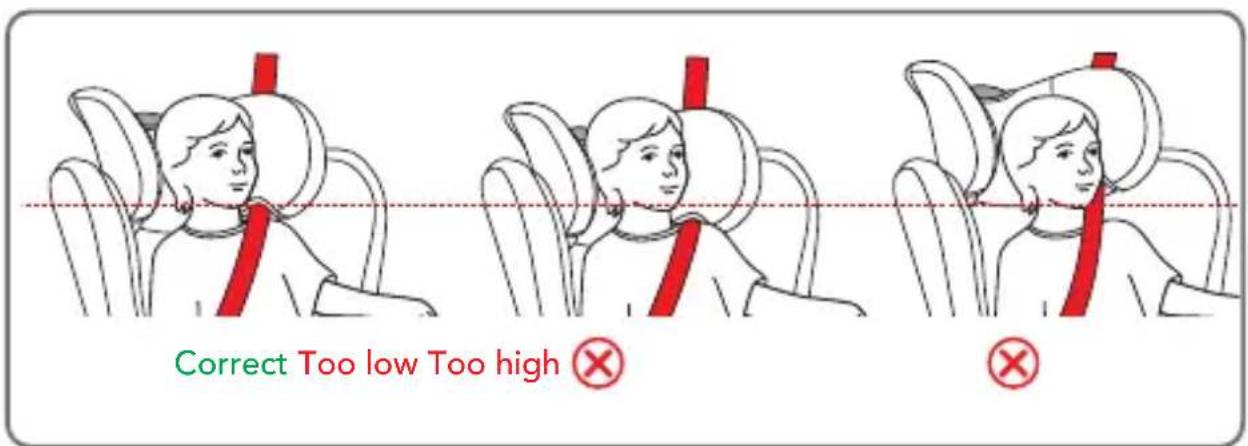

must be adjusted so that there is 1 finger (1 cm) gap between the shoulder straps and the top of the shoulders. fig. 19. IMPORTANT: Loosen the shoulder straps before adjusting the headrest. To attach the buckle: See paragraph “Using the buckle”. Tightening the harness: (fig. 20) See paragraph “Adjusting the seat belt (harness)”. PRECAUTIONS TO MAKE SURE YOU HAVE CORRECTLY FASTENED THE CAR SEAT HARNESS Rotate the seat into the rear-facing position, and a click will indicate that it has locked in place correctly (fig. 21). CAUTION: Before travelling, make sure that the seat is locked in a forward-facing or rearfacing position by trying to rotate the seat without pressing the rotation release button.

INSTALLATION IN THE FORWARD-FACING POSITION

(Children between 76 and 105 cm in height, ISOFIX + support leg + harness) WARNING! Using the car seat in the rear-facing position is mandatory for a child up to 15 months of age and 76 cm in height. The rear-facing position remains the safest, even after exceeding this limit, and it is therefore advisable to use the car seat facing backwards for as long as possible. If your car does not have standard ISOFIX connector guides, insert those supplied with the car seat with the recess facing upwards in the two ISOFIX anchoring points in the car (fig. 22). ☞ SUGGESTION: The ISOFIX anchoring points are located between the seat and the backrest of the passenger seat. Press the rotation button and place the car seat in the forward-facing position. Make Click Pull the harness adjuster strap towards you, neither upwards nor downwards. Aer adjustment, the loose adjuster strap should be hidden under the cover.

• The harness belts are correctly adjusted according to the child’s height, and are correctly tightened;

• The chest straps are adjusted in the correct position;

• The harness belts are not twisted;

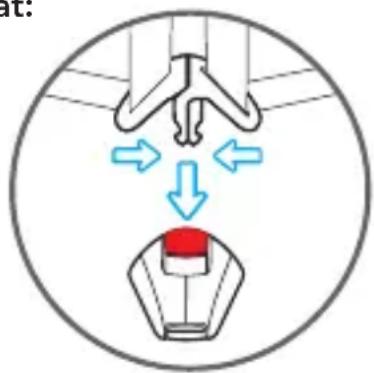

• The tabs are properly engaged in the buckle ATTENTION IMPORTANT For the safety of your child, always make sure that: USE IN THE VEHICLE USE IN THE VEHICLE• ENGLISH •

sure that it is locked (fig. 23). CAUTION: Before every journey, make sure that the rotating part of child seat is fully engaged by trying to turn the seat around in both directions. Fold up the support leg until it locks into position, see paragraph “Pull out the support leg”. Press both sides of the adjustment/release button on the ISOFIX connectors simultaneously and extend the ISOFIX connectors (fig. 24A). Repeat this process on both connectors of the car seat. Insert the two ISOFIX connectors into the appropriate guides, and push to attach the two connectors to the ISOFIX hooks in the vehicle. You will hear a “click” once they have attached. Check that the ISOFIX attachment indicators are green on both sides (fig. 24B, 24C). Push the car seat against the passengerseat, making sure that both ISOFIX connectors are extended in the same position. Shake the car seat to be sure it is correctly fixed in place and check again that the ISOFIX safety buttons are green (fig. 24C). ☞ NOTE: before use, check that the ISOFIX connectors are correctly attached on both sides, when pulling the car seat, they must not detach.

ADJUSTING THE SUPPORT LEG

Fold down the “support leg” until it locks into position. Press the support leg adjustment button and lower the leg down, so that it correctly touches the vehicle floor, then release the button. The leg height adjuster must change from red to green: this will indicate that the leg is placed correctly. Check that the support leg is positioned and adjusted correctly (fig. 25A, 25B, 25C).

WARNING: Do not place the front support leg on a storage compartment located on

the floor of the vehicle. The support leg must rest on a stable and secure surface on the floor of the vehicle.

WARNING: Make sure that the support leg does not lift the car seat up from the vehicle

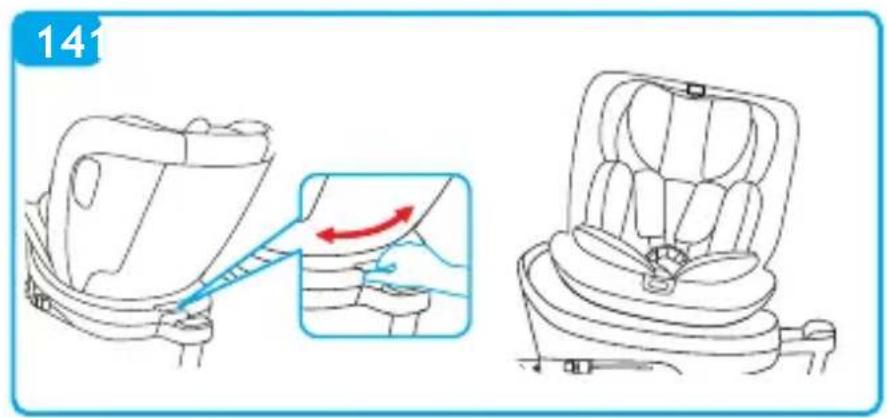

seat. Press the rotation button and rotate the seat towards the door, to place your child in the car seat easily (fig. 26). Press the adjustment button and at the same time grip the straps (chest belts) at the bottom, under the pads of the chest protectors, and pull them forwards to loosen the (fig. 27). IMPORTANT: Do not pull on the shoulder pads. See paragraph “Adjusting the seat belt (harness)”.

Press the red button on the central buckle to release the shoulder straps (fig. 28A). Place the shoulder straps on the sides of the car seat. Place the child into the car seat (fig. 28B). Place the straps over the child’s shoulders, join together the two belt tabs and hook them to the buckle (fig. 29). IMPORTANT! Correct adjustment of the headrest ensures maximum protection for your child when they are inside the car seat. When using the 5-point harness, the headrest must be adjusted so that there is 1 finger (1 cm) gap between the shoulder straps and the top of the shoulders (fig. 30). IMPORTANT: Loosen the shoulder straps before adjusting the headrest. To attach the buckle: See paragraph “Using the buckle”. Tightening the harness: (fig. 31) See paragraph “Adjusting the seat belt (harness)”. USE IN THE VEHICLE USE IN THE VEHICLE• ENGLISH •

PRECAUTIONS TO MAKE SURE YOU HAVE CORRECTLY FASTENED THE CAR SEAT HARNESS Rotate the seat into the forward-facing, and a click will indicate that it has locked in place correctly (fig. 32). CAUTION: Before travelling, make sure that the seat is locked in a forward-facing or rearfacing position by trying to rotate the seat without pressing the rotation release button. REMOVING THE CAR SEAT FROM THE VEHICLE / REMOVING THE ISOFIX SYSTEM At the same time press the ISOFIX release buttons and retract the ISOFIX connectors (fig. 33). Remove the car seat from the vehicle. Press the button (A) and lift up the support leg (1) until it locks (fig. 34A, 34B). Fold up the support leg under the base (fig. 35, 36). REMOVING THE HARNESS (Storing the safety harness away)

• (Fig 37) - Completely loosen the shoulder straps, see paragraph “ADJUSTING THE SEAT BELT (HARNESS) (From 76 cm to 105 cm)”.

• (Fig. 38) - Pull the handle on the headrest and, keeping it pulled, raise or lower the headrest, adjusting it according to the child’s height.

• (Fig. 39) Press the red button on the central buckle to release the shoulder straps.

• Unhook the press studs on the sides of the backrest fabric.

• Lift up the seat cover fabric, pulling it out of the harness adjustment device and lift up the inner padding, pulling it out of the harness adjustment device, pulling carefully and gently.

• Unthread the buckle inwards from the slots in the fabric and padding, open up the container compartment door and put the buckle back inside (fig. 40). Click Pull the harness adjuster strap towards you, neither upwards nor downwards. Aer adjustment, the loose adjuster strap should be hidden under the cover.

• The harness belts are correctly adjusted according to the child’s height, and are correctly tightened;

• The chest straps are adjusted in the correct position;

• The harness belts are not twisted;

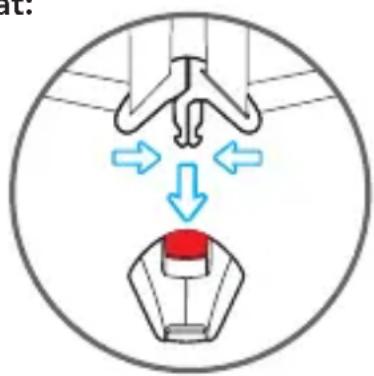

• The tabs are properly engaged in the buckle ATTENTION IMPORTANT For the safety of your child, always make sure that:

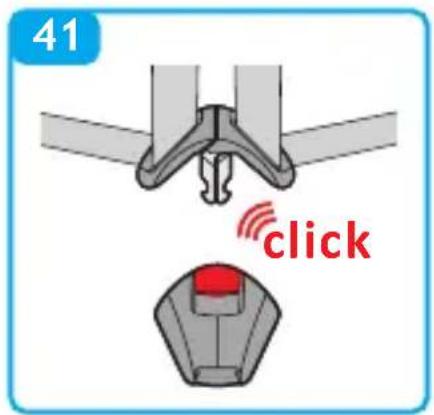

• Hook the tips to the buckle and insert the buckle into the internal compartment, then close the compartment again (fig. 41, 42).

• Reposition the internal padding correctly on the seat.

• Put the fabric back onto the seat and backrest, then attach the press studs (fig. 43). INSTALLATION IN THE FORWARD-FACING POSITION (Children between 100 and 150 cm in height, 3-point seat belt or ISOFIX + 3-point seat belt) It is recommended that you use the 5-point harness for as long as possible. When the growing child reaches a height of 100 cm, the car seat must be transformed for use with children between 100 and 150 cm in height. In this configuration, it is necessary to remove the 5-point seat belt (harness) supplied with the car seat. See paragraph “REMOVING THE HARNESS (Storing the safety harness away)” and push the support leg towards the base, see paragraph “Fold up the support leg”. Only suitable for use in vehicles equipped with 3-point static or retractor seat belts, approved according to regulation UN/ ECE no.16 or other equivalent standards. Mode A - INSTALLING WITH 3-POINT SEAT BELT TOGETHER WITH ISOFIX CONNECTORS If your car does not have standard ISOFIX connector guides, insert those supplied with the car seat with the recess facing upwards in the two ISOFIX anchoring points in the car (g 44). ☞ SUGGESTION: The ISOFIX anchoring points are located between the seat and the backrest of the passenger seat. Press both sides of the adjustment/release button on the ISOFIX connectors simultaneously and extend the ISOFIX connectors ( (g. 45). Locate the ISOFIX attachments supplied with the vehicle. Align the ISOFIX connectors with the anchoring points xed to the vehicle passenger seat and press until you hear a “click” (g. 46). The indicator on both brackets will turn green, conrming that they have attached (g. 47). Ensure that both brackets are correctly fastened. Shake the car seat to be sure it is correctly xed in place. Push the car seat against the passenger seat, making sure that both ISOFIX connectors are extended in the same position. There must not be any space between the backrest of the passenger seat and the car seat (g. 48). Pass the diagonal part of the 3-point seat belt behind the headrest of the car seat and through the green diagonal belt guide (A) located on the lower part of the headrest, on the retractor side (g. 49). Place the child into the car seat (g. 50). Press the button and raise or lower the headrest, adjusting it according to the child’s height (g. 51). Make sure that it is correctly locked in the chosen position (see par. “Headrest adjustment”). USE IN THE VEHICLE USE IN THE VEHICLE• ENGLISH •

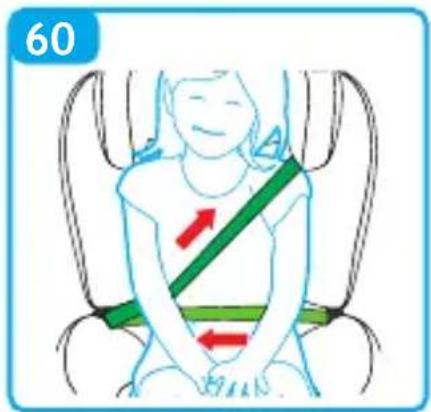

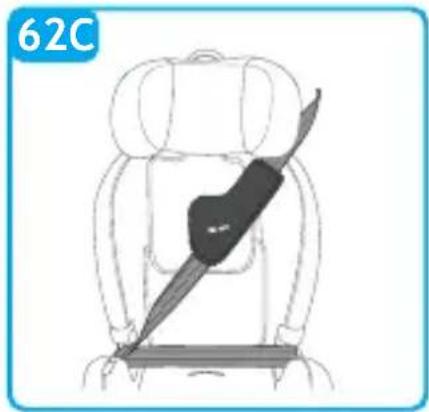

Pull out the 3-point seat belt of the vehicle and, passing it over the front of your child, attach the vehicle’s seat belt by inserting the tip into the buckle (B). A “click” will indicate that it is attached correctly (g. 52). WARNING! The vehicle’s seat belt buckle must not be placed in the lower guide of the lap belt passage. Insert the diagonal belt and the lap belt into the lower loop from the side near the fastening buckle of the vehicle’s seat belt (C) (g. 52). Thread the lap belt on the opposite side of the car seat into the lap belt loop (D) (g. 52). WARNING! The lap belt must run as low as possible over your baby’s pelvis. Insert the diagonal belt into the belt guide loop (A), making sure it is not twisted. ☞ NOTE: When using the 3-point vehicle seat belt, the headrest must be adjusted so that there is a two-nger space between the headrest and the child’s shoulders. Make sure that the diagonal belt, when passing through the “diagonal belt guide loop” on the side of the headrest, is positioned at the shoulders and not at the child’s neck. Tighten the belt as shown in the gure 53. Make sure that you have positioned the lap belt as low as possible on the child’s pelvis, and that it has been inserted in the belt guides of the lap seat belt and that you have correctly attached the buckle. The diagonal belt must pass through the diagonal belt guide. Mode B - INSTALLING WITH 3-POINT SEAT BELT Press the ISOFIX release buttons and retract the ISOFIX connectors (g. 54). Place the car seat on the car’s seat. Push the car seat against the backrest of the passenger seat. There must not be any space between the backrest of the passenger seat and the car seat (g. 55). Pass the diagonal part of the 3-point seat belt behind the headrest of the car seat and through the green diagonal belt guide (A) located on the lower part of the headrest, on the retractor side (g. 56). Place the child into the car seat (g. 57). Press the button and raise or lower the headrest, adjusting it according to the child’s height (g. 58). Make sure that it is correctly locked in the chosen position (see par. “Headrest adjustment”). Pull out the 3-point seat belt of the vehicle and, passing it over the front of your child, D16

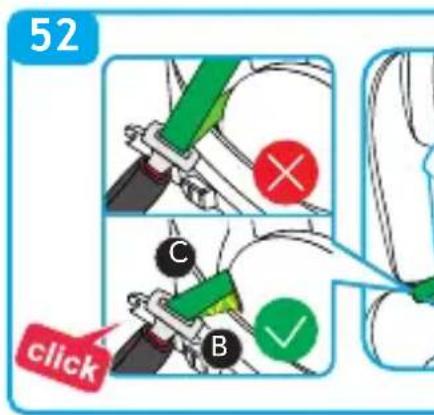

attach the vehicle’s seat belt by inserting the tip into the buckle (B). A “click” will indicate that it is attached correctly (fgi. 59). WARNING! The vehicle’s seat belt buckle must not be placed in the lower guide of the lap belt passage. Insert the diagonal belt and the lap belt into the lower loop from the side near the fastening buckle of the vehicle’s seat belt (C) (g. 59). Thread the lap belt on the opposite side of the car seat into the lap belt loop (D) (g. 59). WARNING! The lap belt must run as low as possible over your baby’s pelvis. Insert the diagonal belt into the belt guide loop (A), making sure it is not twisted. ☞ NOTE: When using the 3-point vehicle seat belt, the headrest must be adjusted so that there is a two-nger space between the headrest and the child’s shoulders. Make sure that the diagonal belt, when passing through the “diagonal belt guide loop” on the side of the headrest, is positioned at the shoulders and not at the child’s neck. Tighten the belt as shown in the gure 60. Make sure that you have positioned the lap belt as low as possible on the child’s pelvis, and that it has been inserted in the belt guides of the lap seat belt and that you have correctly attached the buckle. The diagonal belt must pass through the diagonal belt guide. KID-PAD INSTALLATION The KID-PAD is a device that must ALWAYS be installed on the diagonal vehicle seat belt to ensure proper protection in the event of an impact. Position the diagonal belt under the two Velcro straps of the KID-PAD (g. 61), close the KID-PAD on itself (g. 62) making sure that the shaped part is positioned between the chin and the chest of the child (g. 63). WARNING! The KID-PAD must ALWAYS be used. REMOVING THE LINING (g. 64) Loosen the harness and remove the reducer if it is being used. Lift up the headrest to the highest position. Remove it, carefully pulling the fabric off from the headrest. Remove it, carefully pulling the fabric off from the frame, starting from one side, being D16

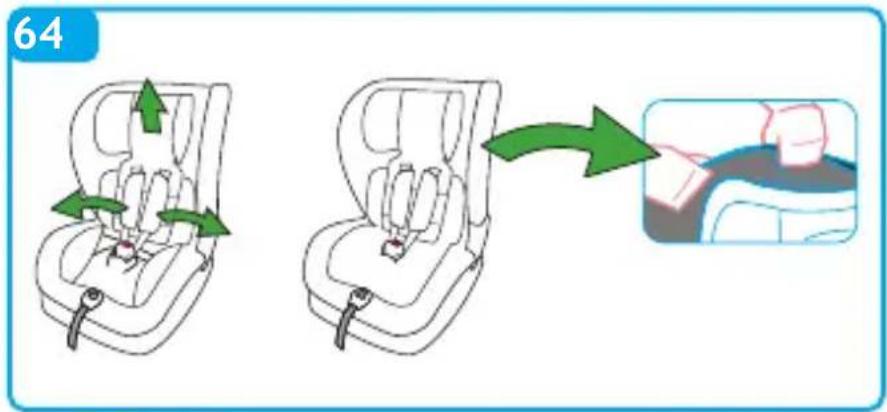

careful while removing the fabric from the lap belt guide. Remove the leg separator harness from the lining and take off the fabric. To put the lining back on, follow the reverse procedure.

MAINTENANCE AND CLEANING

Only use original linings, as these components are of fundamental importance for the device to function correctly. Do not use the car seat without the lining. Cleaning The lining can be removed and washed in a washing machine with a mild detergent, using the delicate fabric cycle (30°C). Follow the washing instructions shown on the label. The colours may fade if washed at temperatures above 30°C. Never spin dry or tumble dry (as the fabric could become detached from the padding). The plastic parts may be cleaned with water and soap. Do not use harsh detergents (such as solvents). The harness may be removed and washed with soap and warm water.

MAINTENANCE AND CLEANING

IMPORTANT: The lining is a fundamental component for your child’s safety. Never use the car seat without the lining, nor replace it with other products which have not been approved, so as to avoid endangering the child’s safety or compromising the proper functioning of the device. Washing instruction: The lining can be removed, washed at 30°C and hung out to dry. Washing machine cold water Do not bleach No dry cleaning Do not ironDo not tumble dry

FORMAL GUARANTEE The contents of this document as stated below will come into effect as from

01.01.2005 and replace, on every account

and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A. FORMAL GUARANTEE Foppa Pedretti S.p.A. the head office of which is located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer. This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer’s rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product. To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer’s address, the date of purchase of the Product with the Retailer’s stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above. The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product.

EXCLUSIONS TO THE FORMAL

GUARANTEE. The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat or environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorised spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure. In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings cont a ined in the manua l or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot : “Check your baby constantly. Make sure that the sheets and blankets do not cover the baby’s head…”). Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.

Cars approved for the Iturn i-Size car seat, provided the car is equipped with the ISOFIX system.

• Iturn i-Size is a universal child restraint device. It is approved under the R129 regulation for use in all vehicle positions marked with the i-Size logo.

• Refer to the list of vehicles if the vehicle equipped with Isox car positions that are not i-Size: the Iturn i-Size car seat is also suitable for attachment in the seating positions of the cars listed below, provided that the approved ISOFIX points are present and available. The seating positions in other cars may also be suitable to accommodate this child restraint device, however we have not yet tested these cars in conjunction with the Iturn i-Size. If in doubt, consult either the enhanced child restraint system manufacturer or the retailer.

• The ISOFIX anchoring points on the passenger seat (position 1) are normally available as an option, therefore, this may or may not be the case for this position, depending on the model. Installation on the rear passenger seat of the car may limit the space for the passenger in the front seat.

• Do not place the front support leg on a oor storage compartment lid. The front support leg MUST make full and rm contact with the vehicle oor.

• Adjust the vehicle seat so that the base front support leg does not make contact with the oor storage compartment.

• Always check the compatibility of the “Iturn i-Size” car seat with your car to verify that the available space is adequate.

• Please note that this list undergoes ongoing revision procedures, with changes and additions of vehicles accordingly.

• The up to date list can be consulted on our web site: www. foppapedretti.it

Warning: Do NOT use on

a passenger seat tted with an activated front airbag. INFORMATION Please consult with the vehicle manufacturer regarding access to ISOFIX points.

WARNING: before purchasing, consult the vehicle Use and Maintenance Guide to ensure

the ISOFIX anchor is present, as this could be an optional.

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

Freemont Tipo station wagon Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX10

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

Freemont Tipo station wagon Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX11

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

Freemont Tipo station wagon Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX12

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

Freemont Tipo station wagon Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX13

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

Freemont Tipo station wagon Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX14

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

Freemont Tipo station wagon Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX15

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

Freemont Tipo station wagon Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX16 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

2008Partner Tepee Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX17 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

2008Partner Tepee Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX18 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

2008Partner Tepee Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX19 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

2008Partner Tepee Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX20 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

2008Partner Tepee Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX21 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

2008Partner Tepee Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX22 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

2008Partner Tepee Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX23 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

2008Partner Tepee Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX24 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX

2008Partner Tepee Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX25 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX 2013Clio Sporter 2008Megane Sporter 2015Megane Sporter 2015Espacer 2015Kadjar

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX26 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX 2013Clio Sporter 2008Megane Sporter 2015Megane Sporter 2015Espacer 2015Kadjar

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX27 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX 2013Clio Sporter 2008Megane Sporter 2015Megane Sporter 2015Espacer 2015Kadjar

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX28 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX 2013Clio Sporter 2008Megane Sporter 2015Megane Sporter 2015Espacer 2015Kadjar

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX29 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX 2013Clio Sporter 2008Megane Sporter 2015Megane Sporter 2015Espacer 2015Kadjar

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX30 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX 2013Clio Sporter 2008Megane Sporter 2015Megane Sporter 2015Espacer 2015Kadjar

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX31 Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX 2013Clio Sporter 2008Megane Sporter 2015Megane Sporter 2015Espacer 2015Kadjar

Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIX Car manufacturer 1st year of production Seat 3-point belt Approved seat ISOFIXImportato da: Foppa Pedretti S.p.A. Via A. Volta, 11 - 24064 Grumello del Monte, Bergamo - Italy tel +39 035.830497 fax 39 035.831283 www.foppapedretti.it Lista veicoli Iturn i-Size R1
