AP505 - Receiver TEAC - Free user manual and instructions

Product Type	Power Amplifier (Receiver)
Brand	TEAC
Model	AP505
Dimensions (W × H × D)	290 × 84.5 × 271 mm
Weight	4.4 kg
Power Supply	AC 220-240 V, 50/60 Hz (Europe) / AC 120 V, 60 Hz (USA/Canada)
Power Consumption	58 W
Speaker Impedance	4 – 16 Ω (STEREO/BI-AMP mode), 8 – 16 Ω (BTL mode)
Output Power (STEREO/BI-AMP)	170 W + 170 W (4 Ω), 95 W + 95 W (8 Ω)
Output Power (BTL)	350 W (8 Ω)
Total Harmonic Distortion	0.0015 %
Frequency Response	10 Hz – 50 kHz (+0 dB, -5 dB)
Input Sensitivity (RCA)	0.66 V
Input Sensitivity (XLR)	1.3 V
Input Impedance	10 kΩ or more
Output Modes	STEREO, BI-AMP, BTL
Audio Inputs	RCA, XLR
Speaker Outputs	Binding posts (bare wire or spade connectors; banana plugs not allowed on European models)
Special Functions	Dimmer, level meters, automatic power saving
Included Accessories	Power cord, rubber feet, instruction manual
Maintenance	Soft cloth slightly dampened with diluted neutral detergent
Safety	Do not expose to water, do not open, unplug before cleaning
Operating Temperature	+5 °C to +35 °C
Operating Humidity	5% – 85% (without condensation)

Frequently Asked Questions - AP505 TEAC

How to connect speakers to the TEAC AP505?

Strip about 1 cm of speaker wire, insert the wire into the binding post after unscrewing the cap, then retighten. Make sure the marked conductor (usually red) is connected to the red (+) terminal and the unmarked one to the black (-) terminal. For European models, banana plugs are not allowed; use bare wire or spade connectors.

What output modes are available and how to use them?

The OUTPUT MODE switch allows you to choose between three modes: STEREO (standard stereo amplification), BI-AMP (monaural bi-amplification requiring two units), and BTL (high-power monaural amplification, also with two units). Always disconnect the speakers before changing modes.

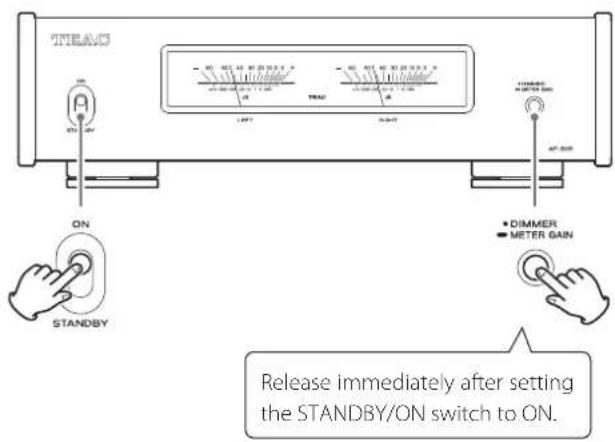

How to enable or disable the automatic power saving function?

Press and hold the DIMMER/METER GAIN button while turning the STANDBY/ON switch to ON. Release the button immediately. The level meters flash every 3 seconds when the function is enabled, or flash twice quickly then light up at 3-second intervals when disabled.

What to do if no sound comes out of the speakers?

Check the volume setting of the preamplifier, the INPUT SELECTOR, and the connections. Make sure the STANDBY/ON switch is set to ON. If the level meters flash with no sound, there may be a short circuit or overheating. Put the unit in standby and check the cables.

How to clean the TEAC AP505?

Wipe the top cover and other surfaces with a soft cloth slightly dampened with diluted neutral detergent. Do not use chemical wipes, thinner, or other agents. Always unplug the power cord before cleaning.

What are the output powers of the AP505?

In STEREO or BI-AMP mode: 170 W + 170 W at 4 Ω and 95 W + 95 W at 8 Ω. In BTL mode: 350 W at 8 Ω (JEITA values at 1 kHz).

Can I use banana plugs with the AP505?

On European models, banana plugs are not allowed for safety reasons. Use bare wire or spade connectors. On models for other regions, banana plugs are possible if the caps are removed.

How to adjust the brightness of the level meters?

Press the DIMMER/METER GAIN button to cycle through brightness settings: high, medium, low, off. You can also press and hold this button for 3 seconds to change the meter operation mode (normal or +20 dB).

What to do if the sound cuts out suddenly and the level meters flash?

This may indicate activation of the protection circuit (overheating, short circuit, etc.). Set the STANDBY/ON switch to STANDBY, wait a few minutes, check the connections and ventilation. If the problem persists, contact an authorized service center.

What accessories are included with the TEAC AP505?

The included accessories are: a power cord, three rubber feet, and the instruction manual (including warranty).

USER MANUAL AP505 TEAC

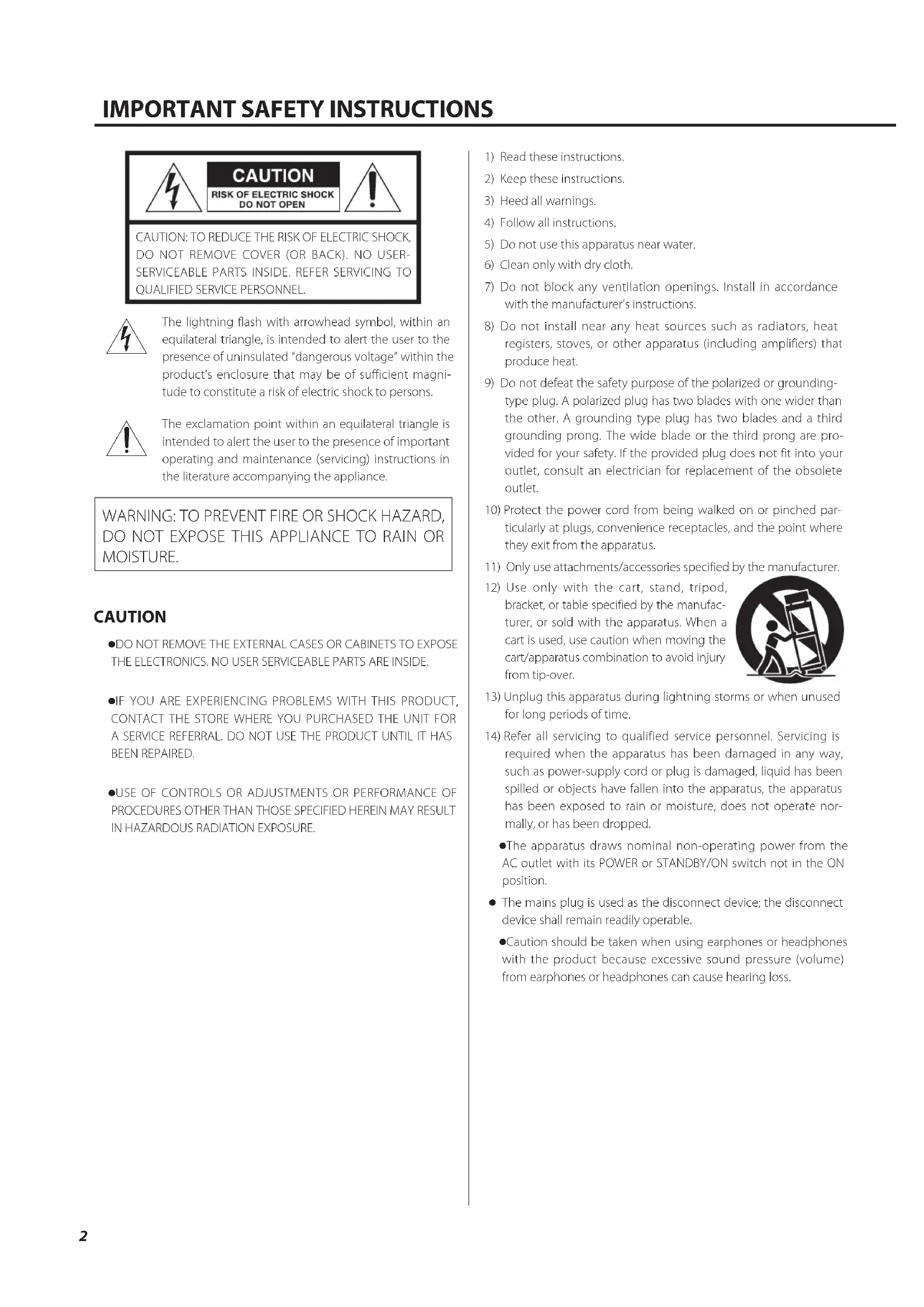

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
The apparatus draws nominal non-operating power from the AC outlet with its POWER or STANDBY/ON switch not in the ON position.
- The mains plug is used as the disconnect device; the disconnect device shall remain readily operable.
- Caution should be taken when using earphones or headphones with the product because excessive sound pressure (volume) from earphones or headphones can cause hearing loss.

CAUTION

Do not expose this apparatus to drips or splashes.
- Do not place any objects filled with liquids, such as vases, on the apparatus.
- Do not install this apparatus in a confined space such as a book case or similar unit.

The apparatus should be located close enough to the AC outlet so that you can easily reach the power cord plug at any time.
If the product uses batteries (including a battery pack or installed batteries), they should not be exposed to sunshine, fire or excessive heat.
- CAUTION for products that use replaceable lithium batteries: there is danger of explosion if a battery is replaced with an incorrect type of battery. Replace only with the same or equivalent type.

WARNING

Products with Class I construction are equipped with a power supply cord that has a grounding plug. The cord of such a product must be plugged into an AC outlet that has a protective grounding connection.

IN USA/CANADA, USE ONLY ON 120V SUPPLY.

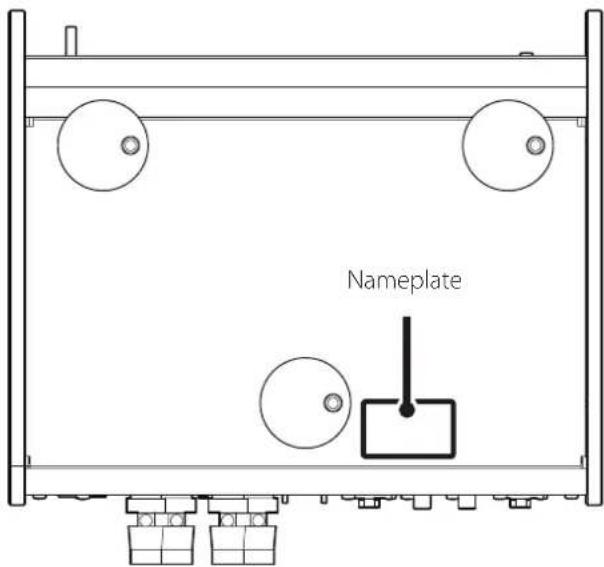

The nameplate is located on the bottom of the unit as shown below. Front side

EN

Model for USA

Supplier's Declaration of Conformity

Responsible party:

Pioneer & Onkyo U.S.A. Corporation

Address: 22828 Lockness Avenue, Torrance, CA 90501 U.S.A.

Telephone number: 1-201-785-2600

This device complies with Part.15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Model for Canada

Industry Canada's Compliance Statement: This Class B digital apparatus complies with Canadian ICES-003.

Model for Europe

This product complies with the European Directives request, and the other Commission Regulations.

For European Customers

Disposal of electrical and electronic equipment and batteries and/or accumulators

a) All electrical/electronic equipment and waste batteries/ accumulators should be disposed of separately from the municipal waste stream via collection facilities designated by the government or local authorities.
b) By disposing of electrical/electronic equipment and waste batteries/accumulators correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
c) Improper disposal of waste electrical/electronic equipment and batteries/accumulators can have serious effects on the environment and human health because of the presence of hazardous substances in the equipment.
d) The Waste Electrical and Electronic Equipment (WEEE) symbols, which show wheeled bins that have been crossed out, indicate that electrical/electronic equipment and batteries/accumulators must be collected and disposed of separately from household waste.

If a battery or accumulator contains more than the specified values of lead (Pb), mercury (Hg), and/or cadmium (Cd) as defined in the Battery Directive (2006/66/EC, 2013/56/EU), then the chemical symbols for those elements will be indicated beneath the WEEE symbol.

e) Return and collection systems are available to end users. For more detailed information about the disposal of old electrical/electronic equipment and waste batteries/accumulators, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Thank you for choosing TEAC.

Read this manual carefully to get the best performance from this unit.

After reading it, keep it in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS 2

Included accessories.. 5

Maintenance. 5

Using the TEAC Global Site. 5

Before use. 6

Note about pinpoint feet. 6

Front panel names and functions 7

Rear panel names and functions 8

Connecting speakers 9

Notes about speaker cables 9

How to connect speakers. 9

Connections 10

Using STEREO output mode 10

Using BI-AMP output mode 11

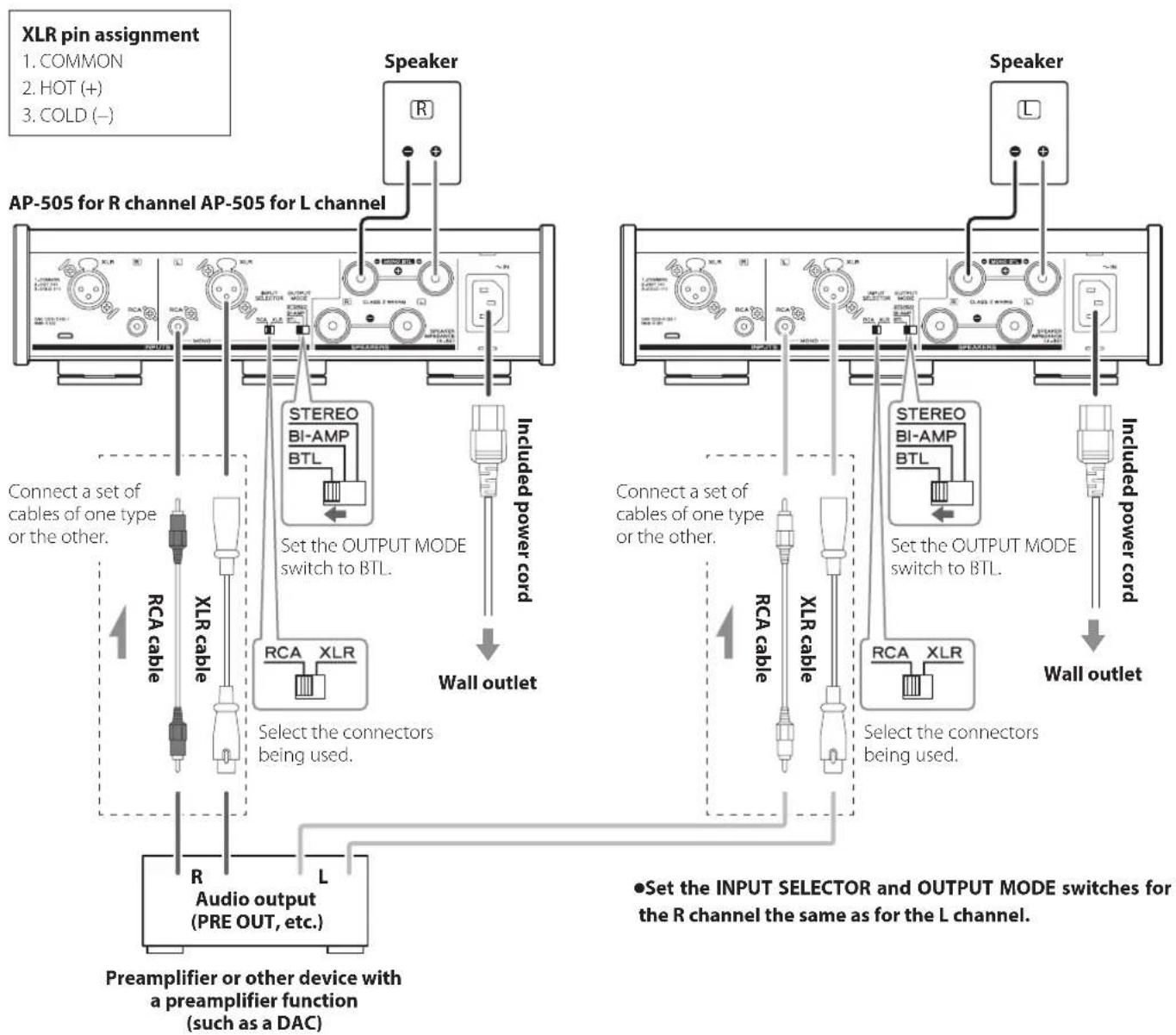

Using BTL output mode 12

Basic operation 13

Turning the power on. 13

Turning the power off 13

Dimmer 14

Changing level meter operation 14

Automatic power saving function 15

Restoring default settings 15

Troubleshooting. 16

Specifications. 17

Amplifier 17

General 17

Included accessories 17

Check to be sure the box contains all the included items shown below.

Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

Power cord × 1

Rubber pads × 3

Owner's manual (this document, including warranty) × 1

• For information about the warranty, users living in the USA and Canada should see pages 50-51 and the back cover (warranty document). Users living in Europe and other regions should see page 51.

Maintenance

Wipe dirt from the top cover and other panel surfaces using a soft cloth that has been slightly dampened with a diluted neutral cleanser.

Do not wipe with chemical cleaning cloths, thinner or other chemical agents. Doing so could damage the surface.

your safety, disconnect the power cord from the outlet before cleaning.

Using the TEAC Global Site

You can download updates for this unit from the TEAC Global Site:

http://teac-global.com/

In the TEAC Downloads section, click the desired language to open the Downloads website page for that language.

Placement precautions

• Place the unit in a stable location near the audio system that you will use with it.
• Do not install this unit in a location that could become hot. This includes places that are exposed to direct sunlight or near a radiator, heater, stove or other heating equipment. Moreover, do not place it on top of an amplifier or other equipment that generates heat. Doing so could cause discoloration, deformation or malfunction. Also avoid locations that are subject to vibrations or exposed to excessive dust, cold or moisture.
• When installing this unit, leave a little space (at least 3cm or 1^ ) between it and walls and other devices in order to allow good heat dissipation. If you put it in a rack, for example, leave at least 5cm ( 2^ ) open above it and at least 10cm ( 4^ ) open behind it. Failure to provide these gaps could cause heat to build up inside and result in fire.
• You may stack this unit with a PD-501HR, NT-505 or other 501/503/505 series units. However, if heat should cause the protection circuit to be activated and sound output stops suddenly, place this unit on top and with sufficient distance between it and walls and other devices in order to improve heat dissipation.
• Do not place CDs, CD-Rs, cassette tapes, other audio equipment or other items that are susceptible to heat on top of the unit. Doing so could damage these items.
• Do not put cloth on top of the unit or place the unit on top of bedding or thick carpets. Doing so could cause the unit to overheat and damage it.
  Do not move the unit during use.
  The voltage supplied to the unit should match the voltage printed on the bottom of the unit. If you are in any doubt regarding this matter, consult an electrician.
• Do not open the body of the unit as this might result in damage to the circuitry or cause electric shock. If a foreign object should get into the unit, contact your dealer.
• When removing the power plug from the wall outlet, always pull directly on the plug; never yank on the cord.

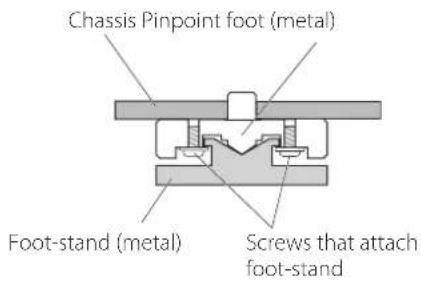

Note about pinpoint feet

High-precision metal pinpoint feet are attached firmly to the bottom plate of this unit.

The stands for these feet are loose, but when the unit is placed in position, it is supported by these pinpoint feet, which will effectively disperse vibrations.

• The included rubber pads are intended to protect the surface where the unit is placed. Apply them to the bottoms of the foot-stands.

EN

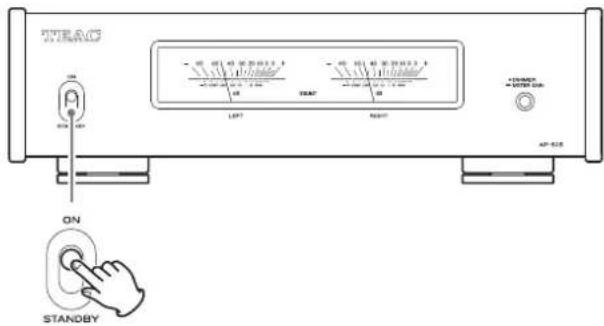

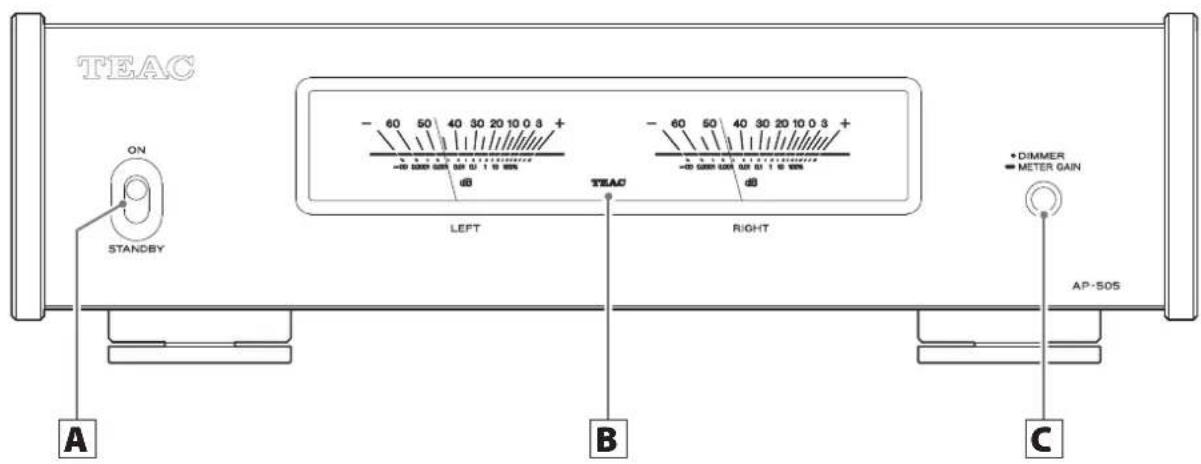

A STANDBY/ON switch

Use to put the unit into standby mode or turn it on.

B Level meters

These show the output levels.

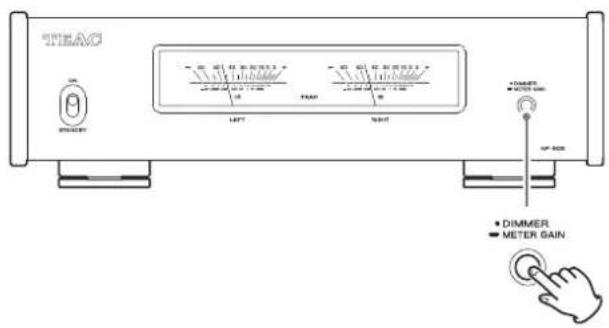

C DIMMER/METER GAIN button

The brightness of the level meters changes each time you press this button (page 14).

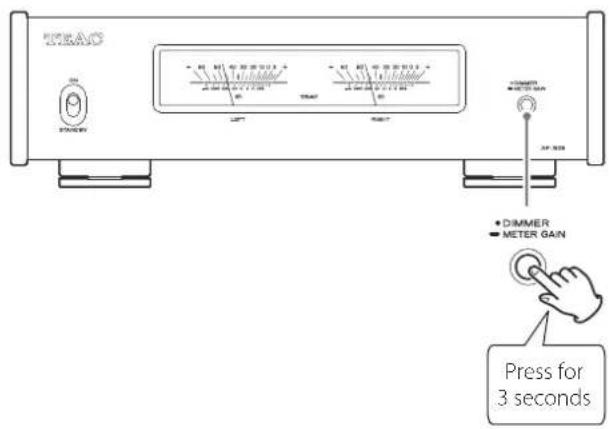

Press and hold this button for three seconds to change level meter operation (page 14).

By using this button together with the STANDBY/ON switch, you can change the automatic power saving setting and restore various settings to their factory default values (page 15).

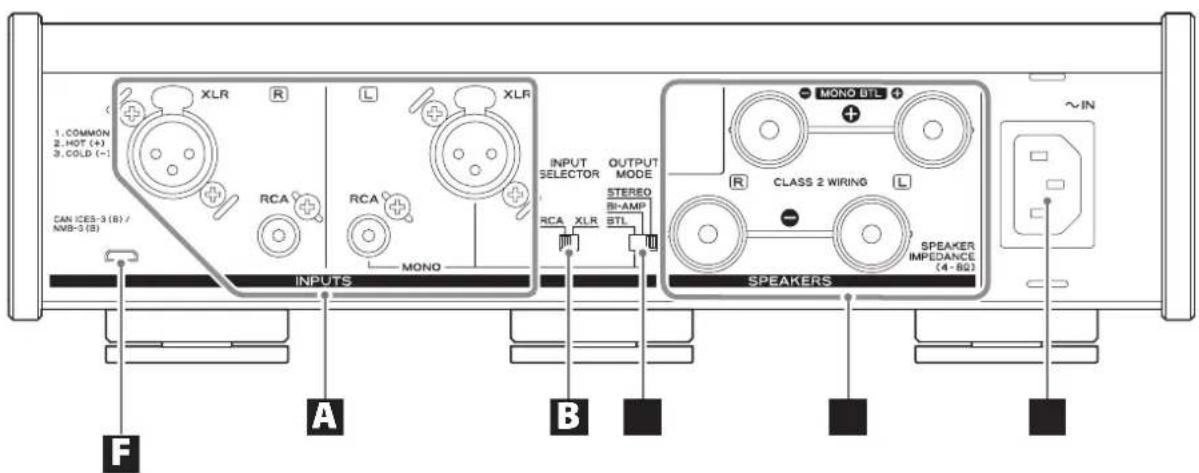

A Analog audio input (INPUTS) connectors

Use these to input stereo analog audio. Connect these connectors to the audio output connectors of a preamplifier or another device such as a DAC that has a preamplifier function.

This unit's XLR connectors are 2: HOT.

Use commercially-available audio cables for connections.

RCA: RCA cables

XLR: XLR cables

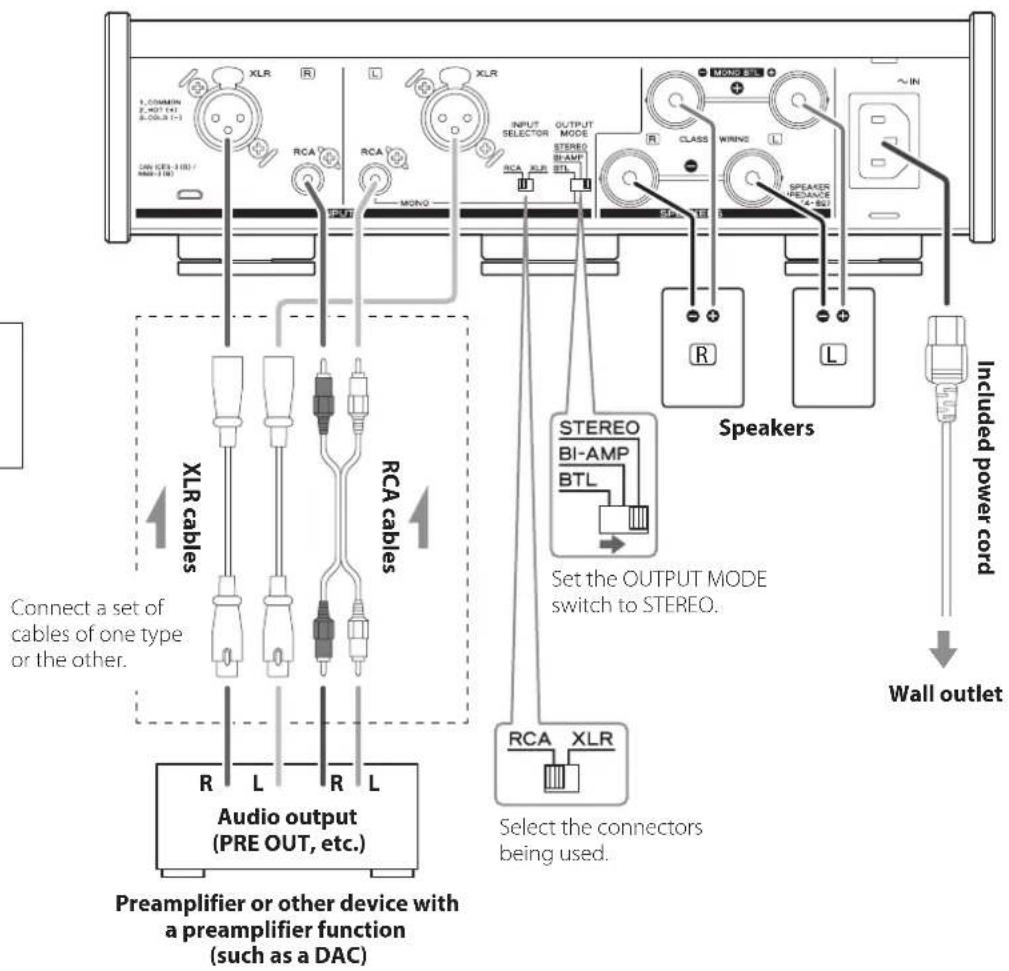

Using with STEREO output mode

Connect this unit's R input connector to the R output connector of the audio output device, and this unit's L input connector to the L output connector of the other device (page 10).

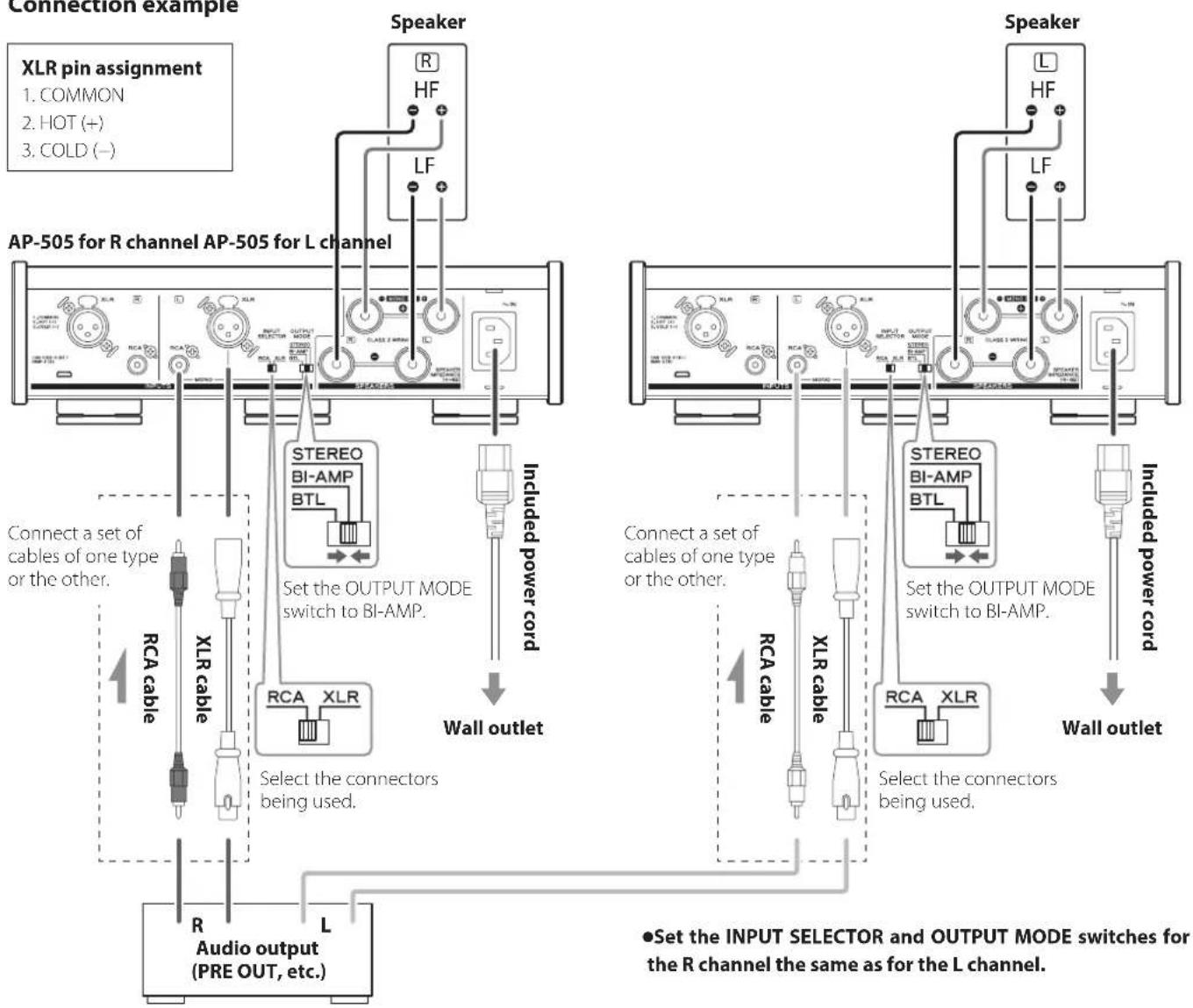

Using with BI-AMP or BTL output mode

Connect this unit's L connector to the L or R connector of the audio output device. The R connector of this device is not used (pages 11 and 12).

B INPUT SELECTOR switch

Use this to switch between input sources.

D not switch this when the unit is on.

Failure to do so could result in sudden loud noises that could damage speakers and harm your hearing.

OUTPUT MODE switch

This sets the output mode.

STEREO: stereo power amplifier (page 10)

BI-AMP: mono bi-amplifier (page 11)

BTL: mono power amplifier (page 12)

Always disconnect speakers before changing the output mode. Reconnect the speakers after changing the mode.

D SPEAKERS terminals

This unit supports speakers that have a nominal impedance of 4 - 16 when the output mode is STEREO or BI-AMP and 8 - 16 when BTL.

Use commercially-available speaker cables to connect the speakers.

E Power inlet (~IN)

Connect the supplied power cord here.

After all other connections are complete, connect the power cord's plug to a wall outlet.

Do not use any power cord other than the one included with this unit. Use of other power cords could result in fire or electric shock.

Uug the cord from the outlet when not using the unit for a long time.

F Maintenance port

This is used for maintenance. Do not connect anything to this port unless instructed to do so by our service department.

Notes about speaker cables

• Use commercially-available speaker cables to connect the speakers.
• Use the shortest speaker cables possible. The longer the cable, the greater the resistance value and the more that damping performance is reduced. Moreover, length also increases inductance and capacitance, degrading the sound quality of high frequencies.
• Use left and right speaker cables that have the same length.

Cautions when connecting speakers

Connect the power plugs after all connections have been made.
- Carefully read the manuals of the devices that you are connecting and follow their instructions when making connections.
- When the left and right grounds are shared in a sub woofer with a built-in amplifier, for example, use might not be possible depending on connection conditions.

ATTENTION

• This unit supports speakers that have a nominal impedance of 4 - 16 when the output mode is STEREO or BI-AMP and 8 - 16 when BTL. If speakers with lower impedance ratings are used, the protection circuit could operate, causing sound output to stop. In some cases, their use could even cause damage to this unit or the speakers.
• This unit's red terminal is positive () and its black terminal is negative () . Generally, the wire of the speaker cable is marked to distinguish it from the wire of the cable. Connect the marked wire to the red terminal and the unmarked wire to the black terminal.
• If the exposed end of a core wire in a speaker cable contacts another cable or terminal, a short could occur.
• Never allow speaker cables to cause a short.
• To prevent hum and noise, avoid bundling the cables together with the AC power cord or other cables.

How to connect speakers

1 Remove about one centimeter (1 / 2^ ) of insulation from the end of the speaker cable and twist the core wires well.
Turn the terminal cap counterclockwise to loosen it.
3 Insert the wire into the hole in the terminal post and turn the terminal cap clockwise to securely connect it.

Connect it so that none of the wire insulation is touching the terminal.
4 Confirm that the cable is fastened securely by gently pulling the cable.

Connecting with banana plugs

You can also make connections using commercially-available banana plugs. First, connect the banana plugs to the speaker cables and then connect the plugs to the terminals.

• Keep the caps tightened when in use.
• Carefully read the instructions for the banana plugs that you are using.

ATTENTION

Notice about the European model

In accordance with European safety regulations, connecting banana plugs to speaker terminals is not allowed on European models.

The holes into which banana plugs could be inserted have been covered with black caps. Connect speakers using bare wires or spade lugs.

If a black cap should become separated from its terminal, return it to its original position.

CAUTION

This unit does not have a volume adjustment function. Connect this unit to a preamplifier or another device such as a DAC that has a preamplifier function, and use that device to adjust the volume. If you connect this unit to a device that cannot be used to adjust the output volume, you will not be able to adjust the volume during playback. Sound might be output from the speakers at a very loud volume, which could harm hearing or damage equipment.

IMPORTANT NOTICE

When connecting this unit to a UD-505, NT-505, UD-503 or NT-503, set the LINE OUT LEVEL to VARIABLE.

The use of this unit's two built-in amplifier channels depends on the OUTPUT MODE switch setting.

Connection examples for each mode are provided below.

Complete all other connections before setting the STANDBY/ON switch to ON.

• Carefully read the manuals of the devices that you are connecting and follow their instructions when making connections.
• Do not bundle connecting cables with power cords. Doing so could cause noise.

Connect all plugs completely.

Using STEREO output mode

Set the OUTPUT MODE switch to STEREO.

Connection example

XLR pin assignment

1.COMMON
2.HOT (+)
3. COLD (-)

Using BI-AMP output mode

This unit can be used as a mono bi-amplifier. Set the OUTPUT MODE switches on the units for the L and R channels to BI-AMP.

In BI-AMP mode, use two of these units for stereo playback.

What is bi-amp connection?

This method operates amplifiers independently for low-frequency and high-frequency speaker units.

NOTE

Sound input through the analog audio INPUTS L connector will be output from both the L and R SPEAKERS connectors.
Sound input through the analog audio INPUTS R connector will not be output from the SPEAKERS connectors.

A

• Bi-amplification is not possible with speakers that do not have both low and high frequency connectors.
• When using bi-amp connections, remove speaker terminal links and disconnect the connections between speaker connectors and between connectors.

Connection example

Preamplifier or other device with a preamplifier function (such as a DAC)
- Set the INPUT SELECTOR and OUTPUT MODE switches for the R channel the same as for the L channel.

Using BTL output mode

This unit can be used as a mono BTL amplifier. Set the OUTPUT MODE switches on the units for the L and R channels to BTL.

In BTL mode, use two of these units for stereo playback.

What is BTL connection?

Two amplifier channels are used to drive the speaker for one channel. This is effective to realize high output for speakers with high impedance.

NOTE

Sound input through the analog audio INPUTS L connector will be output from both the L and R SPEAKERS connectors.
In BTL mode, sound input through the analog audio INPUTS R connector will not be output from the SPEAKERS connectors.

• Do not connect anything to the SPEAKERS output connectors.

Connection example

In order to protect the speakers, tum the power for systems that this unit is connected to on and off in the following order.

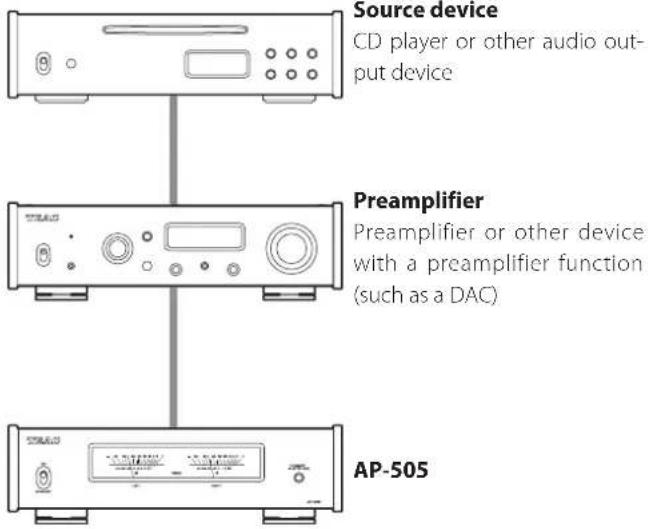

NOTE

This explanation assumes that a preamplifier is connected to this unit.

When connecting a UD-505, NT-505, UD-503 or NT-503

IMPORTANT NOTICE

Set the LINE OUT LEVEL to VARIABLE on the UD-505, NT-505, UD-503 or NT-503 in advance.

NOTE

The UD-505, NT-505, UD-503 and NT-503 are equivalent to preamplifiers.
- When using a UD-505, NT-505, UD-503 or NT-503 as a USB DAC or using an NT-505 or NT-503 as a network player, it functions as a preamplifier and a source device.

Connection example

Turning the power on

1 Minimize the volume of the preamplifier.

If using a device that cannot have its volume adjusted when it is off, minimize the volume after turning it on.

2 Turn the source device on.

3 Turn the preamplifier on.

4 Turn this unit on.

The level meters will blink and the mute function will turn on. When the amplifier operation stabilizes, they will light and the mute function will turn off.

5 Start playback on the source device, and adjust the volume on the preamplifier.

Adjust the preamplifier volume after the level meters on this unit stop blinking and stay lit.

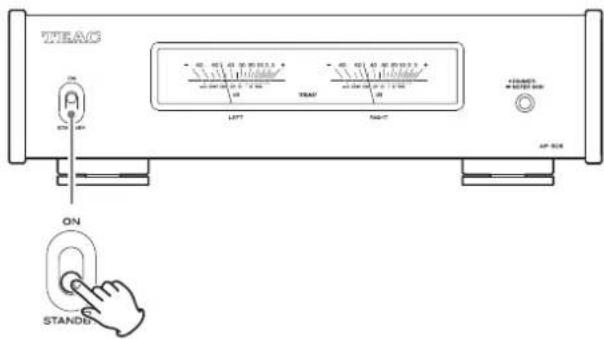

Turning the power off

If a connected device is playing back, stop playback.
2 Minimize the volume of the preamplifier.
3 Put the unit into standby mode.

4 Turn the preamplifier off.
5 Turn the source device off.

Dimmer

You can change the brightness of the level meters. Press the DIMMER/METER GAIN button to cycle through the brightness settings in the following order.

Changing level meter operation

Press and hold the DIMMER/METER GAIN button for three seconds to cycle through the following operation modes.

• When level meter operation is +20 dB, needle movement will be greater than usual.

Automatic power saving function

This unit has an automatic power saving function. If the automatic power saving function is set to on, the unit will automatically enter standby mode if there is no audio input for about 30 minutes.

Turning automatic power saving on and off

1 While pressing the DIMMER/METER GAIN button, set the STANDBY/ON switch to ON.
2 Immediately after setting the STANDBY/ON switch to ON, release the DIMMER/METER GAIN button.

Releasing the DIMMER/METER GAIN button will switch the automatic power saving function between on and off and the level meters will blink.

You can check the automatic power saving setting by the blinking of the level meters at this time.

Automatic power saving function on

Meters blink every 3 seconds.

Automatic power saving function off

After blinking twice at 0.4-second intervals, meters continue to alternately become lit and unlit at 3-second intervals.

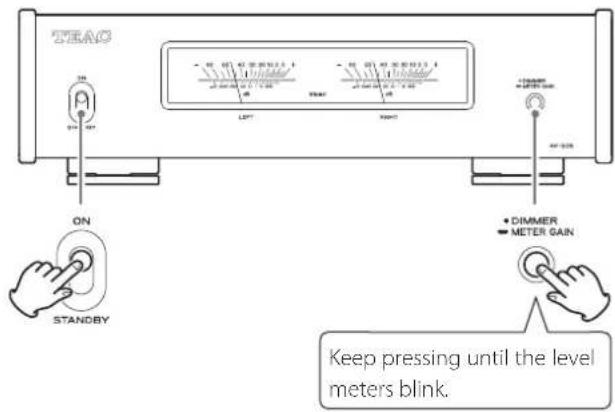

Restoring default settings

1 While pressing the DIMMER/METER GAIN button, set the STANDBY/ON switch to ON.
2 When the level meters blink, release the DIMMER/METER GAIN button.

The factory default settings will be restored, and after the level meters blink twice at 0.4-second intervals, the unit will enter standby.

If you experience a problem with the unit, please take a moment to review the following information before requesting service. If it still does not operate correctly, contact the retailer where you purchased the unit.

The unit does not turn on.

• Check that the power cord is completely plugged into the power outlet. If the outlet is switched, confirm that the switch is in the ON position.
  Connect a different electrical device to the outlet to confirm that it is supplying power.

Noise occurs.

Place the unit as far away as possible from TVs, microwave ovens and other devices that have strong magnetism.

There is a humming noise.

If a connecting cable is near a power cord, fluorescent light or similar cause of interference, increase the distance between them as much as possible.

No sound is output.

Use the preamplifier volume knob to adjust the volume (page 13).
Use the preamplifier input knob to select the source that you want to hear (page 13).
Reconfirm the connections with other equipment.
Check the INPUT SELECTOR switch setting on the back of the unit.

The level meter lights are blinking and no sound is output.

The and speaker cables might have shorted. Set the STANDBY/ON switch to STANDBY, and check the speaker connections.

Sound output stops suddenly and the level meter lights are blinking.

The protection circuit might have activated due to high temperature, excessive load or another cause. Set the STANDBY/ON switch to STANDBY, check the power and speaker connections, and wait several minutes before setting it to ON again. If this unit is becoming hot, increase the amount of space between it and walls and other devices to increase the dissipation of heat.

Automatic power saving caused the unit to enter standby.

Set the STANDBY/ON switch to STANDBY once and then set it to ON again.

Amplifier

Maximum effective output

STEREO or BI-AMP operation. 170 W + 170 W

(4 _r1 kHz JEITA

95W+95W

(8Ω,1kHz, JEITA)

BTL operation 350W

(8Ω,1kHz, JEITA)

Rated output

STEREO or BI-AMP operation. 125 W + 125 W

(4Ω,THD 0.8%,1 kHz)

70W+70W

(8Ω, THD 0.8%, 1 kHz)

BTL operation 230W

(8Ω, THD 0.8%, kHz)

Allowable speaker impedance

STEREO or BI-AMP operation. 4-16

BTL operation 8-16Ω

Total harmonic distortion. 0.0015%

(8Ω,1kHz,12.5W, JEITA)

S/N ratio (input short). 113 dB

(8Ω,1kHz,HF-A)

Frequency response. 10Hz - 50kHz(+0dB, - 5dB)

(8Ω,1kHz,1W,JEITA)

Input sensitivity

RCA connectors . 0.66V

(with 8Ω output, THD 1%)

XLR connectors. 1.3 V

(with 8Ω output, THD 1%)

Input impedance

RCA connectors. 10 kΩ or more

XLR connectors. 10 kΩ or more

General

Power supply

Model for Europe. AC 220-240 V, 50/60 Hz

Model for USA/Canada AC 120 V,60 Hz

Power consumption

Models for Europe and USA/Canada 58 W

External dimensions (W× H× D including protrusions)

290× 84.5× 271mm (111 / 2^ × 33 / 8^ × 103 / 4^ )

Weight 4.4 kg (93/4 lb)

Operating temperature range +5^ to +35^

Operating humidity range. 5% -85% (no condensation)

Storage temperature range. -20^ to +55^

Included accessories

Power cord × 1

Rubber pads × 3

Owner's manual (this document, including warranty) × 1

• For information about the warranty, users living in the USA and Canada should see pages 50-51 and the back cover (warranty document). Users living in Europe and other regions should see page 51.

Design and specifications are subject to change without notice.
Weight and dimensions are approximate.
- Illustrations in this manual might differ slightly from production models.

(8Ω,1kHz,12.5W, JEITA)

Rapport signal/bruit (entree court-circuitee) 113 dB

(8Ω,1kHz,1HF-A)

(8Ω, THD 0,8%, 1 kHz)

(8Ω, THD 0,8%, 1 kHz)

Warranty provisions (United States and Canada only)

Length of Warranty

The parts and labor warranty will be effective for one (1) year from the date of the original purchase for products not used for commercial purposes. For products used commercially, the warranty is ninety (90) days for magnetic heads and optical pickups, one (1) year for all other parts and ninety (90) days for labor.

Who Is Covered Under This Warranty

This warranty is valid only in the United States or Canada, dependent upon the country in which original purchase was made, and enforceable only by the original purchaser within the country in which the purchase was made.

This warranty is not valid if the product was purchased through an unauthorized dealer.

What Is Not Covered Under This Warranty

• Damage to or deterioration of the external cabinet.

• Damage resulting from accident, misuse, abuse, or neglect.

• Damage resulting from failure to follow instructions contained in the products owners' manual or otherwise provided with the product.

• Damage occurring during shipment of the product (Claims must be presented to the carrier).
• Damage resulting from the repair or attempted repair by anyone other than TEAC or an authorized TEAC service station.
• Damage resulting from modification or attempted modification of product not authorized by TEAC.
• Damage resulting from causes other than product defects, including lack of technical skills, competence, or experience of the user.
• Damage to any unit that has been altered or which the serial number has been defaced, modified or removed.

What TEAC Will Pay For

TEAC will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is covered in the next section.

How To Obtain Warranty Service

Your unit must be serviced by an authorized TEAC service station within the country in which the product was purchased. If you are unable to locate an authorized service station in your area, please contact TEAC at the applicable address shown at the end of this warranty statement. PLEASE DO NOT RETURN YOUR UNIT TO TEAC WITHOUT OUR PRIOR AUTHORIZATION. You must pay shipping charges if it is necessary to ship the product for service. However, if the necessary repairs are covered by warranty, we will pay the return shipping charges to any destination within the country in which the product was purchased. Whenever warranty service is required, you must present the original dated sales receipt, or other proof indicating the purchase place and date, as proof of warranty coverage.

LIMITATION OF IMPLIED WARRANTYES

ALL IMPLIED WARRANTYES, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

EXCLUSION OF DAMAGES

TEAC'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, AT TEAC'S OPTION. TEAC SHALL NOT BE LIABLE FOR DAMAGE BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, INTERRUPTED OPERATION, COMMERCIAL LOSS OR LOST PROFITS, OR ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR OTHERWISE.

SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC RIGHTS, AND MAY VARY FROM SOME OF THE RIGHTS PROVIDED BY LAW. THESE RIGHTS MAY VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.

In countries/regions other than the USA, Canada and Europe

This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province.

If you have a warranty claim or request, please contact the dealer where you bought the product.

Owner's address/Adresse du proprieteaire

Date

purchase Date de laecha

Sample

Dealer's address/Adisse du detaillant

TEAC

Japan:	1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan
TEAC CORPORATION	Phone: [phone]
USA/Latin America:	18 Park Way, Upper Saddle River, NJ 07458, U.S.A.
Onkyo U.S.A. Corporation	Phone: [phone]
Canada:	10410 Pioneer Blvd. Suite #1 and #4, Santa Fe Springs, California 90670, U.S.A.
TEAC AMERICA, INC.	Phone: [phone]
Europe:	Gutenbergstr. 3, 82178 Puchheim, Germany
TEAC AUDIO EUROPE	Phone: [phone]
