Product type	Hood
Brand	Haier
Model	HATS9DS2XWIFI
Usage	Domestic
Power supply	230 V, 50 Hz
Electrical class	Class I (grounded)
Motor power	Not specified (high performance motor)
Number of speeds	5 (including Boost 1 and Boost 2)
Boost function	Yes, 5-minute timer
Timer	Yes, 5 minutes (auto-off)
Lighting	LED, max 1.5 W
Grease filter	Non-stick, monthly cleaning
Charcoal filter	Included (2), annual replacement
Exhaust	External (Ø150 mm) or recirculation
Installation distance	65-75 cm above the hob
Connectivity	Wi-Fi 802.11 b/g/n, 2.4 GHz
App	hOn (for remote control)
Network standby consumption	2 W
Material	Glass and steel (sleek design)
Dimensions (W x D x H)	90 x 50 x 60 cm (estimate)
Weight	Approximately 12 kg (estimate)
Noise level	Low (data not specified)
Accessories included	Brackets, screws, ducts, filters
Spare parts	Charcoal filter, LED bulb, wiring
Repairability	By qualified personnel only
Warranty	According to provided certificate

Frequently Asked Questions - HATS9DS2XWIFI HAIER

How to install the Haier HATS9DS2XWIFI hood?

Installation must be carried out by a qualified professional. The hood should be placed 65-75 cm above the hob. Fix the wall bracket, hang the hood, then connect the exhaust duct (Ø150 mm) or install the charcoal filter for recirculation mode. Follow the wiring diagram for electrical connection.

How to clean the grease filter?

Clean the grease filter every month to avoid fire hazards. Unclip it, wash it with household detergent and warm water, then dry it before putting it back. Do not use metallic pads or abrasive products.

What to do if the fan does not work?

First check that the fan blade is not blocked. If the motor is damaged, turn off the appliance and contact customer service. Do not repair it yourself, as the appliance is Class I and requires qualified intervention.

How to connect the hood to Wi-Fi?

Download the hOn app on your smartphone. Press and hold the Wi-Fi icon on the hood until it flashes, then follow the instructions in the app to pair the device. Once connected, the icon remains lit.

What is the recommended distance between the hood and the hob?

The distance should be between 65 and 75 cm to ensure optimal extraction and comply with safety instructions. A distance too great reduces efficiency.

How to activate the automatic timer?

Press and hold the lighting button for 3 seconds. The fan speeds flash and a 5-minute countdown starts. After this time, the motor and lighting turn off automatically with three beeps.

When should the charcoal filter be replaced?

The charcoal filter should be replaced at least once a year, or more often depending on frequency of use. It is used only in recirculation mode (without external exhaust).

What to do in case of excessive vibrations?

Vibrations may be due to a damaged blade, a poorly fixed motor, or incorrect mounting. Turn off the appliance, check the wall mounting, and contact a qualified technician for any repair.

How to replace the hood bulb?

Remove the glass plate screws, take off the glass, disconnect the connector from the defective bulb, then install the new assembly (LED bulb max 1.5 W + holder + wiring). Put the glass back and tighten the screws. Note: the bulb cannot be replaced alone, the entire block is needed.

How to contact Haier after-sales service?

Check the warranty certificate for the serial number (16 digits starting with 3). Contact the authorized after-sales service indicating the model (HATS9DS2XWIFI) and serial number. Avoid unauthorized repairs.

USER MANUAL HATS9DS2XWIFI HAIER

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 02

SAFETY PRECAUTION 02

ELECTRICAL INSTALLATION 04

SPECIFICATION 05

INSTALLATION (VENT OUTSIDE) 06

INSTALLATION (VENT INSIDE) 13

DESCRIPTION OF COMPONENTS 14

OPERATION 14

MAINTENANCE 17

TROBULESHOOTING 18

CONFORMITY WITH DIRECTIVES 19

ENVIRONMENTAL PROTECTION 19

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

Hereby, Candy Hoover Group Srl declares that the radio equipment is in compliance with Directive 2014/53/EU and with the relevant Statutory Requirements (for the UKCA market).

The full text of the declaration of conformity is available at the following internet address: www.candy-group.com

SAFETY PRECAUTION

☐ Never let the children operate the machine.
☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
☐ The cooker hood and its filter should be clean regularly in order to keep in good working condition.
☐ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
☐ Forbid the direct baking from the gas cooker.
☐ Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;
☐ The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
☐ Regulations concerning the discharge of air have to be fulfilled.

• Children should be supervised to ensure that they do not play with the appliance.
• Do not flambé under the range hood.

The range hood is not intended to be installed over a hob having more than four hob elements

- These shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);

• the details concerning the method and frequency of cleaning.
• there is a fire risk if cleaning is not carried out in accordance with the instructions;
• do not flame under the range hood;
• CAUTION: Accessible parts may become hot when used with cooking appliances.

Electrical Shock Hazard

\~ Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
\~ Failure to follow these instructions can result in death, fire, or electrical shock.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class I appliance and MUST be earthed

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

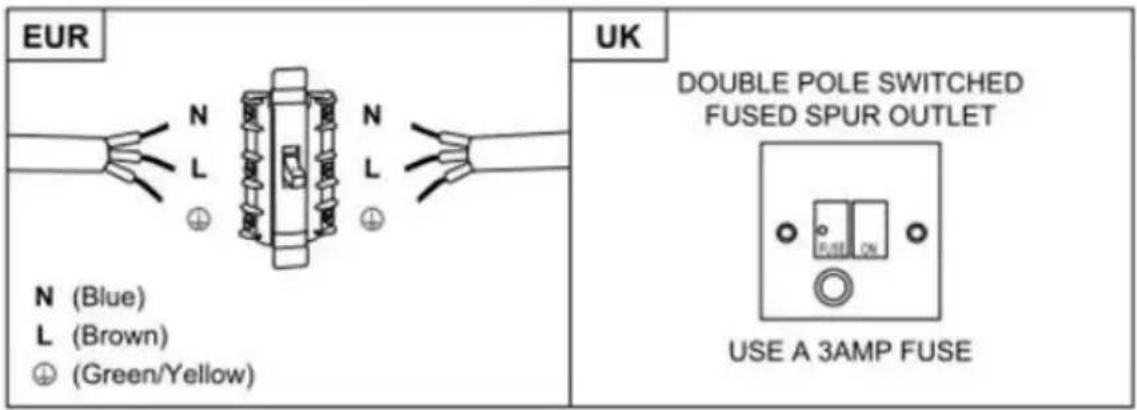

EUR N (Blue) L (Brown) ⊕ (Green/Yellow) UK DOUBLE POLE SWITCHED FUSED SPUR OUTLET USE A 3AMP FUSE

The fuse must be rated at 3 Amps.

Standard Installation Accessories List

Spec. Qty	Illustration Picture
Casing 1
Upper Chimney 1
Lower Chimney 1
Lower chimney bracket 1
Upper chimney bracket 1
Hanging Board 1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2
Air outlet 1
Carbon filter		2

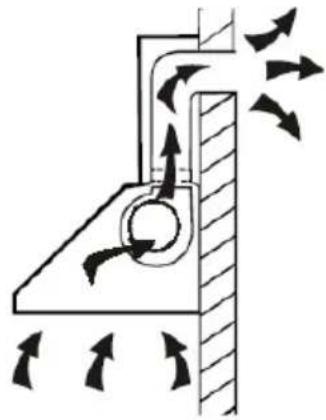

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe non flammabe with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

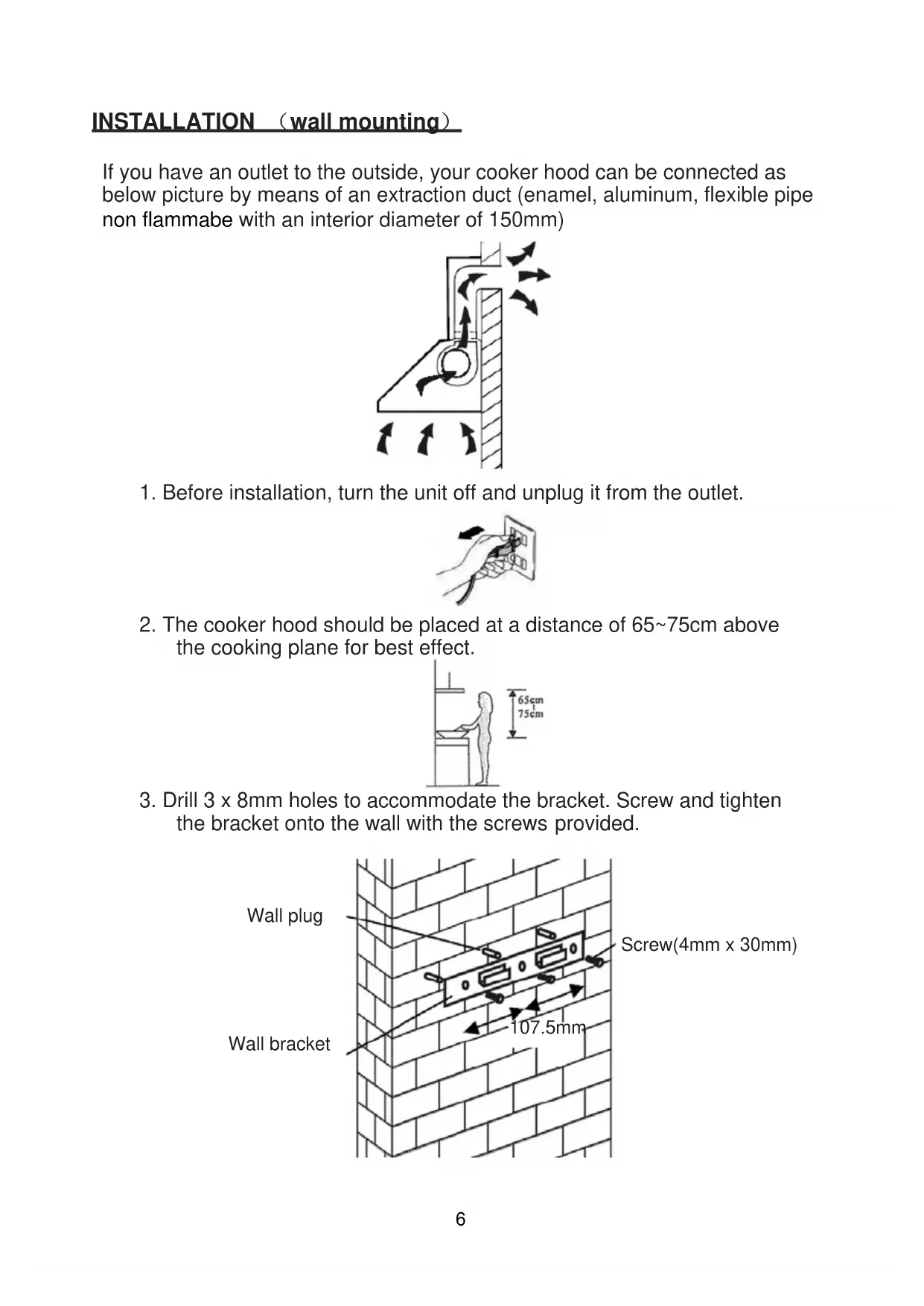

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

65cm 75cm

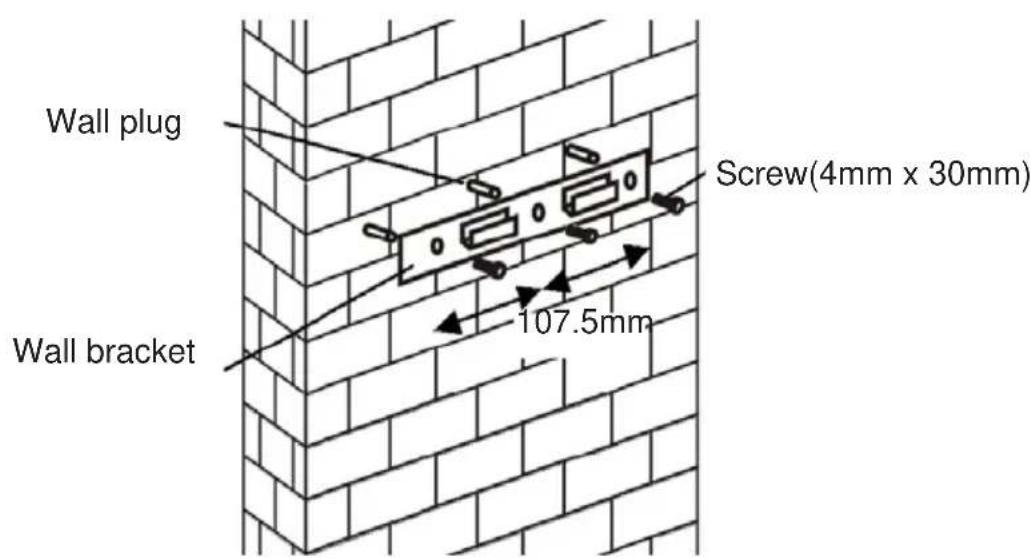

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

Wall plug Screw(4mm x 30mm) Wall bracket 107.5mm

1. Leave up the cooker hood and hang onto the wall bracket hook.

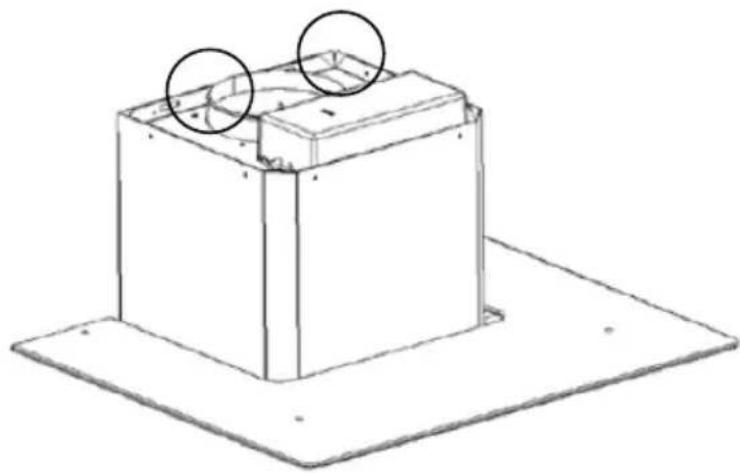

Technical line drawing of a rectangular box mounted on a flat base, with two circular annotations highlighting the top and side views (no text or symbols present)

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe

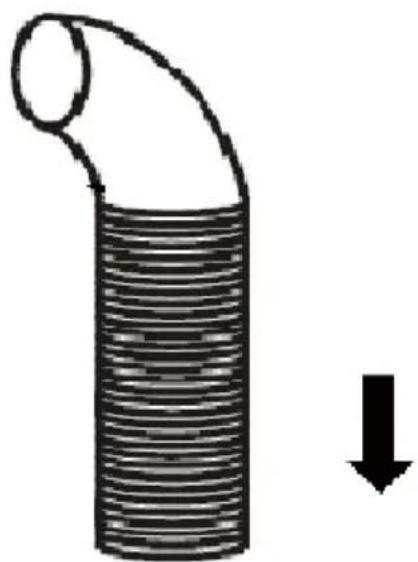

Diagram of a coiled pipe with a downward arrow indicating compression or reduction (no text or symbols)

Cooker hood

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

i. Place the glass in appropriate position on the top the cooker hood

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

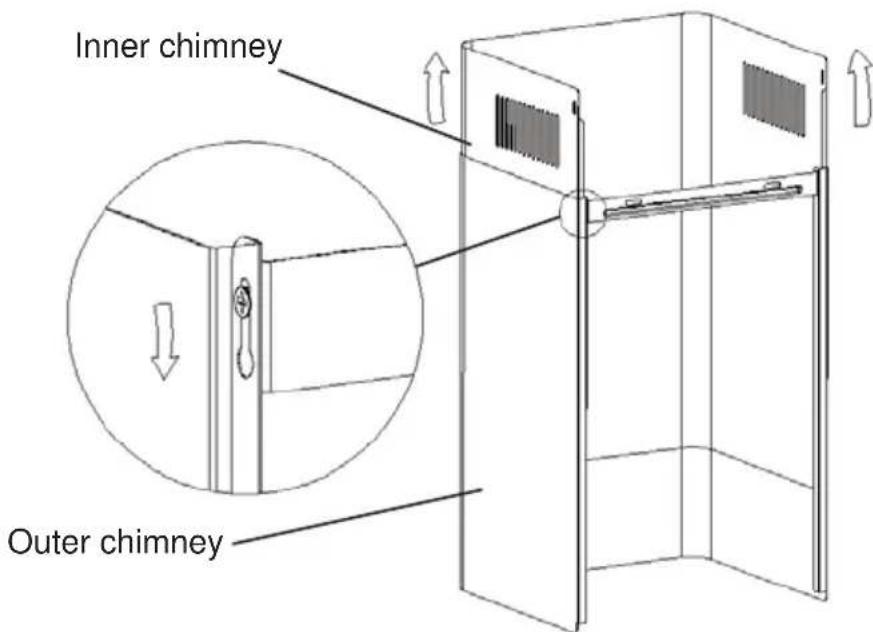

i. By Put the inner chimney into outer chimney . Then pulling out the inner chimney upwards. Adjust to reach the height required.

Isometric line drawing of a brick wall with a small object on top, no text or symbols present

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures.

Inner chimney Outer chimney

8.

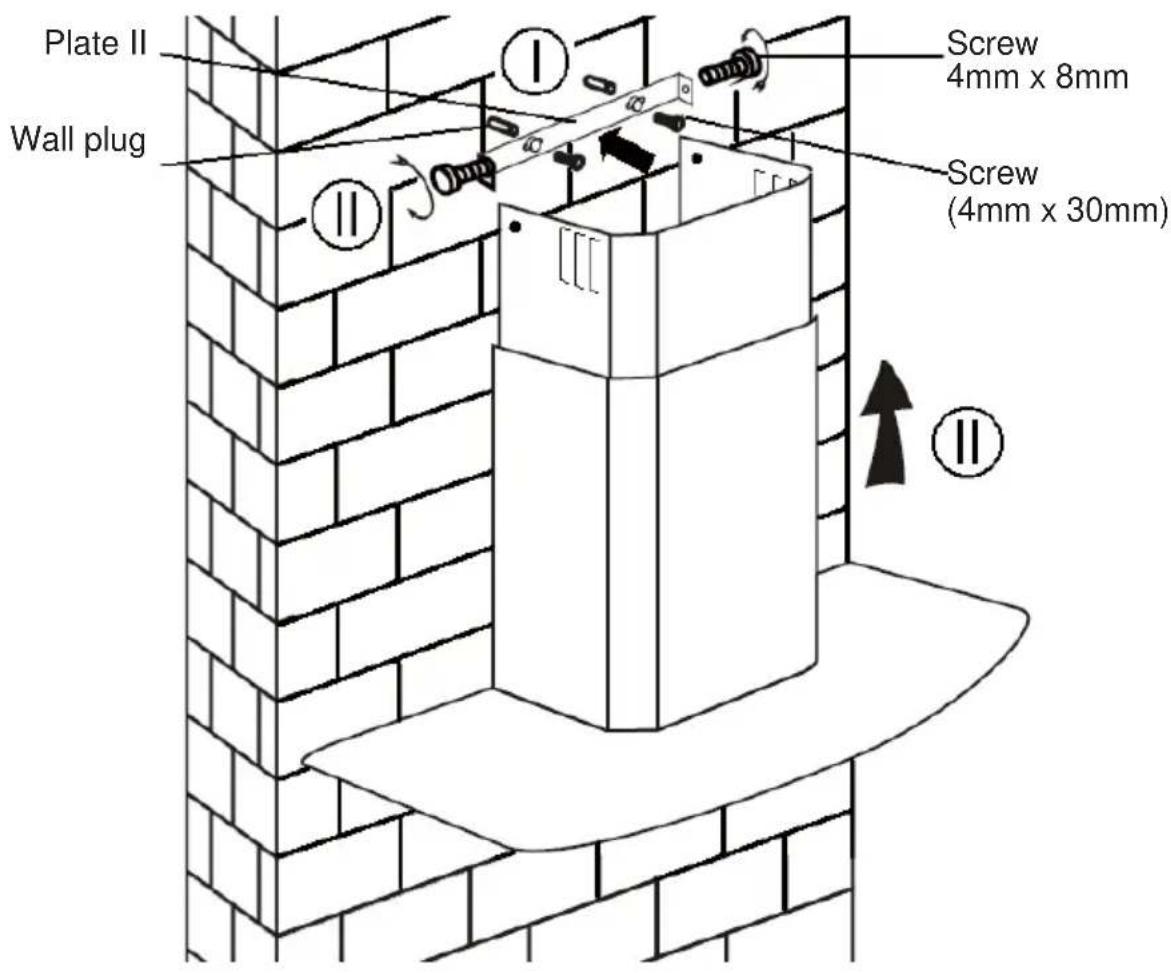

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.

Plate II Wall plug Screw 4mm x 8mm Screw (4mm x 30mm)

Standard Installation Accessories List

Spec. Illustration Picture Qty
Air Deflector		1
Bracket		1
φ8 rawl plugs φ8×φ6 white color		2
Screws ST4.0×30		2
Screws ST3.5×12		2

INSTALLATION(AIR DEFLECTOR):

Air deflector is mentioned as included and not optional.

1. Before installation, curve both ends of the bracket as shown below:

1. Fix the bracket to the T-shaped plastic outlet with 2pcs ST3.5x12mm screws provided.

Technical line drawing of a mechanical assembly with mounting base and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and internal brackets (no text or symbols)

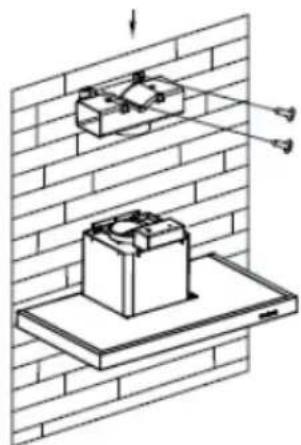

1. Drill 2 holes to accommodate the wall plugs, then screw and tighten the bracket onto the wall with 2pcs ST4x30mm screws provided.

Diagram of two electrical components mounted on a brick wall, with arrows indicating direction (no text or symbols)

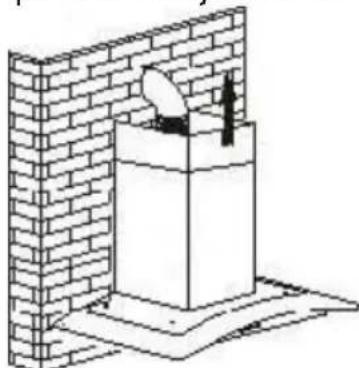

1. Attach the exhaust pipe onto the air outlet of the cooker hood as shown below:

Technical illustration of an electrical insulator mounted on a base, set against a brick wall (no text or symbols)

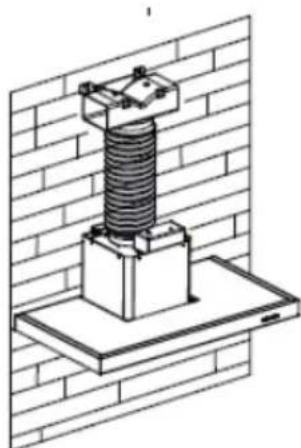

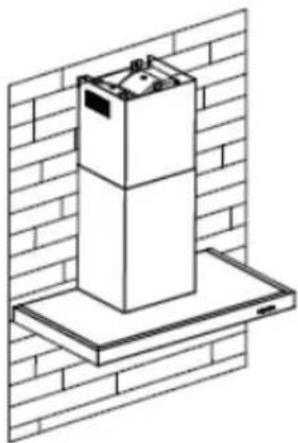

1. Install the chimney to the unit and fix it.

Isometric line drawing of a multi-tiered appliance mounted on a base, set against a brick wall (no text or symbols)

o "Please kindly be noted: T-shaped plastic outlet and v-flaps can not be used at the same time. You can use them in two ways: 1) Add v-flap on existing outlet; 2) Use T-shaped plastic o utlet, no add v-flap."

o "Note: The product is provided with v-flap accessory. This accessory is not mandatory for installation, operation and use of the product."

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

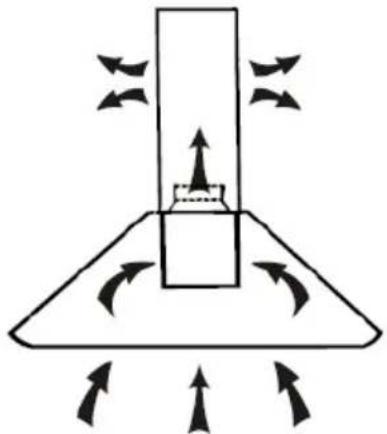

Diagram of a conical device with directional arrows indicating flow or movement (no text or symbols)

Activated carbon filter can be used to trap odors.

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating rotation (no text or symbols)

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with a close button and rotation arrow (no text or symbols)

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
When activated carbon filter attached, the suction power will be lowere

DESCRIPTION OF COMPONENTS

CONFIGURATION 1

1

2

3

B

B^+

[Non-Text]

[Non-Text]

OPERATION

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmeing and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

B Boost 1(speed 4)

Press speed b button 1, the backlit of speed B button is on, and the cooker hood is working at boost mode;

B^+ Boost 2(speed 5)

Press speed b button 2, the backlit of speed B+ button is on, and the cooker hood is working at boost mode;

Light Short press for lighting on & off

Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic with three Buzzer sound.

Wi-Fi Connection

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

CONFIGURATION 2

1

2

3

B

#

#

STANDBY MODE.

After plug in, all lighting, system in STANDBY MODE.

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for high effective ventilation.

B Booster function

This hood has a booster function. To activate the booster, Press B to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.

Light

Short press for lighting on & off

Quick timer: Long press the light button hold for 3 seconds, fan speed buttons will flashing & into 5 minutes count down, after 5 minutes motor & light will turn off automatic with three Buzzer sound.

Wi-Fi Connection

Long press WiFi icon and enter into connecting mode: the backlit of WiFi icon keep flashing indicate the connection is under connecting, the backlit of WiFi icon is light on indicate it is connected, same for standby mode; long press WiFi icon again and the connection will be stopped;

Download hOn App

First of all, you should download hOn APP and install to your portable device. Then enroll your hood.

QR code image containing encoded data, no visible human-readable text

NOTE

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

Exterior view of a Haier device with wireless signal icon (no text or symbols on main body)

The image of the hood has the only purpose of presenting it. May not be perfectly representative.

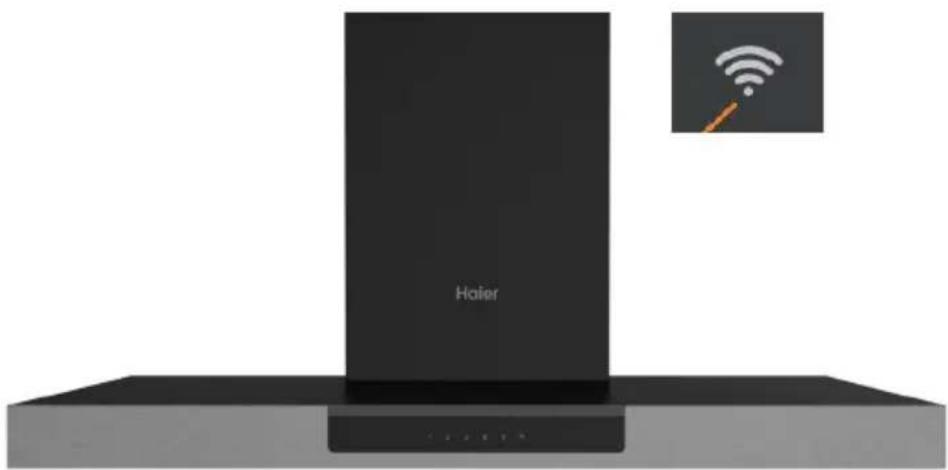

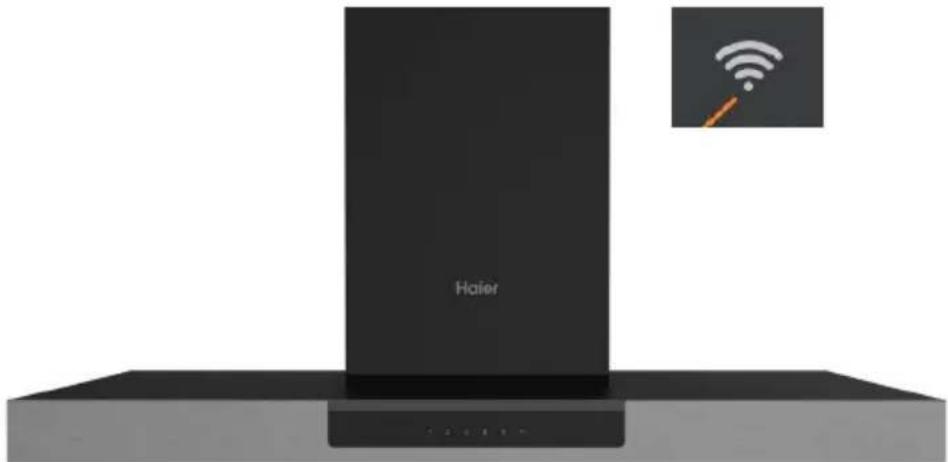

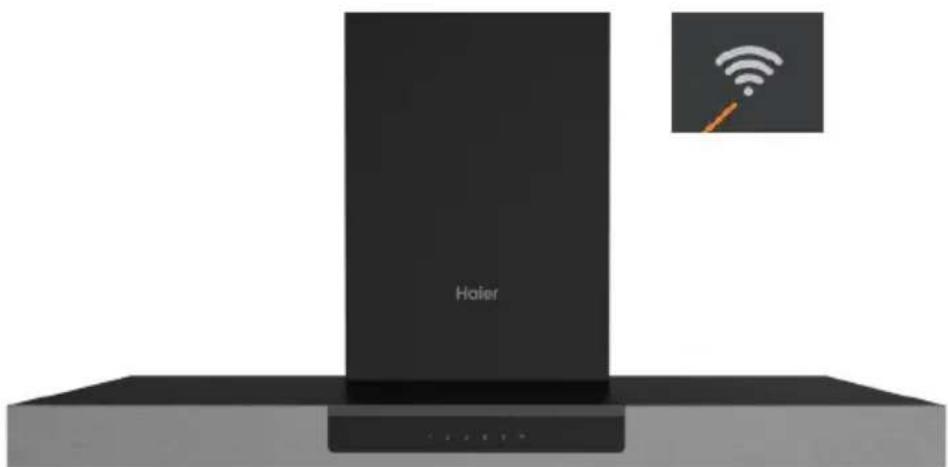

1- Press the WiFi button until the icon starts blinking When the pairing is completed the WiFi icon will be on.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure technical diagram showing a mechanical or electrical component with downward arrows indicating force or connection (no text or symbols)

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

Technology Wi-Fi
Standard 802.11 b/g/n
Frequency Band(s)[MHz]	2400 MHz - 2483.5 MHz
Maximum Power[mW]	100 mW

Product information for networked equipment
power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	2W
How to activate wireless network port:	If the Hood has been enrolled with the APP, turn on the Hood to activate wireless network port.
How to deactivate wireless network port:	If the Hood has been enrolled with the APP, turn off the Hood to deactivate wireless network port. If the Hood hasn’t been enrolled with the APP, wireless network port will be deactivated even the Hood is on.

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific

treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Technical line drawing of a mechanical component with two circular features on top (no text or symbols)

Diagram of a pipe with a downward arrow indicating flow or direction (no text or symbols)

Cappa

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

6.

Isometric line drawing of a brick wall and a cylindrical object mounted on a base (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central circular feature (no text or symbols)

Technical line drawing of a battery mounted on a wall, with no visible text or symbols

Technical illustration of a mechanical assembly mounted on a brick wall, showing a coiled spring mounted on a base (no text or symbols present)

Isometric line drawing of a multi-tiered storage unit mounted on a base, against a brick wall background (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand holding a rectangular object with an arrow pointing downward, next to a flat surface (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

Chiuso

NOTA:

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store

NOTA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRAZIONE CAPPA HAIER

Exterior view of a Haier device with wireless signal icon (no text or symbols on main body)

Pure electrical circuit lines without any symbols

Technical line drawing of a rectangular box with two circular holes on top, placed on a flat base (no text or symbols)

Diagram of a pipe with a downward arrow indicating flow or direction (no text or symbols)

Hotte de cuisine

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Isometric line drawing of a brick wall with a cylindrical object inserted into a pedestal (no text or symbols)

Technical line drawing of a mechanical component with mounting base and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

Technical line drawing of a battery mounted on a platform against a brick wall, with no visible text or symbols.

Technical line drawing of an electrical insulator mounted on a base, set against a brick wall (no text or symbols)

Isometric line drawing of a multi-tiered storage unit mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

Fermé

REMARQUE :

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store

REMARQUE

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

ENREGISTREMENT HOTTE HAIER

Exterior view of a Haier wireless device with WiFi icon and signal symbol (no text or symbols on main body)

Pure technical line drawing of a mechanical or electrical component with downward arrows indicating direction (no text or symbols)

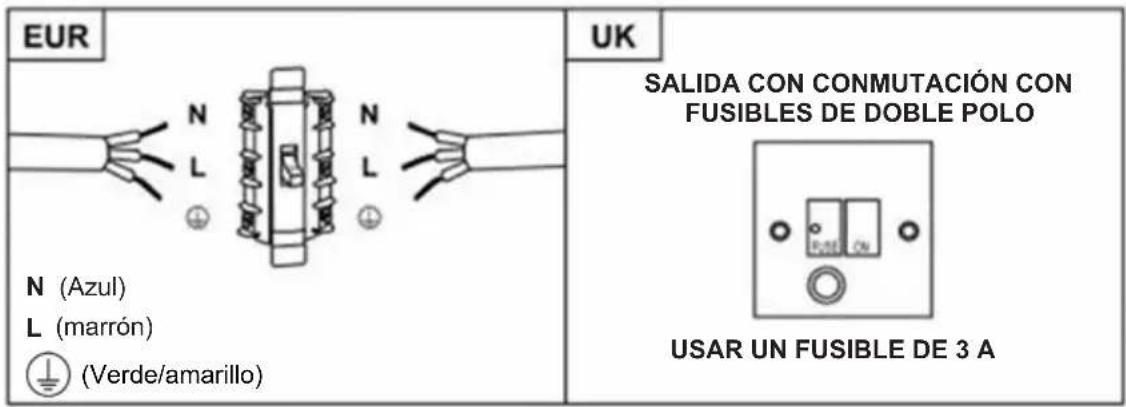

Azul = N (Neutral) o NEUTRAL

Verde y amarillo = E (Earth) o TIERRA

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Technical line drawing of a rectangular box mounted on a base plate, with two circular annotations highlighting the top section (no text or symbols present)

Diagram of a coiled pipe with a downward arrow indicating flow or direction (no text or symbols)

Campana extractora

Technical line drawing of a mechanical housing or enclosure with no visible text or symbols

6.

Technical line drawing of a brick chimney mounted on a base, with no visible text or symbols

Technical line drawing of a mechanical component with mounting base and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

Technical line drawing of a battery mounted on a platform against a brick wall, with no visible text or symbols.

Technical line drawing of a mechanical assembly mounted on a base, against a brick wall background (no text or symbols)

Isometric line drawing of a multi-tiered storage unit mounted on a base, against a brick wall background (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTA:

The image contains a simple line drawing of a light bulb. There is no text or mathematical content present in the source image.

Luz

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store

NOTA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRO DE UNA CAMPANA HAIER

Exterior view of a Haier device with wireless signal icon (no text or symbols on device body)

Pure electrical circuit lines without any symbols

ELEKTRICKÁ INSTALACE....80

INSTALACE (MONTÁŽ NA ZEĎ) 82

INSTALACE (ODVĚTRÁVÁNÍ DOVNITŘ) 88

POPIS SOUČÁSTÍ....90

ÚDRŽBA 93

ŘEŠENÍ PROBLÉMŮ 94

ZÁKAZNICKÁ ASISTENČNÍ SLUŽBA....95

ÚVOD

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand inserting a plug into an electrical outlet (no text or symbols visible)

Technical line drawing of a rectangular box mounted on a flat base, with two circular features highlighted (no text or symbols present)

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

6.

Architectural diagram of a brick wall with a chimney and support structure (no text or symbols)

Technical line drawing of a mechanical component with mounting base and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

Technical line drawing of a battery mounted on a wall, with no visible text or symbols

Technical line drawing of a mechanical assembly mounted on a brick wall (no text or symbols)

Isometric line drawing of a multi-tiered storage unit mounted on a brick wall (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Illustration of a hand holding a rectangular object with an arrow pointing downward, next to a flat surface (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a curved arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

POZNÁMKA:

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store

POZNÁMKA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRACE ODSAVAČE HAIER

Exterior view of a Haier device with wireless signal icon (no text or symbols on device body)

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Hand holding a plug inserted into an electrical outlet socket (no text or symbols visible)

Technical line drawing of a rectangular box mounted on a base plate, with two circular annotations highlighting the top section (no text or symbols present)

Diagram of a pipe with a downward arrow indicating flow or direction (no text or symbols)

Kuchynský digestor

Technical line drawing of a mechanical housing or enclosure with no visible text or symbols

6.

Architectural diagram of a brick chimney with a chimney mounted on top, against a brick wall (no text or symbols)

Technical line drawing of a mechanical component with mounting base and directional arrow (no text or symbols)

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

Diagram of a battery mounted on a wall with an inset showing its components (no text or symbols present)

Technical line drawing of a mechanical assembly mounted on a base, against a brick wall background (no text or symbols)

Isometric line drawing of a multi-tiered storage unit mounted on a base, against a brick wall (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Two technical illustrations showing hand positioning of a mechanical component, one with an arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

POZNÁMKA:

QR code image containing encoded data, no visible human-readable text

GET IT ON Google Play Download on the App Store

POZNÁMKA

Get ready to add your appliance

1 Stay close to your appliance
2 While in front of your appliance, ensure that your smartphone is connected to a 2.4GHz Wi-Fi network with a stronger signal
CHANGE WI-FI SETTINGS
3 Public networks are not allowed due to low security and reliability.
4 Prepare to enter your Home Wi-Fi password.

REGISTRÁCIA DIGESTORA HAIER

Exterior view of a Haier device with wireless signal icon (no text or symbols on device body)

Pure electrical circuit lines without any symbols
