USER MANUAL GL60WS Klarstein

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 26

Installation (10011487) 28

Installation (10011488 | 10011489 | 10026366 | 10026367) 30

Operation 33

Cleaning and Maintenance 35

Product Data Sheet 36

Notes on Environmental Protection 44

Disposal Considerations 44

Manufacturer & Importer (UK) 44

TECHNICAL DATA

Item number	10011487, 10011488, 10011489, 10026366, 10026367, 10026368
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
• Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
• Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• Regulations concerning the discharge of air have to be fulfilled.

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms

• without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.

• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
• Take a second person to help you during disassembly to avoid injuries.

INSTALLATION (10011487)

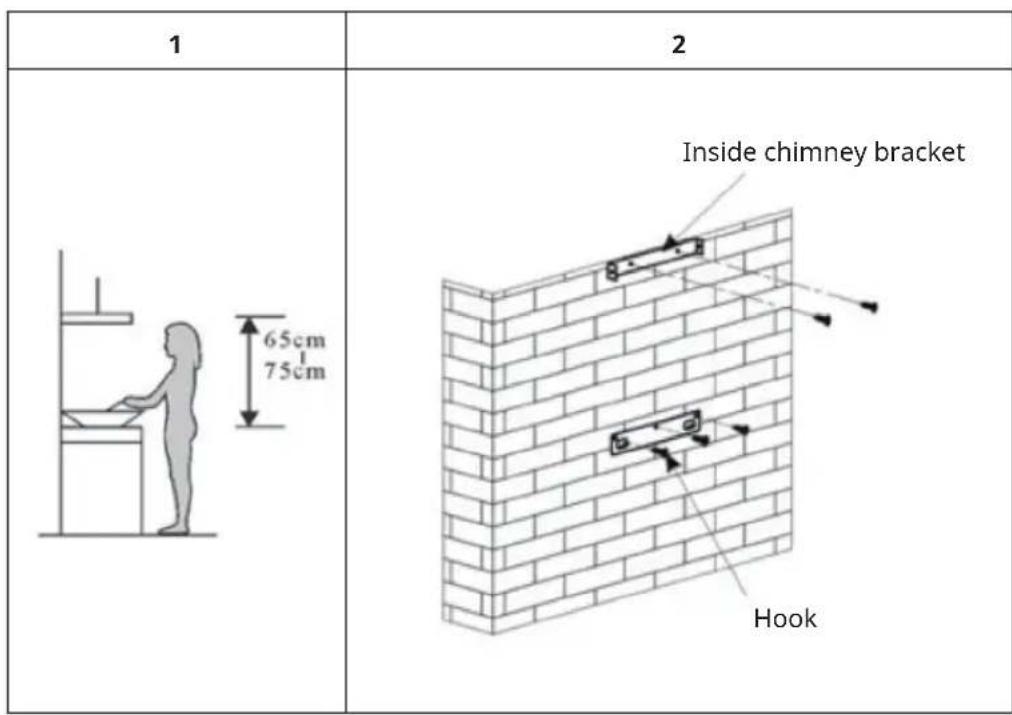

1. The distance between the cooking surface and the lowest edge of the cooker hood must be at least 65~cm (see picture 1).

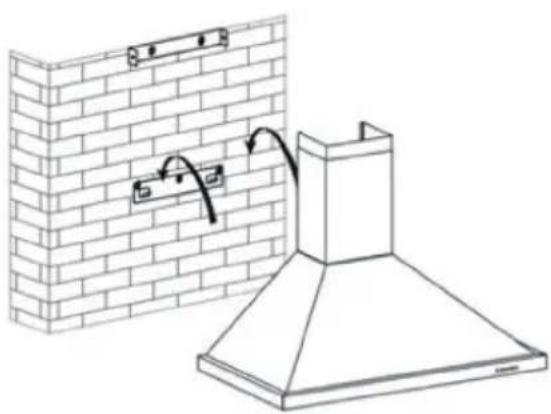

2. Once the height is defined, install the anchoring in the appropriate place. To do this, you must first drill holes (you will need a drill, suitable drill bits, dowels and screws) and then fix the anchorage to the wall with the screws. After the anchoring is fixed, use the similar procedure to attach the internal clamp for the fireplace facing (see Figure 2). Please pay attention to the correct distance (please measure the distance), because the fireplace facing will be fixed to the bracket later.
3. Please fix the outside clamp for the fireplace facing to the outside of the facing and check if the inside fireplace facing is free to move in height. Next, install the pipe connection and the chimney facing on the hood. Refer to Figure 3.
4. Place the hood on the anchorage (see Figure 4). 5.

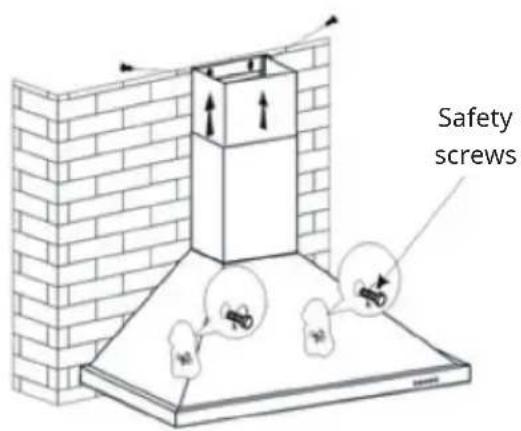

5. Set the correct height of the inner chimney facing so that the brackets match and fix them. After that you can fix the hood with the safety screws (see picture 5).

Note: Please note that the two safety caps are located on the back of the casing.

3

4

5

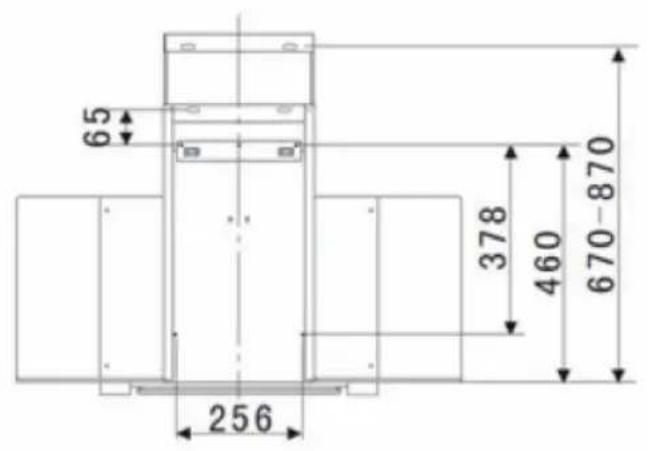

INSTALLATION (10011488 | 10011489 | 10026366 | 10026367)

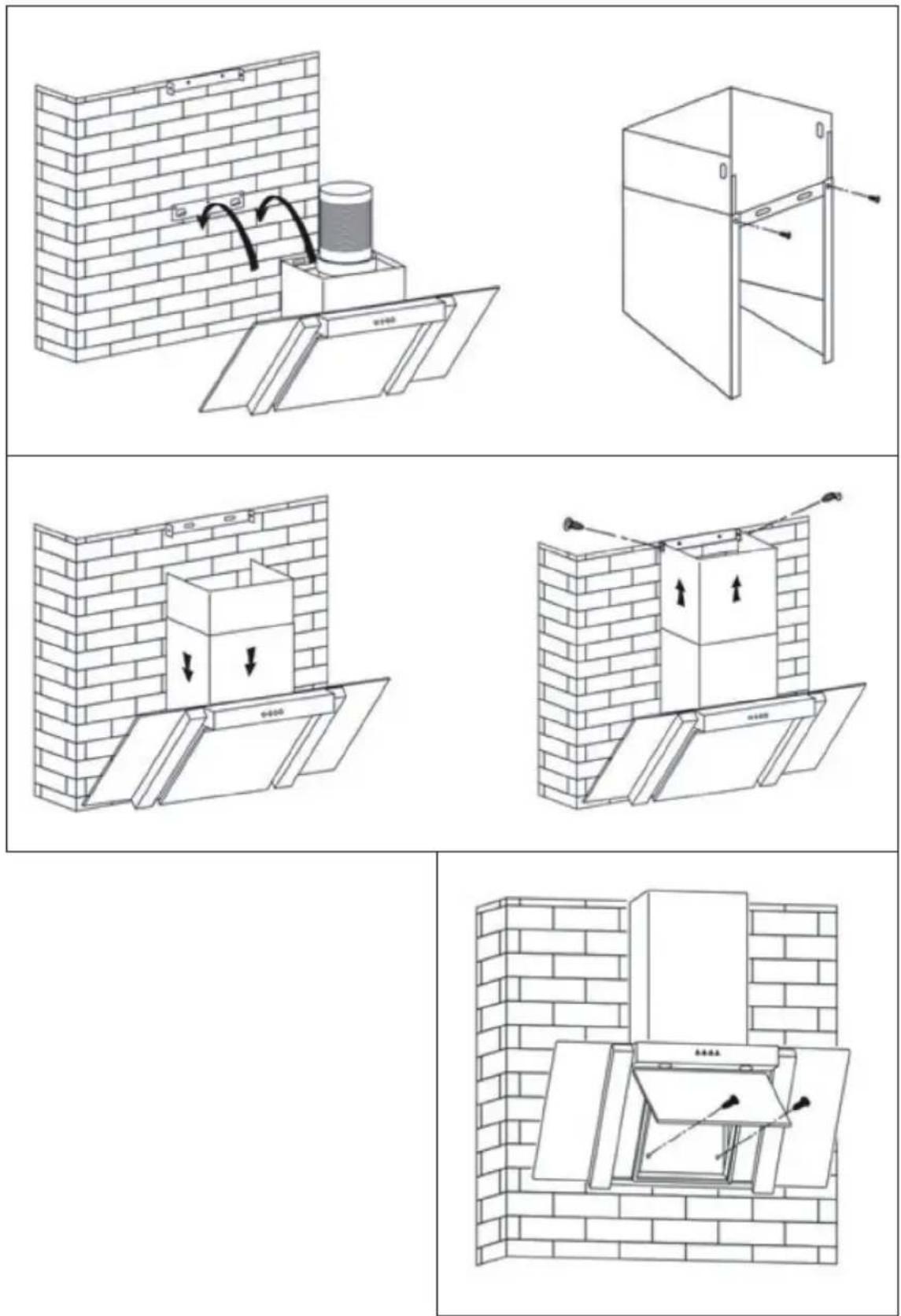

1. The distance between the cooking surface and the lowest edge of the cooker hood must be at least 65~cm (see Fig. 1).

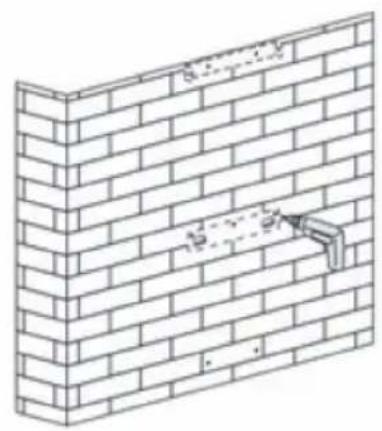

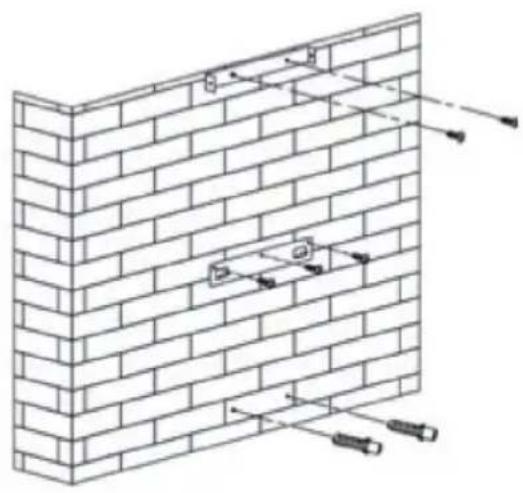

2. Once the height is defined, install the anchoring in the appropriate place. To do this, you must first drill holes (you will need a drill, suitable drill bits, dowels and screws) and then fix the anchorage to the wall with the screws. After the anchoring is fixed, use the similar procedure to attach the internal clamp for the fireplace facing (see Figure 2). Please pay attention to the correct distance (please measure the distance), because the fireplace facing will be fixed to the clamp later.

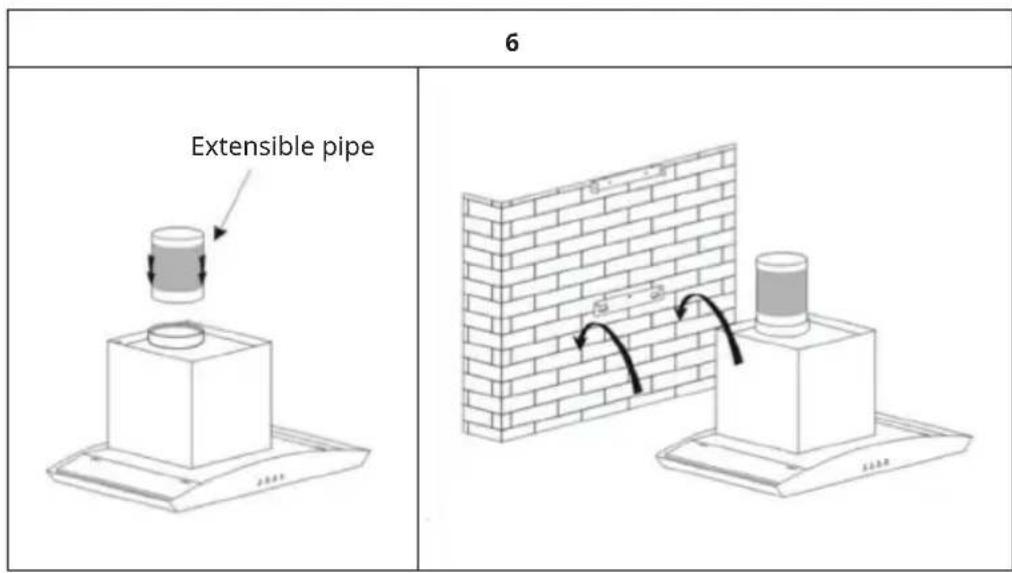

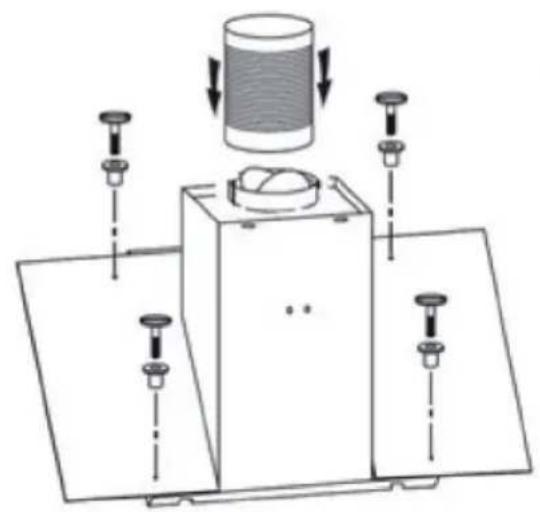

3. Connect the pipe and place the hood on the anchoring (see picture 6).

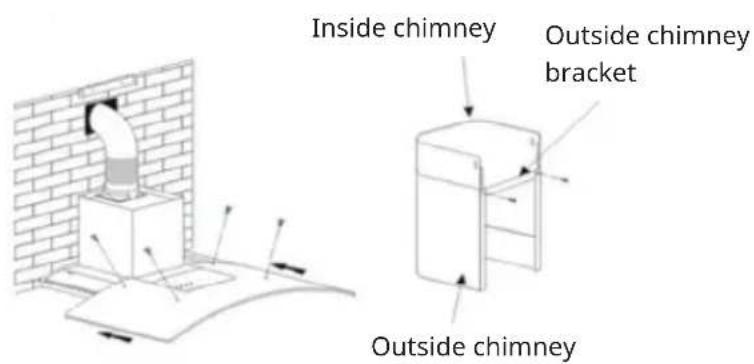

4. Insert the glass part correctly and fix them with the appropriate screws. Guide the end of the pipe connection into the open. Please note that there must be an opening necessary for this.
5. Set the correct height of the inner chimney facing so that the brackets match and fix them. After that you can fix the hood with the safety screws (see picture 7).

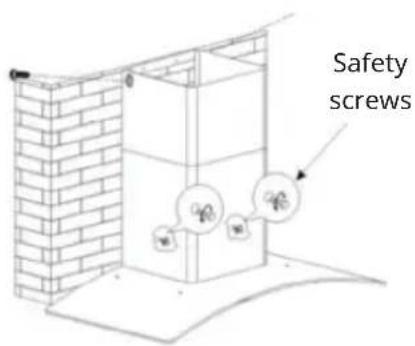

Note: Please note that the two safety caps are located on the back of the casing.

7

OPERATION

Before operating the device for the first time after correct installation, please connect the hood to the mains (please observe the generally applicable safety regulations).

Control panel 1

(1)	(2)	(3)	(4)	(5)
1 The motor is OFF.
2 The motor is running at the lowest level.
3 The motor is running at the medium level.
4 The motor is running at the highest level
5 On/off switch for the integrated light.

Control panel 2

(1)	(2)	(3)	(4)	(5)
1 Timer button
2 Light button
3 LED display
4 Speed selection button
5 On/Off button

Setting the time

• Press and hold the Timer key until the LED display starts flashing.
• Use the speed button to increase the number and the light button to decrease it.
• To set minutes press and hold the timer key again until the minutes start flashing. Set the minutes.
• Press and hold the timer key again to confirm your selection.

Turning on and changing the speed

• Press the On/Off key to start up or shut down the hood.
• Use the speed key to control the motor:

Press once: The motor runs at the lowest speed.

Press twice: The motor runs at the medium level.

Press three times: The motor runs at the highest level.

Fourth time: The motor returns to the lowest level.

Using the timer

You can set a time between 5 to 60 minutes after which the unit will automatically turn off. Press the timer button, the display will show "05.00". Use the speed button to increase the number and the light button to decrease it. Press the timer key again to confirm your selection.

CLEANING AND MAINTENANCE

Turn off the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.

Stainless Steel Surfaces

The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.

Control Panel

The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.

Monthly Cleaning for Grease Filter

Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2 011+A11:2014+A12:2015

Item number 10011487
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	93.6 kWh/Jahr
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	17.2
Fluid Dynamic Efficiency class D
Lighting Efficiency LE	hood	38.8 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency GFE	hood	82.4 %
Grease Filtering Efficiency class C
air flow at minimum and maximum speed in normal use, intensive or boost excluded		400.8 / 607.2 m³/h
air flow at intensive or boost setting		- m³/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		64 / 69	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps	0.41 W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10011487
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	93.6 kWh/Jahr
Time increase factor f 1.4
Fluid Dynamic Efficiency FDE	hood	17.2
Energy Efficiency Index EEI	hood	88.0
Measured air flow rate at best efficiency point	QBEP	373.2 m³/h
Measured air pressure at best efficiency point	PBEP	299 Pa
Maximum air flow Q	max	637.0 m³/h
Measured electric power input at best efficiency point	WBEP	180.0 W
Nominal power of the lighting system	WL	4	W
Average illumination of the lighting system on the cooking surface	Emiddle	155 Lux
Measured power consumption in standby mode	Po	0.41 W
Measured power consumption off mode	Ps	0	W
Sound power level L	WA	69 dB
Contact details Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10011488, 10011489
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	65.3 kWh/Jahr
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	13.7
Fluid Dynamic Efficiency class D
Lighting Efficiency LE	hood	38 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency GFE	hood	78.9 %
Grease Filtering Efficiency class C
air flow at minimum and maximum speed in normal use, intensive or boost excluded		292.1 / 493.5 m³/h
air flow at intensive or boost setting		- m³/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		54 / 66	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10011488, 10011489
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	65.3 kWh/Jahr
Time increase factor f 1.5
Fluid Dynamic Efficiency FDE	hood	13.7
Energy Efficiency Index EEI	hood	81.4
Measured air flow rate at best efficiency point	QBEP	225.5 m³/h
Measured air pressure at best efficiency point	PBEP	250 Pa
Maximum air flow Q	max	493.5 m³/h
Measured electric power input at best efficiency point	WBEP	114 W
Nominal power of the lighting system	WL	4.0 W
Average illumination of the lighting system on the cooking surface	Emiddle	152 Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0	W
Sound power level L	WA	66 dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10026366, 10026367
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	65.3 kWh/Jahr
Energy Efficiency class C
Fluid Dynamic Efficiency FDE	hood	13.7
Fluid Dynamic Efficiency class D
Lighting Efficiency LE	hood	38 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency GFE	hood	78.9 %
Grease Filtering Efficiency class C
air flow at minimum and maximum speed in normal use, intensive or boost excluded		292.1 / 493.5 m³/h
air flow at intensive or boost setting		- m³/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		54 / 66	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10026366, 10026367
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	65.3 kWh/Jahr
Time increase factor f 1.5
Fluid Dynamic Efficiency FDE	hood	13.7
Energy Efficiency Index EEI	hood	81.4
Measured air flow rate at best efficiency point	QBEP	225.5 m³/h
Measured air pressure at best efficiency point	PBEP	250 Pa
Maximum air flow Q	max	493.5 m³/h
Measured electric power input at best efficiency point	WBEP	114 W
Nominal power of the lighting system	WL	4.0 W
Average illumination of the lighting system on the cooking surface	Emiddle	152 Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0	W
Sound power level L	WA	66 dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10026368
Description Symbol Value Unit
Annual Energy Consumption AEChood 57.2 kWh/Jahr
Energy Efficiency class B
Fluid Dynamic Efficiency FDEhood 22.9
Fluid Dynamic Efficiency class C
Lighting Efficiency LEhood 55 Lux/W
Lighting Efficiency class A
Grease Filtering Efficiency GFEhood 68.3 %
Grease Filtering Efficiency class D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		355.0 / 607.2	m³/h
air flow at intensive or boost setting		-	m³/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		55/71	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps -	W
Contact details	Chal-Tec GmbH. Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number 10026368
Description Symbol Value Unit
Annual Energy Consumption AEChood 57.2 kWh/Jahr
Time increase factor f 1.2
Fluid Dynamic Efficiency FDEhood 22.9
Energy Efficiency Index EEIhood 65.9
Measured air flow rate at best efficiency point	QBEP 326.1 m³/h
Measured air pressure at best efficiency point	PBEP 326 Pa
Maximum air flow	Qmax 607.2 m³/h
Measured electric power input at best efficiency point	WBEP	129.0 W
Nominal power of the lighting system	WL	1	W
Average illumination of the lighting system on the cooking surface	Emiddle	55	Lux
Measured power consumption in standby mode	Po	-W
Measured power consumption off mode	Ps	0	W
Sound power level	LWA	71	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chere cliente, cher client,

FICHE DE DONNÉES PRODUIT

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile clientele,

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Geachte klant,

INSTRUCTIES VOOR AFVOER

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
