USER MANUAL Comfort Air Fuave

Comfort Air Purifier

Safety instructions 15

Product Introduction 17

Installation instructions 18

Instructions 19

Cleaning and maintenance 23

Product parameters 26

SAFETY INSTRUCTIONS

WARNING

• Indoor and household use only.
• When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Do not place other items on top of the appliance, and forbid sitting or standing on this appliance.
• Please use the original filter provided by the factory. In case of other filters, the best results cannot be achieved.
• Do not insert fingers or objects into the air inlets or air outlets to prevent the product from physical damages or malfunction.
• Please unplug the power cord immediately and contact the service center in time when the appliance suffers abnormal sound, burnt smell or smoke.
• Do not spray flammable substances near the appliance; Do not spray water directly on the appliance or use chemical cleaners like alcohol or hydrochloric acid, etc.; Do not place water containers, medicines, or flammable materials on the appliance.
• Do not block the air inlets/outlets of the appliance with any item.
• This appliance cannot replace natural ventilation and other appliances like the vacuum cleaner, kitchen ventilator, etc.
• When the appliance is working, it must be placed on a dry, flat and stable floor, with at least 30~cm space reserved around it.
• Do not put it in direct sunlight.

WARNING

• To prevent electromagnetic disturbance, the appliance must keep a certain distance from the TV, radio, microwave oven and others.
• The mist produced by the ultrasonic humidifier may affect the PM2.5 detection of this appliance, and both should maintain a certain distance.
• Do not disassemble or modify this appliance without authorization to avoid accidents.
• Do not pull the cable to move the appliance.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The appliance is only to be used with the power supply unit provided with the appliance.

Save these instructions

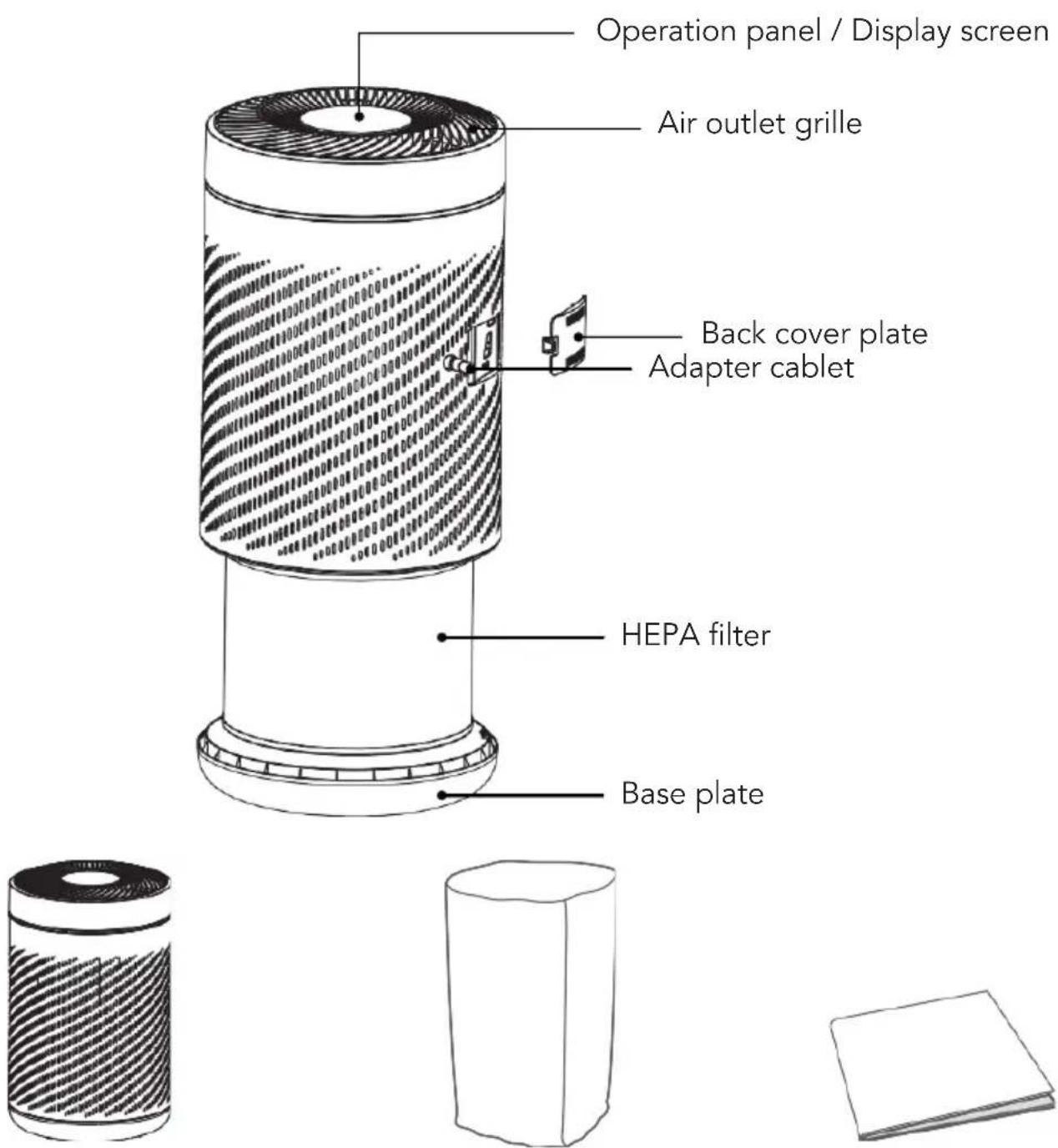

PRODUCT INTRODUCTION

ATTENTION

• The pictures contained in the Manual are for reference only, and please be subject to the physical product in the packing box.

Host Protective bag Manual

INSTALLATION INSTRUCTIONS

Installation steps

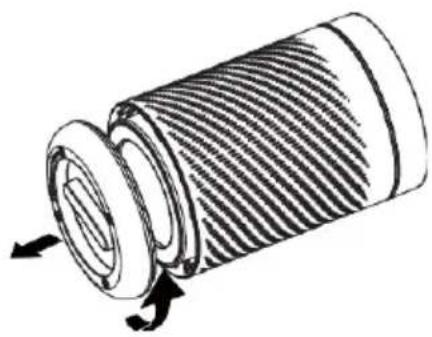

1. Remove the base plate.

1. Remove the protective film of the filter assembly.

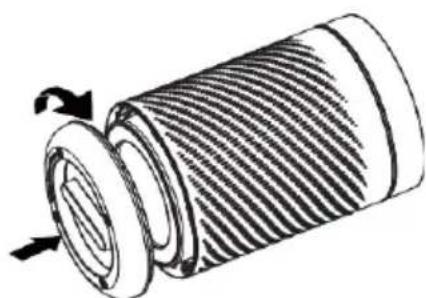

1. Install the base plate.

1. Plug power supply.

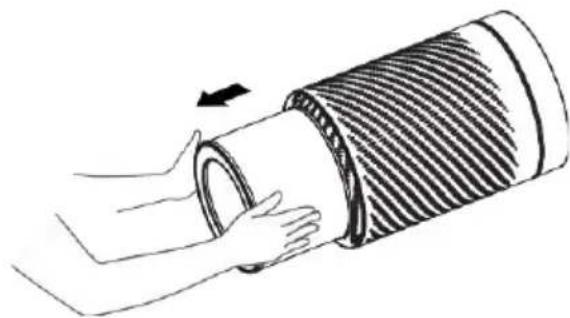

1. Take out the HEPA filter.

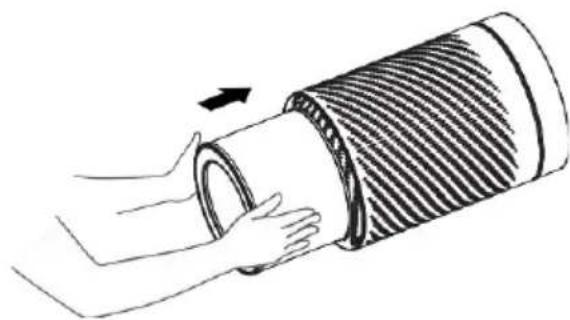

1. Install the HEPA filter.

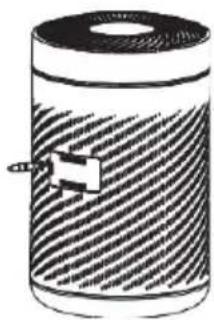

1. Plug in adapter cabled.

INSTRUCTIONS

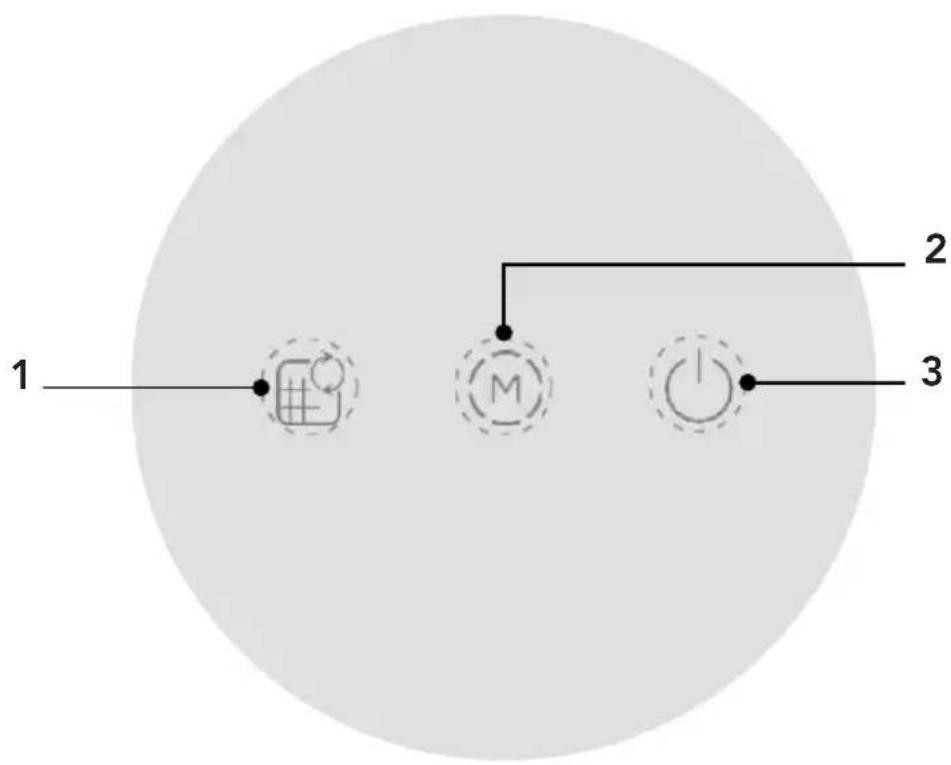

Control panel

1. Reset filter button

When the filter life is reached, press for 3 seconds to reset filter.

2. Mode button

Automatically mode, sleep mode and turbo mode (optional).

3. On/standby button

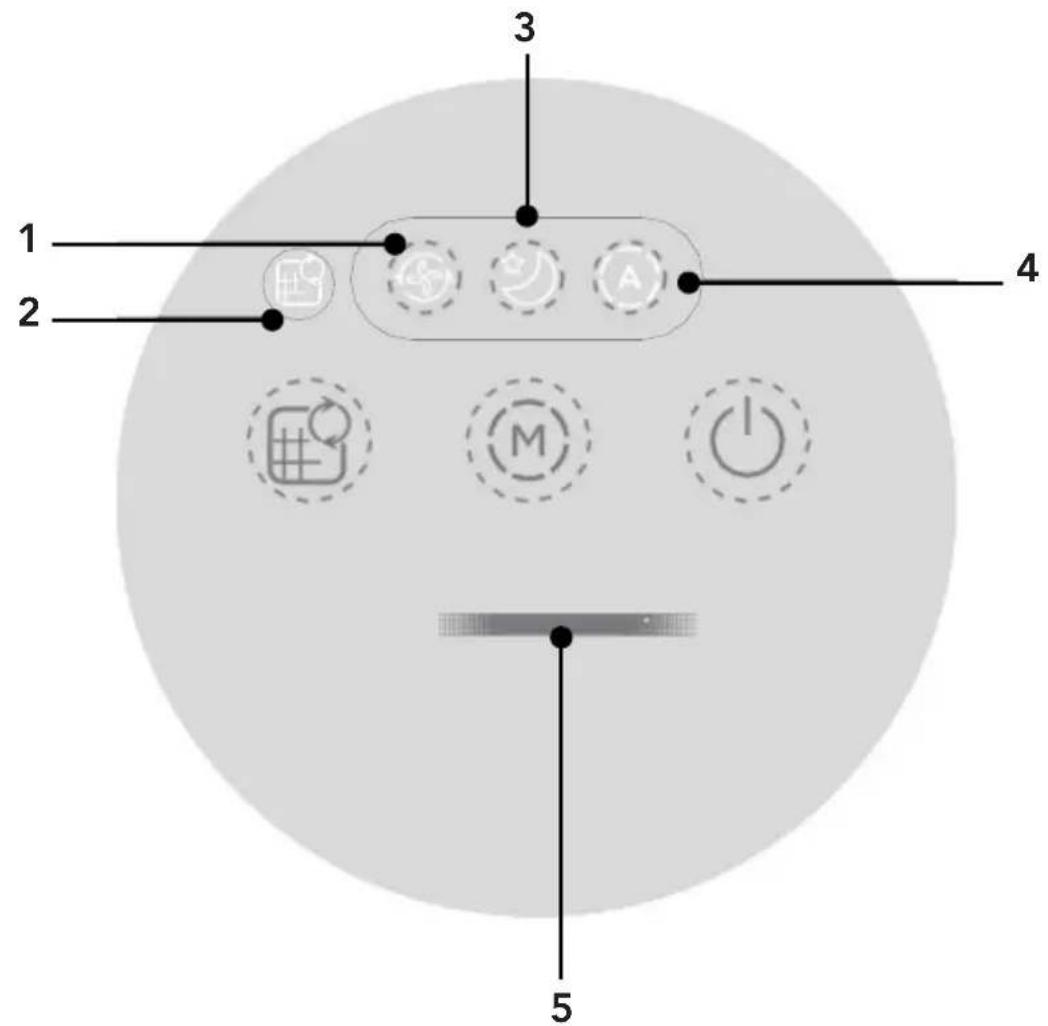

Display panel

1. Turbo mode prompt
2. HEPA filter replacement prompt
3. Sleep mode prompt
4. Automatic mode prompt Adjust the wind speed automatically according to the air quality
5. Air quality indicator light

Blue: air quality excellent;

Green: air quality good;

Orange: air quality medium;

Red: air quality poor.

NOTE

In case of continuous electricity, enter the working mode before the standby state, after each power on.

• The appliance will turn on again after a power outage or lack of power, and then restores to the state it was before the power outage.

Test run

1. Remove the protective film of the filter assembly.

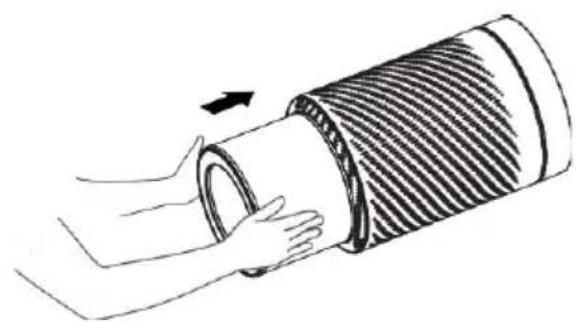

1. Install the filter.

3. Preparation

Power on for the first time, the display panel flashes for 1 second, and then the screen is turned off. The whole appliance is in the standby state;

4. On/standby

Press on/standby button.

5. Warm up

When the particulate matter sensor enters the warm-up state, Air quality indicator and is normal after 3s light will flash in sequence.

6. Work

The purifier is powered on for the first time and then enters the automatic mode.

CLEANING AND MAINTENANCE

• Please be sure to unplug the power cord before cleaning.

Body Cleaning

Wipe the body with a soft towel.

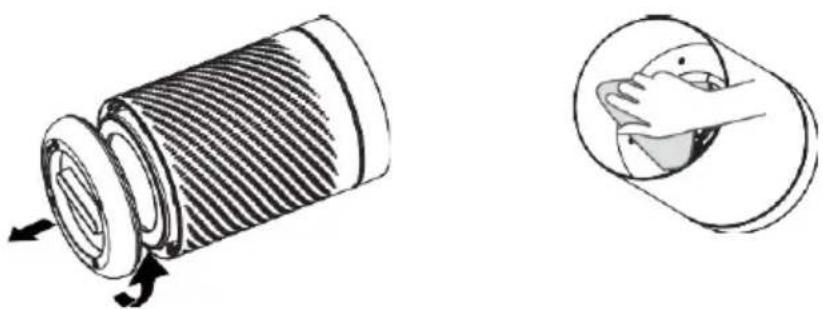

Inside the machine housing

Open the base plate, vacuum up dust with a vacuum cleaner or wipe it with a cloth.

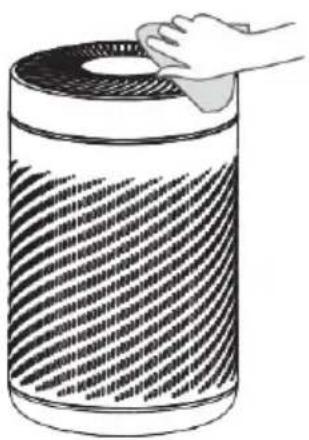

Air outlet grille

Vacuum up dust with a vacuum cleaner or wipe it with a cloth.

Cleaning of the HEPA-filter

It is recommended to clean the HEPA-filter at least once every two weeks. The cleaning cycle can be based on the usage environment and time, seriously polluted environments should be cleaned frequently.

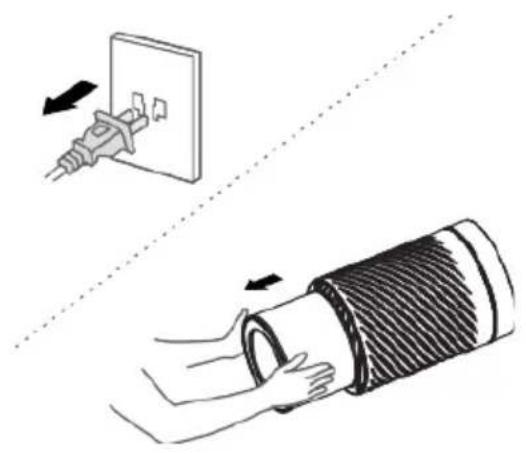

1. Unplug the appliance, and take out the HEPA-filter.

1. Vacuum the dust or wipe it with a dry cloth or vacuum.

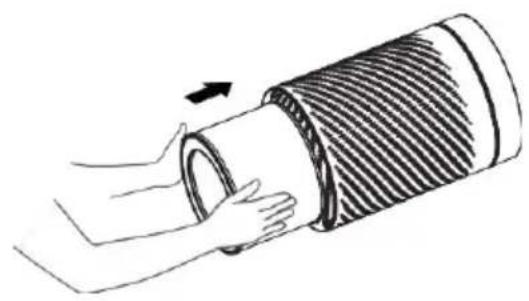

1. Assemble the HEPA-filter.

1. Plug in the appliance, and start it.

Replacement of the filter components

1. Filter model: FH-20Z1.

1. When the filter replacement light is on, it tells you that the HEPA filter should be replaced. If it is not replaced in time, the prompt will appear every startup.

1. Replace the filter.

1. Press the timing button for 3 seconds to reset the HEPA filter.

PRODUCT PARAMETERS

1. The performance parameters in the table are measured before delivery and are for reference only.
2. Due to product improvement, the following parameters may be changed and shall refer to the product nameplate parameters.
3. The applicable area is according to the theoretical value calculated by (0.07 0.12)× CADR particulate matter; with the use of different environments or outdoor pollution and other factors, the applicable area will also change.
4. Purifying principle: The air purifier blows air into the machine and filters the air through the built-in filter core. It can mainly play the role of filtering dust (such as PM2.5), formaldehyde, odor, sterilization and others.

Model KJ200G
High-grade CADRparticles 250
Rated voltage (V) 24
Rated power (W) 22
Noise (dB) <55
