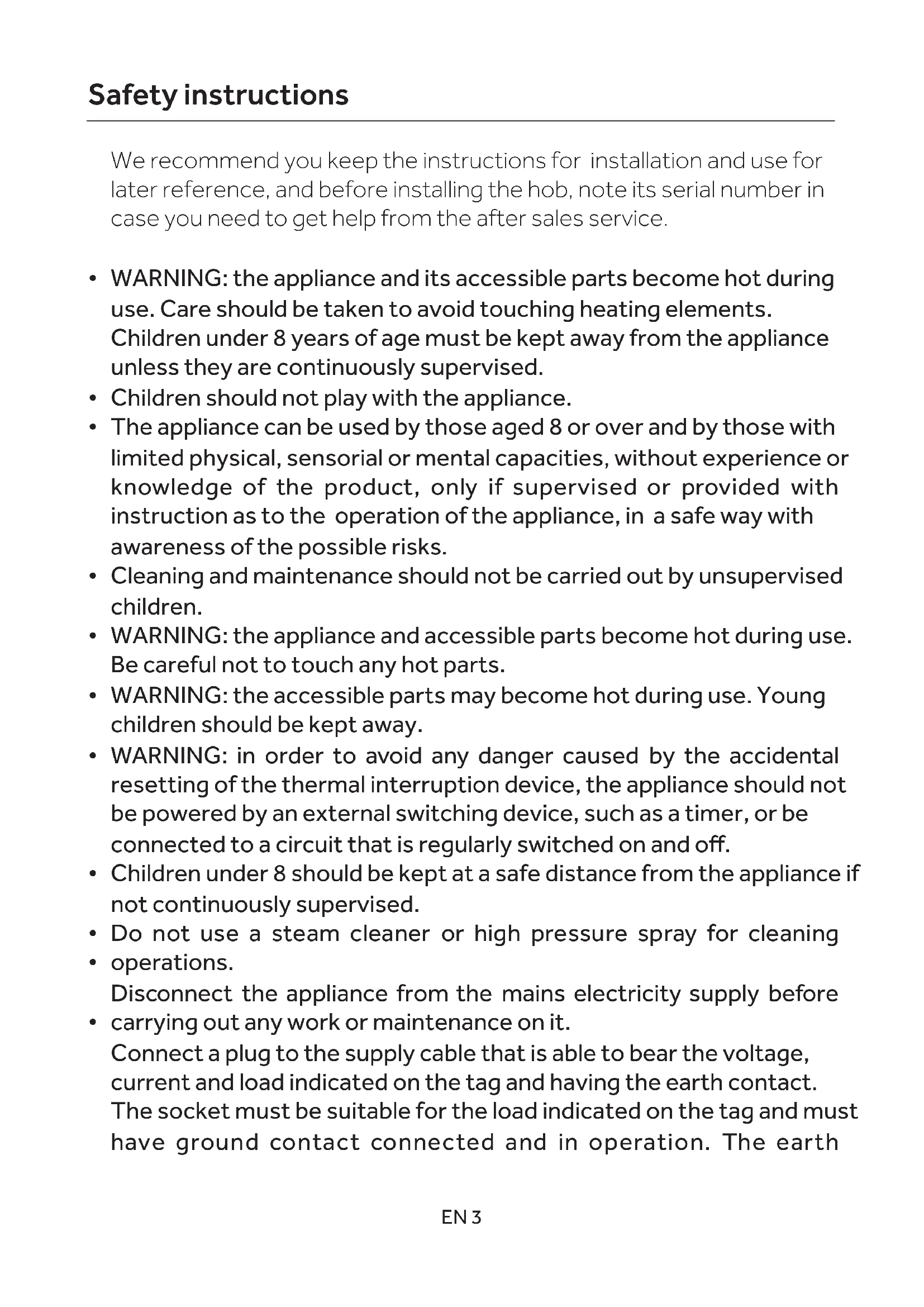

53Do not use a steam cleaner or high pressure spray for cleaning operations. Children should not play with the appliance.

WARNING: the appliance and its accessible parts become hot during

use. Care should be taken to avoid touching heating elements.

WARNING: in order to avoid any danger caused by the accidental

resetting of the thermal interruption device, the appliance should not be powered by an external switching device, such as a timer, or be connected to a circuit that is regularly switched on and off. Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.

WARNING: the appliance and accessible parts become hot during use.

Be careful not to touch any hot parts. Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must have ground contact connected and in operation. The earth Children under 8 should be kept at a safe distance from the appliance if not continuously supervised.

WARNING: the accessible parts may become hot during use. Young

children should be kept away. The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks. We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after sales service. Cleaning and maintenance should not be carried out by unsupervised children. Safety instructions

EN 3conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. ln case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker, with contact separation compliant to the requirements for overvoltage category III, between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the

WARNING: danger of fire: do not store items on the cooking surfaces.

Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up.

WARNING: unattended cooking on a hob with fat or oil can be

dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. Aluminum foil and plastic pans must not be placed on heating zones. If present do not to stare into halogen lamp hob elements. should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

WARNING: use only hob guards designed by the Manufacturer of the

cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. CAUTION: the cooking process must be supervised.Ashort term cooking process has to be supervised continuously.

EN 4risks of fire propagation. Do not use the surface as a cutting board. No additional operation/setting is required in order to operate the appliance at the rated frequencies. Do not slide cookware across the hob. Always use the appropriate cookware. This appliance is not intended to be operated by means of an external timer or separate remote control system. Do not store heavy items above the hob. If they drop onto the hob, they may cause damage. The earth conductor (yellow-green) must be longer than 10 mm on the terminal block side. The internal conductors section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be H05GG-F. Do not touch the heat zones during operation or for a while after use. If the supply cord is damaged, it must be replaced by Manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not place anything on control panel. Always place the pan in the center of the unit that you are cooking on. Do not use the hob as a working surface. Do not use the hob for storage of any items. Do not use rough or abrasive materials or sharp metal scrapers to clean the glasses, as they can scratch the surface and cause the glass to shatter.

EN 5Safety Instructions Instructions for the installer Connections Use of hob - user instructions Maintenance and cleaning After care Protection of the environment Technical information

Summary Thank you for purchasing the Haier gas hob. Please read this instruction manual carefully before using the hob and keep it in safe place for future reference. EN 6Instructions for the installer The distance between the hob and any other unit or appliance above it (e.g. An extractor hood) must be no less than 700 mm (Figure 4*). When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3*). When a 75 cm hob is fitted over a built in oven, the latter must be fan cooled. The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base of the unit. BUILDING IN If the hob is fitted next to a cabinet on either side, the distance between the hob and the cabinet must be at least 15 cm; while the distance between the cut out and the rear wall must be at least 7 cm; while the distance between the hob and the rear wall must be at least 70 mm for frontal control hobs and 50 mm for lateral control hobs. The hob may be installed in any worktop which is heat resistant to a temperature of 100°C, and has a thickness of 25-45 mm. The dimensions of the insert to be cut out of the worktop are in shown in Figure 2*. Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriouslyaffect consumer safety. It is for this reason that the task should be undertaken by a professionally qualifiedperson who will carry it out in accordance with the technical regulations in force. In the event that this advice isignored and the installation is carried out by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not it results in damage to goods or injury to individuals. how the sealant should be applied. Metal objects in the drawer may reach high temperatures due to air recirculation. It is t h e r efo re r eco mm en de d to u s e a n intermediate wood panel. Important - The diagram in Figure 1* shows If a hood can not be installed, an electric fan should be fitted to an outside wall or window to ensure that there is adequate ventilation. SUITABLE LOCATION When a 60 cm hob is fitted over a built in oven, the latter must be fan cooled. This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance. The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards. A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one. *See “Technical information” section at the end of this manual. EN 7Connections The wiring must be connected to the mains ELECTRICAL CONNECTION (FOR U.K. ONLY) Warning - this appliance must be earthed Further details of the power requirement of the individual product will be found in the users’ instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used. This appliance is designed for domestic use only. Connection to the main supply must be made by a competant electrician, ensuring that all current regulations concerning such installations are observed. The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be prov id ed a nd th e ci rcu it m us t hav e appropriate fuse protection. Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrected electrical installation. Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable. ELECTRICAL CONNECTION Before connection, check the earthing system. By Law, this appliance must be earthed. If this regulation is not complied with, the manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible. Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted. If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk. The earth wire (green and yellow coloured) must be at least 10 mm longer than the live and neutral wires. The section of the cable used must be of the correct size in relation to the absorbed power of the hob. Please check rating plate for the power details and ensure that the power supply cord is of the type 3x0.75 mm² H05GG-F If an appliance is not fitted with a supply cord and a plug, or with other m eans for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that m e a n s f o r d i s co n n e c ti on m u s t b e incorporated in the fixed wiring in accordance with the wiring rules. GAS CONNECTION These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For U.K. only: by law the gas installation\commissioning must be carried out by a “Gas Safe” installer). For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards. Use only pipes,washers and sealing washers which comply with the relevant national standards. All work must be carried out with the electricity supply disconnected. The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting. LIVE EARTH NEUTRAL

Power Cable Mains Supply Brown Wire Green/Yellow Wire Blue Wire EN 8When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres.

• Remove the grids and burners IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution.

Warning: If gas can be smelt in the vicinity of

this appliance turn off the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame.

3. Attach fitting C to mains gas supply using

1. As illustrated, assemble parts in sequence:

C: 1/2 Female Gas Adaptor Conical- Cylindirical

2. Tighten the joints with the spanner,

remembering to twist the pipes into position. The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed/ kinked or damaged in any way. copper pipe or flexible steel pipe. For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob. To prevent any potential damage to the hob please carry out the installation following this sequence (Figure 6*): NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg.adrawer) and that it is not situated where it could be damaged. To adapt the Hob for use with different types of gas, carry out the following instructions: B: 1/2 Seal

• Insert on hexagonal spanner (7 mm) into Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 9*.

REGULATING THE MINIMUM FLAME

When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise) to the end stop. table) After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure).

• Unscrew the injector and replace it with one suitable for the gas to be used (see gas type burner support (Figure 7*) Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow – Use this adjustment to obtain a flame of approximately 3 to 4 mm in length and then replace the control knob. When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) the *See “Technical information” section at the end of this manual. EN 9Use of hob - user instructions This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use. Before using burner, be sure, grid perimeters center the burner as below figure. If you are using Cast Iron Grids; underneath the grid, position of it is stated. Be sure for the exact grid is used in correct position.

USING THE GAS BURNER

Prior to switching on the gas hob ensure that the burner caps are correctly placed within their position. This hob is fitted with electronic ignition to ignite the burner. To ignite the burners carry out the following:

• Push in and turn anticlockwise to the larger flame symbol or in position 9 and keep pushed 5 seconds after ignition. The ignition system will continue to generate sparks as long as the control knob is being pressed

Warning: If there is no electricity on

appliance to ignite the burner a match or a lighter should be used carrying out the out the following:

• Place a lighted match or lighter close to the burner KNOBS CONTROL Each knob controls each burner as showed in the serigraphy. The knobs have 9 steps from highest flame to lowest flame. Never try to switch from ° to 1

• Push in and turn the knob anticlockwise to the larger flame symbol or in position 9 and keep pushed 5 seconds after ignition Warning: In any case if after 5 seconds the burner has not lit, stop operating the device and wait at least 1 min before attempting a further ignition of the burner. Indicators Burner controlled by control knob Switched-off burner Highest power setting and electric ignition Lowest power setting EN 10After care GENERAL ADVICE For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. Table A: Maintenance and cleaning

• Before cleaning the hob, ensure the appliance has cooled down.

• When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution.

• Remove the plug from the socket or (if connected directly) switch off the electricity supply.

• Cleaning and user maintenance shall not be made by children without supervision

• Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections.

• The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace.

• It is important the Burners are replaced correctly. Chromed grids and burners Chromed grids and burners have a tendency to discolour with use. This does not jeopardize the functionality of the hob Our After Sales Service Centre can provide spare parts if required.

• That the plug is correctly inserted and fused If the fault cannot be detected: Before calling out a Service Engineer please check the following:

• That the gas supply is not faulty

• Switch off the appliance and call the After Service Centre. DO NOT TAMPER WITH THE APPLIANCE. The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as requires, including the interests of co n su m pt io n w it h o ut p r e ju d i ce to characteristics relating to safety or function. Burner type Ø pan/ pot (cm) Power (kW) G20/20 mbar (methane) G 30/28-30 mbar (LPG) AUX Auxiliary SR Semi Rapid

WARNING: If a flame is accidentally extin-

guished, turn the knob to the off position and do not attempt to re-ignite if for at least 1 minute.If over the years the gas taps become stiff to turn it is necessary to lubricate them.Such operation must be carried out only by qualified Service Engineers. For smaller containers the gas burner should be regulated so that the flame does not over- lap the base of the pan. Vessels with a concave or convex base should not be used. EN 11 SR Semi Rapid

12-22 1,75 167 l/h 127 g/h R Rapid 2.75 kW 16-26 2,70 257 l/h 196 g/hProtection of the environment By placing the mark on the appliance, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product. The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation 2016/426 (GAR). This appliance is labelled in accordance with European D i r e c t i v e 2 0 1 2 / 1 9 / E U r e g a r d i n g e l e c t r i c a n d electronic appliances (WEEE). The W E EE con ta i n b o th polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

• The WEEE should not be treated as domestic waste;

• The WEEE should be taken to dedicated collection areas managed by the town council or a registered company. ln many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an Waste management and environmental protection equivalent type and has the same functions as the purchased appliance.

Efficiency Decleration 2016/426 AUX SR R DC 5 kW - 60% 54,3% 59,40% PVUH60MF - DIAMOND (L2)

SINGLE BURNER EFFICIENCY

MEDIUM %57.9 AUX SR 1.5 kW SR 1.5 kW R DC 5 kW - 60% 60% 54,3% 59,40% PVUH75MF - 4+1 (L3)

SINGLE BURNER EFFICIENCY

MEDIUM %58 AUX SR R DC 4.2 kW 60% 54,3% 59,40%

SINGLE BURNER EFFICIENCY

MEDIUM %57.9 PVUH60MF - DIAMOND (4.2 kW ) (L4) AUX SR 1.5 kW SR 1.5 kW R DC 4.2 kW 60% 60% 54,3% 59,40%

(334g/h-167g/h) 95 type 6(334g/h-175g/h) Gas Type Gas Pressure Burners Max (kW) Min (kW)GB - IE The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of con sumption, without prejudice to the characteri stics relating to safety or function.
