USER MANUAL ZA7040 Concept

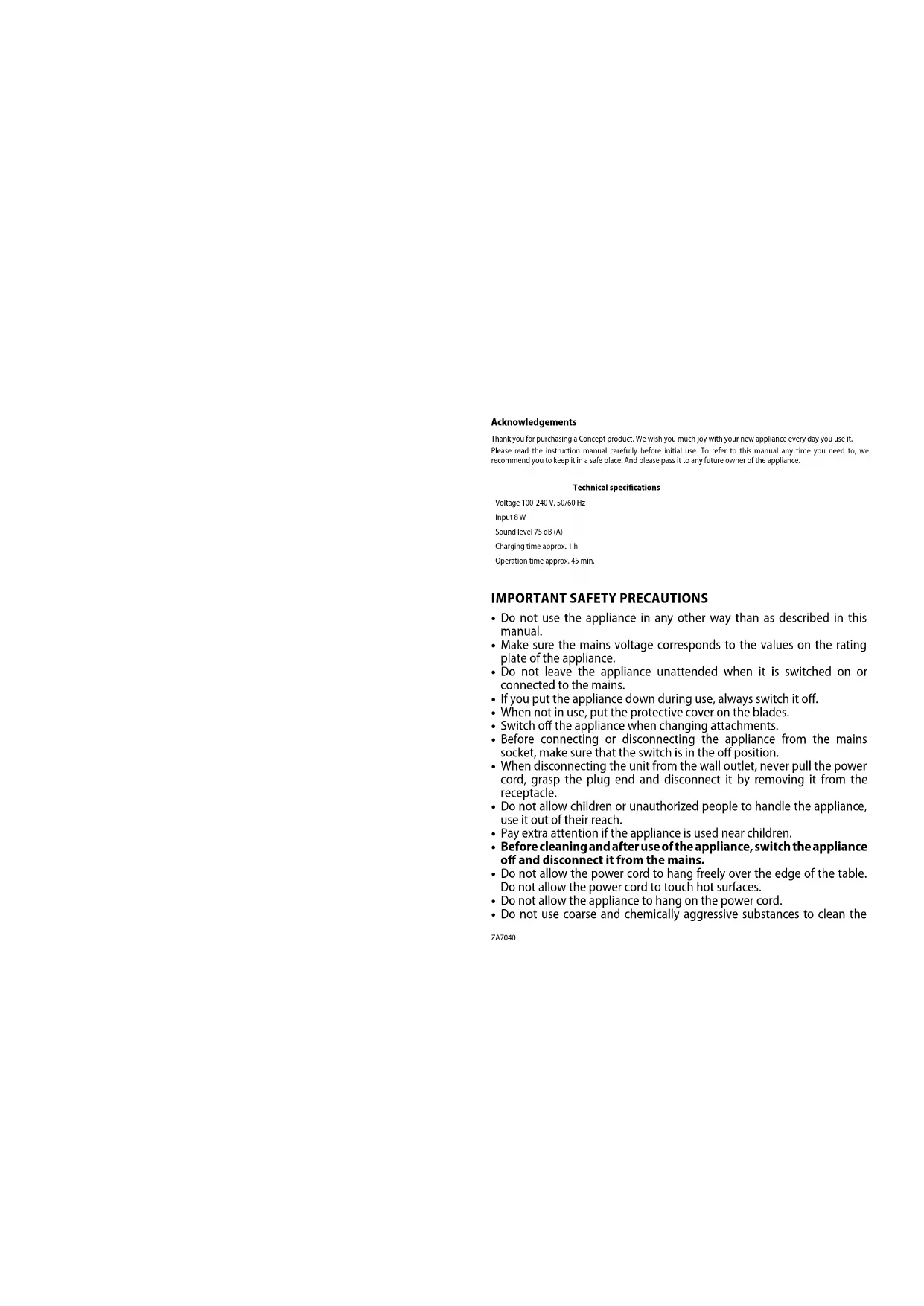

Acknowledgements Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Technical specifications Voltage 100-240 V, 50/60 Hz Input 8 W Sound level 75 dB (A) Charging time approx. 1 h Operation time approx. 45 min.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.

• Make sure the mains voltage corresponds to the values on the rating plate of the appliance.

• Do not leave the appliance unattended when it is switched on or connected to the mains.

• If you put the appliance down during use, always switch it off.

• When not in use, put the protective cover on the blades.

• Switch off the appliance when changing attachments.

• Before connecting or disconnecting the appliance from the mains socket, make sure that the switch is in the off position.

• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.

• Pay extra attention if the appliance is used near children.

• Before cleaning and after use of the appliance, switch the appliance off and disconnect it from the mains.

• Do not allow the power cord to hang freely over the edge of the table. Do not allow the power cord to touch hot surfaces.

• Do not allow the appliance to hang on the power cord.

• Do not use coarse and chemically aggressive substances to clean the34 35 ZA7040 ZA7040 ENEN appliance.

• Do not touch the body of the appliance if it has come into contact with liquid. Disconnect the power cord from the mains first.

• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.

• Do not place or store the appliance in places where there is a risk of falling.

• Keep the appliance away from heat sources such as radiators, ovens, etc. Protect it from direct sunlight and humidity.

• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.

• Do not use the appliance if the blade teeth or comb attachments are damaged.

• Do not wrap the power cord around the appliance body.

• Do not use the appliance outdoors, in an aerosol environment or in areas where oxygen is being handled.

• The appliance is only suitable for home use and is not intended for commercial use.

• Do not use the appliance on wet or damp hair.

• Do not immerse the power cord, plug or appliance in water or any other liquid.

• Do not use any accessories other than those recommended by the manufacturer.

• Do not repair the appliance yourself. Contact an authorized service centre.

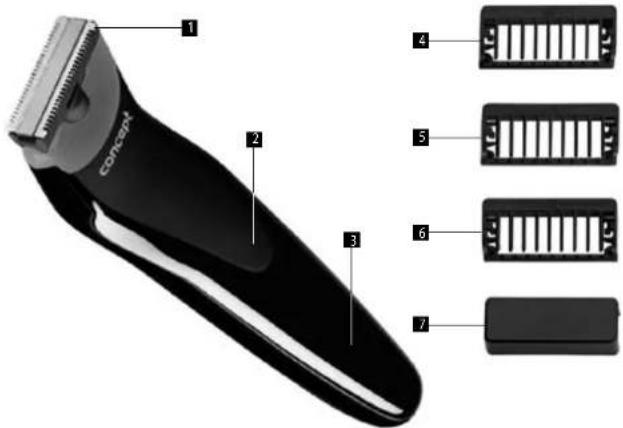

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty. PRODUCT DESCRIPTION 1 Double-sided blades 2 Power button 3 Battery status indicator 4 Comb attachment 1.5 mm 5 Comb attachment 2.5 mm 6 Comb attachment 3.5 mm 7 Blade protective cover

GENERAL INFORMATION This appliance is waterproof. It is suitable for use in a bath or shower and for cleaning under running water. For safety reasons, the appliance can therefore be used only without the power cord. CHARGING The battery status is apparent from the performance of the trimmer. If the trimmer starts to run slower, the battery is nearly discharged and needs to be charged for optimal performance.

1. Plug the small connector into the trimmer and the adapter into the wall outlet (adapter not included)

2. After charging, unplug the power unit from the electrical outlet and pull the small connector out of the appliance.

3. A full charge is indicated by the red charge light that stops flashing.

The package also includes: - Charger36 37 ZA7040 ZA7040 ENEN BATTERY DISPOSAL The appliance contains a Li-Ion battery. This type of battery contains substances that can damage the environment in their disintegration. Before disposing of the appliance or replacing the battery, the original battery must be removed and returned to a suitable collection point. WARNING! Never throw the battery into a fire! Never disassemble the battery! Never short-circuit the battery terminals! If leakage occurs when the accumulator is damaged, the electrolyte is of an alkaline character. If the electrolyte gets on your skin, wash it gently with soap and water and seek medical attention. Contact an authorized service centre to remove or replace the battery. SERVICE CENTRE Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by aqualified service centre. ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.

• Packaging materials may be disposed of as sorted waste.

• Dispose the plastic bags made of polyethylene (PE) of as sorted waste. Recycling of the appliance at the end of its lifespan This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the appliance. The product meets all the necessary requirements of the EU directives applicable to the specific product. Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them. OPERATING INSTRUCTIONS The trimmer can be used for trimming, shaping and shaving facial hair (beard, moustache, sideburns). Do not use this trimmer for shaving, shaping or trimming hair on other parts of the body. This appliance can only be used without a cord. Turning the appliance On/Off Press the power button once to turn the trimmer on. Press again to turn it off. Shaving face Safety precautions: Always check that the blade is not damaged or worn before using the trimmer. In that case, never use the appliance.

1. Turn on the trimmer.

2. Place the blade against the skin and, under moderate pressure and with long strokes, slowly move the appliance up

or against the direction of beard growth.

3. Make straight strokes under light pressure to create sharp lines and contours.

4. Turn the trimmer off and clean after each use.

Trimming with comb attachment The comb attachment for beard allows you to trim the beard to different lengths (1.5 / 2.5 / 3.5 mm).

1. Place the attachment on the blade so that its teeth point upwards.

2. Turn on the appliance.

3. Place the attachment on the skin and move the appliance in the direction of the teeth of the comb attachment.

4. Turn the trimmer off and clean after each use.

Cleaning and maintenance

1. Remove the comb from the blade (the trimmer must be off)

2. If a large amount of hair has accumulated in the trimmer/attachment, blow it out first.

3. Then turn the trimmer on and rinse the blade with lukewarm water. Then rinse the comb attachment.

Warning: Do not dry the blade with a towel or other cloth as this may cause damage.

4. Allow the trimmer and comb attachment to dry.

Replacing the blade For optimum trimming results, we recommend replacing the blade every 4 months when the blade no longer works as expected when shaving or trimming. Use only original and compatible Concept blades.

1. Turn off the appliance

2. Grasp the blade from both sides and carefully remove it upwards.

3. Grasp the new blade from the sides and push it onto the handle (you will hear a clicking sound).

Ordering accessories To purchase accessories or spare parts, visit www.my-concept.com or contact a Concept dealer.39 ZA7040

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,

• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,

• to malfunctions caused by an inexpert third-party intervention,

• to malfunctions caused by natural disaster,

• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,

• to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,

• to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
