USER MANUAL CMCCSP20 Craftsman

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

IGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

TION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

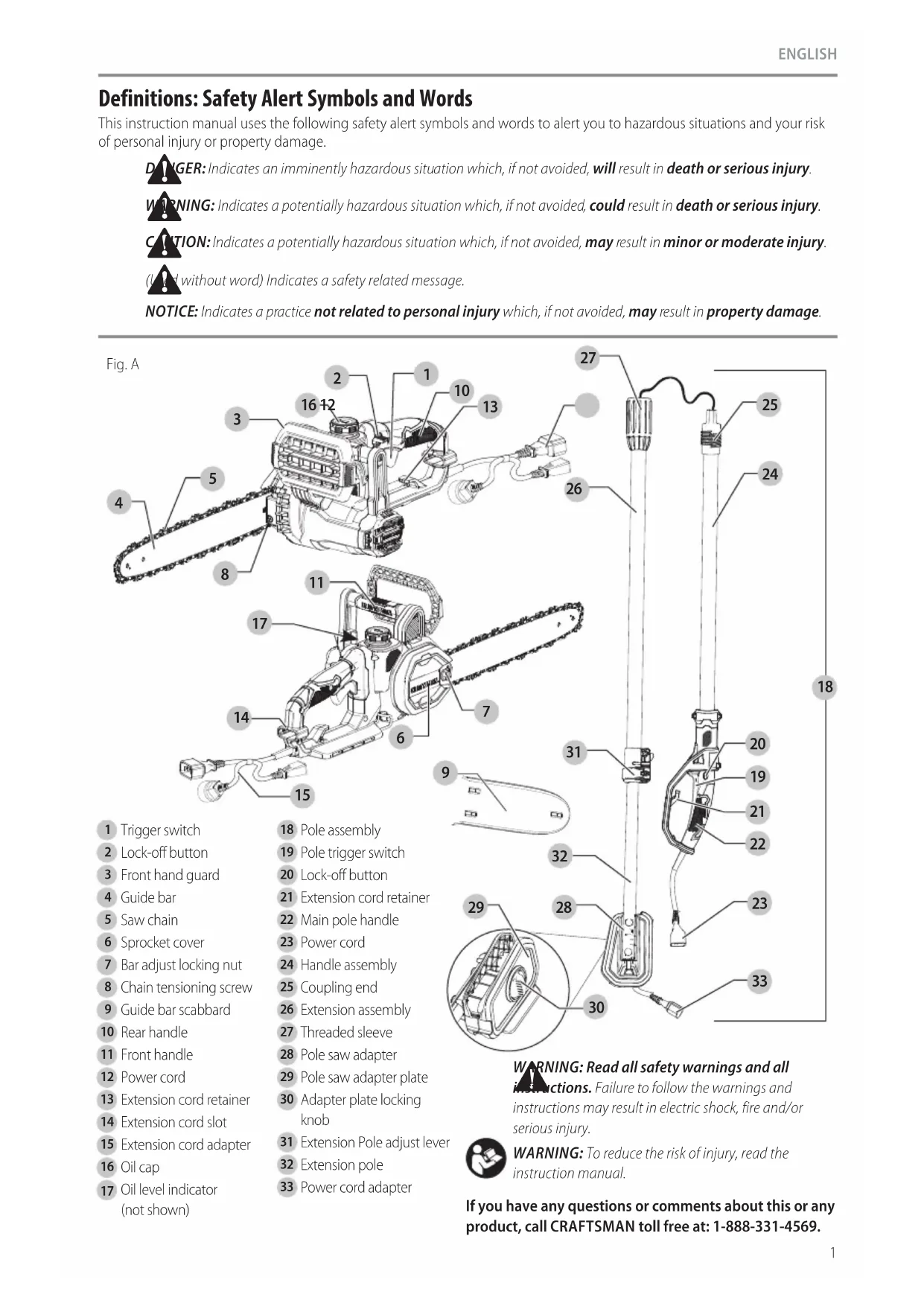

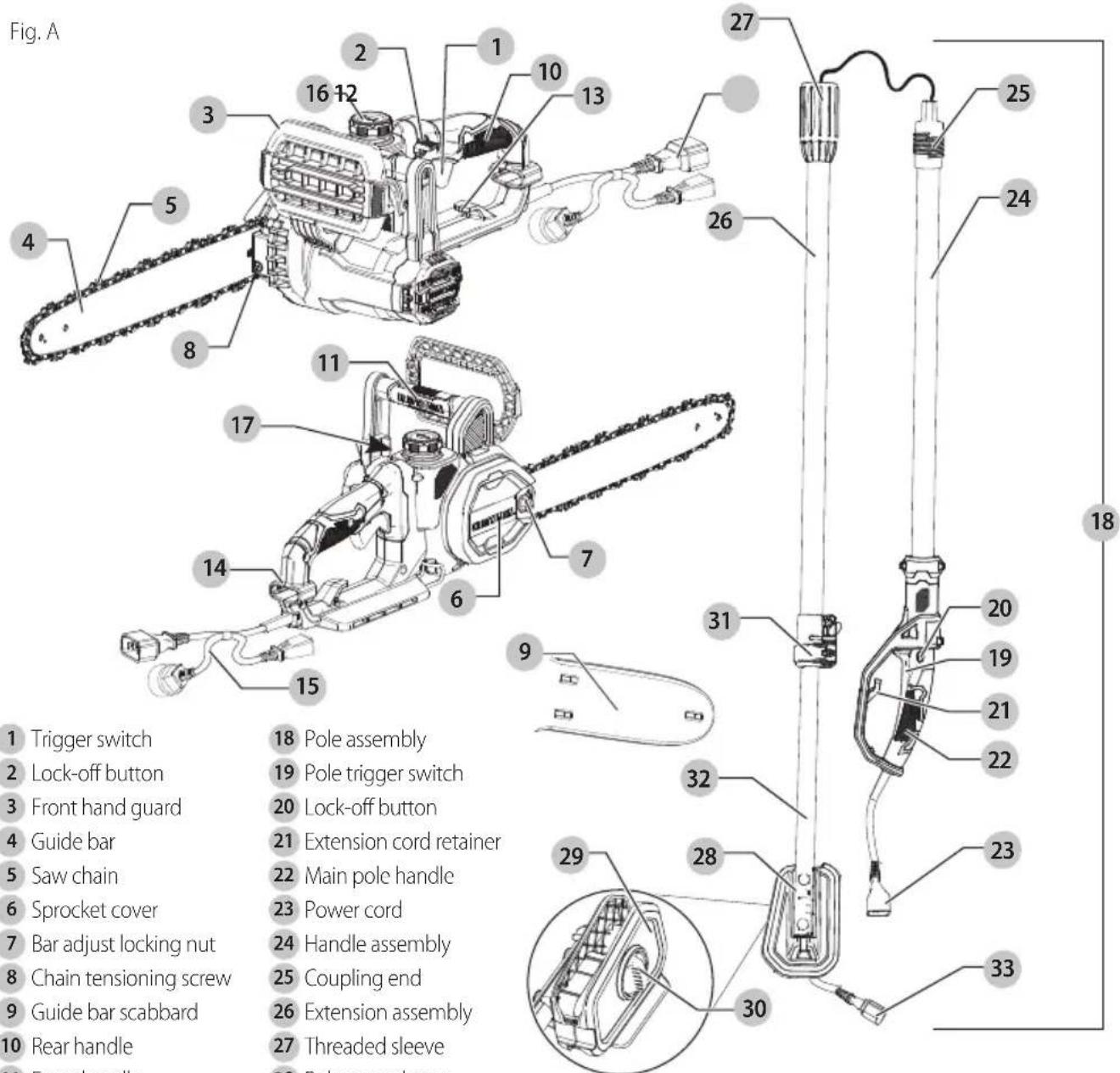

Fig. A 1 Trigger switch 2 Lock-off button 3 Front hand guard 4 Guide bar 5 Saw chain 6 Sprocket cover 7 Bar adjust locking nut 8 Chain tensioning screw 9 Guide bar scabbard 10 Rear handle 11 Pole assembly 12 Pole trigger switch 13 Lock-off button 14 Extension cord retainer 15 Main pole handle 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

10" Chainsaw / Pole Saw CMECSP610

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under

the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition

that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Chain Saw Safety Warnings

a) Keep all parts of the body away from the saw chain when the chain saw, is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.
b) Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.
c) Hold the power tool by insulated gripping surfaces only, because the saw chain may contact hidden wiring or its own cord. Saw chains contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
d) Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain.
e) Do not operate a chain saw in a tree. Operation of a chain saw while up in a tree may result in personal injury.
f) Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the chain saw.
g) When cutting a limb that is under tension be alert for spring back. When the tension in the wood

fibres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control.

h) Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
i) Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.
j) Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
k) Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.
1) Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.

Causes and Operator Prevention of Kickback

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury.

Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

a) Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.
b) Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.
c) Only use replacement bars and chains specified by the manufacturer. Incorrect replacement

English

bars and chains may cause chain breakage and/or kickback.

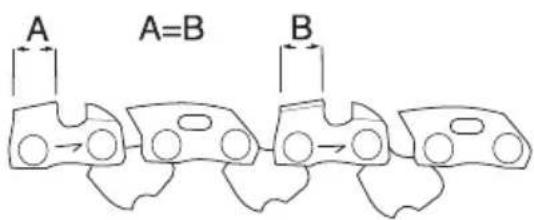

d) Follow the manufacturer's sharpening and maintenance instructions for the saw chain.

Decreasing the depth gauge height can lead to increased kickback.

Kickback Safety Features

WARNING: The following features are included on your saw to help reduce the hazard of kickback; however such features will not totally eliminate this dangerous reaction. As a chain saw user do not rely only on safety devices. You must follow all safety precautions, instructions, and maintenance in this manual to help avoid kickback and other forces which can result in serious injury.

• Reduced-Kickback Guide Bar, designed with a small radius tip which reduces the size of the kickback danger zone on bar tip. A reduced - kickback guide bar is one which has been demonstrated to significantly reduce the number and seriousness of kickbacks when tested in accordance with safety requirements for electric chain saws.

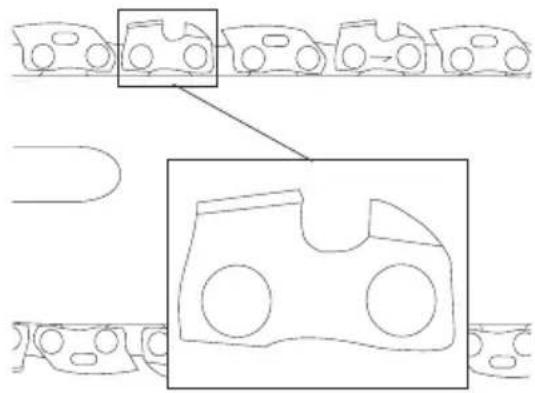

• Low-Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to gradually ride into the cutter. A low-kickback chain is a chain which has met kickback performance requirements of ANSI B175.1–2012.

Chainsaw Names and Terms

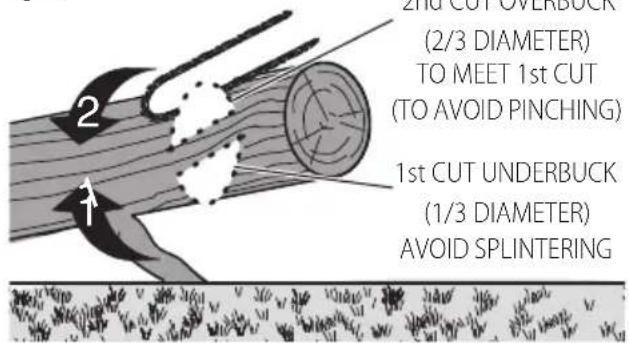

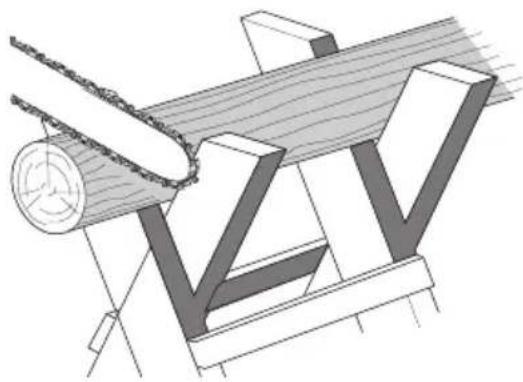

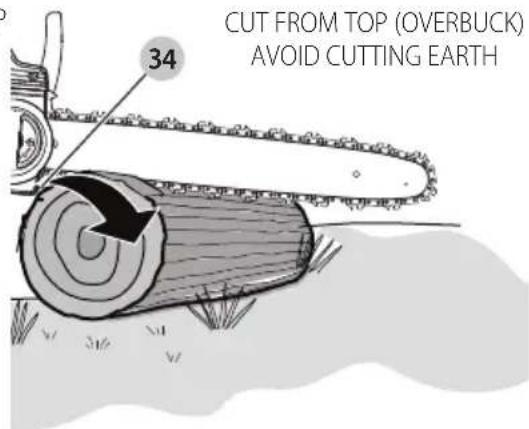

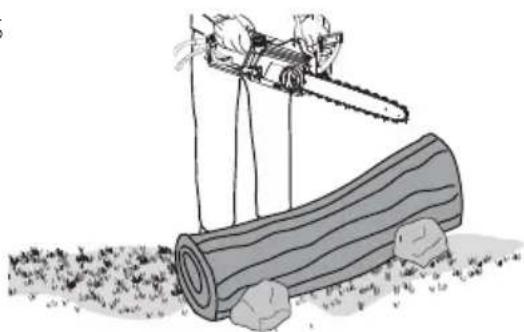

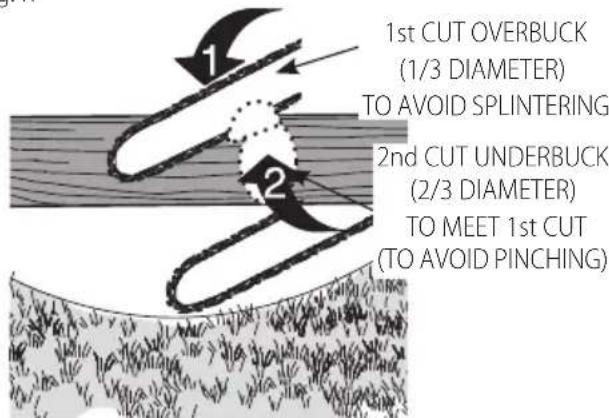

• Bucking - The process of cross cutting a felled tree or log into lengths.
• Motor Brake - A device used to stop the saw chain when the trigger is released.
• Chain Saw Powerhead - A chain saw without the saw chain and guide bar.
• Drive Sprocket or Sprocket - The toothed part that drives the saw chain.

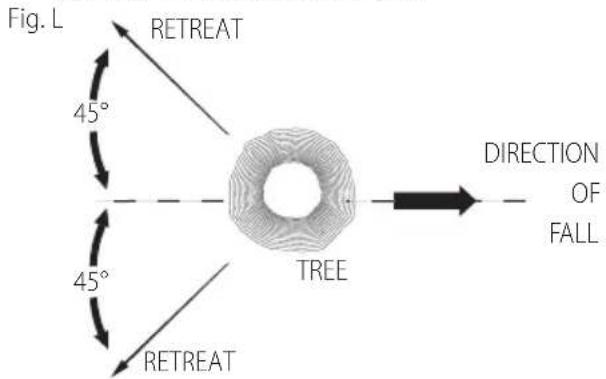

  • Felling - The process of cutting down a tree.

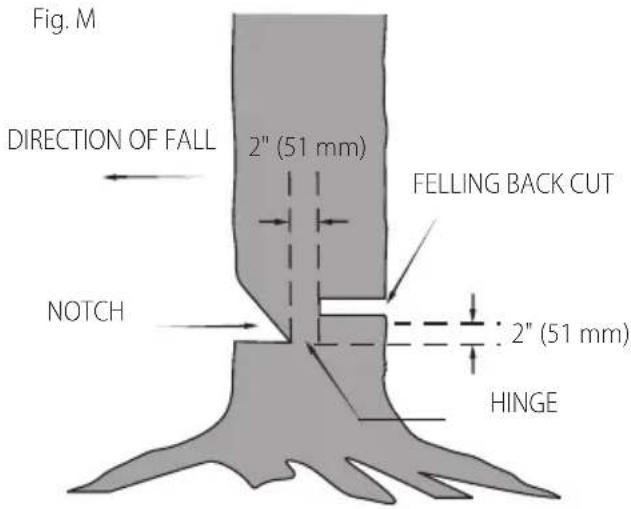

• Felling Back Cut - The final cut in a tree felling operation made on the opposite side of the tree from the notching cut.
• Front Handle - The support handle located at or toward the front of the chain saw.
• Front Hand Guard - A structural barrier between the front handle of a chain saw and the guide bar, typically located close to the hand position on the front handle.
• Guide Bar - A solid railed structure that supports and guides the saw chain.
• Scabbard/Guide Bar Cover - Enclosure fitted over guide bar to help prevent tooth contact when saw is not in use.

• Kickback - The backward or upward motion, or both of the guide bar occurring when the saw chain near the nose of the top area of the guide bar contacts any object such as a log or branch, or when the wood closes in and pinches the saw chain in the cut.

• Kickback, Pinch - The rapid pushback of the saw which can occur when the wood closes in and pinches the moving saw chain in the cut along the top of the guide bar.

• Kickback, Rotational - The rapid upward and backward motion of the saw which can occur when the moving saw chain near the upper portion of the tip of the guide bar contacts an object, such as a log or branch.

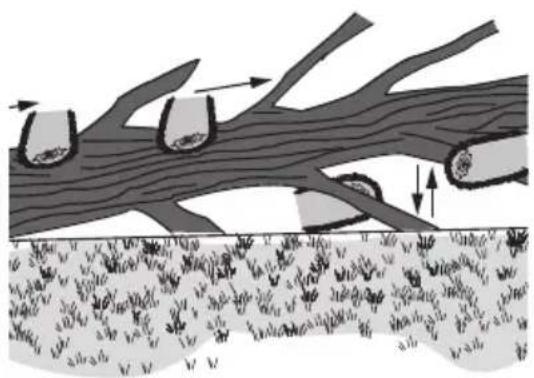

• Limbing - Removing the branches from a fallen tree.
• Low-Kickback Chain - A chain that complies with the kickback performance requirements of ANSI B175.1–2012 (when tested on a representative sample of chain saws.)
• Normal Cutting Position - Those positions assumed in performing the bucking and felling cuts.
• Notching Undercut - A notch cut in a tree that directs the tree's fall.
• Rear Handle - The support handle located at or toward the rear of the saw.
• Reduced Kickback Guide Bar - A guide bar which has been demonstrated to reduce kickback significantly.
• Replacement Saw Chain - A chain that complies with kickback performance requirements of ANSI B175.1–2012 when tested with specific chain saws. It may not meet the ANSI performance requirements when used with other saws.
• Saw Chain - A loop of chain having cutting teeth, that cut the wood, and that is driven by the motor and is supported by the guide bar.
• Ribbed Bumper - The ribs used when felling or bucking to pivot the saw and maintain position while sawing.
• Switch - A device that when operated will complete or interrupt an electrical power circuit to the motor of the chain saw.
• Switch Linkage - The mechanism that transmits motion from a trigger to the switch.
• Switch Lockout - A movable stop that prevents the unintentional operation of the switch until manually actuated.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce risk of injury:

• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.

- Save these instructions and review frequently.

WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

1. Avoid Dangerous Environment – Don't use appliances in damp or wet locations.
2. Don't Use In Rain.
3. Keep Children Away – All visitors should be kept at a distance from work area.
4. Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working

outdoors. Wear protective hair covering to contain long hair.

1. Use Safety Glasses – Always use face or dust mask if operation is dusty.
2. Use Right Appliance – Do not use appliance for any job except that for which it is intended.
3. Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the gardening appliance. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
4. Warning – To reduce the risk of electric shock, use only with an extension cord intended for outdoor use, such as an extension cord of cord type SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A. or SJTOW-A.
5. Extension Cord – Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized extension cord will cause a drop in line voltage resulting in loss of power and overheating. Table Minimum Gauge for Cord Sets, shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. To reduce the risk of disconnection of appliance cord from the extension cord during operating:

i) Make a knot as shown in Fig. B; or
ii) Use one of the plug-receptacle retaining straps or connectors described in this manual.

OR

iii) Secure the extension cord to the appliance plug as shown or described in the Operating Instructions.

Fig. B

Simple line drawing of a plug with wires, no text or symbols present

1. Avoid Unintentional Starting – Don't carry plugged-in appliance with finger on switch. Be sure switch is off when plugging in.
2. Don't Abuse Cord – Never carry appliance by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges.
3. Don't grasp the exposed cutting blades or cutting edges when picking up or holding the appliance.
4. Don't Force Appliance – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

5. Don't Overreach – Keep proper footing and balance at all times.

6. Stay Alert – Watch what you are doing. Use common sense. Do not operate appliance when you are tired.

7. Disconnect Appliance – Disconnect the appliance from the power supply when not in use, before servicing, when changing accessories such as blades, and the like.
8. Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place – out of reach of children.
9. Maintain Appliance With Care – Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect appliance power source periodically, and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.
10. Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

SAVE THESE INSTRUCTIONS

WARNING: Do not operate near electrical power lines. The unit has not been designed to provide protection from electric shock in the event of contact with overhead electric lines, Consult local regulations for safe distances from overhead electric power lines and ensure that the operating position is safe and secure before operating the saw chain pole pruner.

• Keep all parts of the body away from the saw chain. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. Blades coast after turn off. A moment of inattention while operating the pole saw may result in serious personal injury.
• Carry the pole saw by the handle with the saw chain stopped. When transporting or storing the pole saw always fit the saw chain device cover. Proper handling of the pole saw will reduce possible personal injury from the saw chain.
• Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. A saw chain contacting a "live" wire may make exposed metal parts of the tool "live" and could give the operator an electric shock.
• Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the saw chain.
• Do not use the pole saw in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.

ENGLISH

• Always use two hands when operating the pole saw. Hold the pole saw with both hands to avoid loss of control.
  • Always use head protection when operating the pole saw overhead. Falling debris can result in serious personal injury.

Before Operating Pole Saw

- For safe operation, read all instructions before using the pole saw. Follow all safety instructions. Failure to follow all safety instructions listed below, can result in serious personal injury.

- Watch what you are doing. Use common sense. Do not operate pole saw when you are tired.

- Use pole saw for cutting tree branches only. Do not use pole saw for purposes not intended. Do not use for cutting other items.

- Only well-instructed adults should operate pole saw. Never allow children to operate.

- Do not allow children or untrained individuals to use this unit.

• Wear the following safety gear when operating pole saw:
• heavy-duty gloves
• steel-toed safety footwear with non-skid soles
• safety glasses, goggles or face screen that are marked to comply with ANSI Z87
• safety hard hat that is marked to comply with ANSI Z89.1
• ear mufflers or ear plugs
• face or dust mask (if working in dusty areas)

- Wear heavy long pants and boots. Do not wear loose fitting clothing, short pants, jewelry of any kind, or go barefoot.

- Secure long hair so it is above shoulder level to prevent entanglement in any moving parts.

• Before cutting, always provide the following:

- clear work area

- secure footing

- planned retreat path from falling limbs

- Inspect tree before trimming. Make allowance for branches to fall freely to the ground.

- Do not use your pole saw to fell saplings.

While Operating Pole Saw

DANGER: To reduce the risk of electric shock do not use on wet surfaces. Do not expose to rain.

Store indoors.

DANGER: Avoid Unintentional Starting – with the power supply connected, don't carry appliance with with finger on switch. Be sure switch is off when connecting to power supply.

• Stay alert. Use common sense while operating the unit.
• Keep work area clean. Cluttered areas invite injuries.
  • Always disconnect the power supply from pole saw when finished cutting or when left unattended.

- Keep children, animals and bystanders at least 50' (15 m) away from pole saw. Only pole saw user should be in work area.

- Do not use the pole saw to cut down trees.

- Do not grasp the exposed saw chain when picking up or holding the pole saw.

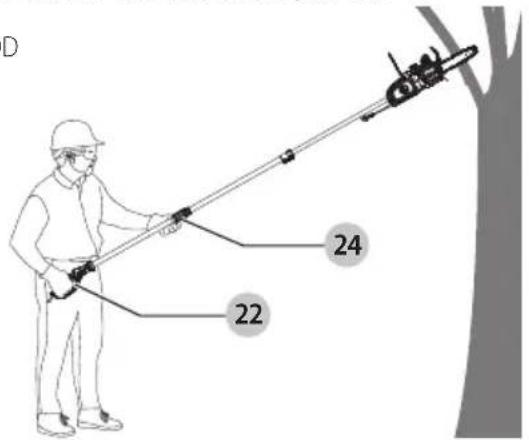

- Grip pole saw securely - one hand on the pole, the other on the handle.

- Keep finger off trigger until ready to make cut.

- Before starting pole saw, make sure chain is not touching anything.

- Keep all parts of body away from chain when pole saw is running.

- Do not force pole saw while cutting. Apply light pressure. It will do the job better and safer at the rate for which it was intended.

- Carry pole saw from one place to another:

- with power supply removed,

- fingers off/away from trigger,

- by holding pole at balance point, and

- with guide bar and chain to rear and with scabbard attached.

- Do not cut small brush and saplings with the pole saw. Slender matter may catch in the chain and be whipped toward you. This could also pull you off balance.

- Do not operate in poor lighting.

- Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance or exposure to hot surfaces.

- Keep all parts of your body away from any moving part.

- Do not, under any circumstance, use any attachment or accessory on this product, which was not provided with the product, or identified as appropriate for use with this product in this instruction manual.

- Inspect pole saw before each use and after dropping or other impacts. Ensure there are no significant defects or damage.

Do Not Operate Pole Saw:

• while under the influence of alcohol, medication, or drugs.
• in rain or in damp or wet areas.
• where highly flammable liquids or gases are present.
• if pole saw is damaged, adjusted incorrectly, or not fully and securely assembled.
• if trigger does not turn pole saw on and off. Chain must stop moving when you release trigger. Have faulty switch replaced by authorized service center. See

Accessories under Maintenance.

• while in a hurry.
• while in a tree or on a ladder.
• while on aerial booms, buckets or platforms.
• during high wind or storming weather.

GENERAL SAFETY RULES

DANGER: Shock Hazard. Serious injury or death from electrocution if power lines are contacted. Never use near any electrical source, wires, or power lines.

WARNING: For safe operation read and understand owner's manual. Wear face shield (and/or safety glasses) and hard hat to protect against falling debris. Always have a clear work area, retreat path, and be aware of limb/branch location to avoid falling limbs and debris. Keep bystanders 50 ft (15 m) away when operating saw. To reduce the risk of electric shock do not use on wet surfaces. Do not expose to rain. Store indoors.

• To protect yourself from falling branches do not stand directly under the branch or limb being cut. This unit should not be held at an angle over 60^ from ground level.
• Keep the handles dry, clean, and free of oil.
• Before you start the unit, make sure the chain is not contacting any object.
• Make sure the cutting chain has stopped before setting the unit down.

Guard Against Kickback

WARNING: KICKBACK may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a lightning fast reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. Either of these reactions may cause you to lose control of the saw which could result in serious injury to user.

The following precautions should be followed to maximize kickback:

• Grip pole saw firmly. Hold the saw firmly with both hands when the unit is running. Use a firm grip with thumbs and fingers encircling the saw handle and pole.
• Do not overreach.
• Keep proper footing and balance at all times.
• Don't let the nose of the guide bar contact a log, branch, ground or other obstruction.
• Do not extend pole saw handle above shoulder height.
• Use devices such as reduced kickback chain, chain braking system and special guide bars that reduce the risks associated with kickback.
• Only use replacement bars and chains specified by the manufacturer or the equivalent.
• Never let the moving chain contact any object at the tip of the guide bar.
• Keep the working area free from obstructions such as other trees, branches, rocks, fences, stumps, etc. Eliminate or avoid any obstruction that your saw chain could hit while you are cutting through a particular log or branch.
• Keep your saw chain sharp and properly tensioned. A loose or dull chain can increase the chance of kickback. Check

tension at regular intervals with the motor stopped and power supply disconnected.

- Begin and continue cutting only with the chain moving at full speed. If the chain is moving at a slower speed, there is a greater chance for kickback to occur.

- Cut one branch at a time.

- Use extreme caution when re-entering a previous cut. Engage spiked bumpers into wood and allow chain to reach full speed before proceeding with cut.

- Do not attempt plunge cuts or bore cuts.

- Watch for shifting branches or other forces that could close a cut and pinch or fall into chain.

Pole Saw Names and Terms

• Drive Sprocket or Sprocket - The toothed part that drives the saw chain.
• Guide Bar - A solid railed structure that supports and guides the saw chain.
• Guide Bar Scabbard - Enclosure fitted over guide bar to prevent tooth contact when saw is not in use.
• Kickback - The backward or upward motion, or both of the guide bar occurring when the saw chain near the nose of the top area of the guide bar contacts any object such as a log or branch, or when the wood closes in and pinches the saw chain in the cut.
• Reduced Kickback Chain - A chain that complies with the kickback performance requirements of ANSI B175.1–2012. (when tested on a representative sample of chainsaws.
• Reduced Kickback Guide Bar - A guide bar which has been demonstrated to reduce kickback significantly.
• Replacement Saw Chain - A chain that complies with kickback performance requirements of ANSI B175.1–2012. when tested with specific chainsaws. It may not meet the ANSI performance requirements when used with other saws.
• Saw Chain - A loop of chain having cutting teeth, that cut the wood, and that is driven by the motor and is supported by the guide bar.
• Spiked Bumper (Spike) - The pointed tooth or teeth for use when pruning to pivot the saw and maintain position while sawing.
• switch - A device that when operated will complete or interrupt an electrical power circuit to the motor of the chainsaw.
• Switch Lockout - A movable stop that prevents the unintentional operation of the switch until manually actuated.
• Trimming (Pruning) - Process of cutting limbs from a tree.
• Undercut - An upward cut from underside of a log or limb. This is done while in normal cutting position and cutting with top of guide bar.

Storage

1. Store indoors. The best storage place is one that is cool and dry away from direct sunlight, excess heat or cold and out of the reach of children.
2. Always reduce the tension off the chain again after finishing work. The chain contracts as it cools down. If tension is not reduced, it can damage the saw.

Additional Safety Information

WARNING: Never modify the power tool or any part of damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALL USERS AND BYSTANDERS MUST ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by power sanding,

scoring, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection that conforms to ANSI

S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

CAUTION: When not in use, place tool on its surface on a stable surface where it will not cause

a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120V 25 (7.6)		50 (15.2)	100 (30.5)	150 (45.7)
240V 50 (15.2)		100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0618	161614
6	10	181614	12
10	12	161614	12
12	16	14	12	Not Recommended

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts
Hz......hertz
min......minutes
or DC.....direct current

Class I Construction (grounded) .../min.....per minute

BPM.....beats per minute

ClassII Construction (double insulated)

n_0 .....no load speed n .....rated speed

⊕......earthing terminal

⚠️ ......safety alert symbol

△......visible radiation

...... avoid staring at light

E....wearrespiratory protection

⑦ weareye protectio

O....wearhearing protection

readall documentation

IPXX......IPsymbol

Intended Use

This chainsaw is ideal for pruning applications and cutting logs up to 8" (203 mm) in diameter.

DO nOT use under wet conditions or in presence of flammable liquids or gases.

DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

CHAINSAW ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Installing the Guide Bar and Saw Chain (Fig. A, C, D)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent supplemental operation, ensure the tool is unplugged before performing the following operations. Failure to do this could result in serious personal injury.

If the saw chain 5 and guide bar 4 are packed separately in the carton, the chain has to be attached to the bar, and both must be attached to the body of the tool.

1. Place the saw on a flat, firm surface.
2. Rotate the bar adjust locking nut 7 counterclockwise as shown in Fig. D to remove sprocket cover 6.
3. Wearing protective gloves, grasp the saw chain 5 and wrap it around the guide bar 4, ensuring the teeth are facing the correct direction.
4. Ensure the chain is properly set in the slot around the entire guide bar.
5. Place the saw chain around the sprocket 40 while lining up the slot in the guide bar with the bolt 41 in the base of the tool and the chain tensioning pin 42 as shown in Fig. C.

NOTE: You may need to adjust the position of the chain tension pin 42 for it to properly engage the slot in the guide bar by rotating the chain tensioning screw 8.

1. Rotate the screw in the front of the housing clockwise to increase the chain tension.
2. While holding the bar still, replace the sprocket cover 6.
3. Rotate the bar adjust locking nut 7 clockwise until snug, then loosen nut one full turn, so the saw chain can be properly tensioned.
4. Follow instructions for Adjusting Chain Tension in the next section.

Adjusting Chain Tension (Fig. A, E, F)

CAUTION: Sharp chain. Always wear protective gear when handling the chain. The chain is sharp and can cut you when it is not running.

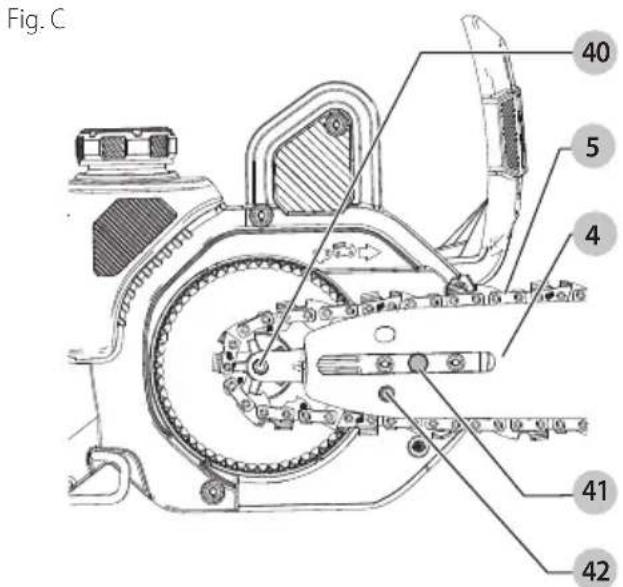

Fig. C 40 5 4 41 42

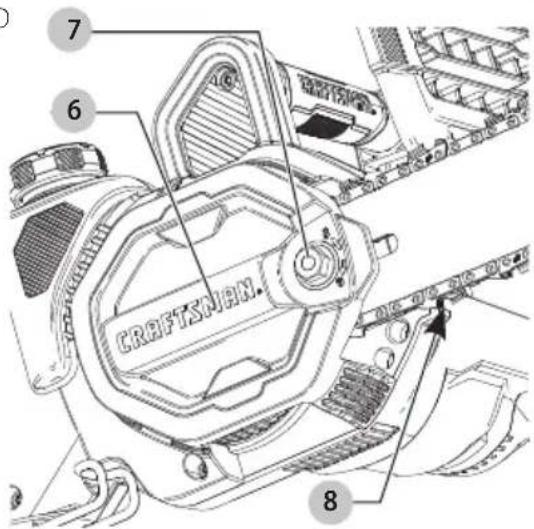

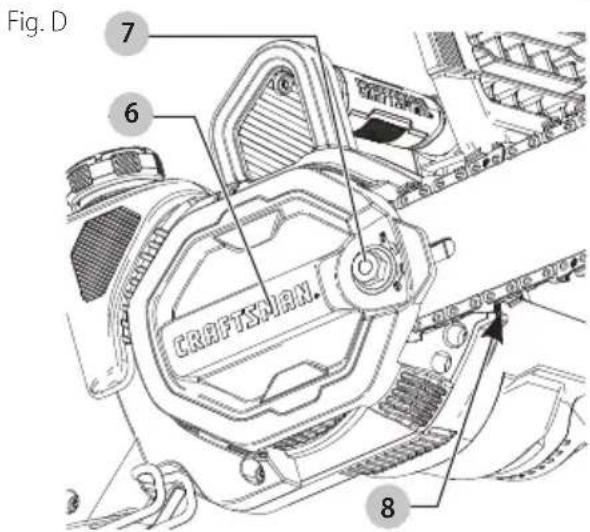

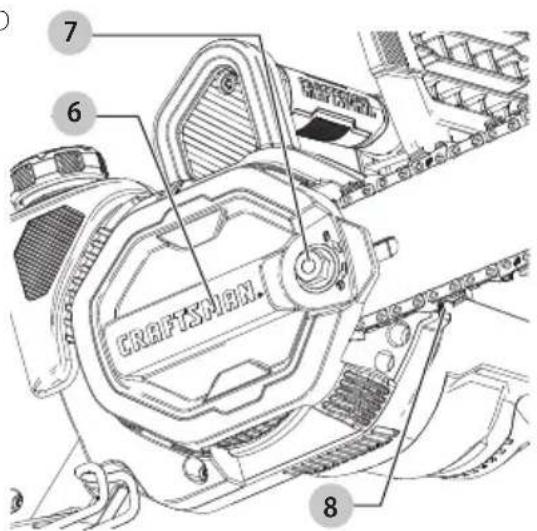

Fig. D 7 6 CRAFTMAN. 8

WARNING: Sharp moving chain. To prevent accidental operation, ensure the tool is unplugged before performing the following operations. Failure to do this could result in serious personal injury.

1. With the saw on a flat, firm surface, check the saw chain 5 tension. The tension is correct when the chain snaps back after being pulled 1/8" (3 mm) away from the guide bar 4 with light force from the index finger and thumb as shown in Fig. E.
2. To adjust saw chain tension, loosen bar adjust locking nut 7, rotate the chain tensioning screw 8 clockwise to increase tension.
3. Tighten the bar adjust locking nut until snug after making sure the saw chain 5 is snug around the guide bar 4. There should be no "sag" between the guide bar and the chain on the underside as shown in Fig. F.
4. Once chain tension is correct, securely tighten bar adjust locking nut.
5. Do not over-tension the chain as this will lead to excessive wear and will reduce the life of the bar and chain.
6. When the chain is new, check the tension frequently (after unplugging tool) during the first 2 hours of use as a new chain stretches slightly.

English

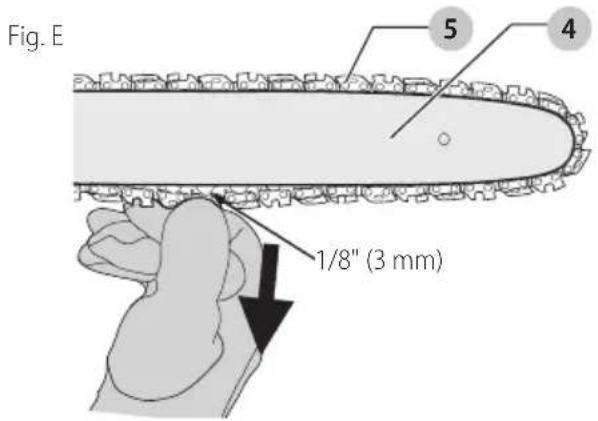

Fig. E 5 4 1/8" (3 mm)

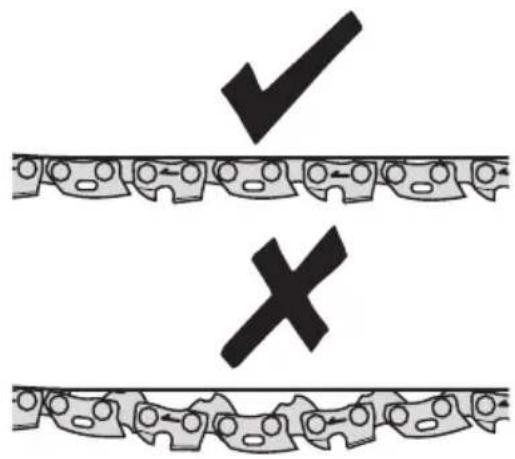

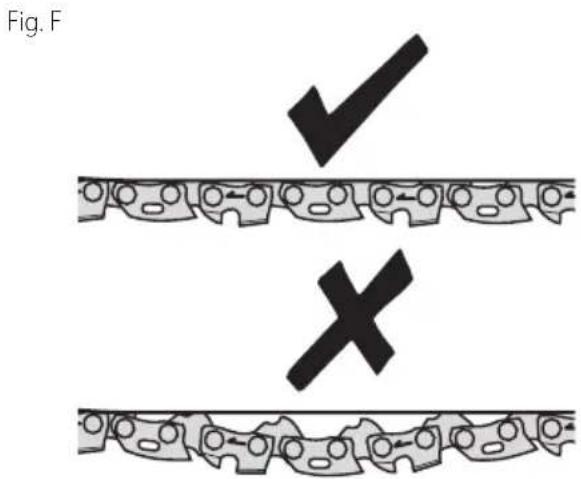

Fig. F

Diagram showing a checkmark and cross symbol between two mechanical components, likely indicating selection or comparison.

Replacing the Saw Chain (Fig. A, G)

CAUTION: Sharp chain. Always wear protective gear when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent documental operation, ensure the tool is unplugged before performing the following operations. Failure to do this could result in serious personal injury.

1. Rotate the chain tensioning screw 8 counterclockwise to lessen chain tension.
2. Remove sprocket cover 6 as described in Installing the Guide Bar and Saw Chain section.
3. Lift the worn saw chain 5 out of the groove in the guide bar 4.
4. Place the new chain in the slot of the guide bar, making sure the saw teeth are facing the correct direction by matching the arrow on the chain with the graphic on the sprocket cover 6 shown in Fig. G.
5. Follow instructions for Installing the Guide Bar and Saw Chain.

Fig. G

Diagram showing a vehicle silhouette with a magnified inset highlighting a specific area (no text or symbols present)

Saw Chain and Guide Bar Oiling (Fig. A)

Auto Oiling System

This chainsaw is equipped with an auto oiling system that keeps the saw chain and guide bar constantly lubricated. The oil level indicator 17 shows the level of the oil in the chainsaw. If the oil level is less than a quarter full, unplug the chainsaw and refill with the proper oil.

NOTE: Use a high quality bar and chain oil for proper saw chain and bar lubrication. As a temporary substitute, a non-detergent SAE30 weight motor oil can be used. The use of a vegetable based bar and chain oil is recommended when pruning trees. Mineral oil is not recommended because it may harm trees. Never use waste oil or very thick oil. These may damage your chainsaw.

Filling the Oil Reservoir

1. Remove the oil cap 16 and fill the reservoir with the recommended chain oil until the oil level has reached the top of the oil level indicator 17.
2. Refit the oil cap.
3. Periodically switch the chainsaw off and check the oil level indicator to ensure the bar and chain are being properly oiled.

Attaching Extension Cord to Chainsaw (Fig. H)

An extension cord retainer 13 is built into the switch handle. It prevents the extension cord from coming unplugged.

1. Double the extension cord and insert it into the slot 14 in the end of the handle area as shown in Fig. H.
2. Hook the loop formed by doubling the cord over the cord retainer 13. Gently tug on the cord to ensure that it is firmly retained in the handle.
3. Plug the receptacle end of the chainsaw power cord 12 into the extension cord adapter 15.
4. Plug the receptacle end of the extension cord into the extension cord adapter 15.

NOTE: Always keep the extension cord away from the cutting area and position the extension cord so that it will not be caught on branches, and other material, during cutting.

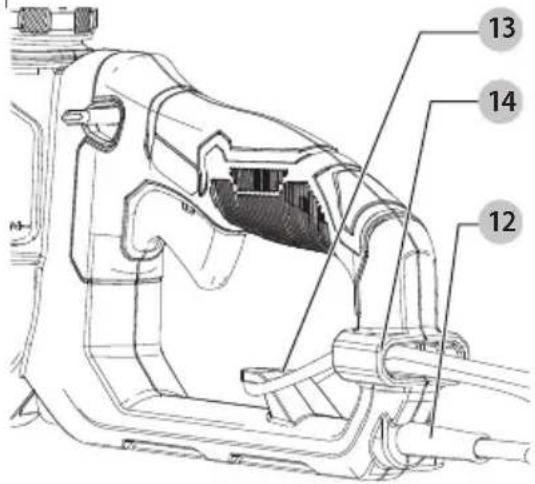

Fig. H

Technical diagram of a mechanical assembly with numbered parts labeled 12, 13, and 14

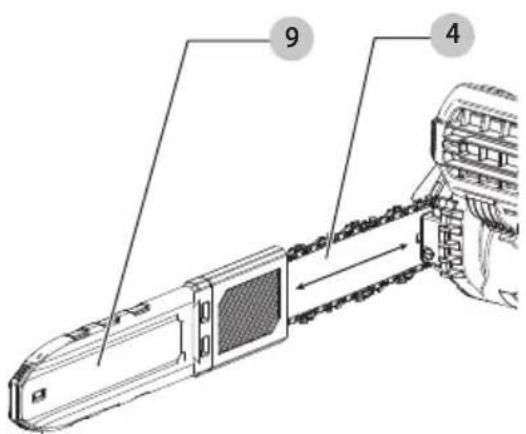

Transporting Chainsaw (Fig. A, I)

• Always turn unit off and disconnect it from power source and cover the guide bar 4 with the guide bar scabbard 9 when transporting the saw.

Fig.1

Technical diagram of a chain-link robotic device with numbered components labeled 4 and 9

CHAINSAW OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

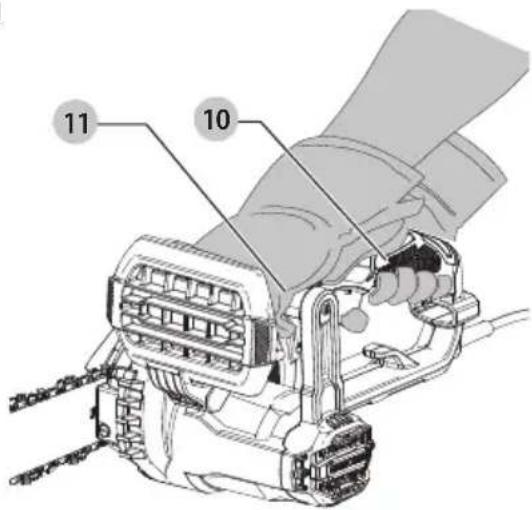

Proper Hand Position (Fig. J)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires the left hand on the front handle 11, with the right hand on the rear handle 10.

Fig. J

11 10

Operating the Chainsaw (Fig. A)

WARNING: Read and understand all instructions. Follows to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

- Guard Against Kickback which can result in severe injury or death. See General Power Tool Safety Warnings, Causes and Operator Prevention of Kickback and Kickback Safety Features, to avoid the risk of kickback.

- Do not overreach. Do not cut above chest height. Make sure your footing is firm. Keep feet apart. Divide your weight evenly on both feet.

- Use a firm grip with your left hand on the front handle 11 and your right hand on the rear handle 10 so that your body is to the left of the guide bar.

- Do not hold chainsaw by front hand guard 3. Keep elbow of left arm locked so that left arm is straight to withstand a kickback.

WARNING: Never use a cross-handed grip (left hand on the rear handle and right hand on the front handle).

WARNING: Never allow any part of your body to be online with the guide bar 4 when operating the chain saw.

- Never operate while in a tree, in any awkward position or on a ladder or other unstable surface. You may lose control of saw causing severe injury.

- Keep the chainsaw running at full speed the entire time you are cutting.

- Allow the saw chain to cut for you. Exert only light pressure. Do not put pressure on chainsaw at end of cut.

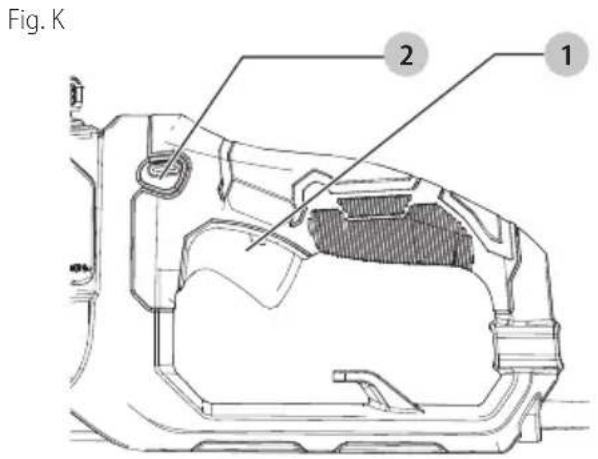

ON/OFF Switch (Fig. K)

Always be sure of your footing and grip the chainsaw firmly with both hands with the thumb and fingers encircling both handles.

ENGLISH

To turn the tool ON, depress the lock off button 2 and squeeze the trigger switch 1 as shown in Fig. K. Once the tool is running you can release the lock off button. To turn the unit off, release the trigger.

Fig. K 2 1

Common Cutting Techniques (Fig. A, L–S) Felling

The process of cutting down a tree. Do not fell trees in high wind conditions.

WARNING: Felling can result in injury. It should only be performed by a trained person.

- A retreat path should be planned and cleared as necessary before cuts are started. The retreat path should extend back and diagonally to the rear of the expected line of fall (refer to Fig. L).

• Before felling is started, consider the natural lean of the tree, the location of larger branches and the wind direction to judge which way the tree will fall. Have wedges (wood, plastic or aluminum) and a heavy mallet handy. Remove dirt, stones, loose bark, nails, staples, and wire from the tree where the felling cuts are to be made.
• Notching Undercut - Make the notch 1/3 of the diameter of the tree, perpendicular to the direction of the fall. Make the lower horizontal notching cut first. This will help to avoid pinching of either the saw chain or the guide bar when the second notch cut is being made (refer to Fig. M).
• Felling Back Cut - Make the felling back cut at least 2" (51 mm) higher than the horizontal notching cut. Keep the felling back cut parallel to the horizontal notching cut. Make the felling back cut so enough wood is left

to act as a hinge. The hinge wood keeps the tree from twisting and falling in the wrong direction. Do not cut through the hinge (refer to Fig. M).

Fig. M DIRECTION OF FALL 2" (51 mm) FELLING BACK CUT NOTCH : 2" (51 mm) HINGE

- As the felling cut gets close to the hinge the tree should begin to fall. If there is any chance that the tree may not fall in the desired direction or it may rock back and bind the saw chain, stop cutting before the felling cut is complete and use wedges to open the cut and drop the tree along the desired line of fall. When the tree begins to fall remove the chainsaw from the cut, stop the motor, put the chainsaw down, then use the retreat path planned. Be alert for overhead limbs falling and watch your footing.

Limbing

Removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut. Branches under tension should be cut from the bottom of the branch towards the top to avoid binding the chainsaw as shown in Fig. N. Trim limbs from opposite side keeping tree stem between you and saw. Never make cuts with saw between your legs or straddle the limb to be cut.

Fig. N

Diagram of a tree trunk with roots and leaves, showing growth arrows and soil layers (no text or labels)

Bucking

WARNING: Recommend that first time users should practice cutting on a saw horse.

Bucking is cutting a felled tree or log into lengths. How you should cut depends on how the log is supported.

NOTE: Use a saw horse (Fig. O) whenever possible. When using a saw horse, this is strongly recommended whenever possible. Position the log in a stable position. Always cut on the outside of the saw horse arms.

Fig. O

Technical line drawing of a mechanical assembly with wooden components and a circular component (no text or symbols)

1. Always start a cut with the saw chain running at full speed.
2. Place the bottom spike 34 of the chainsaw behind the area of the initial cut as shown in Fig. P.

Fig. P

34 CUT FROM TOP (OVERBUCK) AVOID CUTTING EARTH

1. Turn the chainsaw on then rotate the saw chain and bar down into the tree, using the spike as a hinge.
2. Once the chainsaw gets to a 45^ angle, level the chainsaw again and repeat steps until you cut fully through.

3. When the tree is supported along its entire length, make a cut from the top (overbuck), but avoid cutting the earth as this will dull your saw quickly.

4. Fig. Q- When supported at one end First, cut 1/3 the diameter from the underside (underbuck). Then make the finishing cut by overbucking to meet the first cut.
   Fig. Q


2nd CUT OVERBUCK (2/3 DIAMETER) TO MEET 1st CUT (TO AVOID PINCHING) 1st CUT UNDERBUCK (1/3 DIAMETER) AVOID SPLINTERING

Fig. R- When supported at both ends. First, cut 1/3 down from the top overbuck. Then make the finished cut by underbucking the lower 2/3 to meet the first cut.

Fig. R

1st CUT OVERBUCK (1/3 DIAMETER) TO AVOID SPLINTERING 2nd CUT UNDERBUCK (2/3 DIAMETER) TO MEET 1st CUT (TO AVOID PINCHING)

Fig. S- When on a slope always stand on the uphill side of the log. When "cutting through", to maintain complete control reduce the cutting pressure near the end of the cut without relaxing your grip on the chainsaw handles. Don't let the chain contact the ground. After completing the cut, wait for the saw chain to stop before you move the chainsaw. Always stop the motor before moving from cut to cut.

Fig. S

Illustration of a wooden log being cut with a chainsaw, no text or symbols present

POLE SAW ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

WARNING: Always completely assemble the extension pole assembly together before attaching the chainsaw to the extension pole assembly.

English

Joining Extension Assembly to the Handle Assembly (Fig. T–V)

The two assemblies which make up the extension pole assembly are keyed to insure a correct assembly. If an assembly does not smoothly attach to another do not force fit.

To attach the handle assembly to the extension assembly:

1. Align the groove 35 on the outside of the coupling end of the handle assembly 24 with the tongue 36 on the inside of the coupling end of the extension assembly 26. Refer to Fig. T Push the two sections completely together. Refer to Fig. U.

2. Slide the threaded sleeve 27 on the extension assembly down as far as possible and rotate the sleeve clockwise until tightened and completely covers the threads as shown in Fig. V.

WARNING: Always check to make sure that the sleeve is completely threaded on and that the threads are no longer visible. Not threading the sleeve completely on could result in the assemblies becoming disconnected creating a hazardous condition. Periodically check the connections to insure that no threads are visible.

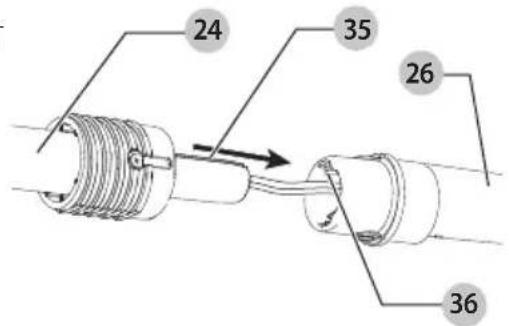

Fig. T

24 35 26 36

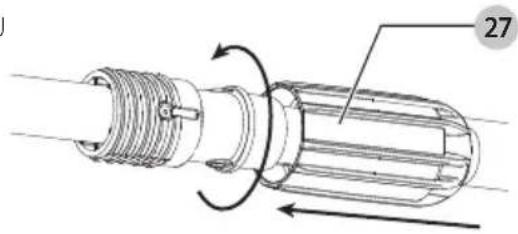

Fig. U

27

Fig. V

Technical line drawing of a cylindrical mechanical component with flanged ends (no text or symbols)

Attaching Extension Cord to Pole Saw (Fig. A, W)

An extension cord retainer 21 is built into the pole saw switch handle. It prevents the extension cord from coming unplugged.

1. Double the extension cord and insert it into the slot 38 in the end of the handle area as shown in Fig. W.

2. Hook the loop formed by doubling the cord over the cord retainer 21. Gently tug on the cord to ensure that it is firmly retained in the handle.

3. Plug the receptacle end of the extension cord into the power cord 23 of the pole saw.

NOTE: Always keep the extension cord away from the cutting area and position the extension cord so that it will not be caught on branches, and other material, during cutting.

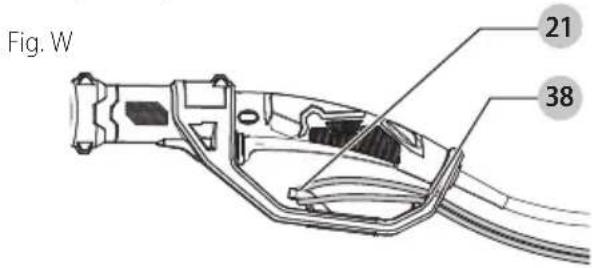

Fig. W 21 38

Joining Chainsaw and Extension Pole Assembly (Fig. A, X—AA)

WARNING: Sharp moving blade. To prevent additional operation, insure that unit is off and disconnected from a power source before performing the following operations. Failure to do this could result in serious personal injury.

WARNING: Always completely assemble the extension pole assembly together before attaching the chainsaw to the extension pole assembly.

Adding the extension pole assembly 18 to the chainsaw 37 creates a pole saw that is approximately 10^ (3 m) in length.

1. Remove the pole saw adapter plate 29 from the pole saw adapter 28 by twisting the locking knob 30 counterclockwise. Refer to Fig. X
2. Align the pole saw adapter 28 on the inside of the chainsaw handle 10. Refer to Fig. Y
3. Place the pole saw adapter plate 29 on the outside of the chainsaw handle 10 and push the two sections completely together so the chainsaw handle is clasped between the two. Refer to Fig. Z.
4. Secure the pole saw adapter plate 29 and pole saw adapter 28 to the chainsaw handle 10 by twisting the locking knob 30 clockwise until tight. Refer to Fig. Z.

WARNING: Check to make sure that the adapter plate is completely threaded on and that the chainsaw if fully secured. Not fully securing the adapter plate and adapter to the chainsaw on could result in the assemblies becoming disconnected creating a hazardous condition. Periodically check the connections to insure that the assembly is fully secured.

1. Plug the receptacle end of the pole saw adapter power cord 33 into the chainsaw power cord 12 as shown in Fig. AA.

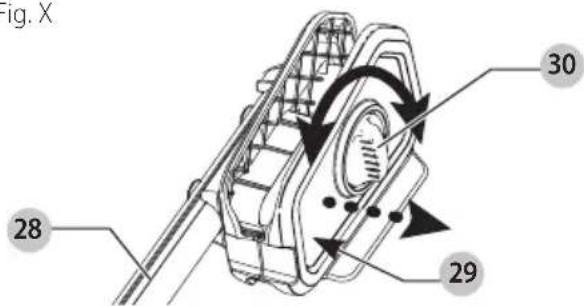

Fig. X

Fig. X 28 30 29

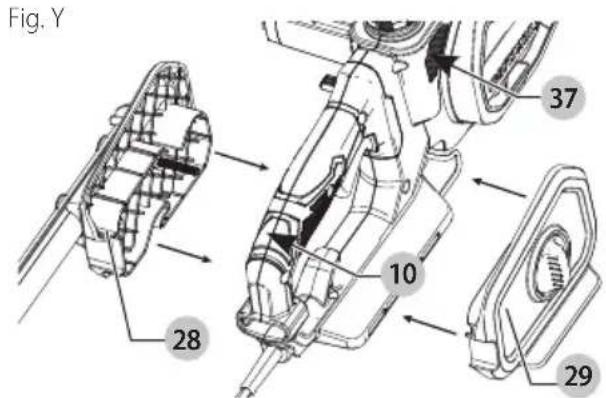

Fig. Y 28 10 37 29

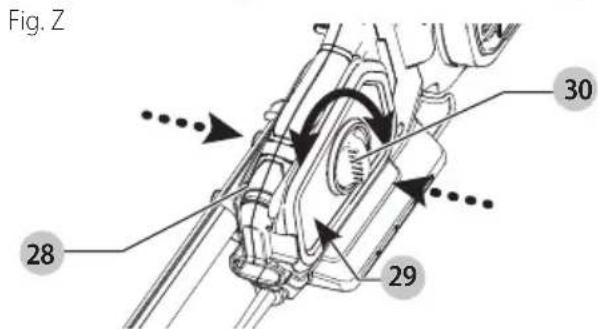

Fig. Z 28 29 30

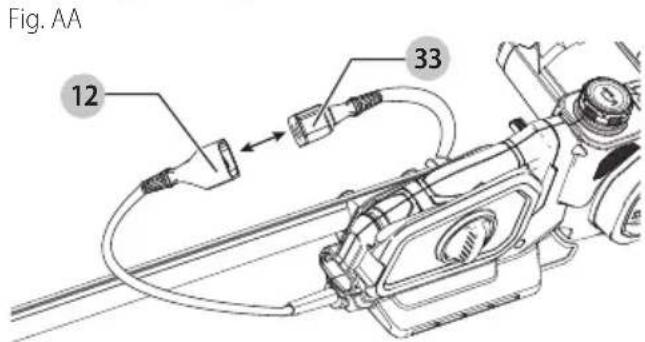

Fig. AA 12 33

Adjusting the Pole Length (Fig. BB, CC)

WARNING: Always check to make sure that the extension pole adjust lever is completely locked and that the extension pole does not move before using or transporting the tool. Not locking the pole extension adjust lever could result in the tool head unexpectedly moving, creating a hazardous condition. Periodically check the extension adjust lever to ensure that it is completely locked.

1. Unlock the extension pole adjust lever 31 as shown in Fig. BB.
2. With one hand firmly grasping the extension assembly 26, slide the extension pole 32 out with the other hand as shown in Fig. CC. This will reveal the extension pole 32.

NOTE: The tool can be operated at any length of the extension pole

1. Once the desired extension length is acquired, lock the pole extension adjust lever 31 to secure the extension pole in place. Ensure the extension pole does not move before use.

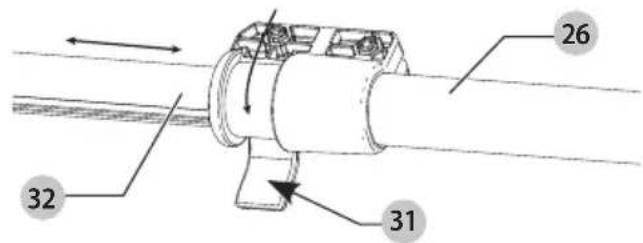

Fig. BB

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

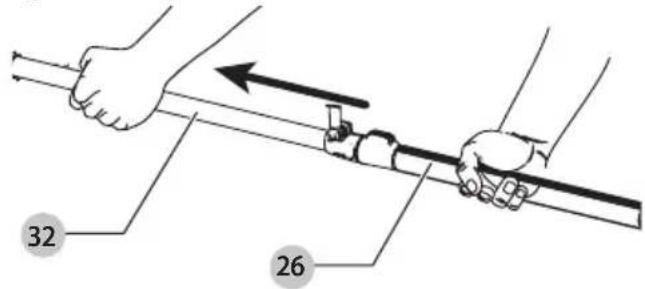

Fig. CC

32 26

DISASSEMBLY

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Detaching Chainsaw and Extension Pole Assembly (Fig. X-AA)

WARNING: Sharp moving blade. To prevent additional operation, insure that unit is off and disconnected from a power source before performing the following operations. Failure to do this could result in serious personal injury.

1. Rest the pole saw assembly flat on the ground.
2. Unplug the receptacle end of the pole saw adapter power cord 33 from the chainsaw power cord 12 as shown in Fig. AA.
3. Remove the pole saw adapter plate 29 from the pole saw adapter 28 by twisting the locking knob counterclockwise. Refer to Fig. Z
4. Remove the chainsaw 37. Reassemble the pole saw adapter plate 29 to the pole saw adapter 28 for later use. Refer to Fig. X.

Disassemble the Pole Extension from the Handle Assembly (Fig. U)

1. Loosen the threaded sleeve and then pull the two halves apart.

POLE SAW OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Proper Hand Position (Fig. DD)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the main handle 22 and one hand on the pole 24.

Fig. DD

D 24 22

Operating the Pole Saw (Fig. A)

WARNING: Read and understand all instructions. I believe to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

CAUTION: Always reduce the tension off the chain again after finishing work. The chain contracts as it cools down. If it is not slackened off, it can damage the chainsaw.

CAUTION: Do not lift the pole saw beyond 60 degrees from level ground.

IMPORTANT: Never operate a pole saw that is damaged or improperly adjusted or that is not completely and securely assembled. Be sure that the saw chain 5 stops moving when the trigger switch is released. Never adjust the guide bar 4 or saw chain when the motor is operating or the power source is attached.

Pole Saw Trimming/Pruning

- Never stand directly under the limb you are cutting. Always position yourself out of the path of falling debris.

• Always wear head, eye, foot and body protection. Wearing body protection helps reduce the risk of injury when operating this unit.

- Never stand on a ladder or other unstable support while using the pole saw. Always avoid any position which can cause you to lose your balance and cause severe injury.

- Keep other persons at least 50' (15 m) from the work area. Distractions can cause you to lose control.

- Electrocution Hazard. To prevent shock, do not operate within 50' (15 m) of overhead electrical lines. Always check surrounding area for hidden electrical lines.

- Do not extend pole saw switch handle above shoulder height.

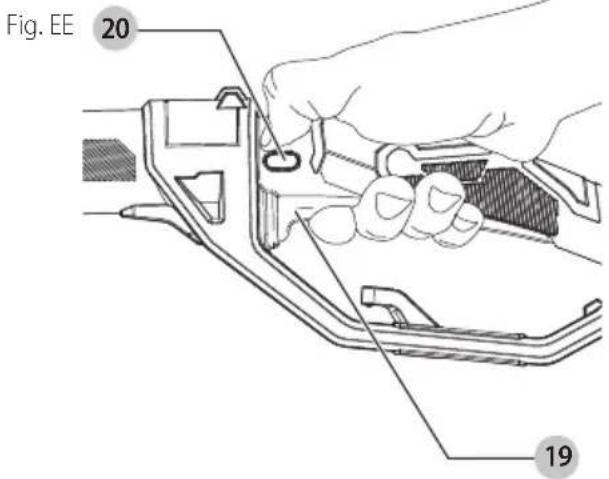

On/Off Switch (Fig. EE)

Always be sure of your footing and grip the pole saw firmly with both hands with the thumb and fingers encircling the handle.

1. To turn the tool ON press in the lock button 20 with your thumb and then squeeze the trigger switch 19 with your fingers as shown in Fig. EE. (Once the tool is running you can release the lock button.)

2. To turn the tool OFF, release the trigger.

Fig. EE 20 19

Pruning With the Pole Saw (Fig. A, DD, FF)

WARNING: Let the tool work at its own pace. Do not overload. WARNING: When pruning trees: guard against lack of back which can result in severe injury or death.

See Guard Against Kickback, to avoid the risk of kickback. Do not overreach. Make sure your footing is firm. Keep feet apart. Divide your weight evenly on both feet.

1. Use both hands to grip the pole saw as shown in Fig. DD. Use a firm grip. Thumbs and fingers must wrap around pole saw handle and pole.

2. Never operate while in a tree, in any awkward position or on a ladder or other unstable surface. You may lose control of the pole saw causing severe injury.

3. Follow directions below to trim a tee.

a. Make sure pole saw is running at full speed before making a cut. When starting a cut, place moving saw chain 5 against the limb. Hold the pole saw firmly in place to avoid possible bouncing or skating (sideways movement) of the pole saw.

b. Guide the pole saw using light pressure. Make the first cut about 6" (152 mm) from tree trunk on the underside of the limb. Use the top of guide bar 4 to make this cut. Cut 1/3 through the diameter of the limb. Then make the finish cut from the top as shown in Fig. FF.

NOTE: If you try to cut off thick branches from the bottom, the branch may close in and pinch the saw chain in the cut. If you try to cut off thick branches from the top, without a shallow undercut, the branch

may splinter. Do not force the pole saw. The motor will overload and can burn out. It will do the job better and safer at the rate for which it was intended.

c. Remove the pole saw from the cut while it is running at full speed. Stop pole saw by releasing trigger switch 19. Make sure saw chain has stopped before setting the pole saw down.

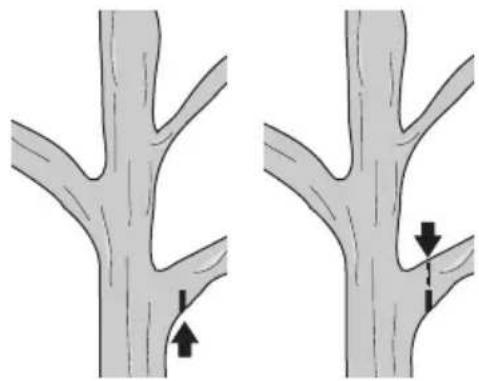

Fig. FF

Two diagrams showing tree branches with arrows indicating movement or change, no text or symbols present

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Regular maintenance ensures a long effective life for the tool. After every 10 minutes of use, turn the unit off, disconnect the appliance from the power source (be aware the chain and bar can be hot!) and check the bar and chain for correct tension and lubricate per Adjusting Chain Tension and Saw Chain and Guide Bar Oiling.

Saw Chain and Guide Bar

After every few hours of use, remove the guide bar and clean thoroughly.

Saw Chain Sharpening (Fig. GG, HH, II)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent documental operation, ensure the tool is unplugged before performing the following operations. Failure to do this could result in serious personal injury.

NOTE: The cutters will dull immediately if they touch the ground or a nail while cutting.

To get the best possible performance from your chainsaw it is important to keep the teeth of the saw chain sharp.

Follow these helpful tips for proper saw chain sharpening:

1. For best results use a 4.5 mm file and a file holder or filing guide to sharpen your saw chain. This will ensure you always get the correct sharpening angles.

2. Place the file holder flat on the top plate and depth gauge of the cutter.

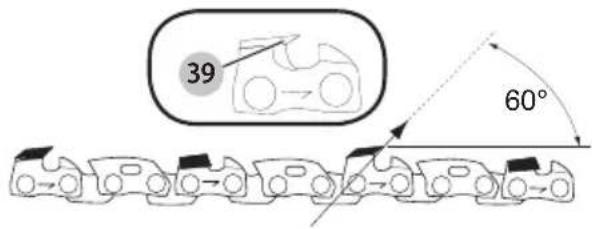

3. Fig. GG- Keep the correct top plate 39 filing angle line of 30^ on your file guide parallel with your chain (file at 60^ from chain viewed from the side).

4. Sharpen cutters on one side of the chain first. File from the inside of each cutter to the outside. Then turn your saw around and repeat the processes (2, 3, 4) for cutters on the other side of the chain.

NOTE: Use a flat file to file the tops of the rakers (portion of chain link in front of the cutter) so they are about .025" (.635 mm) below the tips of the cutters as shown in Fig. HH.

1. Fig. II- Keep all cutter lengths equal.
2. If damage is present on the chrome surface of the top plates or side plates, file back until such damage is removed.

CAUTION: After filing, the cutter will be sharp, use extra caution during this process.

NOTE: Each time the chain is sharpened, it loses some of the low kickback qualities and extra caution should be used. It is recommended that a saw chain be sharpened no more than four times.

Fig. GG

39 60°

Fig. HH

.025" (0.635 mm)

Fig. II

A A=B B

English

Accessories

WARNING: Since accessories, other than those created by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.

WARNING: The use of accessories not recommended in this manual may be hazardous.

Replacement chain and bar are available from your nearest CRAFTSMAN authorized service center. For use only with low kick back bar and chain.

Available bars and chains for CMECsP610:

Bar: service part number CMZCSB10

Chain: service part number CMZCSC10

Versatrack™ (Fig. JJ)

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: To reduce the risk of serious personal injury, do not use a damaged Versatrack™ integral hang hook or Versatrack™ Trackwall. A damaged Versatrack™ integral hang hook or Versatrack™ Trackwall will not support the weight of the tool.

WARNING: To reduce the risk of serious personal injury, DO NOT suspend tool overhead or suspend objects from the integral hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the integral hang hook.

WARNING: The Versatrack™ integral hang hook is intended to mount the tool onto a Versatrack™ Trackwall rail. Do not use the integral hang hook to mount the tool to any other surface.

WARNING: The Versatrack™ integral hang hook is not a belt hook.

WARNING: When hanging objects on a Versatrack™ Tsoa wall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.

WARNING: Before using the tool make sure that the Versatrack™ integral hang hook is returned to its original position.

iIMPORTAnT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwall system.

1. Turn tool off, disconnect it from power source and remove accessories.

CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on the Versatrack™ Trackwall.

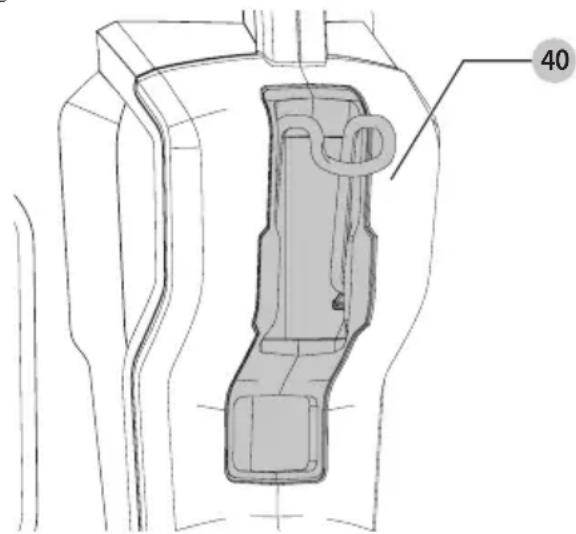

1. Flip or pull open the integral hang hook 40. It clicks when locked into position.

2. Mount the integral hang hook to the Versatrack™ Trackwall.

NOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

Fig. JJ

Technical line drawing of a mechanical component with no visible text or symbols

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Repairs

WARNING: To assure product SAFETY and RESPONSIBILITY, repairs, maintenance and adjustment (including power cord repairs, and brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call

1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

Simple line drawing of a medical or laboratory device with tubing and connector (no text or symbols)

fabrication classe II (double isolation)

.../min....parminute

Technical diagram of a mechanical device with numbered parts labeled 40, 41, and 42

Fig. D

CRAFTSMAN 6 7 8

FRAnÇAis

Diagram showing a checkmark and cross symbol between two mechanical components, likely indicating selection or confirmation.

Diagram showing a vehicle interior with a highlighted section and a detailed view of the interior (no text or symbols present)

Technical diagram of a robotic device with labeled parts 10 and 11, showing hand operating mechanism.

Technical diagram of a car body panel with labeled components 1 and 2

Diagram of tree branches with arrows indicating movement or flow, showing root system and soil layers (no text or symbols)

Tronçonnage

Technical illustration of a wooden cutting machine with a handle and blade, showing wood grain and structural components (no text or symbols)

FRANÇAIS

Illustration of a wooden log being cut with a chainsaw, showing wood and grain (no text or symbols)

ASSEMBLAGE ET AJUSTEMENTS DE LA SCIE À LONG MANCHE

Diagram of a cylindrical electronic component with internal ridged structure, labeled Fig. V (no text or symbols on the object itself)

Two diagrams showing tree branches with arrows indicating movement or force (no text or symbols)

MAINTENANCE

Simple line drawing of a medical or laboratory device with coiled tubing and a central connector (no text or symbols)

Technical diagram of a mechanical device with numbered parts labeled 40, 41, and 42

Fig. D

7 6 CRAFTMAN. 8

EsPAÑOI

Fig. E 5 4 3 mm (1/8")

Fig. F ✓ ×

Diagram showing vehicle components with a highlighted section, no text or symbols present

Technical diagram of a mechanical component with labeled parts 1 and 2

Técnicas comunes de corte (Fig. A, L–S)

Tala

Diagram of a tree trunk with roots and leaves, showing growth arrows and soil layers (no text or labels)

Derribo

Technical line drawing of a wooden cutting machine with a circular cutter and wooden base (no text or symbols)

Illustration of a wooden log being cut with a chainsaw, showing wood and grain (no text or symbols)

Diagram of a cylindrical electronic component with internal ridged structure, labeled Fig. V (no text or symbols on the object itself)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Fig. CC

32 26

DESENSAMBLE

Illustration of a person using a long tool to clean or spray a tree, no text or symbols present

Two diagrams showing tree branches with arrows indicating movement or change, no text or symbols present

MANTENIMIENTO

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP
