USER MANUAL CMXPTSG1014NB Craftsman

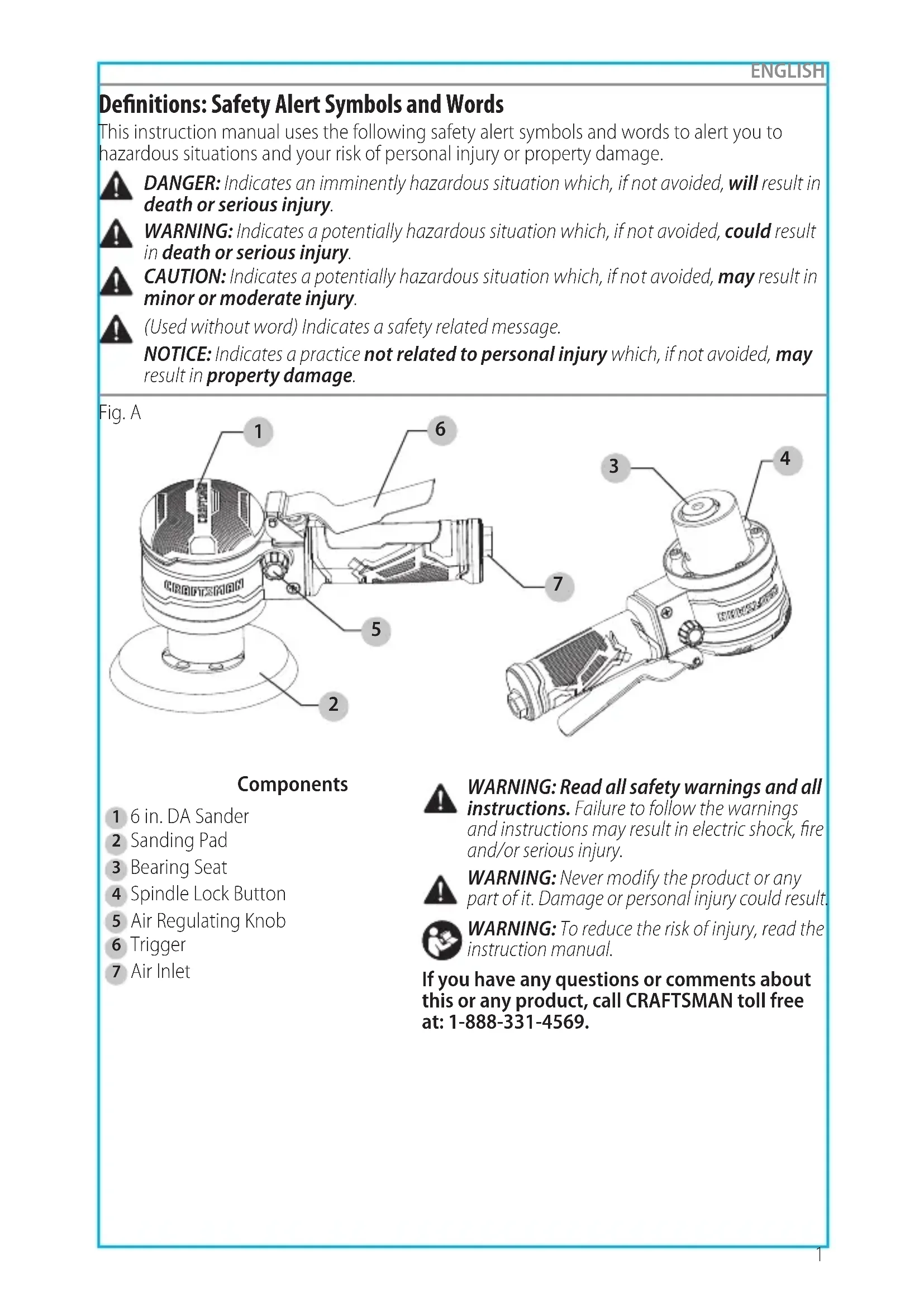

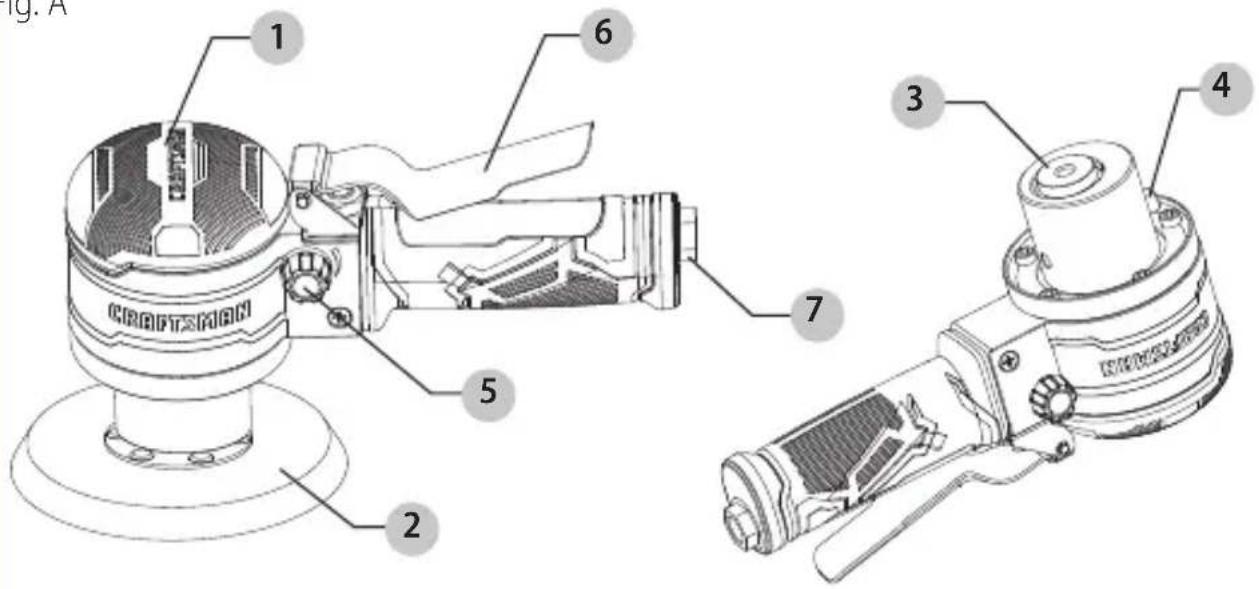

Air Inlet Fig. A Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result

in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage. (Used without word) Indicates a safety related message.

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: Never modify the product or any

part of it. Damage or personal injury could result.

WARNING: To reduce the risk of injury, read the

instruction manual. If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

WARNING: Failure to observe and follow safety instructions could result in injury or death.

WARNING: Improper operation or maintenance of this tool could result in serious injury

and property damage. Read and understand all warnings and operation instructions before using this tool. When using any tool, basic safety precautions should always be followed to reduce the risk of personal injury. Anticipate and be alert for sudden changes in motion during startup and operation of any power tool. Do not operate tool if trigger does not turn the tool on or off. Do not use this tool at heights exceeding 6 feet (2m). Use each tool for its intended function only. Do not use this product in unsafe work conditions. It is always recommended to keep a fire extinguisher and first aid kit near work areas.

WARNING: User must also read the compressor manual and follow all compressor safety

instructions. CMXPTSG1014NB Compressor requirements IMPORTANT: To operate correctly, this tool requires airflow that is at least 5.2 Standard Cubic Feet per Minute (SCFM) per minute at 90 pounds per square inch (PSI). Check the specifications of your air compressor to be sure that it can support both the minimum SCFM and PSI required. The air hose length could affect how much air pressure the tool is actually receiving. You may need to adjust the air pressure higher on the air regulator to achieve the working pressure of 90 PSI.

Tool Requirements Exigences relatives aux outils Requisitos de herramientasWhat can happen How to prevent it This air powered tool is capable of propelling materials such as fasteners, metal chips, and other debris at high speed which could result in serious injury. Always wear ANSI approved Z87.1 safety glasses. Never leave operating tool unattended. Disconnect tool from air supply when tool is not in use or when changing accessories to prevent accidental operation. Compressed air can be hazardous, propelling objects or particles that can cause injury into soft tissues such as eyes and ears. For additional protection, use an approved face shield in addition to safety glasses. Tool attachments can become loose or break and fly apart, becoming projectiles or propelling other objects at the operator or bystanders in the work area. Make sure the sanding pad is tight prior to each use.

What can happen How to prevent it This tool is capable of generating sparks, which can result in ignition of flammable materials. Never operate tools near flammable substances such as gasoline, naphtha, cleaning solvents, etc. Work in a clean, well-ventilated area free of combustible materials. Never use oxygen, carbon dioxide or other bottled gases as a power source for air tools. What can happen How to prevent it Exposure to noise produced by air tools can lead to permanent hearing loss. Always wear ANSI S3.19 hearing protection.

ENGLISH What can happen How to prevent it This tool is not provided with an insulated gripping surface. Contact with a “live” wire will also make exposed metal parts of the tool “live” and can result in electrical shock, electrocution or death. Never use air tools where they may come in contact with energized electrical wiring. What can happen How to prevent it Loose hair, clothing, jewelry or other loose objects can become entangled in the moving elements of this tool and can cause serious injury. Do not wear loose clothing, jewelry, or anything that may get caught or tangled when using tool. Remove any jewelry which may be caught by the tool. Always keep hands and body parts away from moving parts. Always wear properly fitted clothing and other properly fitted safety equipment when using this tool. What can happen How to prevent it This tool is capable of causing serious injury if operated improperly, or in a manner for which the tool is not intended. Keep the working part of the tool away from hands and body. Understand the tool’s limitations. Read and understand instruction manual. WARNING WARNING WARNING

RISK OF CUTS OR BURNS OR HAND ENTRAPMENT5 ENGLISH What can happen How to prevent it A tool left unattended or with the air hose attached can be activated by unauthorized persons leading to their injury or injury to others. Remove air hose when the tool is not in use and store tool in a secure location away from reach of children and untrained users. Air tools can propel materials throughout the work area. Use only parts and accessories recommended by the manufacturer. Keep work area clean and free of clutter. Do not allow children to operate tool, and keep children away from the work area. Keep work area well lit. Make sure the sanding pad is tight and secure. Missing or damaged items should be replaced before use. Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. Air tools can become activated by accident during maintenance or tool changes. Disconnect the tool from the air supply during accessory changes, tool changes, maintenance or repair. Never carry the tool by the air hose. To avoid unintentional operation, never carry the tool with the trigger depressed or engaged. Only an authorized service representative should service the tool. Loss of control of the tool can lead to operator injury or injury to others in the work area. Before changing accessories, making repairs, or when tool is not in use, shut off the air supply and release/drain air pressure from hose. Disconnect tool from air supply and store in a safe location. Never use the tool while using medications, drugs or alcohol. Air tools can cause the workpiece to move upon contact, leading to injury. Always make sure the workpiece is secure. Use clamps or other devices to prevent movement. WARNING

RISK OF PERSONAL INJURY6

ENGLISH There is a risk of bursting if the tool is damaged. Follow lubrication instructions for best and safest operation. Follow instructions on how to properly change accessories. Poor quality, improper or damaged attachments can detach or fly apart during operation, sending projectiles through the work area and causing serious injury. Always use tool attachments rated for the speed of the power tool. Never use tools, which have been dropped, impacted, or are damaged. Do not apply excessive force to the tool; let the tool perform the work. Never use a tool that is leaking air, has missing or damaged parts, or requires repairs. Always follow assembly, operation, maintenance instructions. Improperly maintained tools and accessories can cause serious injury. Do not use damaged, frayed or deteriorated air hoses and/or fittings. Maintain the tool and accessories with care. Keep tools clean and properly oiled for best and safest performance. Do not lubricate tools with flammable or volatile liquids such as kerosene, diesel or jet fuel. Repetitive motions, awkward positions and exposure to vibration can be harmful to hands and arms. Discontinue use of tool if discomfort, tingling feeling or pain occurs. Consult a physician before resuming use if any of these symptoms occur. Using an accessory not intended for a specific tool increases the risk of injury to the operator and everyone else in the work area. Always use accessories and attachments designed for the tool and the work at hand. Do not improvise or modify tools or accessories. Loss of control of the tool can lead to operator injury or injury to others in the work area. Keep proper footing at all times when handling tools. Slipping, tripping falling or over reaching are major causes of serious injury and/or death. Keep tool handles dry, clean and free from oil/grease. Stay alert. Use common sense. Do not operate tools when you are tired. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement. Do not remove any labels – replace any damaged label.7 ENGLISH NOTICE: Use threaded sealant tape (not included) on the threading of the male plug. PREPARATION ASSEMBLY Estimated Assembly Time: 1 – 3 minutes Before beginning the assembly of the product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Tools Required for Assembly (not included):

• 9/16 in. (14 mm) or adjustable wrench

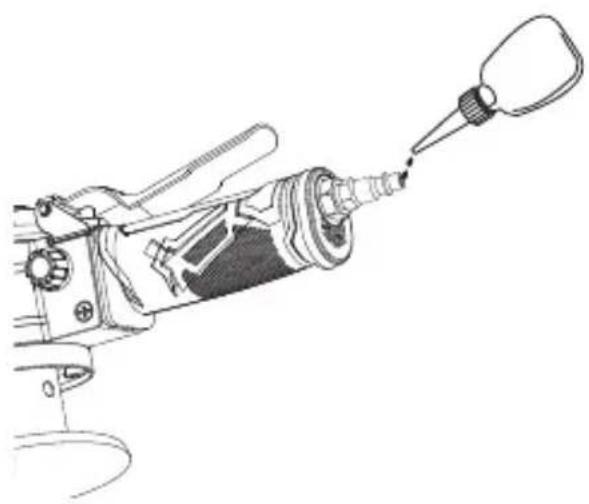

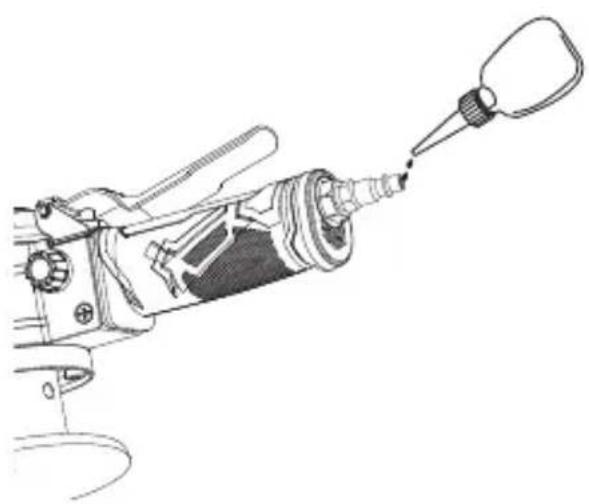

3. Place 2-3 drops of air tool oil (not

provided) into the male plug before each use.

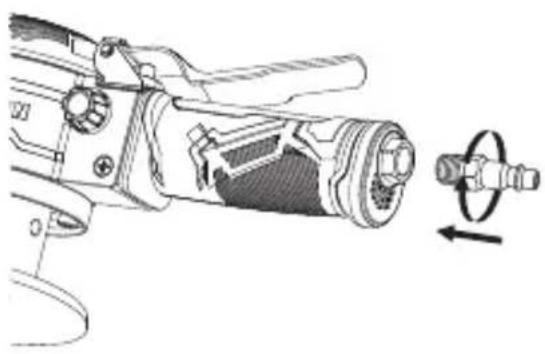

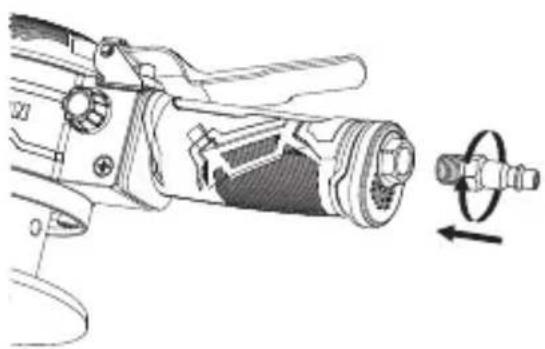

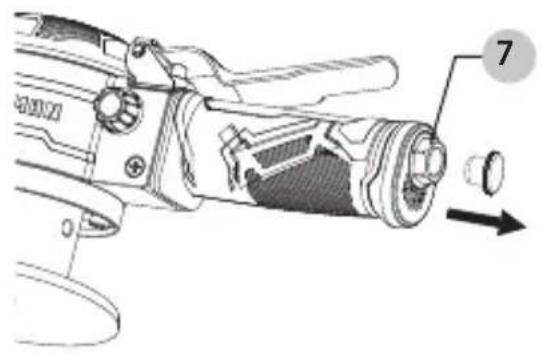

2. Tighten male plug (not included),

turning clockwise with a wrench (not included) for air tight connection. DO NOT OVERTIGHTEN.

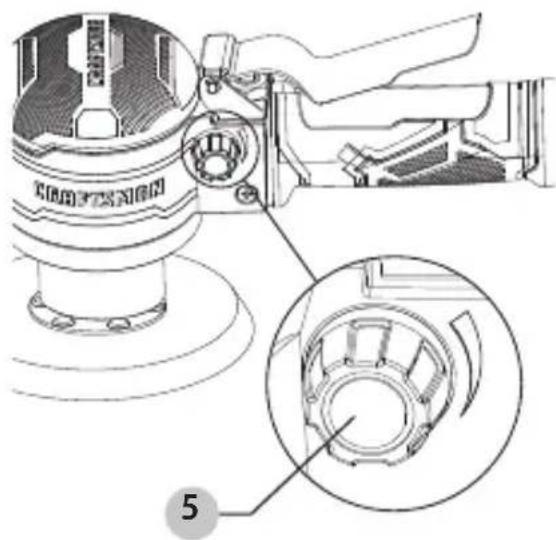

ENGLISH NOTICE: Working pressure refers to the air line pressure set to tool when tool is under working conditions. NOTICE: The tool features an air regulating knob . The tool speed can be adjusted by turning the air regulator knob either clockwise or counterclockwise. The maximum tool speed can be obtained when the concave line on the knob is pointing horizontally.

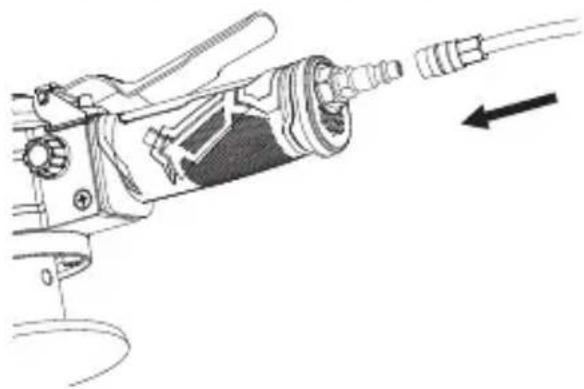

4. Connect the air supply hose to the

male plug. Set the working pressure at 90 PSI for best tool performance. OPERATING

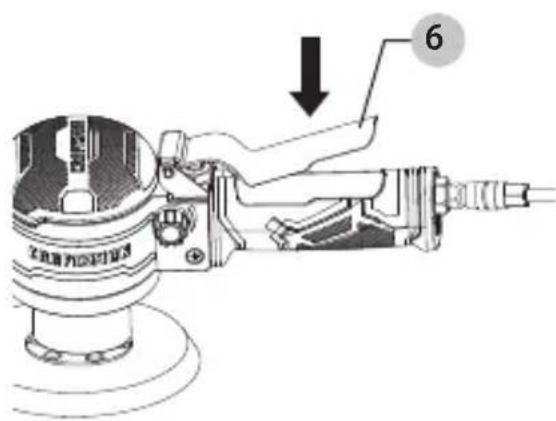

1. Press down on the trigger to start

the tool. When first making contact with the surface you intend to sand, ensure the speed is set to the lowest setting. Gradually increase the power/speed as needed for your particular sanding application instead of using too much power/speed from the start.

ENGLISH NOTICE: If the sanding pad will not come loose, there are 2 holes on either side of the spindle lock button .

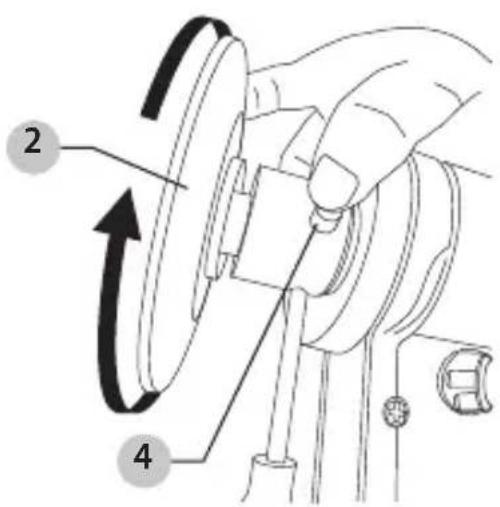

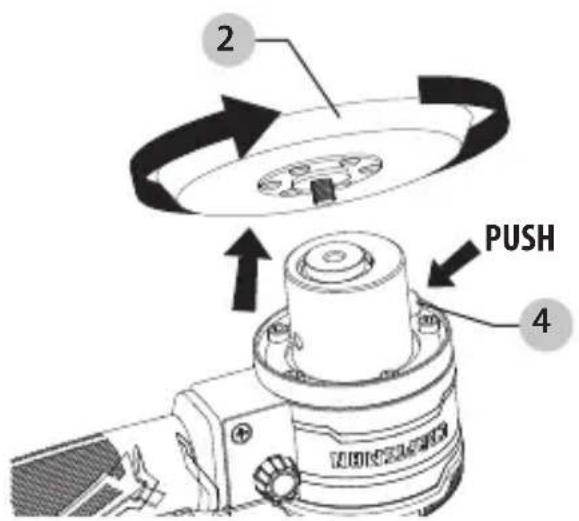

1. Push in on the spindle lock button

and rotate the spindle until you hear the spindle lock into position. Loosen and remove the sanding pad by spinning the pad in a counterclockwise direction.

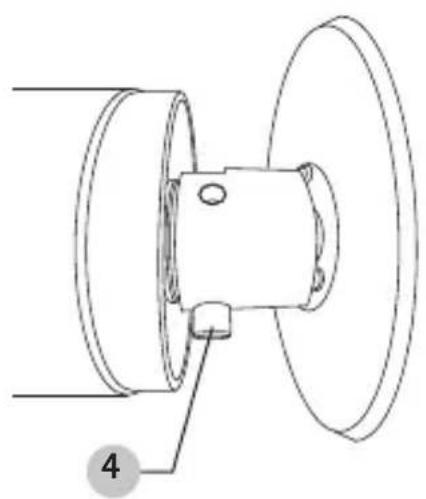

2. Place the end of a #2 Phillips

screwdriver (not included) into one of the holes and push in on the spindle lock button . You can hold the screwdriver and push in the spindle lock button with the same hand. Using your other hand, loosen and remove the sanding pad by spinning the pad counterclockwise. PUSH

WARNING: ALWAYS DISCONNECT TOOL FROM THE AIR SUPPLY BEFORE PERFORMING ANY

MAINTENANCE ON THE TOOL.

WARNING: Always make sure the tool is properly lubricated during operation. Proper

lubrication is shown in this instruction manual. MAINTENANCE An in-line oiler (not included) is recommended to help increase tool life and keep the tool properly lubricated. The in-line oiler should be regularly checked and filled with air tool oil as needed. Proper adjustment of the in-line oiler can be performed by placing a sheet of paper next to the tool’s exhaust ports while holding the throttle completely open for 30 seconds. When a light stain of oil collects on the paper, the oiler is properly adjusted. Excessive amounts of oil should be avoided. Recommended lubricants: air-tool oil or any other high grade turbine oil containing moisture absorbent, rust inhibitors, metal wetting agents and an EP (Extreme Pressure) additive. Consult your local retailer for further assistance in selecting air tool oil best suited for proper lubrication. Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week.

To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic

parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. Repairs

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance should be

performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts. Storage Before you store the tool, make sure you do the following:

1. Review the Maintenance section on the preceding pages and perform scheduled

maintenance as necessary.

2. Tool must be well cleaned and lightly lubricated before storing.

3. Store the tool in a dry, safe place out of the reach of children.

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been

tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please visit CRAFTSMAN.COM or call 1-888-331-4569.11 ENGLISH Register Online Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act. Register online at www.craftsman.com/registration TROUBLESHOOTING

WARNING: If the tool runs slowly or will not operate, check these possible

problems and take the required corrective action:

PROBLEM CAUSE CORRECTION

Tool runs slowly or will not operate. Grit or gum in tool. Flush the tool with air-tool oil or gum solvent. Tool runs slowly or will not operate. No oil in tool. Lubricate the tool. Tool runs slowly or will not operate. Air hose leaks. Tighten and seal hose fittings if leaks are found. Use sealing tape. Tool runs slowly or will not operate. Worn rotor blade. Replace rotor blade. Tool runs slowly or will not operate. Moisture blowing out of tool exhaust. Water in compressor tank; drain tank (See air compressor manual). Oil the tool and run until no water is evident. Oil the tool again and run 1 – 2 seconds. Tool runs slowly or will not operate. Low air pressure. Be sure the hose is the proper size. Long hoses or tools using large volumes of air may require an internal diameter of 1/2 in. I.D. or larger, depending on total hose length. Do not use multiple hoses connected together with quick-connect fittings. This causes additional loss of pressure and reduces the tool power. Use single hoses of the proper length. Tool runs slowly or will not operate. Low air pressure. Adjust the regulator on the tool to the maximum setting. Adjust the compressor regulator to tool maximum of 90 PSI. NOTE: Air hoses may cause up to 15 PSI loss in pressure, so you may need to set a higher compressor output to maintain the required pressure at the tool.12 ENGLISH Three Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

© 2019 CRAFTSMAN13 ENGLISH Exploded Tool Diagram

Kit Number K1001-CMX Lever Bracket, Nut K1001-CMX Lever Bracket, Nut43 K1000-CMX Lever, E-clip (2), Pin, K1000-CMX Lever, E-clip (2), Pin, K1000-CMX Lever, E-clip (2), Pin,
