CHEST FREEZER OWNER'S MANUAL MANUEL D'UTILISATION DU CONGÉLATEUR HORIZONTAL

Table of Contents/Table des matieres

FREEZER SAFETY 2

Freezer Safety 2

MAINTENANCE AND CARE 4

Defrosting and Cleaning Your Freezer 4

Changing the Light Bulbs (on some models)

Power Interruptions 4

Moving Care 4

INSTALLING YOUR FREEZER 5

Unpacking. 5

Location Requirements 5

Electrical Requirements 5

Switching on the Appliance 5

Temperature Adjustment. 6

Key Eject Lock (on some models). 6

Sliding Basket (on some models) 7

SECURITE DU CONGÉLATEUR 9

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." words mean:

These

ADANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

Children should be supervised to ensure that they do not Do not store explosive substances such as aerosol cans play with the appliance. with a flammable propellant in this appliance.
This appliance is not intended for use by persons (including Do not use replacement parts that have not been children) with reduced physical, sensory, or mental recommended by the manufacturer (e.g., parts made at capabilities, or lack of experience and knowledge, unless home using a 3D printer).

they have been given supervision or instruction concerning. Keep ventilation openings, in the appliance enclosures or in use of the appliance by a person responsible for their the built-in structure, clear of obstacles.

• Do not use an extension cord.
• If power supply cord is damaged, it must be replaced by the manufacturer.
  manufacturer, its service agent, or a similarly qualified Do not damage the refrigerant circuit.
  person in order to avoid a hazard. Do not use electrical appliances inside the food storage This appliance is intended to be used in household and compartments of the appliance, unless they are of the type similar applications such as: staff kitchen areas in shops, recommended by the manufacturer.

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Freezer

WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

Take off the doors.
Leave the shelves in place so that children may not easily climb inside.

AWARNING

Suffocation Hazard

Remove doors or lid from your old appliance.

Failure to do so can result in death or brain damage

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned freezers or refrigerators, are still dangerous, even if they will sit for "just a few days." If you are getting rid of your old refrigerator or freezer, please follow these instructions to help prevent accidents.

Important information to know about disposal of refrigerants: Dispos of freezer in accordance with federal and local regulations. Refrigerants must be evacuated by a licensed, EPA-certified refrigerant technician in accordance with established procedures.

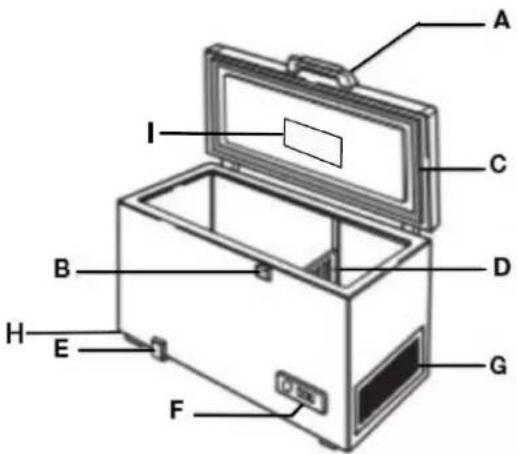

A. Handle F. Control panel
B. Safety Lock (if provided) G. Side motor cooling grille
C. Gasket H. Caster Wheels
D. Separator (if provided) I. Interior Light
E. Defrost water drain plug

MAINTENANCE AND CARE

Defrosting and Cleaning Your Freezer

AWARNING

Explosion Hazard

Keep flammable materials and vapors, such as gas away from appliance.

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or

line,

1

1. Wash the inside walls with a solution of mild detergent in water or 2 tbs (26 g) baking soda to 1 qt. (0.95 L) warm w Do not use abrasive or harsh cleaners.
2. Rinse well and wipe dry with a clean, soft cloth.
3. Use a clean sponge or soft cloth and mild detergent in warm water to clean outside of freezer, door liner, and gasket.
4. Rinse well and wipe dry with a clean, soft cloth.
5. Wax painted metal surfaces on the outside of freezer to avoid rust.

NOTE: Do not use wax on plastic parts. Wax may damage them.

1. Remove the hose adapter and replace the drain cover and the plastic cap in the bottom of the freezer.
2. Replace all frozen food.
3. If your freezer is equipped with a temperature alarm, turn off alarm for 24 hours after defrosting.
4. Plug in freezer or reconnect power. See "Using the Control."

Changing the Light Bulbs (on some models)

Defrost and clean your freezer when frost has built up to aboT Replace Interior Light: 1/4" (0.6 cm) thickness, and thoroughly defrost and clean you!. Unplug freezer or disconnect power.

freezer at least once a year. In high-humidity areas, a freezer may be in the top and bottom of light cover with both hands. Need more frequent defrosting and cleaning.

Do not use abrasive cleaners on your freezer. Do not use clear waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic parts. Damage can occur.

NOTE: The drain cap must be removed before defrosting the freezer and replaced securely afterward.

NOTE: Not all appliance bulbs will fit your freezer. Be sure to replace the bulb with one of the same size, shape, and wattage.

1. Align bottom of cover and snap top of cover in place.

2. Plug in freezer or reconnect power.

3. Unplug freezer or disconnect power.

4. Remove all frozen food. Wrap frozen food in several layers, newspaper and cover with a blanket. Food will stay frozen several hours. You may also store frozen food in a cooler, additional refrigerator-freezer, or in a cool area.

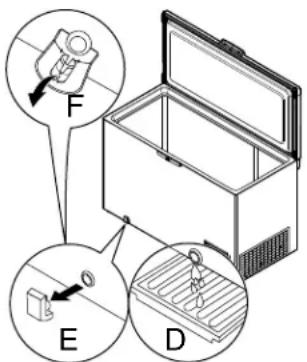

5. Remove the drain cover (E) by pulling it straight out. Place the power will be out for more than 24 hours, do one of the curved section of the drain cover under the open drain following:

(F). Place the Separate pan (D), or a drain pan, under the Remove all frozen food and store it in a frozen food locker. Drain. Or, let the water drain out of the drain hole in to the parfood locker is not available, consume or can perishable (D).

NOTE: Check the drain pan frequently to avoid water overflow. Have a second pan handy for easier emptying.

REMEMBER: A full freezer stays cold longer than a partially filled one. A freezer full of meat stays cold longer than a freezer full of baked goods. If you see that food contains ice crystals, it may be refrozen, although the quality and flavor may be affected. If the condition of the food is poor, dispose it.

Moving Care

When you are moving your freezer to a new home, follow these steps to prepare it for the move.

1. Remove all frozen food.
2. Unplug the freezer.
3. Take out all removable parts, wrap them well, and tape them together so they don't shift and rattle during the move.

4. Clean the freezer thoroughly.

5. Place pans of hot water in freezer with lid open to speed5. Tape the freezer shut and tape the electrical cord to the melting. Directing air from an electric fan into freezer will also cabinet.

help. Do not place fan or any electrical device in freezer.When you get to your new home, refer to the "Installing Your

1. Use a plastic scraper to remove frost.

NOTE: Do not use an ice pick, knife, or other sharp-pointed tool to defrost freezer. Damage can occur.

Freezer" and "Operating Your Freezer" sections for information on installation and setting the controls.

1. Wipe water from walls with a towel or sponge.

Excessive Weight Hazard

Use two or more people to move and install or un appliance.

Failure to do so can result in back or other injury.

Install

Remove Packaging Materials

Unpack the appliance.
- Remove the 5 spacers inserted between the door and the appliance.

Make sure the defrost drain plug (if provided) is correctly positioned.

When Moving Your Freezer:

Your freezer is heavy. When moving the freezer for cleaning service, be sure to cover the floor with cardboard or hardboa avoid floor damage. Always pull the freezer straight out when moving it. Do not wiggle or "walk" the freezer when trying to it, as floor damage could occur.

Clean Before Using

After you remove all of the packaging materials, clean the ins of your freezer before using it. See the "Maintenance and Care section.

Location Requirements

AWARNING

Explosion Hazard

• Keep flammable materials and vapors, such as gas or away from appliance.

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or

Ventilation and Clearance

• Keep flammable materials and vapors, such as gasoline from freezer.

• Do not cover the freezer with items such as blankets, and tablecloths. This reduces air circulation.

• Allow at least a 2.75'' (7.0 cm) clearance on both sides of the freezer and 2.75'' (7.0 cm) between the back of the freezer at the wall. Leave room above the freezer to open the lid.

Temperature

Your freezer operates most efficiently when located in an area where the temperature is normally between 32^ (0^) and 110^ (43^) . Place your freezer in a location where the temperature will fall between the low and high recommended temperatures.

Upon Moving to Final Location

Level the freezer from side to side and front to back so that the lid will seal properly. Use shims to level the freezer if necessary.

NOTE: It should not be necessary to remove the lid during installation. If, for any reason, the hinges need adjustment, contact a designated service company.

Electrical Requirements

Before you move your freezer into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 V, 60 Hz, AC-only, 15 A or 20 A fused, grounded electric supply is required. It is recommended that a separate circuit serving only your freezer be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the temperature control to 0 (align cir on knob with desired number), as shown, to turn off cooling, and then disconnect the freezer from the electrical source.

Switching on the Appliance

The appliance is factory set for optimum operation at air vents. temperature of 0^ (-18^)

Plug in the appliance.
The green LED lights up.

■ Also the red LED will switch on because the temperature Freezer Use:

inside the appliance is not yet sufficiently low for food stongfo use the product as freezer set thermostat in position

The red LED will normally switch off within the first six hours freezer". In this case the product must be used to store frozen

after the appliance is switched on. food, to freeze fresh food and to make ice. Internal

temperature could be set between 6.8^ (-14^) and -7.6^

(-22^) (depending on the environmental conditions, this

range may vary slightly).

Place food inside the product only when the red LED (if provided) has switched off.

NOTE: As the seal is tight, the appliance lid cannot be

reopened immediately after closing. Wait a few minutes to re-opening the lid of the appliance.

beforeTo use the product as refrigerator set thermostat in position

"refrigerator". In this case the product must be used to store

fresh food and beverages. Internal temperature could be set

Fop between 33.8^ (1^) and 41^ (5^) (depending on the

environmental conditions, this range may vary slightly).

To turn off the product set thermostat in OFF position. In this

case the product is already connected to power supply.

This appliance features "skin condenser" technology: the

condensing unit is integrated into the walls of the freezer.

In this reason the side and front walls of the product may be

hot while the product is running. This is entirely normal and

also reduces the risk of condensation forming in particularly

critical environmental conditions.

Allow the freezer to cool 6 to 8 hours before filling with food.

NOTES:

■ When the freezer is first started, the compressor will run

It constantly until the cabinet is cooled. It may take 6 to 8

(or longer), depending on room temperature and the num

times the freezer lid is opened.

■ After the cabinet is cooled, the compressor will turn on and diff-3 as needed to keep the freezer at the proper temperature.

The outside of your freezer may feel warm. This is normal. The

freezer's design and main function is to remove heat from the

contents and air inside the freezer . The heat is transferred to

the room air, making the outside of the freezer feel warm. 8-12

Refrigerator Use:

Before switching from freezer use to refrigerator use please:

■ Check that frozen food is not present inside the cavity to avo i unwanted food defrosting.
- Defrost and clean the product to avoid water stagnation on the frozen bottom.

NOTE: In the case of high levels of humidity, it is possible that

inside the appliance condensation may form on both the walls

the bottom of the compartment. This is absolutely natural and

does not jeopardise the operation of the appliance in any way.

Ghest Freezer Food Storage:

1. Temperature adjustment thermostat.
2. Red light (if provided): indicates that the temperature inside the product is not low enough.
3. Green LED (if provided): when lit, indicates that the appli

The exact configuration of the control panel may vary according to the model.

Temperature Adjustment

Use the thermostat to select the ideal storage temperature. product could be used both as freezer and as refrigerator.

1-3 months suggested for bread, fish and ice-cream
4-7 months suggested for poultry, citrus and beef
12 months for pork, vegetables and fruit

Key Eject Lock (on some models)

AWARNING

Entrapment Hazard

Keep key away from children.

Failure to do so can result in death, suffocation, or

frostbite.

To lock or unlock the freezer, you must hold the key in the lock while turning. The lock is spring-loaded, so the key cannot be let. This the lock.

If the key is lost, contact your dealer for a replacement. Always give the model and serial number of your freezer when requesting a replacement key.

Sliding Basket (on some models)

Slide Rail Basket Position

Store small packages in the upper baskets to avoid losing the prepare baskets for use on sliding rails (B). Remove clips from the bottom of the freezer. Baskets can then be moved from side of the basket (1) and click in place on the bottom of the b-side or they can be removed when loading or unloading the food below them.

To remove basket, lift it straight up and out. To replace basket lower it back into place.

Installing Sliding Rail (on some models)

Unpack sliding rails from packaging. Line up the frames next to each other (A). Use the clips to connect the side rails to each other (B). Lower the connected rails to the bottom of the freezer (C).

Basket location options only:

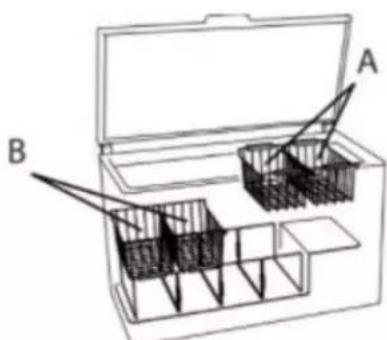

Baskets can be used in multiple locations (A).

Top Basket Position

Prepare baskets for use along the top of the freezer. Remove clips from the bottom of the basket (1) and click in place along the top of the basket (4).

For information on complete instructions for use and installation, or warranty, please visit https://www.whirlpool.com/owners, or in Canada https://www.whirlpool.ca/owners. This may save you the cost of a service call. However, if you need to contact us, use the information listed below for the appropriate region.
