Product Type	Chest Freezer
Brand	Amana
Model	AQC0902LW
Power Supply	115 V AC, 60 Hz, 15 A or 20 A (protected circuit)
Ambient Temperature Range	0 °C to 43 °C (32 °F to 110 °F)
Temperature Setting	Thermostat with Freezer and Cooler positions; freezer range: -14 °C to -22 °C (approx.)
Defrost System	Manual; drain with plug and hose adapter
Interior Light	15 W max bulb (on some models)
Indicator Lights	Red LED (insufficient temperature) and Green LED (operation)
Lock	Key-eject lock (on some models)
Sliding Basket	Yes (on some models)
Freezing Capacity	Not specified in the manual
Dimensions (W x D x H)	Not specified
Weight	Not specified
Exterior Material	Painted steel (metal surfaces)
Cleaning	Mild detergent and warm water; do not use abrasive cleaners
Safety	Child lock (lock); grounding required; do not use extension cord
Replacement Parts	15 W bulb, lock key, basket, hose adapter
Warranty	See Amana website (https://www.amana.com/owners)
Intended Use	Domestic and similar (offices, hotels, etc.)

Frequently Asked Questions - AQC0902LW AMANA

How to adjust the temperature on my Amana AQC0902LW freezer?

Use the thermostat located on the control panel. Turn it to the Freezer position for frozen food storage temperature (approximately -18 °C) or to the Cooler position for a positive temperature (1 °C to 5 °C). To turn off the appliance, set the thermostat to OFF.

How to defrost the freezer?

Defrost when frost reaches 0.6 cm thick. Unplug the appliance, remove food and drain plug. Place a container under the drain hole or attach the hose adapter. Place pans of hot water inside and close the lid to speed up defrosting. Use a plastic scraper to remove frost. Never use sharp tools. Wipe and clean the interior before reconnecting.

What to do during a power outage?

If the outage lasts less than 24 hours, keep the door closed to maintain cold. If it lasts longer, remove frozen food and place it in cold storage, or consume it quickly. A full freezer maintains cold better than a half-empty one.

How to clean the interior of the freezer?

Use a solution of mild detergent and warm water, or 2 teaspoons of baking soda dissolved in 1 liter of warm water. Do not use abrasive cleaners, bleach, or petroleum-based products. Rinse and wipe with a soft cloth.

Why is the outside of the freezer warm?

This is normal. Heat is dissipated through the side and front walls via surface condenser technology. This also reduces condensation. Do not cover the appliance.

How to replace the interior light bulb?

Unplug the freezer. Pinch the top and bottom of the light cover to open it. Replace with a 15 W maximum bulb of similar size and shape. Reinstall the cover and plug back in.

Can I use an extension cord?

No, using an extension cord is prohibited. Plug the freezer directly into a grounded 3-prong outlet, protected by a 15 A or 20 A fuse.

How to lock the freezer?

Insert the key and turn it while pressing down. The key does not remain in the lock (auto-eject). Keep the key away from children to prevent entrapment risk.

What do the red and green LED indicators mean?

The green LED indicates the appliance is powered. The red LED lights up when the interior temperature is not yet low enough to store food; it normally turns off after 6 hours of operation. Wait for it to turn off before placing food in the freezer.

Which foods can be stored and for how long?

Bread, fish, ice cream: 1 to 3 months. Poultry, citrus, beef: 4 to 7 months. Pork, vegetables, fruits: 8 to 12 months. These durations are suggested for optimal storage.

USER MANUAL AQC0902LW AMANA

CHEST FREEZER OWNER'S MANUAL MANUEL D'UTILISATION DU CONGÉLATEUR HORIZONTAL

Table of Contents/Table des matières

FREEZER SAFETY ....2 Freezer Safety ....2

MAINTENANCE AND CARE ....4 Defrosting and Cleaning Your Freezer ....4 Changing the Light Bulbs (on some models) ..... Power Interruptions ....4 Moving Care ....4

INSTALLING YOUR FREEZER ....5 Unpacking....5 Location Requirements ....5 Electrical Requirements ....5 Switching on the Appliance ....5

OPERATING YOUR FREEZER ....6 Using the Control ....6 Temperature Adjustment ....6 Key Eject Lock (on some models)....6 Sliding Basket (on some models) ....7

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

■ Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Do not use an extension cord.
If power supply cord is damaged, it must be replaced by manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
■ This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential-type environments; bed and breakfast-type environments; and catering and similar non-retail applications.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Do not use replacement parts that have not been recommended by the manufacturer (e.g., parts made at home using a 3D printer).
Keep ventilation openings, in the appliance enclosures or in the built-in structure, clear of obstacles.
■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Do not damage the refrigerant circuit.
■ Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

SAVE THESE INSTRUCTIONS

Proper Disposal of Your Old Freezer

WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

■ Take off the doors.
■ Leave the shelves in place so that children may not easily climb inside.

WARNING

Suffocation Hazard

Remove doors or lid from your old appliance.

Failure to do so can result in death or brain damage

Simple line drawing of a two'-boxed box with a lid, no text or symbols present

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned freezers or refrigerators, are still dangerous, even if they will sit for "just a few days." If you are getting rid of your old refrigerator or freezer, please follow these instructions to help prevent accidents.

Important information to know about disposal of refrigerants: Dispose of freezer in accordance with federal and local regulations. Refrigerants must be evacuated by a licensed, EPA-certified refrigerant technician in accordance with established procedures.

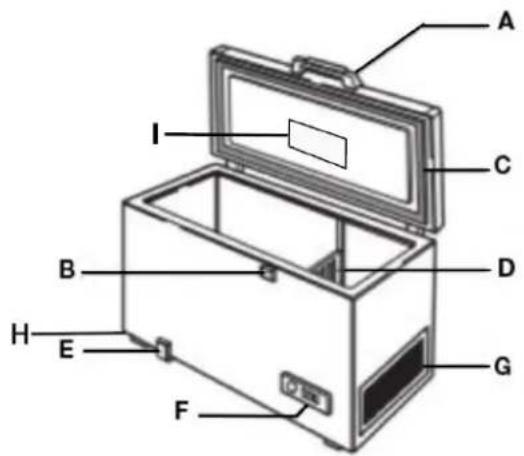

A. Handle F. Control panel
B. Safety Lock (if provided) G. Side motor cooling grille
C. Gasket H. Caster Wheels
D. Separator (if provided) I. Interior Light
E. Defrost water drain plug

MAINTENANCE AND CARE Defrosting and Cleaning Your Freezer

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gas or away from appliance.

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or

1. Wipe water from walls with a towel or sponge.

2. Wash the inside walls with a solution of mild detergent in water or 2 tbs (26 g) baking soda to 1 qt. (0.95 L) warm w Do not use abrasive or harsh cleaners.

3. Rinse well and wipe dry with a clean, soft cloth.

4. Use a clean sponge or soft cloth and mild detergent in warm water to clean outside of freezer, door liner, and gasket.

5. Rinse well and wipe dry with a clean, soft cloth.

6. Wax painted metal surfaces on the outside of freezer to avoid rust.

NOTE: Do not use wax on plastic parts. Wax may damage them.

1. Remove the hose adapter and replace the drain cover and tl plastic cap in the bottom of the freezer.

2. Replace all frozen food.

3. If your freezer is equipped with a temperature alarm, turn off alarm for 24 hours after defrosting.

4. Plug in freezer or reconnect power. See "Using the Control."

fire. Changing the Light Bulbs (on some models)

Defrost and clean your freezer when frost has built up to about 1/4" (0.6 cm) thickness, and thoroughly defrost and clean your

freezer at least once a year. In high-humidity areas, a freezer need more frequent defrosting and cleaning.

Do not use abrasive cleaners on your freezer. Do not use clear waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic parts. Damage can occur.

NOTE: The drain cap must be removed before defrosting the freezer and replaced securely afterward.

1. Unplug freezer or disconnect power.

2. Remove all frozen food. Wrap frozen food in several layers newspaper and cover with a blanket. Food will stay frozen several hours. You may also store frozen food in a cooler additional refrigerator-freezer, or in a cool area.

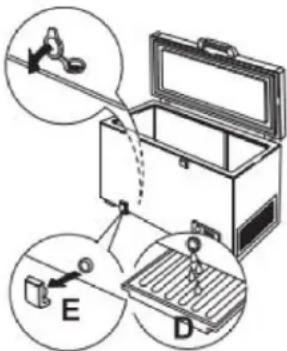

3. Remove the drain cover (E) by pulling it straight out. Then insert the hose adapter (provided) into the drain outlet. If Remove the plastic cap from inside the bottom of the free Place the Separator pan (D), or a drain pan, under the d or attach a hose to the threaded end of the hose adapter direct the water into a separate drain.

NOTE: Check the drain pan frequently to avoid water overflow. Have a second pan handy for easier emptying.

To Replace Interior Light:

er1. may Unplug freezer or disconnect power.

1. Pinch top and bottom of light cover with both hands.
2. Replace bulb with a 15 W maximum appliance bulb.

NOTE: Not all appliance bulbs will fit your freezer. Be sure to replace the bulb with one of the same size, shape, and wattage.

1. Align bottom of cover and snap top of cover in place.

2. Plug in freezer or reconnect power. rs of

Power Interruptions

the power will be out for 24 hours or less, keep the door clc help food stay cold and frozen.

the power will be out for more than 24 hours, do one of the bowing:

Remove all frozen food and store it in a frozen food locker. and if a food locker is not available, consume or can perishable food at once.

REMEMBER: A full freezer stays cold longer than a partially filled one. A freezer full of meat stays cold longer than a freezer full of baked goods. If you see that food contains ice crystals, it may be refrozen, although the quality and flavor may be affected. If the condition of the food is poor, dispose it.

Moving Care

When you are moving your freezer to a new home, follow these steps to prepare it for the move.

1. Remove all frozen food.
2. Unplug the freezer.
3. Take out all removable parts, wrap them well, and tape them together so they don't shift and rattle during the move.
4. Clean the freezer thoroughly.
5. Tape the freezer shut and tape the electrical cord to the cabinet.

When you get to your new home, refer to the "Installing Your Freezer" and "Operating Your Freezer" sections for information on installation and setting the controls.

NOTE: Do not use an ice pick, knife, or other sharp-pointed tool to defrost freezer. Damage can occur.

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

Remove Packaging Materials

■ Unpack the appliance.

■ Remove the 5 spacers inserted between the door and the appliance.

■ Make sure the defrost drain plug (if provided) is correctly positioned.

When Moving Your Freezer:

Your freezer is heavy. When moving the freezer for cleaning service, be sure to cover the floor with cardboard or hardboa avoid floor damage. Always pull the freezer straight out when moving it. Do not wiggle or "walk" the freezer when trying to it, as floor damage could occur.

Clean Before Using

After you remove all of the packaging materials, clean the ins of your freezer before using it. See the "Maintenance and Ca section.

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gas or away from appliance.

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or

Ventilation and Clearance

- Keep flammable materials and vapors, such as gasoline, from freezer.

■ Do not cover the freezer with items such as blankets, and tablecloths. This reduces air circulation.

■ Allow at least a 2.75" (7.0 cm) clearance on both sides of the freezer and 2.75" (7.0 cm) between the back of the freezer at the wall. Leave room above the freezer to open the lid.

Temperature

Your freezer operates most efficiently when located in an area where the temperature is normally between 32^ F ( 0^ C) and 110^ F ( 43^ C). Place your freezer in a location where the temperature will fall between the low and high recommended temperatures.

Upon Moving to Final Location

Level the freezer from side to side and front to back so that the lid will seal properly. Use shims to level the freezer if necessary.

NOTE: It should not be necessary to remove the lid during installation. If, for any reason, the hinges need adjustment, contact a designated service company.

Electrical Requirements

WARNING

a to

move

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Before you move your freezer into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 V, 60 Hz, AC-only, 15 A or 20 A fused, grounded electri supply is required. It is recommended that a separate circuit line, serving only your freezer be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the temperature control to 0 (align cir fire. on knob with desired number), as shown, to turn off cooling, and then disconnect the freezer from the electrical source.

Switching on the Appliance

■ The appliance is factory set for optimum operation at a temperature of 0°F (-18°C).
■ Plug in the appliance.
■ The green LED lights up.

■ Also the red LED will switch on because the temperature Freezer Use:
inside the appliance is not yet sufficiently low for food storage to use the product as freezer set thermostat in position. The red LED will normally switch off within the first six hours freezer". In this case the product must be used to store frozen after the appliance is switched on.
■ Place food inside the product only when the red LED (if provided) has switched off.
NOTE: As the seal is tight, the appliance lid cannot be reopened immediately after closing. Wait a few minutes I re-opening the lid of the appliance.
This appliance features "skin condenser" technology: the condensing unit is integrated into the walls of the freezer. This reason the side and front walls of the product may be hot while the product is running. This is entirely normal and also reduces the risk of condensation forming in particularly critical environmental conditions.
To use the product as cooler set thermostat in position "cooler". In this case the product must be used to store fresh food and beverages. Internal temperature could be set between 33.8^ (1^) and 41^ (5^) (depending on the environmental conditions, this range may vary slightly).
To turn off the product set thermostat in OFF position. In this case the product is already connected to power supply.

Allow the freezer to cool 6 to 8 hours before filling with frozen bottom. food. NOTE: In

NOTES:

■ When the freezer is first started, the compressor will run constantly until the cabinet is cooled. It may take 6 to 8 hours (or longer), depending on room temperature and the number times the freezer lid is opened.

■ After the cabinet is cooled, the compressor will turn on and diff-3 as needed to keep the freezer at the proper temperature.

■ The outside of your freezer may feel warm. This is normal. The freezer's design and main function is to remove heat from the contents and air inside the freezer. The heat is transferred to the room air, making the outside of the freezer feel warm. 8–12

Refrigerator Use:

Before switching from freezer use to refrigerator use please:

- Check that frozen food is not present inside the cavity to avoi unwanted food defrosting.

■ Defrost and clean the product to avoid water stagnation on the

NOTE: In the case of high levels of humidity, it is possible that inside the appliance condensation may form on both the walls and the bottom of the compartment. This is absolutely natural and does not jeopardise the operation of the appliance in any way.

Chest Freezer Food Storage:

nd diff-3
I. The7the
d to8–12

1. Temperature adjustment thermostat.

2. Red light (if provided): indicates that the temperature inside the product is not low enough.

3. Green LED (if provided): when lit, indicates that the applial is running.

The exact configuration of the control panel may vary according to the model.

Temperature Adjustment

Use the thermostat to select the ideal storage temperature. product could be used both as freezer and as cooler.

■ 1-3 months suggested for bread, fish and ice-cream

■ 4-7 months suggested for poultry, citrus and beef

ance 8-12 months for pork, vegetables and fruit

Key Eject Lock (on some models)

WARNING

Entrapment Hazard

Keep key away from children.

Failure to do so can result in death, suffocation, or frostbite.

To lock or unlock the freezer, you must hold the key in the lock while turning. The lock is spring-loaded, so the key cannot be let in the lock.

If the key is lost, contact your dealer for a replacement. Always give the model and serial number of your freezer when requesting a replacement key.

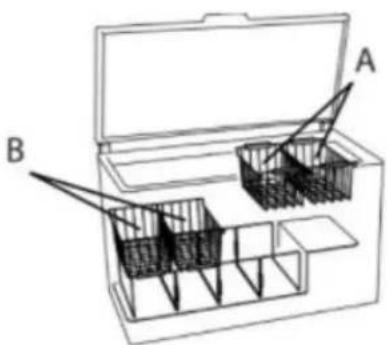

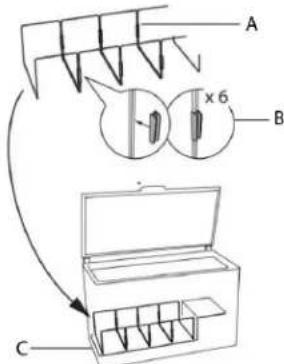

Sliding Basket (on some models)

Slide Rail Basket Position

Store small packages in the upper baskets to avoid losing them prepare baskets for use on sliding rails (B). Remove clips from the bottom of the freezer. Baskets can then be moved from side of the basket (1) and click in place on the bottom of the b side or they can be removed when loading or unloading the food below them.

To remove basket, lift it straight up and out. To replace basket, lower it back into place.

Wireframe illustration of a rectangular metal basket (no text or symbols)

Simple line drawing of a shopping basket with arrows indicating direction (no text or symbols)

Line drawing of a shopping cart with no text or symbols

Installing Sliding Rail (on some models)

Unpack sliding rails from packaging. Line up the frames next to each other (A). Use the clips to connect the side rails to each other (B). Lower the connected rails to the bottom of the freezer (C).

Basket location options only:

Baskets can be used in multiple locations (A).

Top Basket Position

Prepare baskets for use along the top of the freezer. Remove clips from the bottom of the basket (1) and click in place along the top of the basket (4).

Simple line drawing of a shopping basket with a handle and curved arrow, no text or symbols present

For information on complete instructions for use and installation, or warranty, please visit https://www.whirlpool.com/owners, or in Canada https://www.whirlpool.ca/owners. This may save you the cost of a service call. However, if you need to contact us, use the information listed below for the appropriate region.

In the U.S.A.: In Canada:

1-800-253-1301	1-800-807-8777
Whirlpool Brand Home Appliances	Whirlpool Brand Home Appliances
Customer eXperience Center	Customer eXperience Center
553 Benson Road	200 - 6750 Century Ave.
Benton Harbor, MI 49022-2692	Mississauga ON L5N 0B7

For information on complete instructions for use and installation, or warranty, please visit https://www.maytag.com/owners, or in Canada https://www.maytag.ca/owners. This may save you the cost of a service call. However, if you need to contact us, use the information listed below for the appropriate region.

In the U.S.A.: In Canada:

1-800-344-1274	1-800-688-2002
Maytag Brand Appliances	Maytag Brand Appliances
Customer eXperience Center	Customer eXperience Center
553 Benson Road	200 - 6750 Century Ave.
Benton Harbor, MI 49022-2692	Mississauga Ontario L5N 0B7

For information on complete instructions for use and installation, or warranty, please visit https://www.amana.com/owners, or in Canada https://www.amana.ca/owners. This may save you the cost of a service call. However, if you need to contact us, use the information listed below for the appropriate region.

In the U.S.A.: In Canada:

1-866-616-2664	1-800-807-6777
Amana Brand Home Appliances	Amana Brand Home Appliances
Customer eXperience Center	Customer eXperience Center
553 Benson Road	200 - 6750 Century Ave.
Benton Harbor, MI 49022-2692	Mississauga Ontario L5N 0B7

SÉCURITÉ DU CONGÉLATEUR

Simple line drawing of a two'-boxed box with a lid (no text or symbols)

Température

Wireframe illustration of a rectangular metal cage (no text or symbols)

Simple line drawing of a shopping basket with a handle and curved handle (no text or symbols)
