USER MANUAL STM2500 Vexus

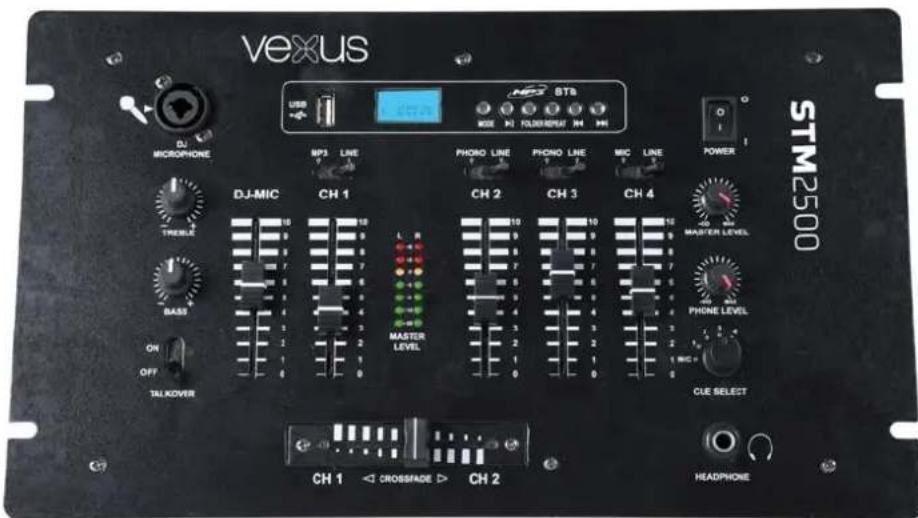

STM2500 Mixer 5 Channel, USB/MP3/BT Ref. nr.: 172.887

MANUEL D'INSTRUCTIONS

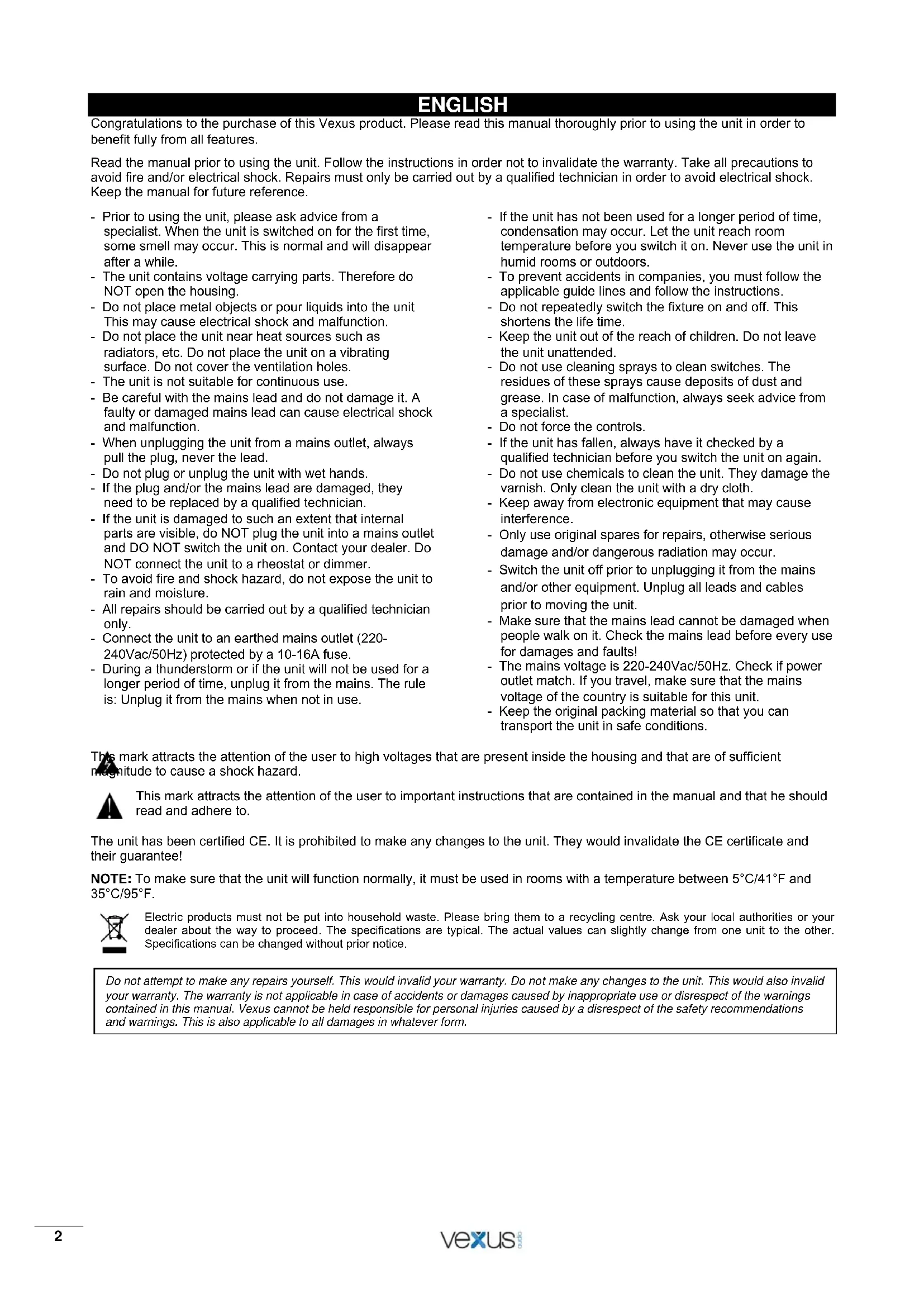

V1.02 ENGLISH Congratulations to the purchase of this Vexus product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference. - Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while. - The unit contains voltage carrying parts. Therefore do NOT open the housing. - Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction. - Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes. - The unit is not suitable for continuous use. - Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction. - When unplugging the unit from a mains outlet, always pull the plug, never the lead. - Do not plug or unplug the unit with wet hands. - If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician. - If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer. - To avoid fire and shock hazard, do not expose the unit to rain and moisture. - All repairs should be carried out by a qualified technician only. - Connect the unit to an earthed mains outlet (220- 240Vac/50Hz) protected by a 10-16A fuse. - During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use. - If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors. - To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions. - Do not repeatedly switch the fixture on and off. This shortens the life time. - Keep the unit out of the reach of children. Do not leave the unit unattended. - Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist. - Do not force the controls. - If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again. - Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth. - Keep away from electronic equipment that may cause interference. - Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur. - Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit. - Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults! - The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit. - Keep the original packing material so that you can transport the unit in safe conditions. This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard. This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to. The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee! NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F. Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vexus cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.3 UNPACKING INSTRUCTION CAUTION! Immediately upon receiving of the equipment, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that an equipment must be returned to the factory, it is important that the equipment be returned in the original factory box and packing. If the equipment has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. POWER SUPPLY On the label on the backside of the equipment is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the equipment can be irreparably damaged. The equipment must also be directly connected to the mains and may be used. No dimmer or adjustable power supply. FRONT PANEL

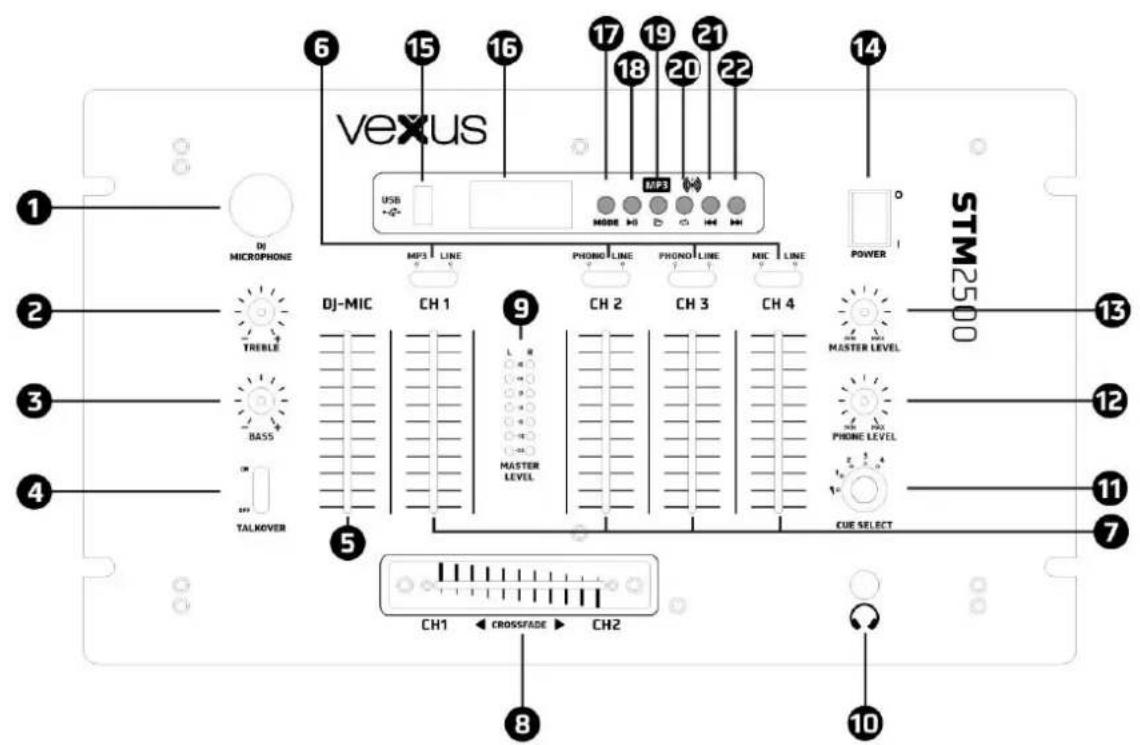

Connect the microphone with XLR plug or 1/4” jack plug. You can adjust the microphone volume by using the DJ-MIC fader (5).

Used to increase or lower the high of the DJ-MIC.

Used to increase or lower the low of the DJ-MIC.

When the Talkover switch is on, all other signal sources will be attenuated by 15dB, so that the microphone can be clearly heard. In the OFF position, all signals returns to their original level.

5. DJ-MIC Level Control

Used to adjust the level of DJ-MIC outputs.

6. Phono/Line/Usb/Mic Switch

Use this switch to select the input to be sent to the individual channel.

Used to adjust the level of each channel.

Use slide-fader to gain a smooth volume control between channel 1 and channel 2 without re-adjusting the channel volume-controls. If the crossfader is in the center position. Both channels can be heard.

9. Master Level VU-meter

The LED display shows the level of the left and right master output.

10. Headphone Socket

Connect your headphone with impedance between 16 and 600 Ohms to this connector.

Connect your headphones to the headphones socket and select the desired channel (channel 1-4 or MIC) for monitoring with the Cue switch.

12. Phone Level Control

With this knob, you can adjust the headphones volume without changing the output signal.

Adjust the level of the master-output.

Press down the button to turn on this unit.

Connect to USB stick.

The LCD display show you some information as playback support, file name, elapsed time, total time, file number, total file number, etc.

Short press to select the USB and BT-function. Long press to turn on/off the mode.

Each time you press this button, the operation changes from play to pause or from pause to play.

Allows you to select a directory on the playback USB support.

Use this button to repeat one track or all the track.

Use this button to re-start the track or to select the previous track.

Use this button to select the next track.

Used to plug the power cord in. Only operate the fuse when the device is disconnected from mains. Only use fuses of the same rating and power.

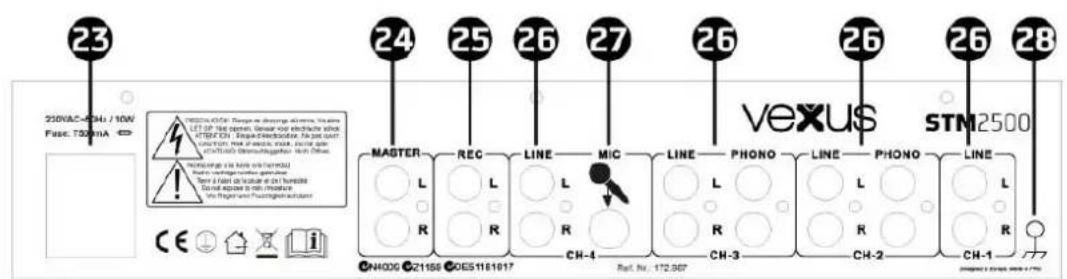

Master output connects to the main amplifier, accepts RCA jacks.

To connect your recording unit. These jacks are RCA types. Which are suitable for connection of a recording device. Its level is not influenced by the master control.

26. Phono/Line Inputs Sockets

These inputs, for CH1-4, accept RCA-plug connectors. Use phono input socket for phonograph turntables. Use line socket for CD players, cassette players. Line level musical instruments with stereo outputs such as rhythm machines or samplers should also be connected with the line input socket.

Connect your microphone with 1/4” jack plug here. The signals of MIC 2 can be controlled via CH 4, if MIC/LINE 4 switch is set to MIC.

To connect your recording unit. These jacks are RCA types. Which are suitable for connection of a recording device. Its level is not influenced by the master control.

3. Réglage Bass (graves)

Declaration of Conformity

The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations. Almelo, 07-05-2015 Signature: B. Kosters20 Specifications and design are subject to change without prior notice..
