USER MANUAL MEG060 Vexus
MEG060 60W USB/SD, sirene, micro
Ref. nr.: 952.014
INSTRUCTION MANUAL
GEBRUKSAANWIJZING
GEBRAUCHSANLEITUNG

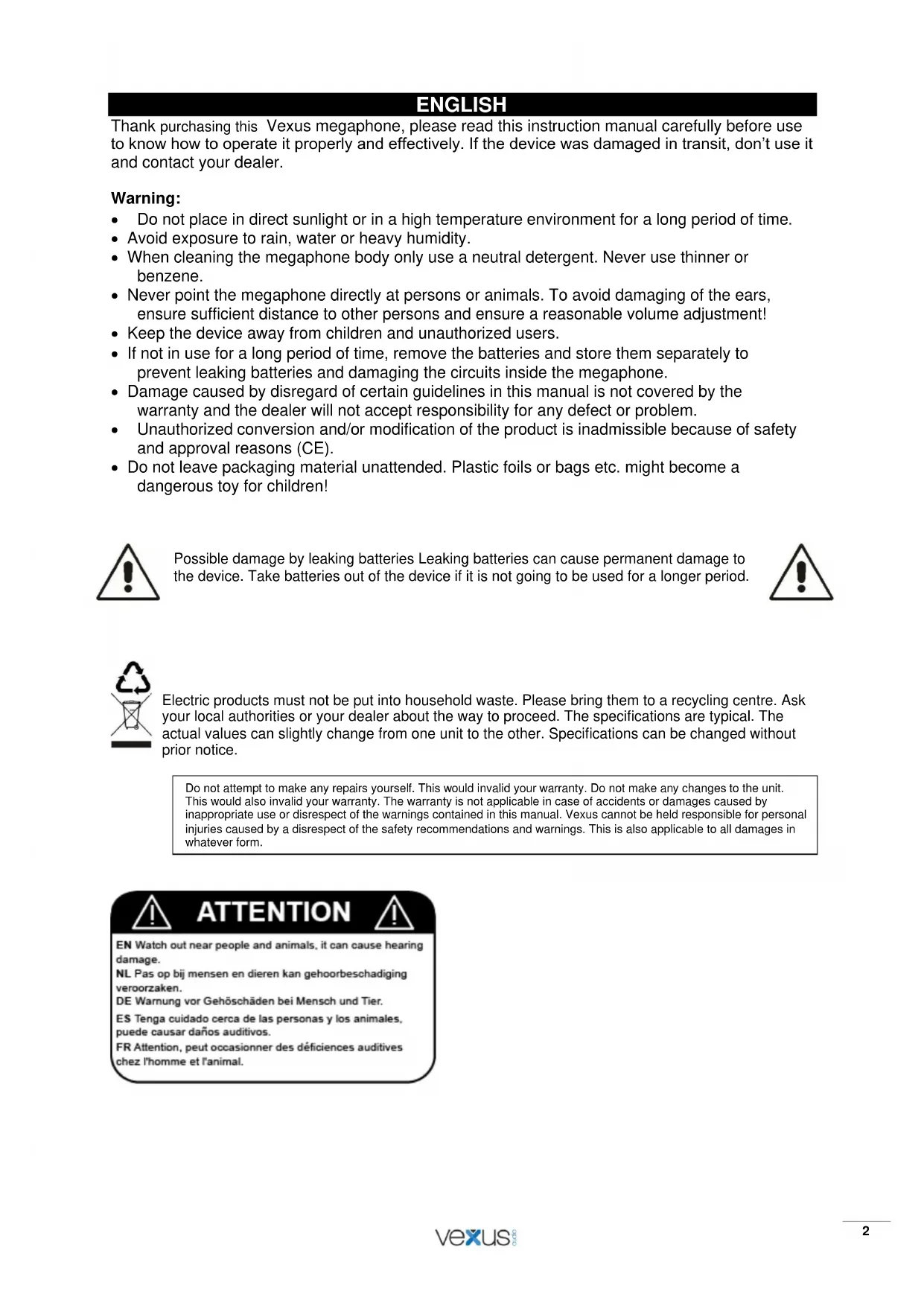

Thank purchasing this Vexus megaphone, please read this instruction manual carefully before use to know how to operate it properly and effectively. If the device was damaged in transit, don't use it and contact your dealer.
Warning:
- Do not place in direct sunlight or in a high temperature environment for a long period of time.
- Avoid exposure to rain, water or heavy humidity.
- When cleaning the megaphone body only use a neutral detergent. Never use thinner or benzene.
- Never point the megaphone directly at persons or animals. To avoid damaging of the ears, ensure sufficient distance to other persons and ensure a reasonable volume adjustment!
- Keep the device away from children and unauthorized users.
- If not in use for a long period of time, remove the batteries and store them separately to prevent leaking batteries and damaging the circuits inside the megaphone.
- Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any defect or problem.
- Unauthorized conversion and/or modification of the product is inadmissible because of safety and approval reasons (CE).
- Do not leave packaging material unattended. Plastic foils or bags etc. might become a dangerous toy for children!
Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period.
Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.
Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Vexus cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.
ATTENTION
EN Watch out near people and animals, it can cause hearing damage.

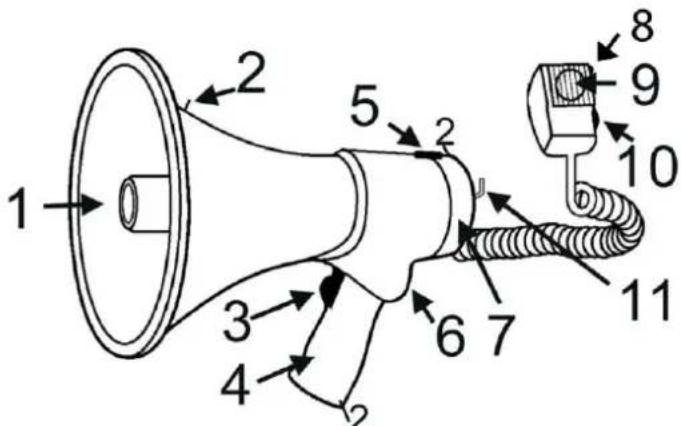

- Speaker
- Clips for carry strap
- Press-to-talk switch: Press this switch for announcing when holding the megaphone.
- Handle grip
- Battery compartment unlock
- Sirene switch/ talk switch
- Battery compartment
- Power On/Off
- Microphone
- Volume controller: To increase volume, turn clockwise.
-
Microphone fixing hanger
-

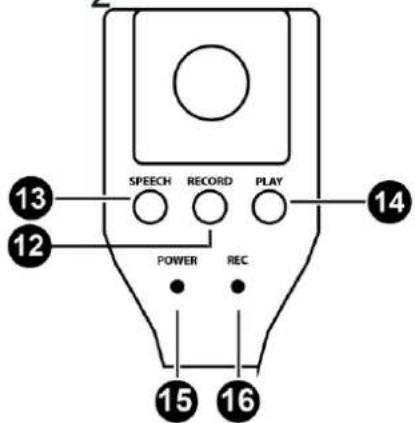

Record button.
- Speech button
- Play button
- Power LED indicator
- Record LED indicator: Light turns on when the device is in record mode.
OPERATIONAL INSTRUCTIONS
- Installing the batteries: Press the battery unlock button to open the top cover. Put 8 pcs size C-batteries properly (+/- terminals must match) into the battery compartment and close the top cover and the latch.
- Position the horn opening towards the audience, and speak through the microphone. Bring the microphone close to your lips and speak normally.
- Adjust the volume level to optimum without causing howling. Please note that the closer the sound source is to the microphone the better the amplification is.
- Switch the alarm switch to the alarm position, it will generate a continuous alarm.
- If the megaphone is activated and the volume of the speaker is weak, the batteries might be empty. Follow step 1 to replace the batteries.
USB port/SD Slot in :
BASIC TROUBLESHOOTING
If the megaphone does not work, remove the batteries to check if the +/- terminals match correctly.
- If the terminal match correctly, place back the batteries and press them down into the battery compartment firmly, make sure the batteries are in contact properly
TECHNICAL SPECIFICATION
Power max. : 60Watt
Range : outdoor up to 1000- 1200m
Battery : 8pcs Type C-Battery
Battery lifetime : permanent use up to 5 hours
Dimensions : Horn Ø230mm, Length 340mm
Weight (without battery): 1.65Kg
The specifications are typical. The actual values can slightly change from one unit to the other.
Specifications can be changed without prior notice.
NEDERLANDS
EN Watch out near people and animals, it can cause hearing damage.

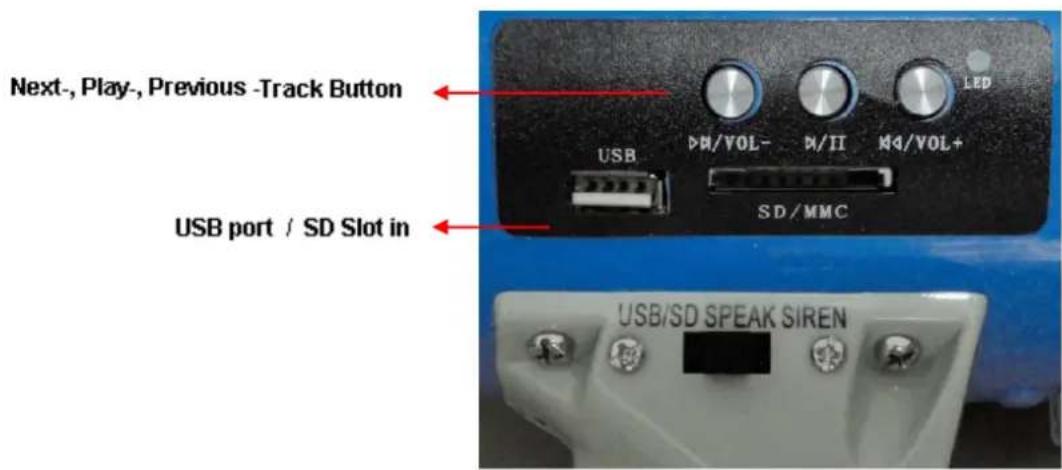

USB port/SD Slot in :
Next-, Play-, Previous-Track Button
USB port / SD Slot in
PROBLEM OPLOSSEN
EN Watch out near people and animals, it can cause hearing damage.
USB port/SD Slot in :
Next-, Play-, Previous-Track Button
USB port / SD Slot in
VEXUS
FEHLERDIAGNOSE
USB port / SD Slot in
SOLUTION PROBLEMAS BASICOS
EN Watch out near people and animals, it can cause hearing damage.
USB port/SD Slot in :
Next-, Play-, Previous-Track Button
USB port / SD Slot in
PROBLEMES
Declaration of Conformity
Supplier Details: TRONIOS BV
+31(0)546589299
+31(0)546589298
Product Description: MEG060 60W USB/SD, sirene, micro
Trade Name: VEXUS
Regulatory Requirement: EN 55022:2006
EN 55024:1998+A1:2001+A2:2003
The product meets the requirements stated in Directives 2006/95 and 2004/108/EC and conforms to the above mentioned Declarations.
ALMELO,
17-02-2015
Name: B. Kosters
Controller regulations
Signature:
Specifications and design are subject to change without prior notice..
www.tronios.com
Copyright © 2015 by TRONIOS the Netherlands
