USER MANUAL Wintergarden Blumfeldt

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Technical Data 9

Safety Instructions 10

Control Panel 12

Operation 12

Cleaning and Care 13

Hints on Disposal 14

Declaration of Conformity 14

TECHNICAL DATA

Item number 10034652, 10034653
Power supply (with mains adapter) 100-240 V ~ 50/60 Hz / max. 1 A
Power supply (with battery) 24 V / max. 43 W

SAFETY INSTRUCTIONS

• Remove the packaging and make sure that the appliance is intact. If in doubt, do not use it and contact qualified personnel only.
• Packaging materials (plastic bags, polystyrene, staples etc.) Must be kept out of the reach of children as they could be hazardous.
• Children over the age of 8 and persons with reduced physical, sensory or mental capabilities or those with a lack of experience and knowledge may only use the device if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the device. Children may not clean or carry out user maintenance without supervision.
• Do not leave the appliance unattended.
• Before connecting the appliance, check that the appliance rating corresponds to the mains rating.
• This appliance must only be used for the purpose for which it has been manufactured. As a stand fan. The manufacturer is not responsible for any damage caused by improper or incorrect use.
• The installation/assembly of the device will be made according to the indications of the manufacturer. A wrong procedure may cause damages to persons, animals or objects, for which the manufacturer cannot be considered responsible.
• Do not attempt to repair, disassemble or change the appliance by yourself.
• Before cleaning or carrying out maintenance on the appliance, disconnect it from the electrical mains by removing the plug from the electrical outlet or by switching off the system switch.
• The appliance is not to be used if there are signs of damage. If the appliance is faulty and/or operating incorrectly, switch it off without tampering with it. If the above is disregarded, the safety of the appliance may be compromised.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not power the device using multiple sockets.
• Do not use adapters and/or extension cable.
• The device must not be switched on using external timers and/or other remote control devices which are not specified in this manual.
• Never touch the appliance with wet hands. Do not immerse the appliance, the cable or the mains plug in water or other liquids. If the appliance accidentally falls into water, do not attempt to remove it, but immediately unplug it from the wall outlet and have it inspected by a specialised company.
• If you use the device for the first time, make sure to remove any label or protective sheet which blocks its proper functioning.
• Do not pull the plug out of the socket by the cable, but hold it firmly by hand when pulling it off.

• Before plugging the plug into a wall outlet, make sure that the unit is switched off.

• Always unplug the power cable to avoid the overheating and avoid stretching it.

• Do not insert any objects into the device. This may result in electric shock, fire, or damage to the product.
• Ensure that all air inlets and outlets are free of dust and objects, and that they are not covered to prevent overheating.
• This appliance may only be operated with the built-in lithium battery or the supplied power adapter. No other power supply unit may be used.
• A rechargeable battery is built into the appliance. The appliance must not be disposed of by fire. Danger of explosion!
• Only use the appliance on flat and stable surfaces.
• Make sure that the power cord does not run over sharp edges or surfaces (table edge, working surface) and does not come into contact with hot surfaces. Do not hang the product from the ceiling or wall unless it is designed for this purpose.
• The mains cable must be laid in such a way that nobody can trip over it. Do not cover it with carpets or similar covers. Do not place it under furniture or other appliances.
• Leave enough space around the appliance to walls, furniture or other devices to achieve the best possible performance and avoid damage.
• Do not use the appliance near gas stoves or open flames in general.
• The appliance must not be installed, used or stored near heat sources (heaters, stoves) or flammable materials (curtains, etc.). Keep a minimum distance of 30cm on all sides.
• Do not cover the device during functioning.
• The front and rear part of the cover grille must be firmly put together. Never use the appliance without the cover grille.
• Do not expose yourself for a long period to the air flow generated by the device because it can cause damage to the health.
• If the fan must be stored for a long period and is not used regularly, place the fan in its original packaging in a dry place.
• Always unplug the appliance from the wall outlet before cleaning, servicing and storing or when not in use.
• Do not use the appliance in the presence of potentially flammable or explosive liquids or gases.
• The appliance is not intended for commercial use, but only for household and similar environments. This includes kitchens in offices, farms, hotels, motels and Bed & Breakfasts. Do not use outdoors.

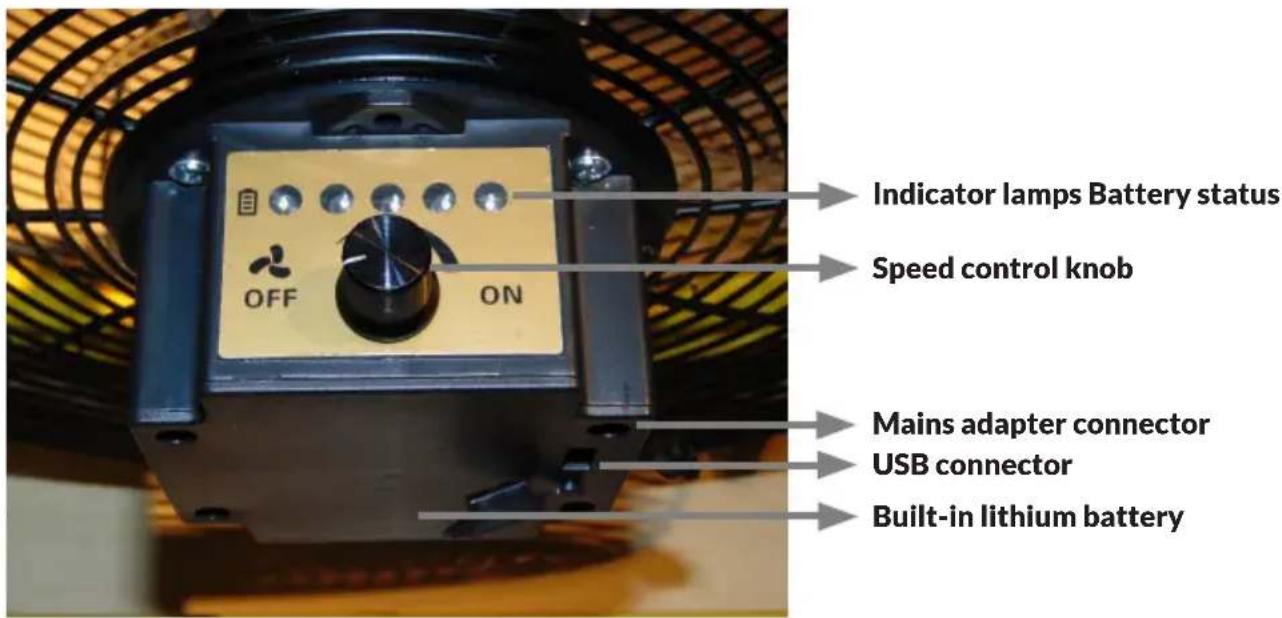

CONTROL PANEL

OPERATION

• The appliance can be operated with the mains adapter or wirelessly using the built-in lithium battery. With a battery capacity of 15600mAh the appliance has a running time of up to 24 hours at lowest speed and up to 5 hours at highest speed.

Battery indicator:

• 5 LED lights indicate the battery charge level with 20% each. To charge the battery, remove the protective cap and connect the AC adapter. When charging, the LED light flashes. When the battery is fully charged, all indicator lights light up continuously and the charging cable can be removed. Replace the protective cap.

Speed control:

• To turn on the appliance, turn the knob clockwise. The speed change is stepless. For maximum speed, turn the knob clockwise (ON) to the stop. To turn off the appliance, turn the knob counterclockwise (OFF) to the stop.

USB charging function:

• The USB port can be used to charge electrical devices such as smartphones. To do this, remove the protective cap and connect your USB cable (not included). The USB connector has an output voltage of 5V / 1A . When charging is complete, replace the protective cap.

Tilt angle:

• You can adjust the tilt angle of the fan by tilting the fan head manually. If necessary, tighten the side screws to maintain the desired tilt.

Protective devices:

• This appliance has thermal protection and overcurrent protection. If the circuit is overheated, the protection devices are activated by automatically cutting the circuit for safety reasons. If you notice damage to the product, discontinue use and contact the manufacturer or an authorized service center.

CLEANING AND CARE

It is recommended to clean the fan every month.
- Always unplug the appliance from the wall outlet before cleaning. Never immerse the plug, power cord or the entire appliance completely in water or other liquids.
- Use a damp, soft cloth to clean the surface. Then wipe the unit with a dry cloth.
- Do not use aggressive or chemical cleaning agents or abrasive cleaners (such as steel wool).
- If you do not use the fan for a long time, store it in a cool, dry place out of the reach of children. Do not store the unit in warm places exposed to direct sunlight.
- If the appliance is very dirty, you can remove the front protective grille. Make sure the appliance is turned off before removing it. Loosen the screws and remove the protective grille. The fan blades must not be dismantled. Use a damp, soft cloth for cleaning and a mild detergent if necessary. Wipe the appliance with a dry cloth. After cleaning, screw the front protective grille back on tightly.

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)
2014/35/EU (LVD)
2011/65/EU (RoHS)
206/2012/EU (ErP)
