USER MANUAL Essos Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTVERZEICHNIS

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SICHERHEITSHINWEISE

WARNUNG

Warning panel with warning symbols and pictograms, showing a person in a yellow triangle with a 'X' mark.

VORSICHT!

VERWENDEN SIE KEIN ALKOHOL ODER BENZIN ZUM ENTZÜNDEN ODER WIEDERENTZÜNDEN!

EINZELTEILE

ZUSAMMENBAU

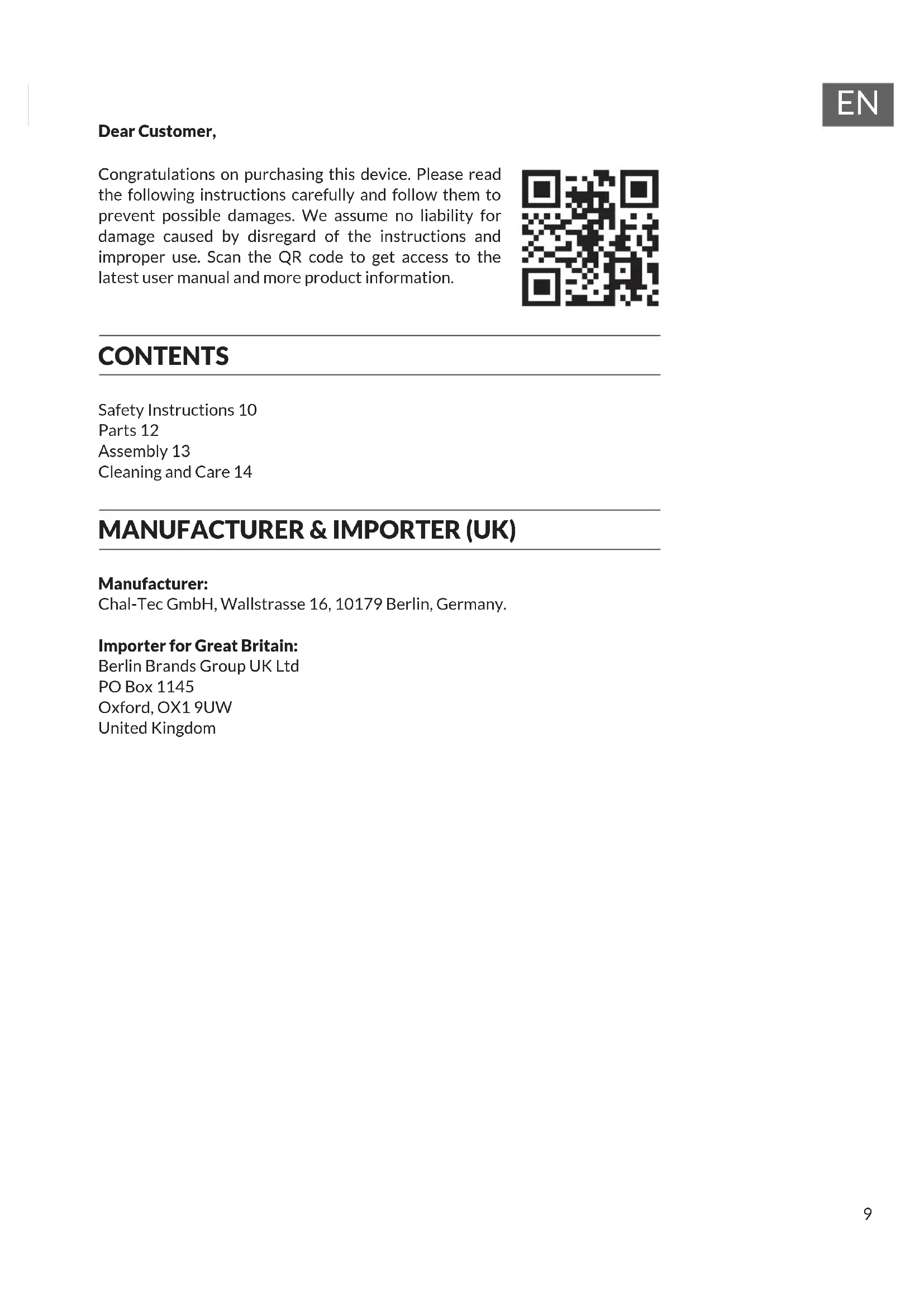

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 10

Parts 12

Assembly 13

Cleaning and Care 14

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETY INSTRUCTIONS

WARNING

Risk of suffocation! This fi re pit is for outdoor use only and shall not be used in a building, garage or any other enclosed area.

Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fi re pit is not for commercial use.
• This fire pit should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire pit. This fire pit is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire pit until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire pit on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire pit after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire pit until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire pit when in use as it is hot.
• Do not attempt to store the fire pit until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire pit with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire pit as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the fire pit before use.
• A slight discolouration of finish may occur after use.

Special instructions for grills

• Do not place the food on the grill until the fuel is covered with a layer of ash!
• The appliance becomes very hot and must not be moved during operation.
• Do not use the appliance in closed rooms.
• Do not use spirit or petrol for ignition or reignition. Only use ignition aids in accordance with EN 1860-3.
• Keep children and pets away from the appliance.

Warning sign with pictograms and symbols, including a person in a yellow triangle, a house, a campfire, and a tree with checkmark.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

PARTS

ASSEMBLY

1 Place the chimney (2) on the hood (3). Fasten it with the screws (4). 2 Attach the base (8) to the body (6). Fasten it with the screws (4). 3 Attach the hood (3) to the body (6) with the screws (4). 4 Insert the ash grate (7) into the carcase (6). 5 Attach the door (5) to the body (6). 6 Place the lid (1) on the flue (2).

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fi replace to cool completely before inspecting or cleaning it for damage.

Inspect the fi replace for damage

Check the fi replace regularly for damage to ensure product safety and a longer service life.

1. Check all parts to make sure they are tight.
2. Check the components for damage.
3. If you find damage to a component, have the fi replace repaired before continuing to use it.

Cleaning

• Make sure that the fi re is completely extinguished when you no longer use the fi replace.
• Make sure the fire is completely extinguished and the fire replace has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fi replace regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE DE CONTENIDOS

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Warning sign with pictograms and symbols, including a yellow warning triangle, black house icons, and green checkmark

ATENCIÓN!

iNO UTILICE ALCOHOL O GASOLINA PARA ENCEDER LA CHIMENEA!

PARTES INDIVIDUALES

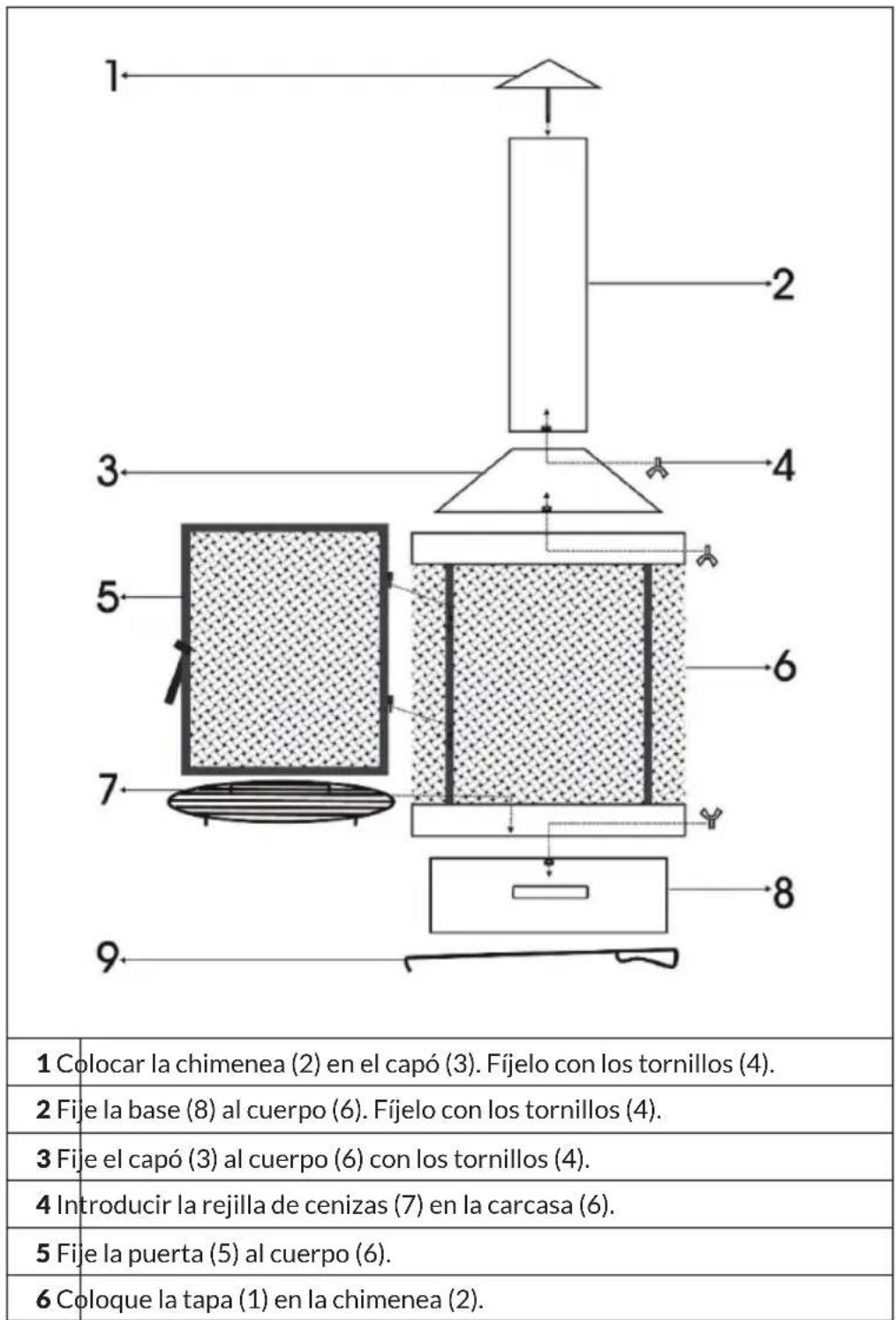

ENSAMBLAJE

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

CONSIGNES DE SÉCURITÉ

MISE EN GARDE

Warning sign with hazard symbols and pictograms, including a yellow warning triangle and four quadrants with icons for heating, cooking, cooking, and gathering.

ATTENTION!

NE PAS UTILISER D'ALCOOL OU D'ESSENCE POUR ALLUMER OU RALLUMER !

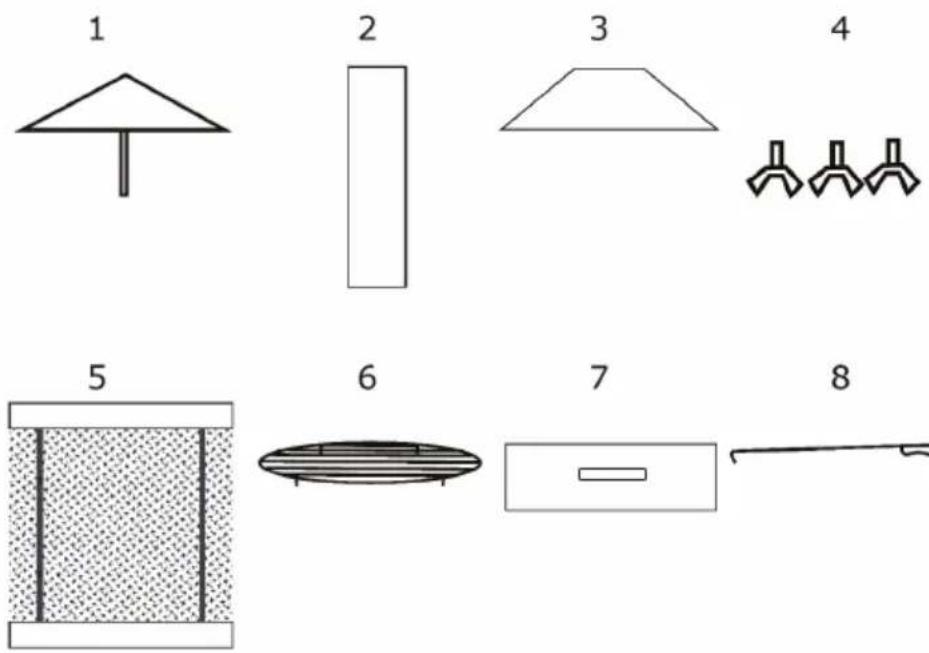

PIÈCES DÉTACHÉES

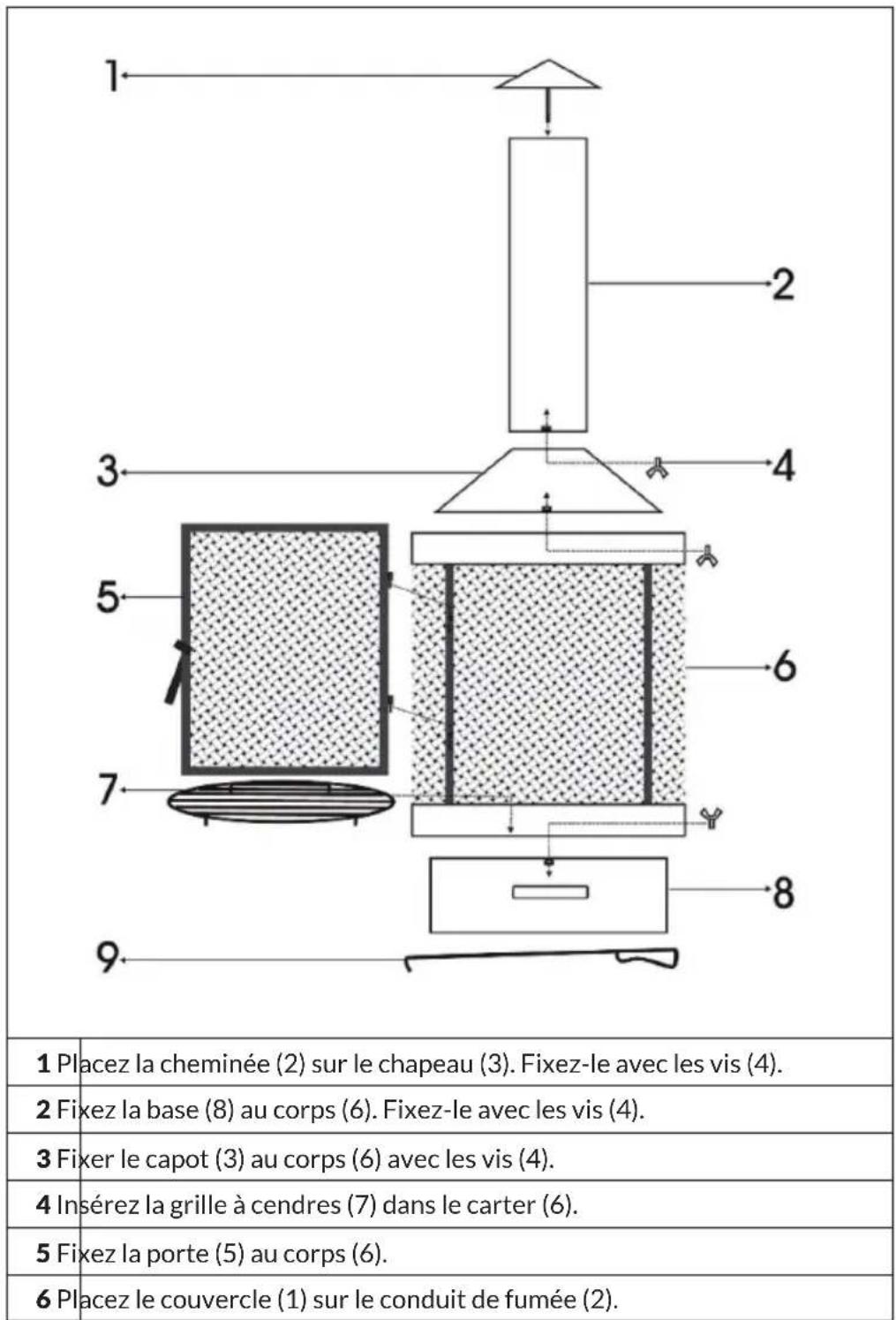

ASSEMBLÉE

QR code image containing encoded data, no visible human-readable text

INDICE

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

AVVERTENZE DI SICUREZZA

ATTENZIONE

Warning sign with pictograms and symbols, including a yellow warning triangle, black house, fire truck, campfire, tree, and checkmark.

ATTENZIONE!

NON UTILIZZARE ALCOOL O BENZINA PER ACCENDERE O RIACCENDERE IL BRACIERE!

PARTI SINGOLE

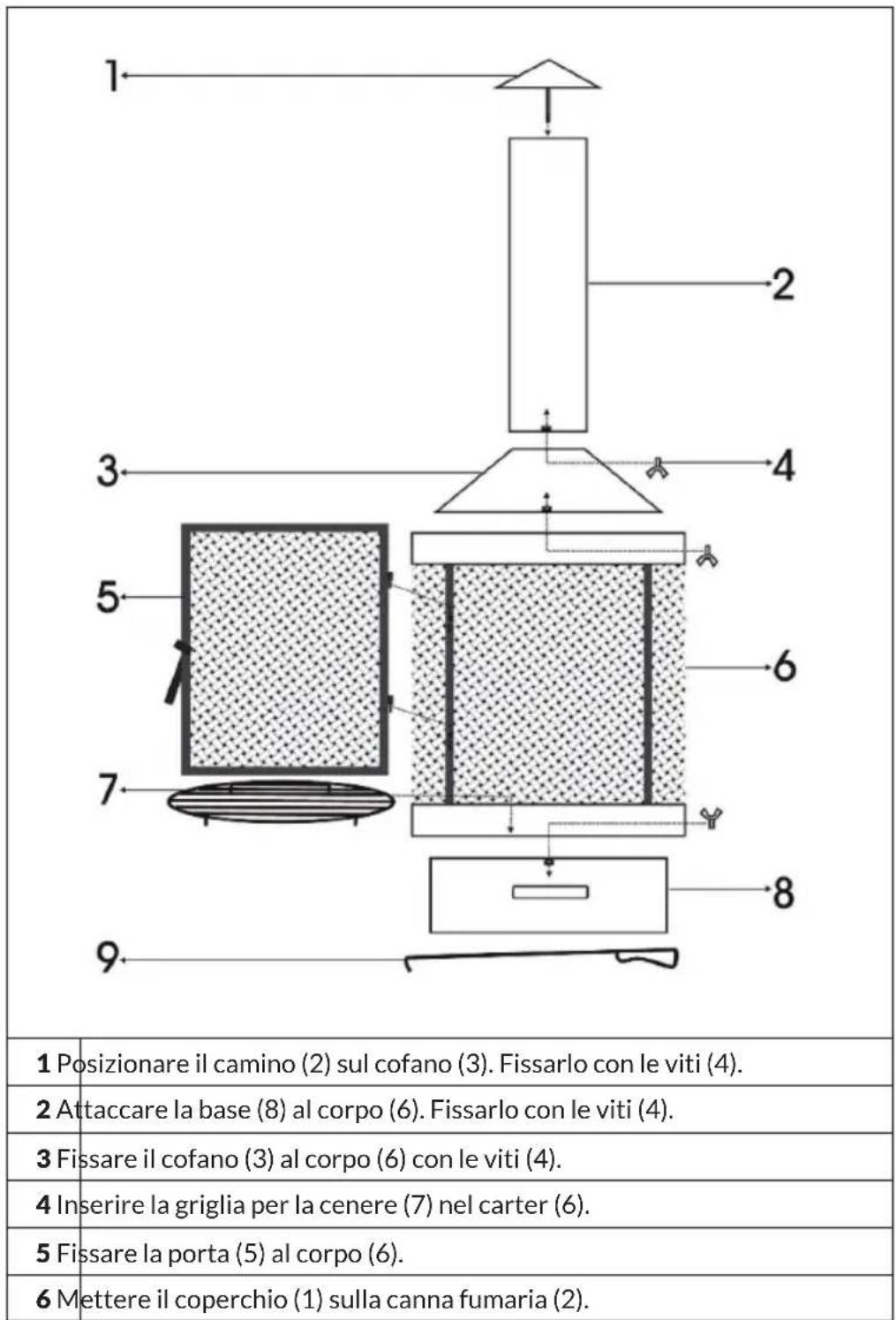

MONTAGGIO
