Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Technical Specifications 16

Safety Instructions 17

General Information 21

Installation 21

Operation 23

Cleaning and Care 26

Troubleshooting 26

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

TECHNICAL SPECIFICATIONS

Item number 10036076, 10036077
Product size 340×340×900 mm
Size of the burner opening	Ø 50 mm
Net weight 12 kg
Intended fuel 95% C2H5OH
Maximum burner volume 0.65 L
Total fuel capacity of the device 0.8 L
Fuel consumption 24 g/h
Heating power 0.187 kW
Recommended minimum room volume 75 m³
1 The device is for decorative and domestic use only. 2 Read the manual before installation and setup 3 This unit complies with EN16647. 4 Only use fuel with an alcohol concentration of at least 95 %. 5 Use only in a well-ventilated room not smaller than 75 m³. 6 Never pour fuel into a hot or burning device. 7 Do not overfill. Wipe up any spilled fuel before igniting the fuel. 8 Only use the unit in a draft-free environment. 9 Do not ignite the fuel while the appliance is hot. 10 Do not move the unit during operation. 11 Never leave small children or pets unattended near a burning appliance.
Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

SAFETY INSTRUCTIONS

Note: Children must not use the appliance!

Notes on fuel

Fireplace ethanol is a flammable liquid and presents a real danger if not used in direct compliance with all directions and safety instructions. Keep the fuel out of reach of children and pets. Never let children come into contact with fuel, the fireplace or fire accessories.

First aid measures in an emergency

• Eyes: Immediately rinse the affected area with clear water. The eyes should be rinsed for at least 15 minutes. Then visit a doctor immediately. Contaminated clothing should be washed before reuse.
• Ingestion: If the subject is fully conscious and can swallow, have them drink water or milk to dilute the fuel. Never put anything in a person's mouth if he or she is unconscious or has cramps. See a doctor immediately. Induce vomiting only on the order of the doctor or the poison emergency center.
• Skin: Wash the skin with soap and water for at least 15 minutes.
• Inhalation: Remove affected person from the area to a location with fresh air. If the person has stopped breathing, start mouth-to-mouth resuscitation immediately and call an ambulance.

Handling and storage of fuel

• Keep the ethanol fuel away from heat, sparks, open flames and sources of ignition.
• Do not store ethanol fuel in direct sunlight. Ensure that it does not heat up. Always store the fuel in a dry, cool place.

Note: If storing fuel in a very cold place, it may be difficult to ignite. Fill it at room temperature.

Special Precautions

Never put fuel straight into the fire.	Never put fuel on hot surfaces.	Do not place any objects on the fireplace.
Avoid drafts. Do not blow into the fire.	Do not touch the fire.
	ETHANOL	i
Do not place the device near flammable objects.	Have a suitable fire extinguisher ready.	Follow the instructions for the fuel exactly.
Have a fire blanket ready.	Do not inhale fumes. Ventilate sufficiently.	Open fire and smoking is prohibited near the unit.

Notes on Operation

WARNING

Risk of suffocation! The fire uses oxygen from the air in the room in which it is operated. The room in which this fire replace is installed must be well ventilated and supplied with suffient fresh air. Never install or operate the fire replace in an unventilated basement or in a hermetically sealed room.

• Never leave a burning or hot fi replace unattended.
• Keep children and pets away from the unit. Children are not allowed to operate the device.
• Do not use the device in cavities where oxygen tanks or flammable vapors are present.
• Do not use the device if people in the home or in the room suffer from breathing diffi culties.
• Do not use the device in confined spaces as the flames consume oxygen.
• Never open a fuel bottle near an open flame, otherwise the fuel could ignite.
• Never move the fi replace while it is burning or while it is still hot.
• After you fill your fi replace, replace the bottle cap and remove the fuel from the fi replace environment before lighting the fi replace.
• The glass becomes hot when lit and will remain hot for some time after the flame goes out. Do not touch glass surfaces. Keep children, pets, clothing, fabrics and furniture away from the unit due to the high surface temperatures.
• Use only an extended stick lighter to ignite. Keep face, body, and objects away from the fire replace, extend the hand holding the stick lighter away from you, and light the fire.
• The escape of the flames must not be obstructed or prevented.
• Do not use the appliance for cooking.
• Allow the fi replace to cool for at least 15-20 minutes before touching, moving or refueling it.
• Take the same precautions for the fire replace as for an open fire (hearth, grill and other open fire products).

In an emergency, dial 112. Extinguish the fire with a carbon dioxide fire extinguisher and then close the fire chamber to completely choke the fire. Place the extinguisher at a maximum distance of 30cm from the device.

• This manual is part of the device. This device is for decorative and domestic use only.
• Please make sure that the wall, table or floor on which you place this device can support its weight.
• The ventilation slots must not be covered or obstructed.
• Do not place any flammable objects on the device.
• Obtain a suitable fire extinguisher and a fire blanket and make sure that the appropriate fire extinguisher is within 1 meter of the equipment.
• Do not operate the device in a drafty environment.
• Observe local laws.
• Use only in a well-ventilated area.
• Do not light the device while it is still hot.
• The construction of the device must not be changed.
• Use only replacement parts approved by the manufacturer.
• The operation of several units is only permitted if the power is less than or equal to 4.5kW / h and if additional ventilation of the room is taken into account.
• Remove any fuel which may have overflowed before lighting the device.
• Check the fuel chamber for overfilling after filling. If the chamber has overflowed, remove the excess fuel.
• The device is not suitable for continuous operation.
• Only use the fuel specified by the manufacturer.
• Store the fuel in a fireproof location.

CAUTION

Risk of burns! The fi replace and the surfaces become very hot during use. Do not touch it. Keep children and pets away from the fi replace.

GENERAL INFORMATION

Bio-ethanol fireplaces are the environmentally friendly solution for a real fire without the need for a chimney or gas supply. Suitable for homes without a chimney. All our fireplaces are ventless, smokeless and ash-free, so no chimney or gas is needed. Our fireplaces are designed with stainless steel and/or black steel with a modern concept. A warm, peaceful and relaxing environment can be created with our lantern.

Bio-ethanol fireplaces can be placed anywhere in the house or flat. You can enjoy the benefits of a real fire without having to install a chimney. Since bio-ethanol burns almost residue-free, ventilation through an open window is sufficient in most cases if the room is large enough.

Before using the device, read the operating instructions carefully and keep them in a safe place. If this device changes hands, the operating instructions must be included when it is passed on to the new owner.

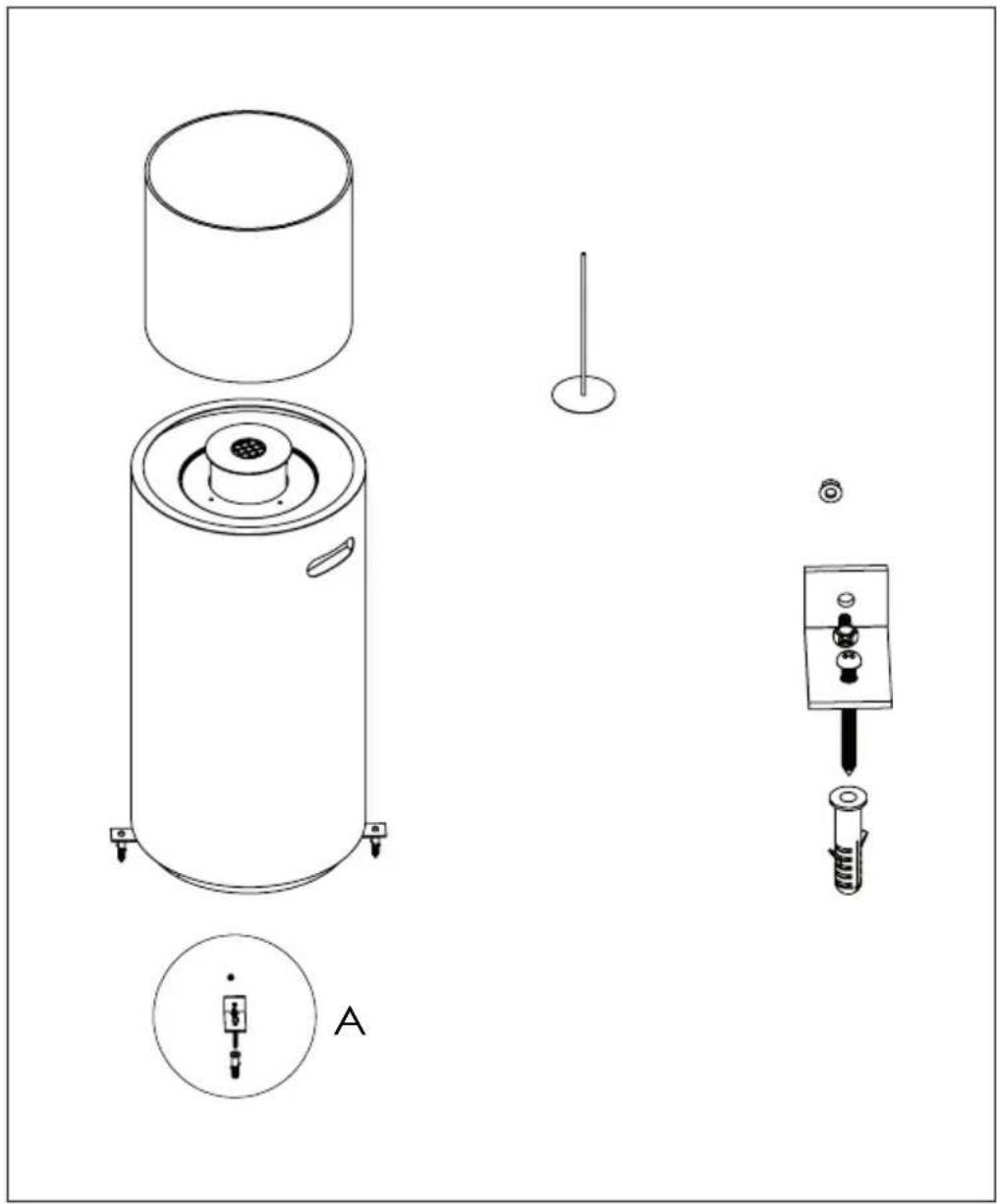

INSTALLATION

• Free-standing fireplaces and table-top appliances must be installed in a safe, level, stable and non-combustible place.
• Wall fireplaces must be mounted on a flat, solid and stable wall with noncombustible wall cladding in accordance with the instructions.
• Built-in fireplaces must be installed in a non-combustible cavity.

(1) This fireplace is operated with bio-ethanol which has a low flash point and is volatile. Have an expert installer check the environment before installing the unit.
(2) Installation is carried out on the basis of this manual.
(3) The environment within 50 - 60~cm of the chimney should be lined with heat resistant materials.
(4) Make sure that the table fireplace/freestanding fireplace is on a flat table/ floor where it will not be touched when walking around. Keep children away from the fireplace.
(5) Ensure that the burner is not exposed to strong wind.

OPERATION

Notes on the Fuel

Note: Ethanol is not included and must be purchased separately from a DIY store or fuel retailer.

• The fuel used in the fireplace should be stored in a shady and safe place.
• Use 95% bio-ethanol refined from plants.

Note: Use only bio-ethanol as fuel.

Ignite Fire

(1) Slowly pour the fuel into a clean, cool burner or burner pot. Use the funnel for filling. Fill the burner to a maximum of 2/3. Do not fill too much fuel and do not allow the fuel to come into contact with objects other than the inside of the burner. Replace the bottle cap and place the bottle far away before lighting. Store the fuel bottle in a dry, cool room. Do not store it in places where it may be exposed to direct sunlight and warm up.

Note: Spilled fuel may stain floors or furniture.

(2) If fuel has been spilled, clean and dry the affected areas before ignition.
(3) Do not add fuel while the fire is burning or the burner is still hot. Wait 10-20 minutes for the burner to cool down before refilling with fuel.
(4) Use a fireplace lighter (not supplied) to ignite the fuel.
(5) Make sure that all persons present are 20 - 30cm away from the fireplace when you ignite it.

Note: The flame begins to flicker slowly. The flame may initially be low and almost invisible, so allow the flame 15 minutes to reach the optimum level.

(6) We recommend that you leave the fireplace burning until all the fuel has been burned.

Extinguish fire

The fire will automatically extinguish when the fuel has burned out. If you want to extinguish the fire while burning, use the supplied stick to extinguish the fire.

Note: Do not try to blow out the fire or extinguish it with water. The fire may continue to burn even when the flame is no longer visible. Make sure that the fire has been extinguished completely before leaving the room.

Re-ignite fire and top up fuel

Before refilling the fireplace with fuel, observe the following:

• Extinguish the burner with the extinguishing tool supplied or allow the fuel to burn out completely. Allow the unit to cool for 30 minutes before refilling with fuel.
• Wait until the chimney and burner have cooled down to room temperature. The remaining flame may be difficult to see. Make sure that the flame is extinguished and that the chimney no longer emits heat.
• Fill the burner to a maximum of 2/3. Do not overfill it.
• Light the fuel with a fireplace lighter. Keep face and body away from the fireplace during ignition. The flame begins to flicker slowly. The flame may initially be low and almost invisible, allow the flame 15 minutes to reach the optimum level.
• Never leave a burning or hot fireplace unattended. Keep children and pets away from the fireplace.

Note: Ethanol fuel may cause serious burns, property damage or even death if used improperly and unsafely. Do not dispose of burnt fuel. Dispose of unused fuel and empty fuel bottles in accordance with local hazardous materials regulations. We recommend that you always burn all the fuel in the burner.

Notes for emergencies

Note: The flame extinguisher should always be near the device so that the flame can be extinguished in an emergency.

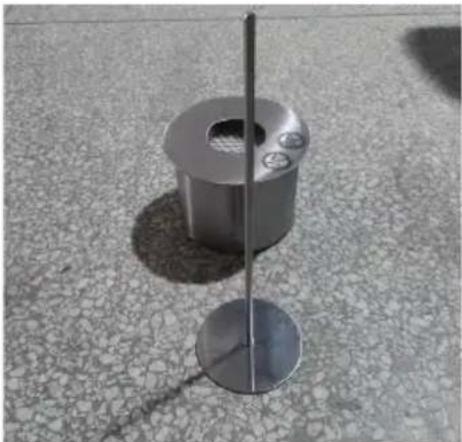

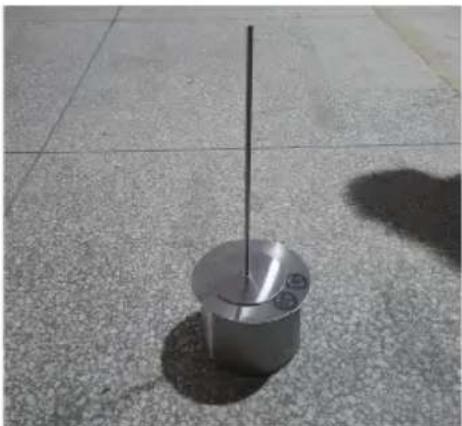

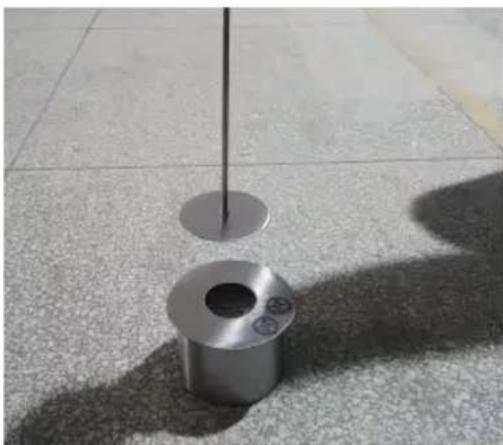

Extinguish the flame in the burner container with the flame extinguisher as shown below.

Make sure that the flame in the burner is completely extinguished.

CLEANING AND CARE

• The fireplace and reservoirs must be cleaned regularly. Use warm water and soap.
• Marks can be best removed with a soft cloth and a mixture of lukewarm water and a small amount of soap. We recommend cleaning the stainless steel regularly to prevent contamination.
• Do not put the water inside the burning tank, as the ceramic wool inside will absorb the liquid.

Note: Never use chemicals, steel-wool or scrubbing sponges as stainless steel surface can be scratched by these items. The manufacturer will not be held responsible for any damages resulting out of false use and/or cleaning of the product.

TROUBLESHOOTING

Problem Possible cause	Solution
Soot formation Wrong fuel	el Use only 100 % bio-	ethanol.
	The burner orifice is covered by foreign objects.	Expose the burner opening and place the decoration only around the burner slot.
Burning time too short	wrong fuel (e.g. gel, alcohol).	Use only 100 % bio- ethanol.
	The burner is not completely filled.	Extinguish the burner, refill it after 30 minutes of cooling time.
Flames too high Wrong fuel	fuel (e.g. gel, alcohol).	Use only 100 % bio- ethanol.
The flame does not go out when the flap is closed.	This can happen with large burners because ethanol vapour can get through the smallest opening.	Repeat the closing process several times and faster to interrupt the oxygen supply.
