Product Type	Outdoor/Indoor Decorative Fountain
Brand	Blumfeldt
Model	Cascada Doble
Article Number	10033351
Power Supply	220-240 V ~ 50 Hz
Power	12 W
Pump Type	Manual pump and electric pump
Adjustable Flow	Yes, via adjustment lever
Max Water Temperature	35 °C
Electrical Protection	Residual Current Device (RCD ≤ 30 mA) recommended
Material	Plastic or resin (estimated)
Estimated Water Capacity	Approximately 10 litres (fill half full)
Recommended Water Type	Tap water or distilled water
Delivery Contents	Manual pump, electric pump, 3 screws, 2 nuts
Assembly	Assembly of two barrels, fixing with nuts, screwing the manual pump
Maintenance	Clean the pump regularly, change water to prevent limescale
Winter Storage	Unplug and empty water if not used for a long time
Safety Precautions	Do not operate without water, unplug before cleaning, do not touch water while operating
Repairability	Repairs by qualified professional only
Recycling	Do not dispose with household waste, take to WEEE collection point

Frequently Asked Questions - Cascada Doble Blumfeldt

How to assemble the Cascada Doble fountain?

Place the small barrel on the large barrel and secure the connection with two wing nuts. Insert the hose into the manual pump from the bottom and screw it on. Place the manual pump on the small barrel and screw it with three screws. Insert the electric pump into the large barrel and route the power cable out.

What type of water to use in the fountain?

Use tap water or soft water (max temperature 35 °C). To prevent limescale deposits and bacteria, use distilled water or change the water regularly.

What to do if the pump does not work?

Check that the pump is fully submerged in water. Unplug and plug back in several times to purge air. Ensure the flow is not obstructed and the flow adjustment lever is open. If the problem persists, contact a professional.

How to clean the fountain?

Always unplug the power before cleaning. Clean the pump and the basin regularly. Use clean water, without harsh chemicals. Check that the suction surface is not clogged.

Can I use the fountain in winter?

It is not recommended to leave the fountain outdoors in winter. If not in use for a long period, unplug the power and empty all water to prevent frost damage.

What is the required power supply voltage?

The fountain operates on a 220-240 V ~ 50 Hz outlet. Use a grounded power outlet with a residual current device (RCD) of 30 mA max.

Does the fountain filter the water?

No, the pump is not equipped with a filter. To keep the water clear, change it regularly and clean the pump. You can add fountain water treatments if necessary.

Where can I find spare parts?

Contact the manufacturer at the address indicated in the manual (Chal-Tec GmbH) for spare parts. Have parts replaced by a qualified professional.

What is the maximum allowed water temperature?

The water temperature must not exceed 35 °C. Hotter water may damage the pump and promote bacterial growth.

What to do if the pump makes noise or vibrates?

Check that the pump is properly submerged and the water inlet is not obstructed. Purge air by unplugging/plugging the power. If noise persists, the pump may be clogged or damaged; clean it or consult a professional.

USER MANUAL Cascada Doble Blumfeldt

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SICHERHEITSHINWEISE

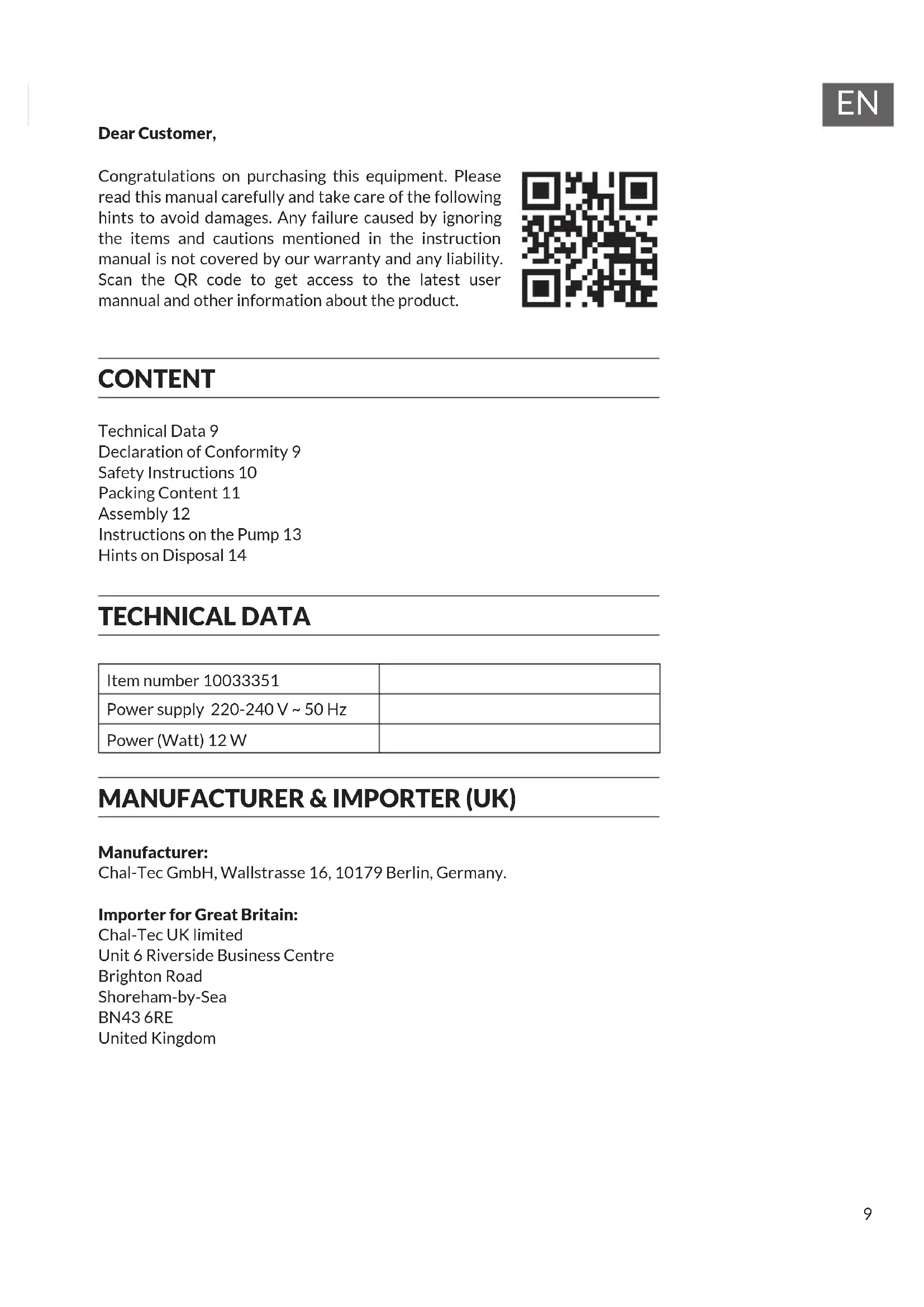

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user mannual and other information about the product.

CONTENT

Technical Data 9

Declaration of Conformity 9

Safety Instructions 10

Packing Content 11

Assembly 12

Instructions on the Pump 13

Hints on Disposal 14

TECHNICAL DATA

Item number 10033351
Power supply 220-240 V ~ 50 Hz
Power (Watt) 12 W

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

SAFETY INSTRUCTIONS

• To reduce the risk of electric shock, do not remove any of the covers. The unit contains parts that are not accessible to the user.
• The device label is located on the back of the device.
• Always disconnect the mains connection before cleaning the well and/or pump.
• This decorative fountain is suitable for indoor and outdoor use.
• Never operate the pump without water.
• If the cable or adapter is damaged, be sure to replace it with identical parts before continuing to use it. Have repairs carried out by qualified personnel only. Repair is required if the appliance has been damaged in any way, i.e. if objects have fallen on it, if it does not function properly or if it has been dropped. Do not attempt to repair the unit yourself.
• Do not reach into the water during operation.
• Please be careful when using the unit by or near children, the physically handicapped or the elderly. This device may only be used by persons (including children) with limited physical, sensory or mental abilities after detailed instruction. Children should be supervised to ensure that they do not play with the equipment.
• Operate the pump only in conjunction with tap water or fresh water at temperatures up to 35^ or lower.
• Use distilled water or change the water at regular intervals to prevent damage from settling contaminants such as lime or bacterial contamination.
• Check the function of the pump and the cleanliness of the well regularly, especially if the well is in operation for a long time.
• If you do not use the well for a long time, disconnect the power and remove the water.

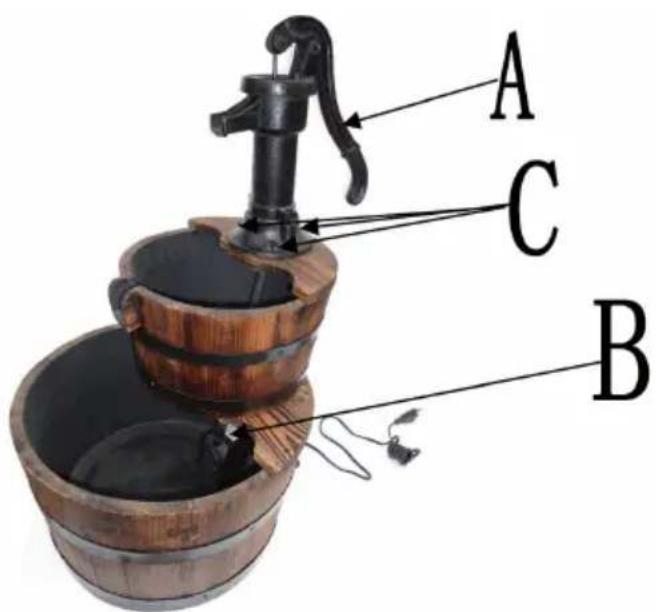

Step 1: Put the small barrel onto the large barrel and fix the connection of both barells with to wing nuts (D).

Step 2: Put the pipe into the bottom of the hand pump (A) and use the thread to lock it in place. Take care not to overtighten the thread.

Step 3: Put the hand pump (A) on the small barrel and fix it with three screws (C) (use the pre-drilled holes for orientation).

Step 4: Put the electric pump (B) into the large barrel, leading the mains cord out of the barrel to a nearby outlet.

Step 5: Connect the water pipe to the pump valve and immerse the pump in water completely (fill the barrel at least half). At last, connect the power cord to any household outlet. The pump should start working after a short while.

INSTRUCTIONS ON THE PUMP

Note: Ensure that the electrical cord loops below the electrical outlet to form a "Drip Loop". This will prevent water from running down the cord into the electrical outlet.

• To avoid electric shock, connect the plug to a grounded outlet only.
• Do not modify the plug.
• Check the voltage on the equipment label before use. Only connect the device to sockets that correspond
  to the voltage of the device.
• Do not pump flammable liquids
• Do not use with water above 35^ .
• The pump is to be supplied through a residual current device (RCD) with a rated residual operating
  current not exceeding 30mA

Notes on Performance

• A clogged or dirty intake screen will greatly reduce performance. If the pump is used on a dirty surface, raise it slightly to reduce the amount of debris contacting the intake. If slower flow is desired, adjust the flow control lever on the side of the pump or restrict the discharge flow.
• Do not let the pump run when not submerged in water. Doing so may damage the pump. Always submerge the pump in the water before plugging in the electrical outlet. It is common for air to be in the pump and tube when first plugged in. Continue to unplug the electrical cord and then plug it back in until water begins to flow.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
