USER MANUAL Delos Blumfeldt

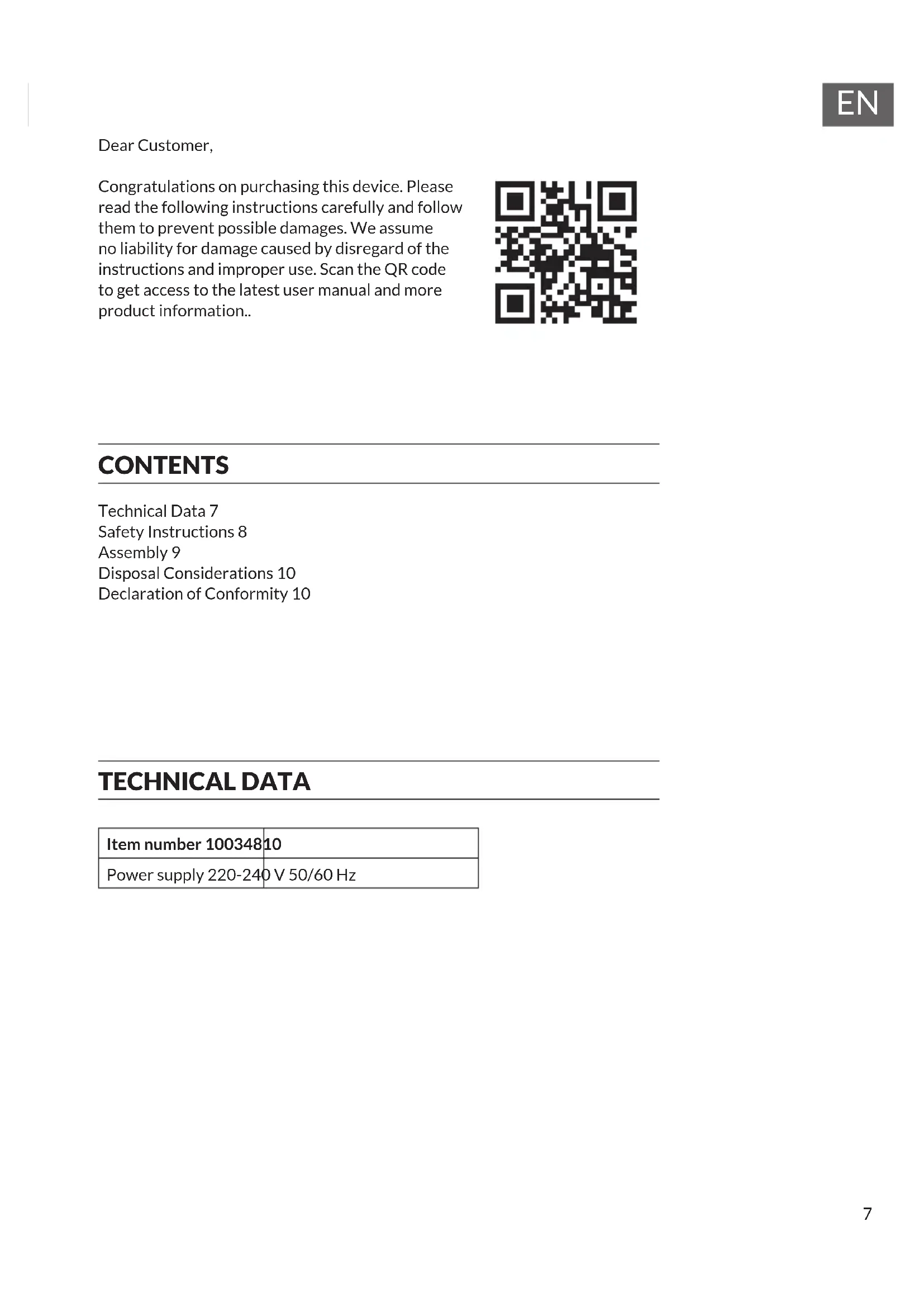

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.. CONTENTS Technical Data 7 Safety Instructions 8 Assembly 9 Disposal Considerations 10 Declaration of Conformity 10 TECHNICAL DATA Item number 10034810 Power supply 220-240 V 50/60 Hz8

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

• To reduce the risk of electric shock, do not remove any of the covers. The unit contains parts that are not accessible to the user.

• The unit label is located on the back of the unit.

• Do not place any vessels lled with liquids, such as vases or watering cans, on it.

• Do not drop metal objects on this unit.

• Do not place heavy objects on top of this unit.

• Only use accessories and attachments approved by the manufacturer.

• Have repairs carried out only by qualied specialists.

• Repair is required if the product has been damaged in any way, i.e. if objects have fallen on it, if it does not function properly or if it has been dropped. Do not attempt to repair the unit yourself. Opening the cover may result in electric shock or other injury.

• Do not pull, bend, or place heavy objects on the cable.

• Do not place open ame sources, such as burning candles, on the product.

• Never let the pump run empty.

• Operate the pump only in fresh water ponds at temperatures up to 50°C maximum.

• Do not place the solar panel in hollows or holes where water can collect. Choose a level location with a solid surface. The plastic bolt should be placed in sufciently solid soil.

• Do not place the appliance on top of other appliances that may become hot. This heat could damage the unit.

• Do not use volatile liquids such as insect sprays. Excessive pressure when wiping may damage the surfaces. Rubber or plastic parts should not be in contact with the unit for long periods of time.9

1. Unpack the contents of the box and check to make sure that all items are

accounted for and in good condition.

2. Select a at, even surface for the assembly and nal location of your

fountain. Place the fountain on an insensitive surface. It can come to splashing water. For any damage to carpets, laminate, parquet or anything else, we assume no liability.

3. From the opening at the back of the fountain base, insert the water supply

tube into the pump outlet, resting pump inside bottom. Next place the pump upright on the base and lead the pump power cord outward through the back opening. Then connect the female jack of the pump with the male jack of LED light. (1)

4. Connect the female jack of the adaptor with male jack of the pump. (2)

5. Add clean water into the basin. The water level should be approximately 1

inch lower than the top edge of the basin. (3)

6. Connect the pump power cord to an outlet and the product will begin to

function as intended. (4)

7. To eliminate the possibility of water damage around your fountain, check

for leaks and excessive splashing after the initial setup of your fountain. It is highly recommended that this fountain be placed in an area where it cannot be damaged.

8. Do not leave your fountain running for extended periods of time when no

one is present to observe the performance.

9. Please refresh the fountain with water each week to ensure it in good

10. Do not allow the pump to run unless it is covered with water.

The diagrams shown are for illustrative purposes only.10

DISPOSAL CONSIDERATIONS According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin. Germany. This product is conform to the following European Directives: 2011/65/EU (RoHS) 2014/30/EU (EMC) 2014/35/EU (LVD)11
