USER MANUAL Fantaghiro Blumfeldt

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

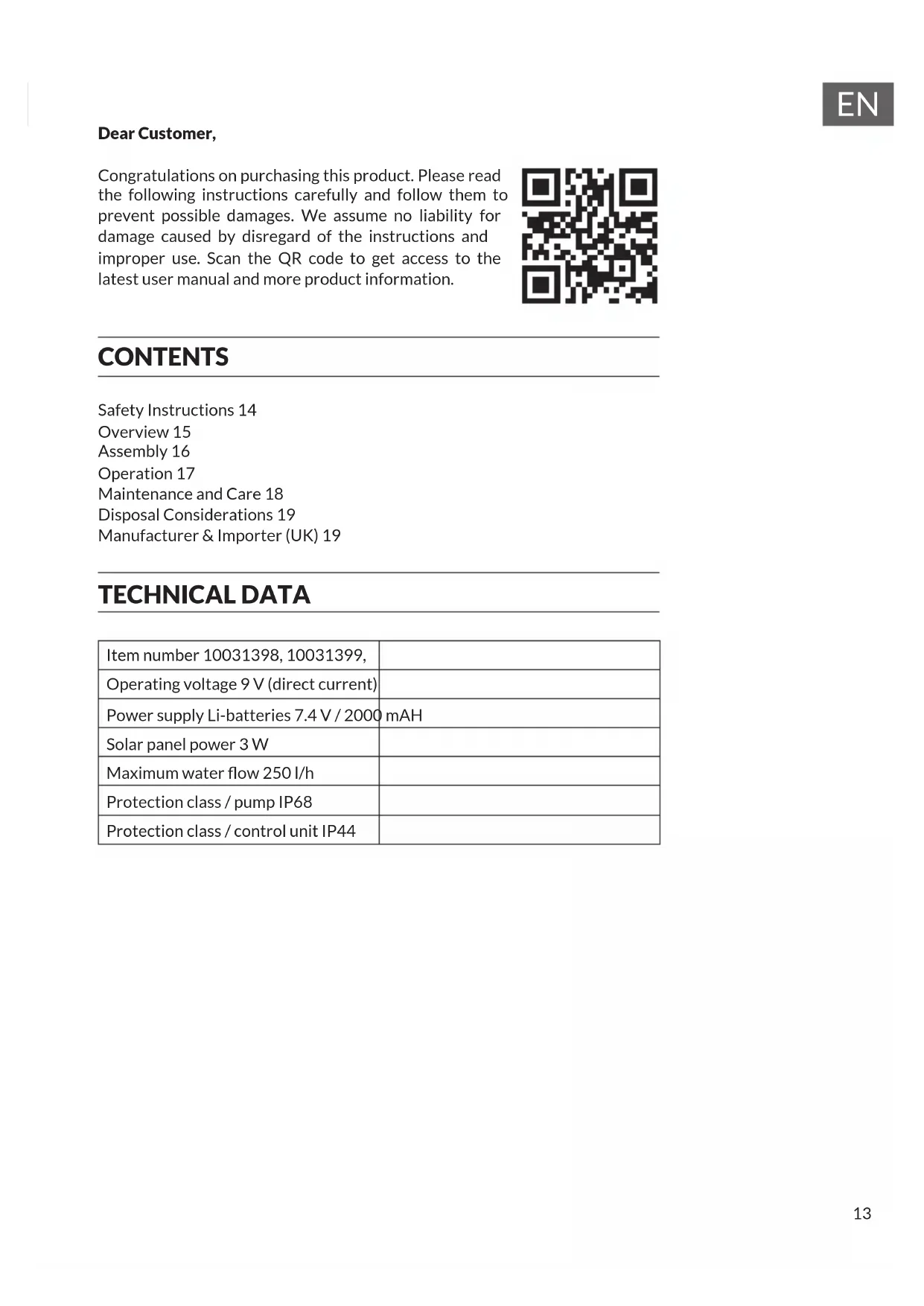

Dear Customer,

Congratulations on purchasing this product. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 14

Overview 15

Assembly 16

Operation 17

Maintenance and Care 18

Disposal Considerations 19

Manufacturer & Importer (UK) 19

TECHNICAL DATA

Item number 10031398, 10031399,
Operating voltage 9 V (direct current)
Power supply Li-batteries 7.4 V / 2000 mAH
Solar panel power 3 W
Maximum water flow 250 l/h
Protection class / pump IP68
Protection class / control unit IP44

SAFETY INSTRUCTIONS

• To reduce the risk of electric shock, do not remove any of the covers. The device contains parts that are not accessible to the user.
• The device label is located on the back of the device.
• Do not place objects filled with liquids, such as vases or watering cans, on the apparatus.
• Do not drop metal objects onto this device.
• Do not place heavy objects on top of this unit.
• Use only accessories and attachments approved by the manufacturer.
• Unplug this apparatus during lightning storms or when unused for long periods of time. This will prevent damage.
• Have repairs carried out by qualified specialists only.
• Servicing is required when the apparatus has been damaged in any way, such as when objects have fallen into the apparatus, the apparatus has been damaged in any way, does not operate normally, or has been dropped. Do not attempt to repair the unit yourself. Opening the cover exposes you to the risk of electric shock and other injury.
• Do not pull or bend the cord or place heavy objects on it.
• Do not touch the plug with wet hands.
• Do not place sources of naked flame, such as lighted candles on the apparatus.
• Never let the pump run empty.
• Never connect the appliance to an AC power source. It is only designed for use with direct current.
• Operate the pump only in fresh water ponds at temperatures up to a maximum of 50^ .
• Do not place the solar panel in coves or holes where water can collect. Choose a flat location with a solid surface. The plastic bolt should be inserted into sufficiently solid ground.
• Do not place the device on top of other devices that can become hot. This heat could damage the unit.
• Do not use volatile liquids such as insect spray. Excessive pressure when wiping may damage the surfaces. Rubber or plastic parts should not be in contact with the device for a long period of time.
• Children from the age of 8 years, mentally, sensorially and physically handicapped persons may only use the device if they have been thoroughly familiarized with the functions and safety precautions by a responsible supervisor and understand the risks involved.

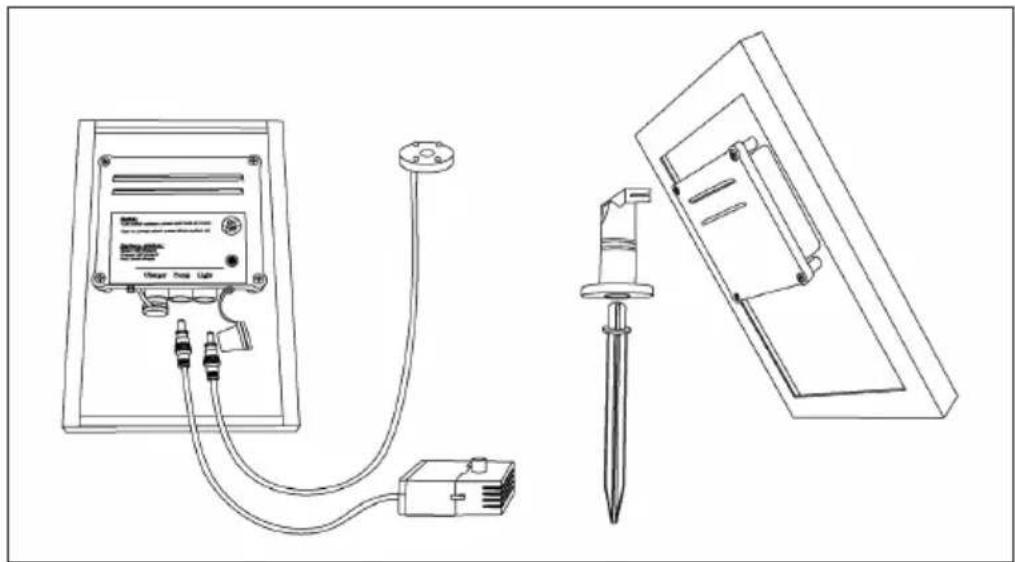

OVERVIEW

EN

This device is a solar fountain for outdoor use. For the pump to work, the solar panel must be in direct sunlight.

The solar pump is equipped with a rechargeable battery that can be switched on or off with a switch on the control module (control box). In the evening, four white LEDs are automatically switched on to enhance the ambience of the water fountain.

Functionality

This solar fountain is mainly suitable for operation in sunshine. The excess energy is used to recharge the battery for later use when it is cloudy or night falls. The pump automatically switches to daylight mode the next day. The pump will only run on the battery if you set this with the rotary knob.

ASSEMBLY

1 Carefully unpack all the contents.

2 Attach the hose to the pump and place the pump under water. Make sure the pump is completely submerged.

3 Connect the pump cable to the socket on the side of the control unit.

4 side of the control unit.

5 Connect the LED cable to the socket on the side of the control box.

6 The cascade fountain is now ready for use.

OPERATION

• Switch on the pump by pressing ON briefly. It will work for a few hours depending on the state of charge of the battery and will automatically switch to solar mode if possible.
• Press and hold the button for 3 seconds to turn off the pump. Now the battery is automatically charged (in sunlight).

Status LED

• Green = Battery is fully charged. The pump runs for about 6-8 hours in battery mode.
• Orange = Battery is half-empty. The pump runs about 2-4 hours in battery mode.
• Red = Battery must be charged. The pump runs for a maximum of 1 hour in battery mode.

Weather and charge effect

	Pump switched on Pump switched off
	Sunlight powers the pump AND charges the battery.	The battery is fully charged after about 1 day.
	Sunlight powers the pump AND charges the battery.	The battery is fully charged after about 2-3 days.
	The pump only runs when the battery is charged.	The battery is fully charged after a few days.
	The pump does not run in solar mode and the battery is not charging.	The battery is not charged.

Solar Mode

Press ON (on the back of the solar panel). The Solar LED will light. Excess energy is used to recharge the battery. When fully charged, this is sufficient for pump operation of about 6-8 hours.

MAINTENANCE AND CARE

Solar Panel

The solar panel should be wiped regularly with a soft cloth to ensure light transmission. Do not use abrasive materials or cleaning agents.

Pump

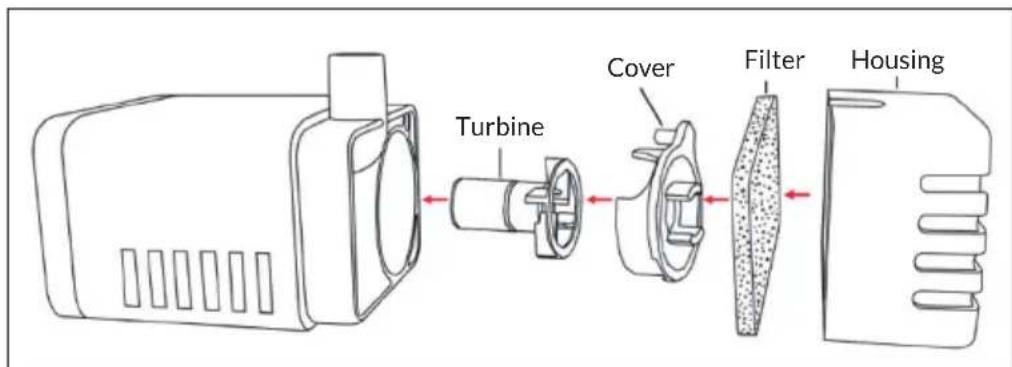

If, after a while, the pump does not perform at its usual flow rate or stops working, check whether sediment or dirt is clogging the filter or pump. Remove the pump and impeller covers (see illustration) and clean both parts with clean water.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom
