USER MANUAL Empoli Cascade Blumfeldt

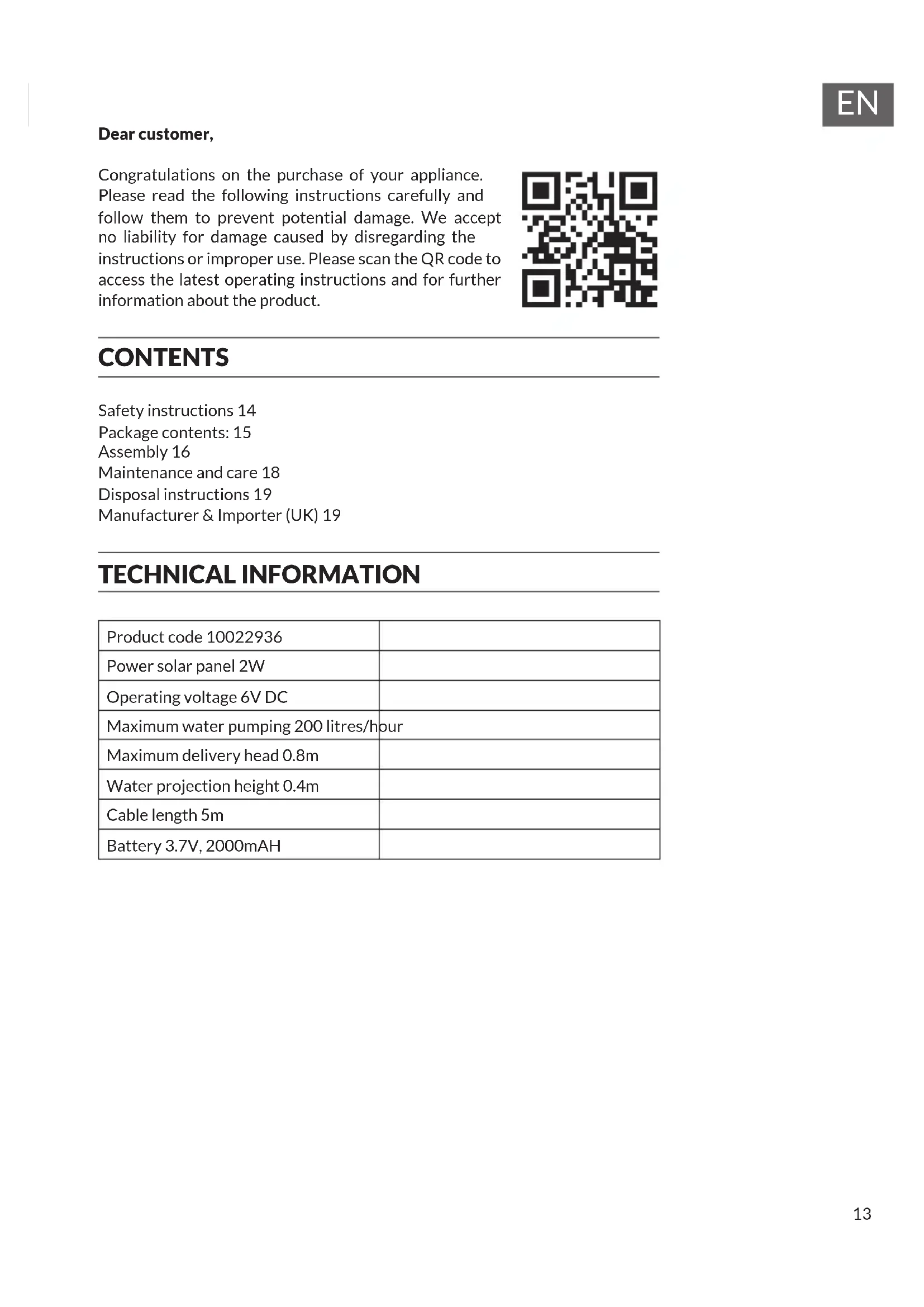

Dear customer, Congratulations on the purchase of your appliance. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product. CONTENTS Safety instructions 14 Package contents: 15 Assembly 16 Maintenance and care 18 Disposal instructions 19 Manufacturer & Importer (UK) 19 TECHNICAL INFORMATION Product code 10022936 Power solar panel 2W Operating voltage 6V DC Maximum water pumping 200 litres/hour Maximum delivery head 0.8m Water projection height 0.4m Cable length 5m Battery 3.7V, 2000mAH14

• To reduce the risk of electric shock, do not remove any of the covers. This device contains parts that are not accessible to the user.

• Do not drop metal objects on this device.

• Do not place any heavy objects on the device.

• Only use accessories and add-on parts that have been approved by the manufacturer.

• Pull the plug out of the socket if there is a thunderstorm, a storm or if you are not going to use the device for a long period of time. This way, you can prevent damage.

• Have repairs carried out by qualied specialists only.

• Repair is required if the device has been damaged in any way, that is, if objects have been dropped on it, if it is not working properly, or if it has been dropped. Do not attempt to repair the device yourself. Opening the cover exposes you to the risk of electric shock and other personal injury.

• Do not pull, bend or place heavy objects on the cord.

• Do not touch the plug with wet hands.

• Do not place sources of open ames, e.g. burning candles, on the device.

• Never let the pump run empty.

• Do not place the device on other devices that may become hot. This heat could damage the device.

• Do not use volatile liquids such as bug sprays. Excessive pressure when wiping the surface can cause damage.

• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.15

ASSEMBLY Step 1 Place the stand on a at and water-resistant surface. Step 2 Place the large bowl in the lower large ring, the three 'pots' in the middle rings and the jug in the upper ring. Step 3 Run the hose from the large bowl through the small rings to the top of the jug. Guide it through the stopper and, together with this, into the jug (see illustration). Step 4 Fill the large bowl and jug with water (the pump must be completely submerged.17

Step 5 Connect the pump and the LED ring to the solar panel (note the inscription on the connections on the back of the solar panel). You can pull the LED ring over the hose or place it anywhere. Select a suitable location for the solar panel, i.e. one that is exposed to the sun and ideally facing the sun.18

Solar panel The solar panel should be wiped regularly with a soft cloth, so that the light transmission remains guaranteed. Do not use abrasive materials or cleaning agents. Pump If after a while the pump no longer provides the usual throughput or stops working, check for sediment or dirt clogging the lter or pump. Remove the covers from the pump and impeller (see illustration) and wash both parts with clean water. Turbine Cover Filter Housing19

DISPOSAL INSTRUCTIONS If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service. MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom21
