Westeros - Fireplace Blumfeldt - Free user manual and instructions

Product type	Outdoor chimney / Fire pit
Brand	Blumfeldt
Model	Westeros
Material	Steel
Fire bowl dimensions	Diameter 60 cm
Total height	110 cm
Weight	12 kg
Fuel type	Wood, briquettes (solid fuel)
Usage	Outdoor only
Main functions	Fire pit, barbecue
Assembly required	Yes: base, fire bowl, smoke flue
Maintenance and cleaning	Damp cloth, mild soapy water; avoid abrasives
Safety	Do not use indoors, do not move when hot, use heat-resistant gloves
Spare parts	Base, fire bowl, smoke flue
Repairability	Have it repaired by a professional if damaged

Frequently Asked Questions - Westeros Blumfeldt

Can the Westeros chimney be used indoors?

No, this chimney is designed for outdoor use only. Using it in an enclosed space can cause a buildup of toxic fumes and a risk of suffocation.

How to light the fire in the chimney?

Place paper or dry firewood in the center of the fire bowl, then add the fuel. Light the paper or wood with a match or lighter. Never use alcohol, gasoline, or lighter fluid.

What type of fuel is recommended?

Use dry wood or briquettes suitable for outdoor fire pits. Avoid treated wood, waste, or flammable liquids. Do not overload the fire bowl: three small logs are enough.

How to safely extinguish the fire?

Let the fire burn out completely or smother it with sand. Never use water as this can cause embers to spray and damage the chimney.

How to clean the chimney after use?

Wait until the fire bowl has completely cooled. Remove the ashes and clean the outside with a damp cloth and a little mild dish soap. Do not use abrasive cleaners or oven cleaner.

Can the chimney be used as a barbecue?

Yes, it can be used as a barbecue. Place the grills only when the fuel is covered with a layer of ashes. Follow the safety instructions for barbecues.

Why does the metal surface discolor?

It is normal for the metal surface to discolor slightly after several uses due to intense heat. This does not affect functionality.

Is the chimney stable?

Yes, if assembled correctly on a firm, level, and heat-resistant surface. Follow the provided assembly instructions.

What to do if a part is damaged?

Do not continue using the chimney. Have the part repaired or replaced by a professional before any further use.

Where can I find spare parts?

Contact Blumfeldt customer service or your authorized dealer. Available parts include the base, fire bowl, and smoke flue.

USER MANUAL Westeros Blumfeldt

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

SICHERHEITSHINWEISE

WARNING

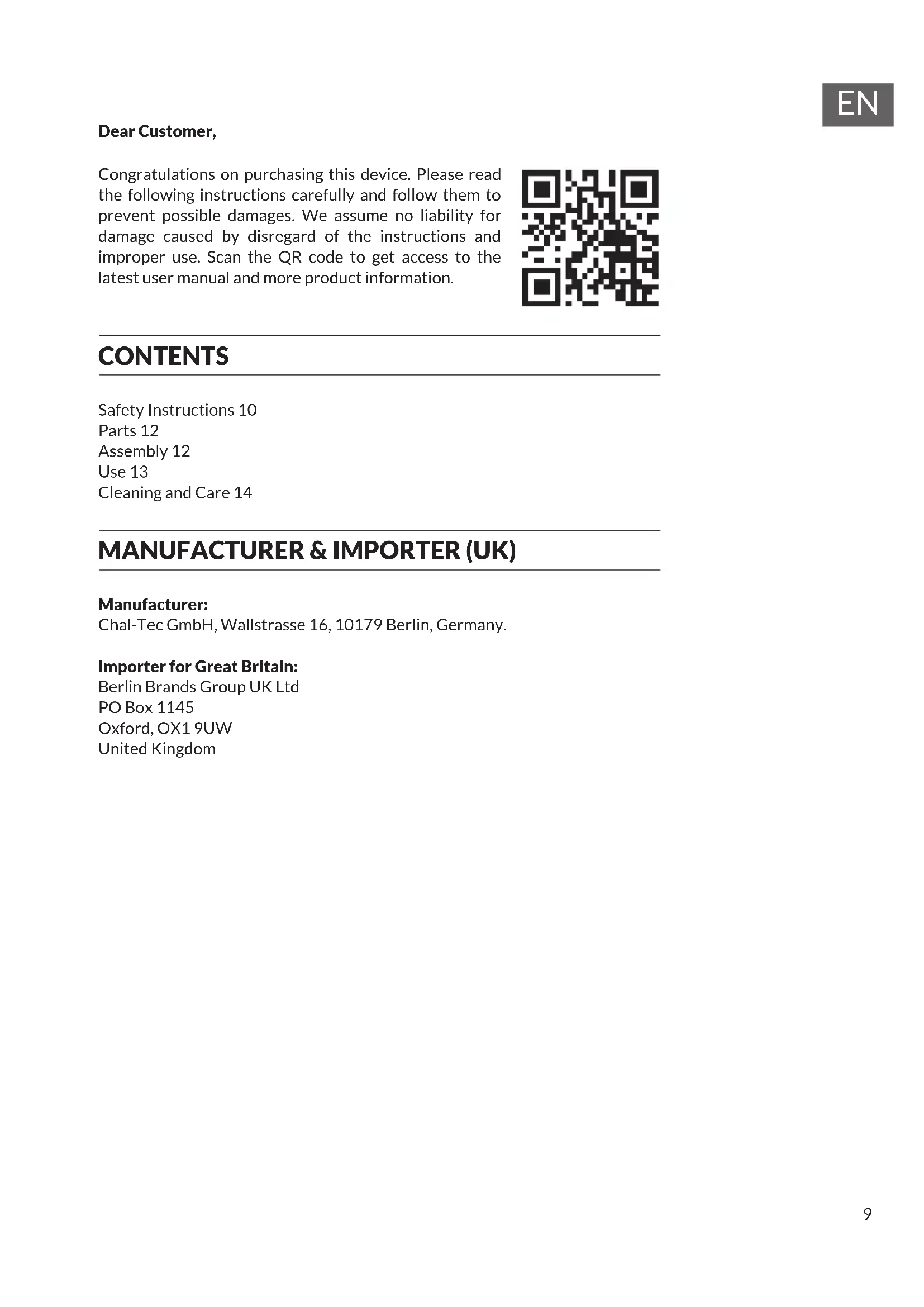

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 10

Parts 12

Assembly 12

Use 13

Cleaning and Care 14

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

SAFETY INSTRUCTIONS

WARNING

Risk of suffocation! This fire pit is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This fire pit is not for commercial use.
• This fire pit should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the fire pit. This fire pit is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use this fire pit until it is completely assembled and all parts are securely fastened and tightened.
• Do not use the fire pit on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this fire pit after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the fire pit until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the fire pit when in use as it is hot.
• Do not attempt to store the fire pit until all ashes and charcoals are completely extinguished.
• Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-Hot embers may emit while in use.
• Do not overload the fire pit with fuel. Do not add additional fuel until the fire burns down. If an portion of the fire bowl is growing red, it is overloaded.
• Do not burn fuel directly on the fire bowl base.
• Do keep the fuel away from the wall of the fire pit as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
• Always thoroughly inspect the fire pit before use.
• A slight discolouration of finish may occur after use.

Special instructions for grills

• Do not place the food on the grill until the fuel is covered with a layer of ash!
• The appliance becomes very hot and must not be moved during operation.
• Do not use the appliance in closed rooms.
• Do not use spirit or petrol for ignition or reignition. Only use ignition aids in accordance with EN 1860-3.
• Keep children and pets away from the appliance.

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

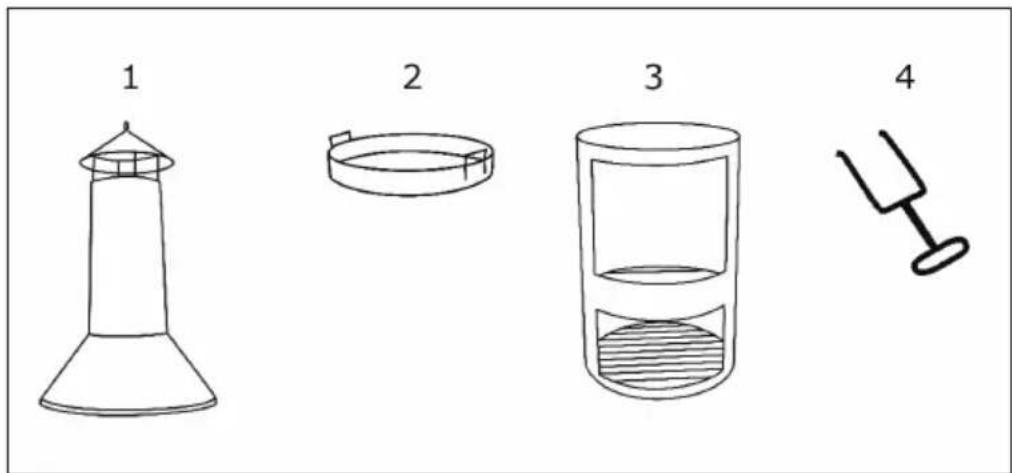

PARTS

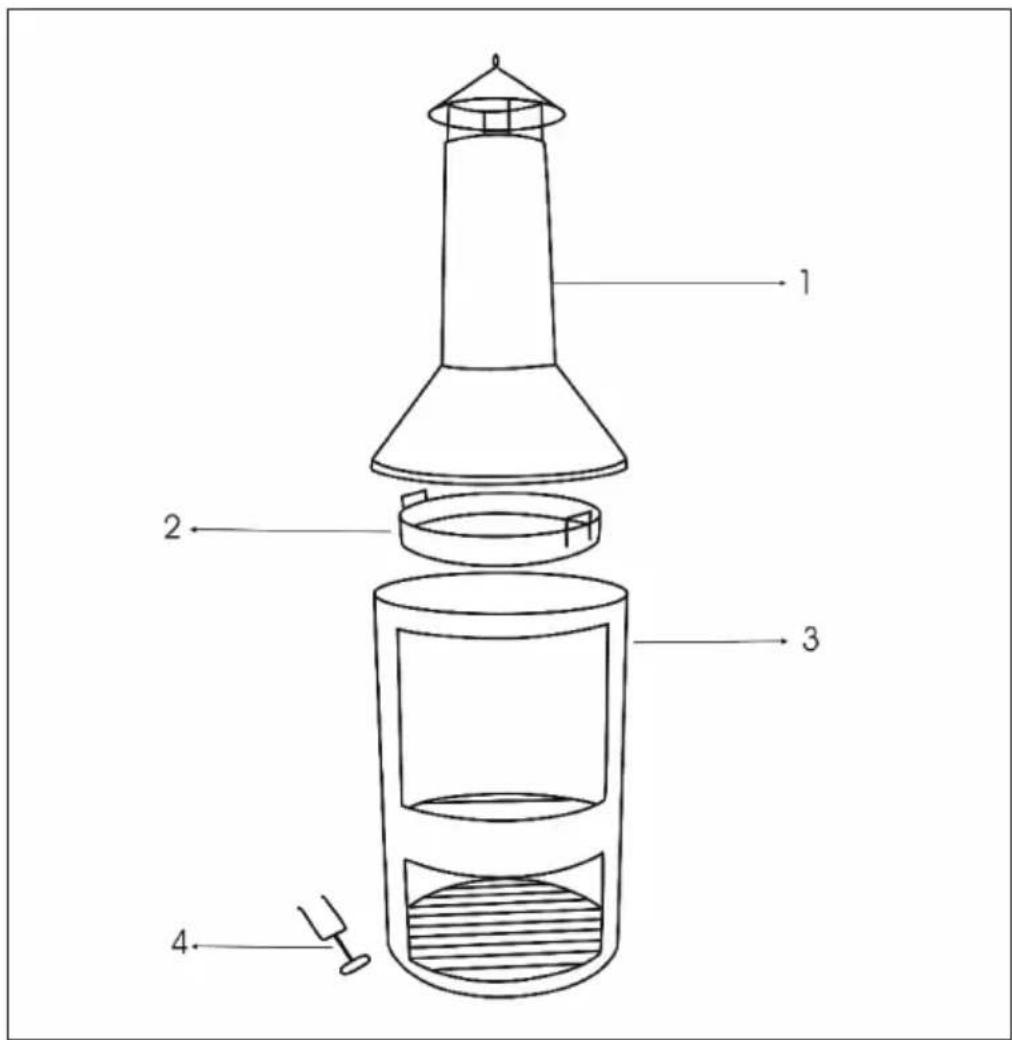

ASSEMBLY

1. Place the body (3) on a permanent flat, level, heat resistant, non flammable surface away from flammable items.
2. Place the firebowl (2) on the two bars attached to the base.
3. Place the flue (1) on the body (3).

USE

Lighting

• Ensure the firepit is positioned on a permanent flat, level, heat resistant, non-flammable surface away from flammable items.
• Make sure there is a small amount of ash in the firebowl bottom.
• Place paper or dry kindling on ash in the centre of the firebowl bottom.
• Place fuel on the paper or dry kindling.
  Light the paper or dry kindling to start a fire.

Tending the fire

• Add fuel to the firepit to increase the heat slowly when embers glow. Do not overload with fuel, only tow or three small logs is sufficient.
• When shifting logs, use a safety tool to allow for additional airflow.

Extinguishing

• To extinguish the firepit, stop adding fuel and allow fire to die or douse with sand. Do not use water as this may damage the firepit.

CLEANING AND CARE

CAUTION

Danger of burns! Allow the fi replace to cool completely before inspecting or cleaning it for damage.

Inspect the fi replace for damage

Check the fi replace regularly for damage to ensure product safety and a longer service life.

1. Check all parts to make sure they are tight.
2. Check the components for damage.
3. If you find damage to a component, have the fi replace repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the fire replace.
• Make sure the fire is completely extinguished and the fire replace has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the fi replace regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.
