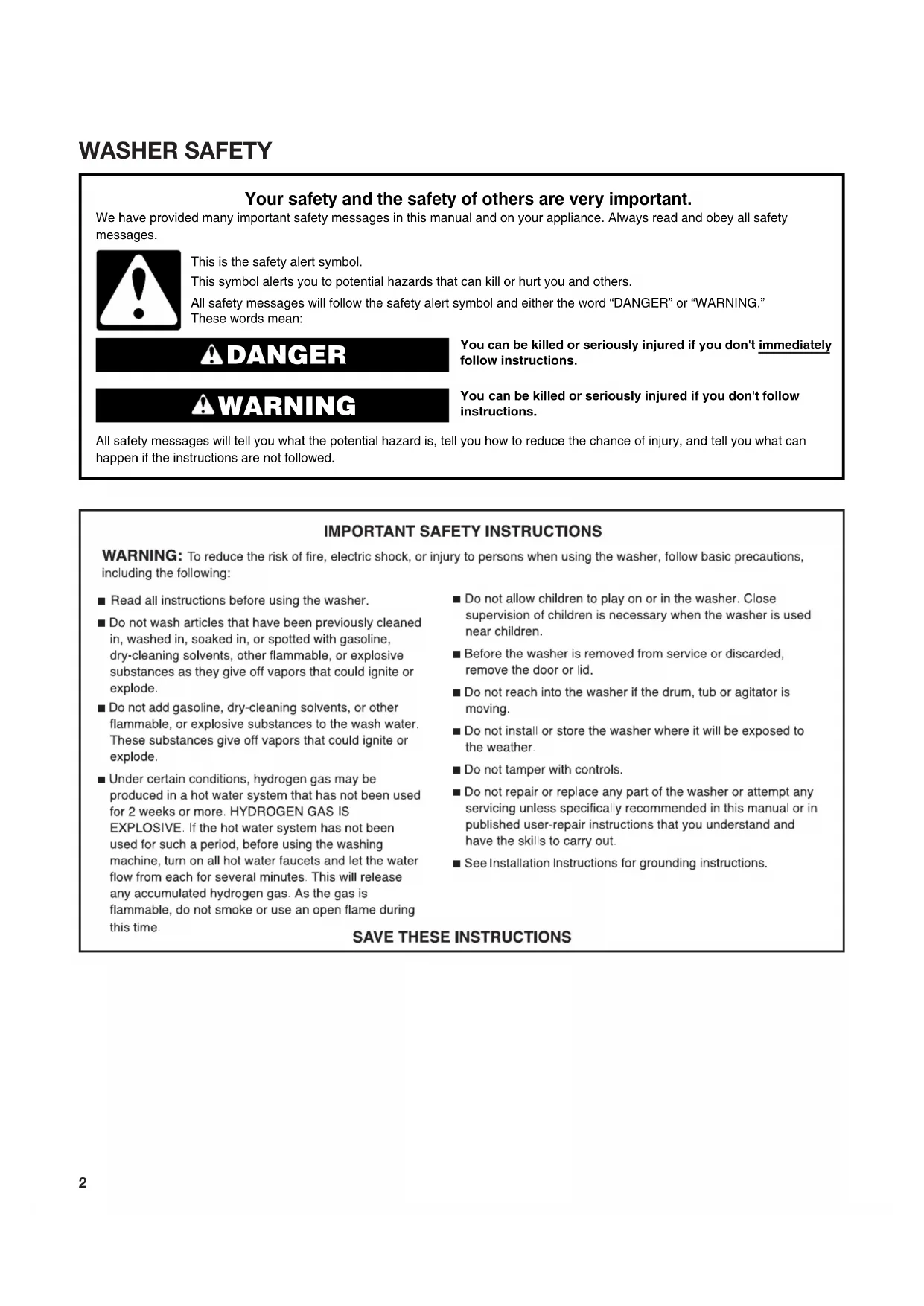

• Cómo reinstalar o usar la lavadoranuevamente WASHER SAFETY You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING3 INSTALLATION REQUIREMENTS Tools and Parts Gather required tools and parts before starting installation. Tools needed Pliers that open to 1¾" Level 4" min. Wood Block Ruler or measuring tape Bucket Parts supplied: NOTE: All parts supplied for installation are in cardboard insert in the top of the washer. Drain hose with clamp, U-form, and cable tie Parts needed (Not supplied with washer): Inlet hoses with at washers4 Location Requirement Select proper location for your washer to improve performance and minimize noise and possible “washer walk”. Install your washer in a basement, laundry room, closet, or recessed area. You will need A water heater set to 120°F (49°C). A grounded electrical outlet located within 4 ft. (1.2 m) of power cord on back of washer. Hot and cold water faucets located within 3 ft. (0.9 m) of hot and cold water fill valves on washer, and water pressure of 20-100 psi (138-690 kPa). A level floor with maximum slope of 1" (25 mm) under entire washer. Installing on carpet is not recommended. Floor must support washer’s total weight (with water and load) of 315 lbs (143 kgs). IMPORTANT: Do not install, store, or operate washer where it will be exposed to weather or in temperatures below 32°F (0°C).Water remaining in washer after use may cause damage in low temperatures. See the “Winter Storage Care” section for winterizing information. Proper installation is your responsibility. Recessed area or closet installation Dimensions show recommended spacing allowed, except for closet door ventilation openings which are minimum required. This washer has been tested for installation with spacing of 0" (0 mm) clearance on the sides. Consider allowing more space for ease of installation and servicing, and spacing for companion appliances and clearances for walls, doors, and oor moldings. Add spacing of 1" (25 mm) on all sides of washer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in door are required. Drain System Drain system can be installed using a oor drain, wall standpipe, oor standpipe, or laundry tub. Select method you need. Floor standpipe drain system Minimum diameter for a standpipe drain: 2" (51 mm). Minimum carry-away capacity: 17 gal. (64 L) per minute. Top of standpipe must be at least 39" (990 mm) high; install no higher than 96" (2.44 m) from bottom of washer. If you must install higher than 96" (2.44 m), you will need a sump pump system. Wall standpipe drain system See requirements for oor standpipe drain system. Floor drain system Floor drain system requires a Siphon Break Kit (Part Number 285834), 2 Connector Kits (Part Number 285835), and an Extension Drain Hose (Part Number 285863) that may be purchased separately. To order, please see toll-free phone numbers in “Assistance or Service” section. Minimum siphon break: 28" (710 mm) from bottom of washer. (Additional hoses may be needed.) Laundry tub drain system Minimum capacity: 20 gal. (76 L). Top of laundry tub must be at least 39" (990 mm) above oor; install no higher than 96" (2.44 m) from bottom of washer. IMPORTANT: To avoid siphoning, no more than 4.5" (114 mm) of drain hose should be inside standpipe or below the top of wash tub. Secure drain hose with cable tie. 3"(76 mm) (76 mm)24 in. (155 cm p. 322

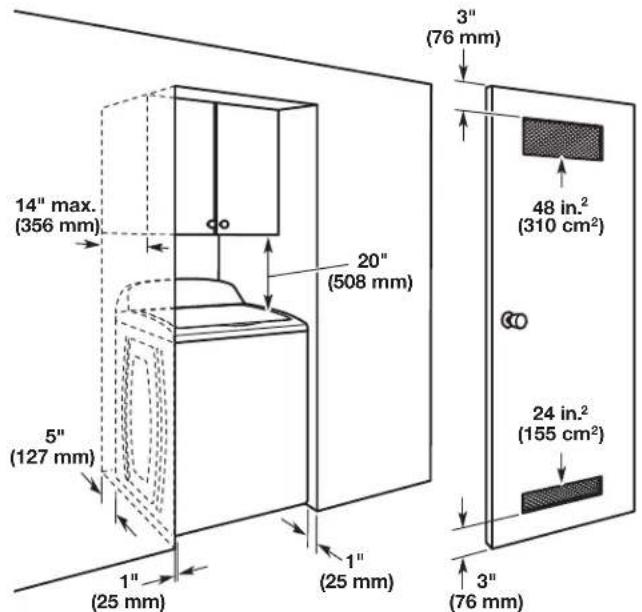

(508 mm)1"(25 mm)1"(25 mm)5"(127 mm)14" max.(356 mm)" 4.5" (114 mm) 39" (990 mm) 4.5"(114 mm) 39" (990 mm) 4.5" (114 mm)5 Electrical Requirements ʍA 120 V, 60 Hz., AC only, 15 or 20 A, fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is recommended that a separate circuit breaker serving only this appliance be provided. ʍThis washer is equipped with a power supply cord having a 3 prong grounding plug. ʍTo minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician. ʍIf codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. ʍDo not ground to a gas pipe. ʍCheck with a qualified electrician if you are not sure the washer is properly grounded. ʍDo not have a fuse in the neutral or ground circuit. INSTALLATION INSTRUCTIONS Before you start: remove shipping materialsIt is necessary to remove all shipping materials for proper operation and to avoid excessive noise from washer. 48"(1.2 m)

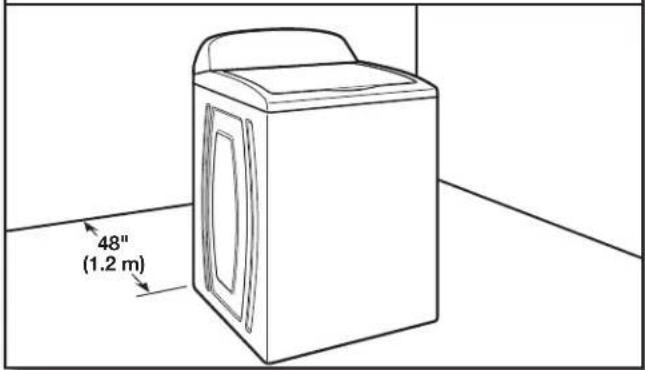

Move washer to within 4 ft. (1.2 m) of its nal location; it must be in a fully upright position.NOTE: To avoid oor damage, set washer onto cardboard before moving it and make sure lid is taped shut.

2. Remove shipping base

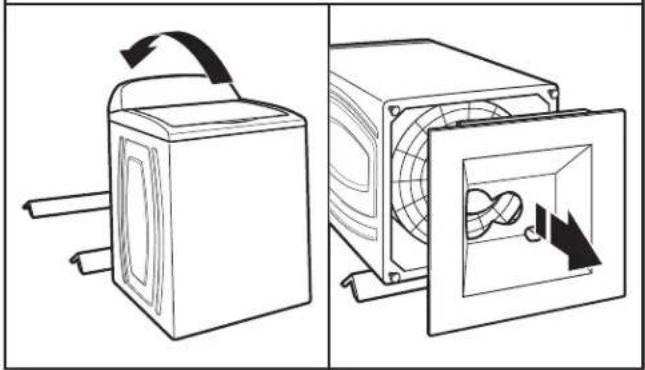

To avoid damaging oor, place cardboard supports from shipping carton on oor behind washer. Tip washer back and place on cardboard supports. Remove shipping base. Set washer upright.IMPORTANT: Removing shipping base is necessary for proper operation. If your washer includes a sound shield, please refer to the instructions included with the sound shield to install it at this time.Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING WARNING Excessive Weight Hazard Use two or more people to move and install washer. Failure to do so can result in back or other injury.6

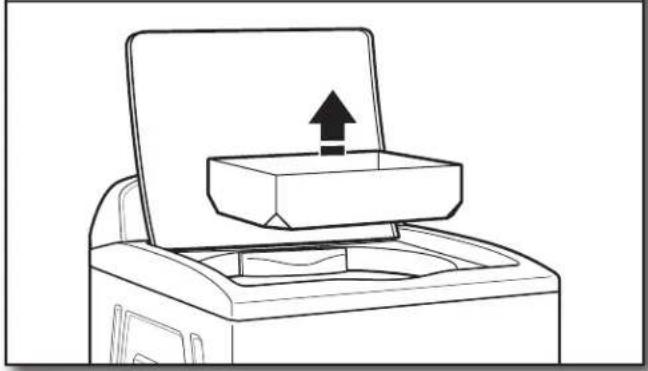

3. Remove packing tray from tub

Remove tape from washer lid, open lid, and remove cardboard packing tray from tub. Remove all other packaging materials from washer tub. Be sure to remove all parts from tray. NOTE: Keep tray in case you need to move washer later.

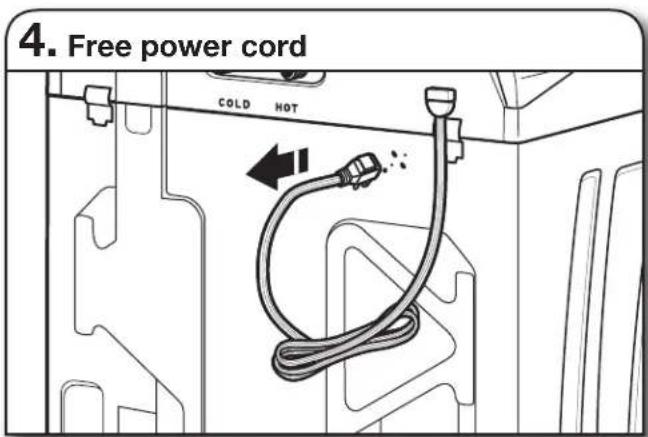

Firmly grasp power cord plug and pull to free from rear panel. Gently place power cord over console to allow free access to back of washer. Connect Drain Hose

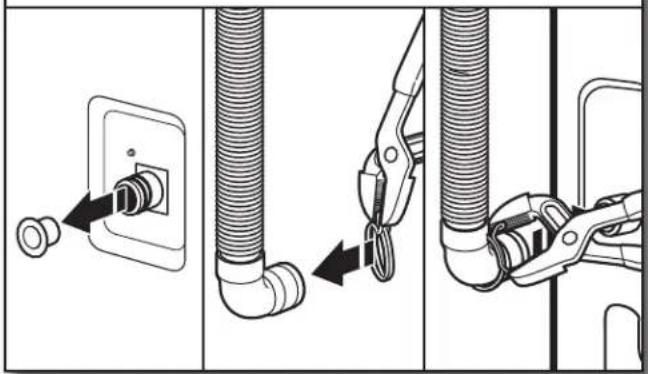

5. Attach drain hose to drain port

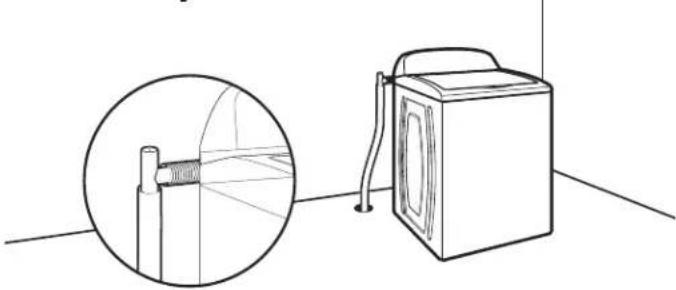

Remove the red plastic plug from the black drain port on the back of the washer. If clamp is not already in place on elbow end of drain hose, slide it over end as shown. Squeeze clamp with pliers and slide black elbow end of drain hose onto black drain port and secure with clamp. For a laundry tub or standpipe drain, go to step 6. For a oor drain, remove the preinstalled drain hose form as shown in Step 7. You may need additional parts with separate directions. See the “Tools and Parts” section. 4.5"(114 mm)Drainhose form

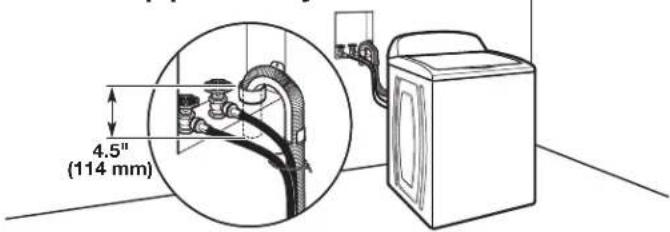

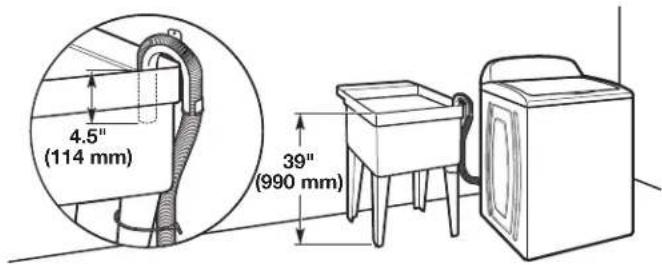

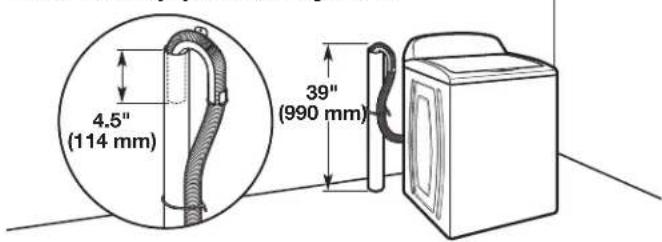

6. Place drain hose in standpipe

Place hose into standpipe (shown in picture) or over side of laundry tub. IMPORTANT: 4.5" (114 mm) of drain hose should be inside standpipe; do not force excess hose into standpipe or lay on bottom of laundry tub. Drain hose form must be used.7

7. Remove drain hose form

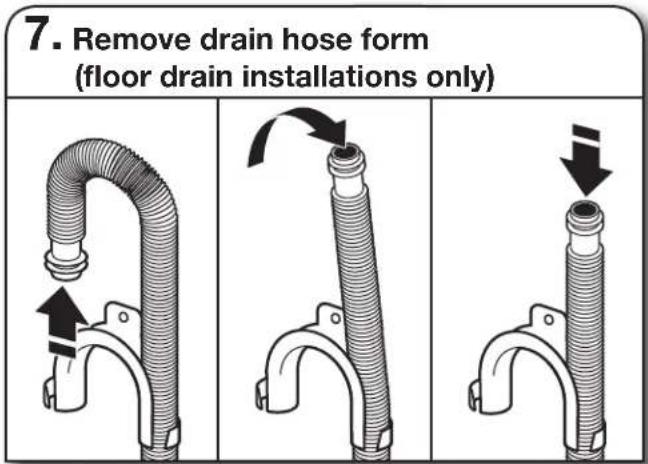

(oor drain installations only) For oor drain installations, you will need to remove the drain hose form from the end of the drain hose. You may need additional parts with separate directions. See the “Tools and Parts” section. Connect Inlet Hoses Washer must be connected to water faucets with new inlet hoses with at washers (not provided). Do not use old hoses. NOTE: Both hoses must be attached and have water owing to inlet valves. If you are only connecting to a cold water faucet, you must use a Y-adapter (not provided).

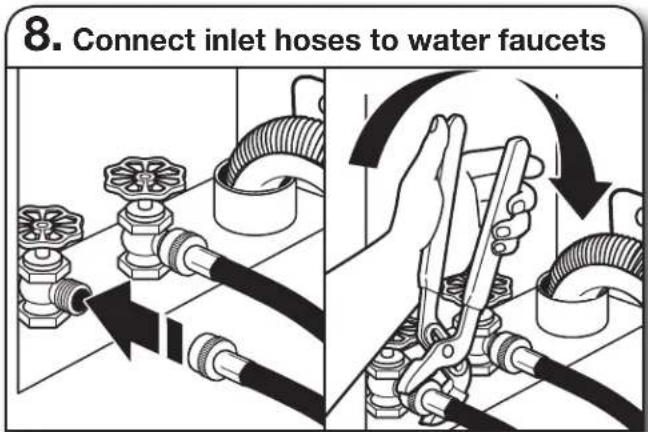

8. Connect inlet hoses to water faucets

Attach hose to hot water faucet. Screw on coupling by hand until it is seated on washer. Use pliers to tighten couplings an additional two-thirds turn. Repeat this step with second hose for cold water faucet. IMPORTANT: Do not overtighten or use tape or sealants on valve when attaching to faucets or washer. Damage can result.

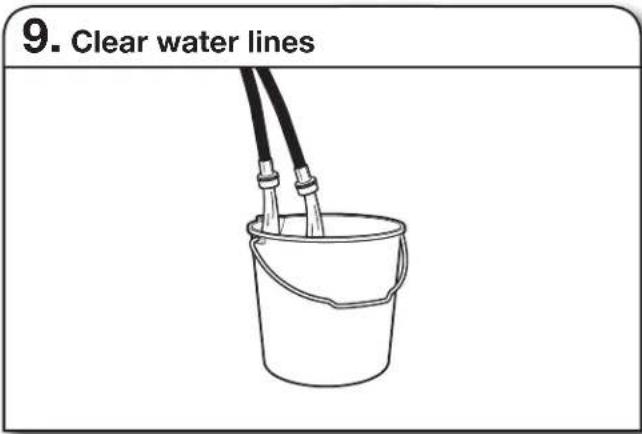

9. Clear water lines

Run water for a few seconds through hoses into a laundry tub, drainpipe, or bucket to avoid clogs. Water should run until clear. Make note of which hose is connected to hot water to help in attaching hoses to washer correctly.

10. Connect inlet hoses to washer

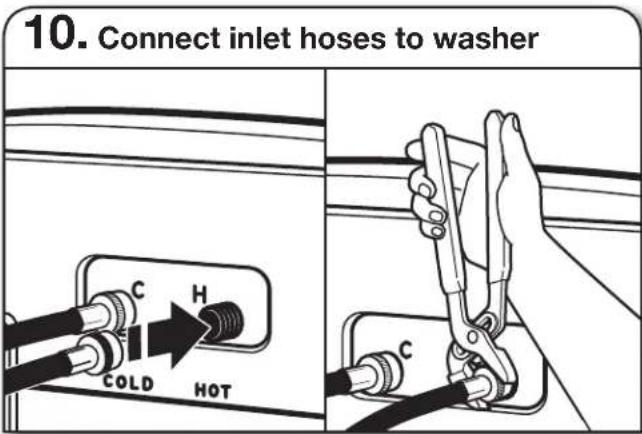

Attach hot water hose to hot water inlet valve marked with a red ring. Screw coupling by hand until it is snug. Use pliers to tighten couplings an additional two-thirds turn. Repeat with cold water inlet valve. IMPORTANT: To reduce risk of hose failure, replace the hoses every ve years. Record hose installation or replacement dates for future reference. Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found.

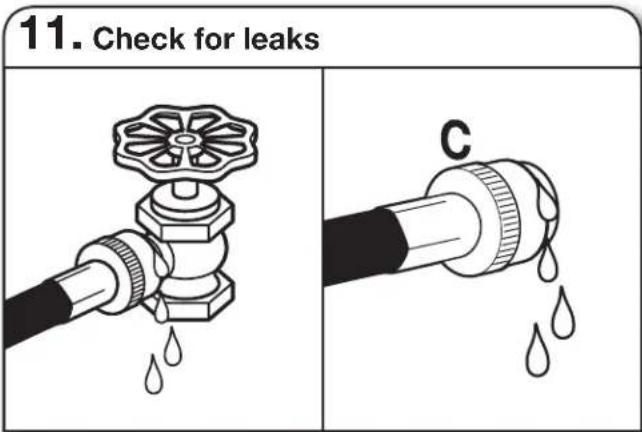

Turn on water faucets to check for leaks. A small amount of water may enter washer. It will drain later.8

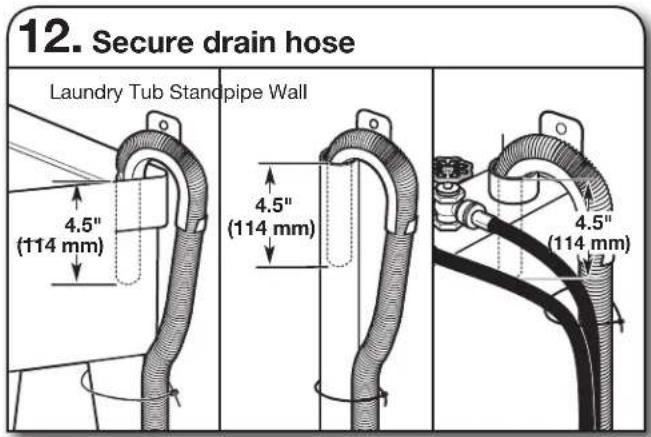

Laundry Tub Standpipe Wall Secure drain hose to laundry tub leg, drain standpipe, or inlet hoses for wall standpipe with cable tie. Level Washer IMPORTANT: Level washer properly to reduce excess noise and vibration. Place level herePlace level here

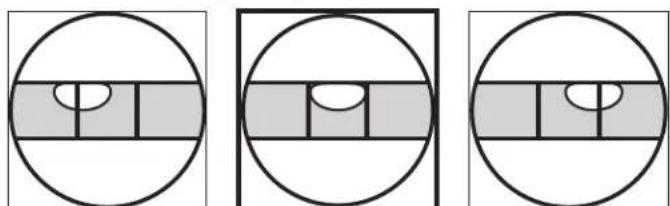

13. Check levelness of washer

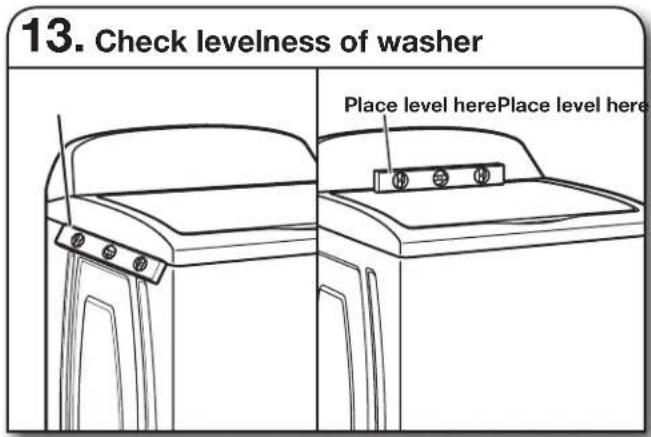

Move the washer to its nal location. Place a level on top edges of washer. Use side seam as a guide to check levelness of sides. Check levelness of front using lid, as shown. Rock washer back and forth to make sure all four feet make solid contact with oor. If washer is level, skip to step 15. Not Level LEVEL Not Level Models with plastic feet

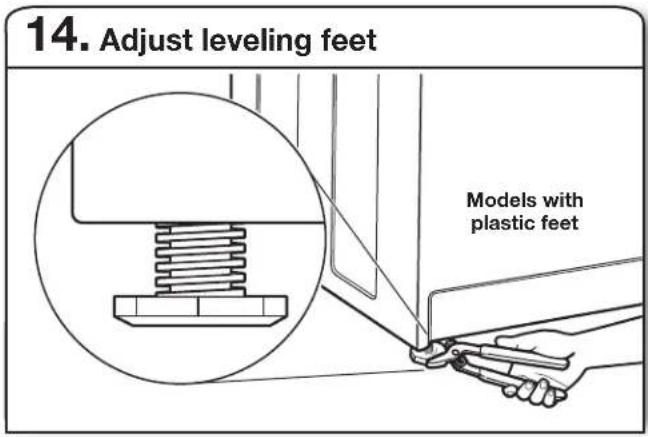

14. Adjust leveling feet

If washer is not level: Use adjustable pliers to turn the plastic leveling foot counterclockwise to lower the washer or clockwise to raise the washer. On all models, recheck levelness of washer and repeat as needed. HELPFUL TIPS: You may need to adjust two different feet to level your unit. Ensure each foot remains secured to the washer’s base. You may want to prop up the front of the washer about 4" (102 mm) with a wood block or similar object that will support the weight of the washer when making the adjustments. Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING

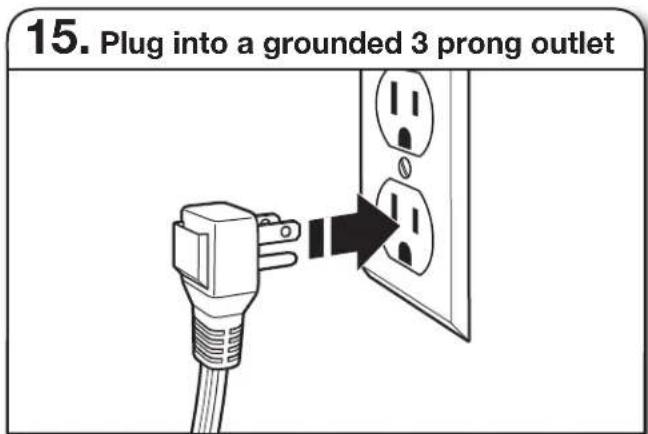

15. Plug into a grounded 3 prong outlet9

Complete Installation Checklist ❑ Check electrical requirements. Be sure you have correct electrical supply and recommended grounding method. ❑ Check that all parts are now installed. If there is an extra part, go back through steps to see what was skipped. ❑ Check that you have all of your tools. ❑ Check that shipping materials were completely removed from washer. ❑ Check that the washer is level. ❑ Check that water faucets are on. ❑ Check for leaks around faucets and inlet hoses. ❑ Remove protective film from console and any tape remaining on washer. ❑ Check that washer is plugged into a grounded 3 prong outlet. ❑ Dispose of/recycle all packaging materials. ❑ Read the “Washer Care” section in this book. ❑ To test and clean your washer, measure 1/2 of normal recommended amount of powdered or liquid detergent and pour it into washer basket or detergent dispenser (on some models). Close lid. Select any cycle. Start washer and allow to complete full cycle.

WASHER MAINTENANCE AND

CARE Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found. When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker. NOTE: This washer does not include inlet hoses. See the “Installation & Care Instructions Manual” for more information.

WASHER CARE Recommendations to Help Keep Your Washer Clean and Performing at its Best

1. Always use High Efciency (HE) detergents and follow the

HE detergent manufacturer’s instructions regarding the amount of HE detergent to use. Never use more than the recommended amount because that may increase the rate at which detergent and soil residue accumulate inside your washer, which in turn may result in undesirable odor.

2. Use warm and hot wash water settings sometimes (not

exclusively cold water washes), because they do a better job of controlling the rate at which soils and detergent accumulate.

3. Always leave the washer lid open between uses to help

dry out the washer and prevent the buildup of odor-causing residue. Cleaning Your Top Loading Washer Read these instructions completely before beginning the routine cleaning processes recommended below. This Washer Maintenance Procedure should be performed, at a minimum, once per month or every 30 wash cycles, whichever occurs sooner, to control the rate at which soils and detergent may otherwise accumulate in your washer. Cleaning the Inside of the Washer To keep your washer odor-free, follow the usage instructions provided above, and use this recommended monthly cleaning procedure: Clean Washer Cycle This washer has a special cycle that uses higher water volumes in combination with affresh

Washer Cleaner or liquid chlorine bleach to clean the inside of the washer. Begin procedure

Washer Cleaner Cycle Procedure (Recommended for Best Performance): a. Open the washer lid and remove any clothing or items. b. Place an affresh

Washer Cleaner tablet in the bottom of the washer basket. c. Do not place an affresh

Washer Cleaner tablet in the detergent dispenser. d. Do not add any detergent or other chemical to the washer when following this procedure. e. Close the washer lid. f. Select the CLEAN WASHER cycle. g. Touch and hold the START/PAUSE button to begin the cycle. The Clean Washer Cycle Operation is described below. NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, touch POWER. After the Clean Washer cycle has stopped, run a DRAIN & SPIN + EXTRA RINSE cycle to rinse cleaner from washer.10 WASHER CARE (cont.)

2. Chlorine Bleach Procedure (Alternative):

a. Open the washer lid and remove any clothing or items. b. Add 1 cup (236 mL) of liquid chlorine bleach to the bleach compartment. NOTE: Use of more liquid chlorine bleach than is recommended above could cause washer damage over time. c. Close the washer lid. d. Do not add any detergent or other chemical to the washer when following this procedure. e. Select the CLEAN WASHER cycle. f. Touch and hold the START/PAUSE button to begin the cycle. The Clean Washer Cycle Operation is described below. NOTE: For best results, do not interrupt cycle. If cycle must be interrupted, touch POWER. After the Clean Washer cycle has stopped, run a DRAIN & SPIN + EXTRA RINSE cycle to rinse cleaner from washer. Description of Clean Washer Cycle Operation:

1. This cycle will ll to a water level higher than in normal

wash cycles to provide rinsing at a level above the water line for normal wash cycle.

2. During this cycle, there will be some agitation and

spinning to increase the removal of soils. After this cycle is complete, leave the lid open to allow for better ventilation and drying of the washer interior. Cleaning the Dispensers After a period of using your washer, you may nd some residue buildup in the washer’s dispensers. To remove residue from the dispensers, wipe them with a damp cloth and towel dry. Do not attempt to remove the dispensers or trim for cleaning. The dispensers and trim are not removable. If your model has a dispenser drawer, however, remove the drawer and clean it before or after you run the Clean Washer cycle. Use an all purpose surface cleaner, if needed. Cleaning the Outside of the Washer Use a soft, damp cloth or sponge to wipe away any spills. Use only mild soaps or cleaners when cleaning external washer surfaces. IMPORTANT: To avoid damaging the washer’s nish, do not use abrasive products. Operate your washer only when you are home. If moving, or not using your washer for a period of time, follow these steps:

1. Unplug or disconnect power to washer.

2. Turn off water supply to washer, to avoid ooding due

to water pressure surge.

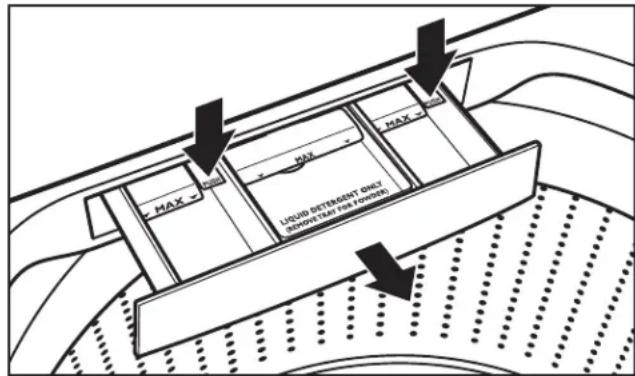

(*Varies according to model) IMPORTANT: Dispenser drawer and tray are not dishwasher safe. You may nd laundry product residue leftover in your dispenser drawer. To remove residue, follow below recommended cleaning procedures: Dispenser Drawer

1. Pull drawer out until you feel resistance.

2. Push 2 tabs downward, and then continue pulling out.

3. Wash in warm, soapy water, using a mild detergent.

4. Rinse with warm water.

5. Air dry, or dry with a towel, then place back into slot.11

IMPORTANT: To avoid damage, install and store washer where it will not freeze. Because some water may stay in hoses, freezing can damage washer. If storing or moving during freezing weather, winterize your washer. To winterize washer:

1. Shut off both water faucets; disconnect and drain water

3. Unplug washer or disconnect power.

TRANSPORTING YOUR WASHER

1. Shut off both water faucets. Disconnect and drain water

2. If washer will be moved during freezing weather, follow

WINTER STORAGE CARE directions before moving.

3. Disconnect drain hose from drain system and drain any

remaining water into a pan or bucket. Disconnect drain hose from back of washer.

4. Unplug power cord.

5. Place inlet hoses and drain hose inside washer basket.

6. Drape power cord over edge and into washer basket.

7. Place packing tray from original shipping materials back

inside washer. If you do not have packing tray, place heavy blankets or towels into basket opening. Close lid and place tape over lid and down front of washer. Keep lid taped until washer is placed in new location. Transport washer in upright position.

REINSTALLING/USING WASHER AGAIN

To reinstall washer after non-use, vacation, winter storage, or moving:

1. Refer to “Installation & Care Instructions Manual” to

locate, level, and connect washer.

2. Before using again, run washer through the following

recommended procedure: To use washer again:

1. Flush water pipes and hoses. Reconnect water inlet

hoses. Turn on both water faucets.

2. Plug in washer or reconnect power.

3. Run washer through BEDDING cycle to clean washer

and remove antifreeze, if used. Use only HE (High Efciency) detergent. Use ½ the manufacturer’s recommended amount for a medium-size load. Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death, fire, or electrical shock. WARNING12
