USER MANUAL Profile GXCF35GBS GE

GE Profile™ Electronic Tri-Temperature Water Dispenser with Refreshment Chiller

Safety Instructions 2,3

Using the Water Dispenser

Features and Parts List 4

Loading the Dispenser and Start Up 4

Child Safeguard 4

Draining the Dispenser 5

Sanitizing and Cleaning 5

Control Panel and Display Features 6

Start Up and Operation Adjustment 7

Specifications 7

Troubleshooting Tips 7-9

Care and Cleaning. 9, 10

Consumer Support

Consumer Support .Back Cover

Warranty .Back Cover

Francais

As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

215C1176P002 49-50175 12-05 JR

WARNING!

Use this appliance only for its intended purpose as described in this Owner's Manual.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

This water dispenser must be properly installed and located in accordance with these instructions before it is used.
Do not allow children to climb, stand or hang on the outside of the dispenser, or on the shelves inside the storage cabinet (on some models). They could tip the dispenser over and damage it and seriously injure themselves.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Unplug the water dispenser before cleaning or making repairs.

NOTE: GE does not support any servicing of the dispenser. We strongly recommend that you do not attempt to service the dispenser yourself.

Do not use this dispenser to dispense anything other than water.
Do not plug in the power cord or turn on the power switches when the water dispenser is empty.

Wipe up any water spills immediately after loading or unloading water bottles.
Children should be supervised by a parent when using this product.

WARNING: Do not use with water that is microbiologically unsafe or of unknown quality.

CAUTION: The dispenser heats water up to a temperature of 195^ (91^) . Water temperatures above 125^ (52^) can cause severe burns or death from scalding. Children, the disabled and the elderly are at highest risk of being scalded.
NOTICE: This product is intended solely for use in chilling canned and boxed beverages, and packaged nonperishables.

PROPER INSTALLATION AND LOCATION

This product is for indoor use only.
Allow at least 1^ (2.5 cm) of space between the back of the water dispenser and the wall to allow for proper air circulation.
Do not install the water dispenser where the temperature will go below 55^ (13^) or above 100^ (38^) .

Install the water dispenser on a level floor strong enough to support it when fully loaded. Do not install where it will be subject to direct sunlight, heat or moisture.
The control panel is covered with a clear protective film; please peel from the edge to remove.

GROUNDING INSTRUCTIONS

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock.

This appliance is equipped with a power cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

If the outlet is a standard 2-prong wall outlet, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

Do not under any circumstances cut or remove the third (ground) prong from the power cord.

Do not use an adapter plug with this appliance.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician install an outlet near the appliance.

For best operation, plug the appliance into its own electrical outlet on a dedicated circuit to prevent flickering of lights, blowing of fuse or tripping of circuit breaker.

PROPER DISPOSAL OF THE WATER DISPENSER

Refrigerant Disposal

Your old water dispenser may have used a regulated refrigerant in its cooling system. These refrigerants are believed to harm stratospheric ozone. If you are throwing away your old dispenser, make sure the refrigerant is removed and recovered for proper disposal by an EPA-certified technician. If you intentionally release this refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Using the water dispenser.

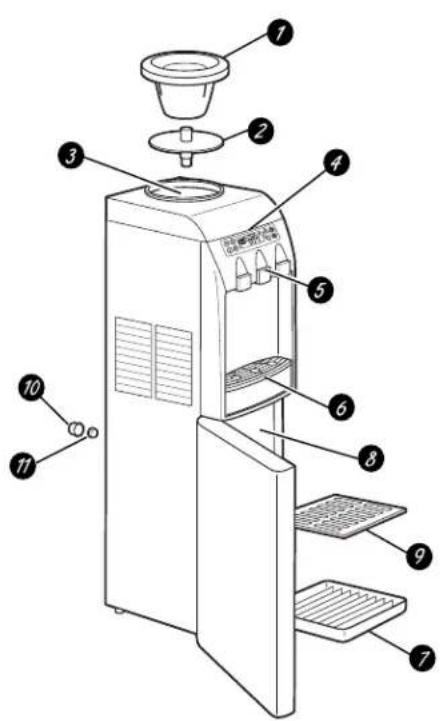

Features and Parts List

Bottle Support Collar—Black (WS28X10048)
2 Separator (WS28X10013)
3 Cold Water Tank
Control Panel
Hot Room Temperature, Cold Water Dispenser Buttons
Dispenser Drip Tray (WS28X10031) and Grille (WS28X10032)
Compartment Drip Tray (WS29X10029)
Chiller Compartment. The compartment is intended solely for use in chilling canned and boxed beverages and packaged nonperishables.
9 Compartment Shelf (WS28X10028)
Drainage Cap (WS01X10008)
Silicon Stopper (WS01X10007)

Loading the Dispenser and Start Up

Sanitize the dispenser water tanks prior to installing a full bottle of water for the first time (see "Sanitizing and Cleaning the Water Tanks").

IMPORTANT: Make sure the dispenser is unplugged. Before placing the water bottle on the dispenser, wash hands and wipe the top of the bottle with a clean cloth. Avoid touching the part of the bottle that will be in contact with the water dispenser.

Make sure the water level in the top of the dispenser is low enough to allow for proper bottle installation. Failure to do so may cause the dispenser to overflow.

1. Peel the label from the top cover of the bottle (if present). Do not remove the entire bottle cap.

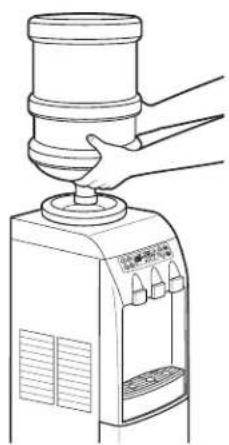

2. Place the bottle on top of the dispenser as shown, aligning the dispensing valve probe to the center of the water bottle cap. Press down until the probe penetrates the bottle cap, allowing the bottle to rest on the support collar.

3. IMPORTANT: Press both dispense buttons until water runs from both taps.

1. Plug in the dispenser.
2. Set the clock, hot water temperature level and energy saver cycle. See the Start Up and Operation Adjustment section for detailed instructions.
3. Press the (power) button.
4. Allow 30 minutes for water to reach hot and cold temperatures.

Contact a local water bottle distributor to purchase water bottles.

Child Safeguard

The HOT dispenser button is equipped with a child safeguard that reduces the risk of hot water being dispensed accidentally or by small children. To dispense water, rotate the knob counterclockwise and push the button in. The knob will reset automatically when the button is released.

The dispenser heats water up to a temperature of 195^ (91^) . Water temperatures above 125^ (52^) can cause severe burns or death from scalding. Children, the disabled and the elderly are at highest risk of being scalded.

CAUTION: Children should be supervised by a parent when using this product.

(rear of dispenser)

Draining the Dispenser

The dispenser should be drained before cleaning the tanks and before leaving for long vacations or absences.

1. Unplug the dispenser.
2. Remove the water bottle from the dispenser.
3. Put a container that will withstand hot water under the hot water tap. Press the hot dispenser button until the water is cool (about 1 quart). Add water to the cold water reservoir (on top where the bottle supplies water) as needed.
4. Dispense water from both buttons into container(s) until no more water can be dispensed (about 1 quart of water still remains in the dispenser).

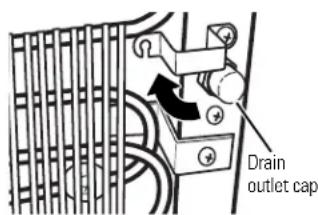

5. Place a large bucket beneath the drain outlet on the rear of the dispenser.

6. Using a Phillips screwdriver, loosen the screws on the bracket covering the drain outlet cap. Rotate the bracket out of the way to allow access to the cap.

7. Remove the cap and silicon stopper from the drain outlet and and allow water to drain. After draining, replace the stopper and cap.
8. Rotate the bracket back into place and tighten screws.

Make sure to install a full bottle and dispense water from the hot water tap before plugging in and turning on the dispenser (see Loading the Dispenser and Start Up section).

Sanitizing and Cleaning the Water Tanks

IMPORTANT: Before initial use and periodically, the water dispenser tanks must be sanitized to prevent unpleasant tastes in the water and cleaned to remove mineral deposits that can impair flow.

To Sanitize:

1. Before cleaning, unplug the water dispenser. NOTE: For first time installation, skip steps 2-4.
2. Empty the water bottle, then remove it from the dispenser.
3. Drain the water tanks (see Draining the Dispenser).

4. Reinstall the silicon stopper and drain cap (see Draining the Dispenser).

5. DO NOT ADD BLEACH FIRST OR DIRECTLY TO THE DISPENSER. Concentrated bleach may damage plastic.

Add 1/2 teaspoon (2.5ml) of ordinary 6.0% maximum household bleach to a 2 quart (2 liter) pitcher filled with tap water.

1. Pour the solution in the opening at the top of the dispenser.
2. Repeat steps 5 and 6 until the dispenser is full.
3. Press the hot and cold dispenser buttons until the water just begins to flow from the taps.
4. Allow to sit for 15-20 minutes.

5. Rinse out the bleach solution:

6. Drain the water tanks into a large bucket (see Draining the Dispenser).

Make sure that the silicon stopper is NOT installed.
-IMPORTANT: Remove the separator and wipe out the cold water reservoir (see Cleaning the Separator).
Clean, then reinstall the separator and collar (see Cleaning the Separator).
- Pour approximately 1 gallon (4 quarts or 4 liters) of fresh tap water into the top and allow to drain into the bucket.
- Flush with an additional 1 gallon (4 quarts or 4 liters) of fresh tap water and allow to drain into the bucket.

1. Reinstall the silicon stopper and drain cap (see Draining the Dispenser).
2. Install a fresh water bottle (see Loading the Dispenser).
3. Dispense 1 quart (1 liter) of water from each tap and taste to make sure the bleach solution is completely removed.

If you continue to taste the chlorine from the bleach solution, repeat steps 10-13 until the taste is gone.

1. Plug in the dispenser.

To Remove Mineral Deposits:

Mix 2 quarts (2 liters) of water with two quarts of vinegar OR mix 1 gallon of water (4 liters) with 16 ounces (454g) of citric acid crystals. Bleach does not remove mineral deposits. Do this in place of step 5 when removing mineral deposits.

Using the water dispenser.

Control Panel Buttons

Power ON/OFF Button. Turns the cooling and heating operation ON or OFF. The button must be on to see the entire display. Never start the unit without a bottle containing water installed.
SET Button. Advances the control panel display through the features that are adjustable. When in the SFT mode, "SFT" is displayed on the display panel. The control panel will automatically return to the operating mode if no other button is pushed within 1 minute, accepting any new adjustments.
Feature Adjustment and Control Panel Lock Buttons. The buttons are used individually to adjust the feature values when the control is in the SET mode. The buttons can be pressed and held for fast scrolling. A Control Panel Lock can be engaged and disengaged by pressing both the and buttons at the same time. When the control panel is locked, no changes can be made to the control; however, water dispensing is not affected.

4 and 5 Timer Controls. The TIMER/START button (4) initiates the display of the countdown timer and starts the timer. The STOP/CANCEL button (5) stops the timer function and cancels the timer display. The hourglass timer icon is displayed while the timer feature is selected and active.
Energy Saver ON/OFF Button Note: The clock must be set for the Energy Saver feature to operate properly. This button turns on and off the programmed Energy Saver cycle that controls the heater operation to save energy during low usage periods of the day and week. The default setting is set at the factory for optimal energy performance—hot water operation is set to start at 6:00 am and stop at 8:00 pm. Turning the feature off returns the dispenser to normal operation and allows the dispenser to continuously produce hot and cold water 24 hours a day, 7 days a week.
Faucet Light ON/OFF Button. Turns the faucet light on or off.

Control Panel Display

Temperature Setting Display. The hot and cold water temperature settings can be selected to display in either degrees Fahrenheit or Celsius.
Clock and Timer Display. The clock and day of the week are displayed normally. When the timer function has been selected, the clock display is converted to a countdown timer.
Timer Icon. The timer icon is lit when the timer function has been selected. The icon displays motion when the timer countdown is active.
Energy SaverDispenser Operation Start Time Icon 念 The light blue start time icon will be lit in the SET mode, indicating the programmed time when the dispenser is to begin full hot water operation.
Energy Saver-Dispenser Operation Stop Time Icon . The red stop time icon will be lit in the SET mode, indicating the programmed time when the dispenser hot water operation will be shut off.

Energy Saver Icon. The energy saver icon will be solidly lit when the programmed operation cycle has been activated. In this mode, the icon will display motion of the arrows indicating hot water operation has been shut off to save energy.
Control Panel Lock Icon . The control panel lock icon will be lit when the lock feature has been engaged.
Hot Water Operation Icon. The cup will be displayed when the hot water system is activated. The steam elements will move while the heater is operating and all three elements will remain lit when the set temperature has been attained.
Cooling System Operation Icon. The snowflake will be displayed when the cooling system is activated. The snowflake elements will be in motion when the cooling system is operating and all 6 elements will remain lit when the set temperature is attained. (The snowflake and the 40F (4C) icons will not be lit during periods of the Energy Saver cycle even though the cooling system is running to maintain the compartment temperature.)

Start Up and Operation Adjustment—Clock, Hot Water Temperature, Energy Saver Cycle and Timer Important: Sanitize the unit and install a full bottle of water before plugging the unit into an electrical outlet. An error code will be displayed and the alarm will sound if the dispenser is operated without water—see Troubleshooting Tips.

Plug the power cord into a properly grounded electrical outlet.

NOTE: The display may take up to 30 seconds to light up.

Press the SET button to advance the control to the next feature needing an initial setting or adjustment.

Setting the Clock. Adjust the hours including the AM/PM setting using the and buttons. Press the SET button to advance to the minute adjustment, then again to select the day of the week (ie, WE for Wednesday). The clock time must be set to initiate the energy saver cycle.

Water Temperature Scale and Hot Water Temperature Set Point. Select the temperature scale (F—Fahrenheit or C—Celsius) to display the temperature values, then press the SET button to adjust the hot water temperature set point. The hot water can be adjusted from 195^ to 150^ (91^ to 66^) or shut off when adjusted below 150^ (66^) . The default is set at 175^ (80^) for optimal energy performance. Press the SET button again to accept the temperature setting and advance to the Energy Saver cycle start and stop time. NOTE: The cold water and compartment temperature is not adjustable.

Adjusting the Energy Saver Cycle Start and Stop Times. Select the Monday through Friday start time for hot water operation prompted by the light blue clock and the "MO TU WETH FR" display. Press the SET button to enter the stop time for hot water operation as indicated by the red clock icon. Next set the start and stop times for Saturday and Sunday. Saturday and Sunday operation times are set independently as previously described. The default Energy Saver cycle is set at the factory for optimal energy performance—hot operation to start at 6:00 am and stop at 8:00 pm. NOTE: The chiller compartment will remain in cooling operation at all times whether the Energy Saver cycle is on or off. When you have reached the end of the set up procedure, the SET light will go out. Set up is complete.

After initial set up and adjustment is complete, confirm that a full bottle of water has been installed.

Press the () (Power ON/OFF) button to begin operation of the dispenser.

Timer Operation. Press the TIMER/START button, then adjust the hours using the and buttons. Press the TIMER/START button again, then adjust the minutes. Press the TIMER/START button again to start the timer. Press the STOP/CANCEL button to pause the timer. Press the STOP/CANCEL button again to cancel the timer. Once the timer has completed its countdown, the alarm will sound three times. The alarm will continue to sound every 15 seconds until the timer has been canceled. The timer will count down time for up to 12 hours and 59 minutes.

Specifications*

Cooled Water Temperature Setting: 40^ (4^)

Water Cooling Rate: 0.26 gallons (1 liter) per hour

Heated Water Temperature Setting: Adjustable from 150^ to

195^ (66°C to 91°C)

Water Heating Rate: 0.8 gallons (3 liter) per hour

Compartment Temperature: < 46^ (< 7.8^)

Capacity: 3 or 5 gallon (11.4 or 19 liter) bottle

Power Consumption-Heating: 480 Watts max.

Cooling: 125 Watts max.

*Tested with 75^ F( 24^ C) ambient temperature,steady state operation

Troubleshooting Tips.

Problem Possible Causes What To Do

Water dispenser leaks from the outside	Crack or pin hole in bottle.	Replace with a new bottle of water.
Water has poor taste or odor	Separator needs cleaning.	Scc Cleaning the Separator.
	Unit needs to be sanitized.	See Cleaning and Sanitizing the Water Tanks.
Water not hot enough or cold enough	Dispenser is unplugged.	Push the plug completely into the outlet.
	The fuse is blown/circuit breaker is tripped.	Replace house fuse or reset the house circuit breaker. If too many items are plugged into a single circuit, move some items to a different circuit.
	All the water in the water tank has been used.	Wait 30 minutes for water to heat or cool.
	Temperature limiter tripped.	Turn off dispenser. Wait five minutes; then turn back on. Wait 30 minutes for water to heat or cool.
	Didn't select proper hot water temperature.	Adjust hot water setting (see Start Up and Operation Adjustment).
Water dispenser does not work-No water flow	Empty water bottle.	Replace with a new bottle of water.
	Mineral deposits clogging tanks.	See Care and Cleaning.
Cold water button does not dispense	Chiller door has been left open.	Close chiller door.
	Ice buildup blocking water flow.	Turn off power overnight and turn on in the morning.
Compressor does not start when snowflake icon motion appears	Normal Operation-Compressor start is delayed by up to 3 minutes to prolong the compressor life.	Wait for up to 3 minutes for the compressor to start.

Troubleshooting Tips.

Problem Possible Causes What To Do
Bottle feels warm	Water system overfilled. Water is boiling in the hot tank and bubbling up into the bottle.	Dispense cold water until air is released into the bottle.
Water dispenser is noisy	Water dispenser is uneven.	Make sure the water is installed on a level floor strong enough to support it when fully loaded.
	Bottle making a gurgling noise •This is normal. as water fills the tanks.
	Hot water boiling sound. •This is normal.
	Dispenser or water bottle shakes •This is normal. when the cooling system cycles off.
Particles floating in water	Water has high mineral content.	Find a water source with lower hardness.
Foul odor in air around dispenser	Hot water tank is empty or not completely full.	Press the hot dispenser button until water flows to remove air from the hot tank.
Chiller does not operate	Water dispenser is unplugged.	Push the plug completely into the outlet.
	The fuse is blown/circuit breaker is tripped.	Replace fuse or reset the breaker.
Vibration or rattling (slight vibration is normal)	Water dispenser is on an uneven surface.	Use shims to level the unit.
Compressor/motor operates (snowflake icon in motion) for long periods or cycles	Often occurs when large amounts of food are placed in cooler.	This is normal.
	Door left open.	Check to see if package is holding door open.
	Hot weather or frequent door openings.	This is normal.
	Normal when unit is first plugged in.	Wait 24 hours for the unit to completely cool down.
	Not enough clearance from the wall.	Make sure there is enough air circulation around the unit.
	Water system overfilled.	Dispense water from the cold faucet until air is released into the bottle.
Chiller compartment too warm	Door left open.	Check to see if package is holding door open.
Compartment/cold water too cold/frozen	Low ambient temperature.	Place units in room temperature environment.
Chiller compartment has odor	Foods transmitting odor to chiller.	Foods with strong odors should be tightly wrapped. Keep an open box of baking soda in the unit; replace every three months.
	Interior needs cleaning.	See Care and cleaning.
Moisture forms on outside of chiller compartment	Not unusual during periods of high humidity and/or temperature.	Wipe surface dry. Operate unit in temperature- and humidity-controlled location. Place unit in tray to contain moisture accumulation.
Moisture collects inside chiller compartment (in humid weather, air carries moisture into chiller compartment when door is opened)	Too frequent or too long door openings.	Minimize time door is open. Wipe surface dry. Empty internal drip tray. Operate unit in temperature- and humidity-controlled location. Place unit in tray to contain moisture accumulation.
Error Codes What Is Wrong What To Do
Error code: E1Alarm will sound anddisplay E1 for 10 seconds.The unit will then shut After the unitcools, resume operation bypressing the down and display“OFF”. power button.	Hot water tank exceedstemperature limits.No/low water level in system.	Confirm that water bottle installed is supplying waterto the system. Dispense hot water to release any trapped air.Allow the unit to cool for several hours with the power off.
Error code: E2	Cold water tank too cold.Operating environment too cold.Compartment door may be open.	The system will automatically reduce cooling operationto restore a correct temperature condition. Confirm thatthe compartment door is closed. The control/display willreset automatically when a normal temperature has beenrestored. Unplug the unit and allow it to warm up if theproblem persists. Relocate the dispenser to a warmeroperating environment if the error repeats. If a warmeroperating environment is not available, increase the hotwater temperature and operation time (with the EnergySaver cycle set-up) to help offset this issue.
Error code: E3	Compartment temperaturetoo cold.Operating environment too cold. Extremely high cold water usage.Bottled water temperature highwhen installed.	The system will automatically reduce cooling operationto restore the correct temperature condition. Confirm thatthe compartment door is closed. The control/display willreset automatically when normal temperature has beestrusted. Allow the bottle temperature to stabilize to roomtemperature before installation on the dispenser. Unplugthe unit and allow it to warm up if the problem persists.Relocate the dispenser to a warmer operating environmentif the error repeats.
Error code: E4, E5 and E6	Dispenser has experienceda sensor failure.	Unplug the unit for 24 hours and allow the control to reset Plug the unit in and repeat start up and operationadjustments. Repeat if required; however, some failuresmay be permanent.

Care and cleaning of the dispenser.

To remove	To replace	Cleaning the Separator	6. Using a clean cloth or paper towel, thoroughly dry the cold water reservoir.
Support collar	Separator	IMPORTANT: Unplug the water dispenser before cleaning.	7. Place the separator back in the dispenser. Make sure the long, tapered end of the separator is positioned firmly on the metal plug on the bottom of the reservoir.
		1. Remove the water bottle and drain the dispenser (see Draining the Dispenser).	8. Replace the support collar and turn clockwise until it is firmly in place.
		2. Remove the support collar by turning counterclockwise and pulling straight off.	9. Install a full water bottle on the dispenser (see Loading the Dispenser).
		3. Remove the plastic separator by pulling straight out (you may need to twist slightly to loosen).
		4. Clean the separator with dish soap and water or in the top rack of the dishwasher.
		5. Dry the separator thoroughly on both sides.

Cleaning the Outside Cabinet and Storage/Chiller Compartment

IMPORTANT: Unplug the water dispenser before cleaning.

The cabinet and compartment of the dispenser can be washed with mild soap and water. Rinse thoroughly with clear water. Never use commercial cleaners or abrasive scouring powders.

Sweep away or vacuum any dust from the condenser coils on the back of the unit. For best results, use a brush specially designed for this purpose. It is available at most appliance stores.

Care and cleaning of the dispenser.

Cleaning the Inside of the Chiller Compartment

To help prevent odors, leave an open box of baking soda in the chiller compartment.

Clean other parts of the chiller compartment including door gaskets and all plastic parts the same way.

Unplug the dispenser before cleaning.

Use warm water and baking soda solution about a tablespoon (15ml) of baking soda to a quart (1 liter) of water. This both cleans and neutralizes odors. Rinse and wipe dry.

Cleaning the Drip Tray and Grille

The dispenser drip tray is not self-draining. To reduce water spotting or deposits, the tray and its grille should be emptied, cleaned and wiped dry regularly.

Clean with mild soap or on the top rack in the dishwasher.

Defrosting

Defrost whenever frost on the wall of the chiller compartment becomes excessive. Never use a sharp or metallic instrument to remove frost as it may damage the liner. We recommend using a plastic scraper. Do not use any electrical device in defrosting your chiller compartment.

To defrost:

Remove items from the compartment.
Turn off power and unplug the dispenser.
Put several towels in the bottom of the compartment to collect water.

Defrosting usually takes a few hours.
To defrost faster, keep the door open.

After defrosting:

Remove the wet towels and wipe up any remaining water.
Wipe the compartment with a dry cloth.
Plug in the unit, set the clock and operation adjustment. Then turn on the power. Return items to the unit.

Preparing for Vacation

For long vacations or absences, turn power off to the entire unit from the control panel.

1. Unplug the water dispenser.
2. Remove the water bottle.

3. Drain the water tanks (see Draining the Dispenser).

4. Dry the separator thoroughly on both the top and bottom (see Cleaning the Separator).

5. Leave the door of the chiller compartment open.

After returning from vacation, make sure to sanitize the water tanks before using the dispenser (see Cleaning and Sanitizing the Water Tank).

INFORMATIONS IMPORTANTES EN MATIÈRE DE SECURITE. LISEZ TOUTES LES INSTRUCTIONS AVANT D'UTILISER CET APPAREIL.

AVERTISSEMENT!

Garant: General Electric Company, Louisville, KY 40225.

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

GARANTIA LIMITADA POR UN ANO

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, or even order parts and catalogs, on-line. You can also "Ask Our Team of Experts" your questions, and so much more...

Real Life Design Studio ge.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Parts and Accessories ge.com

Individuals can have parts sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone, in the U.S., at 800.626.2002 during normal business hours. In Canada, call 800.663.6060.

Instructions contained in this manual cover procedures to be performed by any user. GE does not support any servicing of the dispenser. We strongly recommend that you do not attempt to service the dispenser yourself.

Contact Us ge.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

LIMITED 1-YEAR WARRANTY

What does this warrant cover?

Any defect in materials or workmanship in the manufactured product.
What does this warranty not cover?

Water bottles.

Service trips to your home to teach you how to use the product.

— Improper installation, delivery or maintenance.

Failure of the product if it is abused, misused, altered, used

commercially or used for other than the intended purpose.

• Products that are used outside a residential or office environment.

— Replacement of house fuses or resecting of circuit breakers.

Use of this product where water is microbiologically unsafe or of unknown quality.

• Damage to the product if used to dispense anything other than water.

— Damage to the product caused by accident, fire, floods or acts of God.

Any service to the product.

• Incidental or consequential damage caused by possible defects with this appliance, its installation or repair.

• For how long after the original purchase?

• Onc (1) year.
  How do I make a warranty claim?

• Return to the retailer from which it was purchased, along with a copy of the "Proof of Purchase." A new or reconditioned unit will be provided. This warranty excludes the cost of shipping the product to your home.

EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home or office use within the USA. In Alaska, the warranty excludes the cost of shipping or service to your home or office.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Contact us at ge.com, or call toll-free at 800.952.5039 in the U.S., or 866.777.7627 in Canada.
