USER MANUAL TX24LSW484 PANASONIC

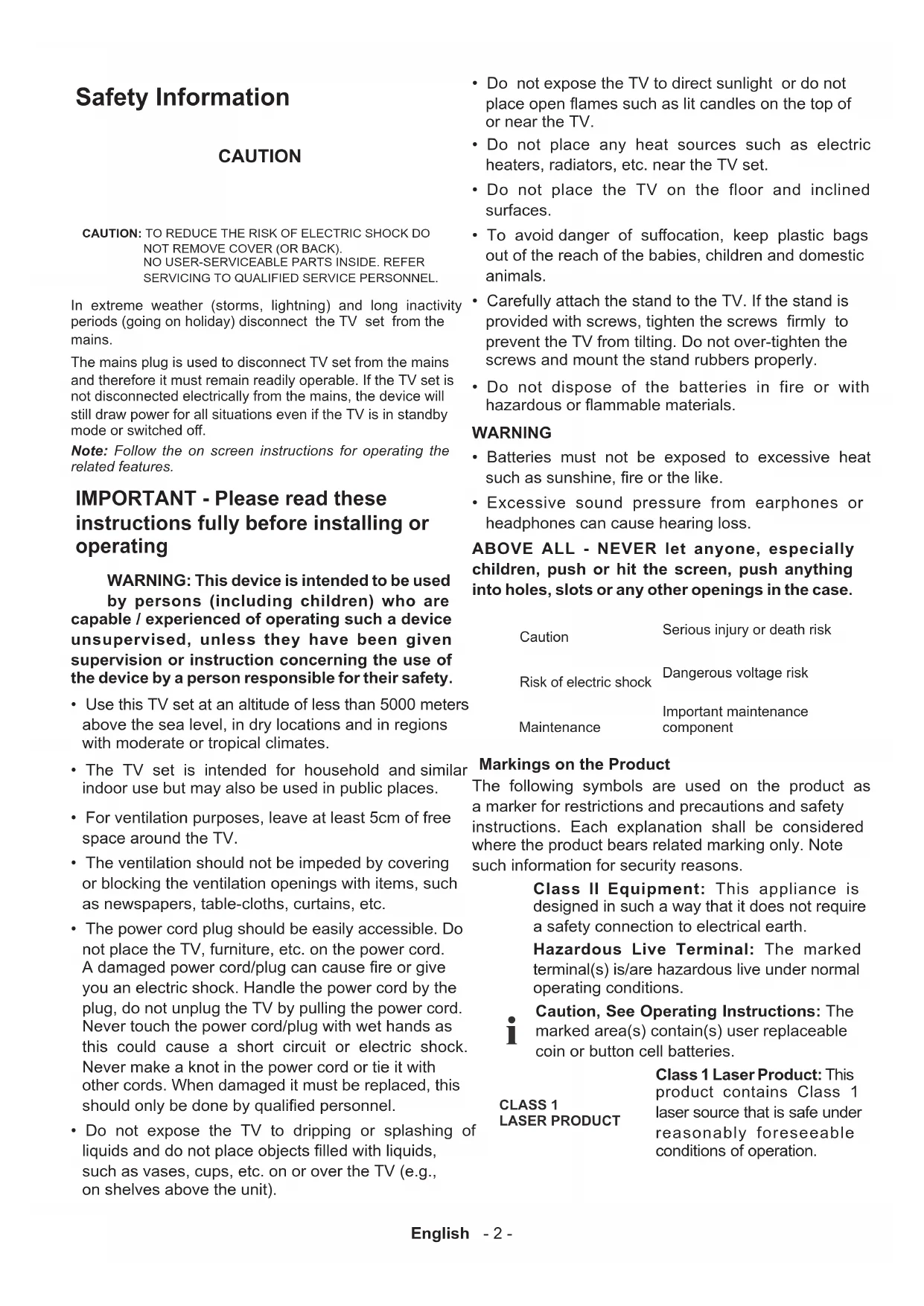

WARNING: This device is intended to be used

by persons (including children) who are capable / experienced of operating such a device unsupervised, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety.

• Use this TV set at an altitude of less than 5000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.

• The TV set is intended for household and similar indoor use but may also be used in public places.

• For ventilation purposes, leave at least 5cm of free space around the TV.

• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause re or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualied personnel.

• Do not expose the TV to dripping or splashing of liquids and do not place objects lled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).

• Do not expose the TV to direct sunlight or do not place open ames such as lit candles on the top of or near the TV.

• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.

• Do not place the TV on the floor and inclined surfaces.

• To avoid danger of su󰀨ocation, keep plastic bags out of the reach of the babies, children and domestic animals.

• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws rmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.

• Do not dispose of the batteries in fire or with hazardous or ammable materials. WARNING

• Batteries must not be exposed to excessive heat such as sunshine, re or the like.

• Excessive sound pressure from earphones or headphones can cause hearing loss. ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case. Caution Serious injury or death risk Risk of electric shock Dangerous voltage risk MaintenanceImportant maintenance component Markings on the Product The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons. Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth. Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

CLASS 1LASER PRODUCT

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.English - 3 - WARNING Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the pro

duct may contain a coin/button cell battery. If the coin/ button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. – – – – – – – – – – – – Warning Stability Hazard A television may fall, causing serious personal injury or death. Many injuries, particuIarly to children, can be avoided by taking simple precautions such as:

• ALWAYS use cabinets or stands or mounting me

thods recommended by the manufacturer of the television set.

• ALWAYS use furniture that can safely support the television set.

• ALWAYS ensure the television set is not overhanging the edge of the supporting furniture.

• ALWAYS educate children about the dangers of climbing on furniture to reach the television set or its controls.

• ALWAYS route cords and cables connected to your television so they cannot be tripped over, pulled or grabbed.

• NEVER place a television set in an unstable location.

• NEVER place the television set on tall furniture (for example, cupboards or bookcases) without ancho

ring both the furniture and the television set to a suitable support.

• NEVER place the television set on cloth or other materials that may be located between the television set and supporting furniture.

• NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the television or furniture on which the television is placed.

• The equipment is only suitable for mounting at heights ≤2 m. If the existing television set is going to be retained and relocated, the same considerations as above should be applied. – – – – – – – – – – – – Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a re hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator)

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.

• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.

• Do not install the TV on a ceiling or on an inclined wall.

• Use the specied wall mounting screws and other accessories.

• Tighten the wall mounting screws rmly to prevent the TV from fall. Do not over-tighten the screws. WARNING

• Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit’s performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualied installer will void your warranty.

• Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling o󰀨.

• Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.

• Take care when xing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.

• To prevent fall and injury, remove the TV from its xed wall position when it is no longer in use. Figures and illustrations in this user manual are provided for reference only and may di󰀨er from the actual product appearance. Product design and specications may be changed without notice.English - 4 - Assembling / Removing the pedestal Preparations Take out the pedestal(s) and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.)

• Use a at and rm table bigger than the TV.

• Do not hold the screen panel part.

• Make sure not to scratch or break the TV. Assembling the pedestal

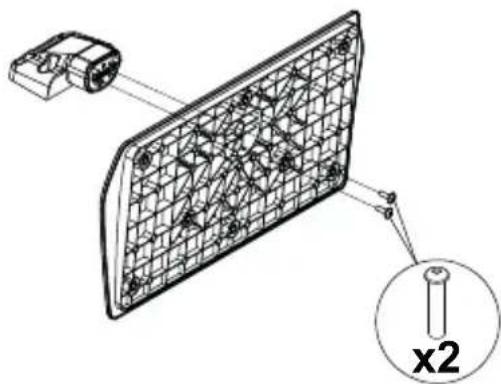

1. The stand of the TV consists of two pieces.

Install these pieces together.

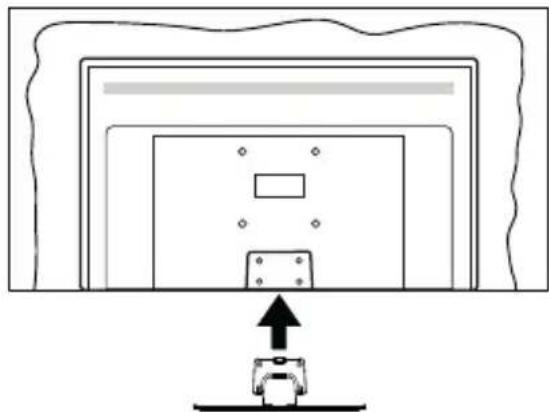

2. Place the stand(s) on the stand mounting

pattern(s) on the rear side of the TV.

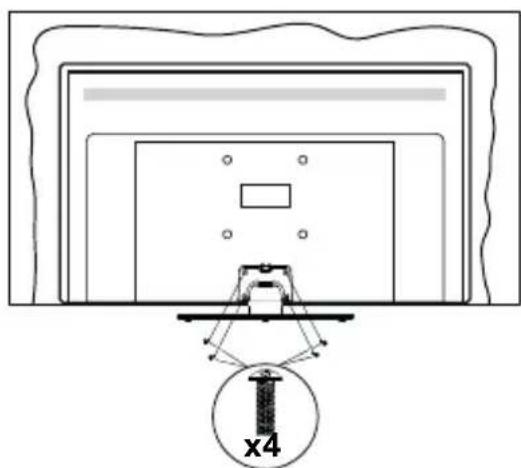

3. Insert the screws (M4 x 12) provided and tighten

them gently until the stand is properly tted.

Maintenance First, remove the mains plug from the mains socket. Display panel, Cabinet, Pedestal Regular care: Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or ngerprints. For stubborn dirt:

1. First clean the dust from the surface.

2. Dampen a soft cloth with clean water or diluted

neutral detergent (1 part detergent to 100 parts water).

3. Wring out the cloth rmly. (Please note, do not

let liquid enter the TV inside as it may lead to product failure.)

4. Carefully wipe moisten and wipe away the

5. Finally, wipe away all the moisture.

Caution Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.

• Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.

• The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your ngernail or other hard objects.

• Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality. Mains plug Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may cause re or electrical shock.English - 5 - Accessories Included
• Remote Control• Batteries: 2 x AAA• Instruction Book• Detachable stand• Stand mounting screws (M4 x 12) Features
• Remote controlled colour TV• Android operating system• Google Cast• Voice Search• Fully integrated digital terrestrial/cable/satellite TV (DVB-T-T2/C/S-S2)• HDMI inputs to connect other devices with HDMI sockets• USB input• Composite inputs for external devices (such as DVD Players, PVR, video games, etc.)• Stereo sound system• Teletext• Headphone connection• Automatic programming system• Manual tuning• Sleep timer• On/O󰀨 timer• Switch o󰀨 timer• Picture o󰀨 function• No signal auto power o󰀨 function• VGA input• Ethernet (LAN) for Internet connectivity and service• 802.11 a/b/g/n/ac built in WLAN Support• HbbTVRemoving the pedestal from the TVBe sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.• Put the TV onto a work table with the screen panel down on the clean and soft cloth. Leave the stand(s) protruding over the edge of the surface.• Unsrew the screws that xing the stand(s).• Remove the stand(s).When using the wall-hanging bracketPlease contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.Holes for wall-hanging bracket installation;Rear of the TV

a (mm) b (mm) View from the side VESA Bracket

(d) Depth of screw (c)min. 7 mmmax. 10 mmDiameter M4Note: The screws for xing the TV onto the wall-hanging bracket are not supplied with the TV. Introduction Thank you for choosing our product. You’ll soon be enjoying your new TV. Please read these instructions carefully. They contain important information which will help you get the best from your TV and ensure safe and correct installation and operation.English - 6 - High Dynamic Range (HDR) / Hybrid Log- Gamma (HLG) Using this feature the TV can reproduce greater dynamic range of luminosity by capturing and then combining several di󰀨erent exposures. HDR/HLG promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and other improvements. It delivers the look that lmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail. HDR/HLG contents are supported via native and market applications, HDMI, USB inputs and over DVB broadcasts. Antenna Connection Connect the aerial or cable TV plug to the AERIAL INPUT (ANT) socket or satellite plug to the SATELLITE INPUT (LNB) socket located on the rear side of the TV. Rear side of the TV

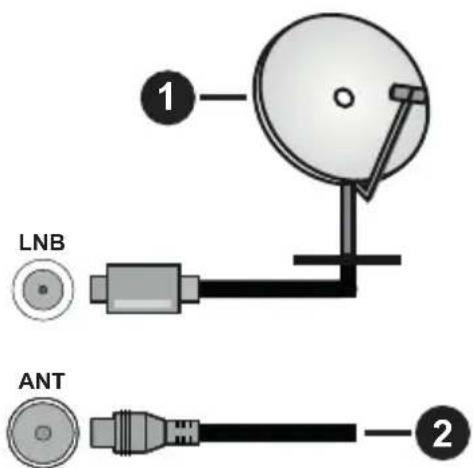

If you want to connect a device to the TV, make sure that both the TV and the device are turned o󰀨 before making any connection. After the connection is done, you can turn on the units and use them.English - 7 - Other Connections If you want to connect a device to the TV, make sure that both the TV and the device are turned o󰀨 before making any connection. After the connection is done, you can turn on the units and use them. Connector Type Cables Device YPbPr YPbPr Video Connection (back) VGA to YPbPr Connection Cable HDMI Connection (back&side) VGA Connection (back) AUDIO IN VGA/YPbPr Audio Connection (back) YPbPr/VGA Audio Cable SPDIF SPDIF (Coaxial Out) Connection (back)

(Audio/Video) Connection (back) Audio Video Cable HEADPHONE Headphone Connection (side) USB Connection (side)

Connection (side) CAM module LAN Ethernet Connection (back) LAN / Ethernet Cable To enable VGA/YPbPr audio, you will need to use the back audio inputs with a VGA/YPbPr audio cable for audio connection. When using the wall mounting kit (contact your dealer to purchase one, if not supplied), we recommend that you plug all your cables into the back of the TV before mounting on the wall. Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for de

tails of the settings. The USB inputs on the TV support devices up to 500mA. Connecting devices that have current value above 500mA may damage your TV. When connecting equipment using a HDMI cable to your TV, to guarantee sucient immunity against parasitic frequency radiation and trouble-free transmission of high denition signals, such as 4K content, you have to use a high speed shielded (high grade) HDMI cable with ferrites.English - 8 - Turning On/O󰀨 the TV Connect power IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet. The TV will switch on automatically. Turn on the main switch “ ” located on the TV - position “|”. The TV will switch into standby mode and the standby LED will light up. Note: Main switch position may dier depending on the model. To switch on the TV from standby If the TV is in standby mode the standby LED lights up. To switch on the TV from standby mode either:

• Press the Standby button on the remote control.

• Press the centre of the control switch on the TV in. The TV will then switch on. To switch the TV into standby The TV cannot be switched into standby mode via control switch. Press and hold the Standby button on the remote control. Power o󰀨 dialogue will appear on the screen. Highlight OK and press the OK button. The TV will switch into standby mode. To switch o󰀨 the TV Turn o󰀨 the main switch “ ” located on the TV - position 2 . The TV will switch o󰀨. To power down the TV completely, unplug the power cord from the mains socket. Quick Standby Mode In order to switch the TV into quick standby mode either;

• Press the Standby button on the remote. Press again to go back to operating mode.

• Press the centre of the control switch on the TV in and hold it down for a few seconds. Press again to go back to operating mode. Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as standby search or timer is active. The LED can also blink when you switch on the TV from standby mode. TV Control & Operation The control switch allows you to control the Programme and Quick Standby-On functions of the TV. Note: The position of the control switch may dier depending on the model. , switch is used for turning the TV on or o󰀨. Note: The position of the power switch may dier depending on the model. To change channel in Live TV mode: Press the centre of the control switch in, the information banner will appear on the screen. Scroll through the stored channels by pushing the control switch up or down. To turn the TV o󰀨 (Quick Standby): Press the centre of the control switch in and hold it down for a few seconds, the TV will turn into quick standby mode. To turn the TV o󰀨 (Standby): The TV cannot be switched into standby mode via control switch. To turn on the TV: Press the centre of the control switch in, the TV will turn on. Note: Live TV settings menu OSD in Live TV mode cannot be displayed via control switch. Operation with the Remote Control Press the Menu button on your remote control to display Live TV settings menu when in Live TV mode. Press Home button to display or return to the Home Screen of the Android TV. Use the directional buttons to move the focus, proceed, adjust some settings and press OK to make selections in order to make changes, set your preferences, enter a sub-menu, launch an application etc. Press Return/Back to return to the previous menu screen. Input Selection Once you have connected external systems to your TV, you can switch to di󰀨erent input sources. Press the Source button on your remote control consecutively or use the directional buttons and then press the OK button to switch to di󰀨erent sources when in Live TV mode. Or enter the Inputs menu on the Home Screen, select the desired source from the list and press OK. Changing Channels and Volume You can adjust the volume by using the Volume +/- buttons and change the channel in Live TV mode by using the Programme +/- buttons on the remote.English - 9 - Remote Control

Note: Other Panasonic devices cannot be operated with this remote. Inserting the Batteries into the Remote Remove the screw that secures the battery compartment cover on the back side of the remote control rst. Lift the cover gently. Insert two 1.5V - size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on. Then screw the cover back on again. To pair remote with the TV When TV is turned on for the rst time, a search for accessories will be performed after the initial setup starts. You will need to pair your remote control with your TV at this point. Press and hold the Source button on the remote until the LED on the remote starts to blink, then release the Source button. That means the remote is in pairing mode. Now you will wait for the TV to nd your remote. Select the name of your remote and press OK when it appears on the TV screen. When the paring process is successful, the LED on the remote will go o󰀨. If the pairing process fails the remote will enter sleep mode after 30 seconds. In order to pair your remote later on, you can go to Settings menu, highlight Remotes & Accessories option and press OK to start a search for accessories.

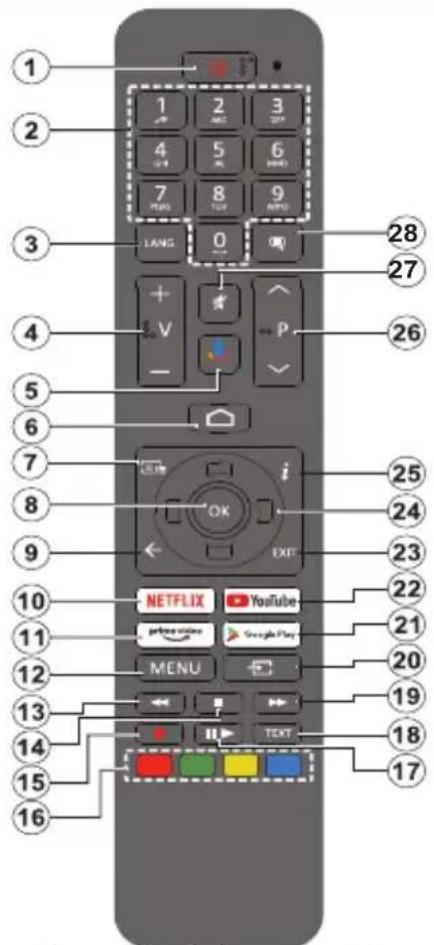

1. Standby: Quick Standby / Standby / On

2. Numeric buttons: Switches the channel in Live TV

mode, enters a number or a letter in the text box on the screen

3. Language: Switches among sound modes (analogue

5. Microphone: Activates the microphone on the remote

6. Home: Opens the Home Screen

7. Guide: Displays the electronic programme guide in

8. OK: Conrms selections, enters to sub-menus, views

channel list (in Live TV mode)

9. Back/Return: Returns to previous menu screen, goes

one step back, closes open windows, closes teletext (in Live TV-Teletext mode)

mode), displays available setting options such as sound and picture

13. Rewind: Moves frames backwards in media such as

14. Stop: Stops the media being played

16. Coloured Buttons: Follow the on-screen instructions for

coloured button functions

17. Pause: Pauses the media being played

Play: Starts to play selected media

18. Text: Opens and closes teletext (where available in

19. Fast forward: Moves frames forward in media such

20. Source: Shows all available broadcast and content

sources, closes the Home Screen and switches to last set source, is also used in pairing process of the remote.

23. Exit: Closes and exits from Live TV Settings menus,

closes the Home Screen, exits from any running application or menu or OSD banner, switches to last set source

24. Directional buttons: Navigates menus, setting options,

moves the focus or cursor etc. and displays the subpages in Live TV-Teletext mode when pressed Right or Left. Follow the on-screen instructions Note: Directional buttons are positioned on the circle around the OK button.

27. Mute: Completely turns o󰀨 the volume of the TV

28. Subtitles: Turns subtitles on and o󰀨 (where available)

Standby Button Press and hold the Standby button on the remote control. Power o󰀨 dialogue will appear on the screen. Highlight OK and press the OK button. The TV will switch into standby mode. Press briey and release to switch the TV into quick standby mode or to switch on the TV when in quick standby or standby mode.English - 10 - Initial Setup Wizard Note: Follow the on-screen instructions to complete the initial setup process. Use the directional buttons and the OK button on the remote to select, set, conrm and proceed. When turned on for the rst time, a welcome screen will be displayed. Select your language and press OK. Follow the on-screen instructions to setup your TV and install channels. The installation wizard will guide you through the setup process. You can perform initial setup anytime using the Reset option in the Settings>Device Preferences menu. You can access the Settings menu from the Home screen or from the TV options menu in Live TV mode.

1. Welcome Message and Language Selection

“Welcome” message will be displayed along with the language selection options listed on the screen. Select the desired language from the list and press OK to continue.

After the language selection you can start the initial setup wizard. Highlight Continue and press OK to proceed. You will not be able go back and change the language once you proceed. If you need to change the language after this step you will have to switch the TV into standby mode so the setup process starts from the beginning when you next switch on the TV. In order to do this, press and hold the Standby button. A dialogue will be displayed. Highlight OK and press OK.

3. Search for accessories

A search for accessories will be performed after the initial setup has started. Follow the on-screen instructions to pair your remote control (depends on the model of the remote control) and other wireless accessories with your TV. Press Back/Return button to end adding accessories and proceed.

If you didn’t priorly connect your TV to the internet via Ethernet a screen will be displayed where you can transfer your Android phone’s WLAN network and Google Account to your TV. Highlight Continue and press OK to proceed. Follow the on-screen instructions on your TV and your phone to complete the process. You can also skip this step by selecting Skip option. Some steps may be skipped depending on the settings made in this step. If you did priorly connect your TV to the internet via Ethernet a message will be displayed stating that you are connected. You can choose to continue with wired connection or change the network. Highlight Change network and press OK if you want to use wireless connection instead of wired connection.

5. Network Connection

You will be directed to the next step automatically, if you connect your TV to internet via Ethernet at this point. If not, available wireless networks will be searched and listed on the next screen. Select your WLAN network from the list and press OK to connect. Enter the password using the virtual keyboard if the network is password protected. Select the Other network option from the list, if the network that you want to connect has hidden SSID. If you prefer not to connect to the internet at this point you can skip this step by selecting Skip option. You can connect to internet later using the Network & Internet menu options in the Settings menu from the Home Screen or from the TV options menu in Live TV mode. This step will be skipped if internet connection has been established in the previous step.

6. Sign in to your Google account

If connection succeeds, you can sign in to your Google account on the next screen. You need to be signed in to a Google account in order to use Google services. This step will be skipped if no internet connection has been established in the previous step or if you already signed in to your Google account in Quick Setup step. By signing in, you will be able to discover new apps for videos, music and games on Google Play; get personalised recommendations from apps like YouTube; buy or rent the newest movies and shows on Google Play Movies & TV; access your entertainment and control your media. Highlight Sign In and press OK to proceed. Sign-in options are as following:

• Use your phone or computer: You can use a browser on your phone or computer to sign in. Highlight this option and press OK button. A code will be displayed on the TV screen. Make sure your phone or computer is on the same network as your TV. Open the given website (androidtv.com/setup, follow on-screen instructions for the up-to-date website url) in your phone’s or computer’s browser and enter the code you see on your TV screen into the related entry eld. Then follow the instructions on your device and complete the process.

• Use your remote: Using this option you can sign in to your Google account by entering your e-mail address or phone number and your password. If you prefer not to sign in to your Google account at this point you can skip this step by selecting Skip option.

Terms of Service screen will be displayed next. By continuing, you will agree to the Google Terms of Service, the Google Privacy Policy and the Google Play Terms of Service. Highlight Accept and press OK on the remote to conrm and proceed. You canEnglish - 11 - also view Terms of Service, Privacy Policy and Play Terms of Service on this screen. To display the content an internet connection is needed. A message will be displayed mentioning the web site address on which this information can also be viewed, in case internet access is not available.

On the next screen, you can allow or disallow Google and third party apps to use your TV’s location informa

tion. Select Yes to conrm and press OK. To skip this step without conrmation, select No and proceed by pressing the OK button. You can change this setting later using the Settings>Device Preferences>Loca- tion menu on the Home Screen.

9. Help improve Android

Automatically send diagnostic information to Google, like crash reports and usage data from your device and apps. This information won't be used to identify you. Select Yes to conrm and press OK. To skip this step without conrmation, select No and proceed by pressing the OK button. You can change this setting later using the Settings>Device Preferences>Usage & Diagnostics menu on the Home Screen. Information on Google services and some features of your TV will be displayed next. You can turn on perso

nal results for Assistant by choosing the related option when prompted. Press OK consecutively to proceed.

In the next step select your Country from the list and press OK to continue.

Depending on the country selection you made in the previous step you may be asked to dene a password (PIN) at this point. Press OK to proceed. The selected PIN cannot be 0000. This PIN will be required in order to access some menus, contents or to release locked channels, sources etc. You will have to enter it if you are asked to enter a PIN for any menu operation later.

In the following step of the initial setup, you can set the TV’s operation mode either as Home or as Store. Store option will congure your TV’s settings for store environment. This option is intended only for store use. It is recommended to select Home for home use.

13. Chromecast built-in always available

Select your chromecast availability preference. If set as On your TV will be detected as a Google Cast device and allow Google Assistant and other services to wake your TV up to respond to Cast commands, even when on standby mode and the screen is o󰀨.

Note: If you don’t want to perform a tuner scan, select one of the available options anyway. You can skip the scan at some later stage of the installation wizard. If you skip this step you can perform a channel search later using the related Channels menu options. The next step is the selection of the tuner mode. Select your tuner preference to install channels for Live TV function. Antenna, Cable and Satellite options are available. Highlight the option that corresponds to your environment and press OK or Right directional button to proceed. Antenna If Antenna option is selected, the TV will search for digital terrestrial and analogue broadcasts. On the next screen highlight Scan option and press OK to start the search or select Skip Scan to continue without performing a search. Note: If the country selected does not have analogue broadcasts, the analogue search option may not be available. Cable If Cable option is selected, the TV will search for digital cable and analogue broadcasts. If any, available operator options will be listed on the Select Operator screen. Otherwise this step will be skipped. You can select only one operator from the list. Highlight the desired operator and press OK or the Right directional button to proceed. On the next screen select Scan option to start a search or select Skip Scan to continue without performing a search. If Scan is selected a conguration screen will be displayed next. Scan Mode, Frequency(KHz), Modulation, Symbol Rate(Ksym/s), Network ID options may need to be set. To perform a full scan set the Scan Mode as Full/Advance if available. Depending on the selected operator and/or Scan Mode some options may not be available to be set. Note: If the country selected does not have analogue broadcasts, the analogue search option may not be available. Once you are done with setting available options, press the Right directional button to proceed. The TV will start to search available broadcasts. Satellite If Satellite option is selected, Satellite Type screen will be displayed next. Preferred Satellite and General Satellite options will be available. Select one and press OK to proceed. Note: Preferred Satellite and General Satellite options may not be available depending on the selected country. In this case the DVBS Conguration Setting screen will be displayed after selecting the tuner mode as Satellite. If Preferred Satellite option is selected, next screen will be Select Operator screen. You can select only one operator from the list. Highlight the desired operator and press OK or the Right directional button to proceed. Some of the following options may be preset depending on the selected operator in this step. Check the parameters before proceeding and adjust if necessary.English - 12 - DVBS Conguration Setting screen will be displayed next. First Antenna type(*) should be set. Universal, Single Cable and Jess Singlecable options are available. Set the Antenna Type as Universal for Direct and DiSEqC satellite systems. If you set the antenna type as Universal, press the Right directional button to proceed to the next step. If the antenna type is set as Single Cable or Jess Singlecable, there will be three more additional options on the DVBS Conguration Setting screen: Tuner, Band frequency and User Dened. User Dened option will be available if the Band frequency is set as User Dened. Set these options if available and press the Right directional button to proceed. (*) This option may be named as Satellite type depending on the country selection. Depending on the country and satellite type selections you made in the earlier steps of the initial setup process, Load Preset List screen may be displayed next. Highlight Load Preset List and press OK or the Right directional button to proceed with the SatcoDX installation. You can also skip this step by selecting Skip option. After the parameters on the DVBS Conguration Setting screen are configured according to your environment and preset list installation preference is selected the next step may be Select Satellite screen. You may be able to set up di󰀨erent satellites depending on the selected antenna type and operator in the previous steps. Highlight the desired satellite option and press OK to set the parameters(*). The Satellite Status of the rst satellite option will be set as On. In order to congure other settings of the satellite and to enable scan this option should be set as On rst. Press Back button and select next satellite you want to set. After you completed the conguration changes, press the Right directional button to proceed. (*) If you have a Direct satellite system, DiSEqC Set option should be set as DiSEqC A. If Load Preset List option is selected in the previous step next steps will be skipped and the preset channel list installation will start. If the correct satellite has not been selected for SatcoDX installation, a warning dialogue will be displayed on the screen. The satellite/s that can be selected will be listed. Press OK to close the dialogue and then set the satellite accordingly. Channel Scan screen will be displayed next. Select Scan and press OK or the Right directional button to proceed with the scanning congurations. Select Skip Scan to proceed without performing a scan and complete the initial setup. DVBS Scan Congure screen will be displayed next if Scan option is selected. Following options will be available: Scan Mode and Channels. You can choose to perform a full scan or a network scan. Set the Scan Mode accordingly. If you are going to perform a network scan, make sure that you have adjusted the Frequency, Symbol Rate (Ksym/s) and Polarisation parameters under the Transponder option accurately on the Satellite Setup screen. You may not be able to change the Scan mode setting depending on the previous selections. If the Channels option is set as Free encrypted channels will not be installed. Additional options may also be available depending on the selected operator, congure these settings according to your preferences. Once you are done with setting the available options, press the Right directional button to start scan while Scan Mode or Channels is highlighted. While the search continues you can press the Back button to cancel the search. The channels that have already been found will be stored in the channel list. When the initial setup is completed results will be displayed. Press OK to nish the setup. Home Screen will be displayed. You can highlight Live TV app and press OK to switch to Live TV mode and watch TV channels. Home Screen To enjoy the benets of your Android TV, your TV must be connected to the Internet. Connect the TV to a home network with a high-speed Internet connection. You can connect your TV wirelessly or wired to your modem/router. Refer to the Network & Internet and Connecting to the Internet sections for further information on how to connect your TV to the internet. The Home menu is the centre of your TV. Press the Home button to display Home Screen. From the Home menu you can start any application, switch to a TV channel, watch a movie or switch to a connected device. Depending on your TV setup and your country selection in the initial setup the Home menu may contain di󰀨erent items. The available options of the Home Screen are positi

oned in rows. To navigate through the Home Screen options use the directional buttons on the remote. Apps, YouTube, Google Play Movies & TV, Google Play Music and Google Play related rows and rows of the applications you have installed might be available. Select a row then move the focus to the desired item in the row. Press OK button to make a selection or to enter a sub-menu. On the upper left of the screen, search tools will be located. You can choose either to type a word to start a search via the virtual keyboard or try voice search option if your remote has a built-in microphone. Move the focus to the desired option and press OK to proceed. On the upper right of the screen, Notications, Inputs, Network & Internet (will be named as Connected orEnglish Not Connected Settings

Multi Media Player OK

ExitLive TV AppsOK Channels Add to My Favourites:

New Channels Available:

Channel Channel Done OK. TV Options Source:

User, Standard, Vivid, Sport, MovieGameUser Settings>Device Preferences>Picture Display Mode:

Default Channel: Select Mode User Select, Show Channels

MHEG PIN Protection:

English - 14 - HBBTV Settings HBBTV Support: Turn the HBBTV function on or o󰀨. Do Not Track: Set your preference regarding the tracking behaviour for HBBTV services. Cookie Settings: Set your cookie setting preference for HBBTV services. Persistent Storage: Turn the Persistent Storage function on or o󰀨. If set as On cookies will be stored with an expiry date in the persistent memory of the TV. Block Tracking Sites: Turn the Block Tracking Sites function on or o󰀨. Device ID: Turn the Device ID function on or o󰀨. Reset Device ID: Reset the device ID for HBBTV services. Confı

on dialogue will be displayed. Press OK to proceed, Back to cancel. Subtitle Analogue Subtitle: Set this option as O󰀨, On or Mute. If Mute option is selected, the analogue subtitle will be displayed on the screen but the speakers will be muted simultaneously. Digital Subtitle: Set this option as O󰀨 or On. Subtitle Tracks: Set your subtitle track preference, if any available. Digital Subtitle Language: Set one of the listed language options as rst digital subtitle language preference. Second Digital Subtitle Language: Set one of the listed language options as second digital subtitle language preference. If the selected language in the Digital Subtitle Language option is not available, the subtitles will be displayed in this language. Subtitle Type: Set this option as Normal or Hearing Impaired. If Hearing Impaired option is selected, it provides subtitle services to deaf and hard of hearing viewers with additional descriptions. Teletext Digital Teletext Language: Set the teletext language for digital broadcasts. Decoding Page Language: Set the decoding page language for teletext display. BISS Key: “Click To Add Biss Key” message will be displayed. Press OK button to add a biss key. Frequency, Symbol Rate (KSym/s), Polarisation, Programme ID and CW Key parameters will be available to be set. Once you are done with the settings highlight Save Key and press OK to save and add the biss key. This option will not be available if the Channel Installation Mode under the Settings>Channel menu is not set as Preferred Satellite, General Satellite or Satellite. Available options will di󰀨er depending on the selected country during the initial setup process. Auto Sleep: Dene an idle time after which you want your TV to enter sleep mode automatically. 4 Hours, 6 Hours and 8 Hours options are available. Set as Never to disable. System Information: Display detailed system information on the current channel such as Signal Level, Signal Quality, Frequency etc. Version Info: Display system information such as Model Name and Version. Settings: Refer to Settings section for detailed information. Settings You can access the Settings menu from the Home Screen or from the TV options menu in Live TV mode. Network & Internet You can congure your TV’s network settings using the options of this menu. You can also highlight the Connected/Not Connected icon on the Home screen and press OK to access this menu. Wi-Fi: Turn the wireless LAN (WLAN) function on and o󰀨. Available networks When the WLAN function is turned on, available wireless networks will be listed. Highlight See all and press OK to see all networks. Select one and press OK to connect. You may be asked to enter a password to connect to the selected network, in case the network is password protected. Other options Add new network: Add networks with hidden SSID’s. Scanning always available: You can let the location service and other apps scan for networks, even when WLAN function is turned o󰀨. Press OK to turn it on and o󰀨. Wow: Turn this function on and o󰀨. This function allows you to turn on or awaken your TV via wireless network. Wol: Turn this function on and o󰀨. This function allows you to turn on or awaken your TV via network. Ethernet Connected/Not connected: Displays the status of the internet connection via Ethernet, IP and MAC addresses. Proxy settings: Set a HTTP proxy for browser manu

ally. This proxy may not be used by other apps. IP settings: Congure your TV’s IP settings.English - 15 - Channel Channels Options of this menu may change or become inac

tive depending on the Channel Installation Mode selection. Channel Installation Mode - Antenna Automatic Channel Search: Start a scan for analogue and digital channels. You can press the Back button to cancel the scan. The channels that have already been found will be stored in the channel list. Update Scan: Search for updates. Previously added channels will not be deleted, but any newly found channels will be stored in the channel list. Analogue Manual Scan: Start a manual scan for analogue channels. Enter the Start Frequency and then select Scan Up or Scan Down. When a channel is found the scan will be completed and the found channel will be stored in the channel list. Single RF Scan: Select the RF Channel by using the Right/Left directional buttons. Signal Level and Signal Quality of the selected channel will be shown. Press OK to start scan on the selected RF channel. The found channels will be stored in the channel list. Manual Service Update: Start a service update manually. LCN: Set your preference for LCN. LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available). Channel Scan Type: Set your scan type preference. Channel Store Type: Set your store type preference. Favourite Network Select: Select your favourite network. This menu option will be active, if more than one network is available. Channel Skip: Set channels to be skipped when switching the channels via Programme +/- buttons on the remote. Highlight the desired channel/s on the list and press OK to select/unselect. Channel Swap: Replace the positions of the two selected channels in the channel list. Highlight the desired channels on the list and press OK to select. When the second channel is selected, the position of this channel will be replaced with the position of the rst selected channel. You should set the LCN option to O󰀨 or Default in order to enable this feature. Channel Move: Move a channel to the position of another channel. Highlight the channel you want to move and press OK to select. Then do the same for a second channel. When the second channel is selected, the rst selected channel will be moved to the position of that channel. You should set the LCN option to O󰀨 or Default in order to enable this feature. Channel Edit: Edit channels in the channel list. Edit the name and channel number of the selected channel and display Network Name, Frequency, Colour System and Sound System information related to that channel if available. Depending on the channel other options may also be editable. You can press the Blue button to delete the highlighted channel. Analogue Channel Fine-tune: Fine-tune an analogue channel. A list of available analogue channels will be displayed. Select the desired one from the list and press OK button. Then change the frequency of the channel by pressing Left/Right directional buttons. Press OK to store the new frequency for that channel. Press Back to cancel. This item may not be visible, depending on whether or not the last watched channel was analogue. Clear Channel List: Delete all channels stored in the channel list of the selected channel installation mode. A dialogue will be displayed for conrmation. Highlight OK and press OK button to proceed. Highlight Cancel and press OK to cancel. Channel Installation Mode - Cable Automatic Channel Search: Start a scan for analo

gue and digital cable channels. If available, operator options will be listed. Select the desired one and press OK. Scan Mode, Channel Scan Type, Frequency and Network ID options may be available. The options may vary depending on the operator and the Scan Mode selections. Set the Scan Mode as Full if you don’t know how to set up other options. Highlight Scan and press OK to start the scan. You can press the Back button to cancel the scan. The channels that have already been found will be stored in the channel list. Single RF Scan: Enter the Frequency value. Signal Level and Signal Quality of the selected Frequency will be shown. Highlight the Scan option and press OK to start scan. The found channels will be stored in the channel list. LCN: Set your preference for LCN. LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available). Channel Scan Type: Set your scan type preference. Channel Store Type: Set your store type preference. Favourite Network Select: Select your favourite net

work. This menu option will be active, if more than one network is available. This option may not be available depending on the selected country during the initial setup process. Channel Skip: Set channels to be skipped when switching the channels via Programme +/- buttons on the remote. Highlight the desired channel/s on the list and press OK to select/unselect.English - 16 - Channel Swap: Replace the positions of the two selected channels in the channel list. Highlight the desired channels on the list and press OK to select. When the second channel is selected, the position of this channel will be replaced with the position of the rst selected channel. You should set the LCN option to O󰀨 or Default in order to enable this feature. Channel Move: Move a channel to the position of another channel. Highlight the channel you want to move and press OK to select. Then do the same for a second channel. When the second channel is selected, the rst selected channel will be moved to the position of that channel. You should set the LCN option to O󰀨 or Default in order to enable this feature. Channel Edit: Edit channels in the channel list. Edit the name and channel number of the selected channel and display Network Name, Frequency, Colour Sys

tem, Sound System, Modulation and Symbol Rate information related to that channel. Depending on the channel other options may also be editable. You can press the Blue button to delete the highlighted channel. Analogue Channel Fine-tune: Fine-tune an analogue channel. A list of available analogue channels will be displayed. Select the desired one from the list and press OK button. Then change the frequency of the channel by pressing Left/Right directional buttons. Press OK to store the new frequency for that channel. Press Back to cancel. This item may not be visible, depending on whether or not the last watched channel was analogue. Clear Channel List: Delete all channels stored in the channel list of the selected channel installation mode. A dialogue will be displayed for conrmation. Highlight OK and press OK button to proceed. Highlight Cancel and press OK to cancel. Channel Installation Mode - Preferred/General Satellite/Satellite Satellite Re-scan: Start a satellite scan beginning with the operator selection screen for the Preferred Satellite channel installation mode or with the satellite selection screen for the General Satellite or Satellite channel installation mode. When this scanning option is preferred, some scanning congurations will not be available and thus the preferences you made during the initial setup process may not be changed. Satellite Add: Add satellite and perform a satellite scan. Satellite Update: Search for any updates by repeating the previous scan with the same settings. You will also be able to congure these settings before the scan. If Channel Installation Mode is set to Preferred Satel

lite this option may be named di󰀨erently depending on the available services. Highlight the satellite and press OK button to congure detailed satellite parameters. Press the Right directional button to proceed. Satellite Manual Tuning: Start a manual satellite scan. Favourite Network Select: Select your favourite net

work. This menu option will be active, if more than one network is available. This option may not be available depending on the selected country during the initial setup process. Channel Skip: Set channels to be skipped when switching the channels via Programme +/- buttons on the remote. Highlight the desired channel/s on the list and press OK to select/unselect. Channel Swap: Replace the positions of the two selected channels in the channel list. Highlight the desired channels on the list and press OK to select. When the second channel is selected, the position of this channel will be replaced with the position of the rst selected channel. Channel Move: Move a channel to the position of another channel. Highlight the channel you want to move and press OK to select. Then do the same for a second channel. When the second channel is selected, the rst selected channel will be moved to the position of that channel. Channel Edit: Edit channels in the channel list. Edit the name and channel number of the selected channel and display Network Name, Frequency, Colour System and Sound System information related to that channel if available. Depending on the channel other options may also be editable. You can press the Blue button to delete the highlighted channel. Clear Channel List: Delete all channels stored in the channel list of the selected channel installation mode. A dialogue will be displayed for conrmation. Highlight OK and press OK button to proceed. Highlight Cancel and press OK to cancel. Note: Some options may not be available and appear as grayed out depending on the operator selection and operator related settings. Channel Installation Mode Set this option as Antenna, Cable, Preferred Satel

nel Installation Mode selection. Parental Controls (*) To enter this menu PIN should be entered rst. Default PIN is set to 1234. If you have dened a new PIN after the initial setup process use the PIN that you have dened. Some options may not be available or vary depending on the country selection during the initial setup.English - 17 - Channels Blocked: Select channel/s to be blocked from the channel list. Highlight a channel and press OK to select/unselect. To watch a blocked channel PIN should be entered rst. Programme Restrictions: Block programmes accor

ding to the age rating information that is being broadca- sted with them. You can turn on or o󰀨 restrictions, set rating systems, restriction levels and age limits using the options of this menu. Inputs Blocked: Prevent access to the selected input source content. Highlight the desired input option and press OK to select/unselect. To switch to a blocked input source PIN should be entered rst. Change PIN: Change the default PIN. Highlight this option and press OK. You will need to enter the old PIN rst. Then new PIN entry screen will be displayed. Enter the new PIN twice for conrmation. Audio Channel Set the audio channel preference, if available. This item may not be visible, depending on whether or not the last watched channel was analogue. Audio Language Set one of the listed language options as rst audio language preference. This item may not be visible, depending on whether or not the last watched channel was digital. Second Audio Language Set one of the listed language options as second audio language preference. If in the Audio Language setting selected language option is not supported, this language preference will be considered. This item may not be visible, depending on whether or not the last watched channel was digital. Open Source Licenses Display Open Source Software license information. Version Displays system version number. Accounts & Sign In Google: This option will be available if you have signed in to your Google account. You can congure your data syncing preferences or remove your registered account on the TV. Highlight a service listed in the Choose synced apps section and press OK to enable/disable data sync. Highlight Sync now and press OK to sync all enabled services at once. Add account: Add a new one to available accounts by signing in to it. Apps Using the options of this menu, you can manage the apps on your TV. Recently opened apps You can display recently opened apps. Highlight See all apps and press OK to see all the apps installed on your TV. The amount of storage space that they needed will also be displayed. You can see the version of the app, open or force to stop the running of the app, uninstall a downloaded app, see the permissions and turn them on/o󰀨, turn on/o󰀨 the notications, clear the data and cache etc. Highlight an app and press OK to see available options. Permissions Manage the permissions and some other features of the apps. App permissions: The apps will be sorted by permission type categories. You can enable disable permissions for the apps from within these categories. Special app access: Congure some app features and special permissions. Security & restrictions: Using the options of this menu;

• You can allow or restrict installation of apps from sources other than the Google Play Store.

• Set the TV to disallow or warn before installation of apps that may cause harm. Device Preferences About: Check for system updates, change the device name, restart the TV and display system information such as network addresses, serial numbers, versions etc. You can also display legal information, manage advertisings, display your advertising ID, reset it and turn on/o󰀨 the personalised advertisings based on your interests. Netflix ESN: Display your ESN number. ESN number is an unique ID number for Netix, created especially to identify your TV. Date & time: Set the date and time options of your TV. You can set your TV to automatically update the time and date data over the network or over the broadcasts. Set corresponding to your environment and preference. Disable by setting as O󰀨 if you want to manually change the date or time. Then set date, time, time zone and hour format options. Timer Power On Time Type: Set your TV to turn on by itself. Set this option as On or Once to enable a power on timer to be set, set as O󰀨 to disable. If set as Once the TV will turn on only once at the dened time in Auto Power On Time option below.English Auto Power On Time: Power On Time Type

󰀨O󰀨 Picture Picture Mode:

Backlight, Brightness, Contrast, Colour, Hue, Sharpness

Backlight: Auto BacklightO󰀨. Brightness:

Gamma: Dark, Middle Bright Colour Temperature: User, Cool, StandardWarm

Colour Temperature UserUser. Display Mode:

Low, Medium, Strong󰀨O󰀨. DI Film Mode:

Game Mode: English - 19 - to keep up with video games that have fast frame rates. Turn the Game Mode function on or o󰀨. PC Mode: PC Mode is the mode which cuts down some of the picture processing algorithms to keep signal type as it is. It can be usable especially for RGB inputs. Turn the PC Mode function on or o󰀨. HDMI RGB Range: This setting should be ad

justed according to input RGB signal range on HDMI source. It can be limited range (16-235) or full range (0-255). Set your HDMI RGB range preference. Auto, Full and Limit options will be available. This item will not be available, if the input source is not set as HDMI. Colour Tuner: Colour saturation, hue, brightness can be adjustable for red, green, blue, cyan, magen

ta, yellow and esh tone (skin tone) for having more vivid or more natural image. Set the Hue, Colour, Brightness, O󰀨set and Gain values manually. Hig- hlight Enable and press OK to turn this function on. 11 Point White Balance Correction: White ba

lance feature calibrates TV’s colour temperature in detailed grey levels. By visually or measurement, grey scale uniformity can be improved. Adjust the strength of the Red, Green, Blue colours and Gain value manually. Highlight Enable and press OK to turn this function on. Reset to Default: Reset the video settings to factory default settings. Note: Depending on the currently set input source some menu options may not be available. Sound System Sounds: System sound is the sound played when navigating or selecting an item on the TV screen. Highlight this option and press OK to turn this function on or o󰀨. Sound Style: For easy sound adjustment, you can select a preset setting. User, Standard, Vi

vid, Sport, Movie, Music or News options will be available. Sound settings will be adjusted according to the selected sound style. Some other sound options may become unavailable depending on the selection. Balance: Adjust the left and right volume balance for speakers and headphones. Equaliser Detail: Adjust the equaliser values accor

ding to your preferences. Speakers: To hear the TV audio from the connected compatible audio device set as External Audio System. Set as TV Speakers to use the speakers of your TV for sound output. Digital Output: Set the digital sound output prefe

rence. Auto, Bypass, PCM, Dolby Digital Plus and Dolby Digital options will be available. Highlight the option you prefer and press OK to set. SPDIF Delay: Adjust the SPDIF delay value. Auto Volume Control: With Auto Volume Control, you can set the TV to automatically level out sudden volume di󰀨erences. Typically at the beginning of adverts or when you are switching channels. Turn this option on/o󰀨 by pressing OK. Downmix Mode: Set your preference to convert mul

ti-channel audio signals to two-channel audio signals. Press OK to see the options and set. Stereo and Surround options will be available. Highlight the option you prefer and press OK to set. Dolby Audio Processing: With Dolby Audio Proces

sing, you can improve the sound quality of your TV. Press OK to see the options and set. Some other sound options may become unavailable and appear as grayed out depending on the settings made here. Dolby Audio Processing: Highlight this option and press OK to turn this function on/o󰀨. Sound Mode: If the Dolby Audio Processing option is turned on Sound Mode option will be available to set. Highlight the Sound Mode option and press OK to see the preset sound modes. Smart, Movie, Music and News options will be available. Highlight the option you prefer and press OK to set. Reset to Default: Resets the sound settings to factory defaults. Storage: View the total storage space status of the TV and connected devices if available. To see detailed in

formation on the usage details highlight and press OK. There will also be options for ejecting and formatting the connected storage devices. Home screen: Customise your home screen. Select channels which will be displayed on the home screen. Organize apps and games, change their order or get more of them. Store mode: Highlight Store mode and press OK. Highlight Continue and press OK if you want to pro

ceed. Then highlight On to activate or O󰀨 to deactivate and press OK. In store mode your TV’s settings will be congured for store environment and the supported features will be displayed on the screen. Once activa

ted, Store messaging setting will become available. Set according to your preferences. It is recommended not to activate store mode for home use. Google Assistant: Select your active account, view permissions, select which apps to include in search results, activate safe search lter, activate o󰀨ensive word blocking and view open source licenses. Screen saver: Set screensaver and sleep mode options for your TV. You can choose a screensaver, set wait time for the screensaver, set when the TV goes into sleep mode or start the screensaver mode.English - 20 - Location: You can allow the use of the wireless connection to estimate the location, see the recent location requests and allow or restrict the listed apps to use your location information. Usage & Diagnostics: Automatically send usage data and diagnostic information to Google. Set according to your preference. Manufacturer Usage & Diagnostics: If you accept, your TV will send diagnostic information (such as MAC address, country, language, software and rmware versions, bootloader versions and the source of the TV) and anonymous usage data from your device to a server located in Ireland. We are not able to identify you and are only collecting and storing this diagnostic information and anonymous usage data to ensure your device operates properly. Accessibility: Congure Visually Impaired, Capti

ons settings and/or turn Audio Description, Hearing Impaired, Spoken subtitle, High contrast text on/ o󰀨. Some of the caption settings may not be applied. Visually Impaired: Digital TV channels can broadcast special audio commentary describing on-screen action, body language, expressions and movements for people with visual disabilities. Speaker: Turn this option on if you want to hear the audio commentary through the TV speakers. Headphone: Turn this option on if you want to route the sound of the audio commentary to the TV’s headphone output. Volume: Adjust the volume level of the audio commentary. Pan and Fade: Turn this option on if you want to hear the audio commentary more clearly, when it is available through broadcast. Audio for the Visually Impaired: Set the audio type for visually impaired. Options will be available depending on the selected broadcast. Fader Control: Adjust the volume balance between the main TV audio (Main) and audio commentary (AD). Reset: Reset all TV settings to the factory default. Highlight Reset and press OK. A conrmation message will be displayed, select Erase everything to proceed with resetting. The TV will switch o󰀨/on rst and the initial setup will start. Select Cancel to exit. Note: You may be asked to enter a PIN to proceed with the reset operation. Enter the PIN you have dened during the rst time installation. If you didn't set a PIN during the rst time in- stallation, you can use the default PIN. The default PIN is 1234. Remote & Accessories You can use wireless accessories, such as your remote control (depends on the model of the remote control), headphones, keyboards or game controllers with your Android TV. Add devices to use them with your TV. Select this option and press OK to start searching available devices in order to pair them with your TV. If available highlight Add accessory option and press OK to start the search. Set your device to pairing mode. Available devices will be recognized and listed or pairing request will be displayed. Select your device from the list and press OK or highlight OK and press OK to start pairing. Connected devices will also be listed here. To unpair a device, highlight it and press OK. Then highlight Unpair option and press OK. Then select OK and press OK again to unpair the device from the TV. You can also change the name of an connected device. Highlight the device and press OK, then highlight Change name and press OK again. Press OK again to use the virtual keyboard to change the name of the device. Channel List The TV sorts all stored channels in the Channel List. Press the OK button to open the Channel List in Live TV mode. You can press the Red button to scroll up the list page by page, or press the Green button to scroll down. If desired, you can lter or sort the channels or nd a channel in the channel list. Press the Yellow button to display the Select More options. Available options are Select Type, Sort and Find. Sort option may not be available depending on the selected country during the initial setup process. To lter the channels highlight Select Type and press the OK button. You can select among Categories, Digital, Radio, Free, Encrypted, Analogue, Favourite and Network options to lter the channel list or select Broadcast option to see all installed channels in the channel list. Available options may di󰀨er depending on the operator selection. To sort the channels highlight Sort and press the OK button. Select one of the available options and press OK again. The channels will be sorted according to your selection. To nd a channel highlight Find and press the OK button. Virtual keyboard will be displayed. Enter all or a portion of the name or number of the channel you want to nd, highlight the check mark symbol on the keyboard and press OK. Matching results will be listed. Note: If any option except Broadcast is selected in the Select Type menu, you can only scroll through the channels that are currently listed in the channel list using the Programme +/- buttons on the remote. Editing the Channels and the Channel List You can edit the channels and the channel list using the Channel Skip, Channel Swap, Channel Move and Channel Edit options under the Settings>Chan-English - 21 - nel>Channels menu. You can access the Settings menu from the Home Screen or from the TV options menu in Live TV mode. Note: The options Channel Swap, Channel Move and Chan- nel Edit may not be available and appear as grayed out de- pending on the operator selection and operator related settings. You can turn o the LCN setting in the Settings>Channel menu, as it prevents channel editing. This option might be set to On by default depending on the selected country during the initial setup process. Managing Favourite Channel Lists You can create four di󰀨erent lists of your favourite channels. These lists include only the channels that are specied by you. Press the OK button to display the channel list. Then press Blue button to access favourite lists. If one of the lists is being displayed on the screen you can press the Left or Right directional button to switch from one list to another. In order to change the position of a channel highlight that channel and press the Yellow button. Then use the Up and Down directional buttons to move the channel to the desired position and press OK. Highlight a channel in the list and press the OK button to watch. To add the currently watched channel to one of your favourite lists select the desired favourite list as described above and press the Menu button on the remote. Then enter the Channels menu, highlight Add to My Favourites option and press OK. The channel will be added to the selected favourite list. Only the currently watched channel can be added to a favourite list. To remove a channel from a favourite list open the favourite list, highlight that channel and press the Blue button. If you want to set one of your Favourite channel lists as the main channel list, you need to select the desired favourite list as described above. Then set the Select Type option to Favourite. Open the channel list and press the Yellow button to see the options. Depending on the operator selection this feature may be blocked and not work properly. Programme Guide By means of Electronic Programme Guide (EPG) function of your TV you can browse the event schedule of the currently installed channels on your channel list. It depends on the related broadcast whether this feature is supported or not. In order to access the Electronic Programme Guide on the Home Screen press the Guide button on the remote. Electronic Programme Guide is also available in Live TV mode. You can switch to Live TV mode by either launching the Live TV application on the Home Screen or selecting Channels input source from the Inputs menu on the Home Screen. To access the programme guide while in Live TV mode, press the Guide button on your remote. Use the directional buttons to navigate through the programme guide. You can use the Up/Down directional buttons or Programme +/- buttons to switch to previous/next channel on the list and Right/ Left directional buttons to select a desired event of the currently highlighted channel. If available, the full name, start-end time and date, genre of the highlighted event and a brief information about it will be displayed on the bottom of the screen. Press Blue button to lter the events. Due to the large variety of lter options you can nd events of the desired type quicker. Press Yellow button to see detailed information on the highlighted event. You can also use Red and Green buttons to see events of previous day and next day. The functions will be assigned to the coloured buttons on the remote when they are available. Follow the on-screen information for accurate button functions. The guide can not be displayed if TV input source is blocked from the Settings>Channel>Parental Controls>Inputs Blocked menu in Live TV mode or on Home Screen. Connecting to the Internet You can access the Internet via your TV, by connecting it to a broadband system. It is necessary to congure the network settings in order to enjoy a variety of streaming content and internet applications. These settings can be congured from Settings>Network & Internet menu. You can also highlight the Connected/ Not Connected icon on the Home screen and press OK to access this menu. For further information refer to Network & Internet section under the title of Settings. Wired Connection Connect your TV to your modem/router via an Ethernet cable. There is a LAN port on the rear side of your TV. The status of the connection under the Ethernet section in the Network & Internet menu will change from Not connected to Connected.

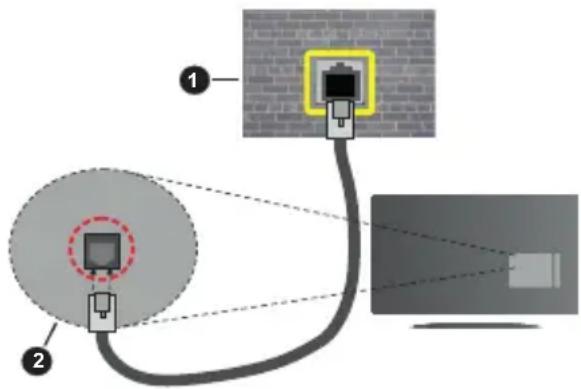

You might be able to connect your TV to a network wall socket depending on your network’s conguration. In that case, you can connect your TV directly to the network using an Ethernet cable.

2. LAN input on the rear side of the TV

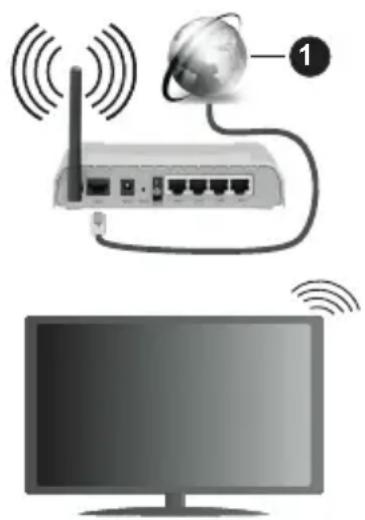

Wireless Connection A wireless LAN modem/router is required to connect the TV to the Internet via wireless LAN. Highlight Wi-Fi option in the Network & Internet menu and press OK to enable wireless connection. Available networks will be listed. Select one and press OK to connect. For more information refer to Network & Internet section under the title of Settings.

A network with hidden SSID can not be detected by other devices. If you want to connect to a network with hidden SSID, highlight the Add new network option under the Settings>Network & Internet menu on the Home Screen and press OK. Add the network by entering its name manually using the related option. Some networks may have an authorisation system that requires a second login as such in a work environment. In this case, after connecting to the wireless network you want to connect to, highlight Notications situated on the upper right of the Home Screen and press OK. Then highlight the Sign in to Wi-Fi network notication and press OK. Enter your credentials to log in. A Wireless-N router (IEEE 802.11a/b/g/n/ac) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, le transfers and wireless gaming. Use a LAN connection for quicker data transfer between other devices like computers. The transmission speed di󰀨ers depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line tra󰀩c and the products that you use. The transmission may also be cut o󰀨 or may get disconnected depending on the radio wave conditions, DECT phones or any other WLAN 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission. The location where the transmission is most e󰀨ective di󰀨ers depending on the usage environment. The Wireless feature of the TV supports 802.11 a,b,g,n & ac type modems. It is highly recommended that you should use the IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos. You must change your modem’s SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection. A stable connection speed is required to play back streaming content. Use an Ethernet connection if the wireless LAN speed is unstable. Multi Media Player On the Home Screen scroll to Apps row, select Multi Media Player (MMP) and press the OK button to launch. Select the media type on the main media player screen. On the next screen, you can press the Menu button to access a list of menu options while the focus is on a folder or a media le. Using the options of this menu you can change the media type, sort the les, change the thumbnail size and turn your TV into a digital photo frame. You will also be able to copy, paste and delete the media les using the related options of this menu, if a FAT32 formatted USB storage device is connected to the TV. Additionally you can switch the viewing style by selecting either Normal Parser or Recursive Parser. In Normal Parser mode the les will be displayed with folders if any available. So only the selected type of media les in the root folder or in the selected folderEnglish - 23 - will be displayed. If there isn’t any media les of the selected type, the folder will be assumed as empty. In Recursive Parser mode the source will be searched for all available media les of the selected type and the found les will be listed. Press the Back/Return button to close this menu. In order to activate photo frame feature select Photo as the media type. Then press the Menu button, highlight Photo Frame and press OK. If you select One Photo mode option and press OK the image that you set as photo frame image earlier will be displayed when photo frame feature is activated. If you select the USB storage device option the rst le (in Recursive Parser mode) will be displayed. To set the photo frame image press the Menu button while the photo le of your choice is displayed, highlight Photo Frame Image and press OK. While browsing for the video les a preview of the highlighted video will be displayed in a small window on the left side of the screen if the view style is set to List View. Press the Blue button to switch between the List View and Grid View. You can also use Programme +/- buttons to jump directly to the rst and last folder or le if the view style is set to Grid View. Video Files Press OK to play back the highlighted video le. Info: Display the info bar. Press twice to display the extended information and the next le. Play/pause: Pause and resume the playback. Rewind: Start reverse playback. Press consecutively to set the rewind speed. Fast Forward: Start fast forward playback. Press consecutively to set the forward playback speed. Stop: Stop the playback and return to the media player screen. Programme +: Switch to next le. Programme -: Switch to previous le. Back/Return: Return to the media player screen. Music Files Press OK to play back the highlighted music/audio le. Info: Display the extended information and the next le. Play/pause: Pause and resume the playback. Rewind: Press and hold to rewind. Fast Forward: Press and hold to fast forward. Stop: Stop the playback. Programme +: Switch to next le. Programme -: Switch to previous le. Back/Return: Return to the media player screen. If you press Back/Return button without stopping the playback rst the playback will continue while you are browsing in the multimedia player. You can use the media player buttons to control the playback. The playback will stop if you exit the media player or switch the media type to Video. Photo Files Press OK to display the highlighted photo le. When you press the Play button slide show will start and all photo les in the current folder or in the storage device, depends on the viewing style, will be displayed in order. If the Repeat option is set to None only the les between the highlighted one and the last listed one will be displayed. The slide show will stop after the last listed le is displayed. Info: Display the info bar. Press twice to display the extended information. Play/pause: Pause and resume the slide show. Green button (Rotate/Duration): Rotate the image / Set the interval between the slides. Yellow button (Zoom/E󰀨ect): Zoom in on the image / Apply various e󰀨ects to the slide show. Programme +: Switch to next le. Programme -: Switch to previous le. Back/Return: Return to the media player screen. Text Files When you press the OK button slide show will start and all text les in the current folder or in the storage device, depends on the viewing style, will be displayed in order. If the Repeat option is set to None only the les between the highlighted one and the last listed one will be displayed. The slide show will stop after the last listed le is displayed. Info: Display the info bar. Press twice to display the extended information. Play/pause: Pause and resume the slide show. Programme +: Switch to next le. Programme -: Switch to previous le. Directional buttons (Down or Right / Up or Left): Switch to next page. / Switch to previous page. Back/Return: Stop the slide show and return to the media player screen. Menu Options Press the Menu button to see available options while playing back or displaying media les. The content of this menu di󰀨ers depending on the media le type. Pause/Play: Pause and resume the playback or the slide show. Repeat: Set the repeat option. Highlight an option and press OK to change the setting. If Repeat One option is selected the current media le will be repeatedly played back or displayed. If the Repeat All option is selected all media les of the same type in the current folder orEnglish - 24 - in the storage device, depends on the viewing style, will be repeatedly played back or displayed. Shu󰀪e On/O󰀨: Turn the shu󰀪e option on or o󰀨. Press OK to change the setting. Duration: Set the interval between the slides. Highlight an option and press OK to change the setting. You can also press the Green button to set. This option will not be available if the slide show is paused. Rotate: Rotate the image. The image will be rotated 90 degrees clockwise each time you press OK. You can also press the Green button to rotate. This option will not be available if the slide show is not paused. Effect: Apply various effects to the slide show. Highlight an option and press OK to change the setting. You can also press the Yellow button to set. This option will not be available if the slide show is paused. Zoom: Zoom in on the image that is currently being displayed. Highlight an option and press OK to change the setting. You can also press the Yellow button to zoom in. This option will not be available if the slide show is not paused. Font: Set the font options. Size, style and colour can be set according to your preferences. Show Info: Display the extended information. Photo Frame Image: Set the currently displayed image as photo frame image. This image will be displayed if the One Photo mode is selected instead of the connected storage device while activating the photo frame feature. Otherwise all les will be played back as a slide show when photo frame feature is activated. Hide/Show Spectrum: Hide or show the spectrum if available. Lyric Options: Display lyric options if available. Picture O󰀨: Open the power menu of your TV. You can use the Picture o󰀨 option here to turn the screen o󰀨. Press a button on the remote or on the TV to turn the screen on again. Picture Settings: Display the picture settings menu. Sound Settings: Display the sound settings menu. Audio Settings: Set the soundtrack option if more then one available. Last Memory: Set to Time if you want to resume the playback from the position where it was stopped next time you open the same video le. If set to O󰀨 the playback will start from the beginning. Highlight an option and press OK to change the setting. Seek: Jump to a specic time of the video le. Use the numeric and directional buttons to enter the time and press OK. Subtitle: Set your subtitle preference if any available. Set to O󰀨 to turn the subtitles o󰀨. Subtitle Encoding: Display subtitle encoding options if available. From USB Connection IMPORTANT! Back up the les on your USB storage devices before connecting them to the TV. Manufacturer will not be responsible for any le damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/ memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting. FAT32 formatted devices with a storage capacity larger than 192TB are not supported. NTFS formatted devices with a storage capacity larger than 2TB are not supported. You can view your photos, text documents or play your music and video les installed on a connected USB storage device on the TV. Plug in the USB storage device to one of the USB inputs on the TV. On the main media player screen select the desired media type. On the next screen, highlight a le name from the list of available media les and press the OK button. Follow the on-screen instructions for more information on other available button functions. Note: Wait a little while before each plugging and unplugging as the player may still be reading les. Failure to do so may cause physical damage to the USB player and the USB device itself. Do not pull out your drive while playing a le. From a Mobile Device via DMR Make sure that your mobile device is connected to the same network as your TV. On the TV, scroll to Apps row on the Home Screen, select Multi Media Player (MMP) and press the OK button to launch. Select the media type on the main media player screen. On the next screen, press the Blue button to switch the List View layout. Then press the Back button. DMR (Digital Media Renderer) option will appear among the media type options. Highlight the DMR option and press the OK button. The TV is ready to receive the media le sent from your mobile device. On the mobile device, open the le you want to share and tap on the sharing icon or on the related option from the options menu of your mobile device. Available devices will be listed. Select your TV from the list. You can get the device name of your TV from the Settings>Device Preferences>About menu on the Home screen. If desired, the name of the TV can also be changed by either selecting one of the predened names or entering a custom name using the options of the Device name menu. If the connection is successfully established the selected media le will be played/ displayed on your TV. CEC With CEC function of your TV you can operate a connected device with the TV remote control. This function uses HDMI CEC (Consumer Electronics Control) to communicate with the connected devices.English - 25 - Devices must support HDMI CEC and must be connected with an HDMI connection. In order to make use of the CEC functionality the related option in the menu should be switched on. To check, switch on or o󰀨 the CEC function, do the following:

• Scroll down to Consumer Electronic Control (CEC) section. Check if the HDMI control option is switched on.

• Highlight the HDMI control option and press OK to switch on or o󰀨. Make sure that all CEC settings are properly set up on the connected CEC device. The CEC functionality has di󰀨erent names on di󰀨erent brands. CEC function might not work with all devices. If you connect a device with HDMI CEC support to your TV, the related HDMI input source will be renamed with the connected device's name. To operate the connected CEC device, select the related HDMI input source from the Inputs menu on the Home Screen. Or press the Source button if the TV is in Live TV mode and select the related HDMI input source from the list. To terminate this operation and control the TV via the remote again, press the Source button, which will still be functional, on the remote and switch to another source. The TV remote is automatically able to control the device once the connected HDMI source has been selected. However not all buttons will be forwarded to the device. Only devices that support CEC Remote Control function will respond to the TV remote control. The TV supports also ARC(Audio Return Channel) feature. This feature is an audio link meant to replace other cables between the TV and the audio system (A/V receiver or speaker system). Connect the audio system to the HDMI2 input on the TV to enable ARC feature. In order to activate ARC feature the Speakers option should be set as External Audio System. You can access this option from the TV options or TV options>

Settings>Device Preferences>Sound menu in Live TV mode or from Settings>Device Preferences>Sound menu on the Home Screen. When ARC is active, TV will mute its other audio outputs automatically. So you will hear audio from connected audio device only. The volume control buttons of the remote will be directed to connected audio device and you will be able to control the volume of the connected device with your TV remote. Note: ARC is supported only via the HDMI2 input. Google Cast With the built-in Google Cast technology you can cast the content from your mobile device straight to your TV. If your mobile device has Google Cast feature, you can mirror your device’s screen to your TV wirelessly. Select Cast screen option on your android device. Available devices will be detected and listed. Select your TV from the list and tap on it to start casting. You can get the network name of your TV from the Settings>Device Preferences>About menu on the Home screen. Device name will be one of the shown articles. You can also change the name of your TV. Highlight Device name and press OK. Then highlight Change and press OK again. You can either select one of the predened names or enter a custom name. To cast your device’s screen to the TV screen…

1. On your android device, go to ‘Settings’ from the

notication panel or home screen

2. Tap on ‘Device Connectivity’

3. Tap on the ‘Easy projection’ and enable ‘Wireless

projection’. Available devices will be listed

4. Select the TV you would like to cast to

2. Tap on ‘Wireless projection’

3. Select the TV you would like to cast to

If the mobile app is Cast-enabled, such as YouTube, Dailymotion, Netix, you can cast your app to your TV. On the mobile app, look for the Google Cast icon and tap on it. Available devices will be detected and listed. Select your TV from the list and tap on it to start casting. To cast an app to the TV screen…

1. On your smartphone or tablet, open an app that

supports Google Cast

2. Tap the Google Cast icon

3. Select the TV you would like to cast to

4. The app you selected should start playing on TV

Notes: Google Cast works on Android and iOS. Make sure that your mobile device is connected to the same network as your TV. The menu options and namings for Google Cast function on your Android device can dier from brand to brand and can change with time. Refer to your device’s manual for latest information on Google Cast function.English - 26 - HBBTV System HbbTV (Hybrid Broadcast Broadband TV) is a standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consu- mers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, electronic programme guide, interactive advertising, personalisation, voting, games, social networking and other multimedia applications. HbbTV applications are available on channels where they are signalled by the broadcaster. The HbbTV applications are generally launched with the press of a coloured button on the remote. Generally a small red button icon will appear on the screen in order to notify the user that there is an HbbTV appli

cation on that channel. Press the button indicated on the screen to launch the application. HbbTV applications use the buttons on the remote control to interact with the user. When an HbbTV application is launched, the control of some buttons are owned by the application. For example, numeric channel selection may not work on a teletext applica

form. There are numerous applications providing VOD (video on demand) and catch-up TV services. The OK (play&pause), Stop, Fast forward, and Rewind buttons on the remote control can be used to interact with the AV content. Note: You can enable or disable this feature from the TV Options>Advanced Options>HBBTV Settings menu in Live TV mode. Quick Standby Search If earlier an automatic search is performed, your TV will search for new or missing digital channels at 05:00 am every morning while in quick standby mode. And if the Auto Channel Update option in the Set

tings> Channel menu is enabled the TV will wake up within 5 minutes after it is switched into quick standby mode and search for channels. Standby LED will blink during this process. Once the standby LED stops blinking the search process is completed. Any new found channels will be added to the channel list. If the channel list is updated, you will be informed on the changes at the next power on. Software Update Your TV is capable of nding and updating the rmware automatically via Internet. To experience the best use of your TV and benet from the latest improvements make sure your system is always up to date. Software update via internet On the Home Screen enter the Settings>Device Pre- ferences>About menu in order to update your Android system version. Move the focus to the System update option and press OK. You will be informed about the system status and the time at which the device was last checked for an update will be displayed. The Check for update option will be highlighted, press OK if you want to check for an available update. Note: Do not unplug the power cord during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in. Troubleshooting & Tips TV does not switch on

• Make sure the power cord is plugged in securely to power outlet.

• Disconnect the power cable from the power outlet. Wait for one minute then reconnect it.

• Press the Standby/On button on the TV. TV does not respond to the remote control

• The TV requires some time to start up. During this time, the TV does not respond to the remote control or TV controls. This is normal behaviour.

• Check if the remote control is working by means of a mobile phone camera. Put the phone in camera mode and point the remote control to the camera lens. If you press any key on the remote control and you notice the infra red LED icker through the camera, the remote control is working. The TV needs to be checked. If you do not notice the ickering, the batteries may be exhausted. Replace the batteries. If the remote is still not working, the remote control might be broken and needs to be checked. This method of checking the remote control is not possible with remote controls which are wirelessly paired with the TV. No Channels

• Make sure that all cables are properly connected and that the correct network is selected.

• Make sure that the correct channel list is selected.

• Make sure that you have entered the correct channel frequency if you have done manual tuning.English - 27 - No picture / distorted picture

• Make sure that the antenna is properly connected to the TV.

• Make sure that the antenna cable is not damaged.

• Make sure that the correct device is selected as the input source.

• Make sure that the external device or source is properly connected.

• Make sure that the picture settings are set correctly.

• Loud speakers, unearthed audio devices, neon lights, high buildings and other large objects can inuence reception quality. If possible, try to improve the reception quality by changing the antenna direction or moving devices away from the TV.

• Change to a di󰀨erent picture format, if the picture does not t the screen

• Make sure that your PC uses the supported resolution and refresh rate. No sound / poor sound

• Make sure that the sound settings are correctly set.

• Make sure that all cables are properly connected.

• Make sure that the volume is not muted or set to zero, increase the volume to check.

• Make sure that the TV audio output is connected to the audio input on the external sound system.

• Sound may be coming from only one speaker. Check the balance settings from Sound menu. Input sources - can not be selected

• Make sure that the device is connected to the TV.

• Make sure that all cables are properly connected.

• Make sure that you select the right input source which is dedicated to the connected device.

1280x1024 x x x 1400x1050

Number of Preset Channels

Channel Indicator RF Aerial Input Operating Voltage Audio Headphone Audio Output Power (WRMS.) (10% THD)

Power Consumption (W) 45 W Networked Standby Power Consumption (W) < 2 Weight (Kg)

TV Dimensions DxLxH (with foot) (mm)

TV Dimensions DxLxH (without foot) (mm)

Operation temperature and operation humidity

Frequency Ranges Max Output Power

Country Restrictions

• This TV is designed to meet the standards (as of March 2021) of DVB-T / T2 (MPEG2, MPEG4- AVC(H.264) and HEVC(H.265)) digital terrestrial services, DVB-C (MPEG2, MPEG4-AVC(H.264) and HEVC(H.265)) digital cable services and DVB-S (MPEG2, MPEG4-AVC(H.264) and HEVC(H.265)) digital satellite services. Consult your local dealer for availability of DVB-T / T2 or DVB-S services in your area. Consult your cable service provider for availability of DVB-C services with this TV.

• This TV may not work correctly with the signal which does not meet the standards of DVB-T / T2, DVB-C or DVB-S.

• Not all the features are available depending on the country, area, broadcaster, service provider, satellite and network environment.

• Not all CI modules work properly with this TV. Consult your service provider about the available CI module.

• This TV may not work correctly with CI module that is not approved by the service provider.

• Additional fees may be charged depending on the service provider.

• The compatibility with future services is not guaranteed.

• Internet apps are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time. Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services.

• Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker's peripheral devices. Licences The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or regis

tered trademarks of HDMI Licensing Administrator, Inc. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation. Google, Android, Android TV, Chromecast, Google Play and YouTube are trademarks of Google LLC. This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft. Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected content. Revocation should not a󰀨ect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade. The “CI Plus” Logo is a trademark of CI Plus LLP. This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.English - 36 - Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resouces and prevent any potential negative e󰀨ects on human health and the environment. For more information about collection and recycling, please contact your local municipality. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. Note for the battery symbol (bottom symbol): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Declaration of Conformity (DoC) Hereby, Panasonic Marketing Europe GmbH, declares that this TV is in compliance with the essential requi

*.1280x1024 x x x *.1400x1050
