USER MANUAL GH 11.7100 Güde

Translation of the original instructions Petrol Branch Crusher

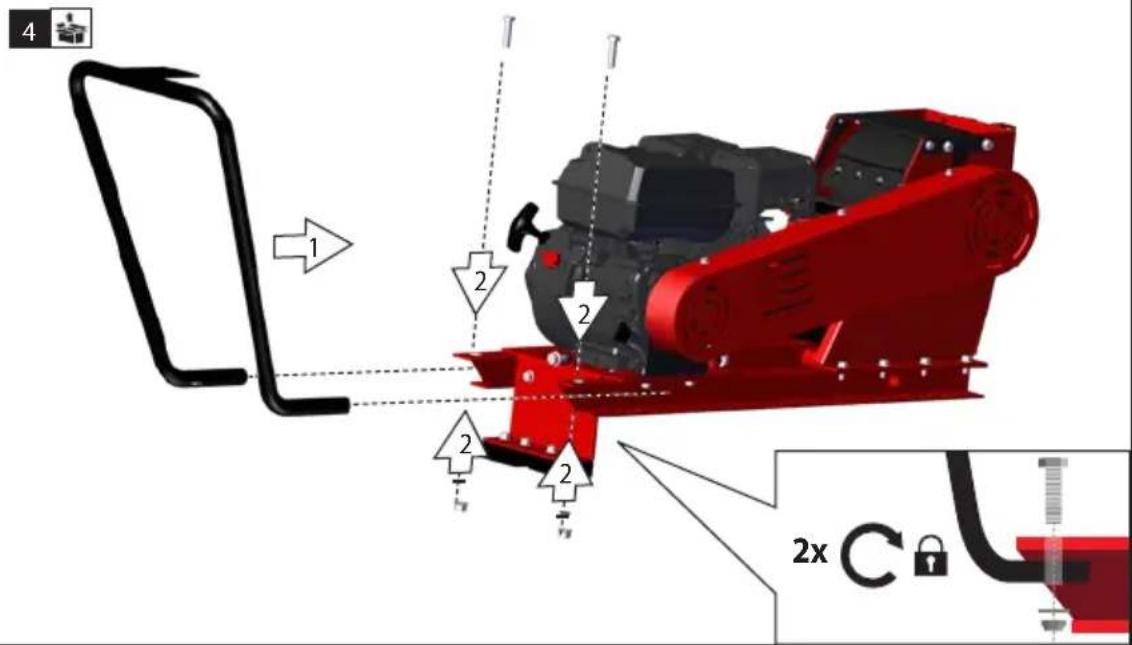

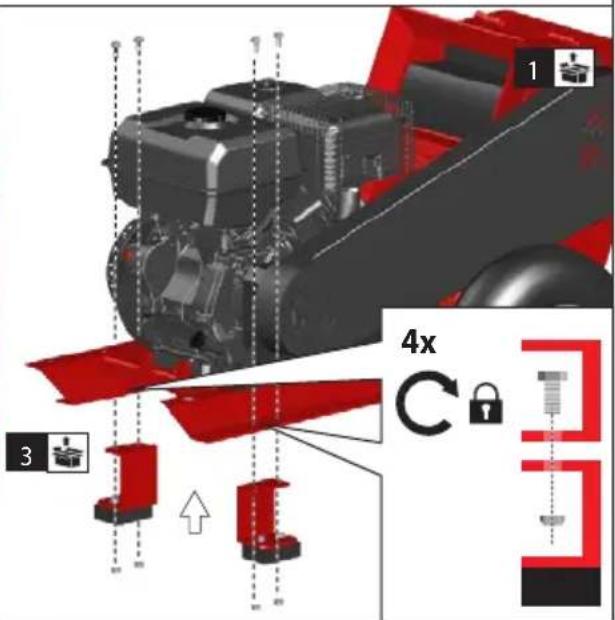

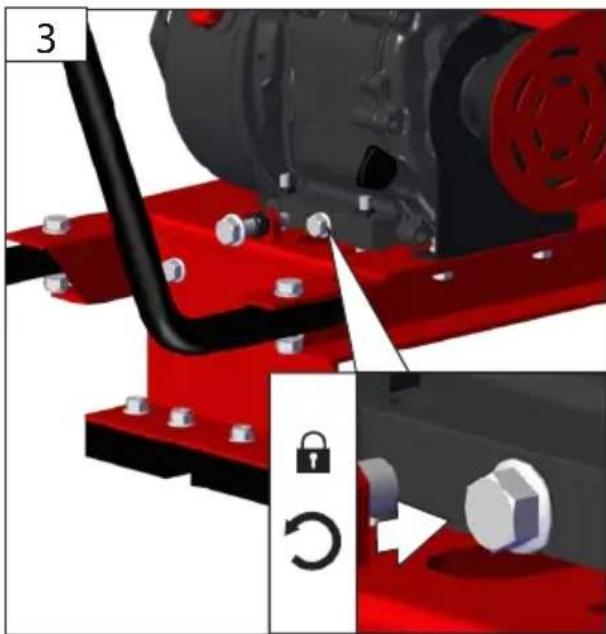

Starting-up the device

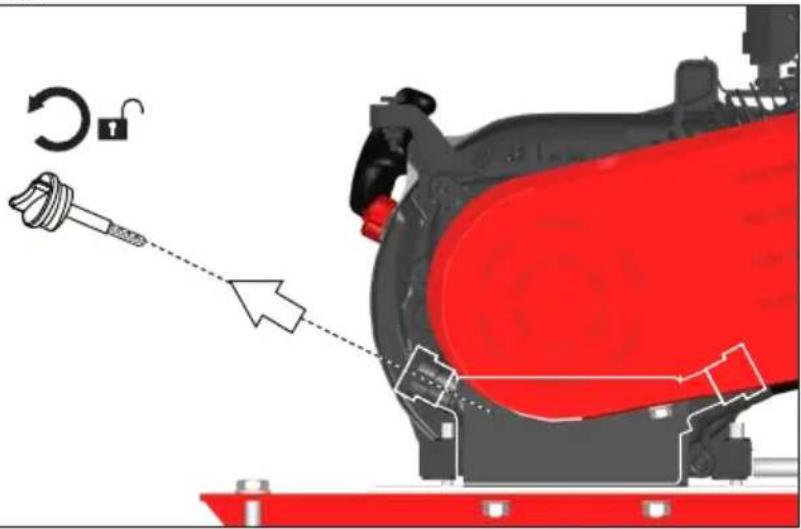

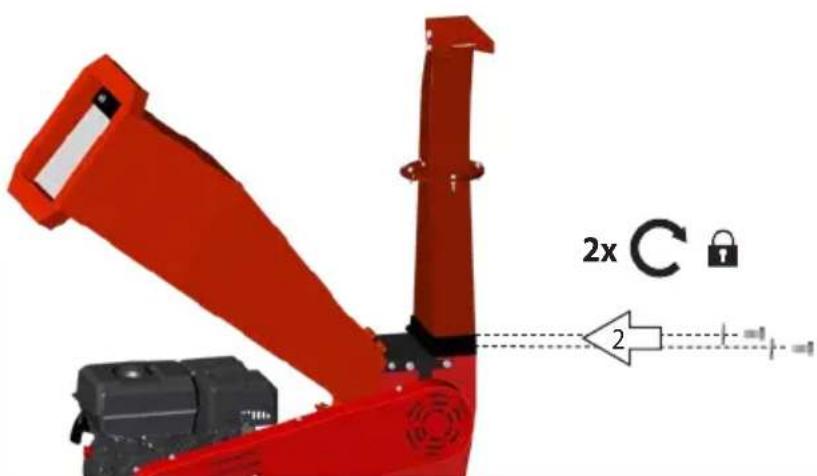

Starting-up the machine

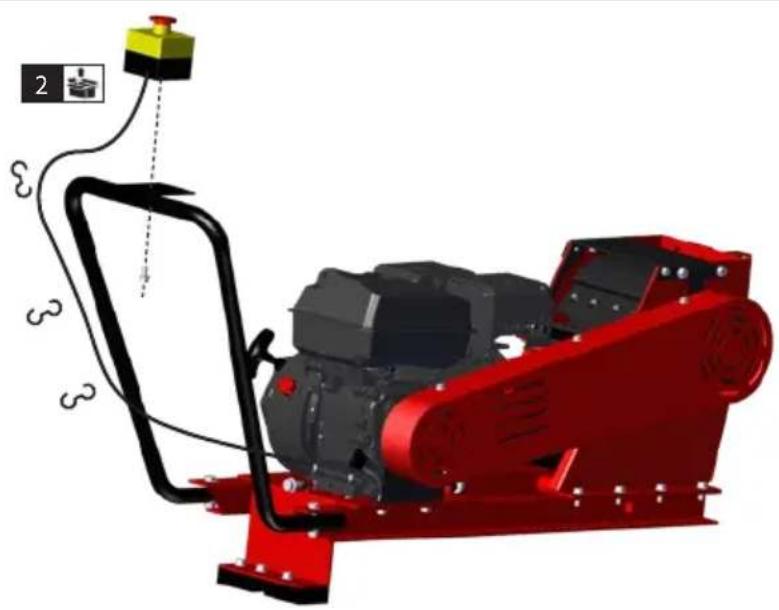

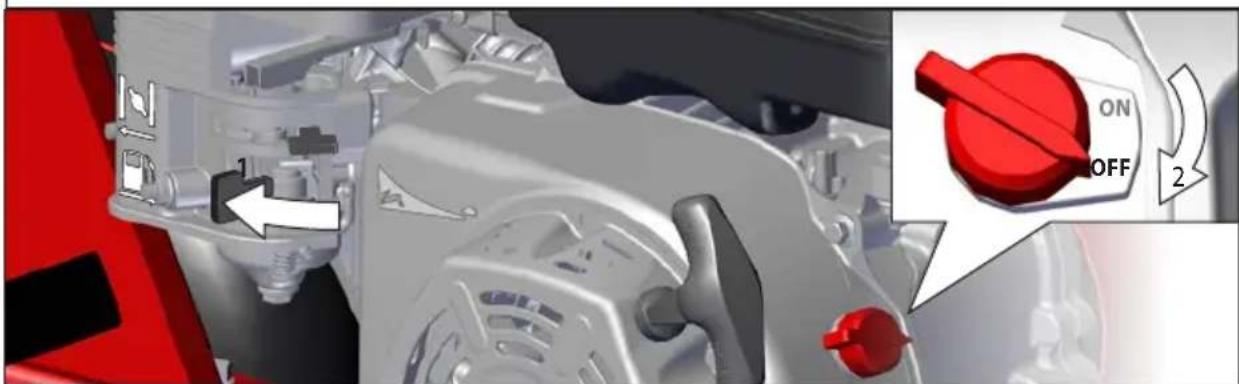

Starting-up the machine

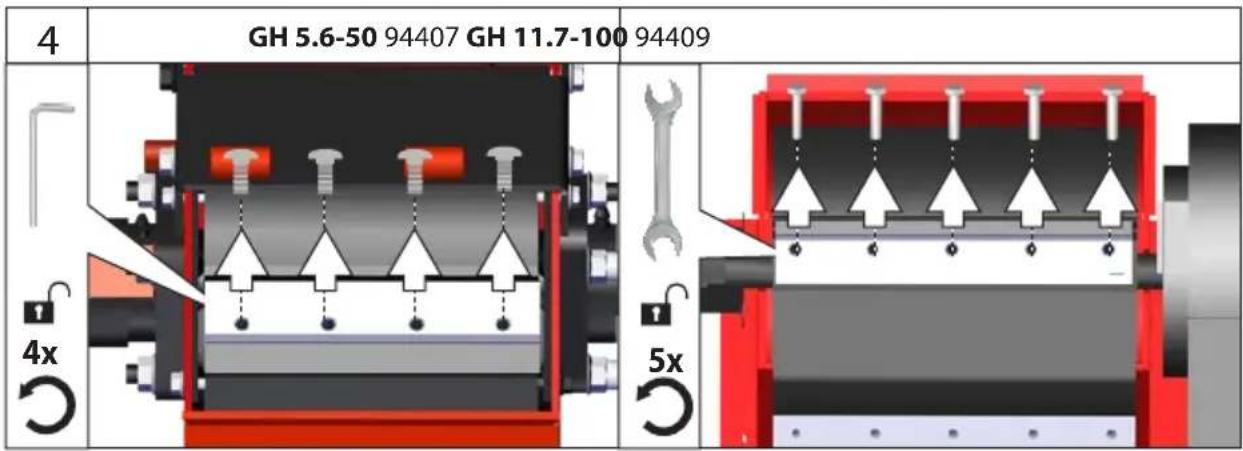

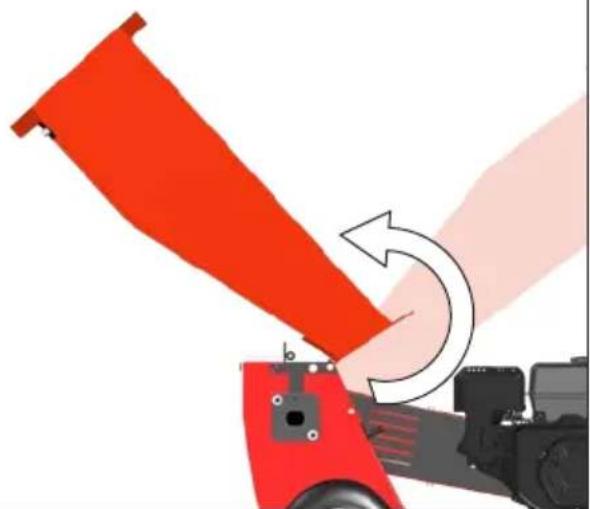

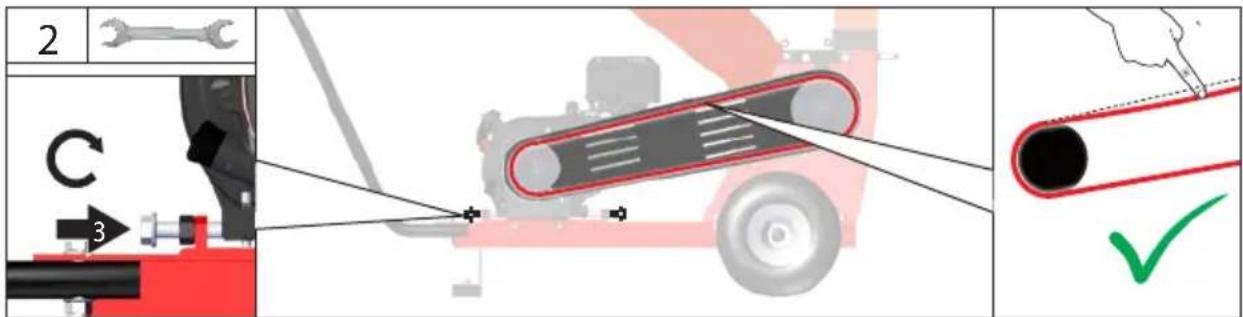

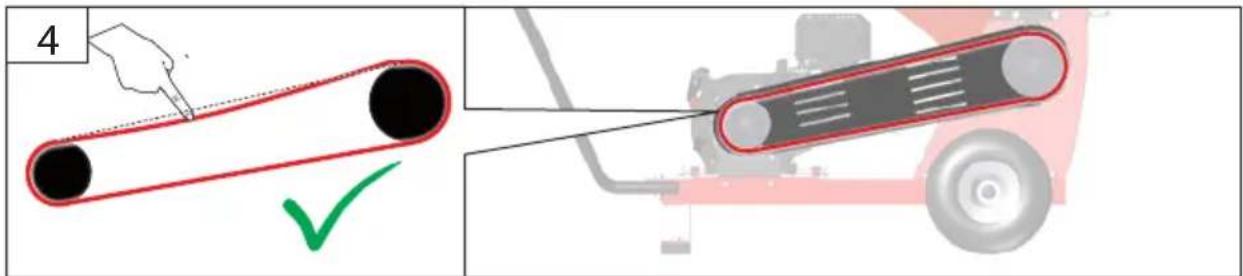

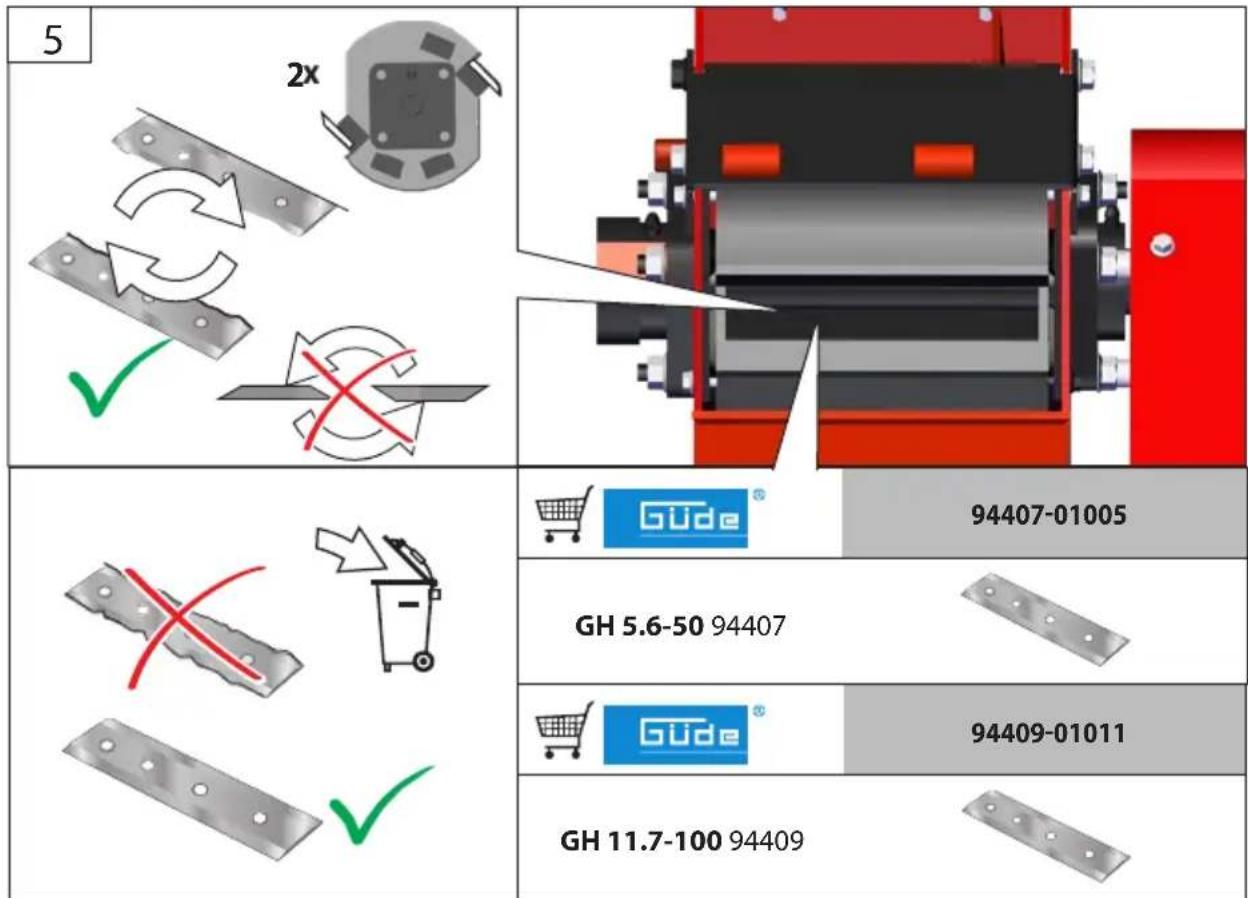

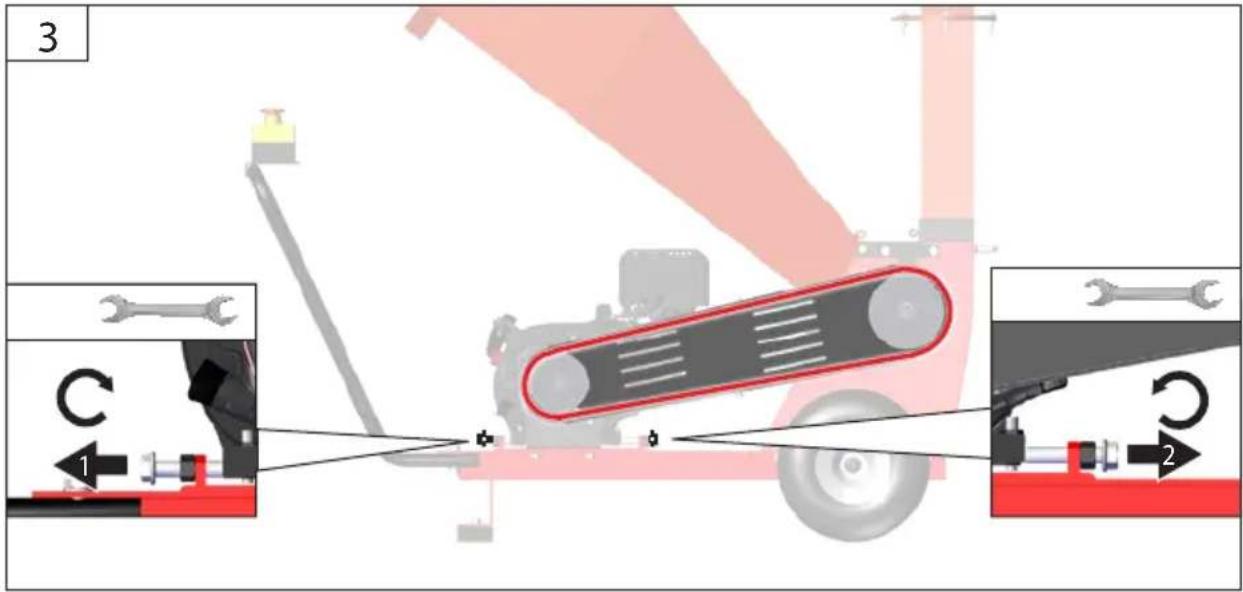

Starting-up the machine

Paper lter to be cleaned with compressed air only! Never use water!

Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties. Persons over 16 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. In case of any doubts about connection and operati- on refer please to our customer center The appliance may only be operated and maintained by persons familiarised with it and informed about possible risks. Device description

Accessory Safety Warnings WARNING Read all safety warnings and all instructions. Failu- re to follow the warnings and instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. Keep children and bystanders away while operating a power tool. Minimum safe distance is 5 m. ENGLISH33

The device must never be operated when persons, especially children, or pets are nearby. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Wear personal protective equipment.

• Wear solid shoes and long trousers.

• Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.

• Use protective gloves when handling the blades. Hearing damage A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors. When working with the device, a certain level of noise cannot be avoided. Noisy work should be scheduled for hours, during which it is allowed by statute or other local regulations. Adhere to any applicable rest times and limit your working time to the necessary minimum time. For your personal protection and the protection of people nearby, suitable hearing protection must be worn. Risk of injury Rotating blades may lead to serious injuries by cutting or amputating parts of the body. Be careful to avoid injury by the cutting tools. Careful appliance handling reduces the risk of injury by knife. Before any adjustment, cleaning and maintenance work, switch o the device and disconnect it from the power supply. Wait until all rotating parts have stopped and the appliance has cooled down. Provide adequate lighting or good lighting conditions when working with the machine. Poor lighting/light conditions represent a high safety risk. Check all screw and plug-in connections and protective equipment if rm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation. The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conict with the designation and it is prohibited to attach any protective equipment of other manufacturers. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts. Do not incline the appliance when being started. Do not start the appliance when you are standing in front of the ejection opening. Do not store the appliance in enclosed places just after being switched o but let it cool down outdoors instead. Never keep the unit with petrol in the tank inside a building where petrol vapours could get in contact with open re or sparks. Do not change the controlled engine setting and do not rev the engine up. Only use the device in the recommended position and only on a rm at surface. Do not operate the device on paved or gravel sur- faces where ejected material may cause injury. Check that the shredder, shredder screws and other fastenings are securely fastened. Replace worn or damaged blades and bolts in sets to preserve balance; Only replace cutting unit in pairs. Damaged or illegible security stickers must be replaced. Do not use the appliance in bad weather, especially when there is a risk of storm. Before starting the machine, make sure that the feeder is empty. Keep your face and body away from the feeding chute. Hands, other parts of the body or clothing must not be placed in the feeder, in the ejection channel or near moving parts. Do not use the appliance if you are tired, ill, under inuence of drugs, alcohol drinks or medicaments. Do not overreach. Keep proper footing and balance at all times. Provide a safe posture, especially on slopes. When feeding material, never stand on a level higher than the level of the base of the device. Keep a distance from the ejection opening at all times. When feeding material into the device, be extremely ENGLISH34

careful not to insert metal pieces, stones, bottles, cans, or other foreign objects. Switch o the device immediately and wait until all moving parts have come to a standstill in the event of a foreign object being struck or if the device begins to make unusual noises or vibrate. Disconnect the ma- chine from the power source and take the following steps before restarting and operating the machine:

• replace or repair damaged parts;

• check for loose parts and tighten them. Do not allow processed material to accumulate in the ejection area as this may prevent proper ejection and cause the material to bounce back through the feed opening. Never touch under the housing body when the engine is running. Keep the power source free of debris and other build- ups to prevent damaging it or a possible re. Stop the device and disconnect it from the power supply. Wait until all rotating parts have stopped and the appliance has cooled down.

• whenever you leave the lawnmower

• before removing blockages

• before checking, cleaning or working on the device

• after contact with a foreign object, to check the device for damage

• before freeing the device from accumulated material

• before tilting or transporting the device When working with this machine, do not use spare parts other than those recommended by us. Using spare parts not recommend by us can result in serious injuries to persons or damage to the machine. Safety instructions for gasoline powered appliances Risk of re! / Risk of explosion Fuel is highly ammable. Petrol and petrol vapours are highly ammable, explosive. Do not work with the unit in an environment with a risk of explosion where there are ammable liquids, gases or dust. Never operate the unit near highly ammable materials. Prohibited smoking and open re using. Keep the fuel in suitable containers only. The appliance may only be refuelled outdoors and not near open re or burning cigarettes. For safety reasons, fuel tanks and other tank connec- tions must be replaced in the event of damage. Emergency procedure After use, let the unit cool down for at least 5 minutes before refuelling. In the tank pressure may develop. Loosen the tank cap slowly to allow this pressure to gradually decrease. Make sure the fuel does not overow. If the fuel overows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated. Replace all fuel tank and container caps securely. Start the device at least three meters away from the place where you fuelled it. Do not smoke during fuelling or operation and take care that no sparks or open ames reach into the working area. Fuel tank to be emptied outdoors only. To keep the danger of re as low as possible the engi- ne and exhaust pipe must be free from grass, leaves and excess grease. Replace the exhaust pipe and (if necessary) the spark protector if these are not in proper working order any more. To reduce re risks, periodically clean the cylinder aps with compressed air and clear the silencer area to get rid of sawdust, branches, leaves or other debris. Electric shock Touching the spark plug connector may result in an electric shock when the engine is running. Never touch the plug connector or the spark plug while the engine is running. ENGLISH35

Specied Conditions of Use The shredder is designed exclusively for shredding brous or woody garden waste such as hedge and tree trimmings, branches, bark or r cones. The shredder must not be lled with stones, glass, metal, bones, plastics or material waste. Please note that permissible uses for the tool could be limited by national regulations. It is necessary to comply with the regulations applicable in the coun- try where the truck is used. Do not use the device near ammable liquids or gases. Risk of re and explosion in case of short circuit. Use the appliance only outside, never use it in con- ned and bad ventilated areas. The safety systems and safety devices of the device must not be manipulated or deactivated. Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability. Risk of injury Rotating blades may lead to serious injuries by cutting or amputating parts of the body.

• Be careful to avoid injury by the cutting tools. Careful appliance handling reduces the risk of injury by knife.

• Do not touch any dangerous moving parts before the machine has been disconnected from the power supply and the moving parts have come to a complete standstill.

• All protection covers and safety devices must be correctly attached to operate the device. Never use the machine with a damaged cover or protective device or without cover or protective devices. Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. Starting-up the machine Check all screw and plug-in connections and protec- tive equipment if rm and tightened properly and whether all moving parts are running smooth whene- ver the appliance is to be put into operation. Inspect before each use:

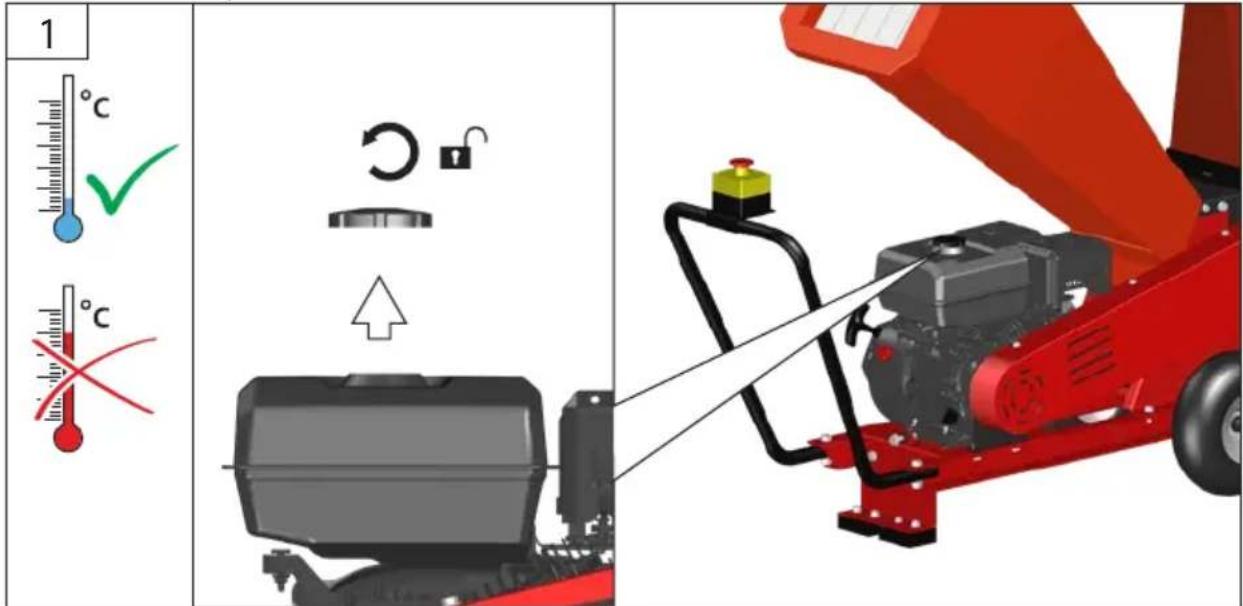

• Proper function of the on and o button, incl. the emergency switch. Before starting the machine, make sure that the feeder is empty. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts. Do not stand in the ejection zone when operating the machine. The engine must be lled with engine oil before the initial commissioning. Check the oil level every time before commissioning. Fill with engine oil if required. Work area safety Use this device in well-ventilated outdoor areas only. In closed rooms, exhaust gases containing carbon monoxide may have fatal eects. When being operated, the machine must stand on a horizontal and at surface and the oor around the machine must be at, well-maintained and with no waste, such as sawdust and cuttings. Keep work area clean and well lit. Cluttered or dark areas invite accidents. The machine may only be used if it is fully assembled. Operation of a machine that is not fully assembled is strictly prohibited. Transport Handling equipment to be used only when handling the machine. Make sure the device cannot roll away, fall over or tip over with suitable fastening devices. Do not transport the machine if the energy source is running. Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help,state the following pieces ofinformation: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s) Residual Risk Despite the observance of the operating instructions there still may be some hidden residual risks. ENGLISH36

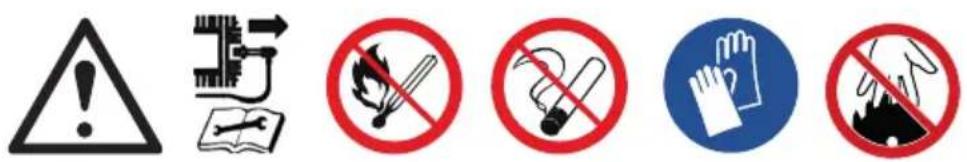

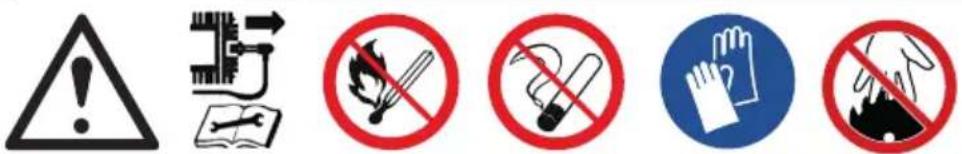

Symbols Caution! WARNING! Read the operating instructions to reduce the risk of injury. Stop the engine Prohibited smoking and open re using. Switch the engine o and remove the socket plug before any work on the engine. Wear goggles. Wear goggles. Wear ear protectors. Wear safety gloves. Wear safety shoes with steel reinforcement. Always keep hands away from the path of the saw blade. Warning against dangerous voltage Warning against cutting injuries Keep your hands and feet away from the openings while the device is running.

Warning: draw-in hazard

CE marking Warning against thrown-o items Keep distance of persons Observe to keep out of dangerous zone Maximum diameter Keep dry at all times. Never expose tool to rain. The appliance must be stored in a dry place and protected from frost. Machine to be stored in locked spaces, out of reach of children. Dry wood Green, fresh wood 40 x 40 mm Always ensure that the oil level is correct Fill with the correct amount of oil (MIN/ MAX) of the approved type of oil for your engine based on your operating manual. Observe the safety regulations when lling the engine with unleaded premium-grade petrol.

20-30h The air lter must be cleaned every 20 - 30 operating hours Fuel Choke switch Fuel switch Speed Slow Quickly ENGLISH37

WARNUNG Do not open if the engine is running Any damaged or disposed devices must be delivered to appropriate collection centres. Maintenance Switch the engine o and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and the appliance has cooled down. Keep hands away from all cutting edges and moving parts. Fingers can be pulled into cutting carriage and be cut or crushed. After every work stint, clean the machine thoroughly to remove all dust and debris, and repair or replace any faulty parts. When maintaining the shredder, be aware that although the power source is switched o due to the locking function of the safety device, the shredder can still be moved. Switch o the device immediately and wait until all moving parts have come to a standstill in the event of a foreign object being struck or if the device begins to make unusual noises or vibrate. Disconnect the ma- chine from the power source and take the following steps before restarting and operating the machine:

• replace or repair damaged parts;

• check for loose parts and tighten them. Do not allow processed material to accumulate in the ejection area as this may prevent proper ejection and cause the material to bounce back through the feed opening. Keep the appliance, especially the tank and engine, clean at all times. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Never clean the machine and its components with solvents, ammable or toxic liquids. Us only a damp cloth making. Apply environment-friendly oil to all moving parts. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition; Do not modify the device. Repairs and works specied in these Instructions may only be performed by qualied authorised sta.. Modications are considered to be a use other than as intended and can result in injuries and damage. Use only original accessories and original spare parts. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient mainte- nance and care can lead to unforeseen accidents and injuries. If necessary, a list of spare parts can be found at www. guede.com. Storage The appliance must be stored in a dry place and pro- tected from frost. Do not store any fuel near the unit. Do not store the appliance in enclosed places just after being switched o but let it cool down outdoors instead. Lock the device in a proper place to protect it from unauthorised use. Disposal If your device should become useless somewhere in the future or you do not need it any longer, do not dispose of the device together with your domestic refuse, but dispose of it in an environmentally friendly manner. Thoroughly empty the oil/lubricant and fuel tanks and dispose of the remainders at a special collecting point or dump. Please dispose of the device itself at an according collecting/recycling point. By doing so, plastic and metal parts can be separated and recycled. Information concerning the disposal of materials and devices are available from your local administration. Never dispose of oils, fuel or other polluting materials in unauthorised places. Make sure the oil products do not enter the soil. Oil products must not come into contact with skin, eyes and clothing. Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and com- mences on the day of purchase of the device. The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period. The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the ope- rating and assembly instructions and common wear are also not included in the guarantee. ENGLISH38

Important information for the customer Please be sure to know that returning the product in or after the warranty period must be made in the original packaging. Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bure- aucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. To always have these data at hand, please enter them below. Serial No.: Art. No: Year of production: ENGLISH39 Inspection and maintenance plan Regular servicing period Before any start-up After 1 month After 3 months After 6 months After 12 months After 24 months 5 h* 25 h* 50 h* 100 h* 250 h* Engine oil (10W-40) Inspection

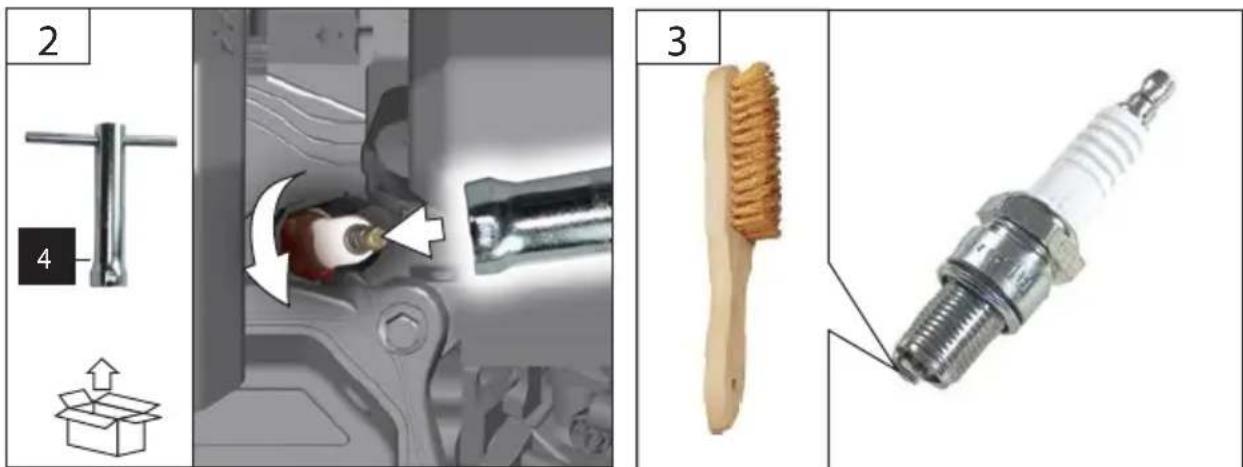

Spark plug Inspection Clean

Carry out the appropriate maintenance in the month specied or after being operated for the number of operating hours specied, depending on which occurs rst.

• Hours of operation Troubleshooting Issue Possible causes Recommended solution Engine does not start or starts, but does not run further. Empty fuel tank Fill up the tank; check to see whether the carburettor has any fuel; Check the tank ventilation and punch a hole in the tank cap with a needle No ignition spark Clean the spark plugs and ensure that there is a 0.6 - 0.8 mm electrode gap, insert them again if possible; Check the ignition cable; Have the ignition system checked by a service centre The spark plug is wet from petrol (oversaturated engine). Remove the spark plugs, clean and dry them; Pull the starter cord several times with the spark plugs unscrewed Blade is blocked Make sure that the shredder is not blocked. Oil level sensor Check the oil level, ll up if necessary. Place the device horizontally. Ejected shredded material Blade is blunt Sharpen or turn the blade Performance dropped Shredder is clogged Switch o the device and clean it.
