AR354 - Fireplace ARDES - Free user manual and instructions

Brand	Ardes
Model	AR354
Product type	Decorative electric fireplace with heating
Nominal thermal power	1.5 kW
Minimum thermal power	0.8 kW
Maximum continuous thermal power	1.5 kW
Temperature control type	Mechanical thermostat
Heating levels	2 (minimum and maximum)
Flame effect	Yes, switchable independently
Power supply	230 V ~ 50 Hz (estimated)
Power cable length	Approx. 1.5 m (estimated)
Material	Steel and plastic
Color	Black (estimated)
Weight	Approximately 8 kg (estimated)
Dimensions (W × H × D)	Approximately 60 × 50 × 20 cm (estimated)
Safety distance from flammable materials	At least 1 meter
Protections	Do not cover, do not obstruct grilles, thermal cut-off
Authorized use	Well-insulated rooms or occasional use
Maintenance	Clean with a damp cloth; vacuum dust on the rear grille
Warranty	24 months
Repairability	Contact authorized after-sales service; do not open yourself
Manufacturer contact	POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy

Frequently Asked Questions - AR354 ARDES

How to turn on the ARDES AR354 fireplace?

Plug in the appliance, set the main switch (4) to '|', then select the heating level (I or II). Turn the thermostat (3) towards 'ON' to the maximum. For the flame effect only, use the switch (4) without activating the heaters.

What safety distance should I keep around the fireplace?

Maintain a minimum distance of 1 meter between the air outlet grille and any flammable material (curtains, furniture, etc.). Do not place the appliance under a power outlet.

Can I use the fireplace in a bathroom?

No, do not use the appliance in the immediate vicinity of a bathtub, shower or swimming pool. It is designed for domestic use in dry rooms.

How to set the desired temperature?

Turn the thermostat (3) towards 'ON' to heat. When the room reaches the desired temperature, slowly turn the thermostat towards 'OFF' until the appliance turns off. It will automatically turn back on if the temperature drops.

What to do if the appliance stops heating?

Check that the main switch is set to '|' and the thermostat is in the 'ON' position. Make sure the ventilation grilles are not obstructed. If the problem persists, unplug the appliance and contact authorized after-sales service.

Can I cover the fireplace?

No, never cover the appliance to avoid overheating. Do not block the air intakes. Risk of fire.

How to clean the AR354 fireplace?

Unplug the appliance and let it cool. Clean the exterior with a slightly damp cloth. For interior dust, use a vacuum cleaner on the rear grille. Never immerse the appliance in water.

Can I use a timer or external programmer?

No, to avoid any danger of accidental resetting of the thermal cut-out device, do not connect the appliance to a timer, programmer or any other automatic device.

What to do if the power cable is damaged?

Do not use the appliance. The replacement of the cable must be carried out only by a service center authorized by the manufacturer.

Where to find spare parts?

Contact the dealer or authorized After-Sales Service. The warranty only covers manufacturing defects; parts are available through the support network.

USER MANUAL AR354 ARDES

EN - This product is only suitable for well insulated spaces or occasional use.

Avvertenze

IT

NON COPRIRE

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

SMALTIMENTO

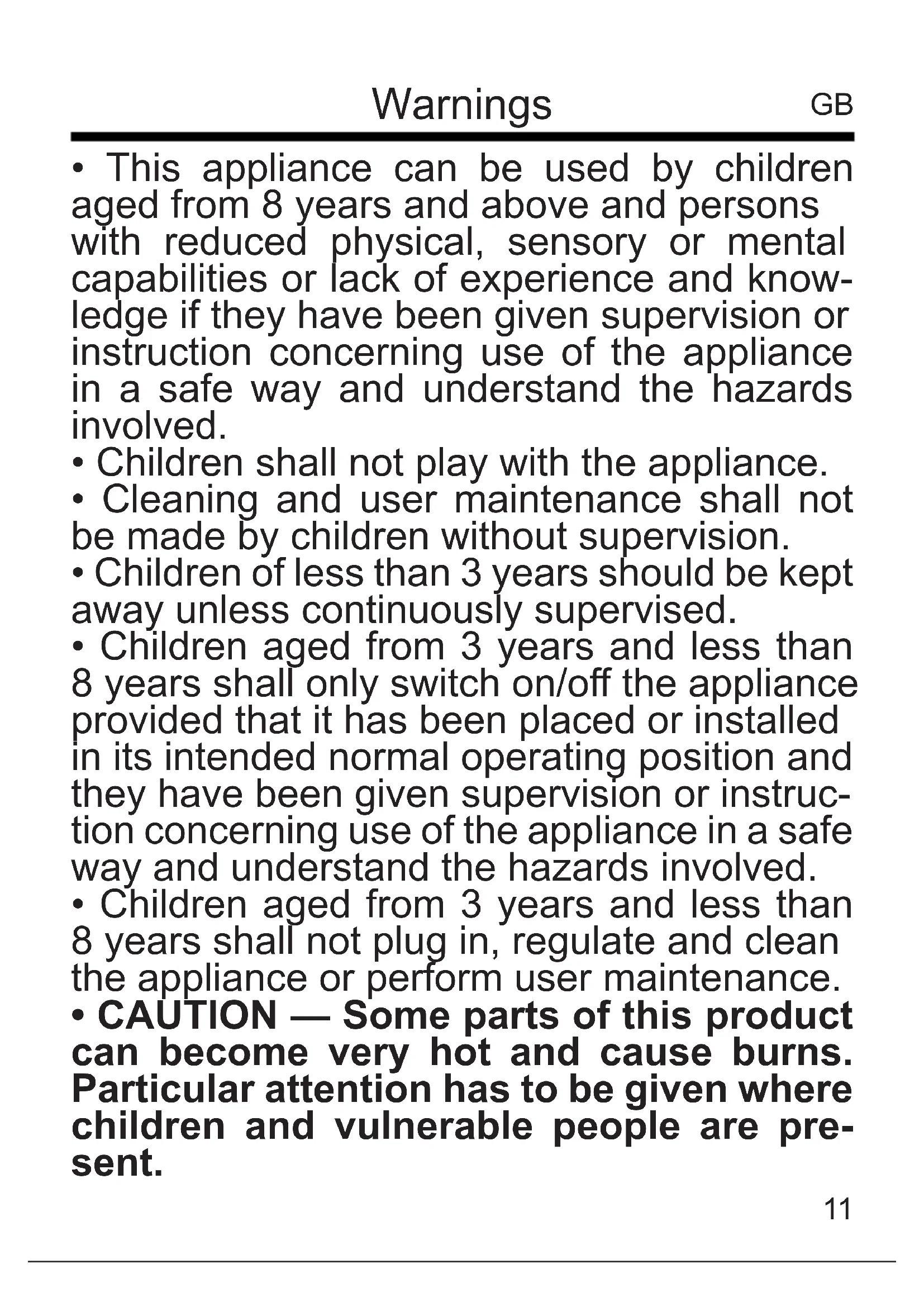

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
  • Children of less than 3 years should be kept away unless continuously supervised.

• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer in order to prevent any risks.

DO NOT COVER

• WARNING: In order to avoid overheating, do not cover the heater.
• Do not place the appliance immediately below a socketoutlet.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface.
• WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- Don’t connect the appliance to the power supply and don’t use it unless it is completely assembled (see mounting instructions).

Keep handy the guarantee, receipt of payment and these instructions for future use and reference.

After removing the packaging, check the appliance for any signs of damage.

In case of visible damage, do not use it and contact a qualified technician.

Do not leave parts of the packaging with in the reach of children. This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.

Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.

If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons.

Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.

When you don't use the appliance disconnect it from the power supply and assure that the interruptor is off.

Do not tug on the power cable or on the appliance itself to remove the plug from the socket.

The use of any electrical appliance requires that a number of basic rules are observed, namely:

- Never touch the appliance with wet or humid hands.

- Do not leave the appliance exposed to weathering (rain, sunlight).

- Do not subject it to rough handling.

In case of a breakdown or malfunctioning of the appliance, disconnect it at once.

Do not attempt to repair it, but take it to a service centre approved by the manufacturer.

If you decide you do not want to use this appliance any longer, disable it by cutting the power cable - of course, after disconnecting it from the socket.

The power cable should be extended to its full lenght to avoid over heating.

For safety reasons, the appliance should never be opened.

The appliance has been designed and manufactured to operate in the home.

Any other use is considered inappropriate and dangerous.

Do not insert objects through the safety grill or the air inlets.

During use, rest the appliance on a flat surface.

Do not use this heating appliance with programmers, timers, separate remote control systems (different to the ones provided with the appliance) or any other device that automatically turns on the appliance, as there is a risk of fire in the event the appliance is covered or positioned incorrectly. Do not use the heater in presence of flammable substances (petrol, paints, etc.).

Do not place the cord near sources of heat.

WARNING: DO NOT COVER THIS PRODUCT NEAR CURTAINS OR OTHER COMBUSTIBLE MATERIAL.

WARNING: DO NOT COVER THE APPLIANCE OR OBSTRUCT THE AIR INLETS TO AVOID OVERHEATING.

Technical informations

1 - Ventilation grid
2 - Control Panel
3 - Adjustable thermostat
4 - Main switch / Flame effect
5 - "Minimum heating" switch
6 - "Maximum heating" switch

Technical data indicated on the appliance.

Instructions for use

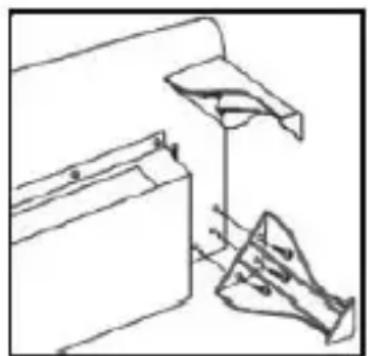

SUPPORT ASSEMBLY

Turn the appliance over, rest the plastic supports in place matching the holes with those on the appliance. Then fix the supports with the screws.

fig.1

Simple line drawing of a mechanical assembly with no text or symbols

Before connecting or disconnecting the appliance, make certain the main switch (4) is in the OFF position “0”.

To turn the appliance on, insert the plug in the power outlet, place the switch (4) on “|” and then select the low (I) or high (II) heating switch.

- The heating switches are not independent, so in order for the appliance to operate at the highest heating power, the switch I must also be activated.

Turn the temperature switch (3) in “ON” direction to the maximum position.

Once the desired room temperature is reached, turn the temperature switch (3) slowly, in “OFF” direction, until the appliance is turned off.

At this point, the product will automatically restart when the temperature in the room goes below the set limit.

Make sure that the apparatus has cooled down completely before storing it in the box

Maintenance

Disconnect the plug from the socket and let the appliance cool down well before cleaning it.

This appliance does not require any special maintenance.

In order to clean the appliance, use a soft or slight damp cloth.

Never use abrasives or chemical solvents.

Do not use very wet substances, liquids or cloths to prevent water from entering into the appliance and irreparably damaging it.

NEVER IMMERSE THE APPLIANCE INTO THE WATER.

Dust inside the appliance

Use a vacuum cleaner on the back grid.

PACKAGING

In order to respect the environment, packaging material must be disposed of properly in accordance with separate collection.

Check local regulations.

Symbol of a trash bin crossed with no text or symbols, accompanied by a solid black rectangle below (no text or labels)

USER INFORMATION

“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal.

The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.

The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and electronic waste.

For more details, please contact the appropriate local authority.

Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.

Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.

Terms and Conditions

The guarantee is valid for 24 months.

This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.

The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.

After the guarantee has expired, the appliance will be repaired against payment.

The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.

Limits

All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:

- mishandled by unauthorized persons

- improperly used, stored or transported.

The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.

If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.

EN
Information requirements for electric local space heaters - REGULATION (EU) 2015/1188
Model identifier(s): AR354
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,5	kW	manual heat charge control, with integrated thermostat	N.A.
Minimum heat output (indicative)	P_min	0,8	kW	manual heat charge control with room and/or outdoor temperature feedback	N.A.
Maximum continuous heat output	P_max,c	1,5	kW	electronic heat charge control with room and/or outdoor temperature feedback	N.A.
Auxiliary electricity consumption				fan assisted heat output	N.A.
At nominal heat output	el_max	N.A.	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N.A.	kW	single stage heat output and no room temperature control	no
In standby mode	el_sp	N.A.	kW	Two or more manual stages, no room temperature control	no
				with mechanic thermostat room temperature control	yes
				with electronic room temperature control	no
				electronic room temperature control plus day timer	no
				electronic room temperature control plus week timer	no
				Other control options (multiple selections possible)
				room temperature control, with presence detection	no
				room temperature control, with open window detection	no
				with distance control option	no
				with adaptive start control	no
				with working time limitation	no
				with black bulb sensor	no
Contact details	POLY POOL S.p.A. - via Sottocorna 21/B, 24020 Parre (BG) - Italy

NE PAS COUVRIR

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

MISE AU REBUT INFORMATION UTILISATEUR

NICHT ABDECKEN

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

ENTSORGUNG INFORMATION FÜR DEN BENUTZER

NO CUBRIR

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

LETAKARNI TILOS

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Symbol of a trash bin with crossed x and y lines, no text or numbers present

ÁRTALMATLANÍTÁS

FELHASZNÁLÓKNAK SZÓLÓ UTASÍTÁSOK

NEZAKRÝVEJTE

Simple line drawing of a mechanical assembly or lifting device (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

INFORMACE PRO UŽIVATELE

ARDES, Guzzanti, Scarlett, Luxell, Graef

ČERTES spol. s r.o.

Donínská 83

463 34 Hrádek nad Nisou

NEZAKRÝVAJTE

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or restriction (no text present)

INFORMÁCIE PRE POUŽÍVATEL'OV
