USER MANUAL H97 Pro4 ASROCK

Version 1.1 Published July 2014 Copyright©2014 ASRock INC. All rights reserved. Copyright Notice: No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe. Disclaimer: Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation. With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product. is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate” ASRock Website: http://www.asrock.come terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.H97 Pro4

English I/O Panel No. Description No. Description 1 USB 2.0 Ports (USB01) 8 Microphone (Pink) 2 D-Sub Port 9 Central / Bass (Orange) 3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_23) 4 Side Speaker (Gray) 11 USB 3.0 Ports (USB3_01) 5 Rear Speaker (Black) 12 DVI-D Port 6 Line In (Light Blue) 13 HDMI Port 7 Front Speaker (Lime)** 14 PS/2 Mouse/Keyboard Port

• ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. Activity / Link LED Speed LED Status Description Status Description O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection ** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below for connection details in accordance with the type of speaker you use. Audio Output Channels Front Speaker (No. 7) Rear Speaker (No. 5) Central / Bass (No. 9) Line In (No. 6) 2 V -- -- -- 4 V V -- -- 6 V V V -- 8 V V V V

SPEED LED LAN Port To enable Multi-Streaming, you need to connect a front panel audio cable to the front panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi- streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use the Rear Speaker, Central/ Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front panel audio.H97 Pro4

ank you for purchasing ASRock H97 Pro4 motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.

1 x I/O Panel Shield Because the motherboard specications and the BIOS soware might be updated, the content of this manual will be subject to change without notice. In case any modica-tions of this manual occur, the updated version will be available on ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specic information about the model you are using. You may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.6 English

High Density Glass Fabric PCB CPU

4 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology Chipset

Supports Intel® Small Business Advantage 2.0 Memory

Dual Channel DDR3 Memory Technology

Supports DDR3 1600/1333/1066 non-ECC, un-buered memory

Max. capacity of system memory: 32GB (see CAUTION)

Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru

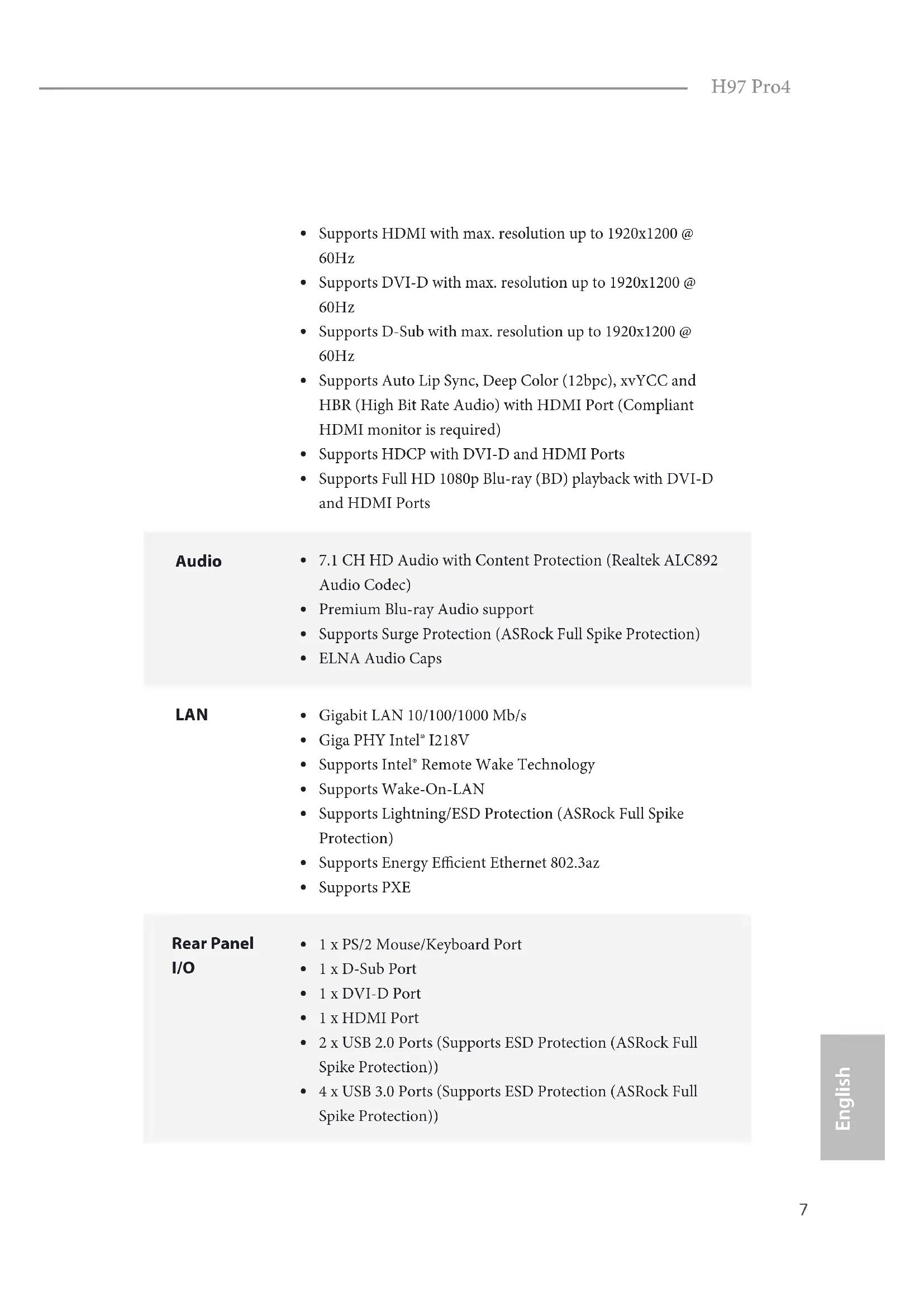

Supports HDMI with max. resolution up to 1920x1200 @ 60Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HDCP with DVI-D and HDMI Ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports Audio

7.1 CH HD Audio with Content Protection (Realtek ALC892

Supports Surge Protection (ASRock Full Spike Protection)

Supports Intel® Remote Wake Technology

Supports Wake-On-LAN

Supports Lightning/ESD Protection (ASRock Full Spike Protection)

Supports Energy Ecient Ethernet 802.3az

Supports PXE Rear Panel I/O

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))8 English

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Storage

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug Connector

2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)

2 x Chassis Fan Connectors (2 x 4-pin)

1 x Power Fan Connector (3-pin)

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) BIOS Feature

128Mb AMI UEFI Legal BIOS with multilingual GUI support

ACPI 1.1 Compliant wake up events

CPU, DRAM, PCH 1.05V Voltage multi-adjustment Hardware Monitor

CPU/Chassis temperature sensing

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)

CPU/Chassis Fan multi-speed control

ErP/EuP ready (ErP/EuP ready power supply is required)

• For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjust- ing the setting in the BIOS, applying Untied Overclocking Technology, or using third- party overclocking tools. Overclocking may aect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking. Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat- ing systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.10 English is is an ATX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard’s components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over- tighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on

the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.

English Please save and replace the cover if the processor is removed. e cover must be placed if you wish to return the motherboard for aer service.14 English

2.2 Installing the CPU Fan and Heatsink

is motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. Dual Channel Memory Conguration e DIMM only ts in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation. Priority DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2 1 Populated Populated 2 Populated Populated 3 Populated Populated Populated Populated

1. For dual channel conguration, you always need to install identical (the same

brand, speed, size and chip-type) DDR3 DIMM pairs.

2. It is unable to activate Dual Channel Memory Technology with only one or three

memory module installed.

3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot;

otherwise, this motherboard and DIMM may be damaged.16 English

2.4 Expansion Slots (PCI and PCI Express Slots)

ere are 2 PCI slots and 4 PCI Express slots on the motherboard. PCI slots: e PCI1 and PCI2 slots are used to install expansion cards that have 32-bit PCI interface. PCIe slots: PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards. PCIE3 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE4 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards. Before installing an expansion card, please make sure that the power supply is switched o or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.18 English

e illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when a jumper cap is placed on these 2 pins. Clear CMOS Jumper (CLRCMOS1) (see p.1, No. 21) CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn o the computer and unplug the power cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right aer you update the BIOS. If you need to clear the CMOS when you just nish updating the BIOS, you must boot up the system rst, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default prole will be cleared only if the CMOS battery is removed. Clear CMOSDefaultH97 Pro4

2.6 Onboard Headers and Connectors

System Panel Header (9-pin PANEL1) (see p.1, No. 15) Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. PWRBTN (Power Switch): Connect to the power switch on the chassis front panel. You may congure the way to turn o your system using the power switch. RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart. PLED (System Power LED): Connect to the power status indicator on the chassis front panel. e LED is on when the system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5). HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. e LED is on when the hard drive is reading or writing data. e front panel design may dier by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly. Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.20 English Power LED Header (3-pin PLED1) (see p.1, No. 16) Please connect the chassis power LED to this header

indicate the system’s power status. Serial ATA3 Connectors (SATA3_0: see p.1, No. 9) (SATA3_1: see p.1, No. 8) (SATA3_2: see p.1, No. 11) (SATA3_3: see p.1, No. 10) (SATA3_4: see p.1, No. 13) (SATA3_5: see p.1, No. 12) ese six SATA3 connectors support SATA data cables for internal storage devices with up to

6.0 Gb/s data transfer rate.

USB 2.0 Headers (9-pin USB2_3) (see p.1, No. 17) (9-pin USB4_5) (see p.1, No. 18) Besides two USB 2.0 ports on the I/O panel, there are two headers on this motherboard. Each USB

2.0 header can support

two ports. USB 3.0 Header (19-pin USB3_4_5) (see p.1, No. 6) Besides four USB 3.0 ports on the I/O panel, there is one header on this motherboard. Each USB

3.0 header can support

two ports. Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 23) is header is for connecting audio devices to the front audio panel.

English Chassis Speaker Header (4-pin SPEAKER1) (see p.1, No. 20) Please connect the chassis speaker to this header. Chassis and Power Fan Connectors (4-pin CHA_FAN1) (see p.1, No. 14) (4-pin CHA_FAN2) (see p.1, No. 7) (3-pin PWR_FAN1) (see p.1, No. 1) Please connect fan cables to the fan connectors and match the black wire to the ground pin.

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must

support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio header by

the steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to connect them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adjust “Recording Volume”.

English CPU Fan Connectors (4-pin CPU_FAN1) (see p.1, No. 24) (3-pin CPU_FAN2) (see p.1, No. 26) is motherboard pro- vides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 5) is motherboard pro- vides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin

ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 2) is motherboard pro- vides an 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5. PCIe Power Connector (4-pin PCIE_PWR1) (see p.1, No. 25) Please connect a 4 pin molex power cable to this connector when more than three graphics cards are installed. Serial Port Header (9-pin COM1) (see p.1, No. 22) is COM1 header supports a serial port module.

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

English TPM Header (17-pin TPMS1) (see p.1, No. 19) is connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certicates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

Supporta Wake-On-LAN

Supporta Energy Ecient Ethernet 802.3az

6 x Connettori SATA3 6,0 Gb/s, supportano RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 13 e Intel Smart Response Technology), NCQ, AHCI e Hot Plug Connet- tore

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

4 18 5CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

4 18 5CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

4 18 5CCTS#1RRTS#1DDSR#1DDTR#1RRXD1

EN 55024: 1998 + A1:2001 + A2:2003 IEC 61000-4-2: 2008; IEC 61000-4-3: 2010; IEC 61000-4-4: 2010; IEC 61000-4-5: 2005; IEC 61000-4-6: 2008; IEC 61000-4-8: 2009; IEC 61000-4-11: 2004;

e following manufacturer / importer or authorized representative established within the EUT is responsible for this declaration: ASRock EUROPE B.V. (Company Name) Bijsterhuizen 3151 6604 LV Wijchen e Netherlands (Company Address) Person responsible for making this declaration: (Name, Surname) A.V.P (Position / Title) May 02, 2014 (Date) P/N: 15G06X733002AK V1.1
