USER MANUAL GSS23GYPFS GE

ESPAÑOL Write the model and serial numbers here: Model #_________________ Serial # _________________ Find these numbers on a label inside the refrigerator compartment at the top on the right side behind the controls.. Pub No. 49-1000471 Rev. 2 12-21 Models 22, 23, 25, 28

INSTALLATION INSTRUCTIONS REFRIGERATORS Side by Side GE is a trademark of the General Electric Company. Manufactured under trademark license. SAFETY INFORMATION .....3

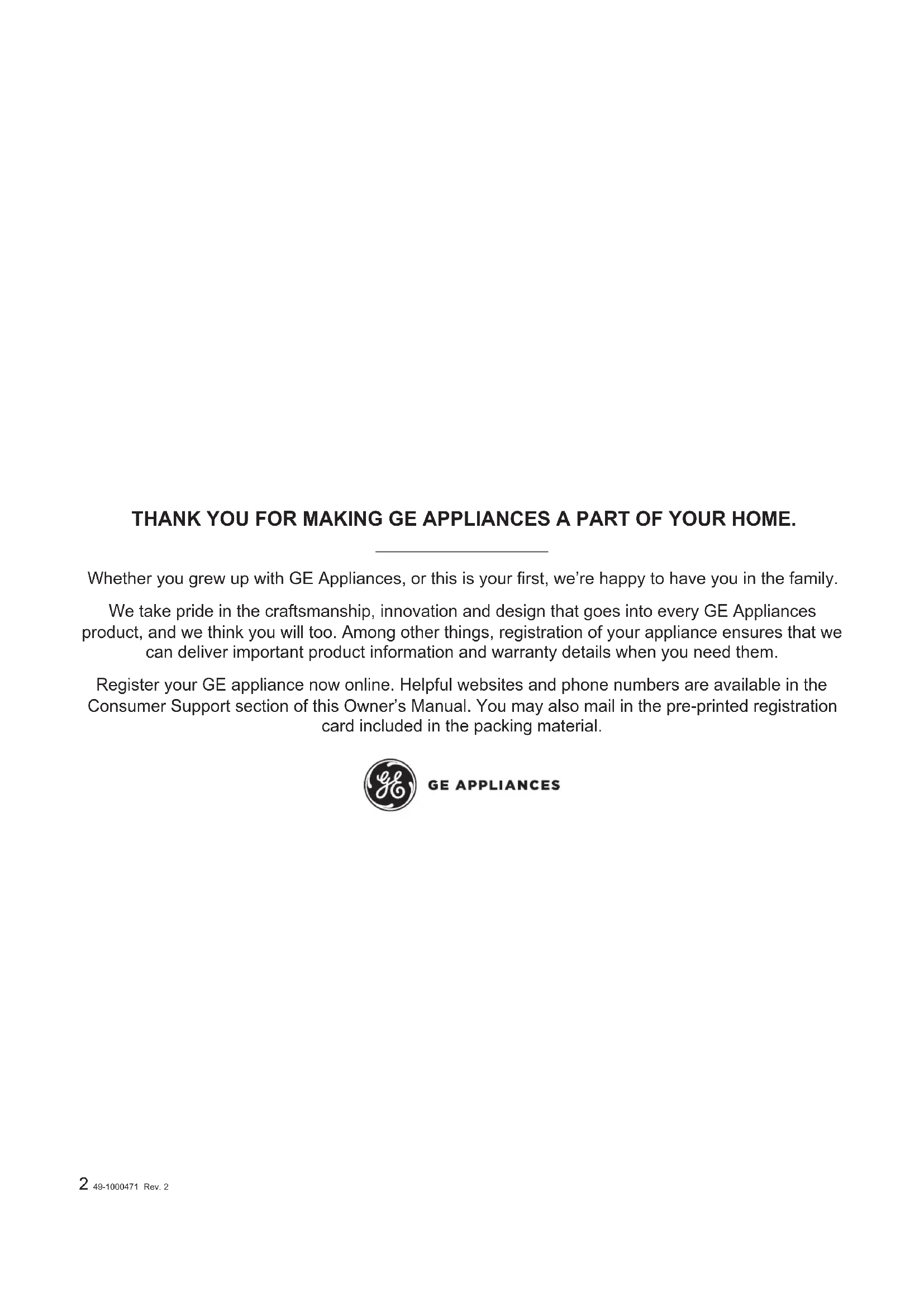

.......................82 49-1000471 Rev. 2 THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME. Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family. We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too. Among other things, registration of your appliance ensures that we can deliver important product information and warranty details when you need them. Register your GE appliance now online. Helpful websites and phone numbers are available in the Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration card included in the packing material.49-1000471 Rev. 2 3 SAFETY INFORMATION

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE CAUTION To reduce the risk of injury when using your refrigerator, follow these basic safety precautions.Ŷ 'R QRW FOHDQ JODVV VKHOYHV RU FRYHUV ZLWK ZDUPwater when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.Ŷ .HHS ILQJHUV RXW RI WKH ³SLQFK SRLQW´ DUHDVclearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.Ŷ 'R QRW WRXFK WKH FROG VXUIDFHV LQ WKH IUHH]HUcompartment when hands are damp or wet, skin may stick to these extremely cold surfaces.Ŷ 'R QRW UHIUHH]H IUR]HQ IRRGV ZKLFK KDYH WKDZHGcompletely.Ŷ ,Q UHIULJHUDWRUV ZLWK DXWRPDWLF LFHPDNHUV DYRLGcontact with the moving parts of the ejector mechanism, or with the heating element that UHOHDVHV WKH FXEHV 'R QRW SODFH ILQJHUV RU KDQGVon the automatic ice making mechanism while the refrigerator is plugged in.ŶUse a sturdy glass when dispensing ice (on models with ice dispenser

READ AND SAVE THESE INSTRUCTIONS

WARNING To reduce the risk of fire, explosion, electric shock, or injury when using your refrigerator, follow these basic safety precautions:Ŷ 7KLV UHIULJHUDWRU PXVW EH SURSHUO\ LQVWDOOHGDQG ORFDWHG LQ DFFRUGDQFH ZLWK WKH ,QVWDOODWLRQ,QVWUXFWLRQV EHIRUH LW LV XVHGŶ 8QSOXJ WKH UHIULJHUDWRU EHIRUH PDNLQJ UHSDLUV RUcleaning.NOTE: Power to the refrigerator cannot be disconnected by any setting on the control panel.NOTE: Repairs must be performed by a qualified Service Professional.Ŷ 5HSODFH DOO SDUWV DQG SDQHOV EHIRUH RSHUDWLQJŶ 'R QRW XVH DQ H[WHQVLRQ FRUGŶ 'R QRW VWRUH RU XVH JDVROLQH RU RWKHU IODPPDEOHvapors and liquids in the vicinity of this or any other appliance.Ŷ 'R QRW VWRUH H[SORVLYH VXEVWDQFHV VXFK DV DHURVROcans with a flammable propellant in this appliance.Ŷ 7R SUHYHQW VXIIRFDWLRQ DQG HQWUDSPHQW KD]DUGVWR FKLOGUHQ UHPRYH WKH IUHVK IRRG DQG IUHH]HUdoors from any refrigerator before disposing of it or discontinuing its use.Ŷ 7R DYRLG VHULRXV LQMXU\ RU GHDWK FKLOGUHQ VKRXOG QRWstand on, or play in or with the appliance.Ŷ &KLOGUHQ DQG SHUVRQV ZLWK UHGXFHG SK\VLFDO VHQVRU\or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe XVH DQG XQGHUVWDQG WKH KD]DUGV LQYROYHGŶ 7KLV DSSOLDQFH LV LQWHQGHG WR EH XVHG LQ KRXVHKROGand similar applications such as: staff kitchen areas LQ VKRSV RIILFHV DQG RWKHU ZRUNLQJ HQYLURQPHQWVIDUP KRXVHV E\ FOLHQWV LQ KRWHOV PRWHOV EHG EUHDNIDVW DQG RWKHU UHVLGHQWLDO HQYLURQPHQWVcatering and similar non-retail applications.Ŷ &RQQHFW WR SRWDEOH ZDWHU VXSSO\ RQO\ $ FROG ZDWHUsupply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals). Ŷ 'R QRW DSSO\ KDUVK FOHDQHUV WR WKH UHIULJHUDWRUCertain cleaners will damage plastic which may cause parts such as the door or door handles to detach unexpectedly. See the Care and Cleaning section for detailed instructions. INSTALLATION WARNING

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard SURQJ JURXQGLQJ ZDOO RXWOHW WR PLQLPL]H WKHSRVVLELOLW\ RI HOHFWULF VKRFN KD]DUG IURP WKLV DSSOLDQFHHave the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. 'R QRW XVH DQ DGDSWHUThe refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.$ 9ROW $& +] RU DPS IXVHG JURXQGHGelectrical supply is required. This provides the best performance and also prevents overloading house ZLULQJ FLUFXLWV ZKLFK FRXOG FDXVH D ILUH KD]DUG IURPoverheated wires.Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.,PPHGLDWHO\ GLVFRQWLQXH XVH RI D GDPDJHG VXSSO\FRUG ,I WKH VXSSO\ FRUG LV GDPDJHG LW PXVW EHreplaced by a qualified service professional with an DXWKRUL]HG VHUYLFH SDUW IURP WKH PDQXIDFWXUHUWhen moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. CONNECTING ELECTRICITY WARNING ELECTRICAL SHOCK HAZARDPlug into a grounded 3-prong outlet'R QRW UHPRYH WKH JURXQG SURQJ'R QRW XVH DQ DGDSWHU'R QRW XVH DQ H[WHQVLRQ FRUG)DLOXUH WR IROORZ WKHVH LQVWUXFWLRQV FDQ UHVXOW LQ GHDWK ILUH RU HOHFWULFDO VKRFN WARNING

SUFFOCATION AND ENTRAPMENT HAZARD

)DLOXUH WR IROORZ WKHVH GLVSRVDO LQVWUXFWLRQV FDQ UHVXOW LQ GHDWK RU VHULRXV LQMXU\IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit IRU ³MXVW D IHZ GD\V´ ,I \RX DUH JHWWLQJ ULG RI \RXU ROGrefrigerator, please follow the instructions below to help prevent accidents.Before You Throw Away Your Old ApplianceŶ7DNH RII WKH UHIULJHUDWRU DQG IUHH]HU GRRUVŶ Leave the shelves in place so that children may not easily climb inside. 4 49-1000471 Rev. 2 REFRIGERANT AND FOAM DISPOSAL: 'LVSRVHRIRUUHF\FOHDSSOLDQFHLQDFFRUGDQFHZLWK)HGHUDODQG/RFDO5HJXODWLRQV)ODPPDEOHUHIULJHUDQWand insulation material used requires special disposal procedures. Contact your local authorities for the environmentally safe disposal or recycling of your appliance. WARNING

READ AND SAVE THESE INSTRUCTIONSSAFETY INFORMATION

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE Check the rating label for refrigerant type. If R600a, follow the warning instructions below. WARNING FIRE OR EXPLOSION HAZARD Flammable Refrigerant This appliance contains isobutane refrigerant, also known as R600a, a natural gas with high environmental compatibility. However, it is also combustible. Adhere to the warnings below to reduce the risk of injury or property damage.

1. When handling, installing and operating the

appliance, care should be taken to avoid damage to the refrigerant tubing.

refrigerant and insulation material used in this product require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your refrigerator.

4. .HHSYHQWLODWLRQRSHQLQJVLQWKHDSSOLDQFH

enclosures or in the built-in structure clear of obstruction.

5. To remove frost, scrape with a plastic or wood

VSDWXODRUVFUDSHU'RQRWXVHDQLFHSLFNRUDPHWDO or sharp-edged instrument as it may puncture the IUHH]HUOLQHUDQGWKHQWKHIODPPDEOHUHIULJHUDQW tubing behind it.

6. 'RQRWXVHHOHFWULFDODSSOLDQFHVLQVLGHWKHIRRG

storage compartment of the appliance.

7. 'RQRWXVHDQ\HOHFWULFDOGHYLFHWRGHIURVW\RXU

IUHH]HU 49-1000471 Rev. 2 5 READ AND SAVE THESE INSTRUCTIONSUSING THE REFRIGERATOR: Controls Controls (on some models) The temperature controls are preset in the factory

KRXUV IRU WKH WHPSHUDWXUH WR VWDELOL]H WR WKH SUHVHW recommended settings. The temperature controls can display both the SET temperature as well as the actual temperature in the UHIULJHUDWRU DQG IUHH]HU 7KH DFWXDO WHPSHUDWXUH PD\ vary slightly from the SET temperature based on usage and operating environment. Ŷ 2Q VRPH PRGHOV VHWWLQJ ERWK FRQWUROV WR WKH ZDUPHVW setting until the display flashes (off) will stop cooling LQ ERWK WKH IUHH]HU DQG UHIULJHUDWRU FRPSDUWPHQWV Ŷ 2Q RWKHU PRGHOV VHWWLQJ HLWKHU FRQWURO WR WKH ZDUPHVW setting until the display flashes (off) will stop the FRROLQJ WR WKH IUHH]HU DQG UHIULJHUDWRU Ŷ NOTE: Turning the refrigerator off via the controls on the touch panel does not shut off electrical power to the refrigerator. NOTE: The refrigerator is shipped with protective film- FRYHULQJ WKH WHPSHUDWXUH FRQWUROV ,I WKLV ILOP ZDV QRW removed during installation, remove it now. Not all features are on all models. Your controls may be similar to the following:

Performance Air Flow System 7KH 3HUIRUPDQFH $LU)ORZ 6\VWHP LV GHVLJQHG WR PD[LPL]H WHPSHUDWXUH FRQWURO LQ WKH UHIULJHUDWRU DQG IUHH]HU FRPSDUWPHQWV 7KLV XQLTXH VSHFLDO IHDWXUH consists of the Air Tower along the back wall of the refrigerator and the Air Tunnel on the bottom portion of

WKH IUHH]HU UHDU ZDOO

Placing food in front of the louvers on these components will not affect performance. Although the Air Tower and the Air Tunnel can be removed, doing so will affect

WHPSHUDWXUH SHUIRUPDQFH )RU UHPRYDO LQVWUXFWLRQV

on-line, 24 hours a day, contact us at GEAppliances.com RU FDOO *(&$5(6 ,Q &DQDGD contact us at geappliances.ca or call 1.800.561.3344.) 6 49-1000471 Rev. 2USING THE REFRIGERATOR: Controls Controls (on some models) FilterStatus Freezer Compartment Temperature Control

$GMXVW IUHH]HU FRPSDUWPHQW WHPSHUDWXUH 7KH

IUHH]HU WHPSHUDWXUH LV SUHVHW LQ WKH IDFWRU\ DW 0°F (-17.8°C) $OORZ KRXUV IRU WHPSHUDWXUH WR VWDELOL]H to the preset recommended setting. Refrigerator Compartment Temperature Control Adjust Refrigerator compartment temperature. The refrigerator temperature is preset in the factory at 37°F (2.8°C). Allow 24 hours for temperature to VWDELOL]H WR WKH SUHVHW UHFRPPHQGHG VHWWLQJ Door Alarm (on some models) To set the alarm, press this pad until the indicator light comes on. This alarm will sound if either door is open for more than 3 minutes. The light goes out and the beeping stops when you close the door. LED dispenser Light Press the Light pad to turn your dispenser light on and off. Filter Status Press the Filter Status pad to display the water filter’s life percentage (%). TurboCool TM (on some models) TurboCool ™ rapidly cools the refrigerator compartment in order to more quickly cool foods. Use TurboCool ™ when adding a large amount of food to the refrigerator compartment, putting away foods after they have been sitting out at room WHPSHUDWXUH RU ZKHQ SXWWLQJ DZD\ ZDUP OHIWRYHUV ,W can also be used if the refrigerator has been without power for an extended period. NOTES: The refrigerator temperature cannot be changed during TurboCool™. 7KH IUHH]HU WHPSHUDWXUH LV QRW DIIHFWHG GXULQJ TurboCool™. When opening the refrigerator door during TurboCool™, the fans will continue to run if they have cycled on. Lock Controls Press and hold the Lock Controls pad for 3 seconds to lock out ice and water dispenser and all other controls. Press and hold to unlock the controls. COMPRESSOR

7R WXUQ Rႇ FRPSUHVVRU

5DLVH WKH IUHH]HU WHPSHUDWXUH DERYH WKH KLJKHVW setting by pressing the Freezer warmer pad until the display starts blinking.

2. Raise the Fresh Food temperature above the highest

NOTE: Compartment lights and the user interface display will stay on. The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator DQG IUHH]HU 7KH DFWXDO WHPSHUDWXUH PD\ YDU\ VOLJKWO\ IURP WKH 6(7 WHPSHUDWXUH EDVHG RQ XVDJH DQG RSHUDWLQJ environment. The temperature controls are preset in the factory at 37°F (2.8°C) for the refrigerator compartment and 0°F (-17.8°C) IRU WKH IUHH]HU FRPSDUWPHQW $OORZ KRXUV IRU WKH WHPSHUDWXUH WR VWDELOL]H WR the preset recommended settings. 49-1000471 Rev. 2 7How it Works TurboCool™ rapidly cools the refrigerator compartment in order to more quickly cool foods. Use TurboCool™ when adding a large amount of food to the refrigerator compartment, putting away foods after they have been sitting out at room temperature or when putting away ZDUP OHIWRYHUV ,W FDQ DOVR EH XVHG LI WKH UHIULJHUDWRU KDV been without power for an extended period. Once activated, the compressor will turn on immediately and the fans will cycle on and off at high speed as needed for eight hours. The compressor will continue to run until the refrigerator compartment cools to DSSUR[LPDWHO\ ) & WKHQ LW ZLOO F\FOH RQ DQG RII WR maintain this setting. After 8 hours, or if TurboCool™ is pressed again, the refrigerator compartment will return to the original setting. How to Use Press TurboCool™. The TurboCool™ temperature display will show Tc DQG WKH /(' ZLOO EH activated. After TurboCool™ is complete, the TurboCool™ indicator light will go out. NOTES: The refrigerator temperature cannot be changed during TurboCool™. 7KH IUHH]HU WHPSHUDWXUH LV QRW DIIHFWHG GXULQJ TurboCool™. When opening the refrigerator door during TurboCool™, the fans will continue to run if they have cycled on. TurboCool™ (on some models.)

USING THE REFRIGERATOR: 7XUER&RRO

8 49-1000471 Rev. 2USING THE REFRIGERATOR: :DWHU )LOWHU &DUWULGJH ;:)( Water Filter Cartridge - XWFE (On some models) Water Filter Cartridge The water filter cartridge holder is located in the back upper-right corner of the fresh food refrigerator compartment. 6HOHFWPRGHOVXVHUDGLRIUHTXHQF\LGHQWLILFDWLRQ5),'WRGHWHFWOHDNVDQGPRQLWRUILOWHUVWDWXV7KH5),'WHFKQRORJ\ LV FHUWLILHG E\ WKH )&& When to Replace the Filter ,I WKHUH LV D UHSODFHPHQW LQGLFDWRU OLJKW IRU WKH ZDWHU ILOWHUcartridge on the dispenser, a red light will start blinking to WHOO \RX WKDW \RX QHHG WR UHSODFH WKH ILOWHU VRRQ)RUmodels that don’t have the indicator light, the filter cartridge should be replaced every six months, or earlier if the flow of water to the dispenser or icemaker decreases. Removing the Filter ,I \RX DUH UHSODFLQJ WKH ILOWHU ILUVW UHPRYH WKH SUHYLRXVone by gently grasping the filter and slowly turning it to the left, about a ¼ turn. The filter should automatically release itself when you have rotated it far enough to the left. A small amount of water may drip down. CAUTION ,IDLUKDVEHHQWUDSSHGLQWKHV\VWHPthe filter cartridge may be ejected as it is removed. Use caution when removing. Filter Bypass Plug To reduce the risk of property damage due to water leakage, you MUST use the filter bypass plug when a replacement filter cartridge is not available. Some models do not come equipped with the filter bypass plug. To REWDLQ D IUHH E\SDVV SOXJ FDOO *(&$5(6 ,QCanada, call 800.561.3344. The dispenser and icemaker will not operate without either the filter or bypass plug installed. The bypass plug is installed in the same way as a filter cartridge. Installing the Filter Cartridge in a Side by Side Refrigerator 1. Line up the arrow on the filter with the arrow on the filter cartridge holder. Gently push the top of the new filter up inside the holder. 2. Slowly turn the filter to the right until it VWRSV'212729(57,*+7(1$V\RXturn the filter, it will automatically raise itself into position. The filter will move about a ¼ turn or 90 degrees. 3. Run water from the dispenser for 2 gallons (7.6 liters) or approximately 5 minutes to clear the system. Water may spurt out and air bubbles may be visible during this process.3UHVVDQGKROGWKH5(6(7:$7(5),/7(5EXWWRQRQthe dispenser for 3 seconds. On select models, filter reset will be automatic when a new filter is installed.6HUYLFH )ORZ 0.5 gpm (1.89 lpm)Water Supply Potable WaterWater Pressure 25-120 psi (172-827 kPa)Water Temperature )) &&Capacity 170 gallons (643.5 liters)Sign-up for TEXT REMINDERS by texting REPLACE to 70543. WARNING To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. The disposable filter cartridge should be replaced every 6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs. )RU WKH PD[LPXP EHQHILW RI \RXU ILOWUDWLRQ V\VWHP *( $SSOLDQFHV UHFRPPHQGV WKH XVH RI *( $SSOLDQFHVEUDQGHG filters only. Using GE Appliances-branded filters in GE Appliances and Hotpoint® refrigerators provides optimal performance and reliability. GE Appliances filters meet rigorous industry standards for safety and quality that are important for products that are filtering your water. GE Appliances has not qualified non-GE Appliances-branded filters for use in GE Appliances and Hotpoint refrigerators and there is no assurance that non-GE Appliances-branded filters meet GE Appliances standards for quality, performance and reliability.If you have questions, or to order additional filter cartridges, visit our website at gewaterfilters.com or call GE Appliances Parts and Accessories, 877.959.8688. (Canada 1.800.661.1616 or GEAppliances.ca/en/products/parts-filters-accessories) Application Guidelines/Water Supply ContainsFCC ID: ZKJ-294D2018 IC: 10229A-294D2018“This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”“This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.”49-1000471 Rev. 2 9Not all features are on all models. Refrigerator Door Bins and Freezer Door Tilt-Out Bins Large Bins 7KH ODUJHU UHIULJHUDWRU GRRU ELQV DQG IUHH]HU WLOWRXW GRRU bins are adjustable. To remove: Lift the front of the bin straight up, then lift up and out. To replace or relocate: Engage the back side of the bin in the molded supports of the door. Then push down on the front of the bin. Bin will lock in place. Small Bins To remove: Lift the front of the bin straight up then out. To replace: Position the bin above the rectangular molded supports on the door. Then slide the bin down onto the support to lock it in place. The snugger helps prevent tipping, spilling or sliding of small items stored on the door shelf. Place a finger on either side of the snugger near the rear and move it back and forth to fit your needs. NOTE: Be careful when placing items in the top bin. Make sure that items do not block or fall into the ice chute. Shelves and Bins Refrigerator bin)UHH]HU WLOWRXW ELQSnugger)UHH]HU ELQ,FH &KXWH USING THE REFRIGERATOR: Shelves and Bins Slide-Out Shelf (on some models) The slide-out shelf allows you to reach items stored behind others. The special edges of the spillproof shelf are designed to help prevent spills from dripping to lower shelves. Spillproof Shelf To remove: Slide the shelf out until it reaches the stop, then press down on the tab and slide the shelf straight out. To replace or relocate: Line the shelf up with the supports and slide it into place. The shelf can be repositioned when the door is at 90° or more. To reposition the shelf, slide the shelf past the stops and angle downward. Slide shelf down to the desired position, line up with the supports and slide into place. Make sure you push the shelves all the way back in before you close the door. Edge-to-Edge Shelf To remove: With door opened at an angle greater than 90°, slide the shelf out until it reaches the stop tab. Press down on the tab and slide the shelf out until it reaches the shelf’s back trim. While keeping the left side of the shelf in contact with the cabinet, pull the shelf down and forward toward the left to remove. To replace or relocate: With door opened at an angle greater than 90°, align the shelf’s back trim against the shelf support.

.HHSLQJ WKH OHIW VLGH DJDLQVW WKH

cabinet, slowly lift and gently push the shelf back into place. Reposition the shelf past the stop tabs. Make sure you push the shelves all the way back in before you close the door. Press tab and pull shelf forward to removePress tab and pull shelf forwardWith left side stays against the cabinet as you pull down and to the left to remove 10 49-1000471 Rev. 2Not all features are on all models. Freezer Baskets (on some models) To remove, slide out to the stop position, lift the front past the stop position, and slide out. Make sure you push the baskets all the way back in before you close the door. Freezer Baskets (on some models) To remove, push the basket all the way to the back of the IUHH]HU /LIW XS XQWLO WKH EDFN pins are disengaged. Lift the entire basket up and pull out. Make sure you push the baskets all the way back in before you close the door. QuickSpace™ Shelf (on some models) This shelf splits in half and slides under itself for storage of tall items on the shelf below. This shelf can be removed and replaced or relocated just like Slide-Out Spillproof Shelves. On some models, this shelf can not be used in the lowest position. Slide-Out Freezer Shelves To remove, slide out to the stop position, lift the front past the stop position, and slide out from rib. Make sure you push the shelves all the way back in before you close the door. Fixed Freezer Shelves To remove, lift the shelf up at the left side and then bring the shelf out.

advantage of the tilt-out ice bin (on some models), only store items on the shelf below the ice bin that are no taller than the lowest point on the bin. Door Wine/Beverage Rack (on some models) This rack holds up to 5 cans, one bottle of wine or one 2-liter bottle of soda. The rack hangs from the sides of the dairy bin. To remove:

(PSW\ WKH ZLQHEHYHUDJH UDFN

2. Holding the bottom of the dairy

bin, lift the front straight up, then lift up and out.

3. To detach the rack from the dairy

bin, pull the rack’s side wires out of the holes on each side of the dairy bin. To replace:

1. Reattach the rack to the sides of the bin.

2. Engage the back side of the bin in the molded

supports on the door. Then push down on the front of the bin. The bin will lock into place. ShelfSaver™ Rack (on some models) Use this rack to store beverage cans for easy access.

,W FDQ DOVR KROG D ´ [ ´ EDNLQJ

dish. Door Can Rack (on some models) This door rack holds up to 9 cans. NOTE: This rack can only be mounted in the top position under the dairy bin. Removable Beverage Rack (on some models) The beverage rack is designed to hold a bottle on its side.

,W FDQ EH DWWDFKHG WR DQ\

slide-out shelf. To install:

1. Line up the large part of

the slots on the top of the rack with the tabs under the shelf.

2. Then slide the rack back to

lock it in place. Shelves and Bins

USING THE REFRIGERATOR: Shelves and Bins 1149-1000471 Rev. 2USING THE REFRIGERATOR: 5HIULJHUDWRU 'RRUV Door Alignment ,I GRRUV DUH XQHYHQ DGMXVW WKH UHIULJHUDWRU GRRU To remove the base grille, open the doors, remove the screw at each end of the base grille and then pull the grille straight out. 8VLQJ D ´ VRFNHW ZUHQFK WXUQ WKH GRRU DGMXVWLQJ VFUHZ WR WKH ULJKW WR UDLVH WKH GRRU WR WKH OHIW WR lower it. (A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.)

2. After one or two turns of the wrench, open and close

the refrigerator door and check the alignment at the top of the doors. Refrigerator Doors (on some models) The refrigerator doors may feel different than the ones \RX DUH XVHG WR 7KH VSHFLDO GRRU RSHQLQJFORVLQJ feature makes sure the doors close all the way and are securely sealed. When opening and closing the door you will notice a stop SRVLWLRQ ,I WKH GRRU LV RSHQHG SDVW WKLV VWRS SRLQW WKH door will remain open to allow you to load and unload food more easily. When the door is only partially open, it will automatically close. The resistance you feel at the stop position will be reduced as the door is loaded with food. When the door is only partially open, it will automatically close.Beyond this stop the door will stay open.´ 6RFNHW :UHQFKRaise Refrigerator Doors 12 49-1000471 Rev. 2Crispers and Pans Not all features are on all models. Fruit and Vegetable Crispers Excess water that may accumulate in the bottom of the drawers should be wiped dry. On some models, the bottom drawer has full extension slides that allow full access to the drawer. Adjustable Humidity Crispers 6OLGH WKH FRQWURO DOO WKH ZD\ WR WKH +, VHWWLQJ WR SURYLGH high humidity recommended for most vegetables. Slide the control all the way to the LO setting to provide lower humidity levels recommended for most fruits. Crisper Removal Crispers can easily be removed by pulling the drawer straight out and lifting the drawer up and over the stop location. ,I WKH GRRU SUHYHQWV \RX IURP WDNLQJ RXW WKH GUDZHUV ILUVW WU\ WR UHPRYH WKH GRRU ELQV ,I WKLV GRHV QRW RIIHU HQRXJK clearance, the refrigerator will need to be rolled forward XQWLO WKH GRRU RSHQV HQRXJK WR VOLGH WKH GUDZHUV RXW ,Q some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left or right as you roll it out. Convertible Deli Pan (on some models) The convertible deli pan has its own cold air duct to DOORZ D VWUHDP RI FROG DLU IURP WKH IUHH]HU FRPSDUWPHQW or refrigerator compartment to flow to the pan. The variable temperature control regulates the air flow

IURP WKH &OLPDWH .HHSHU

Set the control to the coldest setting to store fresh meats. Set the control to cold to convert the panto normal refrigerator temperature and provide extra vegetable storage space. The cold air duct is turned off. Variable settings between these extremes can be selected.

. Rotate all four swing locks to the unlock position.

1. Make sure all four swin

into the drawer supports, making sure the swing locks fit

ck all four swing locks by

otating them to the lock pos

on. 49-1000471 Rev. 2 13 How to Remove and Replace the Drawer To remove:

1. Pull the drawer out to the

2. Rotate all four swing locks

to the unlock position.

3. Lift the front of the drawer

up and out. To replace:

1. Make sure all four swing

locks are in the unlock position.

2. Place the sides of the drawer

into the drawer supports, making sure the swing locks fit on the drawer slots.

3. Lock all four swing locks by

rotating them to the lock position.Not all features are on all models. Automatic Icemaker The icemaker will produce seven cubes per cycle—approximately 100–130 cubes in a 24-hour period, GHSHQGLQJ RQ IUHH]HU FRPSDUWPHQW WHPSHUDWXUH URRPtemperature, number of door openings and other use conditions.,I WKH UHIULJHUDWRU LV RSHUDWHG EHIRUH WKH ZDWHU FRQQHFWLRQis made to the icemaker, set the power switch in the 2)) SRVLWLRQWhen the refrigerator has been connected to the water supply, set the power switch to the ON position.7KH LFHPDNHU ZLOO ILOO ZLWK ZDWHU ZKHQ LW FRROV WR )(–10°C). A newly installed refrigerator may take 12 to 24 hours to begin making ice cubes.<RX ZLOO KHDU D EX]]LQJ VRXQG HDFK WLPH WKH LFHPDNHUfills with water.Throw away the first few batches of ice to allow the water line to clear.Be sure nothing interferes with the sweep of the feeler arm. When the bin fills to the level of the feeler arm, the LFHPDNHU ZLOO VWRS SURGXFLQJ LFH ,W LV QRUPDO IRU VHYHUDOcubes to be joined together.,I LFH LV QRW XVHG IUHTXHQWO\ ROG LFH FXEHV ZLOO EHFRPHcloudy, taste stale and shrink. CAUTION Avoid contact with the moving parts of the ejector mechanism, or with the heating element (located on the bottom of the ice maker) that releases WKH FXEHV 'R QRW SODFH ILQJHUV RU KDQGV RQ WKHautomatic ice making mechanism while the refrigerator is plugged in.Special note about dispenser models:Ŷ6RPH PRGHOV KDYH D WLOWRXW LFH ELQ 7KH ELQ FDQ EHtilted out as shown in the illustrations, and it will hold itself up while you take ice out or turn the icemaker power switch on and off. Be sure to put the bin back in place before closing the door.ŶTo restore your ice level from an empty bucket stage, the following steps are recommended:1. 12 hours after the first batch of ice has fallen into the bin, dispense 3 to 4 cubes.2. After an additional 6 hours, dispense 3 to 4 cubes again.These steps will restore your ice level in the shortest amount of time.NOTE:,Q KRPHV ZLWK ORZHU WKDQ DYHUDJH ZDWHU SUHVVXUH \RXmay hear the icemaker cycle multiple times when making one batch of ice. Automatic Icemaker ,FHPDNHU)HHOHU $UPPower Switch(on some models),FHPDNHU)HHOHU $UPPower SwitchGreen Power Light(on some models)

USING THE REFRIGERATOR: $XWRPDWLF ,FHPDNHU

14 49-1000471 Rev. 2 WARNING Connect to potable water supply only.A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 DQGSVLNLORSDVFDOVAccessing Ice and Reaching the Power Switch on Dispenser Models There are two types of ice storage bins on dispenser models. One has a shelf above the bin, the other does not. Special note for models with tilt-out ice bin: Ŷ7KHVH PRGHOV KDYH D WLOWRXW LFH ELQ 7KH ELQ FDQ EH tilted out as shown in the illustrations, and it will hold itself up while you take ice out or turn the icemaker power switch on and off. Be sure to put the bin back in place before closing the door. NOTE: ,Q RUGHU WR WDNH IXOO DGYDQWDJH RI WKH WLOWRXW LFH bin, only store items on the shelf below the ice bin that are no taller than the lowest point on the bin. Models with tilt out ice bin To access ice and reach the icemaker power switch:

1. Lift the bin, then pull it forward until the bin stops.

2. Lower the bin to access ice or reach the power switch.

Models with a shelf above the ice bin To access ice, pull the bin forward. To reach the power switch, pull the shelf straight out. Always be sure to replace the shelf. On some models, to access ice or reach the power switch:

1. Pull the bin forward until the bin stops.

2. Lower the bin to access ice or reach the power switch.

Removing Ice Bin (dispenser models) CAUTION The ice bin is heavy when full. Set the power switch to the OFF position before removing the bin. When replacing the bin, be sure to press it firmly into SODFH ,I LW GRHV QRW JR DOO WKH ZD\ EDFN UHPRYH LW DQG URWDWH WKH GULYH PHFKDQLVP WXUQ 7KHQ SXVK WKH ELQ back again. Automatic Icemaker Shelf,FH %LQShelfRotate'ULYHMechanism'LVSHQVHU 0RGHOV RQO\

USING THE REFRIGERATOR: $XWRPDWLF ,FHPDNHU

49-1000471 Rev. 2 15Using the Dispenser 6HOHFW &8%(' ,&( , &586+(' ,&(or WATER .Press the glass gently against the top of the dispenser cradle.The spill shelf is not self-draining. To reduce water spotting, the shelf and its grille should be cleaned regularly. ,I QR ZDWHU LV GLVSHQVHGwhen the refrigerator is first installed, there may be air in the water line system. Press the dispenser arm for at least two minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six glassfuls of water. CAUTION Laceration Hazard Ŷ1HYHU SXW ILQJHUV RU DQ\ RWKHU REMHFW LQWR LFH FUXVKHUGLVFKDUJH RSHQLQJ 'RLQJ VR FDQ UHVXOW LQ FRQWDFWLQJthe ice crushing blades and lead to serious injury or amputationŶ8VH D VWXUG\ JODVV ZKHQ GLVSHQVLQJice. A delicate glass may break and result in personal injury. Locking the Dispenser 3UHVV WKH /2&. SDG IRU VHFRQGV WR ORFN WKH GLVSHQVHUand control panel. To unlock, press and hold the pad again for 3 seconds. Dispenser Light This pad turns the light in the dispenser on and off. The light also comes on when the dispenser cradle is pressed. Quick Ice (on some models) When you need ice in a hurry, press this pad to speed up ice production. This will increase ice production for the following 48 hours or until you press the pad again. Door Alarm (on some models) To set the alarm, press this pad until the indicator light comes on. This alarm will sound if either door is open for more than 3 minutes. The light goes out and the beeping stops when you close the door. Water Filter (on some models)7KH )LOWHU ,QGLFDWRU /LJKW ZLOO WXUQ \HOORZwhen the filter is nearing expiration., and red when the filter is expired. After you replace the water filter, press and KROG WKH 5HVHW )LOWHU SDG IRU VHFRQGVuntil the light turns off to reset the timer. Filter Status (on some models) 3UHVV WKH )LOWHU 6WDWXV SDG WR GLVSOD\the water filter’s life percentage (%). Ice and Water Dispenser (on some models.) Important Facts About Your Dispenser Ŷ 'R QRW DGG LFH IURP WUD\V RU EDJV WR WKH VWRUDJHGUDZHU ,W PD\ QRW FUXVK RU GLVSHQVH ZHOOŶ Avoid overfilling glass with ice and use of narrow glasses. Backed-up ice can jam the chute or cause WKH GRRU LQ WKH FKXWH WR IUHH]H VKXW ,I LFH LV EORFNLQJthe chute, poke it through with a wooden spoon.Ŷ Beverages and foods should not be quick-chilled in the ice storage drawer. Cans, bottles or food packages in the storage drawer may cause the icemaker or auger to jam.Ŷ To keep dispensed ice from missing the glass, put the glass close to, but not touching, the dispenser opening.Ŷ Some crushed ice may be dispensed even though \RX VHOHFWHG &8%(' ,&( 7KLV KDSSHQV RFFDVLRQDOO\when a few cubes accidentally get directed to the crusher.Ŷ After crushed ice is dispensed, some water may drip from the chute.Ŷ Sometimes a small mound of snow will form on the door in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.Spill Shelf USING THE REFRIGERATOR: ,FH DQG :DWHU 'LVSHQVHU FilterStatusI f this ligth burns out it will need to bereplaced; F or models with LED light,contact GE service center. 16 49-1000471 Rev. 2Care and Cleaning Cleaning the Outside The dispenser drip area, (on some models) beneath the grille, should be wiped dry. Water left in this area may leave deposits. Remove the deposits by adding undiluted vinegar to the well. Soak until the deposits disappear or become loose enough to rinse away.The dispenser cradle (on some models). Before cleaning, lock the dispenser by pressing and holding the LOCK pad for 3 seconds. Clean with warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 l) of water. Rinse thoroughly and wipe dry. Cleaning the Inside To help prevent odors, leave an open box of baking VRGD LQ WKH IUHVK IRRG DQG IUHH]HU FRPSDUWPHQWVUnplug the refrigerator before cleaning. ,I WKLV LV QRWpractical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls. Use warm water and baking soda solution— about a tablespoon (15 ml) of baking soda to a quart (1 liter) of ZDWHU 7KLV ERWK FOHDQV DQG QHXWUDOL]HV RGRUV 5LQVH DQGwipe dry.Use of any cleaning solution other than that which is recommended, especially those that contain petroleum distillates, can crack or damage the interior of the refrigerator. CAUTION 'R QRW FOHDQ JODVV VKHOYHV RU FRYHUVwith warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impact such as bumping or dropping. Tempered glass is designed to shatter into many small pieces if it breaks.'R QRW ZDVK DQ\ SODVWLF UHIULJHUDWRU SDUWV LQ WKHdishwasher.7KH FKLOOWKDZ WUD\ LV GLVKZDVKHU VDIHDO USE DO NOT USESoft, clean cloth or sponge Abrasive cloths, scrubbing sponges (with or without soap), scouring or steel wool padsMild detergent mixed with warm water$SSURYHG VWDLQOHVV VWHHO FOHDQHUV 9LVLW WKH *(Appliances parts store for approved stainless steel cleaners: GEApplianceparts.com or call 877.959.8688&OHDQHUV ZLWK R[DOLF DFLG VXFK DV %DU .HHSHUV )ULHQG 6RIWCleanser™ can be used to remove surface rust, tarnish and small blemishes on stainless steel surfaces only.Abrasive powders or spraysWindow Sprays or AmmoniaCitrus or plant oil-based cleanersAcidic or vinegar-based cleanersOven cleanersCleaners containing acetone (propanone)$Q\ FOHDQHU ZLWK :$51,1* DERXW SODVWLF FRQWDFW NOTE: DO NOT allow stainless steel cleaner to come in contact with any plastic parts such as trim pieces, handle KDUGZDUH DQG OLQHUV ,I XQLQWHQWLRQDO FRQWDFW RI FOHDQHUV ZLWK SODVWLF SDUWV GRHV RFFXU FOHDQ SODVWLF SDUW ZLWK Dsponge and mild detergent mixed with warm water. STAINLESS STEEL - Outside surfaces, door handles, and trim DO USE DO NOT USESoft, clean cloth or spongeMicrofiber clothAbrasive cloths, paper towels, scrubbing sponges (with or without soap), scouring or steel wool padsMild detergent mixed with warm waterAbrasive powders, liquids, or spraysWindow sprays, ammonia, or bleachCitrus or plant oil-based cleanersAcidic or vinegar-based cleanersOven cleanersAlkaline cleanersStainless steel cleaners DO NOT use Stainless Steel cleaners on the door surfaces. IMPORTANT: 7KH XVH RI LQFRUUHFW SURGXFWV PD\ GDPDJH WKH RXWHU ILQLVK RI )LQJHUSULQW 5HVLVWDQW 6WDLQOHVV DQG Black Stainless models. Please follow these instructions and use only the appropriate items below to clean your appliance surfaces. Ɣ&OHDQ LQWHULRUH[WHULRU VXUIDFHV ZLWK ZDUP ZDWHU PLOG VRDS RU GHWHUJHQW DQG D VRIW RU PLFURILEHU FORWK WR DYRLG damage. Ɣ:LSH WKH DSSOLDQFH VXUIDFH GU\ ZLWK D VRIW FOHDQ FORWK RU PLFURILEHU WRZHO WR DYRLG VWUHDNLQJ RU ZDWHU VSRWWLQJ FINGERPRINT RESISTANT STAINLESS STEEL*, BLACK STAINLESS, SLATE, DARK SLATE, PAINTED - Outside surfaces, door handles, and trim

(DVLO\ ZLSH DZD\ VPXGJHV DQG ¿QJHUSULQWV

49-1000471 Rev. 2 17CARE AND CLEANING Care and Cleaning Preparing for Vacation )RU ORQJ YDFDWLRQV RU DEVHQFHV UHPRYH IRRG DQG unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 liter) of water. Leave the doors open. 6HW WKH LFHPDNHU SRZHU VZLWFK WR WKH 2)) SRVLWLRQ DQG shut off the water supply to the refrigerator. ,I WKH WHPSHUDWXUH FDQ GURS EHORZ IUHH]LQJ KDYH D qualified servicer drain the water supply system (on some models) to prevent serious property damage due to flooding. Preparing to Move Secure all loose items such as shelves and drawers by taping them securely in place to prevent damage. When using a hand truck to move the refrigerator, do not rest the front or back of the refrigerator against the hand truck. This could damage the refrigerator. Handle only from the sides of the refrigerator. Be sure the refrigerator stays in an upright position during moving. Behind the Refrigerator Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces. Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator. When pushing the refrigerator back, make sure you don’t roll over the power cord or icemaker supply line (on some models). 18 49-1000471 Rev. 2Care and Cleaning Freezer Compartment

1. Unplug the refrigerator.

2. Remove the shelf just above the light shield. (The

shelf will be easier to remove if it is emptied first.) Remove the screw at the top of the light shield.

3. To remove the light shield, press in on the sides, and

4. Replace the bulb with an appliance bulb of the same

or lower wattage, and reinstall the light shield. When reinstalling the light shield, make sure the top tabs snap securely into place. Replace the screw.

5. Reinstall the shelf and plug the refrigerator back in.

Dispenser (on some models)

1. Unplug the refrigerator.

2. The bulb is located on the dispenser under the

control panel. Remove the light bulb by turning it counterclockwise. 5HSODFH WKH EXOE ZLWK D EXOE RI WKH VDPH VL]H DQG wattage.

4. Plug the refrigerator back in.

Replacing the lights on models with LED lighting (on some models) Setting the controls to OFF does not remove power to the light circuit. Not all features are on all models. Refrigerator Compartment 7KHUH LV DQ /(' OLJKWLQJ GLVSOD\ LQ WKH WRS DQG VLGHV RI the fresh food compartment and in the rear and side of WKH IUHH]HU FRPSDUWPHQW RQ VRPH PRGHOV ,I WKLV DVVHPEO\ QHHGV WR EH UHSODFHG FDOO *( Appliances Service at 1.800.432.2737 in the United States or 1.800.561.3344 in Canada. /('Lighting 'LVSOD\

49-1000471 Rev. 2 19Installation Instructions Refrigerator Models 22, 23, 25, 28 Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.comIn Canada, call 1.800.561.3344 or visit our Website at: GEAppliances.ca

Read these instructions completely and carefully.

IMPORTANT — Save these instructions for local inspector’s use

IMPORTANT — Observe all governing codes and ordinances.• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – .HHS WKHVH LQVWUXFWLRQV IRU future reference.• Skill level – ,QVWDOODWLRQ RI WKLV DSSOLDQFH UHTXLUHVbasic mechanical skills.• Completion time – 5HIULJHUDWRU ,QVWDOODWLRQ30 minutes :DWHU /LQH ,QVWDOODWLRQ30 minutes• Proper installation is the responsibility of the installer. • Product failure due to improper installation is not covered under the Warranty.,I WKH UHIULJHUDWRU KDV DOUHDG\ EHHQ LQVWDOOHG UHPRYHthe base grille (see Step 2 in Moving the Refrigerator), WKHQ VNLS WR 6WHS LQ ,QVWDOOLQJ WKH 5HIULJHUDWRU PREPARATION

WATER SUPPLY TO THE ICEMAKER

(on some models),I WKH UHIULJHUDWRU KDV DQ LFHPDNHU LW ZLOO KDYH WR EHconnected to a cold water line. A GE Appliances water supply kit is available at extra cost from your dealer, by visiting our Website at GEAppliances.com (in Canada, at geappliances.ca), or from Parts and Accessories, 877.959.8688. (in Canada 1.800.661.1616).

Leave all tape and door pads on doors until the refrigerator is in its final location.To move the refrigerator, use a padded hand truck. Center the refrigerator on the hand truck and secure the strap around the refrigerator. DO NOT OVERTIGHTEN THE STRAP.

Remove the grille by removing the two Phillips head screws. ,I WKH UHIULJHUDWRU PXVW JR WKURXJK DQ\HQWUDQFH WKDW LV OHVV WKDQ ´ ZLGH WKHdoors must be removed. Proceed to Step 3.DO NOT remove the handles.,I DOO HQWUDQFHV DUH PRUH WKDQ ´ ZLGH VNLSWR ,QVWDOOLQJ WKH 5HIULJHUDWRU.

DISCONNECT THE WATER

COUPLING (on some models) ,I WKH UHIULJHUDWRU KDV D ZDWHU GLVSHQVHUthere is a water line from the cabinet into the ERWWRP KLQJH RQ WKH IUHH]HU GRRU WKDW PXVW EHdisconnected.To disconnect, push in on the white collar of the coupling and pull out the tubing.White collarBottom IUHH]HUhinge CAUTION Lifting Hazard. Single person lift can cause injury. Use assistance when handling, moving or lifting the refrigerator doors.NOTE: When moving door, to prevent damage to door and electronics carefully place the door in a proper location. WARNING To reduce the risk of electric shock or injury during installation, you must first unplug the UHIULJHUDWRU EHIRUH SURFHHGLQJ )DLOXUH WR IROORZ WKHVHinstructions can result in electrical shock. INSTALLATION INSTRUCTIONS 49-1000471 Rev. 2 21INSTALLATION INSTRUCTIONS Installation Instructions MOVING THE REFRIGERATOR (Cont.)

DISCONNECT THE POWER

COUPLING (on some models) If the refrigerator has a water dispenser, there is a power line (harness) from the cabinet LQWR WKH ERWWRP KLQJH RQ WKH IUHH]HU GRRU WKDW must be disconnected. To disconnect, pull apart at the coupling.

CONNECTORS (on some models) If the refrigerator has a refreshment center, there are electrical connectors (harnesses) from the cabinet into the bottom hinge on the refrigerator door that must be disconnected. To disconnect, pull apart each connector.

DOOR WARNING )ROORZ DOO VWHSV IRU UHPRYLQJDQG UHLQVWDOOLQJ WKH GRRU )DLOXUH WR IROORZ WKHVHinstructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.Remove the refrigerator door top hinge cover (if HTXLSSHG E\ HLWKHU VTXHH]LQJ LW DQG SXOOLQJ LW XSor by prying it off with a plastic putty knife.5HPRYH WKH WZR ´ KH[ KHDG VFUHZV WKHQ OLIWthe hinge straight up to free the hinge pin.Open the refrigerator door to 90.°

WARNING )ROORZ DOO VWHSV IRU UHPRYLQJDQG UHLQVWDOOLQJ WKH GRRU )DLOXUH WR IROORZ WKHVHinstructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.5HPRYH WKH IUHH]HU GRRU WRS KLQJH FRYHU LIHTXLSSHG E\ HLWKHU VTXHH]LQJ LW DQG SXOOLQJ LWup or by prying it off with a plastic putty knife.5HPRYH WKH WZR ´ KH[ KHDG VFUHZV WKHQ OLIWthe hinge straight up to free the hinge pin.2SHQ WKH IUHH]HU GRRU WR .°$V RQH SHUVRQ VORZO\ OLIWV WKH IUHH]HU GRRU XSand off the bottom hinge, the second person should carefully guide the water line and power line (harness) through the bottom hinge.Set the door on a non-scratching surface with the inside up.

DOOR (Cont.) Lift the refrigerator door up and off the bottom hinge.,I WKH UHIULJHUDWRU KDV D UHIUHVKPHQW FHQWHU RQHperson should slowly lift the door up and off the bottom hinge and the second person should carefully guide the electrical lines (harnesses) through the bottom hinge.Set the door on a non-scratching surface with the inside up.

90° Refreshment Center Models only'

WARNING )ROORZ DOO VWHSV IRU UHPRYLQJDQG UHLQVWDOOLQJ WKH GRRU )DLOXUH WR IROORZ WKHVHinstructions, leaving off parts, or overtightening screws, can lead to the door falling off and result in injury and property damage.To replace the doors, simply reverse steps 3 through 8.However, please note the following:• When lowering the doors onto the bottom hinges, make sure the second person carefully guides the tube and harnesses through the holes in the hinges.• When connecting the water line, make sure you insert the tubing all the way to the mark.'R QRW SLQFK WKH WXELQJ DQG KDUQHVVHV ZKHQplacing the doors on the bottom hinges.• When connecting the power line and the electrical lines (refreshment center models only), be sure that the connectors are seated together fully.

Mark INSTALLATION INSTRUCTIONS 24 49-1000471 Rev. 2Installation Instructions

(for 23' CustomStyle

it will not run often enough to maintain proper temperatures.

it will not perform properly.

• 'R QRW LQVWDOO WKH UHIULJHUDWRU LQ D ORFDWLRQ H[SRVHG WR water (rain, etc.) or direct sunlight.

• ,QVWDOO LW RQ D IORRU VWURQJ HQRXJK WR VXSSRUW LW IXOO\ loaded. CLEARANCES Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections: 22‘/25‘ 23‘ (33” wide), CustomStyle

(for 25' CustomStyle

RI PRELOLW\ ZKHHOV ,I FDELQHWV LQVWDOOHG DERYH refrigerator have doors that are flush to the top of the opening for the refrigerator, then an additional ´ PD\ EH UHTXLUHG WR SURYLGH FOHDUDQFH IRU cabinet doors to open freely.

WATER LINE (icemaker and dispenser models) A cold water supply is required for automatic LFHPDNHU DQG GLVSHQVHU RSHUDWLRQ ,I WKHUH LVnot a cold water supply, you will need to provide RQH 6HH ³,QVWDOOLQJ WKH :DWHU /LQH´ VHFWLRQNOTES:• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.,I \RXU UHIULJHUDWRU GRHV QRW KDYH D ZDWHU ILOWHUwe recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. ,QVWDOO LW LQ WKH ZDWHU OLQH QHDU WKH UHIULJHUDWRU,I XVLQJ 8QLYHUVDO :DWHU /LQH 5HIULJHUDWRU7XELQJ .LW \RX ZLOO QHHG DQ DGGLWLRQDO WXEH:;; WR FRQQHFW WKH ILOWHU 'R QRW FXWplastic tube to install filter.,I \RX DUH XVLQJ FRSSHU WXELQJ SODFH Dcompression nut and ferrule (sleeve) onto the end of the tubing coming from the house cold water supply.,I \RX DUH XVLQJ WKH XQLYHUVDO ZDWHU OLQH WXELQJthe nuts are already assembled to the tubing.,I \RX DUH XVLQJ FRSSHU WXELQJ LQVHUW WKH HQGof the tubing into the refrigerator connection, at the back of the refrigerator, as far as possible. While holding the tubing, tighten the fitting.,I \RX DUH XVLQJ XQLYHUVDO ZDWHU OLQH WXELQJinsert the molded end of the tubing into the refrigerator connection, at the back of the refrigerator, and tighten the compression nut until it is hand tight. Then tighten one additional turn with a wrench. Overtightening may cause leaks.WARNINGConnect to potable water supply only.A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals).WARNINGELECTRIC SHOCK HAZARDAttach tubing clamp using existing hole only. DO NOT drill into the refrigerator.

)DVWHQ WKH WXELQJ LQWR WKH FODPS SURYLGHG WRhold it in position. You may need to pry open the clamp.

TURN ON THE WATER SUPPLY

Turn the water on at the shutoff valve (house water supply) and check for any leaks.

Before plugging in the refrigerator, make sure the icemaker power switch is set to WKH 2)) SRVLWLRQSee the grounding information attached to the power cord. &RQ¿JXUDWLRQUniversalWater Line TubingRefrigerator Connection1/4” TubingTubing Clamp1/4” Compression NutFerrule (sleeve)Universal Water Line TubingRefrigerator Connection&RQ¿JXUDWLRQ&RQ¿JXUDWLRQRefrigerator Connection 26 49-1000471 Rev. 2Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

PUT THE REFRIGERATOR IN

PLACE Move the refrigerator to its final location.

LEVEL THE REFRIGERATOR

The refrigerator can be leveled by adjusting the rollers located near the bottom hinges. Rollers have three purposes:

• Rollers adjust so the door closes easily when opened about halfway. (Raise the front about ´ > PP@ IURP WKH IORRU• Rollers adjust so the refrigerator is firmly positioned on the floor and does not wobble.• Rollers allow you to move the refrigerator away from the wall for cleaning. To adjust the rollers on 23’ (33” wide), 25’, 28’ models:
• Turn the roller adjusting screws clockwise to raise the refrigerator, counterclockwise to ORZHU LW 8VH D ´ KH[ VRFNHW RU ZUHQFK RUan adjustable wrench.

Adjust the refrigerator door to make the doors even at the top.To align:8VLQJ D ´ ZUHQFK WXUQ WKH GRRU DGMXVWLQJscrew to the right to raise the door, to the left to lower it.NOTE:A nylon plug, imbedded in the threads of the pin, prevents the pin from turning unless a wrench is used.After one or two turns of the wrench, open and close the refrigerator door and check the alignment at the top of the doors.

models: Turn the front roller adjusting screws clockwise to raisethe refrigerator, counterclockwise to lower LW 8VH D ´ KH[ ZUHQFK ZLWK H[WHQVLRQor an adjustable wrench.These models also have rear adjustable rollers so you can align the refrigerator with \RXU NLWFKHQ FDELQHWV 8VH D ´ KH[ ZUHQFKwith extension to turn the screws for the rear rollers—clockwise to raise the refrigerator, counterclockwise to lower it. Roller adjusting screws INSTALLATION INSTRUCTIONS 49-1000471 Rev. 2 27 ,INSTALLATION INSTRUCTIONS Installation Instructions INSTALLING THE REFRIGERATOR (Cont.)

REPLACE THE BASE GRILLE

Replace the grille by installing the two Phillips head screws.

Set the controls to the recommended setting.

Set the icemaker power switch to the I (on)position. The icemaker will not begin to operate XQWLO LW UHDFKHV LWV RSHUDWLQJ WHPSHUDWXUH RI )±& RU EHORZ ,W ZLOO WKHQ EHJLQ RSHUDWLRQDXWRPDWLFDOO\ ,W ZLOO WDNH ± GD\V WR ILOO WKH LFH bin. NOTE:,Q ORZHU ZDWHU SUHVVXUH FRQGLWLRQV WKH ZDWHUvalve may turn on up to 3 times to deliver enough water to the icemaker. Power switchON - OFF 28 49-1000471 Rev. 2Installation Instructions INSTALLING THE WATER LINE (icemaker & dispenser models)

5HFRPPHQGHG FRSSHU ZDWHU VXSSO\ NLWV DUH :;;:;; RU :;; GHSHQGLQJ RQ WKH DPRXQW RItubing you need. Approved plastic water supply lines are Universal Water Line Refrigerator Tubing :;; :;; DQG :;;When connecting your refrigerator to a Reverse Osmosis Water System, the only approved LQVWDOODWLRQ LV ZLWK D *( $SSOLDQFHV 59.LW )RUother reverse osmosis water systems, follow the manufacturer’s recommendations. ,I WKH ZDWHU VXSSO\ WR WKH UHIULJHUDWRU LV IURP D5HYHUVH 2VPRVLV :DWHU )LOWUDWLRQ 6\VWHP $1'the refrigerator also has a water filter, use the refrigerator’s filter bypass plug. To order the E\SDVV SOXJ VHH WKH :DWHU )LOWHU &DUWULGJH VHFWLRQUsing the refrigerator’s water filtration cartridge in conjunction with the RO filter can result in hollow ice cubes and slower water flow from the water dispenser.This water line installation is not warranted by WKH UHIULJHUDWRU RU LFHPDNHU PDQXIDFWXUHU )ROORZWKHVH LQVWUXFWLRQV FDUHIXOO\ WR PLQLPL]H WKH ULVN RIexpensive water damage.Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.To prevent burns and product damage, do not hook up the water line to the hot water line.,I \RX XVH \RXU UHIULJHUDWRU EHIRUH FRQQHFWLQJ WKHwater line, make sure the icemaker power switch is LQ WKH 2)) SRVLWLRQ'R QRW LQVWDOO WKH LFHPDNHU WXELQJ LQ DUHDV ZKHUHWHPSHUDWXUHV IDOO EHORZ IUHH]LQJWhen using any electrical device (such as a power drill) during installation, be sure the device is double insulated or grounded in a manner to prevent the KD]DUG RI HOHFWULF VKRFN RU LV EDWWHU\ SRZHUHGAll installations must be in accordance with local plumbing code requirements.

• Copper or Universal Water Line Refrigerator 7XELQJ NLW´ RXWHU GLDPHWHU WR FRQQHFW WKHUHIULJHUDWRU WR WKH ZDWHU VXSSO\ ,I XVLQJ FRSSHU EHsure both ends of the tubing are cut square.To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation.8QLYHUVDO :DWHU /LQH 5HIULJHUDWRU 7XELQJ .LWV DUHavailable in the following lengths:¶ P ± :;;¶ P ± :;;¶ P ± :;; WARNING Connect to potable water supply only.A cold water supply is required for automatic icemaker operation. The water pressure must be between 40 and 120 psi (275-827 kilopascals). INSTALLATION INSTRUCTIONS 49-1000471 Rev. 2 29INSTALLATION INSTRUCTIONS Installation Instructions INSTALLING THE WATER LINE (Cont.) WHAT YOU WILL NEED (Cont.) NOTE: The only GE Appliances approved plastic tubing is that supplied in Universal Water Line 5HIULJHUDWRU 7XELQJ NLWV 'R QRW XVH DQ\ RWKHU SODVWLF water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE Appliances water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories, 877.959.8688 (in Canada

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (138-827 kPa).

• 1/2” or adjustable wrench.

• Straight and Phillips blade screwdriver.

• Two 1/4” outer diameter compression nuts and 2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.

,I \RX DUH XVLQJ D 8QLYHUVDO :DWHU /LQH 5HIULJHUDWRU Tubing kit, the necessary fittings are preassembled to the tubing. ,I \RXU H[LVWLQJ FRSSHU ZDWHU OLQH KDV D IODUHG ILWWLQJ at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression ILWWLQJ 'R QRW FXW IRUPHG HQG IURP 8QLYHUVDO :DWHU Line Refrigerator tubing.

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet ZLWK D PLQLPXP LQVLGH GLDPHWHU RI ´ DW WKH

SRLQW RI FRQQHFWLRQ WR WKH &2/' :$7(5 /,1(

Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

SHUT OFF THE MAIN WATER

SUPPLY Turn on the nearest faucet long enough to clear the line of water.

LOCATION Choose a location for the valve that is easily DFFHVVLEOH ,W LV EHVW WR FRQQHFW LQWR WKH VLGH RI a vertical water pipe. When it is necessary to FRQQHFW LQWR D KRUL]RQWDO ZDWHU SLSH PDNH WKH connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

DRILL THE HOLE FOR THE

VALVE 'ULOO D ´ KROH LQ WKH ZDWHU SLSH HYHQ LI XVLQJ a self-piercing valve), using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe. Take care not to allow water to drain into the drill. )DLOXUH WR GULOO D ´ KROH PD\ UHVXOW LQ UHGXFHG ice production or smaller cubes.

,QVWDOO WKH VKXWRII YDOYH RQ WKH QHDUHVW IUHTXHQWO\ XVHG drinking water line. 30 49-1000471 Rev. 2FASTEN THE SHUTOFF VALVE )DVWHQ WKH VKXWRII YDOYH WR WKH FROG ZDWHU SLSH with the pipe clamp. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

TIGHTEN THE PIPE CLAMP

Tighten the clamp screws until the sealing washer begins to swell. NOTE: 'R QRW RYHUWLJKWHQ RU \RX PD\ FUXVK WKH tubing..

Route the tubing between the cold water line and the refrigerator. Route the tubing through a hole drilled in the wall or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible. NOTE: Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation.

FLUSH OUT THE TUBING

Turn the main water supply on and flush out the tubing until the water is clear. Shut the water off at the water valve after about one quart (1 liter) of water has been flushed through the tubing. To complete the installation of the refrigerator, go EDFN WR 6WHS LQ ,QVWDOOLQJ WKH 5HIULJHUDWRU

CONNECT THE TUBING TO THE

VALVE Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve. Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely. )RU SODVWLF WXELQJ IURP D 8QLYHUVDO :DWHU Line Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks. NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Installation Instructions INSTALLING THE WATER LINE (Cont.) Pipe ClampVertical Cold Water PipeSaddle-Type Shutoff ValveWasher,QOHW (QGPipe ClampClamp ScrewSaddle-Type Shutoff ValveCompression NutPacking NutOutlet Valve)HUUXOH VOHHYHUniversal Water Line Tubing INSTALLATION INSTRUCTIONS 49-1000471 Rev. 2 31Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology. HUMMM... WHOOSH... Ŷ The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating. Ŷ Sometimes the refrigerator runs for an extended period, especially when the doors are opened IUHTXHQWO\ 7KLV PHDQV WKDW WKH )URVW *XDUGIHDWXUH LV ZRUNLQJ WR SUHYHQW IUHH]HU EXUQ DQGimprove food preservation.Ŷ <RX PD\ KHDU D ZKRRVKLQJ VRXQG ZKHQ WKH GRRUVFORVH 7KLV LV GXH WR SUHVVXUH HTXDOL]LQJ ZLWKLQ WKHrefrigerator.

You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator RU IUHH]HU FRPSDUWPHQWV 7KH IDQV DUH KHOSLQJ WRmaintain the correct temperatures.Ŷ ,I HLWKHU GRRU LV RSHQ IRU RYHU PLQXWHV \RX PD\hear the fans come on in order to cool the light bulbs.

The fans change speeds in order to provide optimal cooling and energy savings. CLICKS, POPS, CRACKS and SNAPS Ŷ You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.Ŷ Electronic dampers click open and closed to provide optimal cooling and energy savings.Ŷ The compressor may cause a clicking or chirping sound when attempting to restart (this could take up to 5 minutes).Ŷ The electronic control board may cause a clicking sound when relays activate to control refrigerator components.Ŷ Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.Ŷ On models with an icemaker, after an icemaking cycle, you may hear the ice cubes dropping into the ice bucket. WATER SOUNDS Ŷ The flow of refrigerant through the cooling coils may make a gurgling noise like boiling water.Ŷ Water dropping on the defrost heater can cause D VL]]OLQJ SRSSLQJ RU EX]]LQJ VRXQG GXULQJ WKHdefrost cycle.Ŷ A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.Ŷ Closing the door may cause a gurgling sound due to SUHVVXUH HTXDOL]DWLRQ Do you hear what I hear? These conditions are normal. Normal Operating Conditions )RU DGGLWLRQDO LQIRUPDWLRQ RQ QRUPDOicemaker and dispenser operating sounds, see the About the automatic icemaker and About the ice and water dispenser sections. TROUBLESHOOTING TIPS: Normal Operating Conditions 32 49-1000471 Rev. 2Troubleshooting Tips... Before you call for service Save time and money! Review the charts on the following pages first and you may not need to call for service. Problem Possible Causes What To Do Filter Status Indicator LED turns amber Filter reaching expired state Press the Filter Status pad to show remaining filter life. Filter Status Indicator LED turns red Filter expired Press the Filter Status pad to show remaining filter life. ,I WKH GLVSOD\ VKRZV WKH ILOWHU QHHGV WR EH replaced. When the unit has detected a new filter (a filter has EHHQ UHSODFHG WKH )LOWHU 6WDWXV /(' ZLOO IODVK times and then remain off to indicate the filter was successfully replaced. LEAK or scrolling “LEAK” on the display Water is disabled Filter Status indicator LED flashing red Buzzer sound Filter leak detected Replace filter. :LSH RII WKH ILOWHUVXUURXQGLQJ DUHD LI WKHUH LV DQ\ water from filter replacement. “Err” on the display Water is disabled Filter Status indicator LED flashing red Buzzer sound Filter is not detected No communication with filter 9HULI\ \RX KDYH WKH ;:)( ILOWHU DQG QRW WKH ;:) Verify there are no scratches or filter label damage. Replace filter if filter label shows damage. Refrigerator beeps when pressing dispenser paddle Filter is not properly installed Filter water leak Replace filter or make sure the water filter is properly installed (see water filter section). Refrigerator does not operate Refrigerator in defrost cycle. Wait about 30 minutes for defrost cycle to end. Freezer control in OFF position. 0RYH WKH IUHH]HU FRQWURO WR D ORZHU WHPSHUDWXUH VHWWLQJ Refrigerator is unplugged. Push the plug completely into the outlet. The fuse is blown/circuit breaker is tripped. Replace fuse or reset the breaker. Refrigerator is in showroom mode. Unplug the refrigerator and plug it back in. Vibration or rattling (slight vibration is normal) Rollers need adjusting. See Rollers. Motor operates for long periods or cycles on and off frequently. (Modern refrigerators with more storage space and a larger freezer require more operating time. They start and stop often to maintain even temperatures.) Normal when refrigerator is first plugged in. Wait 24 hours for the refrigerator to completely cool down. Often occurs when large amounts of food are placed in refrigerator. This is normal. Door left open. Check to see if package is holding door open. Hot weather or frequent door openings. This is normal. Temperature controls set at the coldest setting. See Controls. Refrigerator or freezer compartment too warm Temperature control not set cold enough. See Controls. Warm weather or frequent door openings. Set the temperature control one step colder. See Controls. Door left open. Check to see if package is holding door open. Frost or ice crystals on frozen food (frost within package is normal) Door left open. Check to see if package is holding door open. Too frequent or too long door openings. Divider between refrigerator and freezer compartments feels warm Automatic energy saver system circulates warm liquid around front edge of freezer compartment. This helps prevent condensation on the outside. TROUBLESHOOTING TIPS 49-1000471 Rev. 2 33TROUBLESHOOTING TIPS Troubleshooting Tips... Before you call for service Problem Possible Causes What To Do Automatic icemaker does not work Icemaker switch is in the 2)) position. Slide the switch to the ON position. Water supply turned off or not connected.

6HH ,QVWDOOLQJ WKH ZDWHU OLQH

Freezer compartment too warm. Wait 24 hours for the refrigerator to completely cool down. Piled up cubes in the storage bin cause icemaker to shut off. Level cubes by hand. Ice cubes stuck in icemaker. Turn off the icemaker, remove cubes and turn the icemaker back on. Filter is not properly installed. Filter water leak Replace filter or make sure the water filter is properly installed (refer to water filter section). Ice cubes have odor/taste Ice storage bin needs cleaning. (PSW\ DQG ZDVK ELQ 'LVFDUG ROG FXEHV Food transmitting odor/taste to ice cubes. Wrap foods well. Interior of refrigerator needs cleaning. See Care and cleaning. Small or hollow cubes Water filter clogged. Replace filter cartridge with new cartridge or with plug. Slow ice cube freezing Door left open. Check to see if package is holding door open. Temperature control not set cold enough. See Controls. Frequent “buzzing sound” Icemaker switch is in the ON position, but the water supply to the refrigerator has not been connected. 6HW WKH VZLWFK WR WKH 2)) SRVLWLRQ .HHSLQJ LW LQ WKH 21 position will damage the water valve. Cube dispenser does not work (on some models) Icemaker or water supply turned off. Turn on icemaker or water supply. Ice cubes are frozen to icemaker feeler arm. Remove cubes. An item is blocking or has fallen into the ice chute inside the top bin of the freezer. Remove any item that might be blocking, or has fallen into the chute. Irregular ice clumps in storage container. Break up with fingertip pressure and discard remaining clumps. )UHH]HU PD\ EH WRR ZDUP $GMXVW WKH IUHH]HU FRQWURO WR D colder setting, one position at a time, until clumps do not form. Dispenser is /2&.('. Press and hold the Lock pad for 3 seconds. Water has poor taste/odor (on some models) Water dispenser has not been used for a long time. 'LVSHQVH ZDWHU XQWLO DOO ZDWHU LQ V\VWHP LV UHSOHQLVKHG Water in first glass is warm (on some models) Normal when refrigerator is first installed Wait 24 hours for the refrigerator to completely cool down. Water dispenser has not been used for a long time. 'LVSHQVH ZDWHU XQWLO DOO ZDWHU LQ V\VWHP LV UHSOHQLVKHG Water system has been drained. Allow several hours for replenished supply to chill. Water dispenser does not work (on some models) Water supply line turned off or not connected.

6HH ,QVWDOOLQJ WKH ZDWHU OLQH

Water filter clogged. Replace filter cartridge or remove filter and install plug. Air may be trapped in the water system. Press the dispenser arm for at least two minutes. Dispenser is /2&.('. Press and hold the Lock pad for 3 seconds. Red / Orange glow in the freezer section, steam coming from vents, Popping / hissing sound coming from the freezer area. This is normal operation for glass defrost heater models. The heater is clearing out frost from your refrigerator evaporator for optimum operation. Do not touch the vent area or unplug the refrigerator. It is normal operation and the heater will turn off once the frost has been cleared. 34 49-1000471 Rev. 2Problem Possible Causes What To Do No water or ice cube production Supply line or shutoff valve is clogged. Call a plumber. Water filter clogged. Replace filter cartridge or remove filter and install plug. Dispenser is LOCKED. 3UHVV DQG KROG WKH /2&. &21752/6 SDG IRU seconds. Filter is not properly installed. Filter water leak Replace filter or make sure the water filter is properly installed (refer to water filter section). CUBED ICE was selected but CRUSHED ICE was dispensed (on some models) Last setting was CRUSHED ICE. A few cubes were left in the crusher from the previous setting. This is normal. Refrigerator has odor Foods transmitting odor to refrigerator. )RRGV ZLWK VWURQJ RGRUV VKRXOG EH WLJKWO\ ZUDSSHG .HHS DQ RSHQ ER[ RI EDNLQJ VRGD LQ WKH UHIULJHUDWRU replace every three months. Interior needs cleaning. See Care and cleaning. Moisture forms on outside of refrigerator Not unusual during periods of high humidity. Wipe surface dry. Moisture collects inside (in humid weather, air carries moisture into refrigerator when doors are opened) Too frequent or too long door openings. This is normal fo rthe beverage center. Due to the higher himidity in the refrigerator, you may on occasion experience fog or small amounts of moisture in the refrigerator compartment This is normal for the beverage center loads and environmental conditions change with a paper towel if desired. Interior light does not work No power at outlet. Replace fuse or reset the breaker. For LED lights Call Service. Water on kitchen floor or on bottom of freezer Cubes jammed in chute. Poke ice through with a wooden spoon. Hot air from bottom of refrigerator Normal air flow cooling motor. In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures. This is normal. Refrigerator never shuts off but the temperatures are OK Adaptive defrost keeps compressor running during door openings. This is normal. The refrigerator will cycle off after the door remains closed for 2 hours. Refrigerator is beeping Door is open. Close door. Door not closing properly Door gasket on hinge side sticking or folding over. Apply petroleum jelly on face of gasket Actual temperature not equal to Set temperature Unit just plugged in. $OORZ KRXUV IRU V\VWHP WR VWDELOL]H Door open for too long $OORZ KRXUV IRU V\VWHP WR VWDELOL]H Warm food added to refrigerator $OORZ KRXUV IRU V\VWHP WR VWDELOL]H Defrost cycle is in process $OORZ KRXUV IRU V\VWHP WR VWDELOL]H Troubleshooting Tips... Before you call for service TROUBLESHOOTING TIPS Water spurting from dispenser Newly-installed filter cartridge. Run water from the dispenser for 3 minutes (about 1

gallons). Water is not dispensed (on some models) but icemaker is working Water in reservoir is frozen. Call for service. Refrigerator control setting is too cold. Set to a warmer setting. 49-1000471 Rev. 2 35Ŷ Service trips to your home to teach you how to use the product.

Ŷ ,PSURSHU LQVWDOODWLRQ GHOLYHU\ RU PDLQWHQDQFH

Ŷ )DLOXUH RI WKH SURGXFW LI LW LV DEXVHG PLVXVHG RU used for other than the intended purpose or used commercially.

Ŷ /RVV RI IRRG GXH WR VSRLODJH

Ŷ 5HSODFHPHQW RI KRXVH IXVHV RU UHVHWWLQJ RI FLUFXLW breakers. Ŷ 'DPDJH WR ILQLVK VXFK DV VXUIDFH UXVW WDUQLVK RU VPDOO blemishes not reported within 48 hours of delivery. Ŷ 'DPDJH FDXVHG E\ D QRQ*( $SSOLDQFHV %UDQG ZDWHU filter. Ŷ 5HSODFHPHQW RI WKH ZDWHU ILOWHU FDUWULGJH LI LQFOXGHG GXH to water pressure that is outside the specified operating range or due to excessive sediment in the water supply. Ŷ 5HSODFHPHQW RI WKH OLJKW EXOEV LI LQFOXGHG RU ZDWHU ILOWHU cartridge, if included, other than as noted above. Ŷ 'DPDJH WR WKH SURGXFW FDXVHG E\ DFFLGHQW ILUH IORRGV or acts of God. Ŷ ,QFLGHQWDO RU FRQVHTXHQWLDO GDPDJH FDXVHG E\ SRVVLEOH defects with this appliance. Ŷ 3URGXFW QRW DFFHVVLEOH WR SURYLGH UHTXLUHG VHUYLFH What GE Appliances Will Not Cover: For the Period of: GE Appliances Will Replace GE and GE PROFILE MODELS: One Year

)URP WKH GDWH RI WKH RULJLQDO

purchase Any part of the refrigerator which fails due to a defect in materials or workmanship. 'XULQJ WKH limited one-year warranty, GE Appliances will also provide, free of charge, all labor and related service to replace the defective part. Thirty Days (Water filter, if included)

)URP WKH RULJLQDO SXUFKDVH

date of the refrigerator Any part of the water filter cartridge which fails due to a defect in materials or workmanship. 'XULQJ WKLV limited thirty-day warranty, GE Appliances will also provide, free of charge, a replacement water filter cartridge.

Any part of the sealed refrigerating system (the compressor, condenser, evaporator an all connecting tubing) which fails due to a defect in materials or workmanship. 'XULQJ WKLV Oimited five-year sealed refrigerating system warranty, GE Appliances will also provide, free of charge, all labor and related service to replace the defective part in the sealed refrigerating system. GEAppliances.com For US Customers, DOO ZDUUDQW\ VHUYLFH LV SURYLGHG E\ RXU )DFWRU\ 6HUYLFH &HQWHUV RU DQ DXWKRUL]HG &XVWRPHU &DUH

technician. To schedule service online, visit us at GEAppliances.com, or call GE Appliances at 800.GE.CARES (800.432.2737). Please have your serial number and your model number available when calling for service. In Canada, call 800.561.3344. Refrigerator Limited Warranty

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a GE Appliances Factory Service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its products by providing GE Appliances with information on your appliance. If you do not want your appliance data to be sent to GE Appliances, please advise your technician NOT to submit the data to GE Appliances at the time of service. For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for KRPH XVH ZLWKLQ WKH 86$ ,I WKH SURGXFW LV ORFDWHG LQ DQ DUHD ZKHUH VHUYLFH E\ D *( $SSOLDQFHV $XWKRUL]HG 6HUYLFHU LV QRW DYDLODEOH \RX PD\ EH UHVSRQVLEOH IRU D WULS FKDUJH RU \RX PD\ EH UHTXLUHG WR EULQJ WKH SURGXFW WR DQ $XWKRUL]HG *( $SSOLDQFHV 6HUYLFH ORFDWLRQ IRU VHUYLFH ,Q $ODVND WKH OLPLWHG ZDUUDQW\ H[FOXGHV WKH FRVW RI VKLSSLQJ RU VHUYLFH FDOOV WR \RXU KRPH Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. Warrantor: GE Appliances, a Haier company Louisville, KY 40225 For Customers in Canada: This limited warranty is extended to the original purchaser and any succeeding owner for products SXUFKDVHG LQ &DQDGD IRU KRPH XVH ZLWKLQ &DQDGD ,QKRPH ZDUUDQW VHUYLFH ZLOO EH SURYLGHG LQ DUHDV ZKHUH LW LV DYDLODEOH DQG GHHPHG UHDVRQDEOH E\ 0& &RPPHUFLDO ,QF WR SURYLGH ,I WKH SURGXFW LV ORFDWHG LQ DQ DUHD ZKHUH VHUYLFH E\ D *( $SSOLDQFHV $XWKRUL]HG 6HUYLFHU LV QRW DYDLODEOH \RX PD\ EH UHVSRQVLEOH IRU D WULS FKDUJH RU \RX PD\ EH UHTXLUHG WR EULQJ WKH SURGXFW WR DQ $XWKRUL]HG *( $SSOLDQFHV 6HUYLFH ORFDWLRQ IRU VHUYLFH Warrantor Canada: MC Commercial Inc., Burlington Ontario, L7R 5B6 Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. LIMITED WARRANTY 36 49-1000471 Rev. 2Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty. LIMITED WARRANTY

,I\RXU*($SSOLDQFHVSDUWIDLOVEHFDXVHRIDPDQXIDFWXULQJGHIHFWZLWKLQWKLUW\GD\VIURPWKHGDWHRIRULJLQDOSXUFKDVHIRUXVHZHZLOOJLYH\RX

a new or, at our option, a rebuilt part without charge. Return the defective part to the parts supplier from whom it was purchased together with a FRS\RIWKH³SURRIRISXUFKDVH´IRUWKHSDUW,IWKHSDUWLVGHIHFWLYHDQGVKRZVQRVLJQVRIDEXVHLWZLOOEHH[FKDQJHG7KHZDUUDQW\GRHVQRW FRYHUWKHIDLOXUHRISDUWVZKLFKDUHGDPDJHGZKLOHLQ\RXUSRVVHVVLRQDUHDEXVHG RU KDYH EHHQ LQVWDOOHG LPSURSHUO\ ,W GRHV QRW FRYHU WKH FRVW RIUHWXUQLQJWKHSDUWWRWKHVXSSOLHUIURPZKRPLWZDVSXUFKDVHGQRUGRHVLWFRYHUWKHFRVWRIODERUWRUHPRYHRULQVWDOOLWWRGLDJQRVHWKHIDXOW,W GRHVQRWFRYHUSDUWVXVHGLQSURGXFWVLQFRPPHUFLDOXVHH[FHSWLQWKHFDVHRIDLUFRQGLWLRQLQJHTXLSPHQW,QQRHYHQWVKDOO*($SSOLDQFHVEHliable for consequential damages. Warrantor: GE Appliances, a Haier companyLouisville, KY 40225 Seller: Name AddressCity State ZipSignature 'DWH Buyer: Name AddressCity State ZipSignature 'DWH What GE Appliances will not cover:

Service trips to your home to teach you how to use the product. ,PSURSHU LQVWDOODWLRQ )DLOXUH RI WKH SURGXFW LI LW LV DEXVHG PLVXVHG XVHG IRU RWKHU WKDQ WKH LQWHQGHG SXUSRVH RU XVHG FRPPHUFLDOO\ Ŷ Replacement of house fuses or resetting of circuit breakers. Ŷ 'DPDJH WR WKH SURGXFW FDXVHG E\ DFFLGHQW ILUH IORRGV RU DFWV RI *RG Ŷ ,QFLGHQWDO RU FRQVHTXHQWLDO GDPDJH FDXVHG E\ SRVVLEOH GHIHFWV ZLWK WKLV DSSOLDQFH Water Filter Cartridge XWFE Limited Warranty This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for KRPH XVH ZLWKLQ WKH 86$ ,Q $ODVND WKH OLPLWHG ZDUUDQW\ H[FOXGHV WKH FRVW RI VKLSSLQJ RU VHUYLFH FDOOV WR \RXU KRPHSome states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the consummation of this sale.This form should be retained on file by the seller for a minimum of two years.For the period of GE Appliances will replaceThirty Days )URP WKH GDWHof the original purchaseAny part of the water filter cartridge which fails due to a defect in materials or workmanship during this limited thirty-day warranty.* Contact us at geapplianceparts.com, or call 800.GE.CARES.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to six months or the shortest period allowed by law. 49-1000471 Rev. 2 37Performance Data Sheet Model: GE Appliances XWFE

replacement elements please call 1.877.959.8688 or visit our website at gewaterfilters.com. WARNING To reduce the risk associated with ingestion of contaminants:

• Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before and after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts. NOTICE To reduce the risk of water leakage or flooding, and to ensure optimal filter performance:

• Read and follow use instructions before installation and use of this system. ,QVWDOODWLRQ DQG XVH MUST comply with all state and local plumbing codes.

• Do not install if water pressure exceeds 120 psi (827 N3D,I\RXUZDWHUSUHVVXUHH[FHHGVSVLN3D\RX must install a pressure-limiting valve. Contact a plumbing professional if you are uncertain how to check your water pressure.

• Do not install where water hammer conditions may occur. ,IZDWHUKDPPHUFRQGLWLRQVH[LVW\RXmust install a water hammer arrester. Contact a plumbing professional if you are uncertain how to check for this condition.

• Do not install on hot water supply lines. The maximum RSHUDWLQJZDWHUWHPSHUDWXUHRIWKLVILOWHUV\VWHPLV) (38º C).

• Protect filter from freezing. 'UDLQILOWHUZKHQWHPSHUDWXUHV GURS EHORZ ) &

• Change the disposable filter cartridge every six months or sooner if you observe a noticeable reduction in water flow rate. )DLOXUHWRUHSODFHWKHGLVSRVDEOHILOWHUFDUWULGJHDW recommended intervals may lead to reduced filter performance and cracks in the filter housing, causing water leakage or flooding. 7KLV6\VWHPKDVEHHQWHVWHGDFFRUGLQJWR16)$16, 53, 401 and P473 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part RI WKH )&& 5XOHV 7KHVH OLPLWV DUH GHVLJQHG WR SURYLGH UHDVRQDEOH SURWHFWLRQ DJDLQVW KDUPIXO LQWHUIHUHQFH LQ D residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, WKHUH LV QR JXDUDQWHH WKDW LQWHUIHUHQFH ZLOO QRW RFFXU LQ D SDUWLFXODU LQVWDOODWLRQ ,I WKLV HTXLSPHQW GRHV FDXVH KDUPIXO interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna. ,QFUHDVH WKH VHSDUDWLRQ EHWZHHQ WKH HTXLSPHQW DQG UHFHLYHU

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. &RQVXOW WKH GHDOHU RU DQ H[SHULHQFHG UDGLRWHOHYLVLRQ WHFKQLFLDQ IRU KHOS Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user’s authority to operate the equipment. ConnectPlus module only (or similar communication module) RF Exposure - 7KLV GHYLFH LV RQO\ DXWKRUL]HG IRU XVH LQ D PRELOH DSSOLFDWLRQ $W OHDVW FP RI VHSDUDWLRQ GLVWDQFH between the ConnectPlus device and the user’s body must be maintained at all times. Appliance Communication (on some models) APPLIANCE COMMUNICATION 49-1000471 Rev. 2 39Consumer Support CONSUMER SUPPORT GE Appliances Website Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our on-line support services designed for \RXU FRQYHQLHQFH ,Q WKH 86 GEAppliances.com ,Q &DQDGD GEAppliances.ca Register Your Appliance Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. ,Q WKH 86 GEAppliances.com/register ,Q &DQDGD Prodsupport.mabe.ca/crm/Products/ProductRegistration.aspx Schedule Service Expert GE Appliances repair service is only one step away from your door. Get on-line and schedule your service at your FRQYHQLHQFH DQ\ GD\ RI WKH \HDU ,Q WKH 86 GEAppliances.com/service or call 800.432.2737 during normal business hours. ,Q &DQDGD GEAppliances.ca/en/support/service-request or call 800.561.3344 Extended Warranties Purchase a GE Appliances extended warranty and learn about special discounts that are available while your warranty is still LQ HIIHFW <RX FDQ SXUFKDVH LW RQOLQH DQ\WLPH*( $SSOLDQFHV 6HUYLFHV ZLOO VWLOO EH WKHUH DIWHU \RXU ZDUUDQW\ H[SLUHV ,Q WKH 86 GEAppliances.com/extended-warranty or call 800.626.2224 during normal business hours. ,Q &DQDGD GEAppliances.ca/en/support/purchase-extended-warranty or call 866.277.9842 Parts and Accessories ,QGLYLGXDOV TXDOLILHG WR VHUYLFH WKHLU RZQ DSSOLDQFHV FDQ KDYH SDUWV RU DFFHVVRULHV VHQW GLUHFWO\ WR WKHLU KRPHV 9,6$ 0DVWHU&DUG DQG 'LVFRYHU FDUGV DUH DFFHSWHG 2UGHU RQOLQH WRGD\ KRXUV HYHU\ GD\ ,Q WKH 86 GEApplianceparts.com or by phone at 877.959.8688 during normal business hours. Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation. &XVWRPHUV LQ &DQDGD VKRXOG FRQVXOW WKH \HOORZ SDJHV IRU WKH QHDUHVW DXWKRUL]HG *( $SSOLDQFHV VHUYLFH SDUWV GLVWULEXWRU YLVLW RXU website at GEAppliances.ca/en/products/parts-filters-accessories or call 800.661.1616. Contact Us ,I \RX DUH QRW VDWLVILHG ZLWK WKH VHUYLFH \RX UHFHLYH IURP *( $SSOLDQFHV FRQWDFW XV RQ RXU :HEVLWH ZLWK DOO WKH GHWDLOV LQFOXGLQJ your phone number, or write to: ,Q WKH 86 *HQHUDO 0DQDJHU &XVWRPHU 5HODWLRQV _ *( $SSOLDQFHV $SSOLDQFH 3DUN _ /RXLVYLOOH .< GEAppliances.com/contact ,Q &DQDGD 'LUHFWRU &RQVXPHU 5HODWLRQV 0& &RPPHUFLDO ,QF _ 6XLWH )DFWRU\ /DQH _ 0RQFWRQ 1% (& 0 GEAppliances.ca/en/contact-us 40 49-1000471 Rev. 2Transcrivez les numéros de modèle et de série ici : # de modèle _____________ # de série _______________ Vous trouverez ces numéros sur l’étiquette à l’intérieur du compartiment réfrigérateur dans la partie supérieure droite derrière les commandes. Pub No. 49-1000471 Rev. 2 12-21 GE est une marque déposée de General Electric Company. Fabriqué sous licence de marque.

22 49-1000471 Rev. 2D

REEMPLACE LA PARRILLA
