WineComfort 38 - Wine cellar CASO - Free user manual and instructions

Product type	Wine cellar
Brand	Caso
Model	WineComfort 38
Capacity	Up to 38 bottles
Dimensions (approx.)	Height: 82 cm, Width: 59 cm, Depth: 57 cm (estimated)
Net weight	Approximately 38 kg
Power supply	220-240 V ~ 50 Hz, 16 A protection
Temperature range	5 °C to 20 °C (adjustable by zones)
Temperature zones	2 independent zones (upper and lower)
Display	LED, switchable °C / °F
Interior lighting	Yes, with switch
Material	Glass door, steel body, wooden shelves
Number of shelves	7 removable wooden shelves
Handle	Stainless steel, screw-on door handle
Adjustable feet	Yes (at front)
Climate class	N (ambient temperature 16-32 °C)
Noise level	Approximately 39 dB(A)
Energy consumption	Approx. 175 kWh/year (estimated)
Maintenance	Interior cleaning with warm water and mild detergent; manual defrosting 2 times per year
Safety	Door lock possible; automatic shutdown in case of overheating
Included accessories	Manual, handle with screws, 7 wooden shelves

Frequently Asked Questions - WineComfort 38 CASO

How to adjust the temperature of my WineComfort 38 wine cellar?

Use the + and - buttons on the upper and lower control panels to adjust the temperature between 5°C and 20°C. The average temperature is displayed on the LED indicator. To switch from °C to °F, press both buttons simultaneously for 5 seconds.

What is the maximum capacity of the WineComfort 38?

The WineComfort 38 can hold up to 38 bottles of standard wine. The wooden shelves are removable to accommodate larger bottles.

How to clean the interior of the wine cellar?

Before cleaning, turn off the unit and unplug it. Clean the interior with a soft cloth dampened with warm water and a mild detergent. To avoid odors, add a little baking soda (2 teaspoons per 1/4 liter of water). Dry thoroughly.

Why is my wine cellar making noise?

Gurgling or humming noises are normal (compressor and refrigeration circuit). If the noise is excessive, check that the unit is level, not touching the wall, and that the shelves are properly secured.

How to manually defrost the WineComfort 38?

Defrost at least twice a year. Turn off the unit and unplug it. Leave the door open to allow the ice to melt. Place a container under the condensation collector (at the back, bottom right) to collect water. Then wipe the interior.

What to do if an error message 'E2' appears?

Error E2 indicates a problem with the temperature sensor. Contact CASO customer service for repair. Do not attempt to repair it yourself.

How to install the door handle?

The stainless steel handle simply screws onto the door using the provided screws. Align the handle with the designated holes and tighten the screws by hand.

Why is there condensation on the glass door?

Condensation forms when humid air comes into contact with the cold glass. This often happens in humid weather or if the door is opened frequently. Close the door quickly and reduce opening.

How to turn the interior light on or off?

Press the « Light » button located on the control panel to turn the interior lighting on or off.

What is the ideal temperature for red wine and white wine?

For red wine, set between 12°C and 16°C; for white wine, between 6°C and 10°C. Use the two temperature zones of your cellar to optimize storage.

USER MANUAL WineComfort 38 CASO

Front view of a stainless steel oven with multiple shades of blue and white panels (no visible text or symbols)

Front view of a stainless steel refrigerator with multiple shelves and control panels (no visible text or symbols)

Front view of a stainless steel refrigerator with multiple shelves and control panel (no visible text or labels)

Braukmann GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Service-Hotline International:

Tel.: [phone] / 80 55 4 - 99

Fax: [phone] / 80 55 4 - 77

eMail: [e-mail]

8.1 General 23
8.2 Information on this manual....23
8.3 Warning notices....23
8.4 Limitation of liability 24
8.5 Copyright protection ...... 24
9 Safety 24
9.1 Intended use....24
9.2 General Safety information 25
9.3 Sources of danger 25
9.3.1 Risk of fire / flammable materials used. Danger of burns or of explosion....25
9.3.2 Dangers due to electrical power....26
10 Commissioning....26
10.1 Safety information 26
10.2 Delivery scope and transport inspection....26
10.3 Unpacking 27
10.4 Disposal of the packaging....27
10.5 Setup 27
10.5.1 Setup location requirements: 27
10.5.2 Legs/feet 28
10.5.3 The handle installing 28
10.5.4 Wine shelves....29
10.5.5 To remove a shelf 29
10.6 Electrical connection....29
11 Design and Function....30
11.1 Complete overview .... 30
12 Operation and Handing....30
12.1 Operating elements and displays....31
12.2 Rating plate....31
13 Cleaning and Maintenance ....31
13.1 Safety information .... 32
13.2 Cleaning 32
13.3 Moving the appliance .... 33
14 Troubleshooting ....33
14.1 Safety notices .... 33
14.2 Fault indications and rectification of faults 33
15 Disposal of the Old Device ....34
16 Mode d'emploi....36
16.1 Généralités....36
16.2 Informations relatives à ce manuel .... 36

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Normaler Boden

Abstract geometric pattern with three horizontal oval shapes and rounded ends, no text or symbols present.

unterer Boden

Interior view of an electronic device showing internal components and wiring (no readable text or symbols)

Original Operating Manual

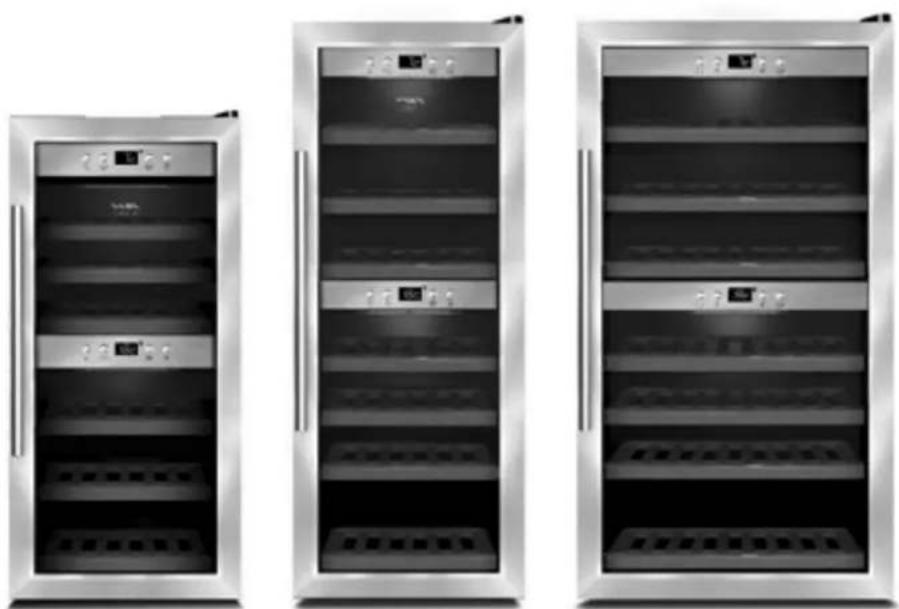

WineMaster 24 (645) WineMaster 38 (650) WineMaster 66 (660)

Three identical stainless steel refrigerator units with black and white panels, no visible text or labels.

CE SGS Gegrütte Sicherheit No-drawn car Home

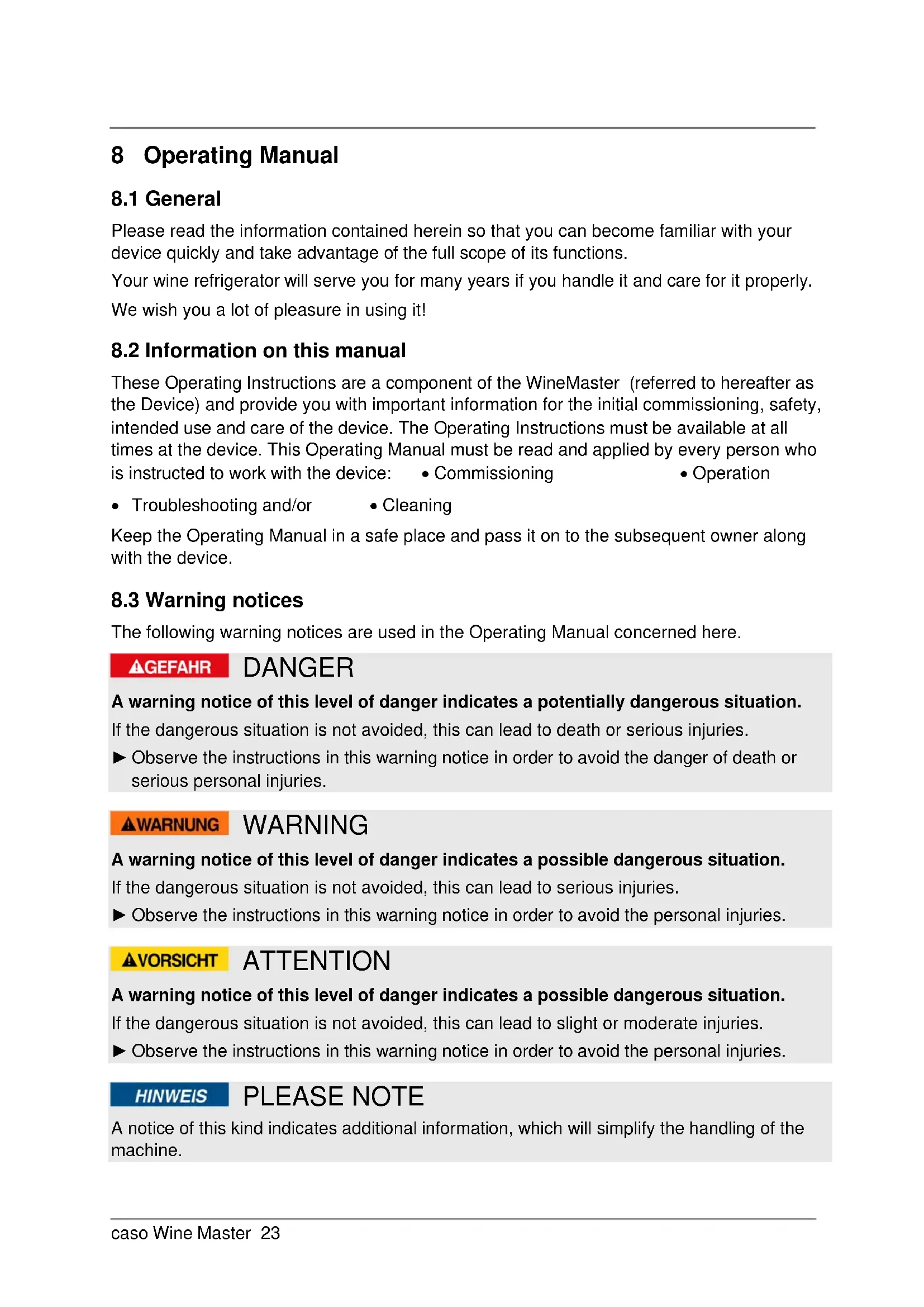

8 Operating Manual

8.1 General

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your wine refrigerator will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

8.2 Information on this manual

These Operating Instructions are a component of the WineMaster (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who

is instructed to work with the device: • Commissioning • Operation

- Troubleshooting and/or - Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

8.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

⚠GEFAHR

DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG

WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT

ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS

PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

8.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
- Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

8.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

9 Safety

This chapter provides you with important safety notices when handling the device.

The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

9.1 Intended use

This device is only intended for use in households in enclosed spaces for cooling wine and other beverages. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG WARNING

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

9.2 General Safety information

HINWEIS PLEASE NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children shall not play with the appliance.
▶ Cleaning and user maintenance shall not be made by children without supervision.
▶ Do not use the wine refrigerator for storing foodstuff. The temperature is not cold enough to keep food fresh.
▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

9.3 Sources of danger

9.3.1 Risk of fire / flammable materials used. Danger of burns or of explosion

AGEFAHR DANGER

There is a danger of burns and explosion due to excess pressure that is created in the event the device is not used properly.

Observe the following safety notices to avoid dangers of burns or an explosion:

Warning: Risk of fire / flammable materials used.

AGEFAHR DANGER

▶ Do not store explosive substances such as aerosol cans with a flammable propellant in this device.
▶ Blowing gas inside the unit is flammable.
▶ Do not damage the cooling circuit of the device.

AGEFAHR DANGER

▶ Do not use electrical devices inside the device.
▶ Do not use mechanical devices or other means to accelerate the defrosting process.
▶ Never use the device to store or dry flammable materials.
▶ Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
▶ Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

9.3.2 Dangers due to electrical power

▲GEFAHR Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

▶ Before changing the inner light, turn off the appliance first and then unplug the unit from the wall outlet.
▶ If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
▶ Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

10 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

10.1 Safety information

▲WARNUNG WARNING

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

▶ Packaging materials may not be used for playing. There is a danger of suffocation.
▶ Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

10.2 Delivery scope and transport inspection

As a rule, the WINEMASTER is delivered with the following components:

- Wine refrigerator WINEMASTER - 6 wooden bottoms (645)

• 7 wooden bottoms (650, 660)

- Operating Instructions with handle and screws

HINWEIS Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

10.3 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.
• Clean the interior surface with lukewarm water using a soft cloth.
• Your wine refrigerator should only be moved in an upright position.
• After at least 12 hours, plugging the appliance into the wall outlet, than place wine bottles or beverages in the appliance.

HINWEIS Please note

▶ Only remove the blue protective film shortly before setting up the device in the location where it will be used, to prevent scratches and dirt accumulations.

10.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal.

HINWEIS Please note

▶ If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

10.5 Setup

10.5.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.

• Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.

• Ambient temperature below 16^ C or above 38^ C will hinder the performance of the appliance.

• This unit is not designed for use in a garage or any other outside installation.
• Do not set up the device in a hot, wet or extremely damp environment or near flammable material.
• The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 10 cm around the appliance.
• Do not cover up any openings on the device and do not block these off.
• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.
• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.
• For energy saving reasons please ensure that the door is closed when the appliance is turned on.

10.5.2 Legs/feet

There are FOOT (3 bigger feet and 1 small foot).

To level your appliance, adjust the front legs at the bottom of the appliance.

10.5.3 The handle installing

The wine cooler comes with one metal stainless steel handle. To install simply screw them to the door with the supplied screws.

Simple line drawing of a vertical pipe or tube inside a circle, with an arrow pointing to the pipe (no text or symbols)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

To do this, slide the rubber seal on the back of the door to the side to lay open the predrilled holes. Use the included screws to install the handle on the door.

Then reinsert the rubber seal in the correct position.

Simple line drawing of a vertical line within a circle, no text or symbols present

Simple line drawing of a vertical structure inside a circle, with no text or symbols present.

10.5.4 Wine shelves

Three identical white cylindrical objects arranged horizontally on a gray background (no text or symbols)

Usual bottom
Lower bottom

Abstract geometric pattern with three horizontal oval shapes and rounded ends, no text or symbols present.

10.5.5 To remove a shelf

Remove all bottles from the shelves. Lift the shelf upwards and the gently pull it out, (eventually untighten the screws).

HINWEIS

Please note

▶ Ensure that the tabs are firmly engaged in place before storing any bottles.
▶ Any of the wine shelves can be removed to accommodate larger bottles.
▶ Spread your bottles out as evenly as possible over the shelves, so weight is not concentrated in one point; and make sure your bottles will not touch the back of the cabinet.

10.6 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cut-out switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm ^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under or over hot or sharp surfaces.
• This unit is not designed to be installed in an RV or used with an inverter.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
  The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

11 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

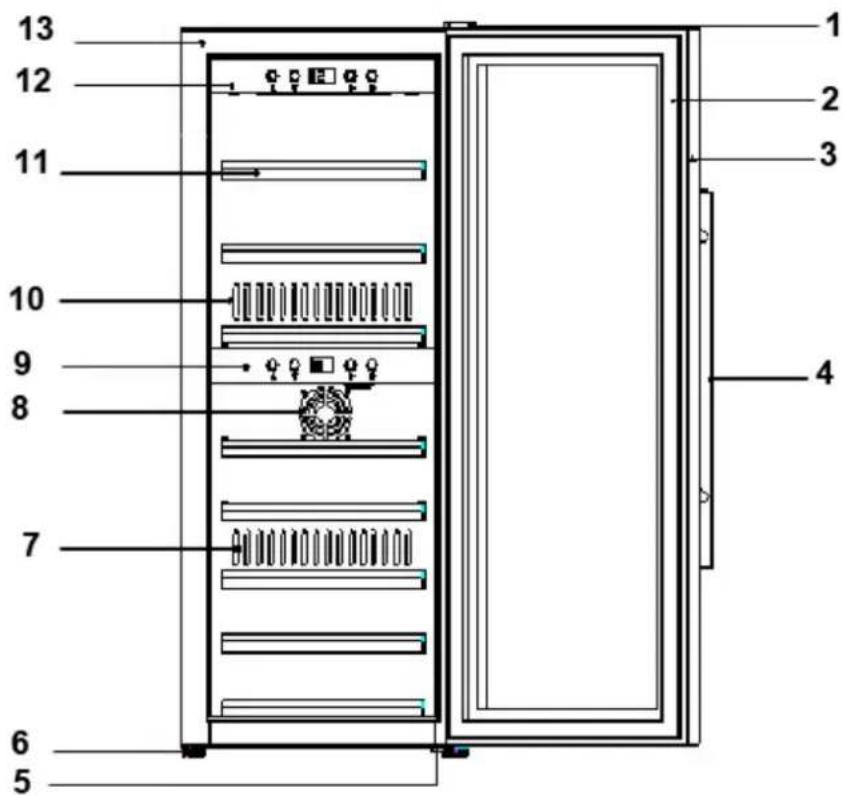

11.1 Complete overview

13 12 11 10 9 8 7 6 5 1 2 3 4

(1) Up Hinge Cover

(2) Door Sealing

(3) Door Frame (lockable)

(4) Door Handle

(5) Down Hinge (adjustable foot)

(6) Foot

(7) Hot Air Outlet

(8) Air inlet

(9) Control Panel (Down)

(10) Cold Air Outlet

(11) Rack 6 pcs (645)

7 pcs (650, 660)

(12) Control Panel (Up)

(13) Housing

12 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

12.1 Operating elements and displays

HINWEIS

Please note

▶ Use the buttons 🚗 and ▼ to set the temperature for both zones in the range of 5-20°C.
▶ Temperature recommendations: Red wine: 12°C – 16°C and white wine 6°C – 10°C.
▶ The display indicates the average temperature of the appliance at the moment.
▶ When both - up and down zone - are working, the temperature of upper zone must be lower than down zone.
▶ Due to the technical structure of the device the level of energy efficiency is higher if a colder or the same temperature is set in the upper zone compared to the lower zone.

^ ∨ 886 ⚫ ⏻

If you press the power button of : Upper zone -> the device is switched on

Down zone -> the down zone is switched on/off

When the LED lights the device is working.

With pushing both ▲ and ▼ for 5 seconds, the temperature display mode will be exchange between °C and °F.

You can set the temperature as your desire: With 🏠 and ⬇ you can adjust the temperature by 1°C among 5-20°C.

You can tune the interior light on or off by pressing the "Light" button.

The temperature in the device depends on the room temperature, the quantity of bottles and the chosen temperature.

12.2 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

13 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

13.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

▶ Prior to commissioning, clean the appliance thoroughly.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.
▶ Do not scrape off stubborn dirt with hard items.

▶ Switch the wine cabinet off prior to cleaning it and unplug the plug from the wall power outlet. Remove all content.

13.2 Cleaning

◆ Interior space

Wash the inside with a damp cloth soaked in lukewarm water and a bit of mild detergent.

Tip for neutralisation of odors: Wash the inside with a damp cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quarter of water. After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.

Door gasket

Be sure to keep the door gasket clean to keep the unit running efficiently.

Cabinet

The cabinet should be cleaned with a mild detergent and warm water.

Use a soft, damp cloth for drying.

◆ Vent opening

Dust or anything else may block the vent and hinder the cooling efficiency of the appliance. Vacuum the vent if necessary.

◆ Container for condensed water (K)

Remove regularly the condensed water with a sponge from the container for condensed water. The container is located on the back side of the device at the right bottom.

◆ Manual defrosting

Interior view of an electronic device showing a transformer, circuitry, and wiring (no readable text or symbols)

Please defrost the device at least every 6 months. When you open the door of the device frequently, you need to perform the defrosting more often.

Turn off the power and unplug the power cord. Let the appliance then defrost manually. Pay attention to the container for condensed water(K) and remove the condensed water during the defrosting.

13.3 Moving the appliance

Turn off the appliance first and then unplug the unit from the wall outlet.

Remove all content. Shurely tape down all lose items inside your appliance.

Tape doors shut. Be sure the wine refrigerator stays in the upright position during transportation.

14 Troubleshooting

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

14.1 Safety notices

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

14.2 Fault indications and rectification of faults

The following table assists in localizing and rectifying minor faults.

Fault	Possible Cause
Wine refrigerator do not operate.	Not plugged in using different voltage. The circuit breaker tripped or a blown fuse.
Your device is not cold enough or it does not reach the adjusted temperature:	Check the temperature control setting.External environment may require a higher setting.The door is open too often. The door is not closed completely.The door seal does not seal properly.The wine refrigerator does not have the correct clearance.Defrost the device.
The light does not work.	Check the service center.
Vibrations.	Check to assure that the wine refrigerator is level.
The wine refrigerator seems to make to much noise	The wine refrigerator is not level.Check the fan.
The door will not close properly.	The wine refrigerator is not level.The door is reversed and not properly installed.The seal is weak. The shaves out of position.
LED could not display. Main control board does not work.	PCB Problem. There is some problem with the plug.
LED display error - Lo	Weak quality of display.Temperature point is out off. Check the service center.
Bottoms are not functional.	Temperature controller panel is damaged.
Compressor will not start	Room temperature is lower than desired temperature.
Compressor re-start Co	mpressor will stop working when cooling system in the cabinet reaches presetting temperature, and re-start working until the desired temperature is achieved. Allow a minimum 5 minute interval before re-starting.
Dew on the surface of cabinet :	The surface of wine cabinet especially the glass door appear some frost if item in a damp room. This is due to the moisture in the air coming into contact with the cabinet. Please wipe it away with dry cloth.
Liquid sound	(1)、The sound of compressor when starts or stops working(2)、The flowing sound of refrigerant in the refrigeration system(3)、The evaporating sound of refrigerant in the evaporator
Condensation formed inside the cabinet	Under the environment with high level of humidity or the door of wine cabinet has been left open for a long period or opened frequently, wipe off the door and walls and leave the door closed as long as possible.
Error code E2 Please contact customer service.

▲VORSICHT Attention

▶ If you are unable to solve the problem with the steps shown above, please contact Customer Service.

15 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS Please note

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away: Before you throw away your old refrigerator take off the doors and leave the shelves in place, so that children may not easily climb inside.
▶ Blowing gas inside the unit is flammable. The disposal of this flammable material should be in accordance with national regulations.

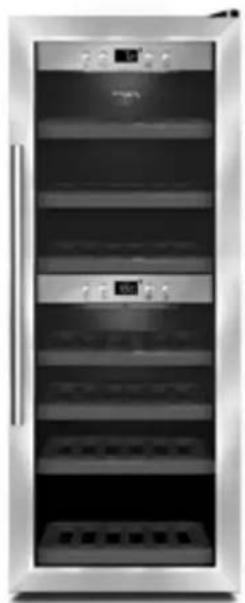

Three identical stainless steel refrigerator units with digital display cases, shown from different angles (no visible text or labels)

CE SGS Gezinifte Sicherheit -

16 Mode d'emploi

16.1 Généralités

Simple line drawing of a mechanical or electrical component inside a circle, with no text or symbols present.

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Simple line drawing of a circular object with a vertical line and a small circle below, no text or symbols present.

Simple line drawing of a mechanical or electrical component with no visible text, numbers, or symbols.

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Rayonnages normal

Pure diagram of three parallel cylindrical objects with rounded ends, no text or symbols present

Interior view of an industrial appliance showing a coiled electrical component with wiring and labeled parts (no readable text or symbols)

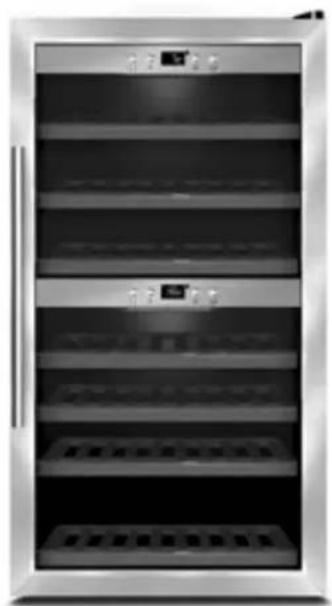

Three identical stainless steel refrigerator units with black and white panels, no visible text or labels.

CE SGS GS Caprolite Sicherheit No. 1 House

23 Istruzioni d'uso

23.1 In generale

Simple line drawing of a vertical pipe or tube with an arrow pointing to it, enclosed in a circle (no text or symbols)

Diagram of a mechanical or electrical component with directional arrows and a circular outline (no text or symbols)

Simple line drawing of a circular object with internal vertical lines and a small circle at the bottom (no text or symbols)

Simple line drawing of a mechanical component inside a circle, showing internal structure and motion arrows (no text or symbols)

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Abstract geometric pattern of three horizontal oval shapes with rounded ends, no text or symbols present.

Ripiani normale

Ripiani inferiore

Interior view of an electronic device showing a black box with internal components and wiring, no readable text or symbols present.

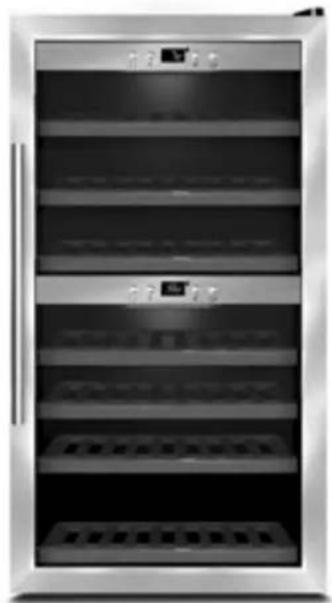

Three identical stainless steel refrigerators with black panels and control panel, shown from different angles (no visible text or labels)

CE SGS Gegrütte Sicherheit No-drawn car House

Simple line drawing of a vertical pipe or tube inside a circle, with an arrow pointing to the pipe (no text or symbols)

Simple line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Simple line drawing of a vertical line within a circle, no text or symbols present

Simple line drawing of a vertical pipe or pipe passing through a circular opening, with no text or symbols present.

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Estante normal

Abstract geometric pattern with three horizontal oval shapes and rounded ends, no text or symbols present.

Estante inferior

Interior view of an industrial refrigerator with visible wiring, cooling unit, and warning label (no readable text or symbols beyond labels)

Front view of a stainless steel double boiler cabinet with control panel and indicator lights (no visible text or labels)

Front view of a stainless steel refrigerator with multiple shelves and control panel (no visible text or symbols)

Front view of a stainless steel refrigerator with multiple shelves and control panels (no visible text or symbols)

CE SGS Gehrliche Sicherheit HUA House

▲WARNUNG WAARSCHUWING

Simple line drawing of a vertical pipe or channel with an arrow pointing to the left side (no text or symbols)

Diagram of a mechanical or structural component with directional arrows, no visible text or symbols

Simple line drawing of a vertical pipe or tube with a numbered label (no text or symbols present)

Pure mechanical diagram showing a lever and guide mechanism without any text or symbols

Three identical white cylindrical objects with flared ends, arranged horizontally on a gray background (no text or symbols)

Normaal plateau

Abstract geometric pattern with three horizontal oval shapes and rounded ends, no text or symbols present.

Onderste plateau

41.5.4 Houten bewaarplateaus

Interior view of an industrial appliance showing internal components and wiring (no readable text or symbols)
