USER MANUAL RHIP680X ROSIERES

TROUBLESHOOTING....12

ENVIRONMENTALPROTECTION....12

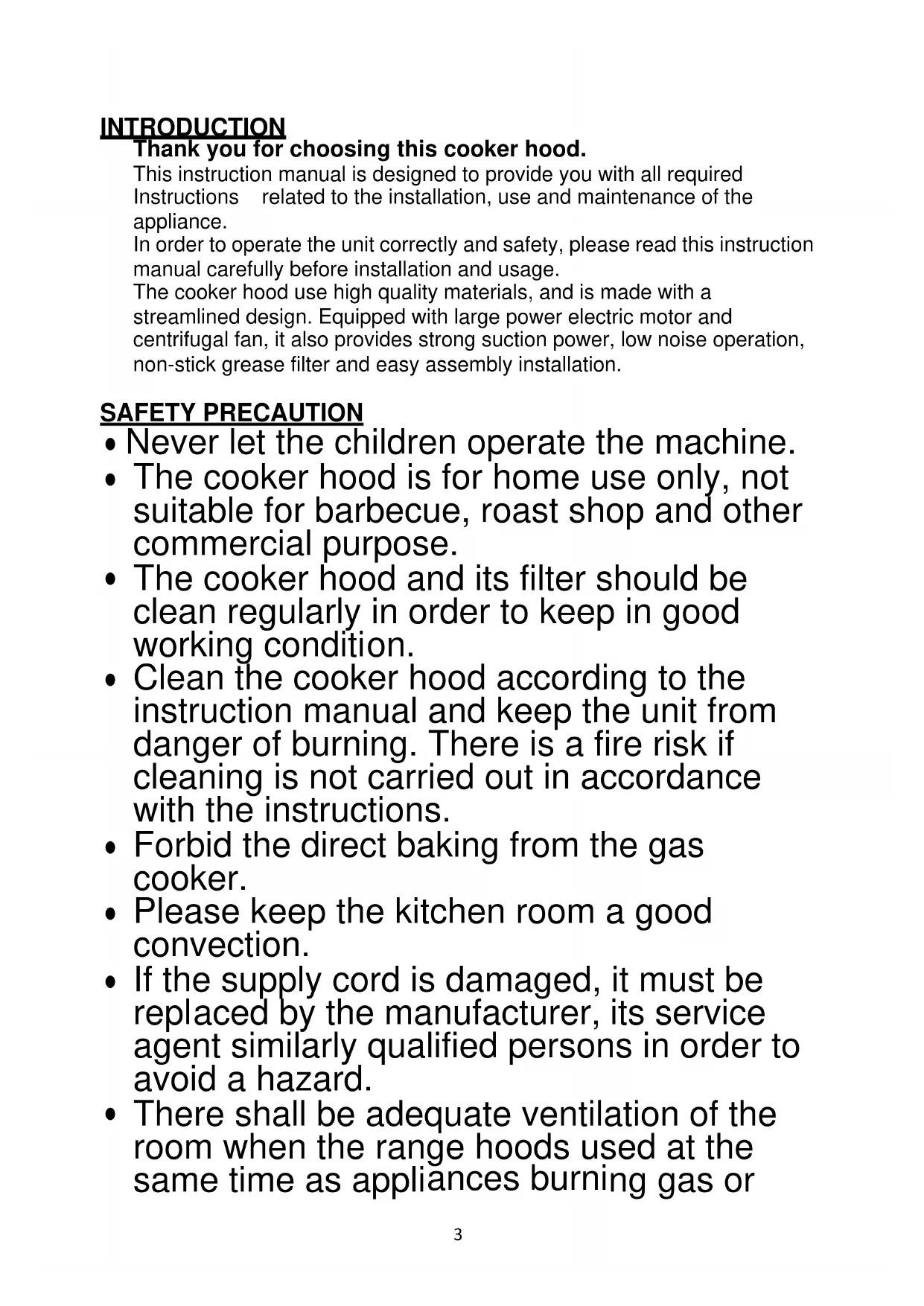

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required Instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood use high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

- Never let the children operate the machine.

- The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.

- The cooker hood and its filter should be clean regularly in order to keep in good working condition.

- Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. There is a fire risk if cleaning is not carried out in accordance with the instructions.

- Forbid the direct baking from the gas cooker.

- Please keep the kitchen room a good convection.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent similarly qualified persons in order to avoid a hazard.

- There shall be adequate ventilation of the room when the range hoods used at the same time as appliances burning gas or

other fuels;

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;
• Regulations concerning the discharge of air have to be fulfilled.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not flame under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliance.
• The warning shall be in the same part of the instructions that include details of how to mount the equipment.

Electrical Shock Hazard

• Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
• Failure to follow these instructions can result in death, fire, or electrical shock.

Prepare for installation:

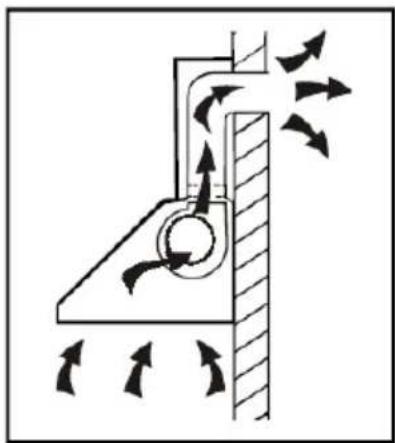

a. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols present)

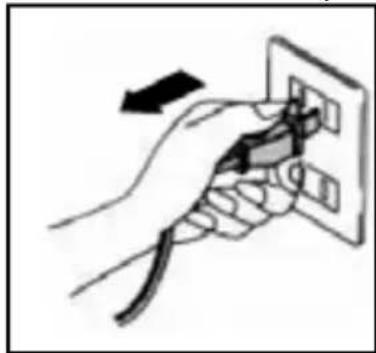

b. Before installation, turn the unit off and unplug it from the outlet.

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

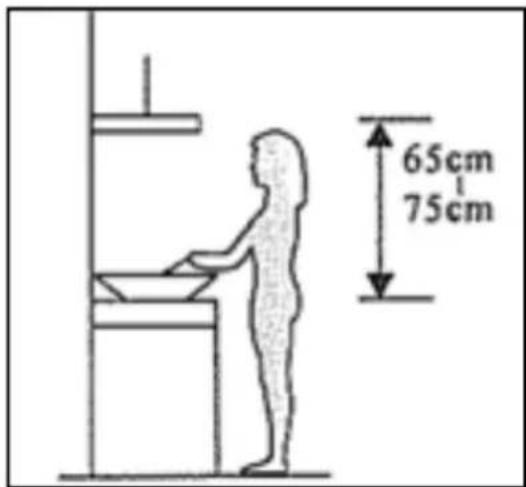

c. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

65cm 75cm

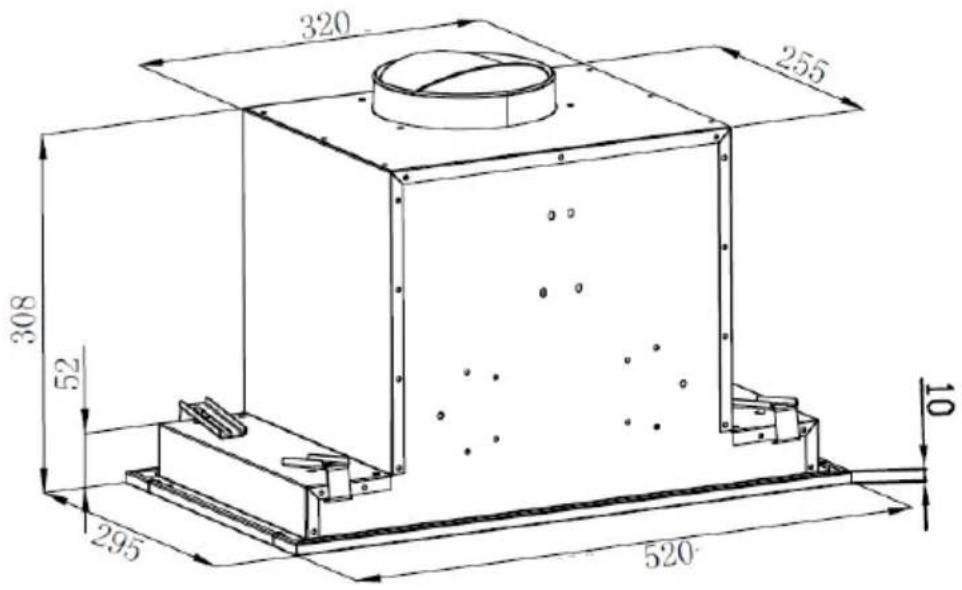

Specifications

320 255 308 52 295 10 520

Model Product dimension(W,D,H mm)

RHIP680X 520mm x 295mm x 308mm

Installation

• The typical installation method for your range hood is into a purpose built overhead/wall cabinet.

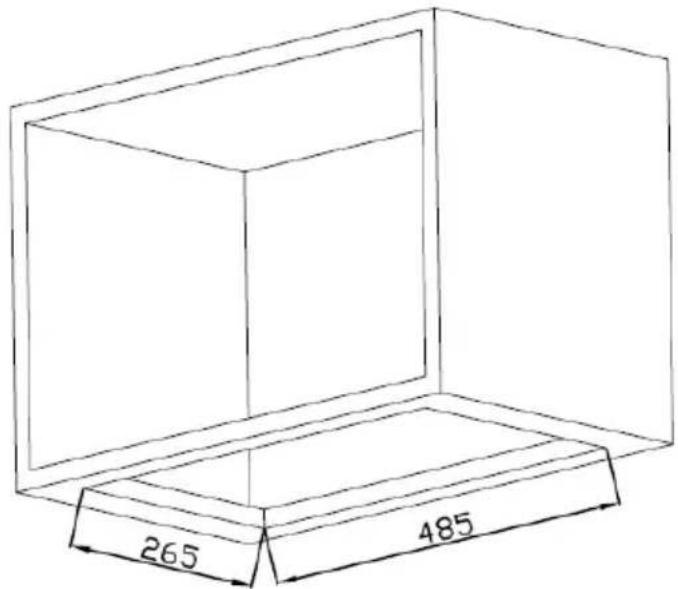

• Using a jigsaw, create the required cut-out for your range hood, as per the following:
  ● RHIP680X: 485 × 265mm
• Make sure the cut-out is at least 20mm from the cabinet edge.

265 485

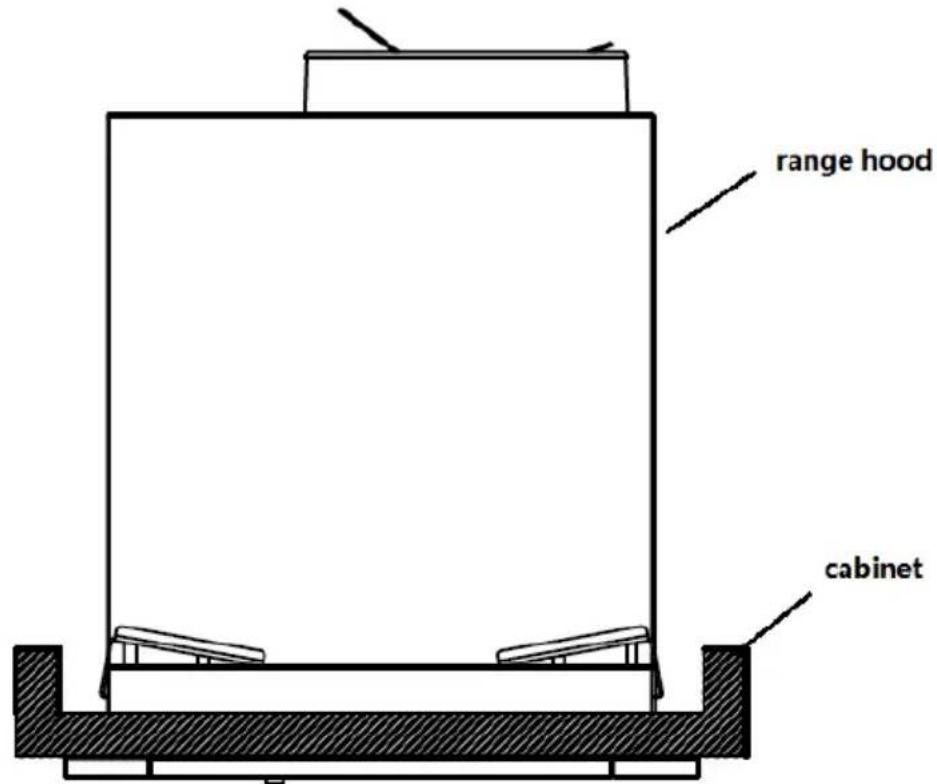

1. Insert the range hood to the cabinet

range hood cabinet

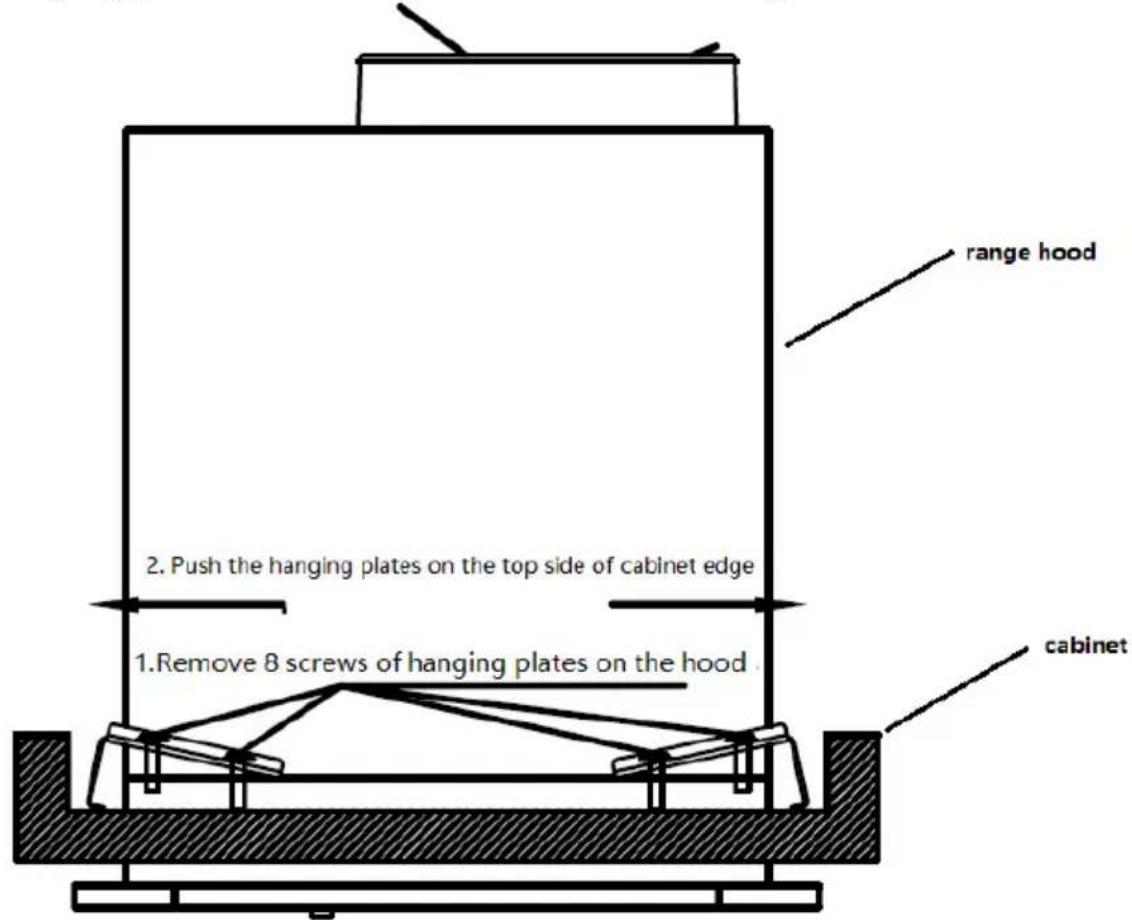

1. Remove 8 screws of 4 hanging plates on the range hood, push the 4 hanging plates on the top side of cabinet edge.

range hood 2. Push the hanging plates on the top side of cabinet edge 1. Remove 8 screws of hanging plates on the hood cabinet

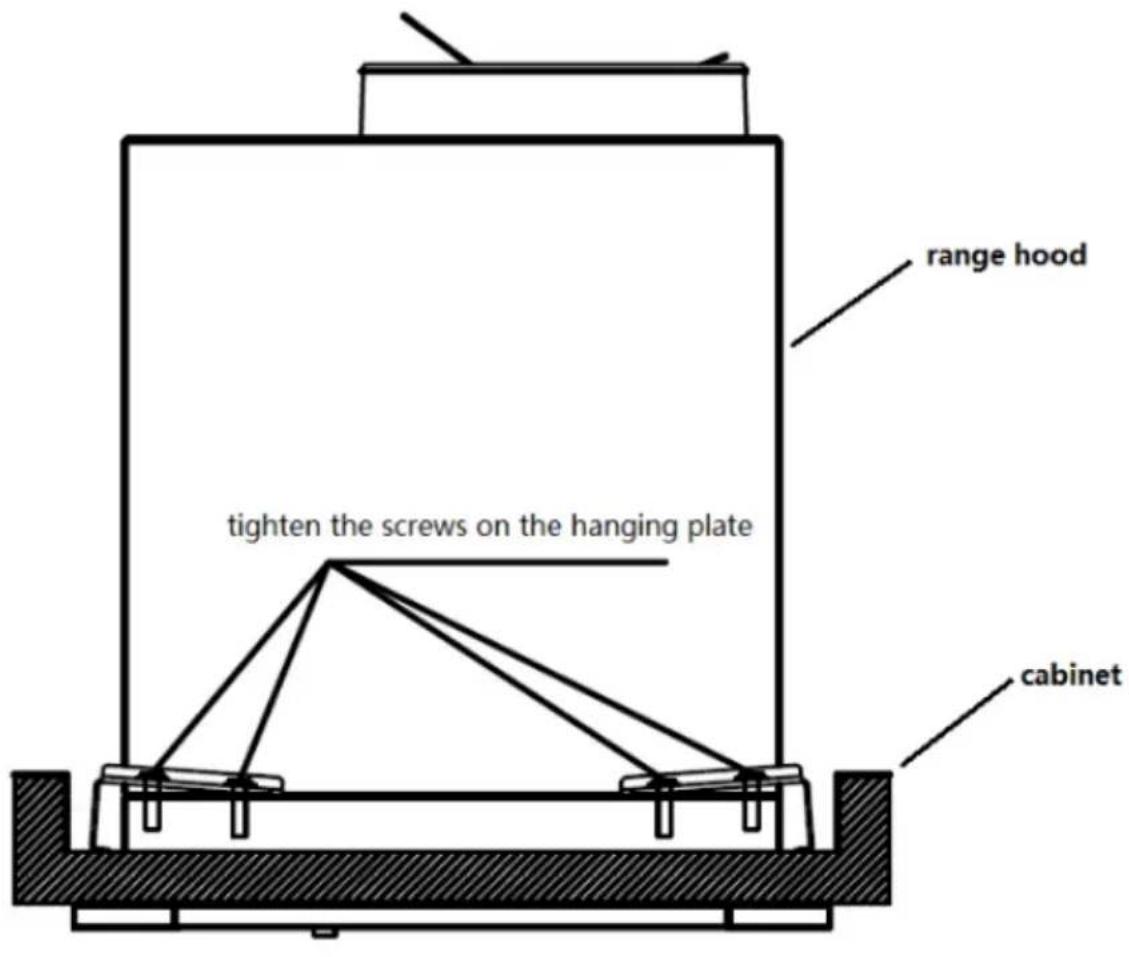

1. Screw 4 hanging plates onto the range hood using 8 screws( previously removed on step 2). Note: Make sure the screws MUST be securely tightened.

range hood tighten the screws on the hanging plate cabinet

Activated carbon filter can be used to trap odors.

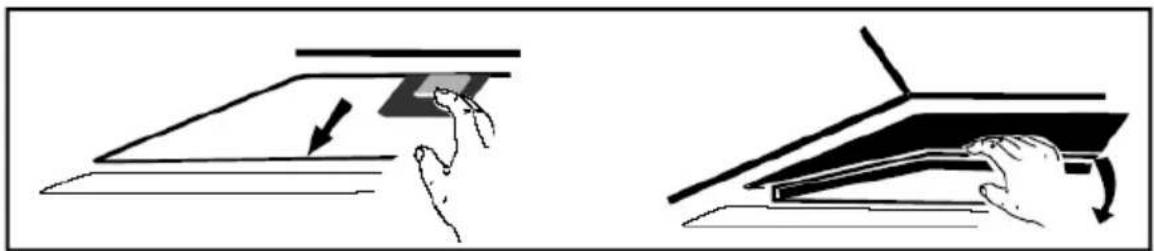

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Illustration showing two hand gestures interacting with a laptop screen (no text or symbols)

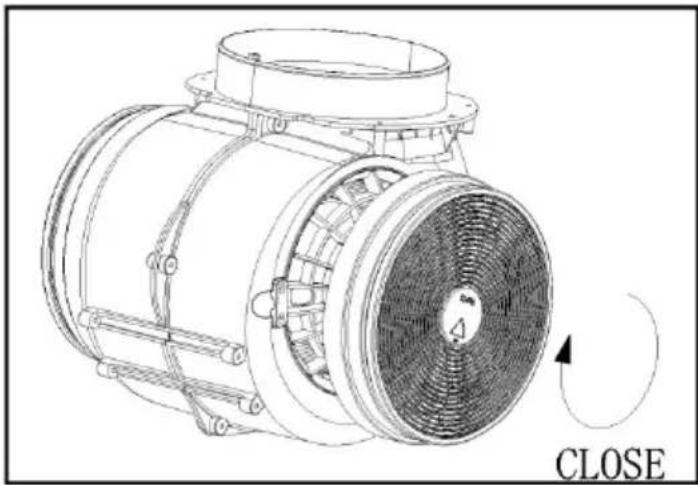

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

NOTE:

○ Make sure the filter is securelylocked. Otherwise, it would loosen and cause dangerous.
- When activated carbon filter attached, the suction power will be lower.

OPERATION

Electronic button

1

2

3

B

STANDBY MODE

After plug in, all lighting, system in STANDBY MODE.

1 Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

2 Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

3 High Speed button

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

B Booster button

Depress this button to enter into highest speed and it will increase speed for 5 minutes, before slowing down again.

Light button

Short press for lamp control.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust.....so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

III. Lamp Replacement

1. Switch the unit off and unplug the appliance.
2. Remove the lamp cover by unscrewing the 2 screws.
3. Unscrew the LED lamp
4. Replace with the same type and lamp

● LED lamp (12V max, 1.5W).

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch of the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
