| Brand | Güde |
| Model | GHS 5007 TED |

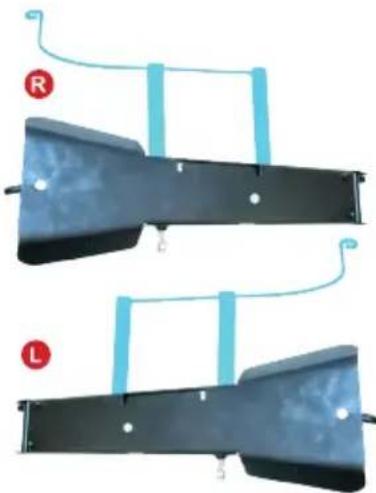

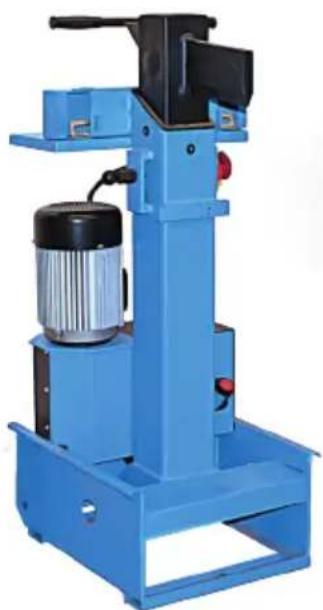

| Product type | Vertical log splitter |
| Power supply | 400 V / 50 Hz, three-phase |
| Rated power | 2.1 kW (S6/40%) |
| No-load rotation speed | 2820 min⁻¹ |
| Maximum hydraulic pressure | 250 bar |
| Maximum splitting force | 7 tons |
| Splitting stroke | 470 mm |
| Allowable log length | 250 - 500 mm |
| Allowable log diameter | 50 - 300 mm |
| Hydraulic oil tank capacity | 2 L (HLP 46) |
| Feed speed | 0.03 m/s (splitting) / 0.15 m/s (return) |
| Overall dimensions | 600 x 800 x 1500 mm |
| Weight | 87 kg |
| Sound intensity level LWA | 86 dB(A) |
| Protection class | F |
| Protection type | IP54 |
| Safety devices | Two-lever control, emergency stop, 30 mA residual-current circuit breaker recommended |
| Maintenance | Check hose seals every 4 h, replace worn parts, use original parts |
| Repairability | Spare parts available at www.guede.com |
| Warranty | 24 months for end consumer, 12 months for professional use |
Frequently Asked Questions - GHS 5007 TED Güde
How to start the Güde GHS 5007 TED log splitter?
Check the hydraulic oil level and plug the machine into a 400 V outlet with a residual-current circuit breaker. Lower both control levers simultaneously to lower the wedge. The motor should start automatically.
What are the essential safety instructions?
Always wear safety glasses, gloves, safety shoes, and hearing protection. Never use the machine with two people. Keep hands away from the splitting area. Make sure the log is well secured against the table.
Why does the motor not start?
Check for power at the outlet, the condition of the power cord, and the fuse. The extension cord must be suitable (5 conductors, cross-section 2.5 mm²). If the problem persists, have the machine checked by an electrician.
What to do if the splitting wedge does not go up or down?
Check that the two-lever control is operated correctly. If the control valve is defective, replace it only in an authorized workshop. Make sure there is enough hydraulic oil (level between the marks).
The machine lacks power during splitting, what to do?
Check the motor rotation direction (must match the arrow). Check the hydraulic oil level and top up if necessary. Grease the splitting wedge if the wood has knots. Check that the descent rod is not bent.
How to maintain the splitter?
Before any maintenance, unplug the machine. Check the seals of hydraulic hoses and tighten the connections after 4 hours of operation. Clean with a damp cloth, without solvents. Change the hydraulic oil according to the manufacturer's recommendations.
Can I use an extension cord?
Yes, but it must be suitable for outdoor use, with a cross-section of at least 2.5 mm² and 5 conductors for three-phase. Make sure it is not damaged and does not hinder movement.
How to transport the splitter?
Use the intended transport device (wheels and handle). Secure the machine with straps to prevent tipping. Always unplug before moving.
What to do in case of log jamming?
Turn off the machine immediately by pressing the red emergency stop button, then unplug. Remove the jammed piece of wood manually. Never force the wedge with your hands.
Where to find spare parts and after-sales service?
Go to www.guede.com, Service section. You will find the spare parts list, technical support, and contact details: phone +49 (0) 79 04 / 700-360, email support@ts.guede.com.
