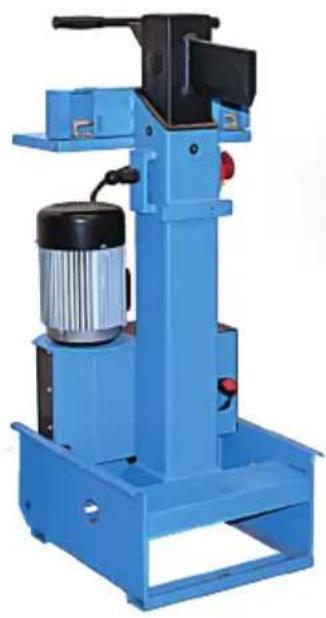

USER MANUAL GHS 5006TE Güde

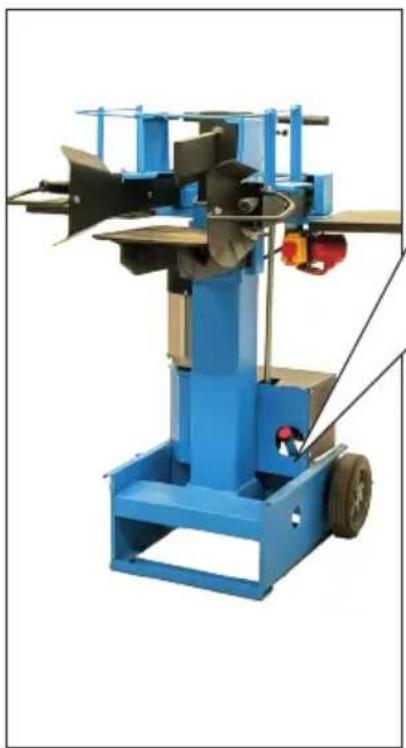

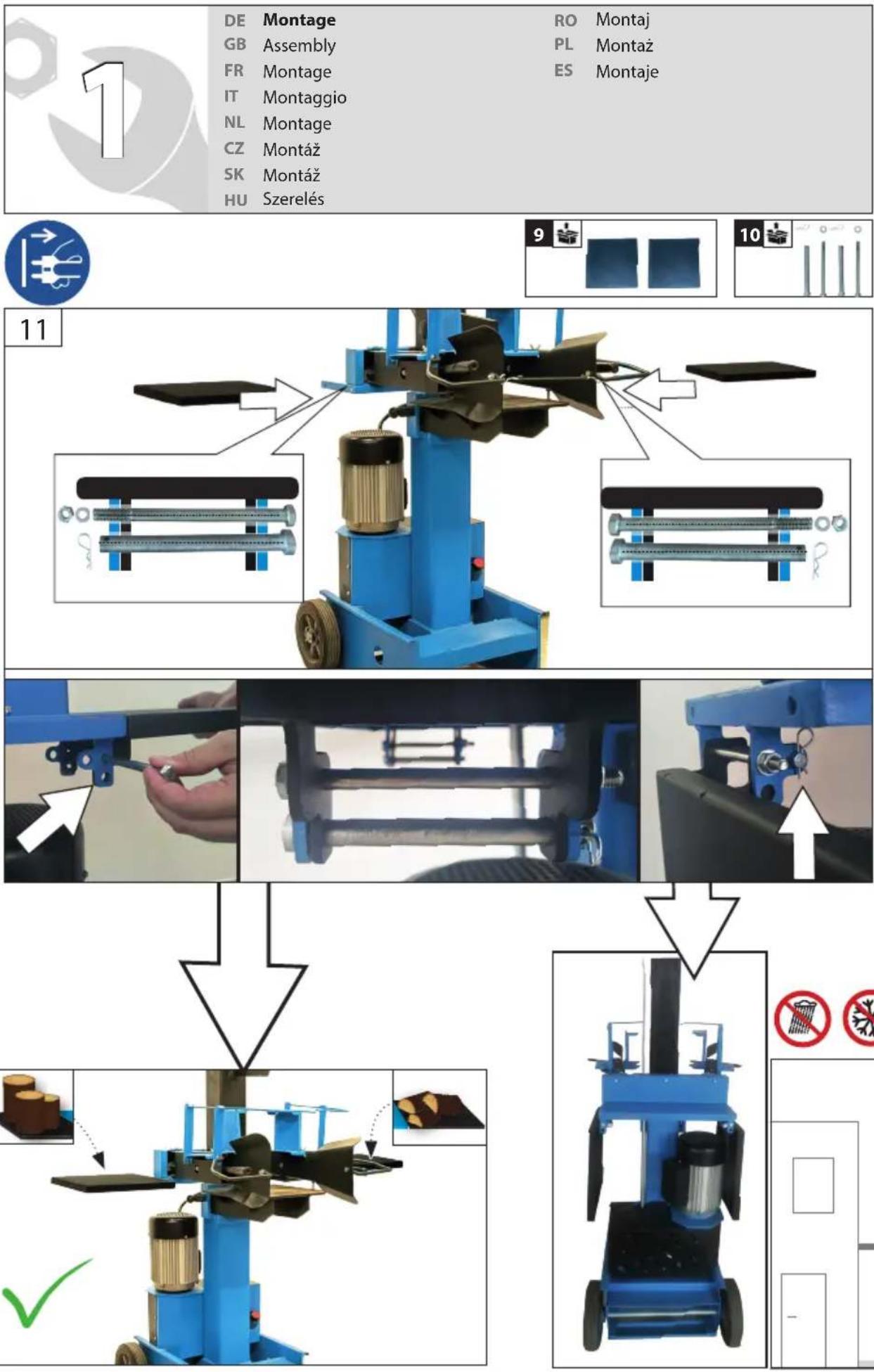

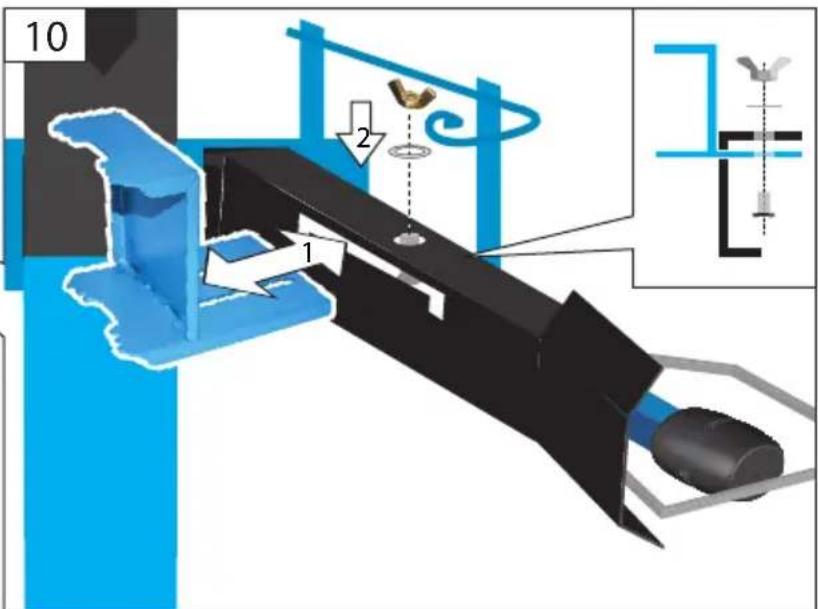

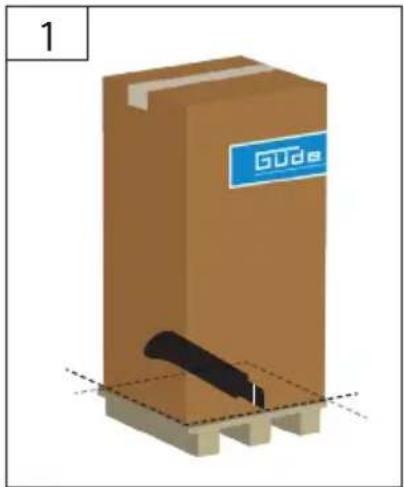

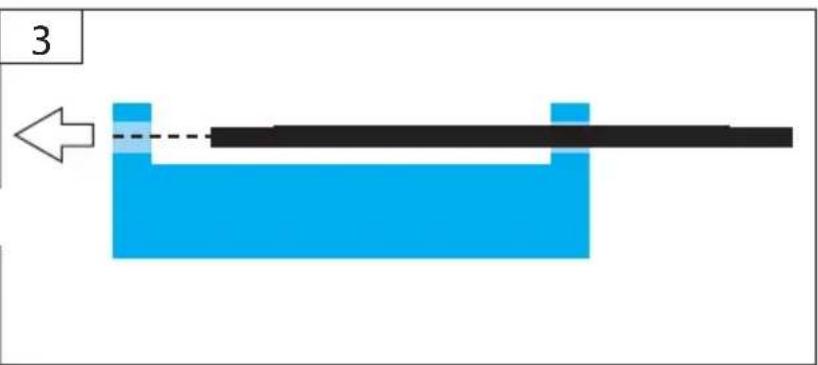

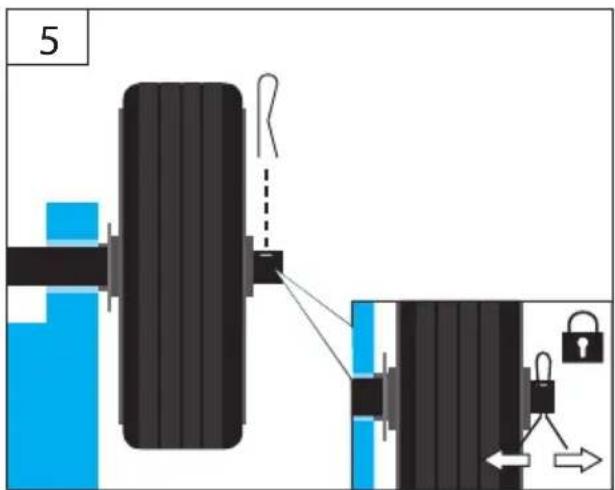

Starting-up the machine

Cleaning / Maintenance

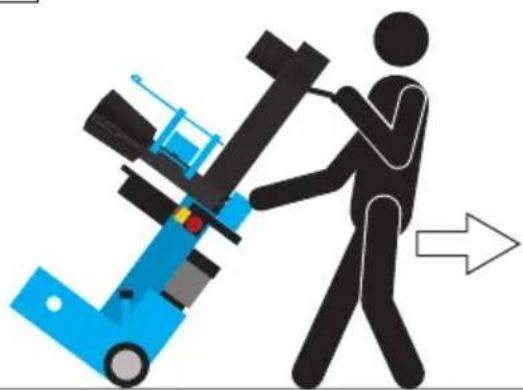

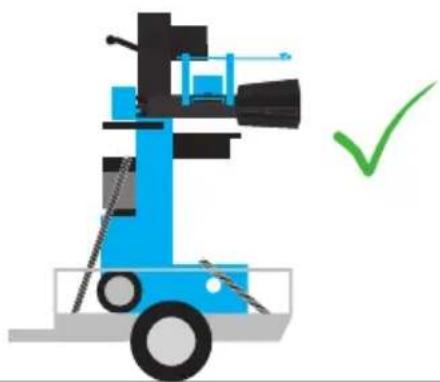

Transport / Stockage

Transport / Bewaring

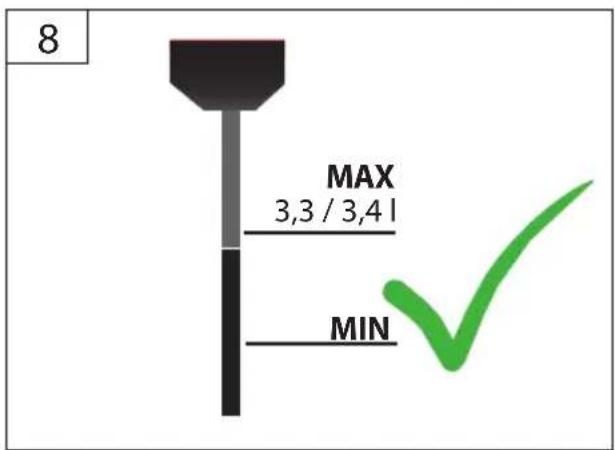

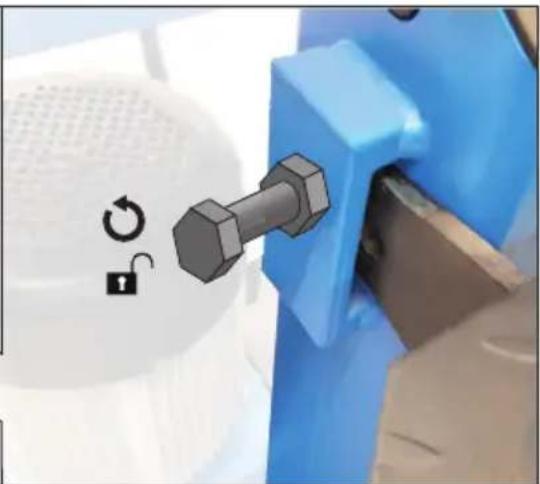

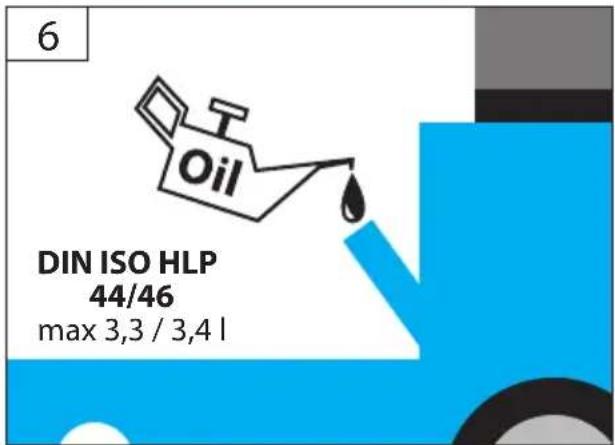

Oil level inspection

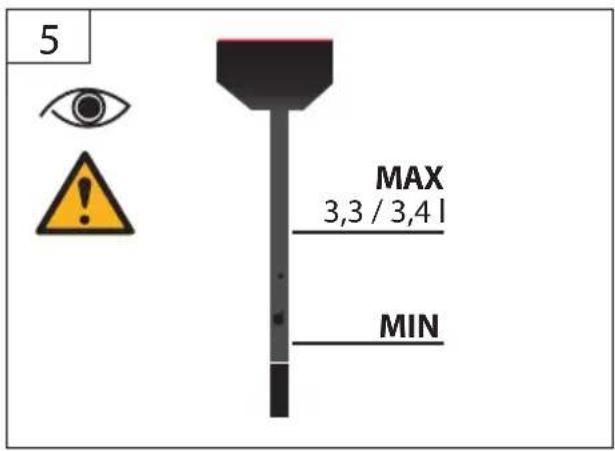

Oil level inspection

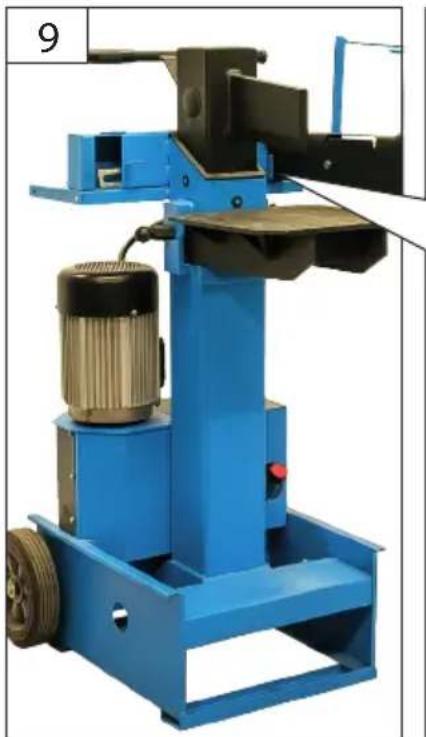

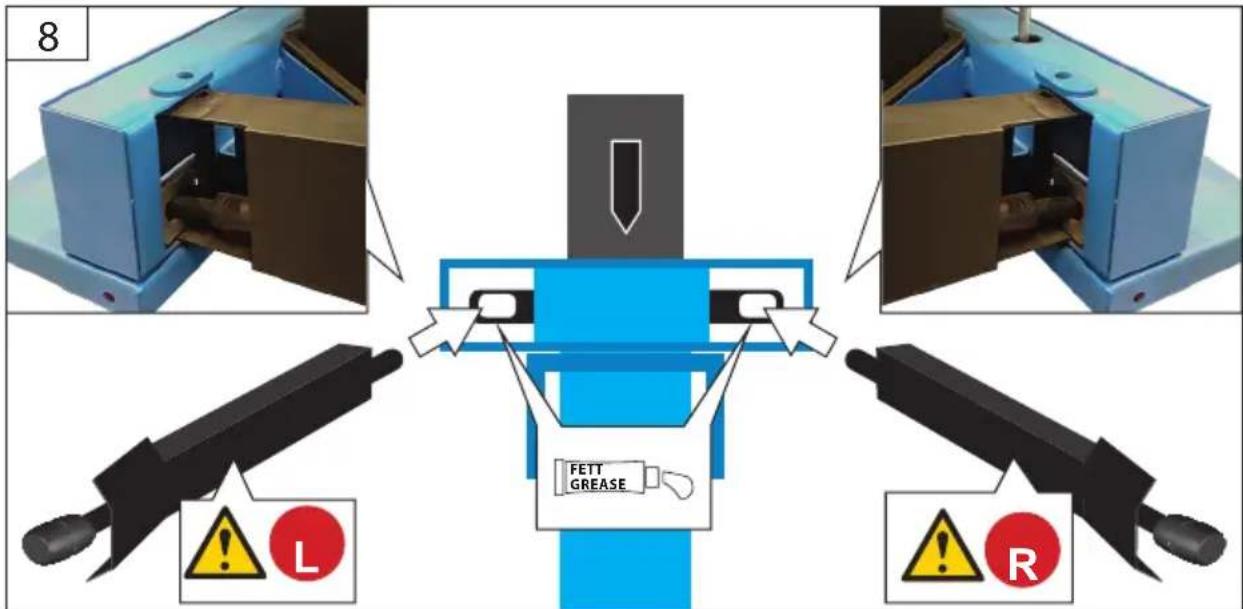

Cleaning / Maintenance

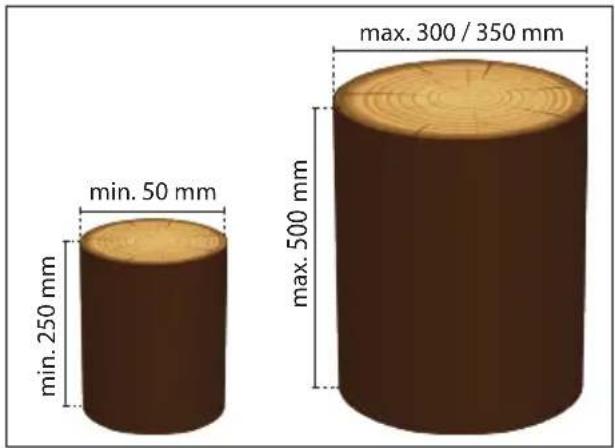

Weight 98 kg 115 kg 112 kg Sound power level LWA 86 dB(A) 87 dB(A) 87 dB(A) The values stated are emission values and as such do not necessarily constitute values which are safe for the workplace. Although there is a correlation between emission levels and environmental impact levels, whether further precautions are necessary cannot be derived from this. Factors in uencing the actually present environ

mental impact level in the workplace include the characteristics of the work area and other noise sources, i.e. the number of machines and other neighbouring work processes. The permitted workplace values can likewise vary from country to country. This information is intended to assist the user in estimating hazards and risks.

ENGLISH Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties. Persons over 16 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. In case of any doubts about connection and operati

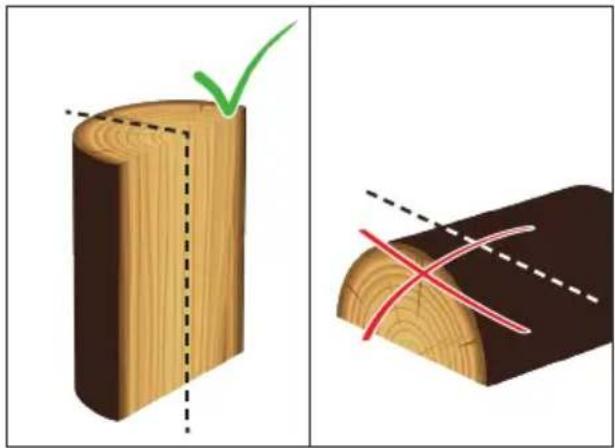

on refer please to our customer center The operating personnel must be adequately trained in the use, adjustment and operation of the device. Specied Conditions Of Use The wood splitter has only been designed to split wood in the bre direction. Respecting technical data and safety precautions. When splitting, it is essential to make sure the split wood contacts the checkered sheet of the splitting desk. The machine may only be used if it is fully assem

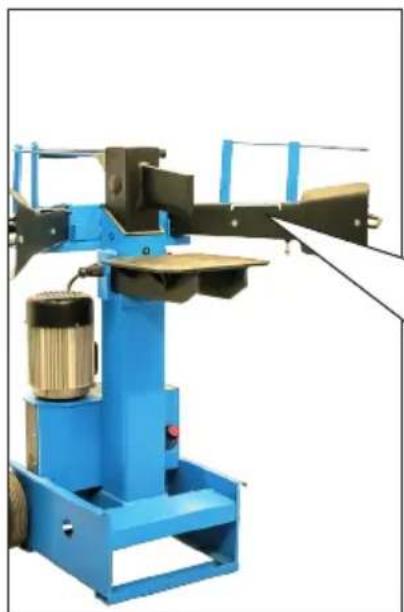

bled. Operation of a machine that is not fully assem- bled is strictly prohibited. The device must not be used without the attach

ment tables. It is essential to follow instructions for installation, operation, repairs, etc. to prevent hazards and damage. Please do not forget that this machine, as designed, is not intended for industrial use. Make sure there are no persons in the working area during operation or make sure such persons keep a sucient safety distance. This appliance is not intended for use by children. The wood splitter has been designed to be operated by 1 person. The machine must never be operated by two or more persons. Wood splitter being operated by two persons, with one holding a piece of wood and the other controlling the clamps is strictly prohibited. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages. Residual risks Dry and dried-up wood may jump up when being split and injure the face of the operator. Adequate protective clothes to be worn! Wooden pieces produced during splitting may fall down and injure legs of the operator. When splitting wood, parts of body may be crushed or separated due to hydraulic knife lowering. There is a risk of branchy wood getting stuck when being split. Please be advised that wood being separated is under heavy pressure and your ngers may get squeezed in the gap. Caution! Pieces of wood cut at the right angle to be split only! Diagonally cut pieces of wood may slip when cutting! General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warningsand instructions may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool orbattery- operated (cordless) power tool.

1) Safety in the place of work

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmos

pheres, such as in the presence ofammable liquids, gases or dust. Power tools create sparks which may ignite thedust or fumes. c) Keep children and bystanders away while ope

rating a power tool.Distractions cancause you to lose control.26

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do notuse any adapter plugs with earthed (grounded) power tools. Unmodied plugs andmatching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,ranges and refrigerators. There is an increased risk of electric shock if your body isearthed or grounded. c) Do not expose power tools to rain or wet con

ditions. Water entering a power toolwill increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging thepower tool. Keep cord away from heat, oil, sharp edges or moving parts. Damagedor entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable foroutdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual currentdevice (RCprotected supply. Use of an RCD reduces the risk of electric shock.

3) Safety of persons

a) Stay alert, watch what you are doing and use common sense when operating apower tool. Do not use a power tool while you are tired or under the inuence ofdrugs, alcohol or medi

cation. A moment of inattention while operating power toolsmay result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protectiveequipment such as dust mask, non-skid safety shoes, hard hat, or hearing protectionused for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the o-position beforeconnecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that havethe switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrenchor a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables bettercontrol of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothingand gloves away from moving parts. Loose clothes, jewelle

ry or long hair can becaught in moving parts. g) If devices are provided for the connection of dust extraction and collectionfacilities, ensure these are connected and properly used. Use of dust collection canreduce dust-related hazards.

4) Use and treatment of electric tools

wer tool for your application. Thecorrect power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and o. Any power toolthat cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from thepower tool before making any adjustments, changing accessories, or storingpower tools. Such pre

ventive safety measures reduce the risk of starting the powertool accidentally. d) Store idle power tools out of the reach of child

ren and do not allow personsunfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts,breakage of parts and any other condition that may aect the po

wer tool’soperation. If damaged, have the pow- er tool repaired before use. Many accidentsare caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharpcutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with theseinstructions, taking into account the working conditions and the work to beperformed. Use of the power tool for operations dierent from those intended couldresult in a hazardous situation.

a) Have your power tool serviced by a qualied repair person using only identicalreplacement parts. This will ensure that the safety of the power tool is maintained. Safety Instructions Using the wood splitter may lead to some hazards. Therefore, the machine may only be handled by instructed and experienced persons.27

ENGLISH Wear suitable protective clothing such as sturdy shoes with non-slip sole, robust long trousers, gloves, safety glasses and hearing protection! Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals. In the event of a blockage, switch o the machine immediately. Disconnect the power plug and remo

ve the jammed piece of wood. Mains Connection WARNING! Electric shock! There is a risk of an injury caused by electric shock! Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA). Check the voltage. Technical data given on the type label must correspond with electric network voltage. Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations. Only for 400 volt machines: It is essential to respect the engine rotation direction (see the arrow on the engine) as operation in wrong direction would da

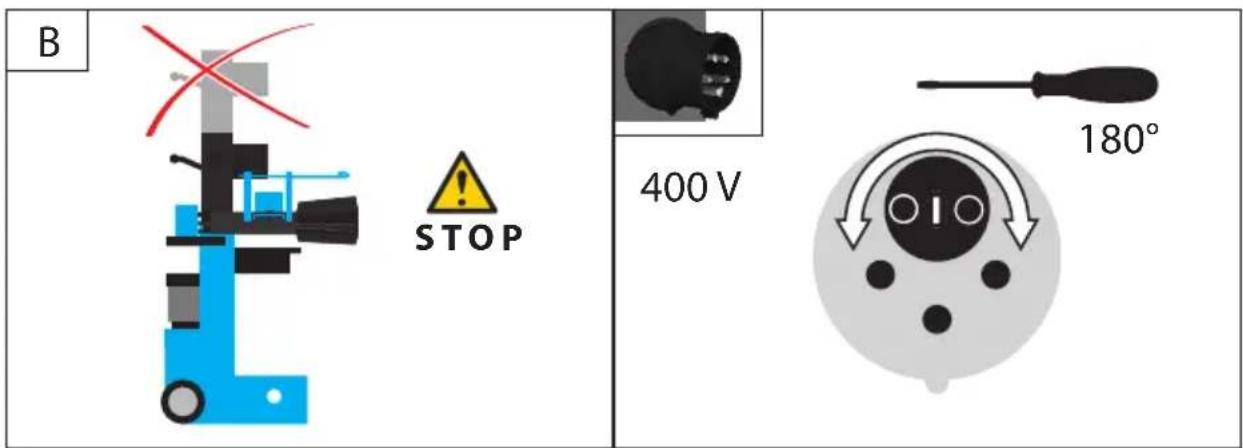

mage the oil pump. Warranty claims cannot apply in such a case. Change the rotation direction by turning the connector polarity if necessary. Pursuant to the provisions of „CE“ professional associations, etc., all splitters are tted with an undervoltage release in the switch. This will prevent accidental repeated starting in case of current inter

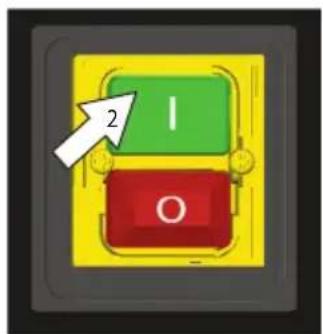

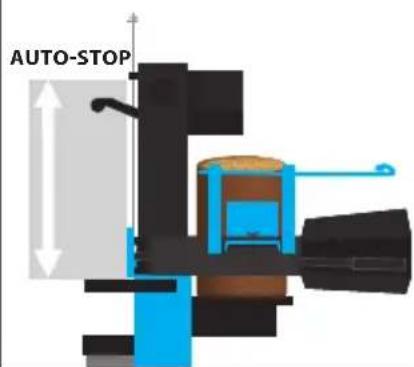

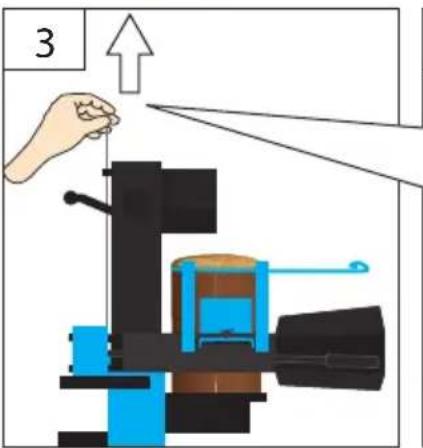

ruption due to power failure, accidental unplugging, defective fuse, etc. The machine must necessarily be turned on again by repeated pressing of the green switch. Wilful holding or blocking of the switch, unless being a neutral, will automatically lead to switch failure. The warranty will not apply in such a case that must naturally be checked. Work preparation Before putting the machine into operation, working of the safety guards (two-lever operation system, in particular) must be checked.

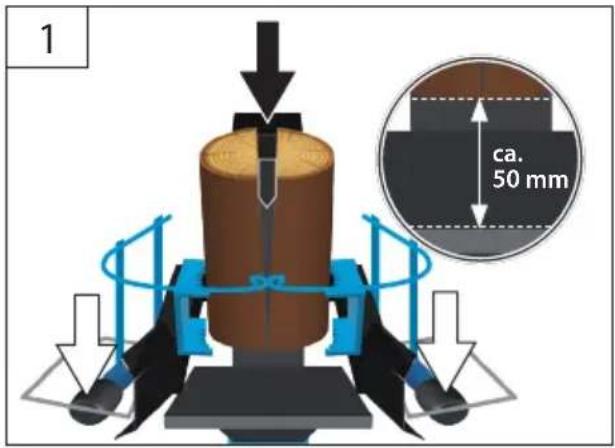

• Put both control levers down and the splitter knife down, app. 5 cm above the desk.

• One control lever to be released at all times, with the splitter knife remaining in the selected position. Carry out a visual inspection before switching the appliance on.

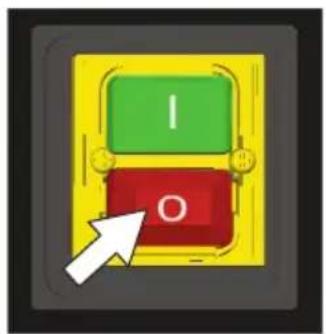

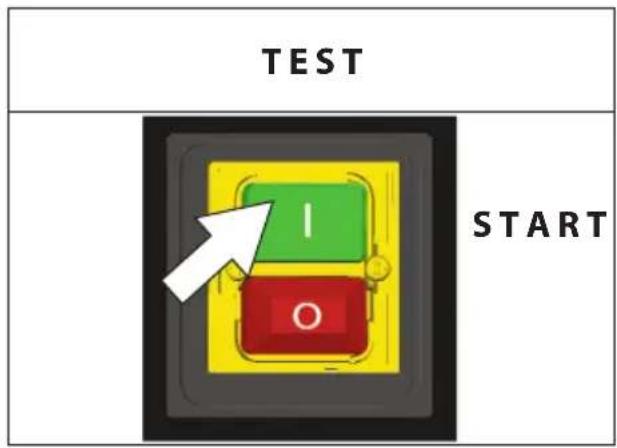

• Proper function of the on and o button, incl. the emergency switch.

• Before starting work, check hydraulic lines and hoses for leaks.

• Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropri

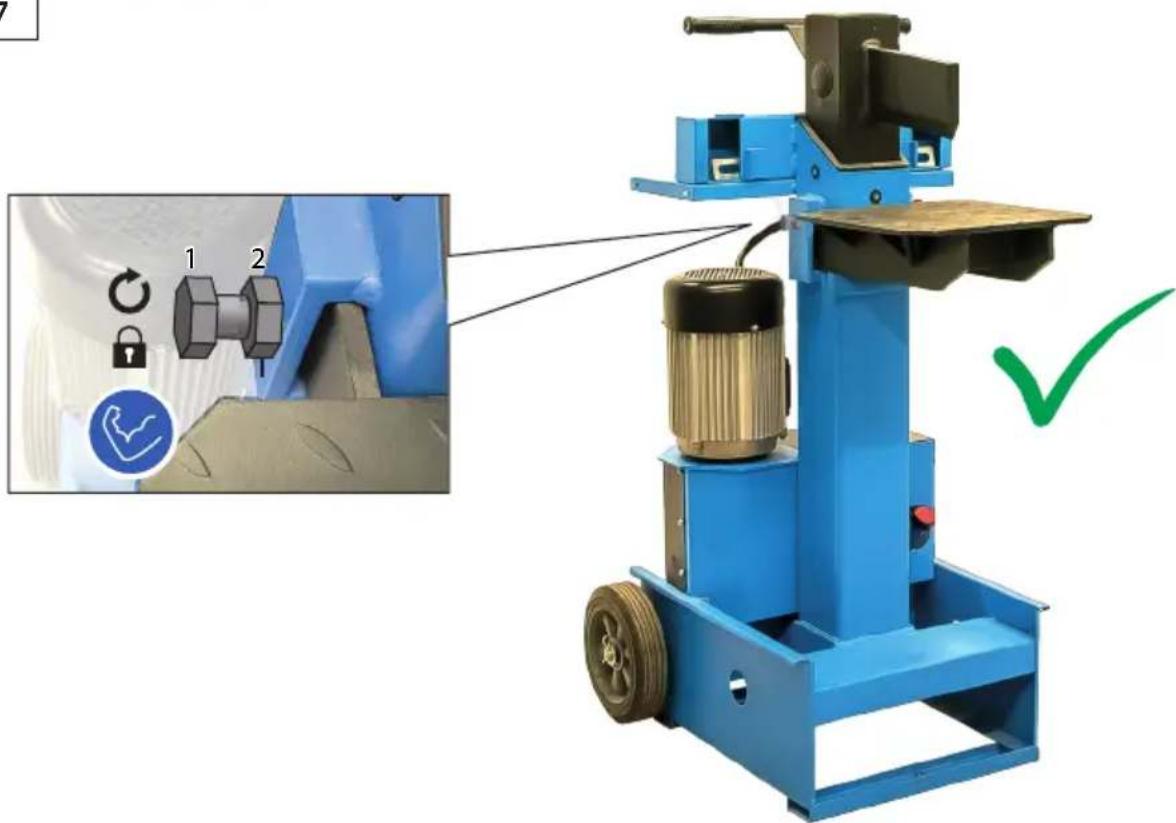

ately. The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts. CAUTION! Whenever the machine is to be put into operation, make sure the splitter desk is rmly and safely tted to the machine. Working area For safe wood splitting, it is essential that the wor

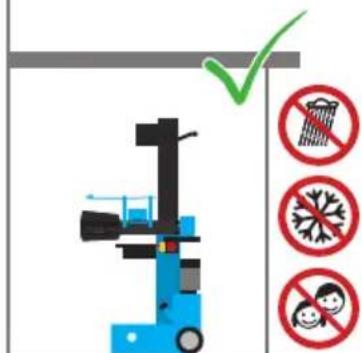

king area is at and slip-resistant and that a sucient space for moving is provided. To take the wood splitter to your home, it is necessary there are no obstacles in the way, i.e. no risk of tripping. Adequate lighting of the working area needs to be provided. When being operated, the machine must stand on a horizontal and at surface and the oor around the machine must be at, well-maintained and with no waste, such as sawdust and cuttings. Operation

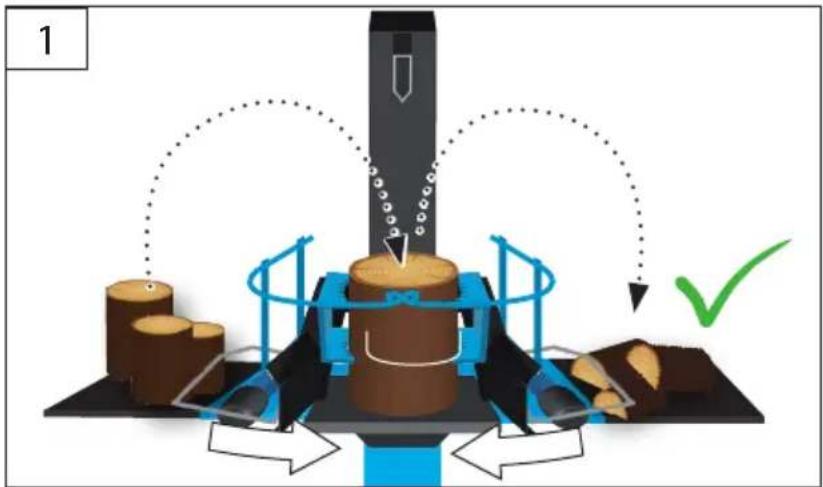

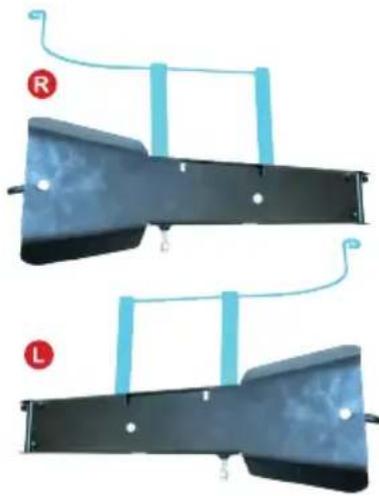

1. Pick up unsplit wood from the left attachment

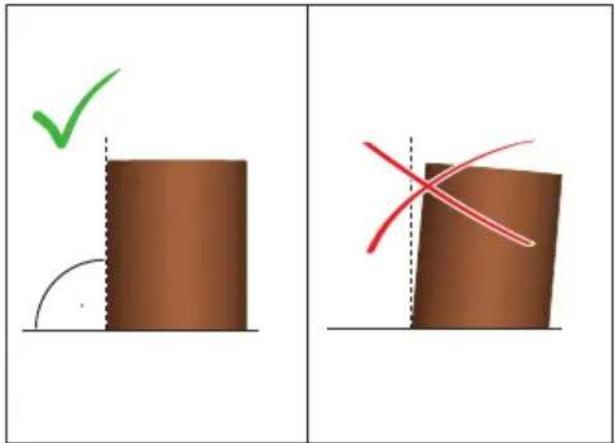

2. Put wood on the splitting table

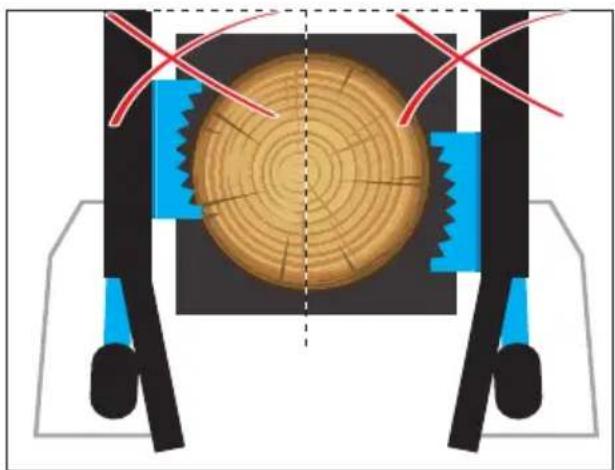

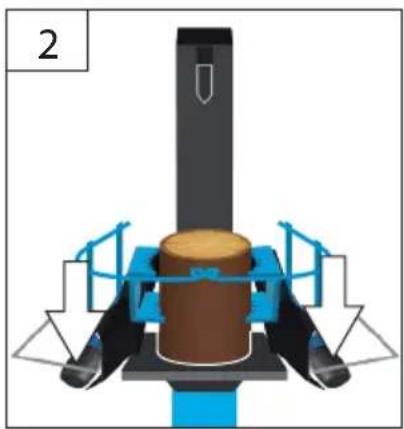

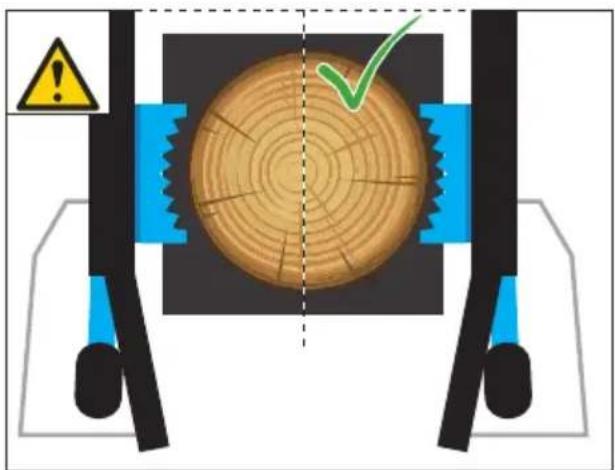

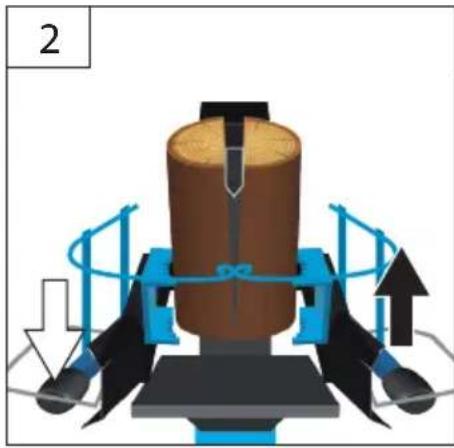

3. Secure the wood with the holding claws.

4. Start splitting process (operate lever)

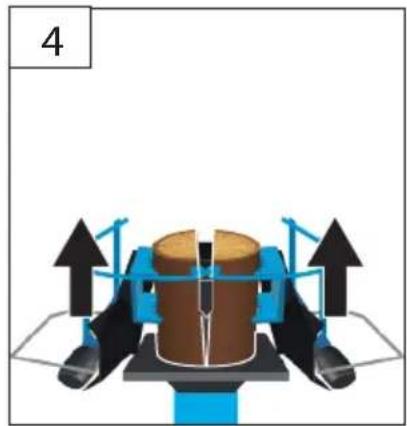

5. Split the wood once all the way through

6. Place split wood on the right attachment table

7. Split the wood a second time, if necessary

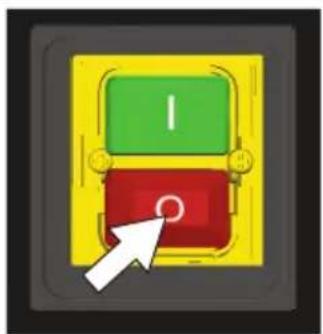

When splitting intergrown wood, trunk sections of irregular shape, etc., there may be risks of parts being thrown out, blocked or crushed. Never reach into the gap area. Power supply must be interrupted by pressing the red button on the switch and unplugging the machi

ne for any repair or servicing work or when leaving the wood splitter. Turning to the O position is not enough to interrupt the power supply. Handling equipment to be used only when handling the machine. Make sure the device cannot roll away, fall over or tip over with suitable fastening devices. The machine must be secured to the ground with suitable fasteners. (e.g. ground nails) The machine may only be used if it is fully assembled. Operation of a machine that is not fully assembled is strictly prohibited.28

ENGLISH Long wood must never be placed on the lower foot for splitting. Always use the splitting table for splitting. Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help,state the following pieces ofinformation: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s) Maintenance Unplug the machine before any work on it. Switch o the apparatus, disconnect it from mains by unplugging and allow it to cool down before setting up, retrotting, cleaning, performing maintenance, storing or transporting the apparatus. The hydraulic hoses and connections must be che

cked if tight enough after app. 4 hours of operation and tightened if necessary. If the device is defective, the repair has to be made exclusively by the customer service. Use only original accessories and original spare parts. If necessary, a list of spare parts can be found at www.guede.com. Never clean the machine and its components with solvents, ammable or toxic liquids. Us only a damp cloth making. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient mainte

nance and care can lead to unforeseen accidents and injuries. Disposal Any damaged or disposed devices must be delivered to appropriate collection centres. The device contains hydraulic uid. Hydraulic uids pose a hazard to groundwater. Uncontrolled drai

ning or improper disposal is punishable by law. Symbols CAUTION! WARNING WARNING! Read the Operating Instruc- tions Caution! Unplug the machine before any servicing or repair! Wear eye protective goggles ! Wear ear protectors! Safety gloves to be used! Wear safety shoes with steel reinforce- ment! Use of crane Caution! Moving parts of the machine! Danger! Keep away from moving machine parts! To be operated by 1 person only! Do not touch in the splitting area! Protect against humidity. Never expose tool to rain. Dangerous voltage Warning against hand injuries Warning against thrown-o items Keep distance of persons Observe to keep out of dangerous zone Rotation direction 2 people are needed for implementation.29

Remove all undesirable items, e.g. nails and wire, before working Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and com-mences on the day of purchase of the device.Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.Warranty does not cover unprofessional use such as de vice overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.Important information for the customerPlease be sure to know that returning the product in or after the warranty period must be made in the original packaging. Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of pro-duction. All this data can be found on the type label.Tel.: +49 (0) 79 04 / 700-360Fax: +49 (0) 79 04 / 700-51999E-Mail: support@ts.guede.com Failure removal Failures Causes Removal Engine does not start No power in the socket Check the fuse Defective electric extension cable Pull the plug out, check it, replace it Wrong connecting cable 5-wire connection at 2.5 mm2 cross section Defective condenser switch Have the machine checked by a professional electrician Wrong engine rotation direction Wrong connection Use a screwdriver to turn the phase- changing switch in the power supply Splitting knife is not moving Adjust the two-hand control and starting levers Defective control valve - to be replaced in a service centre only Splitter has no power Wrong rotation direction Have the rotation direction changed by a professional Few hydraulic oil Hydraulic oil to be added Trigger is bent; hydraulic piston on the valve is not fully seated Check all screws on the trigger Adjust the trigger so that the hydraulic piston on the valve is fully seated Wood has many knobs and the splitting knife is getting stuck Lubricate the splitting knife Control arm is bent Put the control arm back to the starting position The green supply button does not hold after being pressed Defective fuse, etc. Check the cable 2-phase running Hydraulic pump is whistling, split

ting knife running jerkily Oil loss, bottom contamination Tighten the screws Replace the hose Few hydraulic oil Hydraulic oil to be added30
