Product type	Hydraulic trolley jack
Brand	Güde
Model	GRH 2330L
Order number	18031
Maximum load capacity	2 tons (2000 kg)
Maximum lifting height	340 mm
Minimum passing height	135 mm
Lifting height at rated load	135 mm
Net weight	8.7 kg
Power supply	Manual (lever hydraulic pump)
Main function	Lifting and temporary support of vehicles
Intended use	Only for briefly lifting vehicles on a flat, hard surface
Essential safety instructions	Never exceed rated load; never stand under the load; use jack stands for prolonged support
Maintenance and cleaning	Clean with a damp cloth; oil moving parts; check for oil leaks
Spare parts and repairability	Spare parts available at www.guede.com; repairs by qualified personnel
Warranty	24 months for end consumer (non-professional use)
Standards and certifications	CE marking; compliant with European directives

Frequently Asked Questions - GRH 2330L Güde

What is the maximum load capacity of the Güde GRH 2330L?

The maximum load capacity is 2 tons (2000 kg). Never exceed this limit to avoid any risk of failure.

How to correctly use the trolley jack GRH 2330L?

Place the jack on a solid, flat, and hard surface. Open the valve by turning left, then pump the handle to lift. To lower, turn the valve slowly to the right. Ensure the load is stable.

What to do if the jack will not lower?

Immediately secure the vehicle with jack stands. Use another jack to lift the vehicle and safely remove the defective jack. Contact customer service.

Can I work under a vehicle supported only by the jack?

No, it is strictly forbidden to work under a load supported only by the jack. Always use jack stands or independent supports to secure the load.

How to maintain the Güde GRH 2330L jack?

Clean it with a damp cloth (no solvents). Regularly oil moving parts with an environmentally friendly oil. Check for hydraulic oil leaks. Store it in a dry place.

Where to find spare parts for this model?

Spare parts are available on the website www.guede.com. Only use original parts to ensure safety.

What is the warranty period for the Güde GRH 2330L jack?

The warranty is 24 months for the end consumer in non-professional use, and 12 months for professional use. The period starts from the date of purchase.

Can I use the jack on an inclined surface?

No, the jack must be placed on a solid, rigid, and level surface. An inclined surface can cause tipping and serious injury.

Is it safe to lift people with this jack?

Absolutely not. The jack is designed only for lifting vehicles. It is prohibited to use it for lifting people or non-compliant loads.

What do the symbols on the jack mean?

The symbols include: general warning (read the manual), do not exceed load, do not step on the device, protect from moisture, and safety distance of 5 m for bystanders.

USER MANUAL GRH 2330L Güde

Translation of the original instructions Movable car lifter

Five blue and black HEHETECOMX handbells with visible branding and control buttons (no text or symbols on the devices themselves)

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

Güde

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document with placeholder text and a blue circular icon containing the word 'B' and a blue button labeled 'Status'.

GRH 2/330 I GRH 2/330 L

Simple illustration of a blue racing car with black wheels and a triangular ramp (no text or symbols)

Three black rectangular objects with dots and a small gray bar in the center, arranged horizontally (no text or symbols)

GRH 2,5/510 L GRH 2,5/460 AL GRH 3/470 GRH 3/500 Q

Illustration of a blue racing car with a black circular target and a numbered label '1' (no text or symbols on the car itself)

DE	Betrieb	ES	Funcionamiento
EN	Operation
FR	Fonctionnement
IT	Esercizio
NL	Gebruik
CZ	Provoz
SK	Prevádzka
PL	Operacja
HU	Üzemeltetés

DE	Ölwechsel	ES	Cambio de aceite
EN	Oil change
FR	Remplacement d'huile
IT	Cambio dell'olio
NL	Olieverversing
CZ	Výměna oleje
SK	Výmena oleja
PL	Wymiana oleju
HU	Olajcsere

2

START 1 STOP

Two-panel image showing a blue car with checkmark and red X mark, alongside a green checkmark and a dashed angle marker.

Diagram of a car tire on a wooden block with a checkmark indicating the correct direction (no text or symbols present)

GRH 2/330 I GRH 2/330 L

1 #18031 #18032

START 1 STOP

GRH 2/330 I GRH 2/330 L

4

Diagram of a mechanical lever system with upward and downward motion arrows (no text or symbols)

DE Pumpen

EN Pumps

FR Pomper

IT Pompare

NL Pompen

CZ Pumpujte

SK Pumpujte

PL Pompowanie

HU Emeléshez

ES Bombas

5

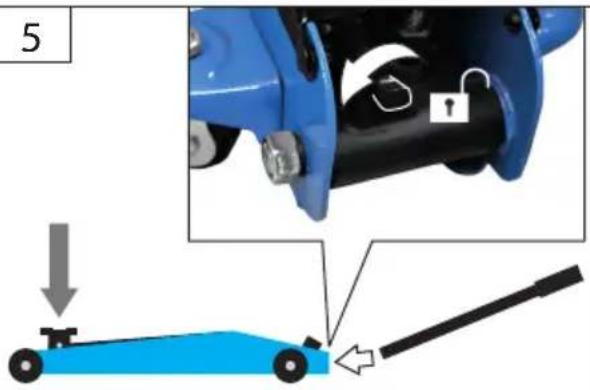

EN To lower, open valve by turning left

GRH 2,5/510 L GRH 2,5/460 AL GRH 3/470 GRH 3/500 Q

1

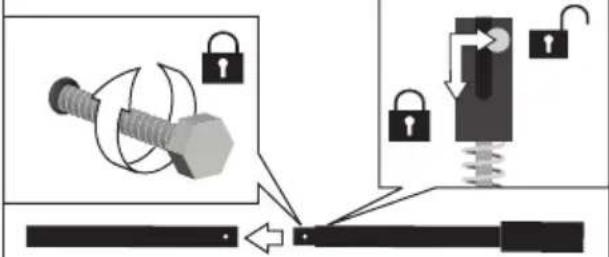

Diagram illustrating mechanical locking and disassembly process with labeled components and directional arrows

GRH 3/500 Q

Diagram illustrating a mechanical or robotic system with labeled components including a lock, gear, and a tool.

Illustration of a blue manual pallet with a black handle and a padlock, no text or symbols present

START 1 STOP

GRH 2,5/510 L GRH 2,5/460 AL GRH 3/470 GRH 3/500 Q

4 GRH 3/500 Q

Diagram of a mechanical device with an upward arrow and downward arrow indicating motion, no text or symbols present.

DE Pumpen

EN Pump
FR Pomper
IT Pompare
NL Pompen
CZ Pumpujte
SK Pumpujte
PL Pompowanie
HU Emeléshez
ES Bombas

5

Diagram of a mechanical lever system with upward and downward motion arrows (no text or symbols)

DE Pumpen

EN Pump
FR Pomper
IT Pompare
NL Pompen
CZ Pumpujte
SK Pumpujte
PL Pompowanie
HU Emeléshez
ES Bombas

6

Diagram showing a blue car being stopped by a handbag with an open lock, with an arrow indicating downward motion (no text or symbols)

Diagram of a blue car with a lever and upward arrow indicating motion (no text or symbols)

2

DE Ölablassschraube öffnen EN Open oil drain plug FR Dévisser le bouchon de vidange IT Aprire la vite di scarico dell'olio NL Olieaftapbout openen CZ Otevřete vypouštěcí šroub oleje SK Otvorte skrutku vypúštania oleja PL Otworzyć korek spustowy oleju HU Nyissa meg az olajleeresztő csavart ES Abrir el tapón de drenaje de aceite

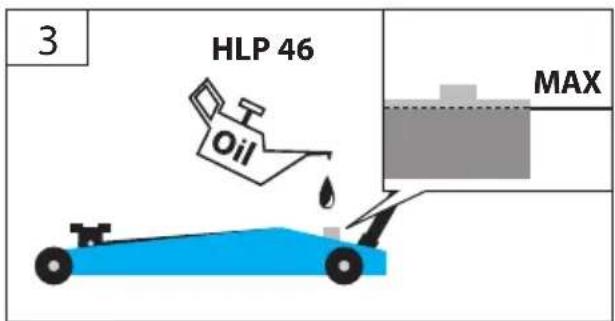

3 HLP 46 Oil MAX

DE Öl nachfüllen / prüfen
EN	Replenish oil / check oil
FR	Rajouter de l'huile/contrôler le niveau d'huile
IT	Controllare il livello dell'olio / rabboccare l'olio
NL	Olie bijvullen/controleren
CZ	Doplnte / zkontrolujte olej
SK	Doplnte / skontrolujte olej
PL	Uzupełnić / sprawdzić stan oleju
HU	Olaj utántöltése / ellenőrzése
ES	Rellenar / comprobar el aceite

4

Safety warning illustration showing a hand cleaning a car wheel with a red X mark and warning symbol

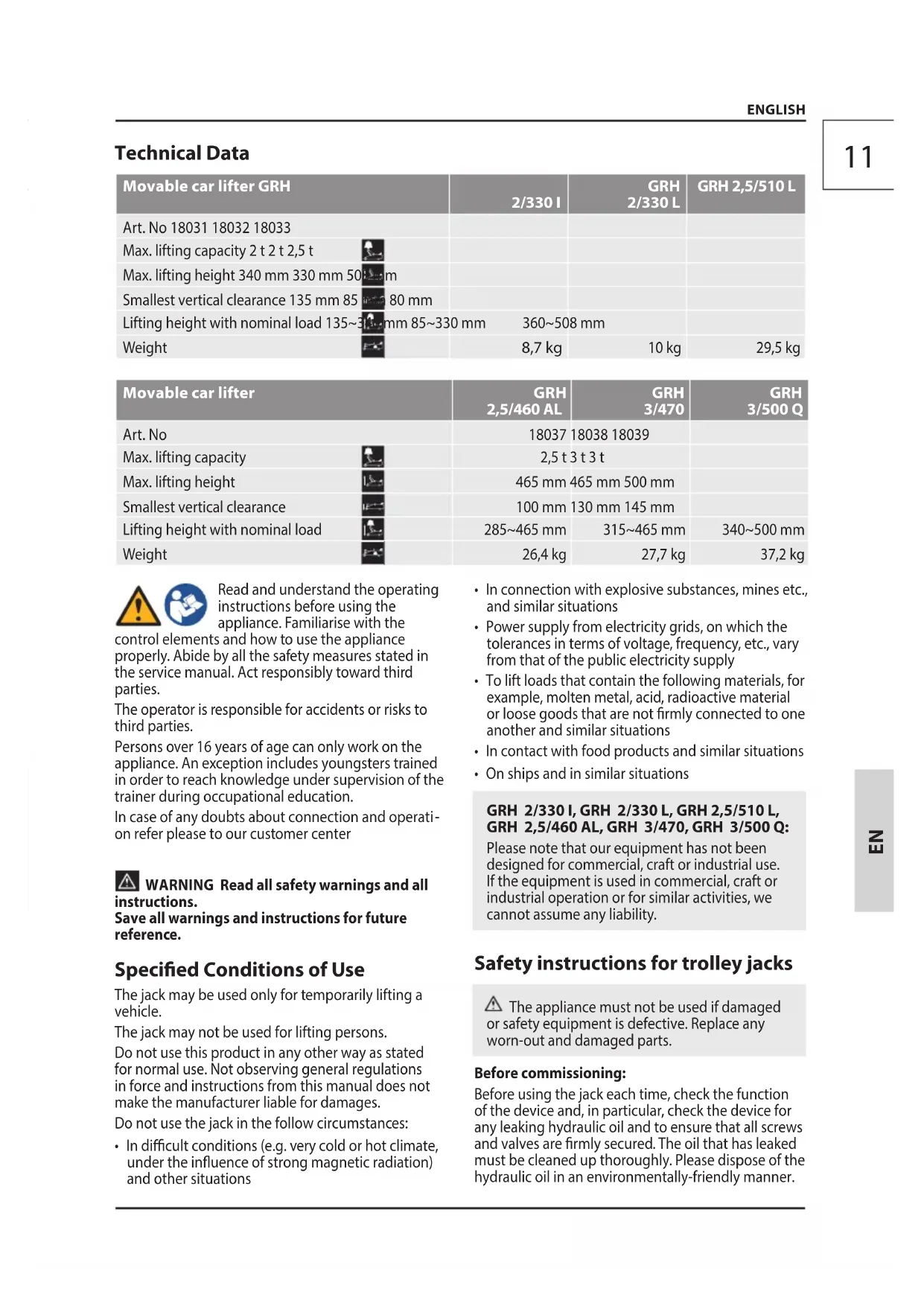

Technische Daten

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

WARNING Read all safety warnings and all uctions.

Save all warnings and instructions for future reference.

Specified Conditions of Use

The jack may be used only for temporarily lifting a vehicle.

The jack may not be used for lifting persons.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Do not use the jack in the follow circumstances:

- In difficult conditions (e.g. very cold or hot climate, under the influence of strong magnetic radiation) and other situations

• In connection with explosive substances, mines etc., and similar situations
- Power supply from electricity grids, on which the tolerances in terms of voltage, frequency, etc., vary from that of the public electricity supply
- To lift loads that contain the following materials, for example, molten metal, acid, radioactive material or loose goods that are not firmly connected to one another and similar situations
• In contact with food products and similar situations
• On ships and in similar situations

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability.

Safety instructions for trolley jacks

The appliance must not be used if damaged safety equipment is defective. Replace any run-out and damaged parts.

Before commissioning:

Before using the jack each time, check the function of the device and, in particular, check the device for any leaking hydraulic oil and to ensure that all screws and valves are firmly secured. The oil that has leaked must be cleaned up thoroughly. Please dispose of the hydraulic oil in an environmentally-friendly manner.

Ensure this is disposed of via a repair workshop or contact your nearest collection point for hazardous substances.

Keep your work area clean and tidy. Untidy workplaces and workbenches increase the risk of accidents and injuries.

The lift rod or car lifter itself may be a tripping hazard. Keep children and bystanders away while operating a power tool.

Distractions can cause you to lose control.

Do not overreach. Keep proper footing and balance at all times.

Never load the jack above the rated lifting acity.

Put the lifter on a solid, firm and flat surface when lifting load.

Make sure the bleeder screw is screwed firmly before lifting load.

If the force to be applied is greater than 400 N, device should be operated with an additional son.

Vehicles to be lifted need to be sufficiently secured against rolling away before they are actually lifted.

Never place the lifter askew or slantwise to the lifting plane.

Fix the lifter to the vehicle only at locations specified by the manufacturer.

Control the jack and the load during all movements in order to be able to react promptly in the event of a fault.

Risk of injury

Staying under lifted load is strictly prohibited.

Never work under lifted load that is supported only by the lifter. Lifted load must be secured / supported by separate trestles or, as appropriate, brackets.

It is only possible to work on and under lifted vehicles when they are sufficiently secured and supported to make sure they do not turn over and slip.

Make sure nobody is leaning against lifted vehicle or lifted load.

Never move load using the car lifter. Moving lifted load may lead to lifter damage and failure.

Have your device repaired only by qualified professional staff using original spare parts. This will ensure that the safety of the power tool is maintained.

Also ensure that the warning notices remain in their original and in good condition.

If the jack cannot be lowered as intended, always use safety stands to secure the vehicle against unintentional lowering.

Procure an addition jack that you can use to lift the vehicle to a point that allows the defective jack to be removed safely. Get professional help if you are unsure of how to proceed.

Tools which are not in used must be stored in a dry place as high as possible out of the reach of children or in an inaccessible place.

GRH 10/560 HD: Use appropriate lifting equipment for transportation. The load must be balanced.

Residual Risk

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

Limbs may be crushed when lowering the d. Do not touch and step under the lift arm en lowering the car lifter..

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2.

Accident type, 3. Number of injured persons, 4. Injury type(s)

Symbols

Warning! / Caution!

WARNING - Read the operating instructions to reduce the risk of injury.

Wear gloves!

Wear safety shoes with steel reinforcement.

Never load the jack above the rated lifting capacity.

Do not stand on the device and do not try to ride it.

Keep dry at all times. Never expose tool to rain.

Prohibited smoking and open fire using.

Warning against risk of tripping

Keep bystanders in safe distance from the appliance (at least 5m)

Warning against hand injury / bruising

Maintenance

Do not modify the device. Modifications are considered to be a use other than as intended and can result in injuries and damage.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Apply environment-friendly oil to all moving parts.

If necessary, a list of spare parts can be found at www.guede.com.

Disposal

Any damaged or disposed devices must be delivered to appropriate collection centres.

Dispose of old oil in an environmentally friendly manner.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

GRH 2/330 I, GRH 2/330 L, GRH 2,5/510 L, GRH GRH 2,5/460 AL, GRH 3/470, GRH 3/500 Q:

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

97/68/EC_&2016/1628/EU Emission No.:

2000/14/EC_2005/88/EC

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

97/68/EC_&2016/1628/EU Emission No.:

2000/14/EC_2005/88/EC

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

97/68/EC_&2016/1628/EU Emission No.:

2000/14/EC_2005/88/EC

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

97/68/EC_&2016/1628/EU Emission No.:

2000/14/EC_2005/88/EC

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

97/68/EC_&2016/1628/EU Emission No.:

2000/14/EC_2005/88/EC

Notified Body Name: No: Adress:

Type Ex. Cert.-No.:

97/68/EC_&2016/1628/EU Emission No.:

2000/14/EC_2005/88/EC
