USER MANUAL BH 1820130K Güde

Translation of the original instructions Rotary hammer

Black Guide electric tool with visible brand mark and model number 18 (no text or symbols on the device itself)

BH 18

58507 / 58508

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

Güde

ENGLISH Please read the instructions carefully before starting the machine.

English TECHNICAL DATA | SAFETY INSTRUCTIONS | SPECIFIED CONDITIONS OF USE | EMERGENCY PROCEDURE | CHARGING EQUIPMENT | BATTERY | WORK INSTRUCTIONS | SYMBOLS | DISPOSAL | GUARANTEE | SERVICE ____ 10

Français CARACTÉRISTIQUES TECHNIQUES | I NSTRUCTIONS DE SÉCURITÉ | UTILISATION CONFORME À LA DESTINATION | CONDUITE EN CAS D'URGENCE | DISPOSITIF DE CHARGE | BATTERIA | CONSIGNES DE TRAVAIL | SYMBOLES | LIQUIDATION | GARANTIE | SERVICE ____ 13

Scanned document page with placeholder text and a central logo, likely a form or report section

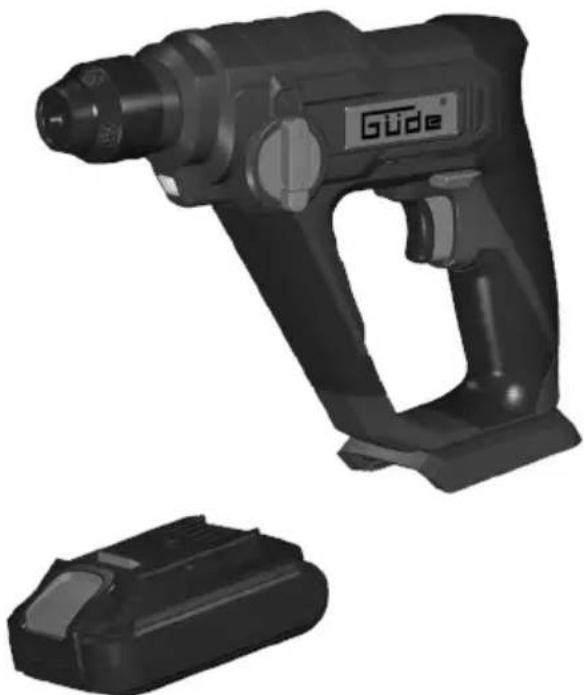

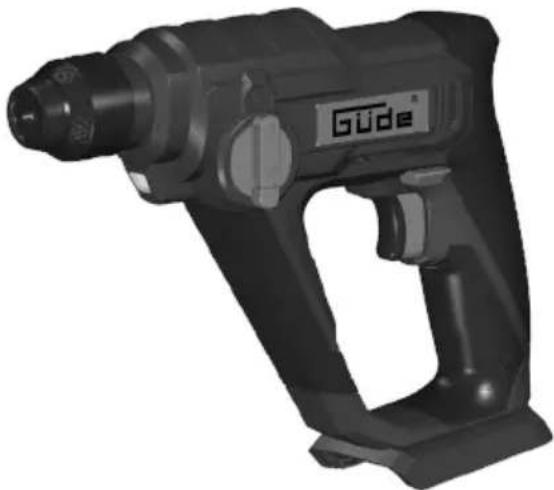

BH 18 58507

Black and white photo of a Gude handheld tool (no visible text or symbols on the device body)

BH 18 58508

Black Gude electric tool with attached battery pack (no visible text or symbols)

DE Inbetriebnahme

EN Starting-up the machine

FR Mise en service

Black plastic battery pack with a single side slot (no visible text or symbols)

2

Close-up of a drill bit being inserted into a tool, with an arrow indicating the insertion direction (no text or symbols present)

3

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

START STOP

Close-up of a black handheld device labeled 'Güde' with an arrow pointing to its tip (no other text or symbols visible)

4

Close-up of a hand holding a screwdriver with a circular tool, next to a page number 5 (no text or symbols on the diagram itself)

Close-up of a mechanical control knob or dial (no visible text or symbols)

6

2

Black plastic electronic component with a small rectangular cutout (no visible text or symbols)

DE Inbetriebnahme

EN Starting-up the machine

FR Mise en service

Close-up of a black mechanical device with a separate plastic housing and an arrow indicating motion (no text or symbols)

2

Close-up of a black mechanical device with a handle and base (no visible text or symbols)

1

Close-up of a black robotic arm with a lock icon and arrow indicating a key adjustment (no text or symbols present)

2

Close-up of a black plastic device with a hand operating the lever, showing a small component below (no text or symbols visible)

Close-up of a black electronic device with a finger pointing to its left edge, no visible text or symbols

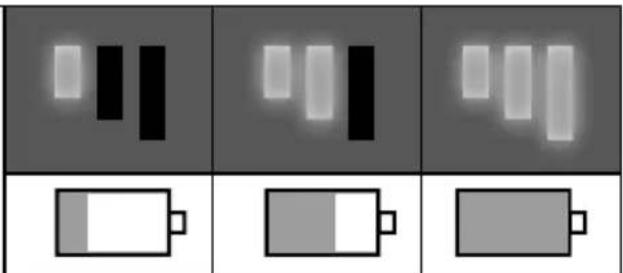

Three rows of grayscale battery cells showing different charge states (no text or symbols)

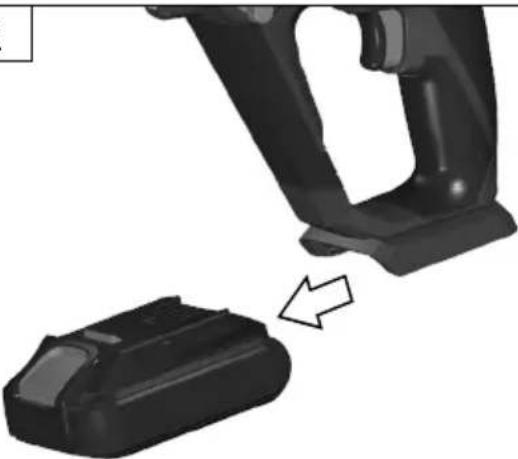

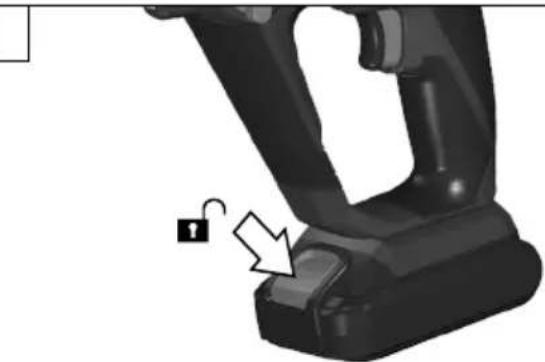

DE	Inbetriebnahme
EN	Starting-up the machine
FR	Mise en service
IT	Messa in funzione
NL	Inbedrijfstelling
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
HU	Üzembe helyezés

Warning symbol and process icon: triangular warning triangle with exclamation mark, circular button with right arrow and document symbol.

58152

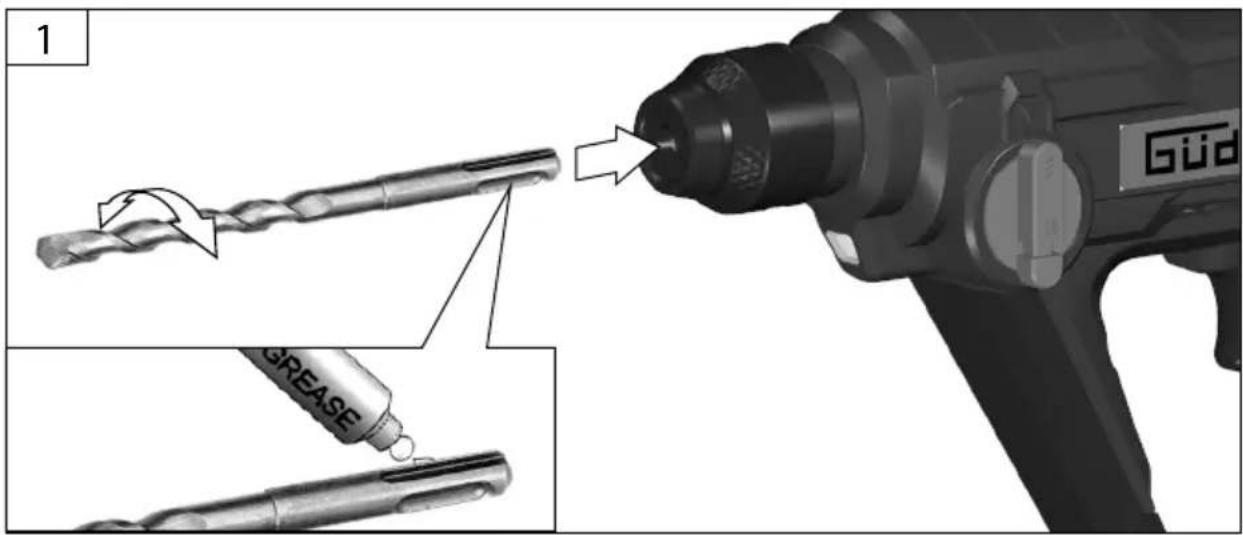

1 Gua GREASE

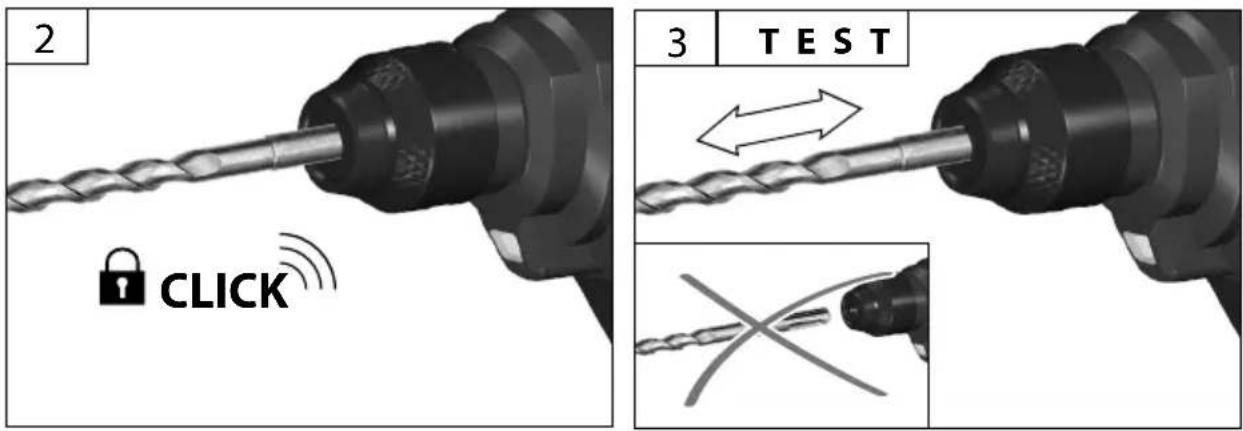

2 CLICK 3 TEST

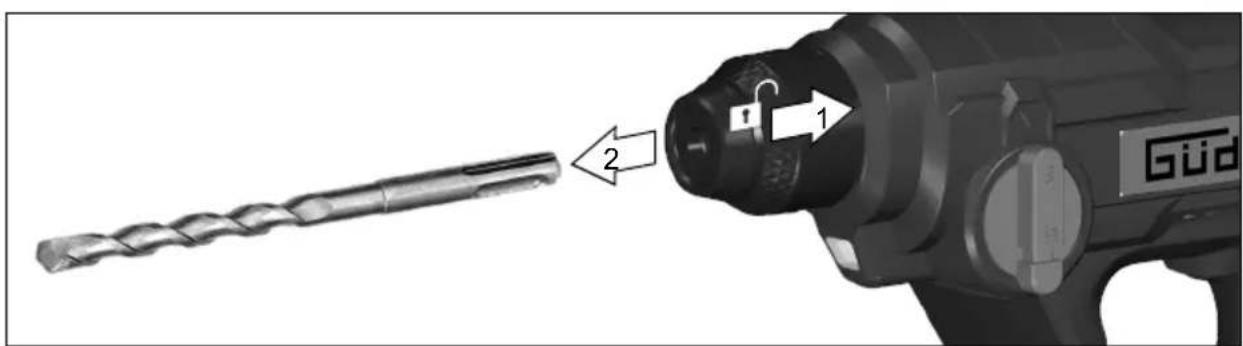

Close-up of a drill bit being inserted into a guided tool, showing two numbered arrows (1 and 2) indicating the process.

START STOP

DE Betrieb
EN Operation
FR Fonctionnement
IT Esercizio
NL Gebruik
CZ Provoz
SK Prevádzka
HU Üzemeltetés

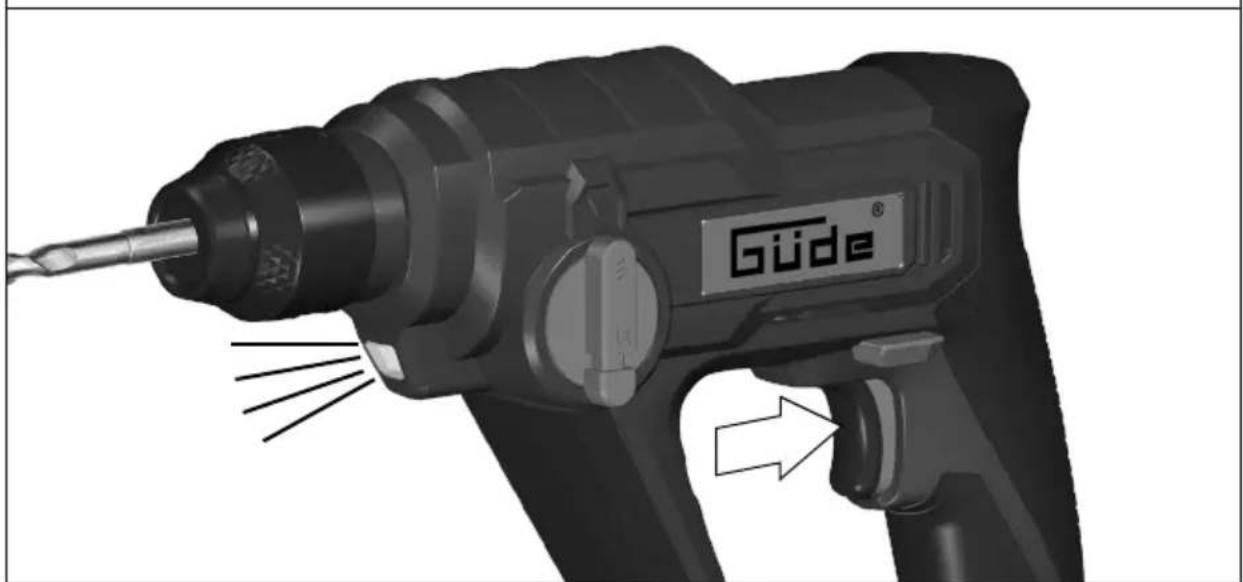

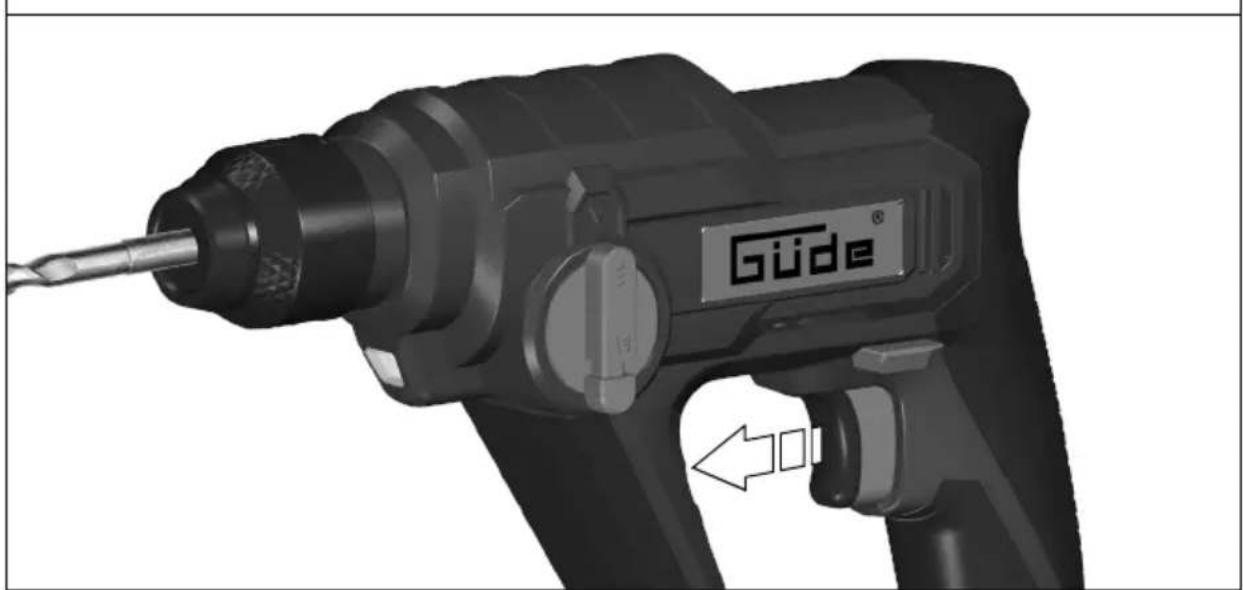

START

Close-up of a Gude electric drill with visible screwdriver and tool handle (no text or symbols on main body)

STOP

Close-up of a Guide electric drill with a tool and screwdriver (no visible text or symbols)

DE	Betrieb
EN	Operation
FR	Fonctionnement
IT	Esercizio
NL	Gebruik
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

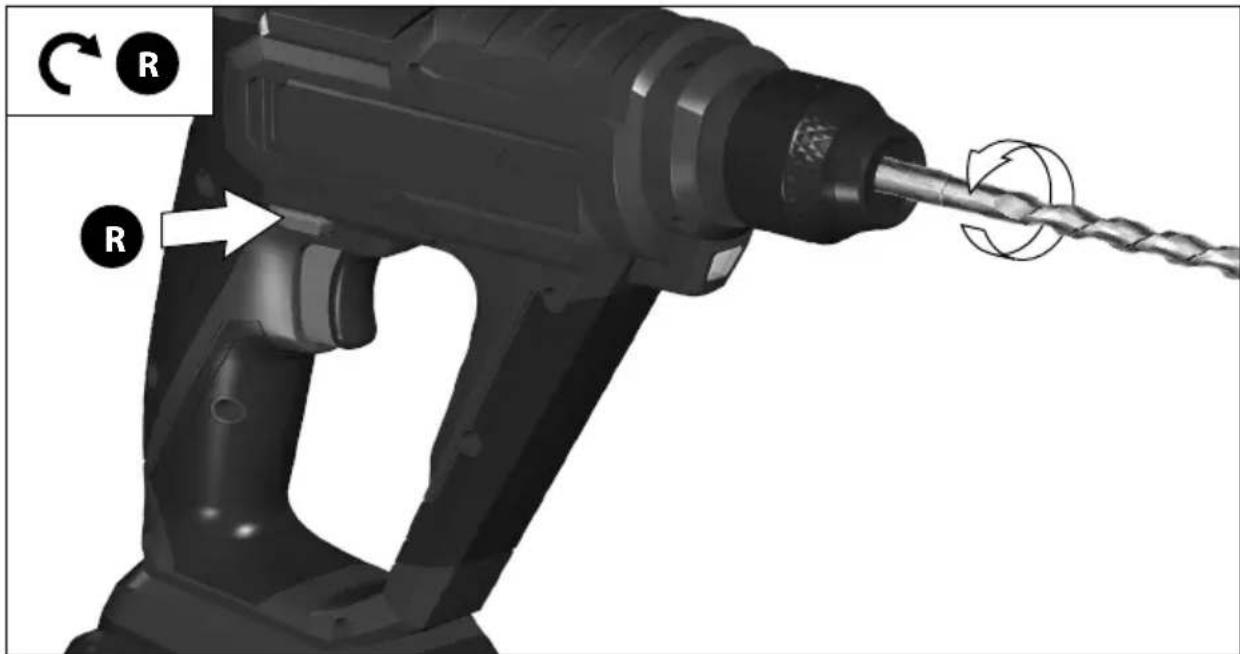

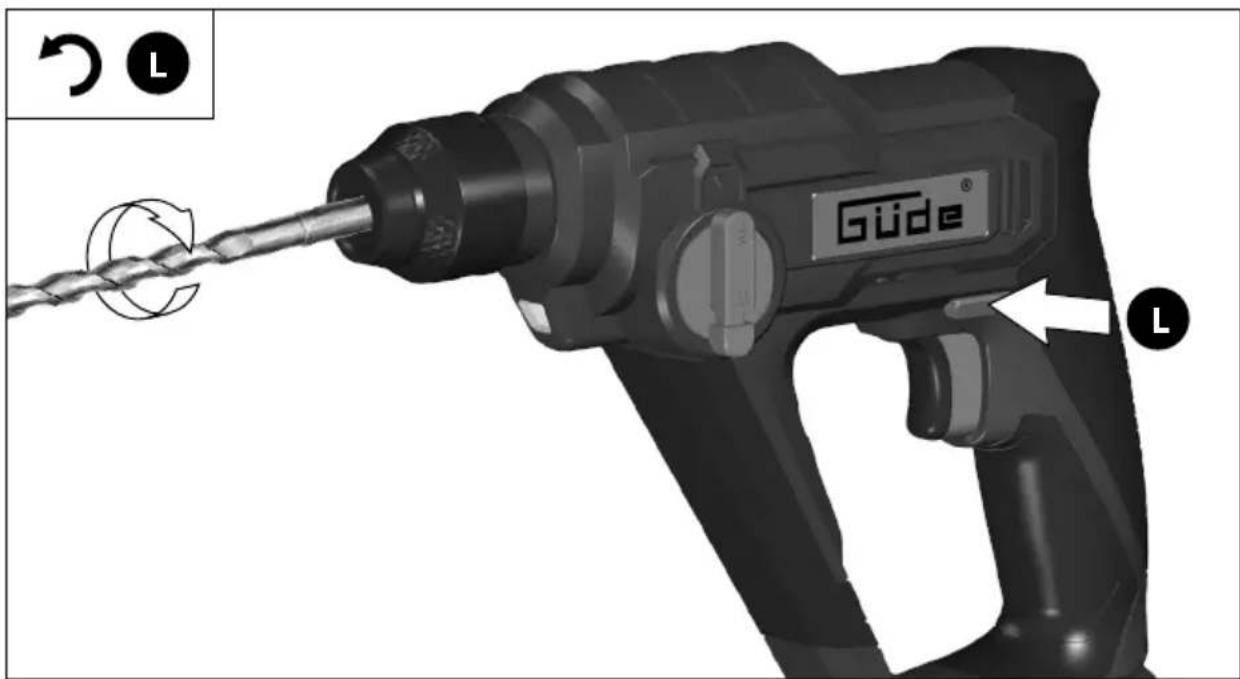

Diagram of a drill bit with labeled 'R' and rotation indicator, showing mechanical assembly and wire connection.

Guide®

Close-up of a circular mechanical knob or dial with directional arrows (no text or symbols visible)

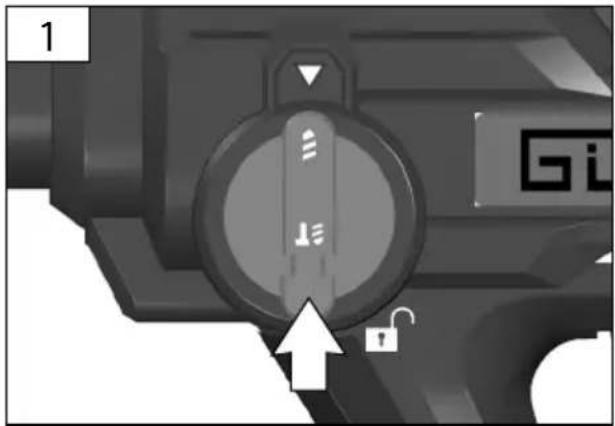

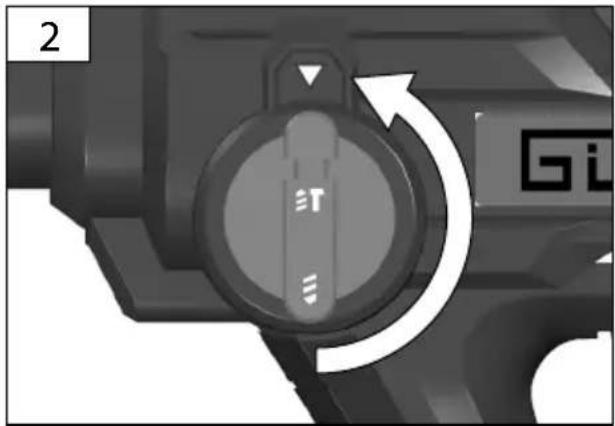

DE Betrieb

EN Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

Simple line drawing of a hand holding an object with a curved line crossing (no text or symbols)

Close-up of a mechanical control knob with an arrow pointing to a lock and a small symbol (no readable text or labels)

Close-up of a mechanical component with a circular dial and directional arrow (no text or symbols visible)

Illustration of a Gude tool firing a wire, with a logo on the left (no text or symbols on the tool itself)

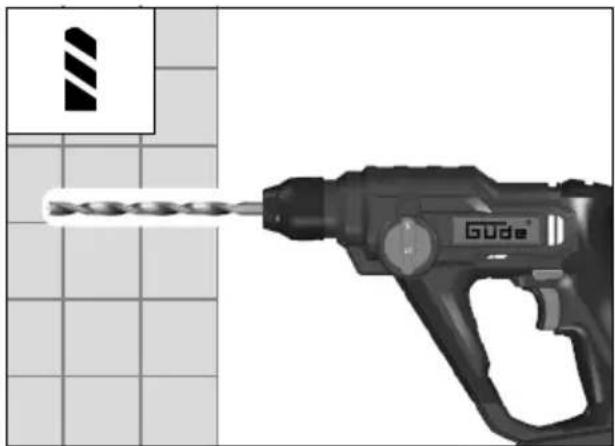

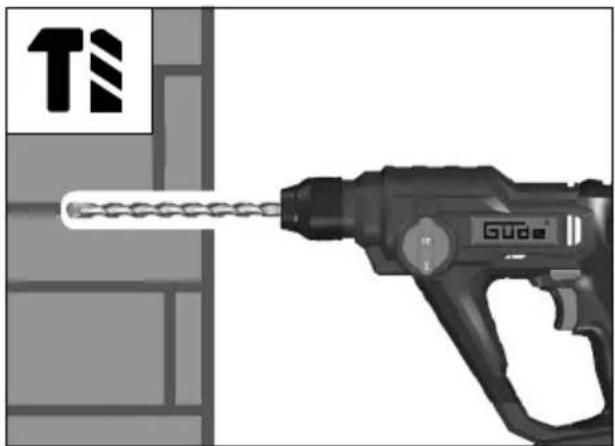

Gutler with drill bit firing on a tiled surface, no visible text or symbols

Technische Daten

Rotary hammer BH 18
Art. No 58507, 58508
Battery voltage 18 V	---
No-load speed 0-900 min	-1
Rate of percussion under load max. 0-5000 min	-1
Single impact energy 1,2 J
Drilling capacity max.Concrete / Steel plate / Wood 10 / 8 / 25 mm
Weight without battery/Charging equipment 1,1 kg
Noise detailsMeasured according to EN 60745; Uncertainty K = 3 dB (A)
Sound pressure level L_pA	85,0 dB(A)
Sound power level L_WA	96,0 dB(A)
Wear ear protectors!
Vibration detailsVibration total values (triaxial vector sum) determined according to EN 60745:, Uncertainty K = 1,5 m/s ^2
Hammer-drilling into concrete : Vibration emission value a_h,HD	8,64 m/s ^2

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The rotary pneumatic hammer can be used for hammer drilling in stone and concrete and drilling in wood, metal as well as plastic.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help, state the following pieces of information: 1. Accident site, 2. Accident type, 3. Number of injured persons, 4. Injury type(s)

Symbols

WARNING / Caution!

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles! Wear ear protectors!

Wear gloves!

Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Battery

Protect the battery against heat and fire.

Protect the battery against water and moisture.

Protect the battery against temperatures above 40°C.

Do not throw the batteries in household waste.

Deliver the batteries to a collection centre of old batteries where they will be recycled in an environmentally friendly way.

WARNING Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Hammer safety warnings

Wear ear protectors. Exposure to noise can cause hearing loss.

Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Additional Safety and Working Instructions

Use protective equipment. Always wear safety glasses when working with the machine. The use of protective clothing is recommended, such as dust mask, protective gloves, sturdy non-slip footwear and ear defenders.

The dust produced when using this tool may be harmful to health. Do not inhale the dust. Use a dust absorption system and wear a suitable dust protection mask. Remove deposited dust thoroughly, e.g. with a vacuum cleaner.

Always keep the connection cable from the working area of the device. Always guide the cable back - wards, away from the device!

Do not machine any materials that present a danger to health (e.g. asbestos).

When working in walls ceiling, or floor, take care to avoid electric cables and gas or waterpipes.

Please turn the device immediately off when the tool used gets blocked! Do not turn the device on again when the tool is still blocked. This could cause bounce back with a high reaction moment. Determine and remove the cause of the blocking of the tool used while respecting the safety instructions.

The possible causes may be:

• it is tilted in the workpiece to be machined
• it has pierced through the material to be machined
  • the power tool is overloaded

Do not reach into the machine while it is running.

Chips and splinters must not be removed while the machine is running.

WARNING! Danger of burns

The insertion tool may become hot during use.

• when changing tools
• when setting the device down

Battery

Risk of fire! Risk of explosion!

Never use damaged, defective or deformed accumulators. Never open or damage the accumulator or let it fall on the ground.

Umgebungstemperatur

Protect the battery against heat and fire.

Battery to be used at the ambient temperatures between 10^ C and +40^ C only.

Never put the battery on heaters and do not expose it to strong sunlight for a long time.

After being subject to heavy load, let the battery cool down first.

Short circuit - do not bridge the accumulator contacts with metal parts.

The accumulator must be packaged (plastic bag, box) or accumulator contacts must be sealed up for accumulator disposal, transport or storage.

The Güde charger to be used only to charge the battery. There can be malfunction or fire if different chargers are used.

Vapours may leak out in case of unauthorised use or when using a damaged accumulator. Bring fresh air and seek medical advice if experiencing difficulties. Vapours may irritate the respiratory system.

Work instructions

Accumulators are supplied partially charged and must therefore be fully charged before being used for the first time.

• Charge the accumulator when the appliance is running slowly or stops.
• A li-ion battery may be charged at any time without any shortening of its life. Charging process interruption will not damage the accumulator.
• A li-ion battery is protected by the Electronic Cell Protection against deep discharge.
• A significantly shorter operating time of a charged battery means the battery life is over and the battery must be replaced.

Dispose of the batteries in an environmentally friendly manner.

Li-ion batteries are subject to the special disposal obligation. Have any defective batteries disposed of by a specialised shop. The battery must be taken out before the appliance is scrapped. Damaged batteries may harm the environment and your health if toxic vapours or liquids leak out of such batteries. Therefore, never send a defective battery by post, etc. Please contact your local recycling centre.

Dispose of the batteries when discharged. We recommend applying an adhesive tape on the poles to protect them against short circuit. Never open the battery.

Maintenance

⚠️ Unplug the machine before any work on it.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff. Use only original accessories and original spare parts.

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Caution! If the power cord of the appliance gets damaged, it must be replaced by the manufacturer or its customer service or a similarly qualified person to avoid danger.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Tension accu interchangeable 18 V

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
