USER MANUAL K420N LG

Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices.

This device is not suitable for people who have a visual impairment due to the touchscreen keyboard.

Descriptions are based on the device default settings.

Default apps on the device are subject to updates and support for these apps may be withdrawn without prior notice. If you have any questions about an app provided with the device, please contact a LG Service Centre. For user-installed apps, please contact the relevant service provider.

Modifying the device’s operating system or installing software from unofficial sources may damage the device and lead to data corruption or data loss. Such actions will violate your LG licence agreement and void your warranty.

Some contents and illustrations may differ from your device depending on the region, service provider, software version, or OS version, and are subject to change without prior notice.

Software, audio, wallpaper, images, and other media supplied with your device are licensed for limited use. If you extract and use these materials for commercial or other purposes, you may be infringing copyright laws. As a user, you are fully are entirely responsible for the illegal use of media.

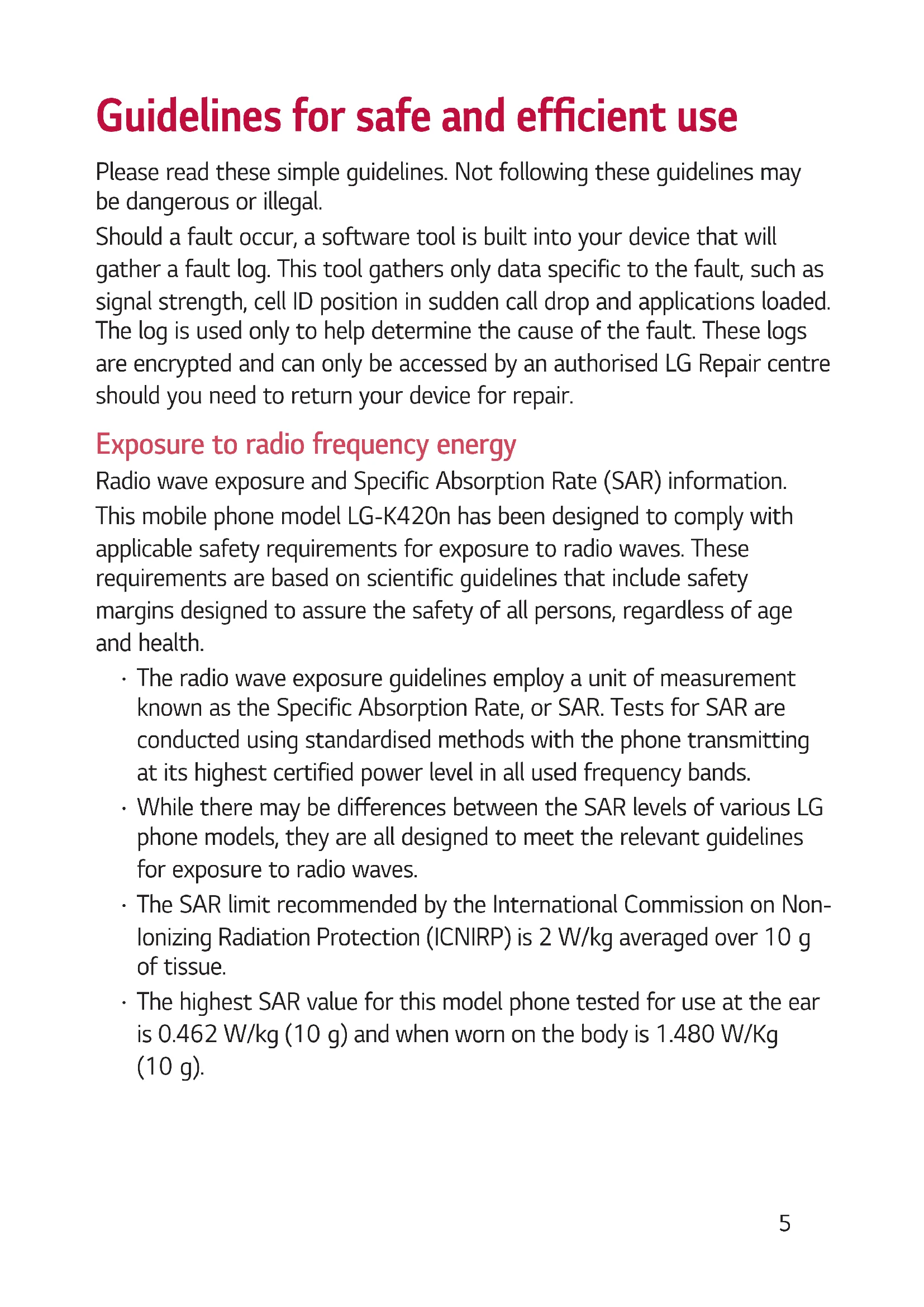

The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate, or SAR. Tests for SAR are conducted using standardised methods with the phone transmitting at its highest certified power level in all used frequency bands.

While there may be differences between the SAR levels of various LG phone models, they are all designed to meet the relevant guidelines for exposure to radio waves.

The SAR limit recommended by the International Commission on Non- IonizingRadiationProtection(ICNIRP)is2W/kgaveragedover10g of tissue.

The highest SAR value for this model phone tested for use at the ear is0.462W/kg(10g)andwhenwornonthebodyis1.480W/Kg (10g).6

This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 5 mm away from the body. When a carry case, belt clip or holder is used for body-worn operation, it should not contain metal and should position the product at least 5 mm away from your body. In order to transmit data files or messages, this device requires a quality connection to the network. In some cases, transmission of data files or messages may be delayed until such a connection is available. Ensure the above separation distance instructions are followed until the transmission is completed. Product care and maintenance

Always use genuine LG batteries, chargers and accessories approved for use with this particular device model. The use of any other types may void any approval or warranty applying to the device and may be dangerous.

Some contents and illustrations may differ from your device without prior notice.

Do not disassemble this unit. Take it to a qualified service technician when repair work is required.

Repairs under warranty, at LG's discretion, may include replacement parts or boards that are either new or reconditioned, provided that they have functionality equal to that of the parts being replaced.

Keep away from electrical appliances such as TVs, radios and personal computers.

The unit should be kept away from heat sources such as radiators or cookers.

Do not subject this unit to mechanical vibration or shock.

Switch off the phone in any area where you are required to by special regulations. For example, do not use your phone in hospitals as it may affect sensitive medical equipment.

Do not handle the phone with wet hands while it is being charged. It may cause an electric shock and can seriously damage your phone.7

Do not charge a handset near flammable material as the handset can become hot and create a fire hazard.

Use a dry cloth to clean the exterior of the unit (do not use solvents such as benzene, thinner or alcohol).

Do not charge the phone when it is on soft furnishings.

The phone should be charged in a well ventilated area.

Do not subject this unit to excessive smoke or dust.

Do not keep the phone next to credit cards or transport tickets; it can affect the information on the magnetic strips.

Do not tap the screen with a sharp object as it may damage the phone.

Do not expose the phone to liquid or moisture.

Use accessories like earphones cautiously. Do not touch the antenna unnecessarily.

Do not use, touch or attempt to remove or fix broken, chipped or cracked glass. Damage to the glass display due to abuse or misuse is not covered under the warranty.

Your phone is an electronic device that generates heat during normal operation. Extremely prolonged, direct skin contact in the absence of adequate ventilation may result in discomfort or minor burns. Therefore, use care when handling your phone during or immediately after operation.

If your phone gets wet, immediately unplug it to dry off completely. Do not attempt to accelerate the drying process with an external heating source, such as an oven, microwave or hair dryer.

The liquid in your wet phone, changes the colour of the product label inside your phone. Damage to your device as a result of exposure to liquid is not covered under your warranty.8 Efficient phone operation Electronics devices All mobile phones may receive interference, which could affect performance.

Do not use your mobile phone near medical equipment without requesting permission. Avoid placing the phone over pacemakers, for example, in your breast pocket.

Some hearing aids might be disturbed by mobile phones.

Useyourphoneintemperaturesbetween0ºCand40ºC,ifpossible. Exposing your phone to extremely low or high temperatures may result in damage, malfunction, or even explosion. Road safety Check the laws and regulations on the use of mobile phones in the area when you drive.

Do not use a hand-held phone while driving.

Give full attention to driving.

Pull off the road and park before making or answering a call if driving conditions so require.

RF energy may affect some electronic systems in your vehicle such as car stereos and safety equipment.

When your vehicle is equipped with an air bag, do not obstruct with installed or portable wireless equipment. It can cause the air bag to fail or cause serious injury due to improper performance.

If you are listening to music whilst out and about, please ensure that the volume is at a reasonable level so that you are aware of your surroundings. This is of particular importance when near roads.9 Avoid damage to your hearing To prevent possible hearing damage, do not listen at high volume levels for long periods. Damage to your hearing can occur if you are exposed to loud sound for long periods of time. We therefore recommend that you do not turn on or off the handset close to your ear. We also recommend that music and call volumes are set to a reasonable level.

When using headphones, turn the volume down if you cannot hear the people speaking near you, or if the person sitting next to you can hear what you are listening to. NOTE

Excessive sound pressure from earphones and headphones can cause hearing loss. Glass Parts Some parts of your mobile device are made of glass. This glass could break if your mobile device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch or attempt to remove it. Stop using your mobile device until the glass is replaced by an authorised service provider. Blasting area Do not use the phone where blasting is in progress. Observe restrictions and follow any regulations or rules. Potentially explosive atmospheres

Do not use your phone at a refueling point.

Do not use near fuel or chemicals.

Do not transport or store flammable gas, liquid or explosives in the same compartment of your vehicle as your mobile phone or accessories.10 In aircraft Wireless devices can cause interference in aircraft.

Turn your mobile phone off before boarding any aircraft.

Do not use it on the ground without permission from the crew. Children Keep the phone in a safe place out of the reach of small children. It includes small parts which may cause a choking hazard if detached. Emergency calls Emergency calls may not be available on all mobile networks. Therefore you should never depend solely on your phone for emergency calls. Check with your local service provider. Battery information and care

You do not need to completely discharge the battery before recharging. Unlike other battery systems, there is no memory effect that could compromise the battery's performance.

Use only LG batteries and chargers. LG chargers are designed to maximise the battery life.

Do not disassemble or short-circuit the battery.

Keep the metal contacts of the battery clean.

Replace the battery when it no longer provides acceptable performance. The battery pack may be recharged hundreds of times before it needs replacing.

Recharge the battery if it has not been used for a long time to maximise usability.

Do not expose the battery charger to direct sunlight or use it in high humidity, such as in the bathroom.

Do not leave the battery in hot or cold places, as this may deteriorate battery performance.

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.11

If you need to replace the battery, take it to the nearest authorised LG Electronics service point or dealer for assistance.

Always unplug the charger from the wall socket after the phone is fully charged to save unnecessary power consumption of the charger.

Actual battery life will depend on network configuration, product settings, usage patterns, battery and environmental conditions.

Make sure that no sharp-edged items such as animal's teeth or nails, come into contact with the battery. This could cause a fire.Features you will loveFeatures you will love

QuickMemo+ The QuickMemo+ feature allows you to create memos. Using Capture+ You can use QuickMemo+ function to easily and efficiently create memos during a call, with a saved picture or on the current screen. 1 Touch and slide the status bar downward and tap . If you can not see , tap > checkmark Capture+ to enable. 2 Create a memo using the following options: Tap to save the memo you've created. Tap to undo the most recent action. Tap to redo the most recently deleted action. Tap to insert text into your memo. Tap to select the pen type and colour. Tap to use the eraser to erase the pen marks on the memo. Tap to crop the image of memo. Tap to select the share or paper style. Tap to hide or display the toolbar. NOTE

Please use a fingertip while using the QuickMemo+ feature. Do not use your fingernail. 3 Tap to save the current memo to or . Viewing the saved memo Tap > > and select the Capture+ album.Features you will love

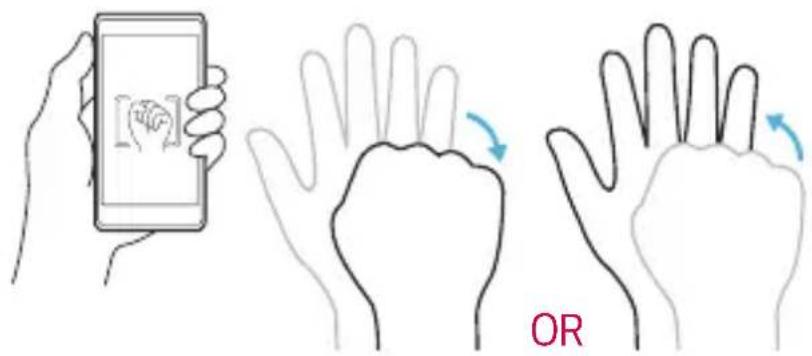

Gesture shot The Gesture shot feature allows you to take a picture with a hand gesture using the front camera. Taking the photos with a gesture There are two methods for using the Gesture shot feature.

Raise your hand, with an open palm, until the front camera detects it and a box appears on the screen. Then close your hand into a fist to start the timer, allowing you time to get ready.

Raise your hand, in a clenched fist, until the front camera detects it and a box appears on the screen. Then unclench your fist to start the timer, allowing you time to get ready. ORBasicsBasics

Accessories These accessories are available for use with the your Device.

Items described above may be optional.

Always use genuine LG accessories. The supplied items are designed only for this device and may not be compatible with other devices.

The items supplied with the device and any available accessories may vary depending on the region or service provider.Basics

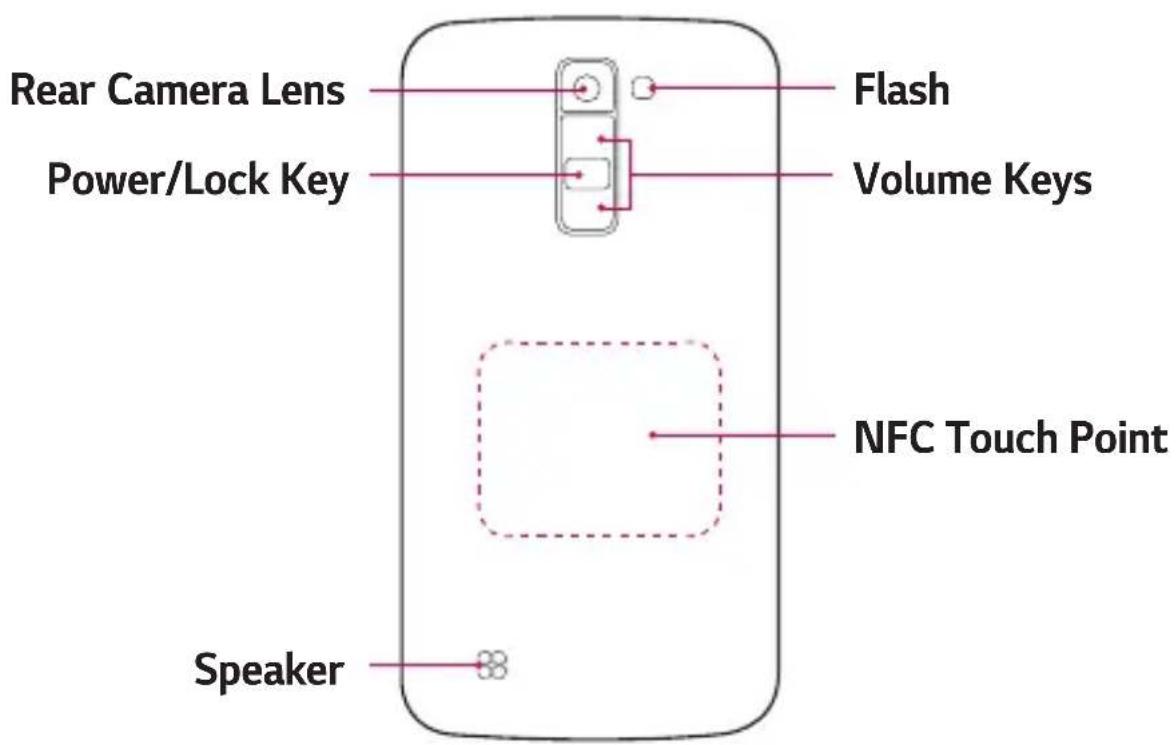

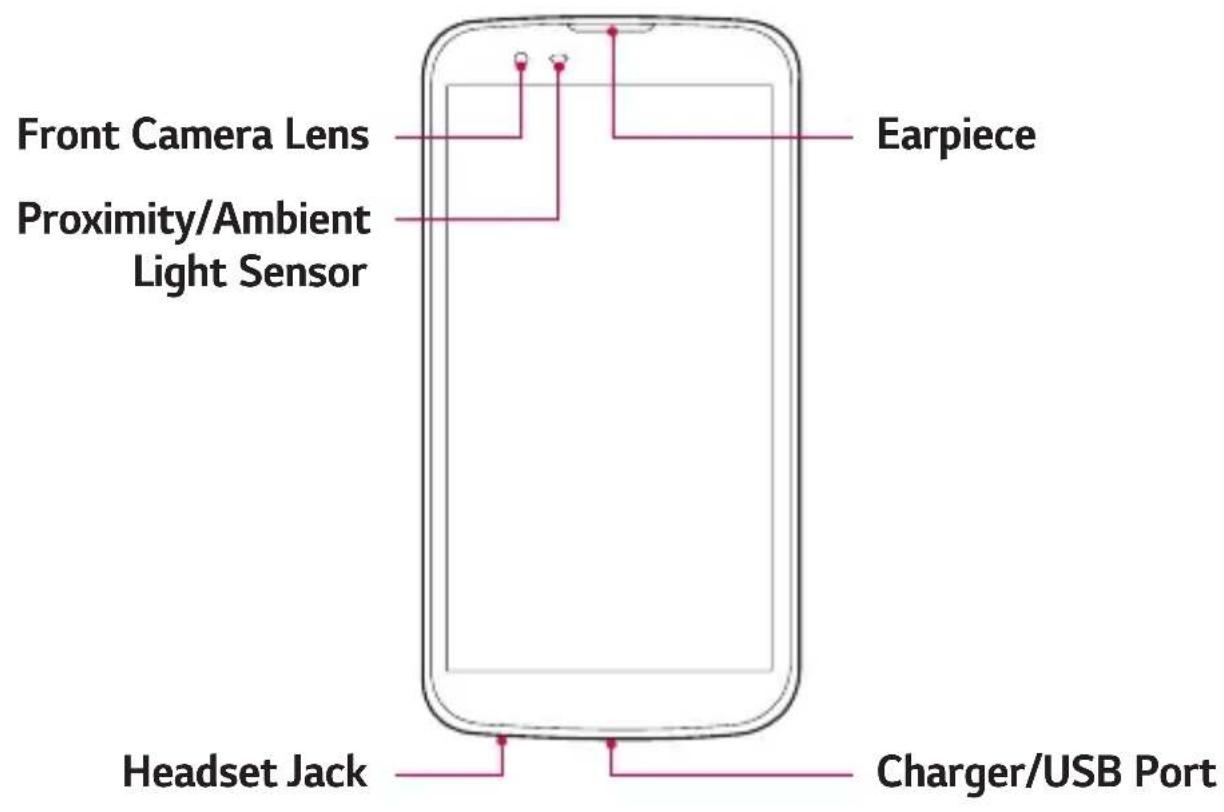

Device layout Front Camera Lens Proximity/Ambient Light Sensor Charger/USB Port Earpiece Headset Jack Rear Camera Lens Speaker Power/Lock Key Flash NFC Touch Point Volume KeysBasics

Turn your device on/off by pressing and holding this key.

Short press to turn on/off the screen. Volume Keys While screen is off:

Press Volume Up Key twice to launch Capture+.

Press Volume Down Key twice to launch Camera and take a picture. On the Home screen:

Control your earpiece volume when playing audio/video.

Control volume continuously. NOTE : Proximity Sensor

When receiving and making calls, the proximity sensor automatically turns the backlight off and locks the touch screen by sensing when the phone is near your ear. This extends battery life and prevents you from unintentionally activating the touch screen during calls. WARNING

Placing a heavy object on the phone or sitting on it can damage the display and touch screen functions. Do not cover the proximity sensor with screen protectors or any other type of protective film. This could cause the sensor to malfunction. WARNING

The NFC antenna for this model is on the back cover.

Be careful not to damage the NFC touch point on the phone, which is part of the NFC antenna.Basics

Turning Your Device On and Off Turning your device on Press and hold the Power/Lock Key for a couple of seconds until the screen turns on. Turning your device off 1 Press and hold the Power/Lock Key until the device options menu appears. 2 Tap Power off > OK to confirm that you want to turn off the device. Installing the SIM card and battery Insert the SIM card provided by the device service provider, and the included battery. WARNING

Do not insert a memory card into the SIM card slot. If a memory card happens to be lodged in the SIM card slot, take the device to a LG Service Centre to remove the memory card. NOTE

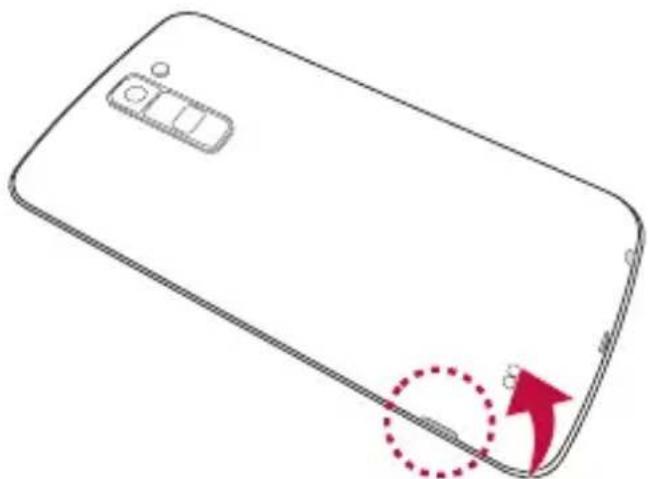

Only the Nano SIM cards work with the device. 1 To remove the back cover, hold the device firmly in one hand. With your other hand, lift off the back cover with your thumbnail as shown in the figure below.Basics

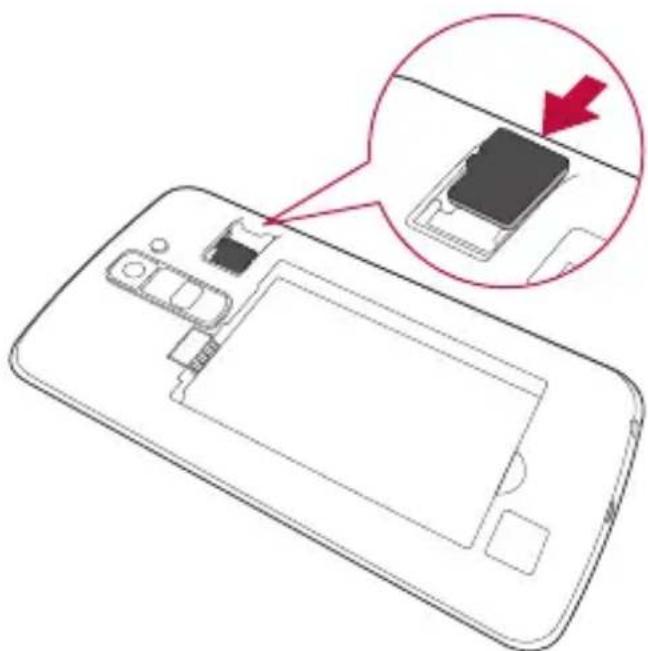

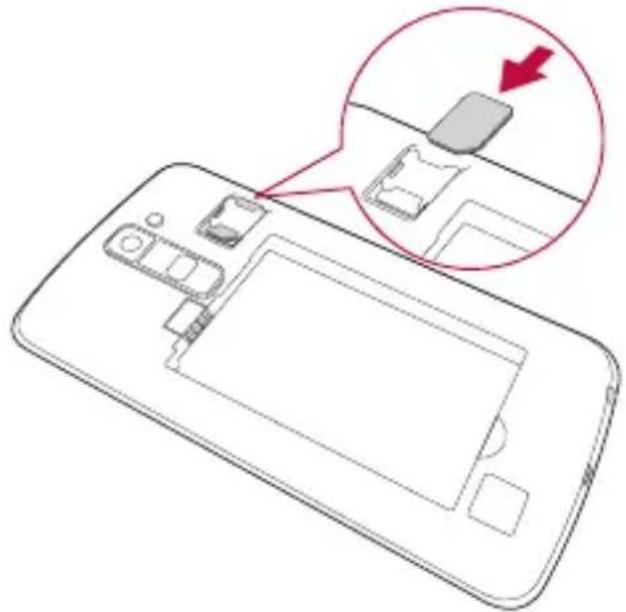

2 Slide the SIM card into the SIM card slot as shown in the figure. Make sure the gold contact area on the card is facing downward. 3 Insert the battery.Basics

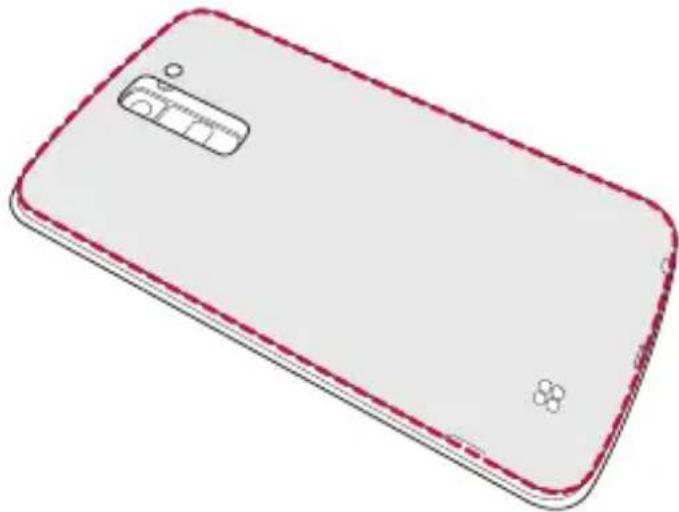

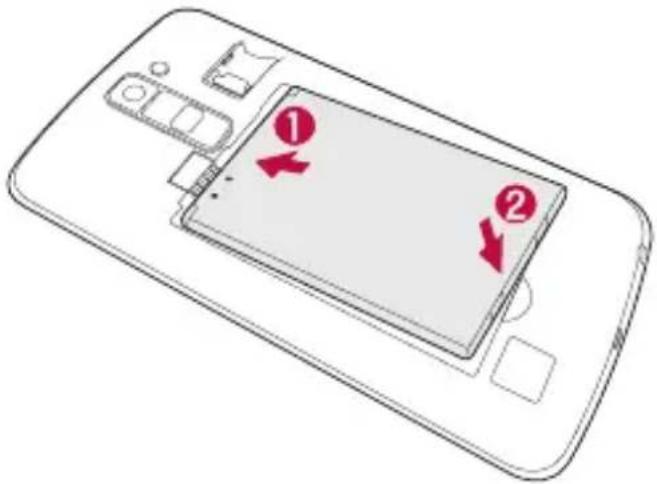

4 To replace the cover onto the device, align the back cover over the battery compartment and press it down until it clicks into place. Charging the battery Charge the battery before using it for first time. Use the charger to charge the battery. A computer can also be used to charge the battery by connecting the device to it using the USB cable. WARNING

Use only LG-approved chargers, batteries and cables. If you use unapproved chargers, batteries or cables, it may cause battery charging delay. Or this can cause the battery to explode or damage the device, which are not covered by the warranty.Basics

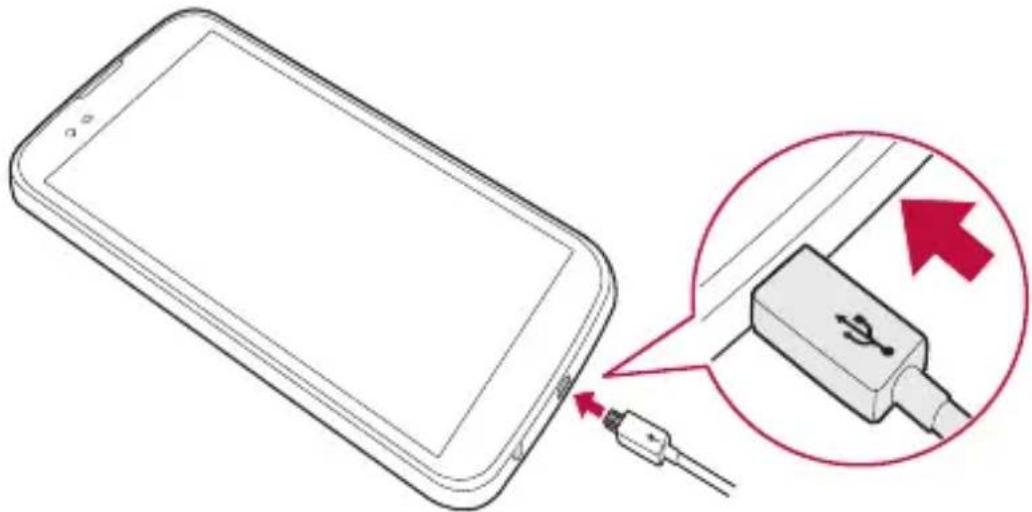

The charger connector is located at the bottom of the device. Insert the charger and plug it into a power outlet. Optimizing battery life Extend your battery's power by turning off features that you do not need to run constantly in the background. You can monitor how applications and system resources consume battery power. Extending your device battery life:

Turn off radio communications when you are not using. If you are not using Wi-Fi, Bluetooth® or GPS, turn them off.

Reduce screen brightness and set a shorter screen timeout.

Turn off automatic syncing for Gmail, Calendar, Contacts and other applications.

Some applications you download may consume battery power.

While using downloaded applications, check the battery charge level.Basics

Inserting the memory card Your device supports up to a 32GB microSD card. Depending on the memory card manufacturer and type, some memory cards may not be compatible with your device. WARNING

Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it. NOTE

Frequent writing and erasing of data shortens the lifespan of memory cards. 1 Remove the back cover. 2 Insert a memory card with the gold-coloured contacts facing downwards. 3 Replace the back cover.Basics

Removing the memory card Before removing the memory card, first unmount it for safe removal. Tap > > > General tab > Storage & USB > . WARNING

Do not remove the memory card while the device is transferring or accessing information. Doing so can cause data to be lost or corrupted or damage to the memory card or device. It is not responsible for losses that result from the misuse of damaged memory cards, including the loss of data. Touch screen tips Here are some tips on how to navigate on your device. NOTE

Do not press too hard; the tap screen is sensitive enough to pick up a light, yet firm tap.

Use the tip of your finger to tap the option you want. Be careful not to tap any other buttons. Tap or touch A single finger tap selects items, links, shortcuts and letters on the on-screen keyboard.Basics

Touch and hold Touch and hold an item on the screen by tapping it and not lifting your finger until an action occurs. Drag Touch and hold an item for a moment and then, without lifting your finger, move your finger on the screen until you reach the target position. You can drag items on the Home screen to reposition them. Swipe or slide To swipe or slide, quickly move your finger across the surface of the screen, without pausing when you first tap it (so you don't drag an item instead).Basics

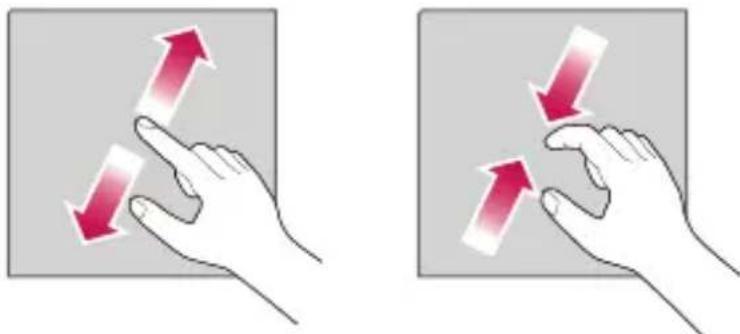

Double-tap Double-tap to zoom on a webpage or a map. Pinch-to-Zoom Use your index finger and thumb in a pinching or spreading motion to zoom in or out when using the browser, Maps, or when viewing pictures.Basics

Google account setup The first time you open a Google application on your device, you will be required to sign in with your existing Google account. If you do not have a Google account, you will be prompted to create one. Creating your Google account 1 Tap > > > General tab > Accounts & sync. 2 Tap ADD ACCOUNT > Google > Or create a new account. 3 Enter your first and last name, then tap NEXT. 4 Enter your device number for security tap NEXT. 5 Follow the instructions and enter the required and optional information about the account. Wait while the server creates your account. Signing into your Google account 1 Tap > > > General tab > Accounts & sync. 2 Tap ADD ACCOUNT > Google. 3 Enter your email address and tap NEXT. 4 Enter your password and tap NEXT. 5 After signing in, you can use Gmail and take advantage of Google services. 6 Once you have set up your Google account, your device will automatically synchronise with your Google account on the web (if a data connection is available). After signing in, your device will sync with your Google services, such as Gmail, Contacts, and Google Calendar. You can also use Maps, download applications from Play Store, back up your settings to Google servers, and take advantage of other Google services on your device.Basics

Locking and unlocking the device Pressing the Power/Lock Key turns off the screen and puts the device into lock mode. The device automatically gets locked if it is not used for a specified period. This helps to prevent accidental taps and saves battery power. To unlock the device, press the Power/Lock Key and swipe the screen in any direction. KnockON The KnockON feature allows you to double-tap the screen to easily turn it on or off. Turning the screen on 1 Double-tap the centre of the Lock screen to turn the screen on. 2 Unlock the screen or access any of the available shortcuts or widgets. Turning the screen off 1 Double-tap an empty area of the Home screen or the status bar. 2 The screen will turn off. NOTE Tap on the centre area of the screen. If you tap on the bottom or the top area, the recognition rate may decrease. Knock Code The Knock Code feature allows you to create your own unlock code using a combination of knocks on the screen. You can access the Home screen directly when the screen is off by tapping the same sequence on the screen. NOTE Use the fingertip instead of finger nail to tap the screen for turning it on or off.Basics

Setting up the Knock Code feature 1 Tap > > > Display tab > Lock screen > Select screen lock > Knock Code. 2 Tap the squares in a pattern to set your Knock Code. Your Knock Code pattern can be 6 to 8 taps. Unlocking the screen using the Knock Code You can unlock the screen by tapping the Knock Code pattern you already set, when the screen turns off. Changing the screen lock method You can change the way that you lock the screen to prevent others accessing your personal information. 1 Tap > > > Display tab > Lock screen > Select screen lock. 2 Select a desired screen lock from None, Swipe, Knock Code, Pattern, PIN and Password. Smart Lock You can use Smart Lock to make unlocking your device easier. You can set it to keep your device unlocked when you have a trusted Bluetooth device connected to it, when it's in a familiar location like your home or work, or when it recognises your face. Setting up Smart Lock feature 1 Tap > > > Display tab > Lock screen > Smart Lock. 2 Before you add any trusted devices, trusted places, or trusted face, you need to set up a screen lock (Knock Code, Pattern, PIN or Password).Basics

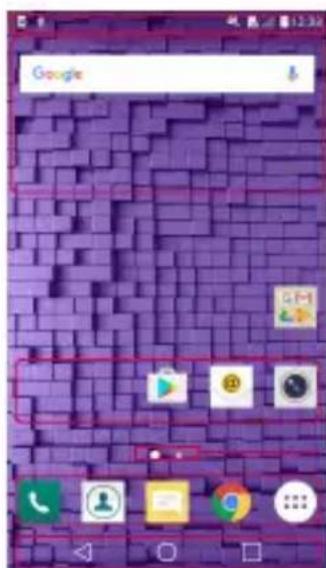

Home screen The Home screen is the starting point for many applications and functions. It allows you to add items like app shortcuts and Google widgets to give you instant access to information and applications. This is the default canvas and accessible from any menu by tapping . Getting to Know the Home Screen Status Bar Application Icons Widget Location Indicator Quick Button Area Home Touch Buttons

Status Bar - Shows the device status information, including the time, signal strength, battery status and notification icons.

Widget - Widgets are self-contained applications that can be accessed through the Apps drawer or on the Home screen. Unlike a shortcut, a Widget can function as an on-screen application.

Application Icons - Tap an icon (application, folder, etc.) to open and use it.

Location Indicator - Indicates which Home screen canvas you are currently viewing.

Quick Button Area - Provides one-touch access to the function in any Home screen canvas.Basics

Home Touch Buttons Back Button Returns to the previous screen. Also closes pop- up items, such as menus, dialog boxes and the on-screen keyboard. Home Button Return to the Home screen from any screen. Overview Button Displays recently used applications. If you touch and hold this button, it opens a menu of available options. Viewing other Home screen panels The operating system provides multiple Home screen canvases to provide more space for adding icons, widgets and more.

Slide your finger left or right across the Home screen to access additional canvases. Returning to recently-used applications Multitasking is easy with Android; you can keep more than one application running at the same time. There is no need to quit an application before opening another. Use and switch between several open applications. Android manages each application, stopping and starting them as needed to make sure that idle applications don't consume resources unnecessarily. 1 Tap . A list of recently used applications will be displayed. 2 Tap the application you want to access. This does not stop the previous app from running in the background. Make sure to tap to back out of an app after using it.

To close an app from the recent apps list, swipe the app preview to the left or right. To clear all apps, tap Clear all.Basics

Customizing the Home screen You can customise your Home screen by adding apps and widgets and changing wallpapers. Adding items on your Home screen 1 Touch and hold the empty part of the Home screen. 2 In the Add Mode menu, select the item you want to add. You then see this added item on the Home screen. 3 Drag it to the desired location and lift your finger. NOTE

To add an application icon to the Home screen from the Apps screen, touch and hold the application you want to add. Removing an item from the Home screen While on the Home screen, touch and hold the icon you want to remove > drag it to . Adding an app to the Quick Button Area From the Apps screen or on the Home screen, touch and hold an application icon and drag it to the Quick Button Area. Then release it in the desired location. Removing an app from the Quick Button Area Touch and hold the desired Quick Button, drag it to . NOTE

The Apps Button cannot be removed.Basics

Customizing app icons on the Home screen 1 Touch and hold an application icon until it unlocks from its current position, then release it. The editing icon appears in the upper-right corner of the application. 2 Tap the application icon again and select the desired icon design and size. 3 Tap OK to save the change. Notifications panel Notifications alert you to the arrival of new messages, calendar events and alarms, as well as ongoing events, such as when you are on a call. Opening the notifications panel Swipe down from the status bar to open the notifications panel. To close the notifications panel, swipe the screen upwards or tap .

Tap each quick setting button to toggle it on/off. Touch and hold the desired button to directly access the settings menu for the function. To see more toggle buttons, swipe left or right. Tap to remove, add or rearrange quick setting buttons.

Current notifications are listed, each with a brief description. Tap a notification to view it.

Tap to clear all the notifications. When a notification arrives, its icon appears at the top of the screen. Icons for pending notifications appear on the left, and system icons, such as Wi-Fi and battery strength are shown on the right. Indicator icons on the Status Bar Indicator icons appear on the status bar at the top of the screen to report missed calls, new messages, calendar events, device status and more. Notification icons Status icons The icons displayed at the top of the screen provide information about the status of the device. The icons listed in the table below are some of the most common ones. Icon Description Icon Description No SIM card inserted A song is currently playing No network signal available Ringer is silenced Airplane mode is on Vibrate mode is on Connected to a Wi-Fi network Battery fully chargedBasics

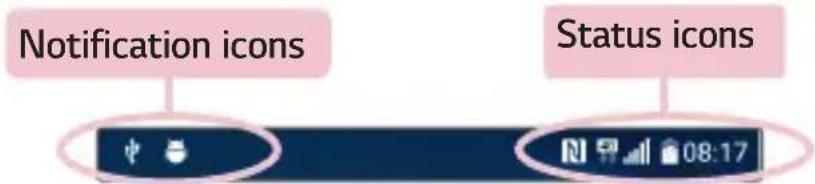

Wired headset connected Battery is charging Call in progress The device is connected to a PC via a USB cable Missed call Downloading data Bluetooth is on Uploading data System warning GPS is on An alarm is set Data is synchronizing New voicemail available Choose input method New text or multimedia message Wi-Fi hotspot is active NFC is on NOTE

The icon's location in the status bar may differ according to the function or service.

The available options may vary depending on the region or service provider. Capturing a screenshot Press and hold the Volume Down Key and the Power/Lock Key at the same time for 2 seconds to capture a screenshot of the current screen. To view the captured image, tap > > > Screenshots folder.Basics

On-screen keyboard You can enter text using the on-screen keyboard. The on-screen keyboard appears on the screen when you tap an available text entry field. Using the keypad and entering text Icon Description Tap once to capitalise the next letter you type. Double-tap for all caps. Tap to go to the keyboard settings. Touch and hold to change entering text method. Tap to enter a space. Tap to create a new line. Tap to delete the previous character. Entering special characters The on-screen keyboard allows you to enter special characters. For example, to input "á", touch and hold the "a" button until the pop-up appears and displays related special characters. Without lifting the finger, drag your finger to the desired special character. Once it's highlighted, lift your finger. NOTE

A symbol at the top right corner of a key indicates that additional characters are available for that key.Basics

Transferring data between a PC and the device You can copy or move data between a PC and the device. Transferring data using USB connection 1 Connect your device to a PC using the USB cable that came with your device. 2 Open the Notifications panel, tap the current connection type, and select Mediadevice (MTP). 3 A window will pop-up on your PC, allowing you to transfer the desired data. NOTE

The LG Android Platform Driver is required to be installed on your PC to be able to detect the device.

LG Bridge You can back up your files such as contacts and images to your PC or update software of a device. NOTE

You can see detailed instructions on how to use LG Bridge in Help menu after installing and opening the program.

Supported features may vary depending on the device.

The LG unified USB driver is a program required to connect an LG device to a PC. It is automatically installed when installing LG Bridge. Features of LG Bridge

Back up and restore the data of your device via USB.

Update software of a device on your PC via USB. To download the LG Bridge software 1 Go to www.lg.com. 2 Tap the Search button and enter the model name to search for the model. 3 Select the model information and click GO. 4 Scroll down, select the PC SYNC tab > Windows or Mac OS > DOWNLOAD to download LG Bridge.AppsApps

Installing or uninstalling apps Play Store allows you to browse and search for free and paid applications. To open the Play Store app Tap > > . To open a screen with details about an app At any time while browsing in Play Store, tap an app to open its details screen. The App details screen includes a description, ratings, comments, and related information about the app. From this screen, you can download, install, uninstall, rate the app, and more. To uninstall applications 1 Tap > > > General tab > Apps. 2 Once all applications appear, scroll to and select the application you want to uninstall. 3 Tap Uninstall.Apps

Calls You can enjoy clear calling across the region. Making a call 1 Tap > . 2 Enter the number using the dialer. To delete a digit, tap . 3 After entering the desired number, tap to place the call. 4 To end the call, tap . NOTE

To enter "+" to make international calls, touch and hold . Calling your contacts 1 Tap > . 2 Scroll through the contact list. You can also enter the contact's name in the Search field or scroll along the alphabet letters on the right edge of the screen. 3 In the list that is displayed, tap the contact you want to call. Answering and rejecting a call

Swipe in any direction to answer an incoming call.

Swipe in any direction to decline an incoming call. NOTE

Swipe if you want to decline a call and send a message to the caller.Apps

Making a second call 1 During your first call, tap > Add call and enter the number. 2 Tap . 3 Both calls are displayed on the call screen. Your initial call is locked and put on hold. 4 Tap the displayed number to toggle between calls. Or tap to start a conference call. 5 To end all calls, tap . NOTE

You are charged for each call you make. Viewing your call logs 1 Tap > > Call logs tab. 2 View a list of all dialed, received and missed calls. NOTE

Tap any call log entry to view the date, time and duration of the call.

Tap > Delete all to delete all of the recorded items. Change your call settings You can configure call settings, such as call forwarding, as well as other special features offered by your carrier. 1 Tap > . 2 Tap > Call settings and configure the desired options.Apps

Contacts You can add contacts on your device and synchronise them with the contacts in your Google Account or other accounts that support syncing contacts. Searching for a contact 1 Tap > . 2 Tap Search contacts and enter the contact name using the keyboard. Matches are displayed as you begin to type. Adding a new contact 1 Tap > . 2 Enter the new contact's number. 3 Tap > Add to Contacts > New contact. 4 If you want to add a picture to the new contact, tap the image icon. Choose Take photo or Select from Gallery. 5 Enter the desired information for the contact. 6 Tap SAVE. Favourites contacts You can classify frequently called contacts as favourites. Adding a contact to your favourites 1 Tap > . 2 Tap a contact to view its details. 3 Tap the star at the top right of the screen. The star turns yellow.Apps

Removing a contact from your favourites list 1 Tap > > Favourites tab. 2 Choose a contact to view its details. 3 Tap the yellow star at the top right of the screen. The star turns a dark colour and the contact is removed from your favourites. Creating a group 1 Tap > > Groups tab. 2 Tap > New group. 3 Enter a name for the new group. You can also set a distinct ringtone for the newly created group. 4 Tap Add members to add contacts to the group and tap ADD. 5 Tap SAVE to save the group. NOTE

If you delete a group, the contacts assigned to that group will not be lost. They will remain in your contact list.Apps

You may be charged for each message you send. Please consult with your service provider. Sending a message 1 Tap > > . 2 Tap , then select one or more entries from your Contacts list.

Enter a contact name or contact number into the To field. As you enter the contact name, matching contacts appear. You can tap a suggested recipient and add more than one contact. 3 Tap the text field and start entering your message. 4 Tap to open the options menu. Choose from any of the available options. 5 Tap to attach the file that you want to share with message. 6 Tap Send to send your message. Conversation view Messages exchanged with another party are displayed in chronological order so that you can conveniently see and find your conversations. Changing your messaging settings Your device messaging settings are predefined to allow you to send messages immediately. You can change the settings based on your preferences.

Tap > > > Settings.Apps

Camera You can use the camera or camcorder to take and share pictures and videos.

Tap > > . Taking a photo 1 Frame your subject on the screen. 2 A square around the subject indicates that the camera has focused. 3 Tap to take a photo. Your picture will be automatically saved to the Gallery. Camera options on the viewfinder

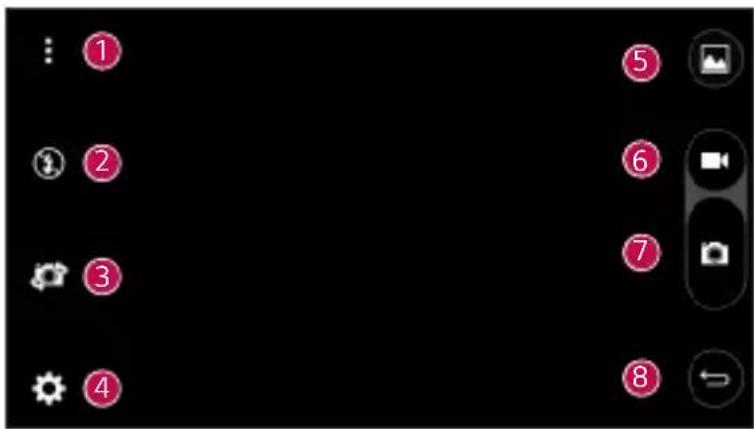

Tap to hide/display the camera options on the viewfinder.

Allows you to manage the camera's flash.

Tap to swap between the rear camera lens and the front camera lens.

Tap to view the last photo or video you recorded.

Tap to start recording.

Tap to take a photo.Apps

Tap to exit the camera. NOTE

Be sure to clean the protective lens cover with a microfiber cloth before taking pictures. A lens cover with smudges from fingers can cause blurry pictures with a "halo" effect. Using the advanced settings In the camera viewfinder, tap to show the advanced options. Tap each icon to adjust the following camera settings. Set the ratio of your picture and the quality of video. Allows you to take pictures with voice commands. When on, you just say "Cheese", "Smile", "LG", etc. to take a picture. Set your camera's timer. This is ideal if you want to be a part of the picture or video. Allows you to take better pictures and record better videos by displaying a grid line for help with alignment. Set the storage location for your pictures and videos. Choose from IN (internal memory) and SD (memory card). This menu appears only when the SD card is inserted. Allows you to learn how a function works. This icon will provide you with a help guide.Apps

Once you have taken a photo Tap the image thumbnail on the screen to view the last photo you took. Tap to edit the photo. Tap to take another photo immediately. Tap to open the available sharing options. Tap to delete the photo. Tap to access additional options. Tap to add the photo to your favourites. Recording a video 1 Tap > > . 2 Frame your subject on the screen. 3 Tap to start recording the video. 4 The length of the recording is displayed on the top of the screen. NOTE

Tap to take pictures while recording video. 5 Tap to pause recording video. You can resume recording again by tapping .

Tap to stop recording. Your video will be automatically saved to the Gallery.Apps

After recording a video Tap the video thumbnail on the screen to view the last video you recorded. Tap to record another video immediately. Tap to open the available sharing options (such as Messaging or Bluetooth) to share. Tap to delete the video. Tap to access additional options. Tap to add the video to your favourites Gallery The Gallery application presents the pictures and videos in your storage, including those you've taken with the Camera application and those you downloaded from the web or other locations. 1 Tap > > . 2 Tap an album to open it and view its contents. (The pictures and videos in the album are displayed in chronological order.) 3 Tap a picture in an album to view it. NOTE

Depending on the software installed, some file formats may not be supported.

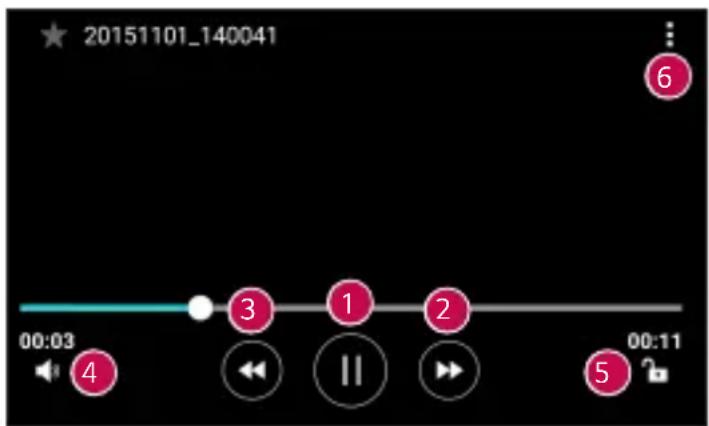

Some files may not play properly due to their encoding. Viewing pictures The Gallery displays your pictures in folders. When an application, such as E-mail, saves a picture, the download folder is automatically created to contain the picture. Likewise, capturing a screenshot automatically creates the Screenshots folder. Pictures are displayed by the date they were created. Select a picture to view it full screen. Scroll left or right to view the next or previous image.Apps

Editing photos While viewing a photo, tap . Setting wallpaper While viewing a photo, tap > Set image as to set the image as wallpaper or assign it to a contact. NOTE

Depending on the software installed, some file formats may not be supported.

If the file size exceeds the available memory, an error can occur when you open files. Zooming in and out Use one of the following methods to zoom in on an image:

Double-tap anywhere to zoom in.

Spread two fingers apart on any place in the picture zoom in. Pinch in or double-tap the image to zoom out. Playing a video 1 Tap > > . 2 Select the video you want to watch. Video options

Tap to pause/resume video playback.

Touch and hold to fast-forward incrementally. Tap to fast-forward 10 seconds.

Touch and hold to rewind incrementally. Tap to rewind 10 seconds.

Tap to adjust the video volume.

Tap to lock/unlock the screen.

Tap to access additional options. NOTE

While playing a video, slide the right side of the screen up or down to adjust the sound.

While playing a video, slide the left side of the screen up or down to adjust the brightness.

While playing a video, slide your finger from left to right (or vice versa) to fast- forward and rewind. Deleting photos/videos Use one of the following methods:

While in a folder, tap , select the photos/videos and then tap DELETE.

While viewing a photo, tap .Apps

E-mail You can use the Email application to read email from providers other than Gmail.TheEmailapplicationsupportsthefollowingaccounttypes:POP3, IMAP, Microsoft Exchange (for Enterprise users) and other accounts.

Tap > > . Adding an account The first time you open the Email application, a setup wizard opens to help you add an email account. You can also add your email account using the Settings app.

Tap > Settings > . Working with account folders

Tap > Show all folders. Each account has Inbox, VIP, Sent, Drafts and Show all folders. Depending on the features supported by your account's service provider, you may have additional folders. Composing and sending email 1 Tap . 2 Enter an address for the message's intended recipient. As you enter text, matching addresses will be offered from your contacts. Separate multiple addresses with semicolons. 3 Tap the Cc/Bcc field to copy or blind copy to other contacts/email addresses. 4 Tap the text field and enter your message. 5 Long press the text field to edit selected words (Bold/Italic/Underline/ Color). 6 Tap to attach the file you want to send with your message. 7 Tap to send the message.Apps

Changing an email general settings

Tap > Settings > General settings. Deleting an email account

Tap > Settings > > Remove account > Select the account to delete > REMOVE > YES. Music Your device has a music player that lets you play all your favourite tracks. NOTE

Depending on the software installed, some file formats may not be supported.

If the file size exceeds the available memory, an error can occur when you open files.

Music file copyrights may be protected by international treaties and national copyright laws. Therefore, it may be necessary to obtain permission or a licence to reproduce or copy music. In some countries, national laws prohibit private copying of copyrighted material. Before downloading or copying the file, please check the national laws of the relevant country concerning the use of such material. Playing a song 1 Tap > > . 2 Tap the Songs tab. 3 Select the song you want to play. 4 The following options are available.Apps

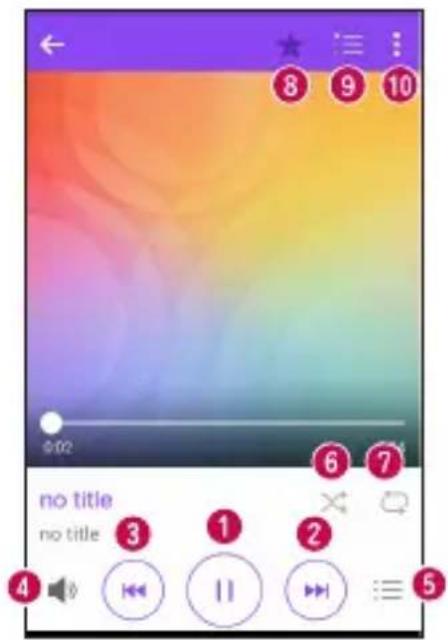

Music player options Tap to pause playback. Tap to resume playback. Tap to skip to the next track in the album, playlist or shuffle list. Touch and hold to fast-forward. Tap to restart the current track or skip to the previous track in the album, playlist or shuffle list. Touch and hold to rewind. Tap to adjust the volume. Tap to open the music library. Tap to play the current playlist in shuffle mode (tracks are played in random order). Tap to toggle through repeat all songs, repeat current song and repeat off. Tap to add the song to your favourites. Tap to open the current playlist. Tap to access additional options.Apps

Clock The Clock app gives you access to the Alarms, Timer, World clock and Stopwatch functions. Access these functions by tapping the tabs across the top of the screen or swiping horizontally across the screen.

Tap > > . Alarms The Alarms tab allows you to set alarms. 1 Tap Alarms tab. 2 Tap to add a new alarm. 3 Adjust the settings as necessary and tap SAVE. NOTE

You can also tap an existing alarm to edit it. Timer The Timer tab can alert you with an audible signal when a set amount of time has passed. 1 Tap Timer tab. 2 Set the desired time on the timer. 3 Tap Start to start the timer. 4 Tap Stop to stop the timer. World clock The World clock tab allows you to easily check the current time in other cities around the world. 1 Tap World clock tab. 2 Tap and select the desired city.Apps

Stopwatch The Stopwatch tab allows you to use your device as a stopwatch. 1 Tap Stopwatch tab. 2 Tap Start to initiate the stopwatch.

Tap Lap to record lap times. 3 Tap Stop to stop stopwatch. Calculator The Calculator app allows you to perform mathematical calculations using a standard or scientific calculator. 1 Tap > > . 2 Tap the number buttons to enter numbers. 3 Forsimplecalculations,tapthefunctionyouwanttoperform(+,–,xor ÷)followedby=. NOTE

For more complex calculations, tap . Calendar The Calendar app allows you to track your schedule of events. 1 Tap > > . 2 Tap the date you want to add an event to. Then tap .Apps

Voice Recorder The Voice Recorder app records audible files for you to use in a variety of ways. Recording a sound or voice 1 Tap > > . 2 Tap to begin recording. 3 Tap to end the recording. 4 Tap to listen to the recording. NOTE

Tap to access your recordings. You can listen to your saved recordings. Downloads Use this application to see what files have been downloaded through the applications.

Tap > > . FM Radio Your device has a built-in FM Radio so you can tune in to your favourite stations and listen on the go.

You must plug in your earphones in order to use them as an antenna.Apps

LG Backup About backing up and restoring device data It is recommended that you regularly create and save a backup file on the internal storage, especially before updating any software. Maintaining a current backup file in storage memory may allow you to recover device data if your device is lost, stolen, or corrupted by an unforeseen issue. This LG Backup application is supported LG device, other software or operating system versions. As a result, when you buy the new LG device, you can backup the current device data to your new device. If you have the LG Backup application preloaded on your device, you can backup and restore most of your data, including downloaded and pre- installed applications, bookmarks, calendar entries, contacts, home screen settings, and system settings. WARNING

To protect against an unexpected power off during backup or restore operations, due to insufficient battery power, you should always keep your battery fully charged. NOTE

All files that are stored on your device are deleted before the backup file is restored. Make sure to copy the backup file to another location.

Please note that your device data will be overwritten with the content of your backup.Apps

Google apps Google provides entertainment, social network, and business apps. You may require a Google account to access some apps. To view more app information, access each app’s help menu. NOTE

Some apps may not be available depending on the region or service provider. Google Search quickly for items on the Internet or your device. Chrome Search for information and browse webpages. Gmail Send or receive emails via the Google Mail service. Maps Find your location on the map, search for locations, and view location information for various places. YouTube Watch or create videos and share them with others. Drive Store your content on the cloud, access it from anywhere, and share it with others. Play Music Discover, listen to, and share music on your device. Play Movies & TV Watch videos stored on your device and download various content to watch from the Play Store.Apps

Hangouts Chat with your friends individually or in groups and use images, emoticons, and video calls while you are chatting. Photos Manage photos, albums, and videos that you have saved on the device and uploaded to Google+. Voice Search Search quickly for items by saying a keyword or phrase.SettingsSettings

Access the Settings menu The Settings app allows you to customize and personalize your device. Opening the settings app

Tap > touch and hold > System settings.

Tap > > . Viewing settings Tap to switch the view mode.

List view–Scrollupanddownthroughthelist.

Tab view–Swipeleftandrightortapthetabyouwant. NOTE The instructions to perform tasks in this guide are based on the default view setting. Networks Settings Wi-Fi You can use high-speed Internet access while within the coverage of the wireless access point (AP). On the Settings screen, tap Networks tab > Wi-Fi. 1 Tap to turn Wi-Fi on and start scanning for available Wi-Fi networks. 2 Tap a network to connect to it.

If the network is secured with a lock icon, you will need to enter a security key or password. 3 The status bar displays icons that indicate Wi-Fi status. NOTE If you are out of the Wi-Fi zone or have set Wi-Fi to Off, the device may automatically connect to the Web using data, which may incur data charges.Settings

Wi-Fi Direct Wi-Fi Direct provides a direct connection between Wi-Fi enabled devices without requiring an access point.

When in this menu, your device is visible to other visible Wi-Fi Direct devices nearby. Bluetooth Bluetooth is a short-range communications technology that allows you to connect wirelessly to a number of Bluetooth devices, such as headsets and hands-free car kits, and Bluetooth-enabled handhelds, computers, printers, and wireless devices. NOTE

LG is not responsible for the loss, interception or misuse of data sent or received via the Bluetooth feature.

Always make sure that you share and receive data with devices that are trusted and properly secured.

If there are obstacles between the devices, the operating distance may be reduced.

Some devices, especially those that are not tested or approved by Bluetooth SIG, may be incompatible with your device. Pairing your device with another Bluetooth device 1 On the Settings screen, tap Networks tab > Bluetooth. 2 Tap to turn Bluetooth on and start scanning for available Bluetooth devices.

If you want to detect the visible devices in range additionally, tap SEARCH. 3 Choose the device you want to pair with from the list. Once the paring is successful, your device connects to the other device.Settings

Pairing between two Bluetooth devices is a one-time process. Once a pairing has been created, the devices will continue to recognise their partnership and exchange information.

Please consult documentation included with Bluetooth device for information onpairingmodeandpasscode(typically0000–fourzeroes). Sending data via Bluetooth 1 Select a file or item such as a contact or media file. 2 Select the option for sending data via Bluetooth. 3 Search for and pair with a Bluetooth-enabled device. NOTE

Due to different specifications and features of other Bluetooth-compatible devices, display and operations may be different, and functions such as transfer or exchange may not be possible with all Bluetooth compatible devices. Receiving data via Bluetooth 1 On the Settings screen, tap Networks tab > Bluetooth. 2 Tap to turn Bluetooth on. 3 You will receive a request to accept a pairing attempt from the sending device. Be sure to select ACCEPT. Mobile data Displays the data usage and device data usage limit.

Tap to toggle your device data connection On or Off. This allows you to manage your device data usage. You can use a Wi-Fi network connection for data instead.Settings

Call Allows you to configure various call settings. On the Settings screen, tap Networks tab > Call.

Voicemail –Allowsyoutoselectyourcarrier'svoicemailservice.

Fixed dialing numbers–Allowsyoutomanageandcompilealistof numbers that can be called from your device. You need your PIN2, which is available from your operator. If activated, only numbers in the fixed dial list can be called from your device.

Incoming voice call pop-up–Displaysapop-upforanincomingcall when an app is in use.

Decline with message–Whenyouwanttodeclineacall,youcan send a quick message using this function. This is useful if you need to decline a call during a meeting.

Call forwarding –Allowsyoutochoosewhentoforwardcalls.

Auto answer –Setthetimebeforeaconnectedhands-freedevice automatically answers an incoming call.

Connection vibration –Vibratesyourdevicewhentheotherparty answers the call.

Save unknown numbers –Allowsyoutoaddunknownnumbersto contacts after a call.

Call barring–Locksincoming,outgoingorinternationalcalls.

Call duration –Allowsyoutoviewthecalldurationforvarioustypes of calls.

Additional settings–Allowsyoutochangethefollowingsettings such as Caller ID or Call waiting, etc.Settings

NFC Your phone is an NFC-enabled cell mobile phone. NFC (Near Field Communication) is a wireless connectivity technology that enables two-way communication between electronic devices. It operates over a distance of a few centimetres. You can share your content with an NFC tag or another NFC support device by simply tapping it with your device. If you tap an NFC tag with your device, it displays the tag content on your device. On the Settings screen, tap Networks tab > Share & connect > NFC 1 Tap to turn NFC on. 2 Allows you to send or receive files simply by bringing your phone and another data compatible device together (typically within 20mm of each other) at the NFC touchpoint.

Tap & pay–WhenNFCisturnedon,youcanusetheTap&pay feature to pay for items just by touching your phone to a reader at a register. If your phone doesn’t have a default app, you can browse Google Play Store for other payment apps. Android Beam When this feature is turned on, you can transfer app content to another NFC-capabledevicebyholdingthedevicesclosetogether.Justbringthe device together (typically back to back) and then tap your screen. The app determines what gets beamed. On the Settings screen, tap Networks tab > Share & connect > Android Beam 1 Tap to turn Android Beam on (Turn on Android Beam on each device). 2 Select the screen or files to share (e.g. images from Gallery). 3 Hold devices together. 4 Tap the screen that you want to send after shrinking the screen (Each app determines what is sent or received).Settings

Printing Allows you to print the content of certain screens (such as web pages displayed in Chrome) to a printer connected to the same Wi-Fi network as your Android device. On the Settings screen, tap Networks tab > Share & connect > Printing. USB tethering Allows you to share the internet connection with your computer via a USB cable. 1 Connect your device to your PC with a USB cable. 2 On the Settings screen, tap Networks tab > Tethering. 3 Tap to turn USB tethering on. Wi-Fi hotspot You can also use your device to provide a device broadband connection. Create a hotspot and share your connection. On the Settings screen, tap Networks tab > Tethering 1 Tap to turn Wi-Fi hotspot on. 2 Tap Set up Wi-Fi hotspot to change the SSID, security type, password, and other hotspot options. Bluetooth tethering Allows you to connect to other devices via Bluetooth.

On the Settings screen, tap Networks tab > Tethering.

Tap to turn Bluetooth tethering on to share your connection via Bluetooth tethering. Airplane mode Allows you to use many of your device features, such as games, and music, when you are in an area where making or receiving calls or data use is prohibited. When you set your device to Airplane Mode, it cannot send or receive any calls or access online data. On the Settings screen, tap Networks tab > More > Airplane mode.Settings

Mobile networks This menu allows you to configure various device network settings such as Network mode, Access point names, etc. On the Settings screen, tap Networks tab > More > Mobile networks. VPN From your device, you can add, set up, and manage virtual private networks (VPNs) that allow you to connect and access resources inside a secured local network, such as your corporate network. On the Settings screen, tap Networks tab > More > VPN. Sound & notication settings Allows you to change settings for various sounds on the device. On the Settings screen, tap Sound & notification tab.

Ringtone–Allowsyoutosettheringtonesforcalls.Youcanalsoadd and delete ringtones.

Ringtone ID - Allows you to compose ringtones based on phone number of incoming call.

Sound with vibration– Enable to set the device to vibrate in addition to the ringtone when you receive calls.

Do not disturb–Allowsyoutosetaschedulewhentoprevent interruptions from notifications. You can set to allow certain features to interrupt when Priority only is set.

Lock screen–Allowsyoutochooseifyouwanttoshoworhide notifications on the lock screen.

Apps–Allowsyoutosetnotificationsforindividualappsincluding preventing them from displaying notifications and setting priority.Settings

More settings Allows you to set other sound & notification settings. On the Settings screen, tap Sound & notification tab > More.

Notification sound–Allowsyoutosetthenotificationsound.You can also add and delete notification sounds.

Vibrate on tap – Enable to vibrate when tapping the Home touch buttons and during other UI interactions.

Sound effects –Thismenuletsyouselectwhetheryouheartones when tapping numbers on the dial pad, selecting on-screen options, and more.

Message/call voice notifications –Allowsyourdevicetoreadout incoming calls and message events automatically. Display settings Home screen Allows you to set your home screen settings. On the Settings screen, tap Display tab > Home screen.

Wallpaper –SetsthewallpapertouseonyourHomescreen.

Screen swipe effect –Choosethedesiredtypeofeffecttodisplay when you swipe from one Home screen canvas to the next.

Allow Home screen looping –EnabletoallowcontinuousHome screen scrolling (loop back to first screen after last screen).

Lock screen Allows you to set your lock screen settings. On the Settings screen, tap Display tab > Lock screen.

Select screen lock–Allowsyoutosetascreenlocktypetosecure your device.

Smart Lock–Setstokeepyourdeviceunlockedwithtrusteddevice or a place. If you need more information, please refer to Smart Lock section in Locking and unlocking the device.

Contact info for lost phone–Allowsyoutodisplaytheowner information on the lock screen in case the device is lost.

Lock timer–Allowsyoutosettheamountoftimebeforethescreen automatically locks after the screen has timed-out.

Power button instantly locks–Checkmarktoinstantlylockthe screen when the Power/Lock Key is pressed. This setting overrides the lock timer setting. Home touch buttons Set the Home touch buttons displayed at the bottom of all screens. Set which buttons are displayed, their position on the bar and what they look like. On the Settings screen, tap Display tab > Home touch buttons. More display settings Allows you to set other display settings. On the Settings screen, tap Display tab.

Brightness –Adjustthescreenbrightnessbyusingtheslider.Settings

Auto-rotate screen –Settoswitchorientationautomaticallywhen you rotate the device.

Screen timeout –Setthetimedelaybeforethescreenautomatically turns off.

Daydream–Selectthescreensavertobedisplayedwhenthedevice is sleeping while docked and/or charging.

Motion sensor calibration–Allowsyoutoimprovetheaccuracyof the tilt and speed of the sensor. General settings Language & keyboard Allows you to change the text input settings. Select the language for the text on your device and for configuring the on-screen keyboard, including words that you've added to its dictionary. On the Settings screen, tap General tab > Language & keyboard.

Language –Choosealanguagetouseonyourdevice.

Current keyboard –Allowsyoutoselectthecurrentkeyboardtype.

LG Keyboard –ChangetheLGKeyboardsettings.

Pointer speed –Adjustthepointerspeed.

Location Turn on location service, your device determines your approximate location using Wi-Fi and device networks. On the Settings screen, tap General tab > Location.

Mode –Setsthehowyourcurrentlocationinformationisdetermined.

Camera –Enabletotagphotosorvideoswiththeirlocations.

Google Location History –Allowsyoutochooseyourlocation information settings as accessed by Google and its products. Accounts & sync Use this menu to add, remove, and manage your Google and other supported accounts. You also use these settings to control how and whether all applications send, receive, and sync data on their own schedules and whether all applications can synchronize user data automatically. Gmail™, Calendar, and other applications may also have their own settings to control how they synchronize data; see the sections on those applications for details. On the Settings screen, tap General tab > Accounts & sync.

ACCOUNTS–Displaysallofyouraddedaccounts.Taponetoview and/ or manage it.

Accessibility Use the Accessibility settings to configure accessibility plug-ins you have installed on your device. On the Settings screen, tap General tab > Accessibility.

Vision –Setsoptionsforpeoplewithimpairedsight. - TalkBack –AllowsyoutosetuptheTalkBackfunctionwhichassists people with impaired vision by providing verbal feedback. - Message/call voice notifications –Enabletoallowsyoutohear automatic spoken alerts for incoming calls and messages. - Screen shade –Enabletosetthescreentoadarkercontrast. - Font size –Setsthefontsize. - Touch zoom–Allowsyoutozoominandoutbytriple-tappingthe screen. - Screen colour inversion –Enabletoinvertthecoloursofthescreen and content. - Screen colour adjustment–Allowsyoutoadjustthecoloursof screen and content. - Screen colour filter–Allowsyoutochangethecoloursofscreen and content. - Power key ends call –Enablesothatyoucanendvoicecallsby pressing the Power/Lock Key.

Hearing –Setsoptionsforpeoplewithimpairedhearing. - Captions–Allowsyoutocustomisecaptionsettingsforthosewith hearing impairments. - Flash alerts –Enabletosettheflashtoblinkforincomingcallsand notifications. - Turn off all sounds–Enabletoturnoffalldevicesounds. - Audio type–Setstheaudiotype. - Sound balance–Setstheaudioroute.Movethesliderontheslide bar to set it.Settings

Motor & cognition –Setsoptionsforpeoplewithimpairedmotor skills. - Touch feedback time–Setsthetouchfeedbacktime. - Touch assistant –Showatouchboardwitheasyaccesstocommon actions. - Screen timeout –Setstheamountoftimebeforethebacklight turns off automatically. - Touch control areas –Allowsyoutoselectanareaofthescreento limit touch activation to just that area of the screen.

Accessibility features shortcut –Allowyoutoaccessselected features quickly when triple-tapping the Home button.

Switch Access –Allowsyoutointeractwithyourdeviceusingoneor more switches that work like keyboard keys. This menu can be helpful for users with mobility limitations that prevent them from interacting directly with the your device. Shortcut keys Get quick access to apps by pressing the Volume Keys when the screen is off or locked. On the Settings screen, tap General tab > Shortcut keys.

Press the Volume Up Key twice to open the Capture+ app.

Press the Volume Down Key twice to launch the Camera app. Google Use Google Settings to manage your Google apps and account settings.Settings

Security Use this menu to configure how to help secure your device and its data. On the Settings screen, tap General tab > Security.

Encrypt phone–Allowsyoutoencryptdataonthedevicefor security. You will be required to enter a PIN or password to decrypt your device each time you power it on.

Encrypt SD card–EncryptSDcardstorageandkeepdataunavailable for other devices.

Set up SIM card lock–SetsthePINtolockyourSIMcardandallows you to change the PIN.

Password typing visible–Enabletobrieflyshoweachcharacterof passwords as you enter them so that you can see what you enter.

Phone administrators–Viewordeactivatedeviceadministrators.

Unknown sources–Allowinstallationofnon-PlayStoreapplications.

Verify apps –Disalloworwarnbeforeinstallationofappsthatmay cause harm.

Certificate management –Allowsyoutomanageyoursecurity certificates.

Usage access for apps –Allowsyoutoviewusageinformationof apps on your device. Quick Cover View With Quick Cover view, you can check incoming calls and stop alarm/timer when the cover is closed. To unlock with the cover, screen lock must be set to Swipe. On the Settings screen, tap General tab > Quick Cover View.Settings

Date & time Set your preferences for how the date and time is displayed. On the Settings screen, tap General tab > Date & time. Storage & USB You can monitor the used and available internal memory in the device. On the Settings screen, tap General tab > Storage & USB. INTERNAL STORAGE

Total space–Displaysthetotalamountofspaceandtheavailable space in your device internal memory in text and with a color-coded bar graph (unused space is gray). Corresponding apps and the amount of space they use is listed under each device user. SD CARD

Total space–Displaysthetotalamountofspaceandtheremaining available space in your memory card. Battery & power saving Displays the current battery status including the percentage of remaining charge and charging state. On the Settings screen, tap General tab > Battery & power saving.

Battery usage –Displaysthebatteryusagelevelandbatteryuse details. Tap one of the items to see more detailed information.

Battery percentage on status bar –Checkmarktodisplaythe battery level percentage on the status bar next to the Battery icon.

Battery saver –TaptheBatterySaverswitchtotoggleitonoroff. Sets the battery charge percent level that automatically turns on Battery Saver. Memory You can monitor the memory used averagely and the memory used by apps in the device.Settings

Apps Allows you to view details about the apps installed on your device, manage their data, and force them to stop. On the Settings screen, tap General tab > Apps. Default message app This menu allows you to choose what messaging app to use as your default messaging app. On the Settings screen, tap General tab > Default message app. Backup & reset Change the settings for managing your settings and data. On the Settings screen, tap General tab > Backup & reset.

LG Backup –Backsupallinformationonthedeviceandrestoresitin the event of data loss or replacement. If you need more information, please refer to LG Backup section in Apps.

Backup account –Displaystheaccountthatiscurrentlybeingused to back up information.

Network settings reset–Resetallnetworksettings.

Factory data reset –Resetyoursettingstothefactorydefault values and delete all your data. If you reset the device this way, you are prompted to re-enter the same information as when you first started Android. About phone View legal information, check device status and software versions, and perform a software update. On the Settings screen, tap General tab > About phone.AppendixAppendix

Device software update LG device software update from the Internet For more information about using this function, please visit http://www.lg.com/common/index.jsp select your country and language. This feature allows you to conveniently update the firmware on your device to a newer version from the Internet without needing to visit a service centre. This feature will only be available if and when LG makes a newer firmware version available for your device. Because the device firmware update requires the user's full attention for the duration of the update process, please make sure you check all instructions and notes that appear at each step before proceeding. Please note that removing the USB data cable during the upgrade may seriously damage your device. NOTE

LG reserves the right to make firmware updates available only for selected models at its own discretion and does not guarantee the availability of the newer version of the firmware for all handset models. LG device software update via Over-the-Air (OTA) This feature allows you to conveniently update your device software to a newer version via OTA, without connecting using a USB data cable. This feature will only be available if and when LG makes a newer firmware version available for your device. You should first check the software version on your device: Settings > General tab > About phone > Update Center > Software Update > Check now for update.Appendix

Your personal data from internal device storage—including information about your Google account and any other accounts, your system/application data and settings, any downloaded applications and your DRM licence—might be lost in the process of updating your device software. Therefore, LG recommends that you backup your personal data before updating your device software. LG does not take responsibility for any loss of personal data.

This feature depends on your network service provider, region and country. FAQ This chapter lists some problems you might encounter when using your device. Some problems require you to call your service provider, but most are easy to fix yourself. Message Possible causes Possible corrective measures SIM card error There is no SIM card in the device or it is inserted incorrectly. Make sure that the SIM card is correctly inserted. No network connection/ Dropped network Signal is weak or you are outside the carrier network. Move toward a window or into an open area. Check the network operator coverage map. Operator applied new services. Check whether the SIM card is more than 6~12 months old. If so, change your SIM card at your network provider's nearest branch. Contact your service provider.Appendix

Message Possible causes Possible corrective measures Codes do not match To change a security code, must need to confirm the new code by re-entering it. If you forget the code, contact your service provider. The two codes you entered do not match.

applications can be set Not supported by service provider or registration required. Contact your service provider. Downloaded application causes a lot of errors. Remove the application. 1 Tap > > . 2 Tap General tab > Apps. 3 Tap the app > Uninstall. Calls not available Dialing error New network not authorised. New SIM card inserted. Check for new restrictions. Pre-paid charge limit reached. Contact service provider or reset limit with PIN2. Device cannot be turned on On/Off key pressed too briefly. Press the On/Off key for at least two seconds. Battery is not charged. Charge battery. Check the charging indicator on the display.Appendix

Message Possible causes Possible corrective measures Charging error Battery is not charged. Charge battery. Outside temperature is too hot or cold. Make sure device is charging at a normal temperature. Contact problem Check the charger and its connection to the device. No voltage Plug the charger into a different outlet. Charger defective Replace the charger. Wrong charger Use only original LG accessories. Number not allowed. The Fixed dialling number function is on. Check the Settings menu and turn the function off. Impossible to receive/ send SMS & photos Memory full Delete some data, such as applications or messages from your device to make more memory available. Files do not open Unsupported file format Check the supported file formats. No sound Vibration mode Check the settings status in the sound menu to make sure you are not in vibration or no interruptions mode.Appendix

Message Possible causes Possible corrective measures Hangs up or freezes Intermittent software problem If the screen freezes or the device does not respond when you try to operate it, remove the battery and reinsert it. Then power the device back on.

Try to perform a software update through the website. Anti-Theft Guide You can set up your device to prevent other people from using it if it's been reset to factory settings without your permission. For example, if your device is lost, stolen, or wiped, only someone with your Google account or screen lock information can use the device. All you need to make sure your device is protected is:

Set a screen lock: If your device is lost or stolen but you have a screen lock set, the device can't be erased using the Settings menu unless your screen is unlocked.

Add your Google account on your device: If your device is wiped but you have your Google account on it, the device can't finish the setup process until your Google account information is entered again. After your device is protected, you'll need to either unlock your screen or enter your Google account password if you need to do a factory reset. This ensures that you or someone you trust is doing the reset. NOTE

Do not forget your Google account and password you had added to your device prior to performing a factory reset. If you can't provide the account information during the setup process, you won't be able to use the device at all after performing the factory reset.Appendix

More information Open source software notice information To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This offer is valid for three (3) years from the date on which you purchased the product. Trademarks

Copyright ©2016 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners.

Bluetooth is a registered trademark of Bluetooth SIG, Inc. worldwide.

Wi-Fi and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.

All other trademarks and copyrights are the property of their respective owners.Appendix

Declaration of conformity Hereby, LG Electronics declares that this LG-K420n product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.AcopyoftheDeclarationofConformitycanbe found at http://www.lg.com/global/declaration Contact office for compliance of this product LG Electronics European Shared Service Center B.V. Krijgsman 1, 1186 DM Amstelveen, The NetherlandsAppendix

Disposal of your old appliance 1 This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream. 2 Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources. 3 You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling Disposal of waste batteries/accumulators 1 This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery containsmorethan0.0005%ofmercury,0.002%of cadmiumor0.004%oflead. 2 All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3 The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health. 4 For more detailed information about disposal of your old batteries/ accumulators, please contact your city office, waste disposal service or the shop where you purchased the product.Allgemeine Anfragen <LG Informationscenter für Kunden> Service Hotline Österreich:

• Make sure the number is correct before making a call.
