USER MANUAL FGX870 H.KOENIG

To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the refrigerator.

DANGER or WARNING: Risk of child entrapment.

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous . . . even if they will "just sit in the garage a few days."

• Before you throw away your old refrigerator: Take off the door. Leave the shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the refrigerator.
• Never clean refrigerator parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other refrigerator. The fumes can create a fire hazard or explosion.
• This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards.
• Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a

similarly qualified person in order to avoid a hazard.

• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This device is intended for use in domestic and similar applications such as:
• kitchen areas in shops, offices and other work environments
• the farms
• in hotels, motels and other residential type environments
• guest rooms.
• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
• Keep the appliance and its power cord out of reach of children under 8 years of age.
• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
• Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this

is not the case, contact the dealer and do not connect the unit.

• Never leave the unit unattended while in operation.
• Please keep this document at hand and give it to the future owner in case of transfer of your device
• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

Refrigerant

The refrigerant gas contained in the circuit of this device is isobutane (R 600a), a low-polluting but flammable gas.

• When transporting and installing the appliance, take care not to damage any part of the refrigeration circuit

• Do not use any sharp or pointed tools to defrost the appliance.

• Do not use any electrical appliance inside the appliance. If the refrigeration system is damaged:

• Do not use a flame near the appliance.

• Avoid sparks - do not light any electrical appliance or flashlight.

Ventilate the room immediately

-Save these instructions-

INSTALLATION INSTRUCTIONS

Before Using Your Refrigerator

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
  1 Instruction Manual
• Before connecting the refrigerator to the power source, let it stand upright for approximately 2 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• Clean the interior surface with lukewarm water using a soft cloth.

- Installing Your Refrigerator

This appliance is designed to be free standing only, and should not be recessed or built-in.
- Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully loaded. To level your refrigerator, adjust the leveling leg at the bottom of the refrigerator.
- Allow 12cm of space between the back and sides of the refrigerator, which allows the proper air circulation to cool the compressor.
- Locate the refrigerator away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the refrigerator not to perform properly.
- Avoid locating the refrigerator in moist areas.
- Plug the refrigerator into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.
After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before placing food in the refrigerator compartment.

- Electrical Connection

Warning

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a two-pin plug which mates with standard two prong wall outlets to minimize the possibility of electrical shock.

Do not under any circumstances cut or remove the third ground prong from the power cord supplied.

This refrigerator requires a standard 220-240Volts A.C. /50Hz electrical outlet with two-prong ground.

The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury.

Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.

Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance.

- Reversing the Door Swing of Your Appliance

This refrigerator has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please call customer service for reversal instructions.

- Setting the Temperature Control

• To control the internal temperature, adjust the control dial according to the ambient temperature or purpose of use.
• The first time you turn the unit on, set the temperature control to "6."
• The range of the temperature control is from position "OFF" to "6". After 24 to 48 hours, adjust the temperature control to the setting that best suits your needs. The setting of "3" should be appropriate for home or office refrigerator use.

NOTE:

• If the unit is unplugged, has lost power, or is turned off; you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the refrigerator will not start.

The Freezer Compartment

• This compartment is designed for the long term storage of frozen food.
• The storage life of frozen foods varies and the recommended storage time should not be exceeded. The instructions regarding the care of frozen foods should be followed when defrosting the unit.
• Pre-packed commercially frozen food should be stored in accordance with the frozen foods manufacturer's instructions for a three star frozen food storage compartment or home freezer.
• Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times.

CARE AND MAINTENANCE

Defrosting Your Refrigerator

Defrost the refrigerator when the frost accumulated on the evaporator is about 5mm (1/5 inch) thick. Set the thermostat dial to "OFF" position. Remove frozen or perishable foods. Defrost using usually takes a few hours. After defrosting, return the thermostat dial to the desired position. To defrost quickly remove all foods from the refrigerator and leave the door open. Never use a knife or other metal instrument to scrape ice/frost from the evaporator.

Cleaning Your Refrigerator

• Turn the temperature control to "OFF", unplug the refrigerator, and remove the food, shelves, and trays.
• Wash the inside surfaces with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quart of water.
• Wash the shelves and trays with a mild detergent solution.
• The outside of the refrigerator should be cleaned with mild detergent and warm water.
• Wring excess water out of the sponge or cloth before cleaning the area of the controls, or any electrical parts.
• Wash the outside cabinet with warm water and mild liquid

detergent. Rinse well and wipe dry with a clean soft cloth.

Vacation Time

• Short vacations: Leave the refrigerator operating during vacations of less than three weeks.

• Long vacations: If the refrigerator will not be used for several months, remove all food and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

- Moving Your Refrigerator

• Remove all the food.

• Securely tape down all loose items inside your refrigerator.

• Turn the leveling screw up to the base to avoid damage.

• Tape the door shut.

• Be sure the refrigerator stays secure in the upright position during transportation. Also protect the outside of refrigerator with a blanket, or similar item.

- Energy Saving Tips

• The refrigerator should be located in the coolest area of the room, away from heat producing appliances, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the refrigerator. This cuts down on frost build-up inside the refrigerator.
• Refrigerator storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the refrigerator less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

REVERSE THE DOOR OPENING

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING

• When replacing the door stop, the appliance must be disconnected from the power supply first.

NOTE

• Ask to another person to assist.
  You possibly need: screw wrench, Phillips screwdriver as well as a thin-blade screwdriver.

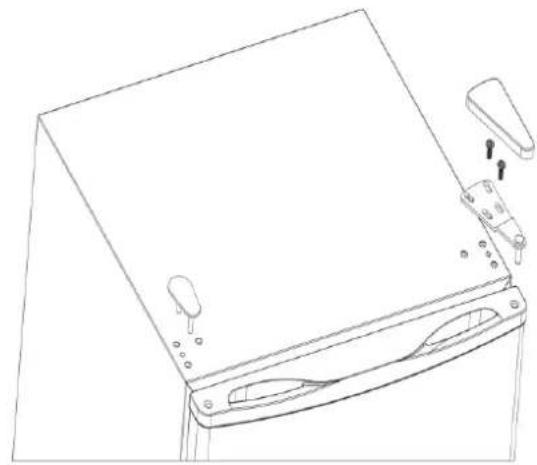

Step 1: Remove the plastic cover and hinge cover, Loosen the screws.

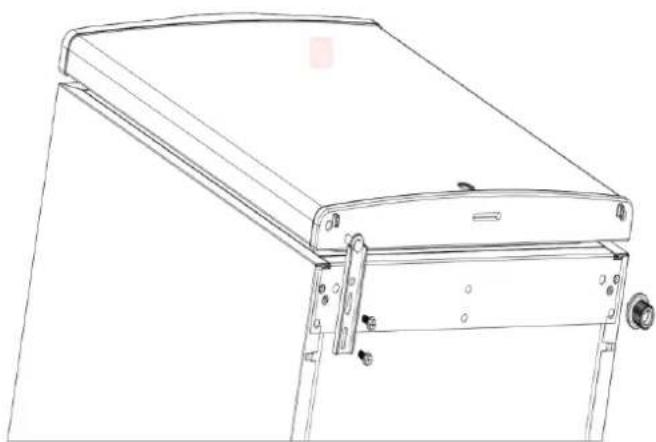

Step 2 : Disassemble the lower door hinge and the feet by loosening the screws.

Step 3 : Displace and fasten the bottom door hinge including the feet with the screws.

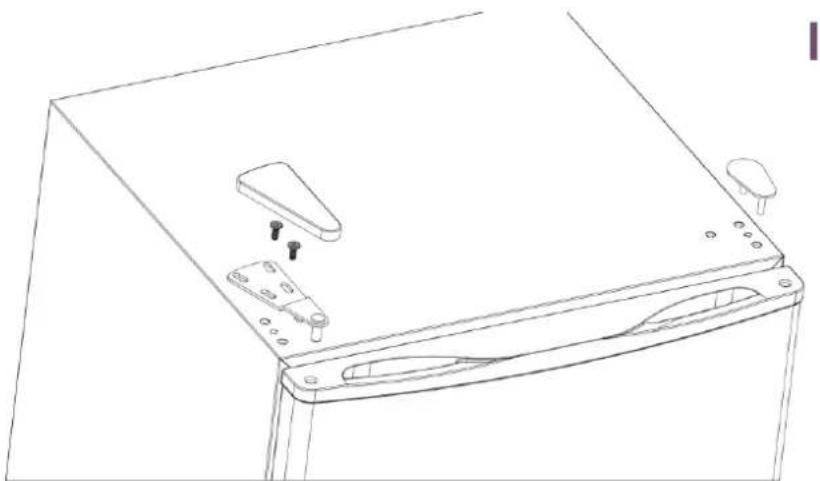

Step 4: Remove the top hinge and cover from right side to left side. Fasten the top door hinge with the screws, and cover the plastic cover and hinge cover.

PROBLEMS WITH YOUR REFRIGERATOR

You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

TROUBLESHOOTING GUIDE

PROBLEM	POSSIBLE CAUSE
Refrigerator does not operate.	Not plugged in.The circuit breaker tripped or a blown fuse.The refrigerator temperature control is set at "OFF".
Turns on and off frequently.	The room temperature is hotter than normal.A large amount of food has been added to the refrigerator.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.The refrigerator does not have the correct clearances.
Vibrations.	Check to assure that the refrigerator is level.
The refrigerator seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your refrigerator.Contraction and expansion of the inside walls may cause popping and crackling noises.The refrigerator is not level.
The door will not close properly.	The refrigerator is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves, bins, or baskets are out of position.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoeniq.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?" This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: HKOENIG
Supplier's address: rue Marc Seguin 8, 77290 Mitry Compans, FR
Model identifier: FGX870
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:		freestanding
Wine storage appliance:		No	Other refrigerating appliance:		Yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimetre)	Height	850	Total volume (dm3 or l)		113
	Width	545
	Depth	555
EEI		114	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		165	Climate class:		temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	Yes	96	4	-	A
Chill	No	-	-	-	-
0-star or ice-making	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	Yes	17	-18	2	M
2-star section	No	-	-	-	-
Variable temperat ure compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			Lighting technology used: LED; Non-directional or directional: -; Mains or non-mains: -; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: -
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: -

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and

electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 MitryMory - France

www.hkoenig.com - [e-mail] - [e-mail] - Tel: [phone]

FRANÇAIS

AVANT D'UTILISER L'APPAREIL, VEUILLEZ LIRE TOUTES LES RÉGLES DE SECURITÉ ET RESPECTER TOUTES LES INSTRUCTIONS.

RÉGLES IMPORTANTES DE SECURITÉ

ATTENTION

CONDITIONS DE GARANTIE

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: HKOENIG
Supplier's address: rue Marc Seguin 8, 77290 Mitry Compans, FR
Model identifier: FGX870
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:		freestanding
Wine storage appliance:		No	Other refrigerating appliance:		Yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimetre)	Height	850	Total volume (dm3or l)		113
	Width	545
	Depth	555
EEI		114	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		165	Climate class:		temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	Yes	96	4	-	A
Chill	No	-	-	-	-
0-star or ice-making	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	Yes	17	-18	2	M
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			Lighting technology used: LED; Non-directional or directional: -; Mains or non-mains: -; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: -
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: -

ENVIRONNEMENT

ATTENTION:

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: HKOENIG
Supplier's address: rue Marc Seguin 8, 77290 Mitry Compans, FR
Model identifier: FGX870
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:		freestanding
Wine storage appliance:		No	Other refrigerating appliance:		Yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimetre)	Height	850	Total volume (dm3or l)		113
	Width	545
	Depth	555
EEI		114	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		165	Climate class:		temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	Yes	96	4	-	A
Chill	No	-	-	-	-
0-star or ice-making	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	Yes	17	-18	2	M
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			Lighting technology used: LED; Non-directional or directional: -; Mains or non-mains: -; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: -
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: -

UMWELT

ACHTUNG:

INSTALLATIE INSTRUCTIES

PROBLEEMOPLOSSING HANDLEIDING

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: HKOENIG
Supplier's address: rue Marc Seguin 8, 77290 Mitry Compans, FR
Model identifier: FGX870
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:		freestanding
Wine storage appliance:		No	Other refrigerating appliance:		Yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimetre)	Height	850	Total volume (dm3 or l)		113
	Width	545
	Depth	555
EEI		114	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		165	Climate class:		temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	Yes	96	4	-	A
Chill	No	-	-	-	-
0-star or ice-making	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	Yes	17	-18	2	M
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			Lighting technology used: LED; Non-directional or directional: -; Mains or non-mains: -; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: -
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: -

MILIEU

ATTENTIE:

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: HKOENIG
Supplier's address: rue Marc Seguin 8, 77290 Mitry Compans, FR
Model identifier: FGX870
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:		freestanding
Wine storage appliance:		No	Other refrigerating appliance:		Yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimetre)	Height	850	Total volume (dm3 or l)		113
	Width	545
	Depth	555
EEI		114	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		165	Climate class:		temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	Yes	96	4	-	A
Chill	No	-	-	-	-
0-star or ice-making	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	Yes	17	-18	2	M
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			Lighting technology used: LED; Non-directional or directional: -; Mains or non-mains: -; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: -
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: -

MEDIO AMBIENTE

ATENCION:

Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016
Supplier's name or trademark: HKOENIG
Supplier's address: rue Marc Seguin 8, 77290 Mitry Compans, FR
Model identifier: FGX870
Type of refrigerating appliance:
Low-noise appliance:		No	Design type:		freestanding
Wine storage appliance:		No	Other refrigerating appliance:		Yes
General product parameters:
Parameter		Value	Parameter		Value
Overall dimensions (millimetre)	Height	850	Total volume (dm3 or l)		113
	Width	545
	Depth	555
EEI		114	Energy efficiency class		F
Airborne acoustical noise emissions (dB(A) re 1 pW)		39	Airborne acoustical noise emission class		C
Annual energy consumption (kWh/a)		165	Climate class:		temperate, subtropical
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		16	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable		38
Winter setting		No
Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or l)	Recommended temperature setting for optimised food storage (°C)These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry	No	-	-	-	-
Wine storage	No	-	-	-	-
Cellar	No	-	-	-	-
Fresh food	Yes	96	4	-	A
Chill	No	-	-	-	-
0-star or ice-making	No	-	-	-	-
1-star	No	-	-	-	-
2-star	No	-	-	-	-
3-star	No	-	-	-	-
4-star	Yes	17	-18	2	M
2-star section	No	-	-	-	-
Variable temperature compartment	-	-	-	-	-
For 4-star compartments
Fast freeze facility			No
Light source parameters:
Type of light source			Lighting technology used: LED; Non-directional or directional: -; Mains or non-mains: -; Connected light source (CLS): No; Colour-tuneable light source: No; Envelope: -; High luminance light source: No; Anti-glare shield: No; Dimmable: -
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: -

AMBIENTE

ATTENZIONE:
